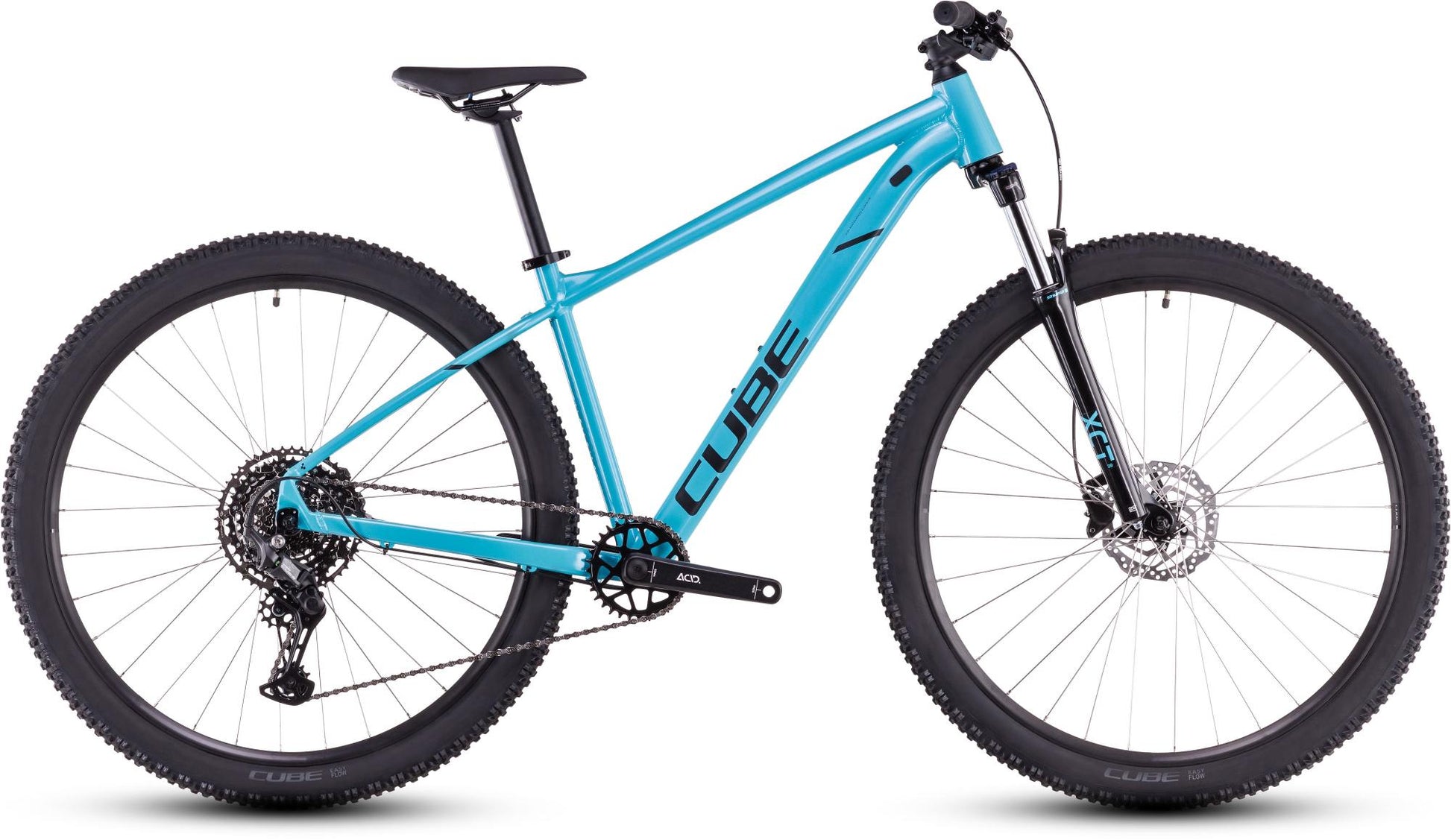

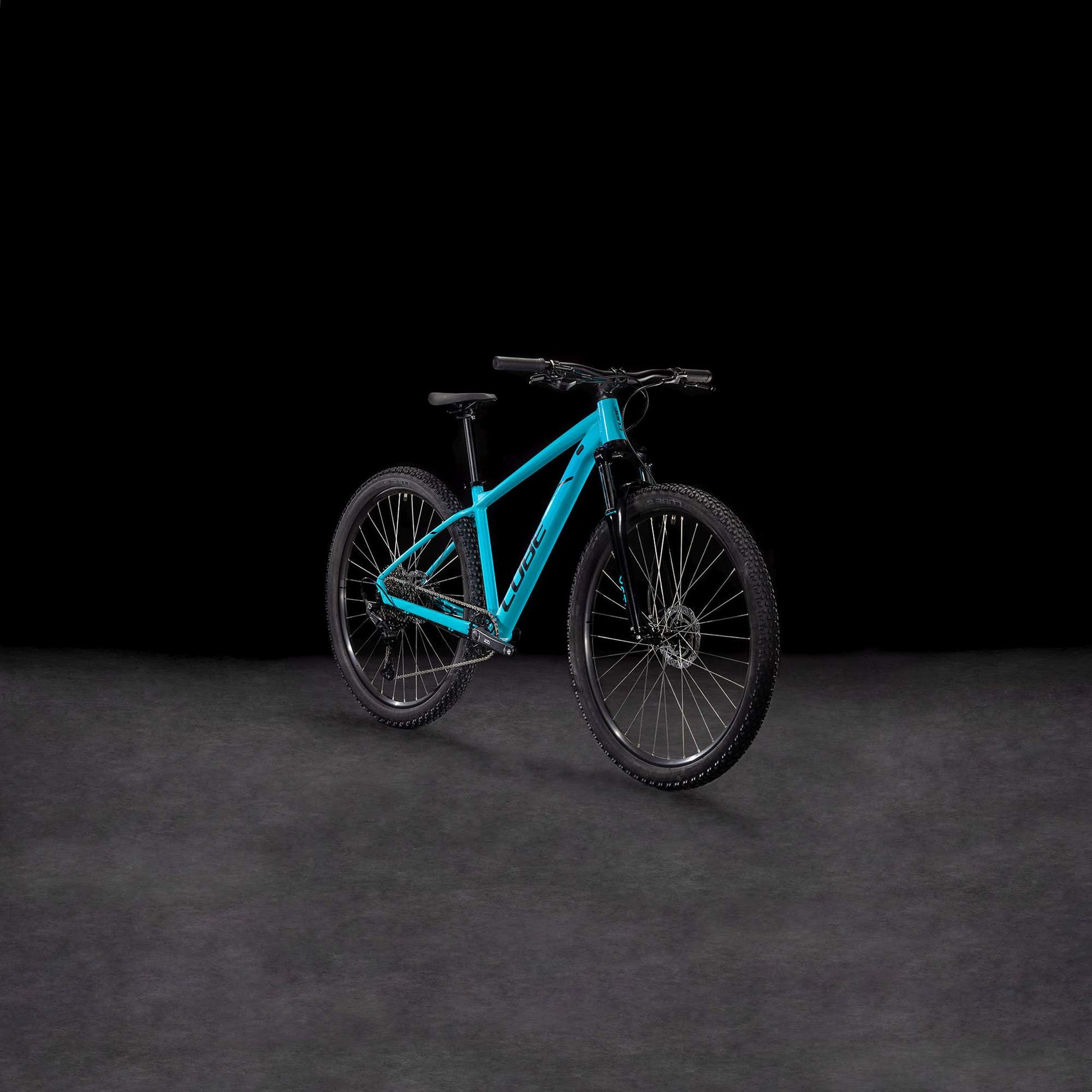

CUBE AIM RACE SWIMMINGPOOL/BLACK
CUBE AIM RACE SWIMMINGPOOL/BLACK
Plus Points
- Frame made of lightweight aluminum with smooth welds
- Low top tube for easy mounting and dismounting
- Great balance of agility and stability thanks to Agile Ride geometry
- Sleek appearance with internal cable routing

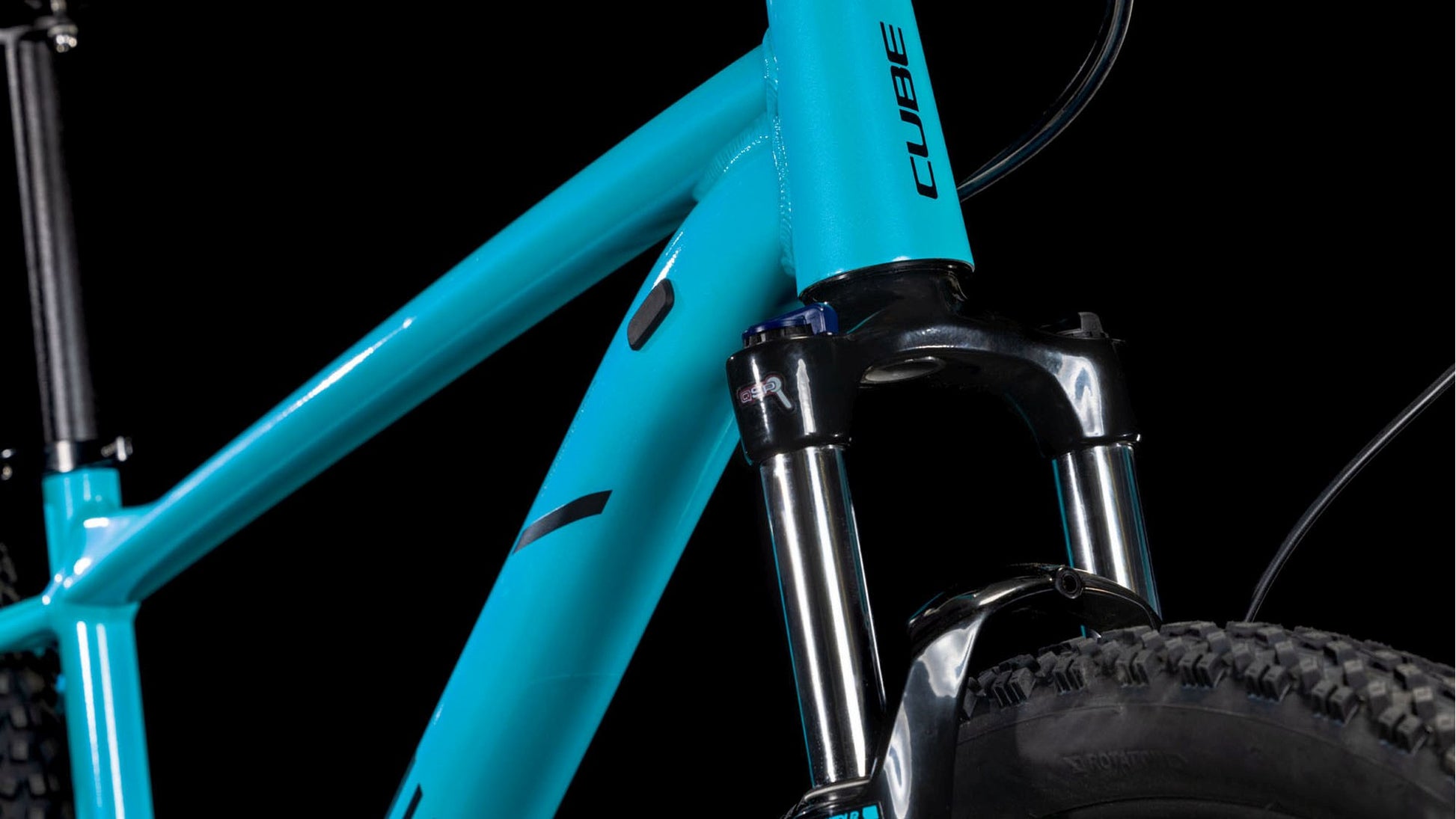

- Suspension fork with 100 mm of travel
- Durable Shimano Cues 1x10 drivetrain
- Size Split: 27.5 inch wheels in small sizes and 29 inch wheels in large sizes
- Integrated mounting points for fenders, luggage carrier, and rear kickstand
Advisory points
- Not the lightest version of the Aim
- No thru-axles
- No air suspension
- No 11-speed
Description
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
841110
Model year
2025
Colour
swimmingpool/black
Fork
SR Suntour XCT Disc, 100mm, Lockout
Drivetrain and brakes
Front brake
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Rear brake
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Rear derailleur
Shimano Cues RD-U6000-GS, 10-Speed
Shifters
Shimano Cues SL-U6000, Rapidfire-Plus

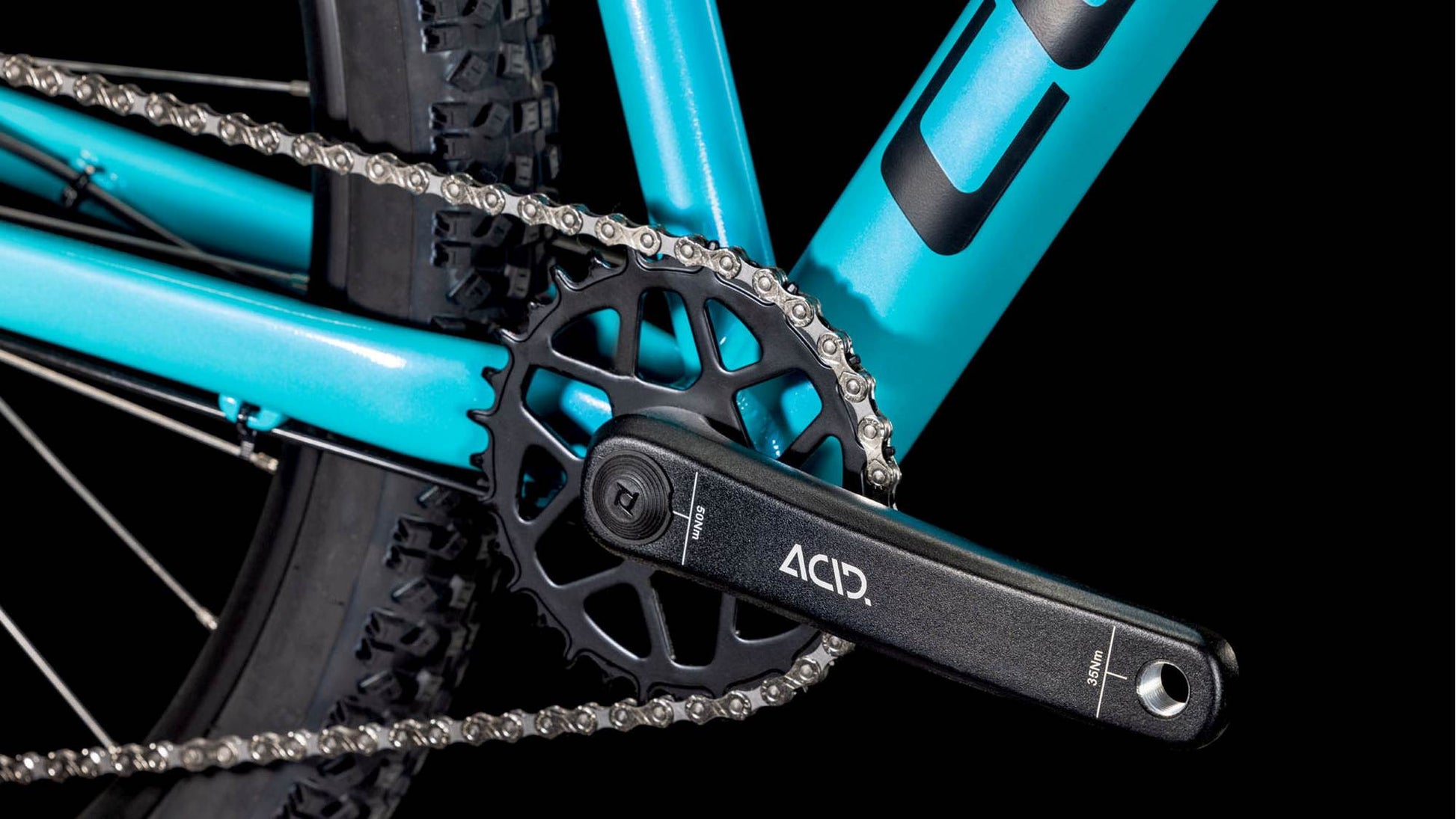

Crankset
Prowheel CC10Y-NW, 32T, 170mm
Cassette
Shimano Cues CS-LG400, 11-48T
Chain
KMC eGlide
Cockpit
Headset
Cube FPH868p, Tapered, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Bar tape or grips
Acid React
Wheels
Rims
Cube EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano HB-QC300, QR, Centerlock
Rear Hub
Shimano FH-QC300-HM, QR, Centerlock
Front tyre
Cube MTB, 2.25
Rear Tyre
Cube MTB, 2.25
Other parts
Saddle
Acid Venec Lite
Seatpost
Cube Performance Post, 27.2mm

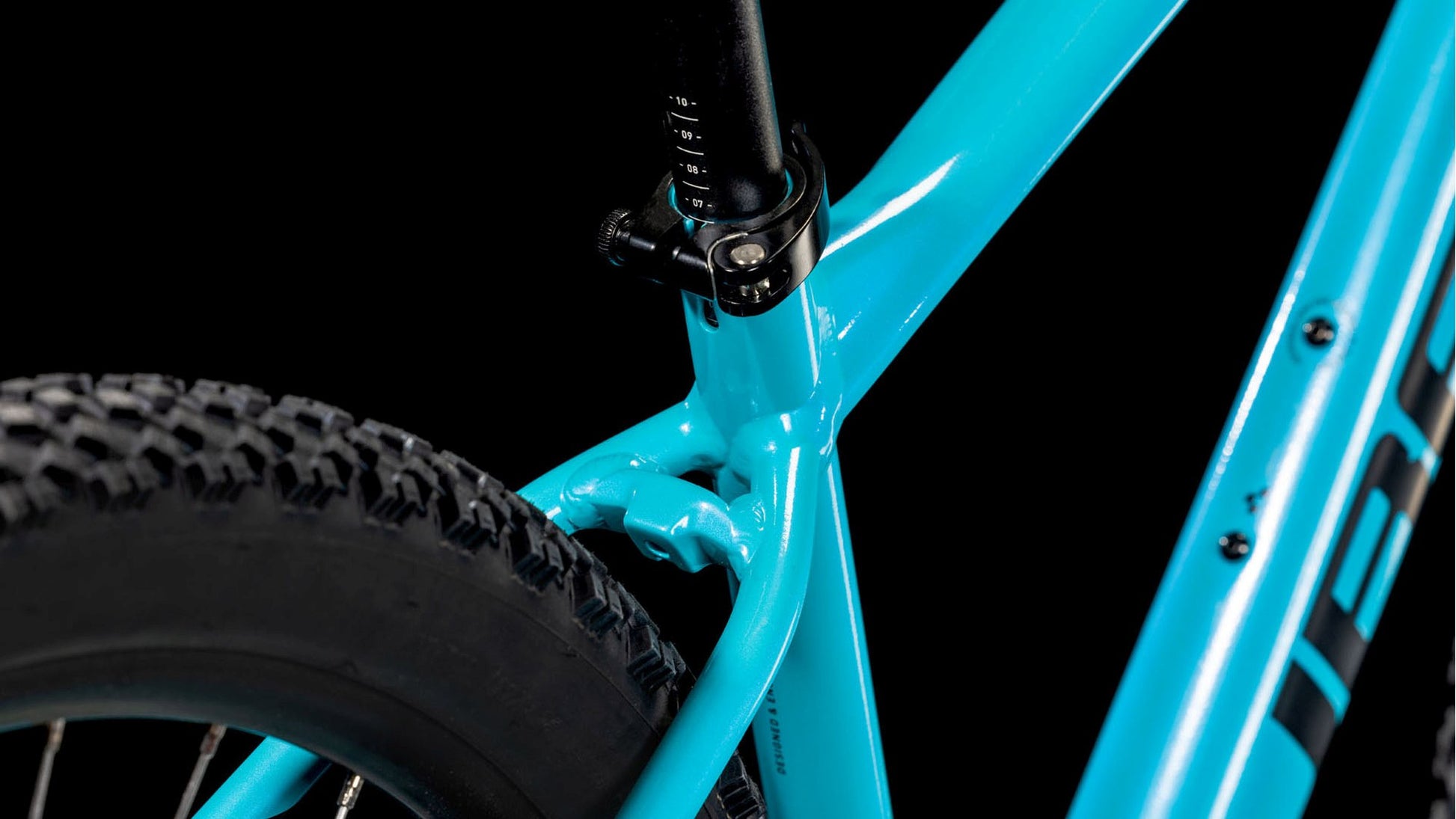

Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
Cube PP MTB
