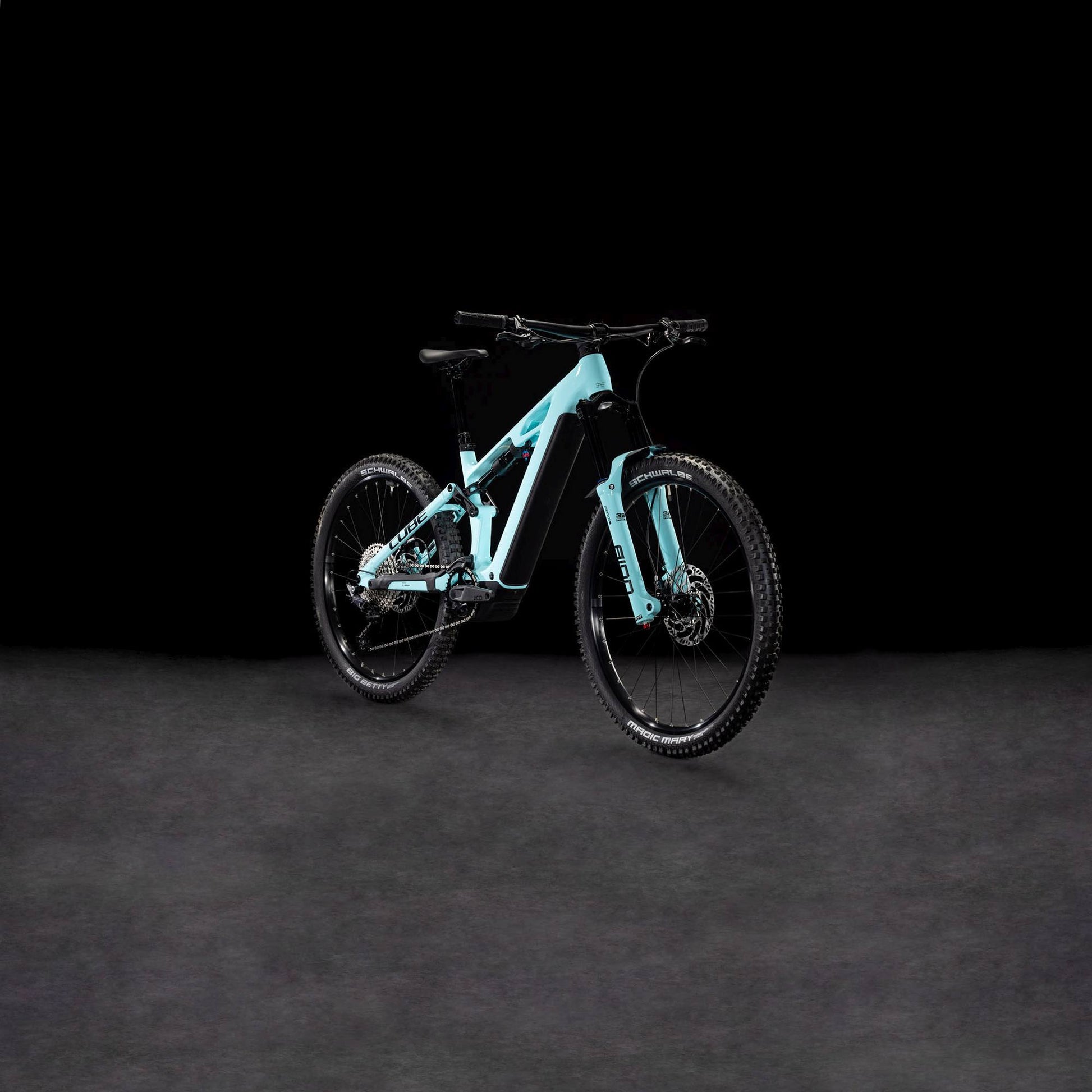

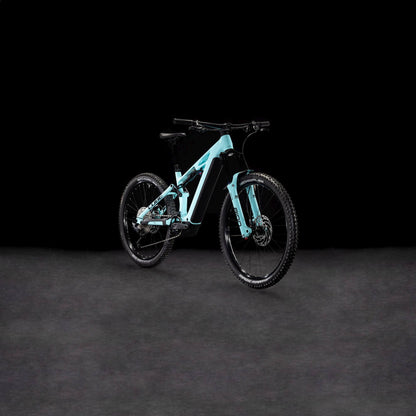

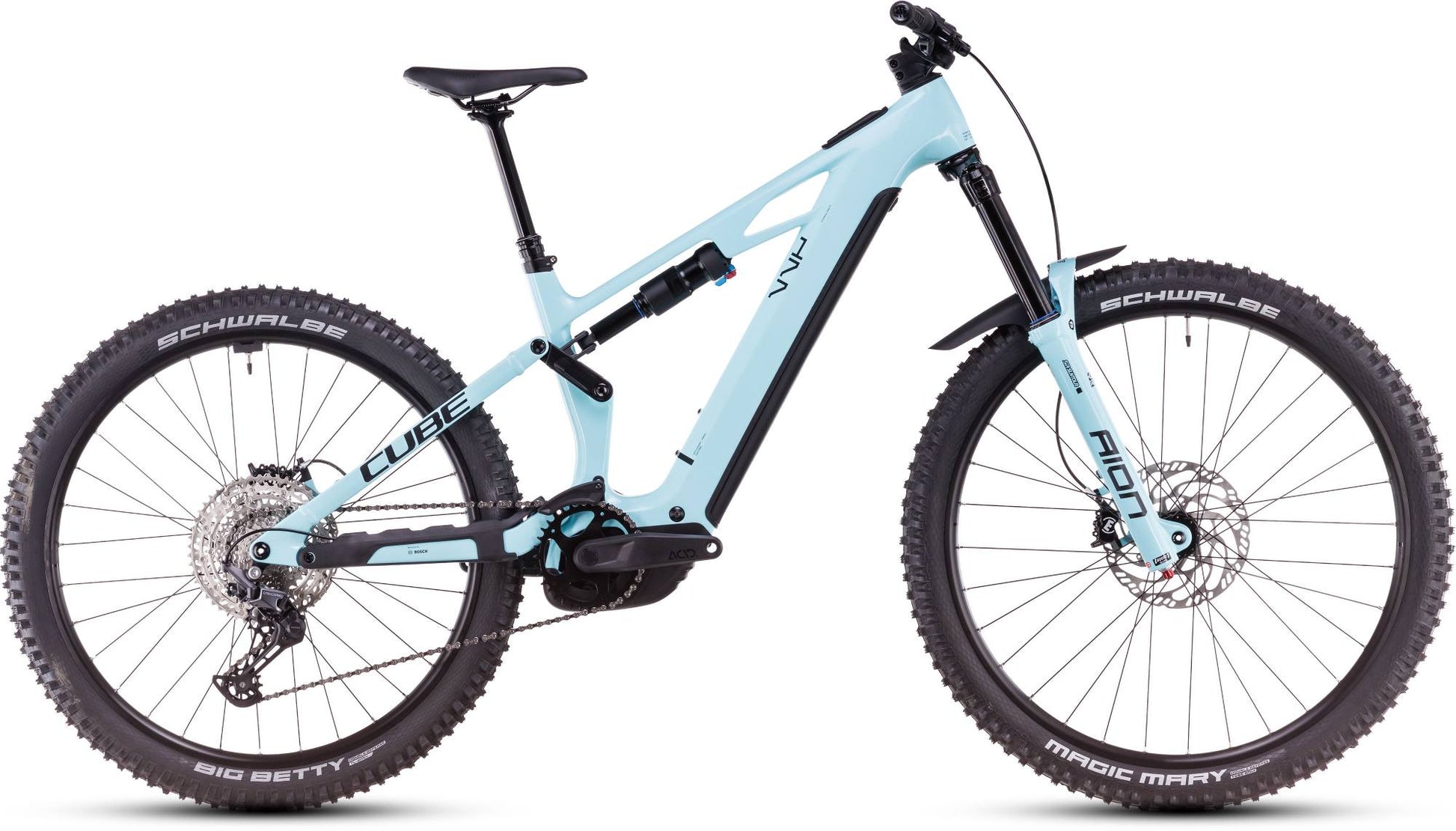

CUBE STEREO HYBRID ONE77 HPC RACE 800 DAZZLE/BLACK
CUBE STEREO HYBRID ONE77 HPC RACE 800 DAZZLE/BLACK
Plus Points
- Frame made of C:62 carbon, aluminum rear frame
- Mullet configuration (27.5 inch rear wheel, 29 inch front wheel)
- Vibrant and capable Agile Trail geometry
- Adjustable head tube angle
- Bosch CX motor (85 Nm)
- Bosch System Controller with Mini-Remote
- 800 Wh battery
- Suntour Aion 38X front fork with 170 mm travel
- Suntour Edge Evo rear shock with 170 mm travel
- 12-speed Shimano Deore shifting system
- Powerful Magura MT Thirty four-piston brakes
- Hydraulic dropper seatpost
- Strong CUBE wheels
- Grip-friendly Schwalbe Magic Mary and Big Betty
- UDH rear dropouts
Advisory points
- This is not the lightest Cube Stereo Hybrid ONE77 HPC
Description
- 85 Nm torque, 600 W max power, up to 340% assistance
- Up to 600 g lighter system weight (motor and battery) than the previous version
- Higher energy-density PowerTube batteries: 600 or 800 Wh
- Quieter while coasting and pedaling
- New Hill Hold system and Extended Boost for technical climbs
You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race 800 means business. But the devil, as always, is in the detail. The Bosch CX drive and 800 Wh PowerTube battery work with Shimano's reliable Deore 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Thirty hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Edge Evo 2 CR shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.
Frame description

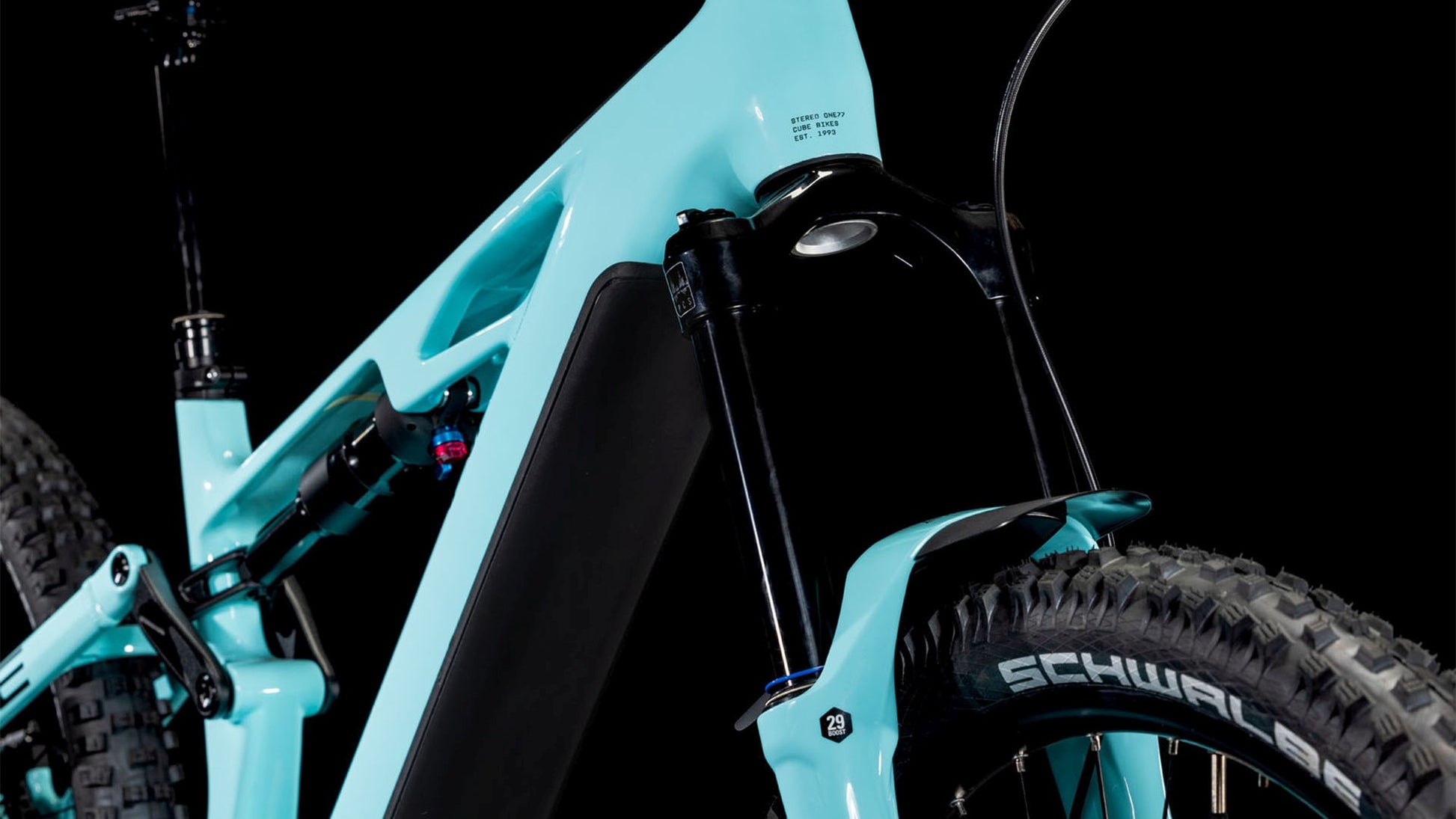

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800 Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
803120
Model year
2025
Colour
dazzle/black
Fork
SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm
E-bike System
Engine
Bosch Drive Unit Performance Line CX BDU38 Generation 5 (85Nm), Smart System
Battery
Bosch PowerTube 800
Drivetrain and brakes
Front brake
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear brake
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano Deore SL-M6100, Rapidfire-Plus
Crankset
Acid MTB Hybrid Pro, 36T
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
KMC e12
Cockpit
Headset
Acros AZF-675, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Handlebar
Cube Rise Trail Bar 35
Stem
Cube Performance Stem E-MTB 35, FPI-Link
Bar tape or grips
Acid Disrupt, Soft Compound
Wheels
Rims
Cube EX30, 32H, Disc, Tubeless Ready
Front hub
Cube Engineered By Newmen, 15mm, Boost, 6-Bolt
Rear Hub
Cube Engineered By Newmen, 12mm, Boost, 6-Bolt
Front tyre
Schwalbe Magic Mary, Performance, 2.4
Rear Tyre
Schwalbe Big Betty, Performance, 2.4
Other parts
Saddle
Acid Venec Lite
Seatpost
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp
Cube Semi-Integrated
Pedals
NONE
