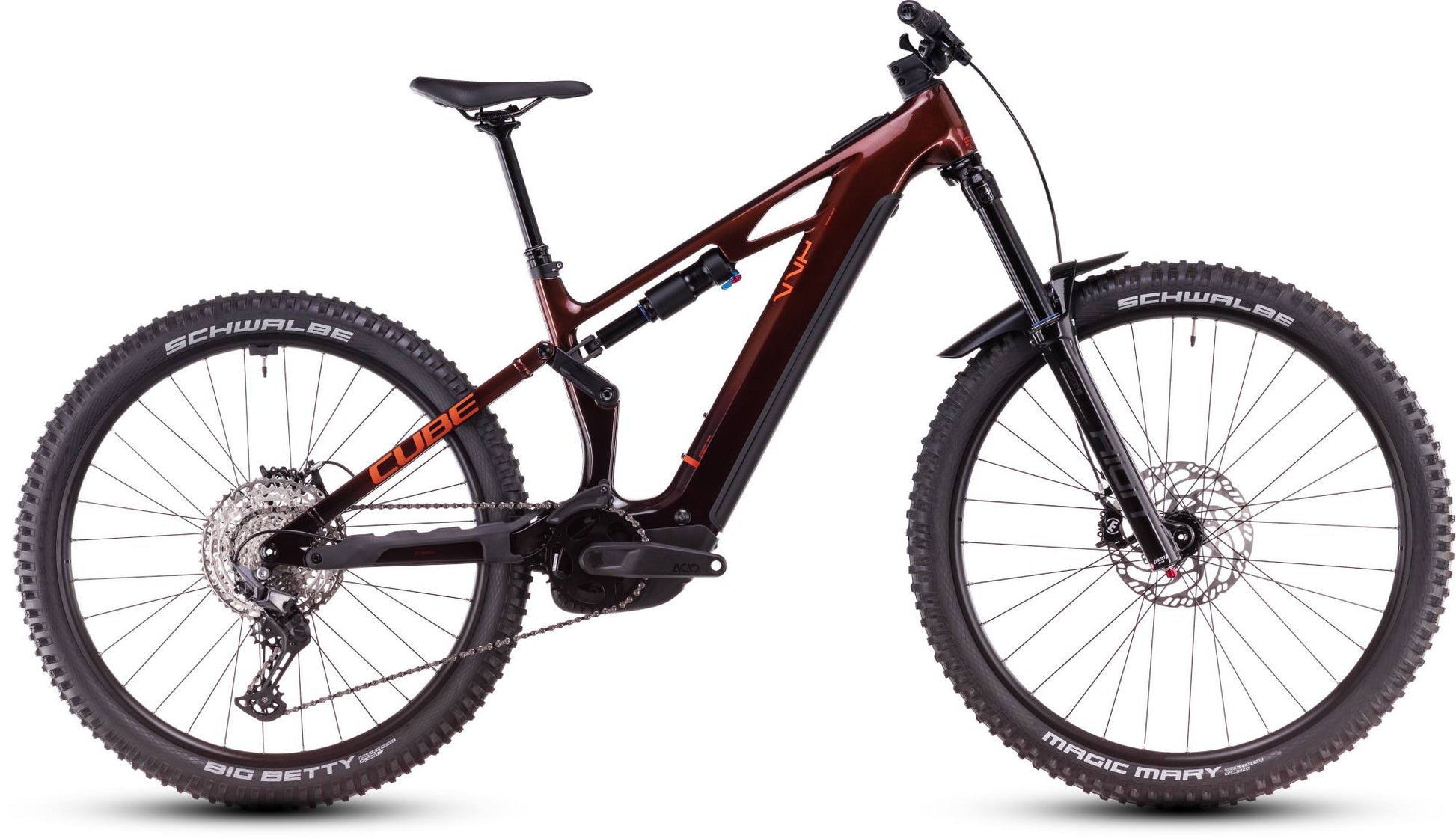

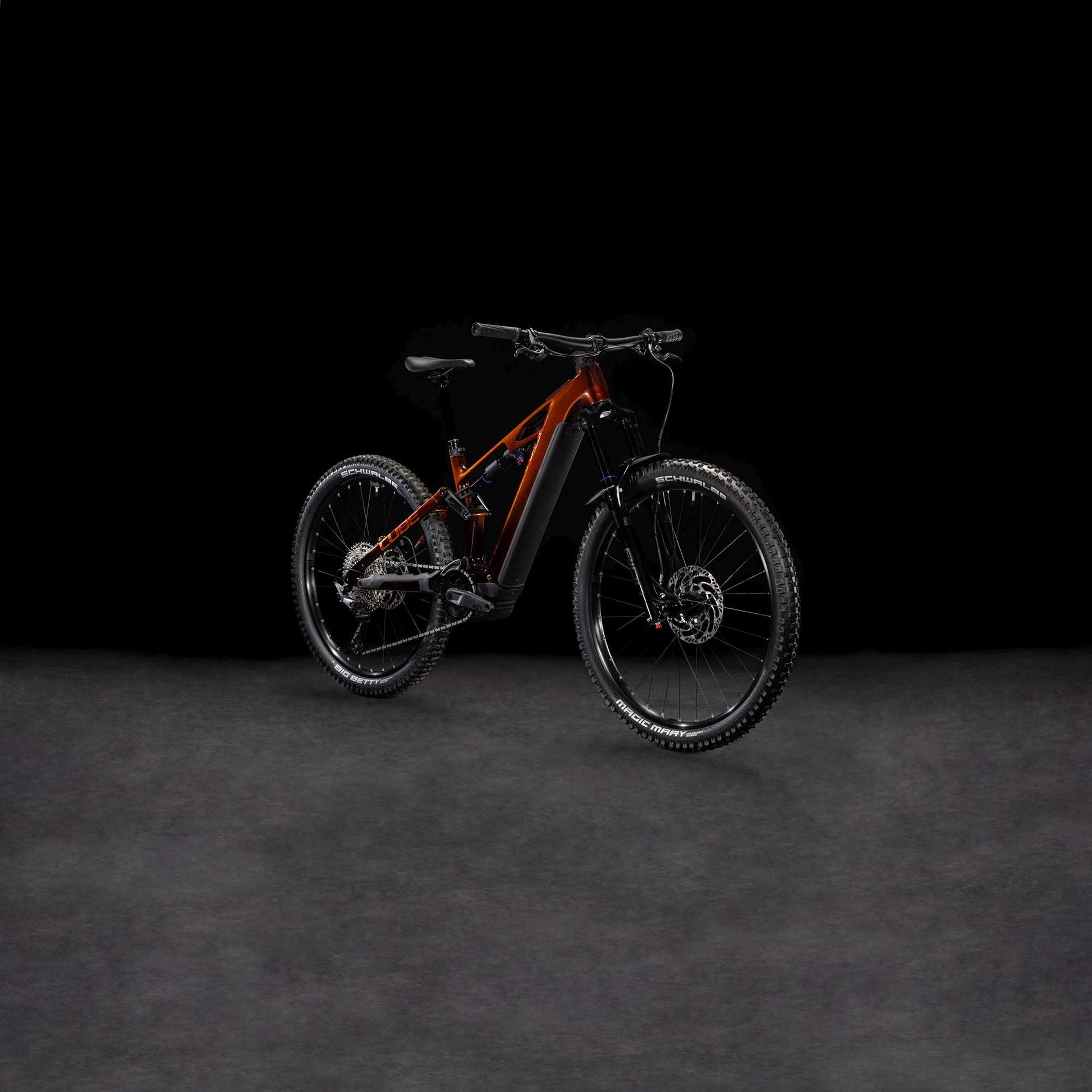

CUBE STEREO HYBRID ONE77 HPC RACE 800 LIQUIDORANGE/ORANGE

CUBE STEREO HYBRID ONE77 HPC RACE 800 LIQUIDORANGE/ORANGE

  • 803110
  • 803110_D_00
  • 803110_D_01
  • 803110_D_02
  • 803110_D_03
  • 803110_D_04
  • 803110_D_05
  • 803110_D_06
  • 803110_P_00
1 9
Choose your size or use our size guide.
£3,999.00
£3,999.00 0.00
Sale Sold out
Tax included.
Retail stock:
i
Click the store link for contact information
CUBE Store gloucester
Out of stock
  • Bikes mounted & delivered for free
  • 20 years of experience
  • Physical store for advice, service & maintenance
View full details
Description Calculate your size Specifications

Plus Points

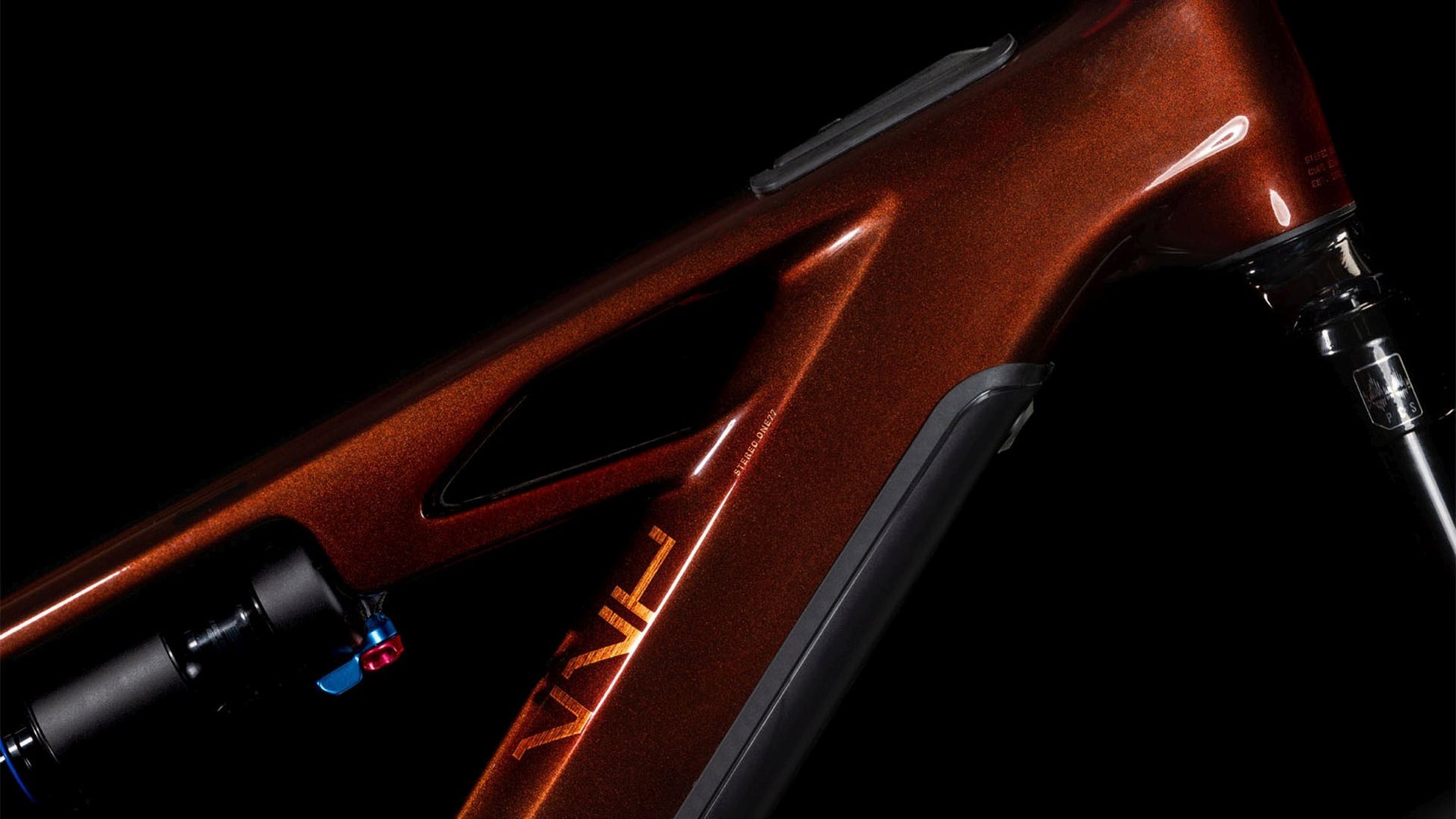

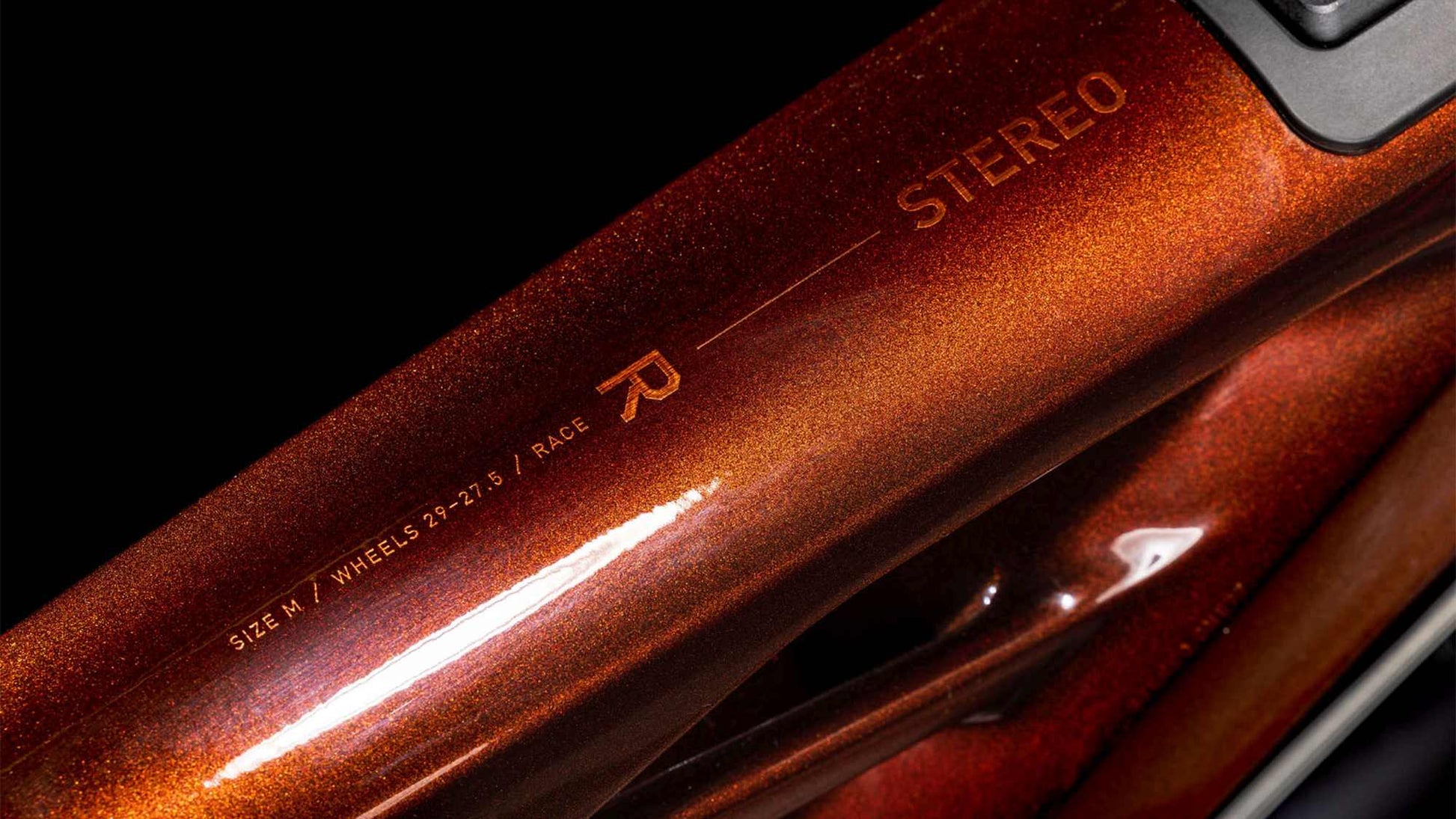

  • Front triangle made of C:62 carbon, aluminum rear triangle
  • Mullet configuration (27.5 inch rear wheel, 29 inch front wheel)
  • Lively and capable Agile Trail geometry
  • Adjustable head tube angle
  • Bosch CX motor (85 Nm)

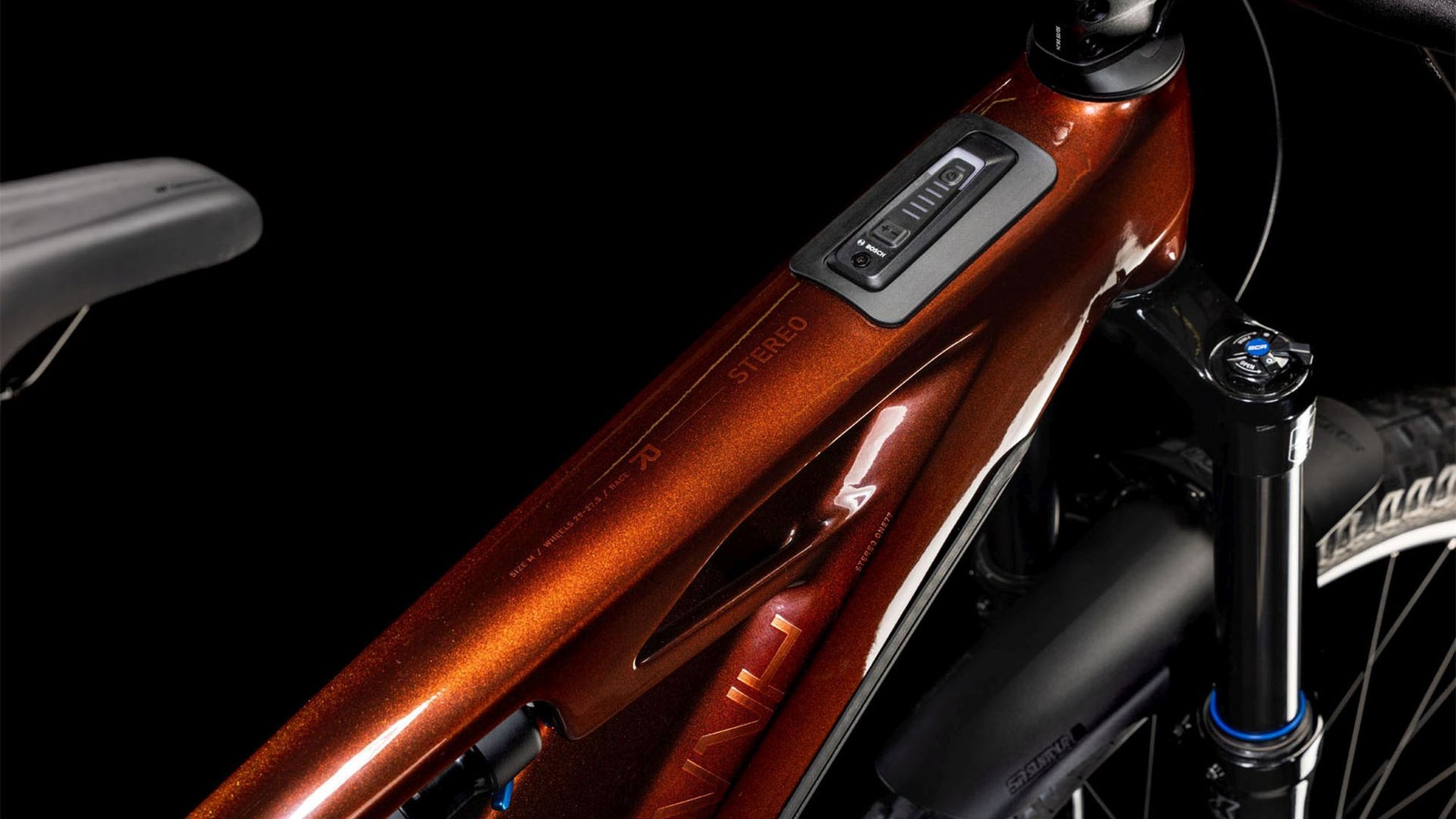

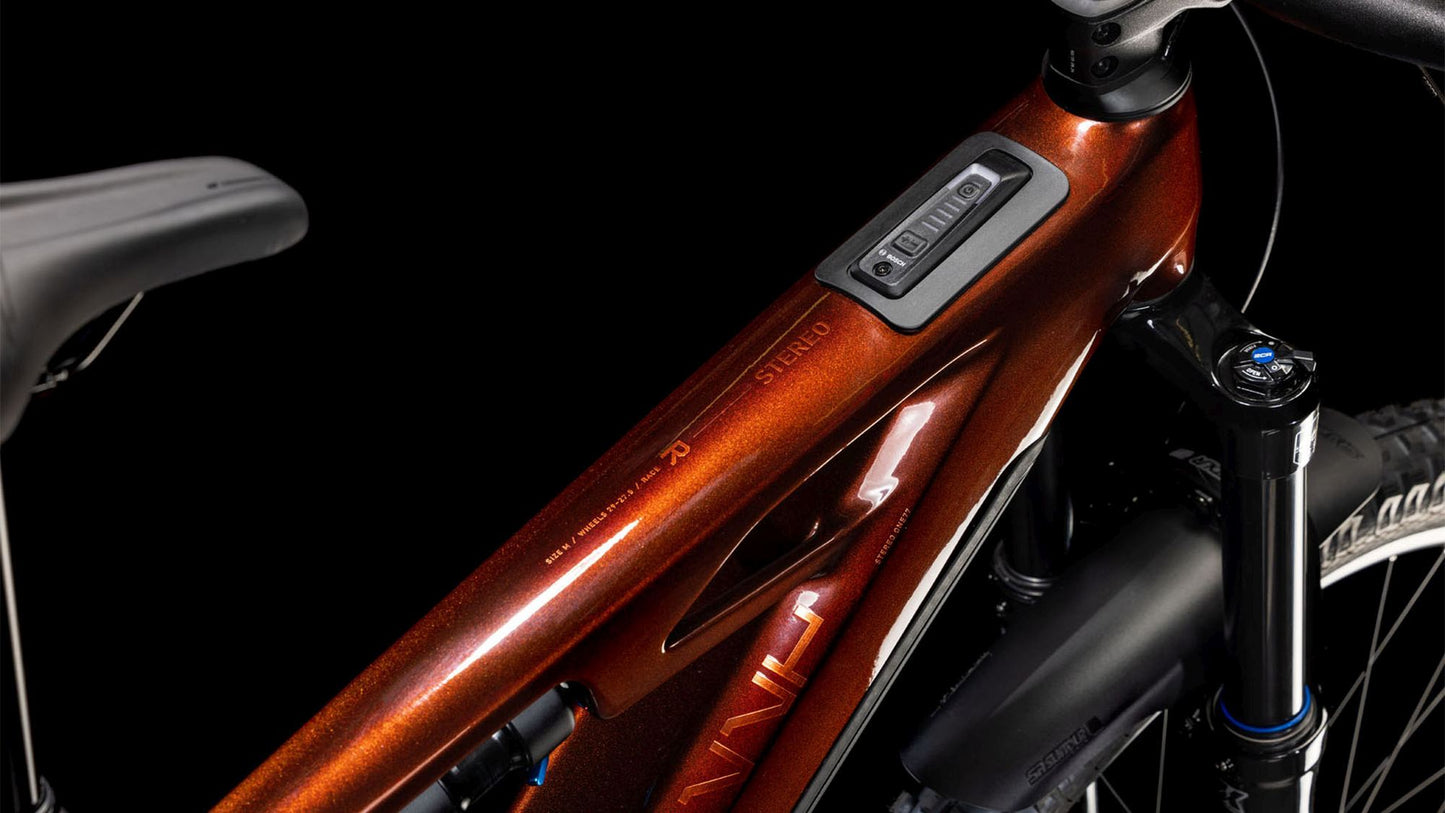

  • Bosch System Controller with Mini-Remote
  • 800 Wh battery

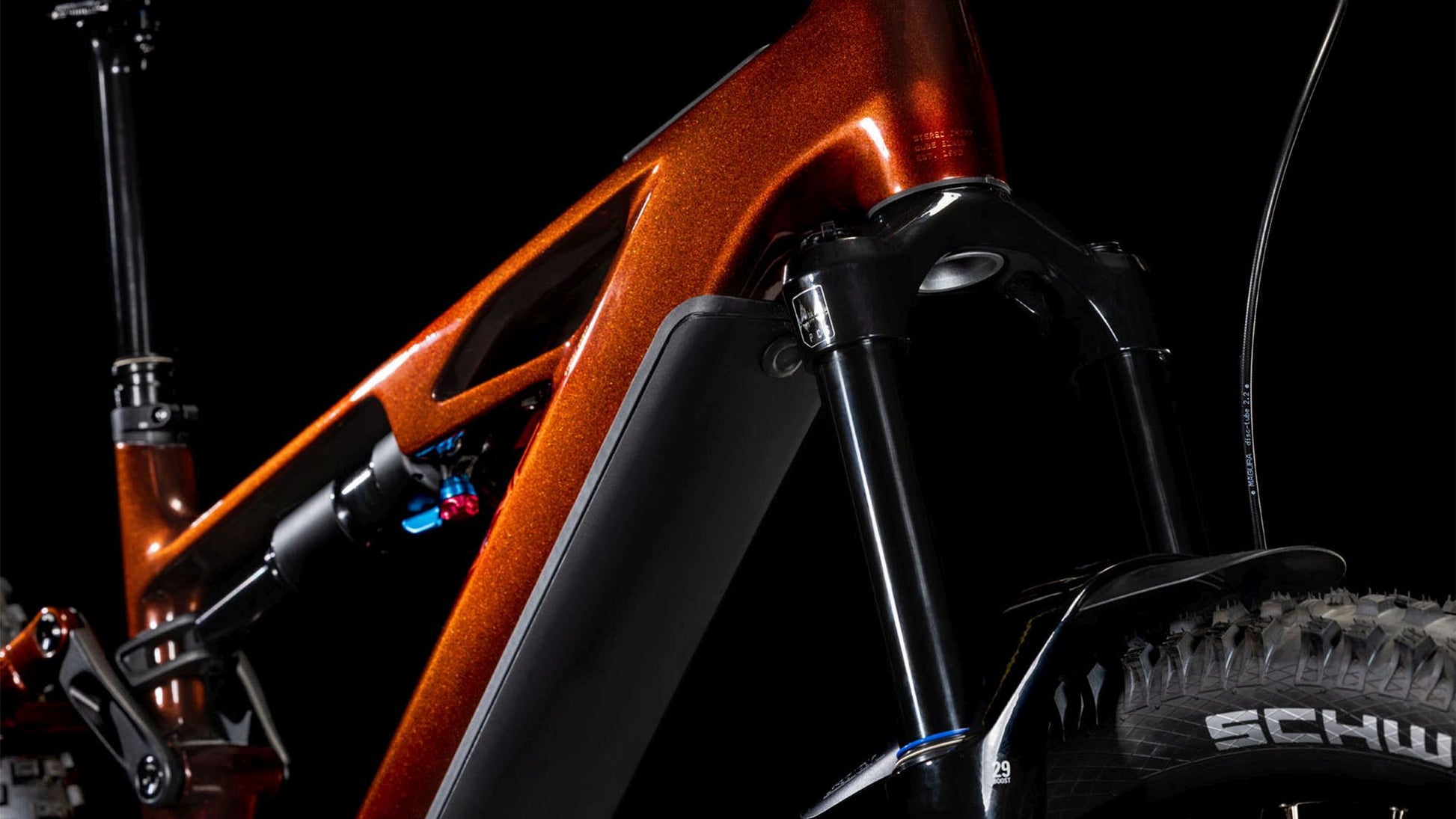

  • Suntour Aion 38X fork with 170 mm travel

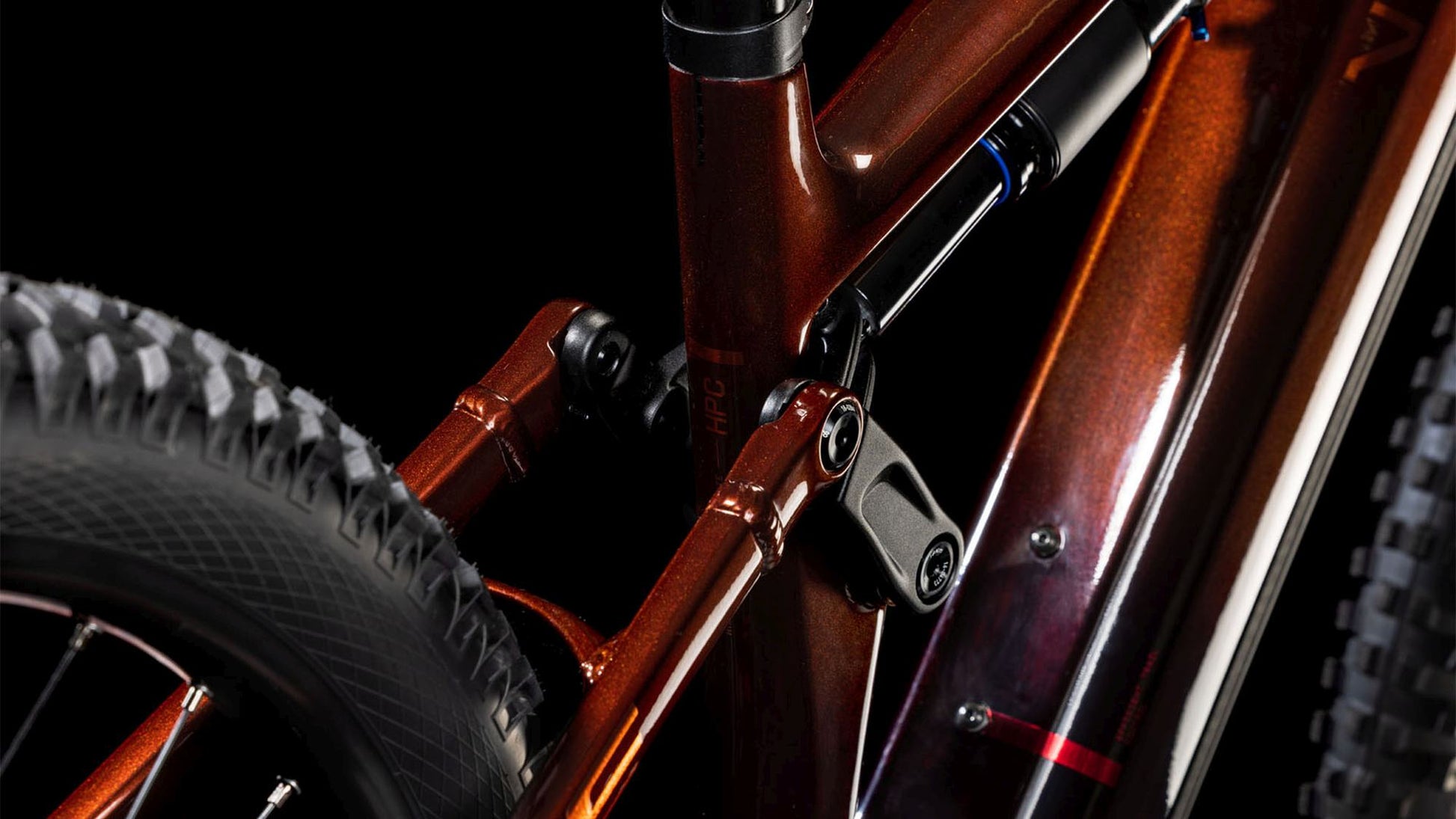

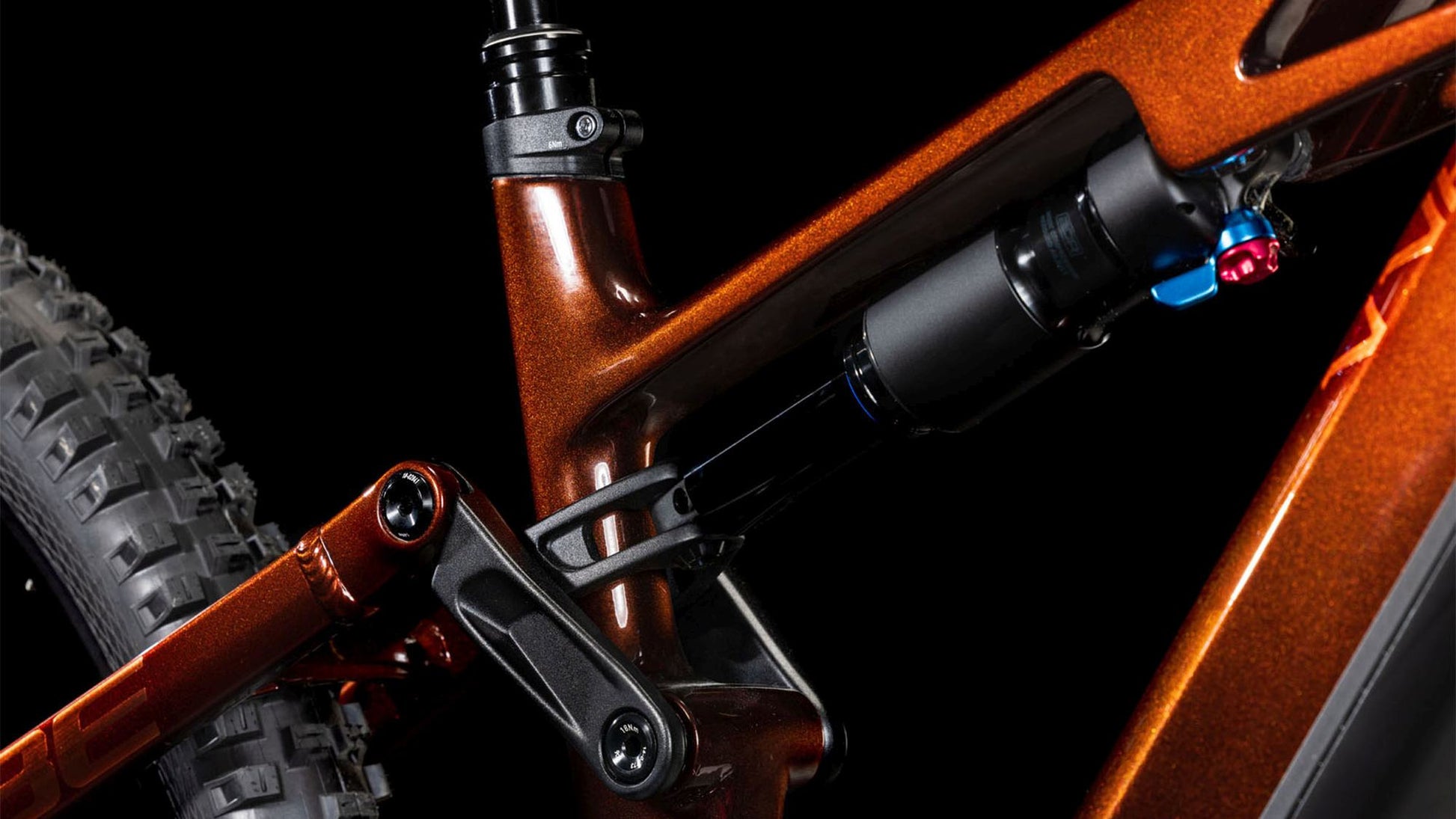

  • Suntour Edge Evo shock with 170 mm travel
  • 12-speed Shimano Deore drivetrain
  • Powerful Magura MT Thirty four-piston disc brakes
  • Hydraulic dropper seatpost
  • Strong CUBE wheels
  • Grip-optimized Schwalbe Magic Mary and Big Betty tires
  • UDH rear dropouts

Advisory points

  • This is not the lightest Stereo Hybrid ONE77 HPC

Description

With 170 millimeters of travel front and rear and a mullet configuration, the Stereo Hybrid ONE77 HPC Race is exactly what you need for tackling tough trails. Plus, with the adjustable head tube angle, you can fine-tune the geometry to match the terrain or your riding style. And then there's the secret weapon: the Bosch CX drive system with an 800 Wh PowerTube battery. A reliable 12-speed Shimano Deore drivetrain effortlessly transfers the pedal assistance to the rear wheel. When the trail goes downhill, a Suntour Aion 38X fork and an Edge Evo 2 CR shock keep the rubber – Schwalbe’s Magic Mary and Big Betty – firmly planted on the ground. Hydraulic Magura brakes smoothly control your speed. With a dropper post completing the package, the only question left is which line you'll take to get down as fast as possible.
Read more

Calculate your size!

Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:

  1. Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
  2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
  3. Measure the length from the top of the book to the ground, the distance you measure is your inseam.

Product specifications

Frame

  • Model code

    803110

  • Model year

    2025

  • Colour

    liquidorange/orange

  • Fork

    SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm

    • E-bike System

  • Engine

    Bosch Drive Unit Performance Line CX BDU38 Generation 5 (85Nm), Smart System

  • Battery

    Bosch PowerTube 800

    • Drivetrain and brakes

  • Front brake

    Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)

  • Rear brake

    Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)

  • Rear derailleur

    Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed

  • Shifters

    Shimano Deore SL-M6100, Rapidfire-Plus

  • Crankset

    Acid MTB Hybrid Pro, 36T

  • Cassette

    Shimano Deore CS-M6100, 10-51T

  • Chain

    KMC e12

    • Cockpit

  • Headset

    Acros AZF-675, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

  • Handlebar

    Cube Rise Trail Bar 35

  • Stem

    Cube Performance Stem E-MTB 35, FPI-Link

  • Bar tape or grips

    Acid Disrupt, Soft Compound

    • Wheels

  • Rims

    Cube EX30, 32H, Disc, Tubeless Ready

  • Front hub

    Cube Engineered By Newmen, 15mm, Boost, 6-Bolt

  • Rear Hub

    Cube Engineered By Newmen, 12mm, Boost, 6-Bolt

  • Front tyre

    Schwalbe Magic Mary, Performance, 2.4

  • Rear Tyre

    Schwalbe Big Betty, Performance, 2.4

    • Other parts

  • Saddle

    Acid Venec Lite

  • Seatpost

    Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

  • Seatpost clamp

    Cube Semi-Integrated

  • Pedals

    NONE
