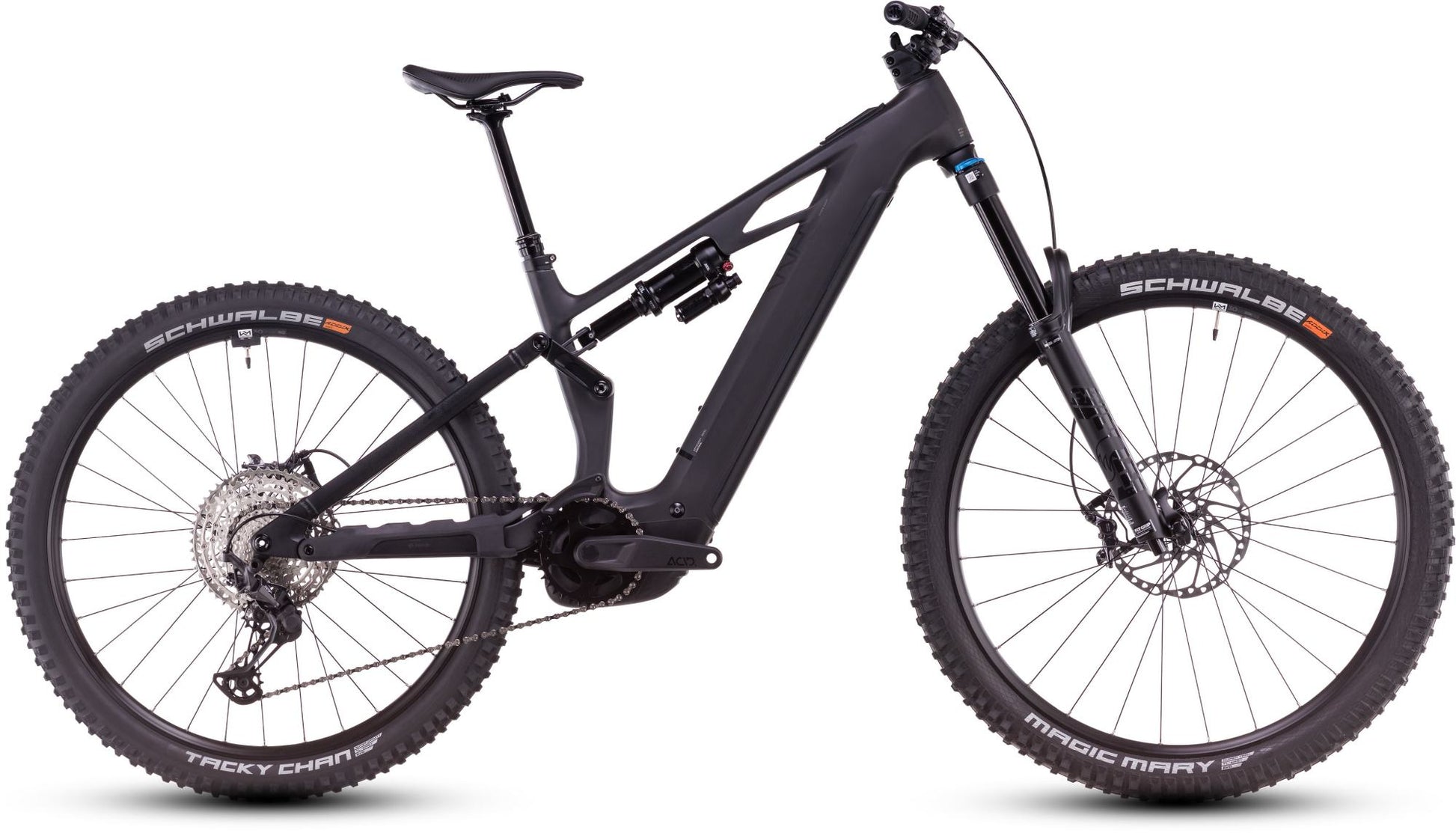

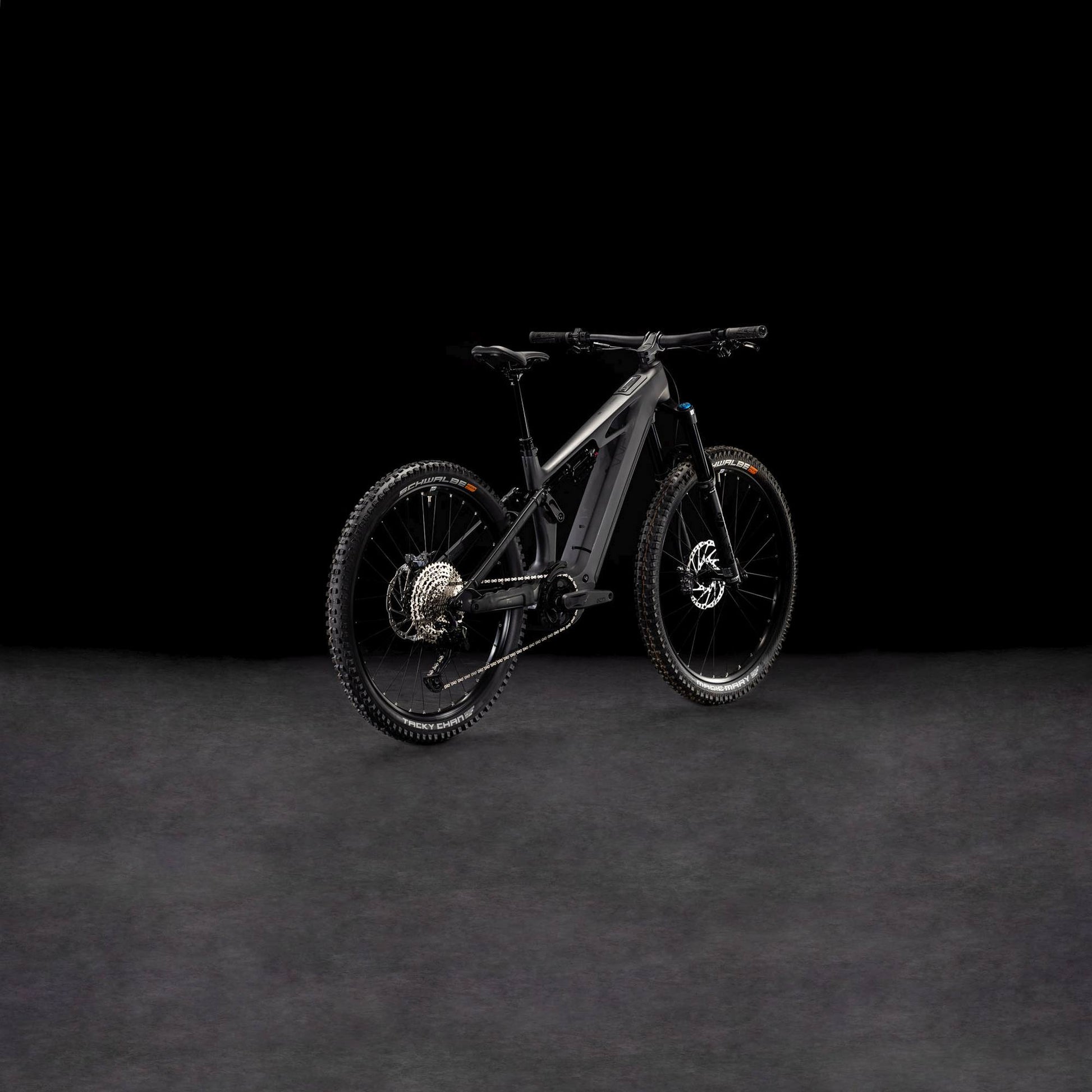

CUBE STEREO HYBRID ONE77 HPC SLX 800 BLACKLINE
CUBE STEREO HYBRID ONE77 HPC SLX 800 BLACKLINE
Plus Points

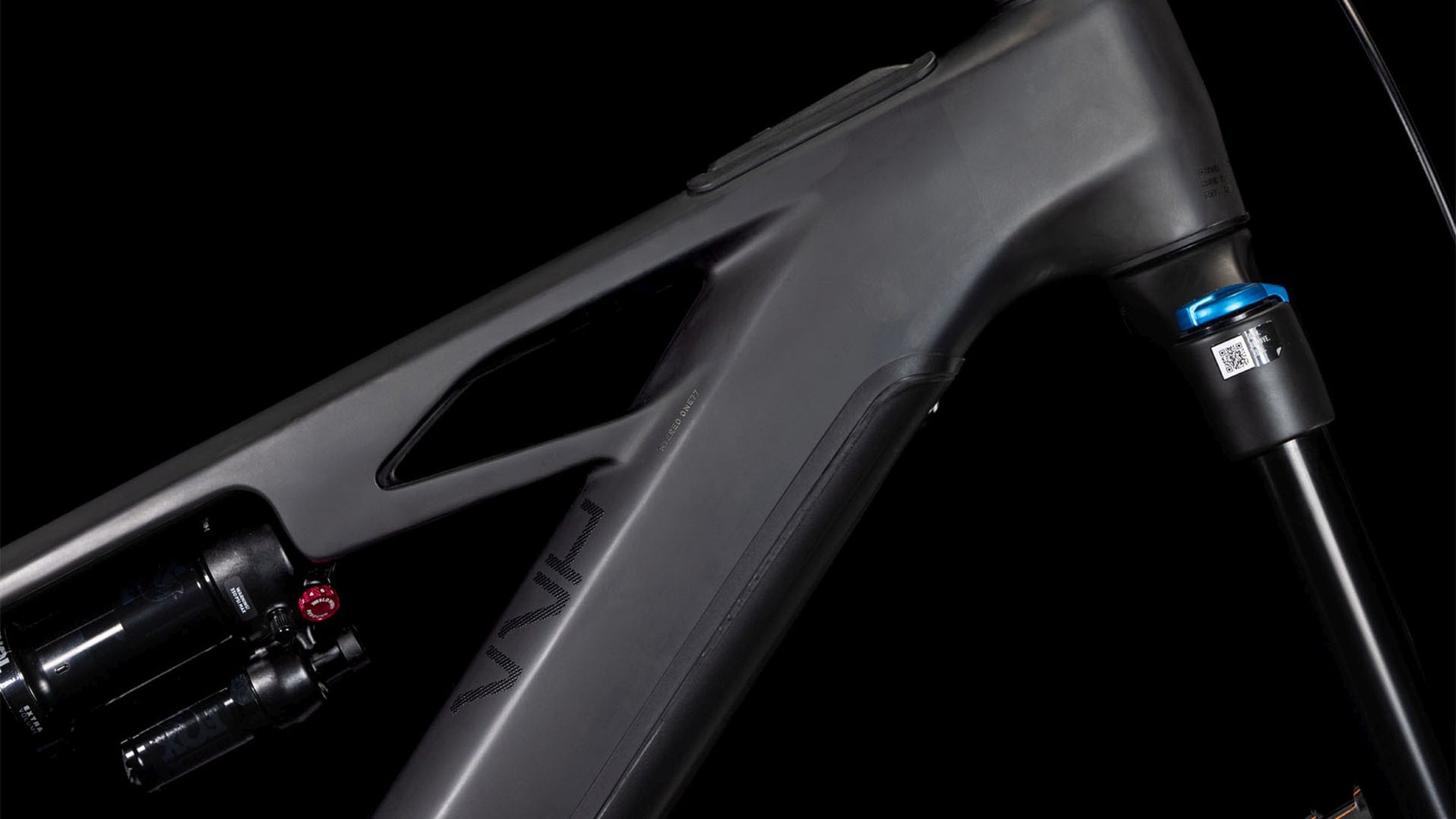

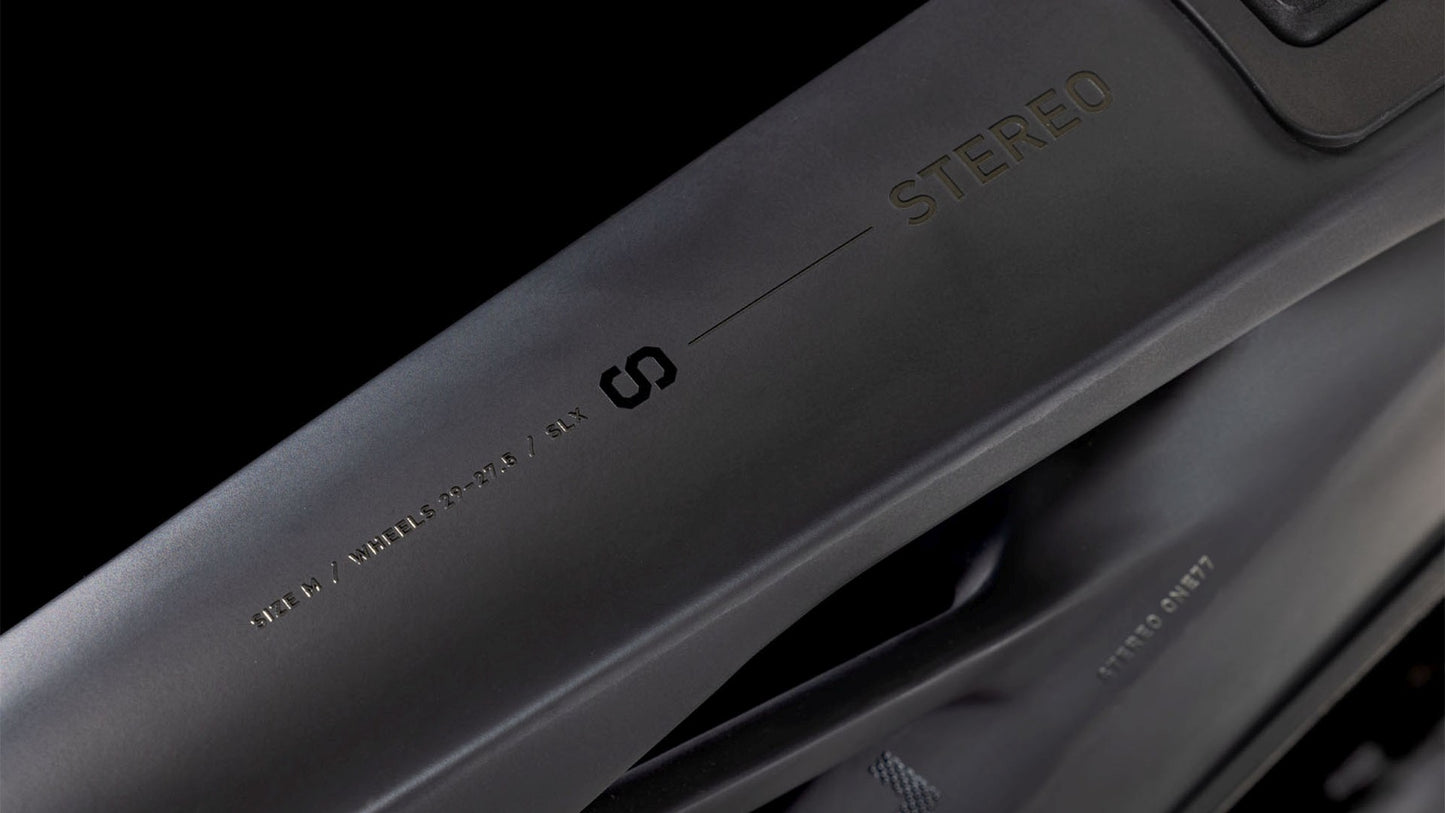

- Front triangle made of C:62 carbon, aluminum rear triangle
- Mullet configuration (27.5 inch rear wheel, 29 inch front wheel)
- Lively and capable Agile Trail geometry
- Adjustable head tube angle
- Bosch CX motor (85 Nm)

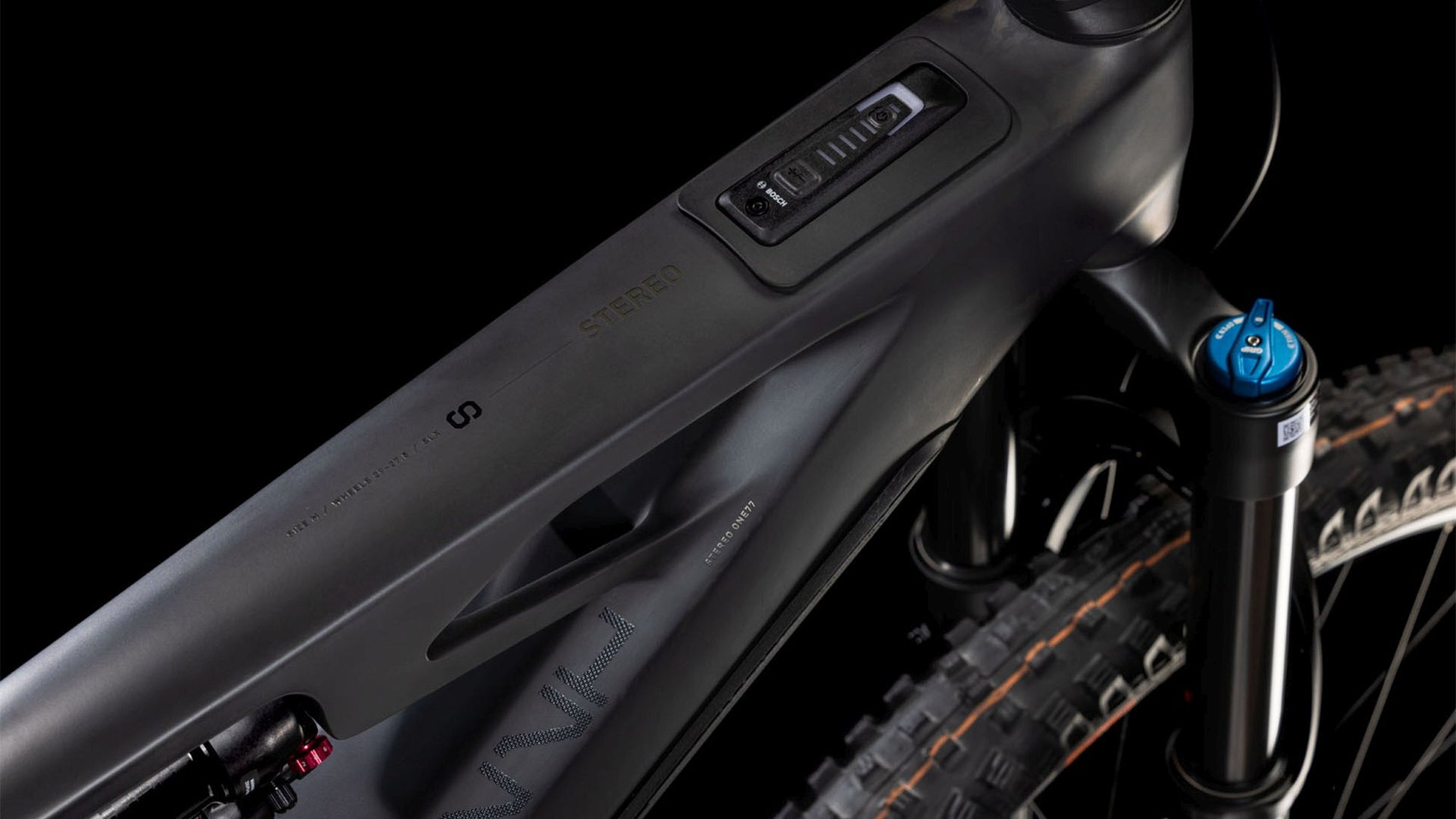

- Bosch System Controller with Mini-Remote
- 800 Wh battery

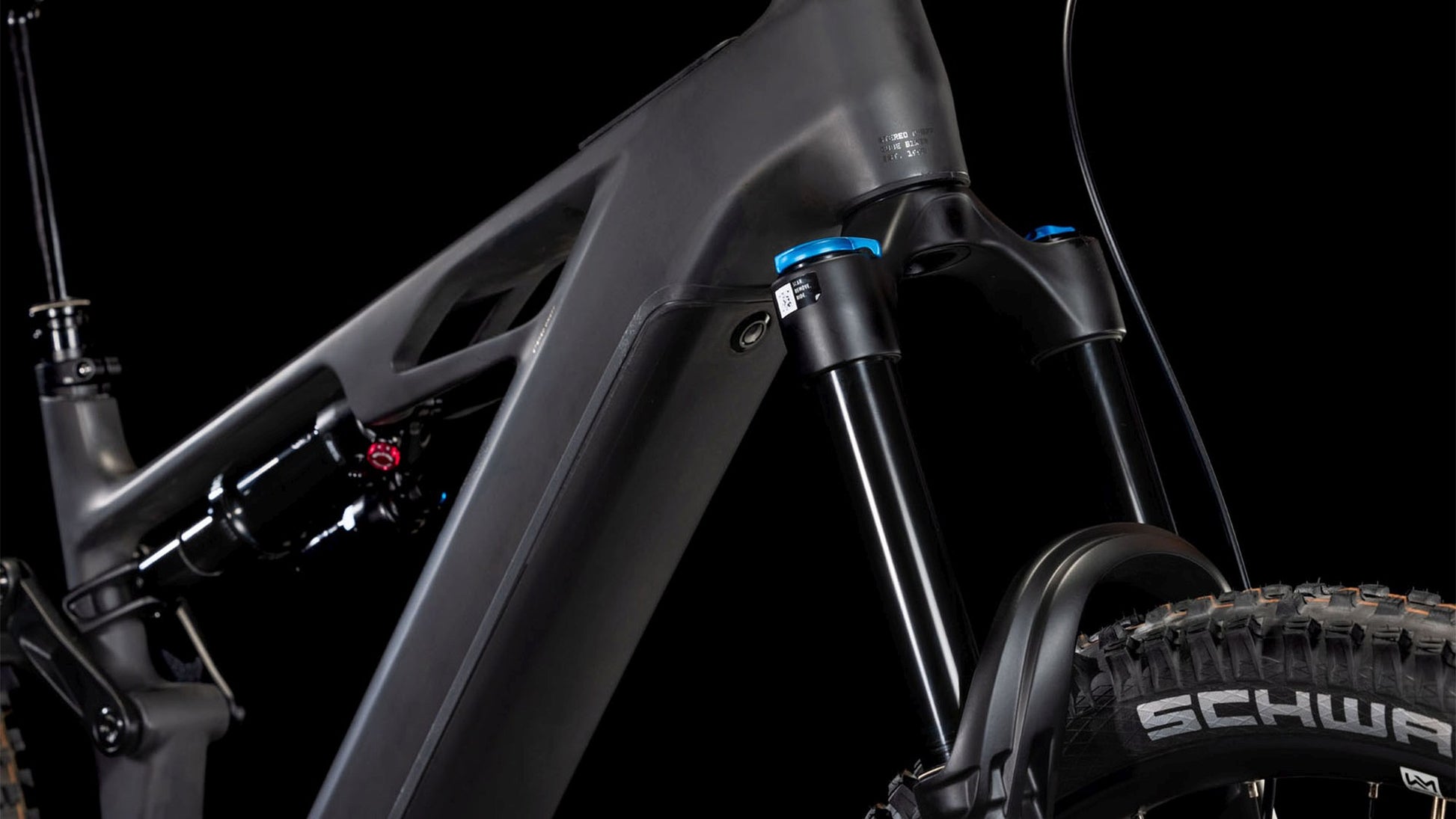

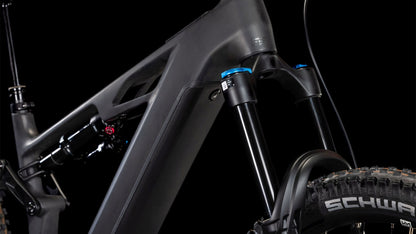

- Fox 38 Rhythm fork with GRIP damping and 170 mm travel

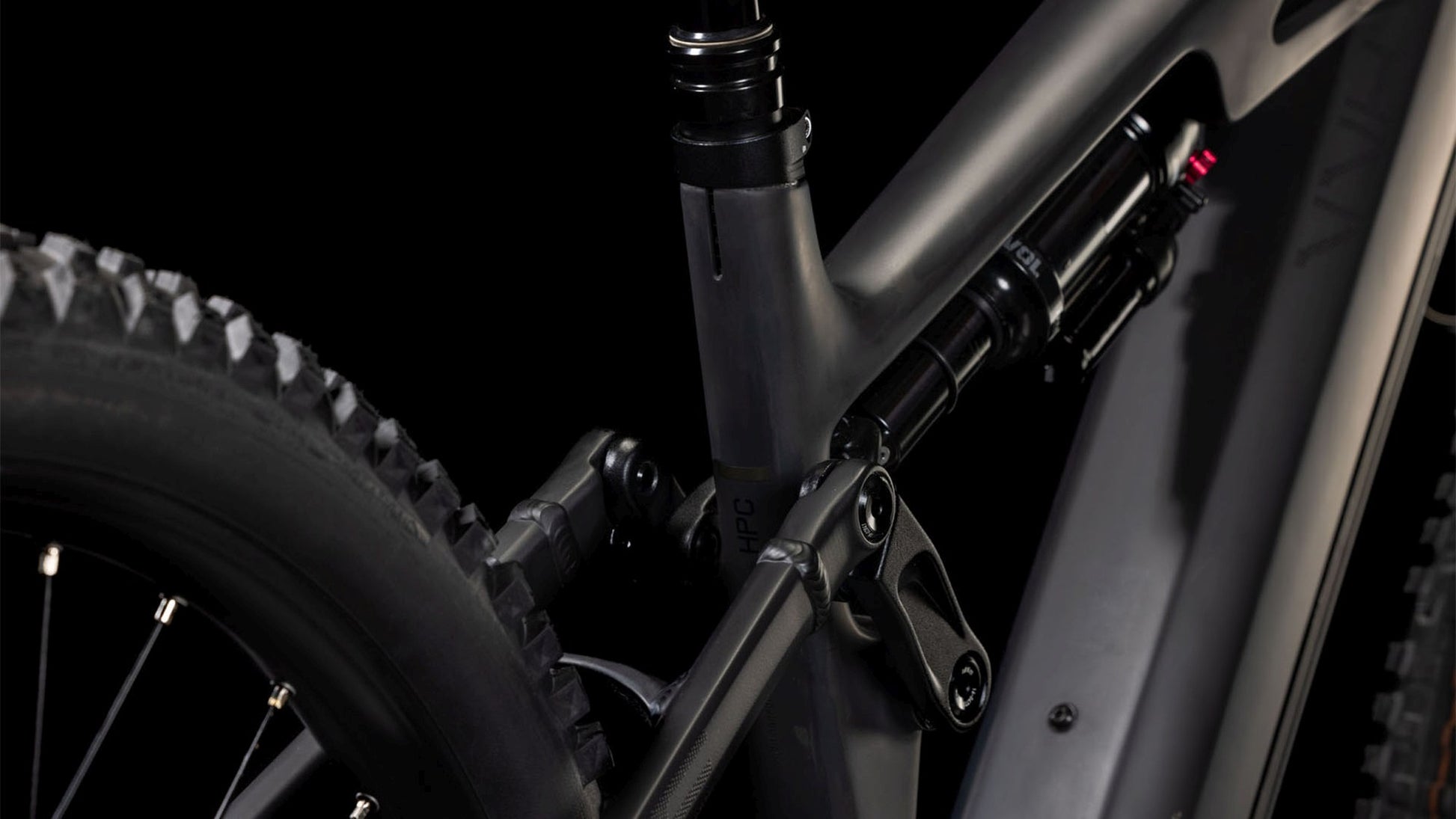

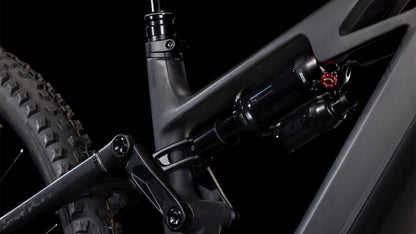

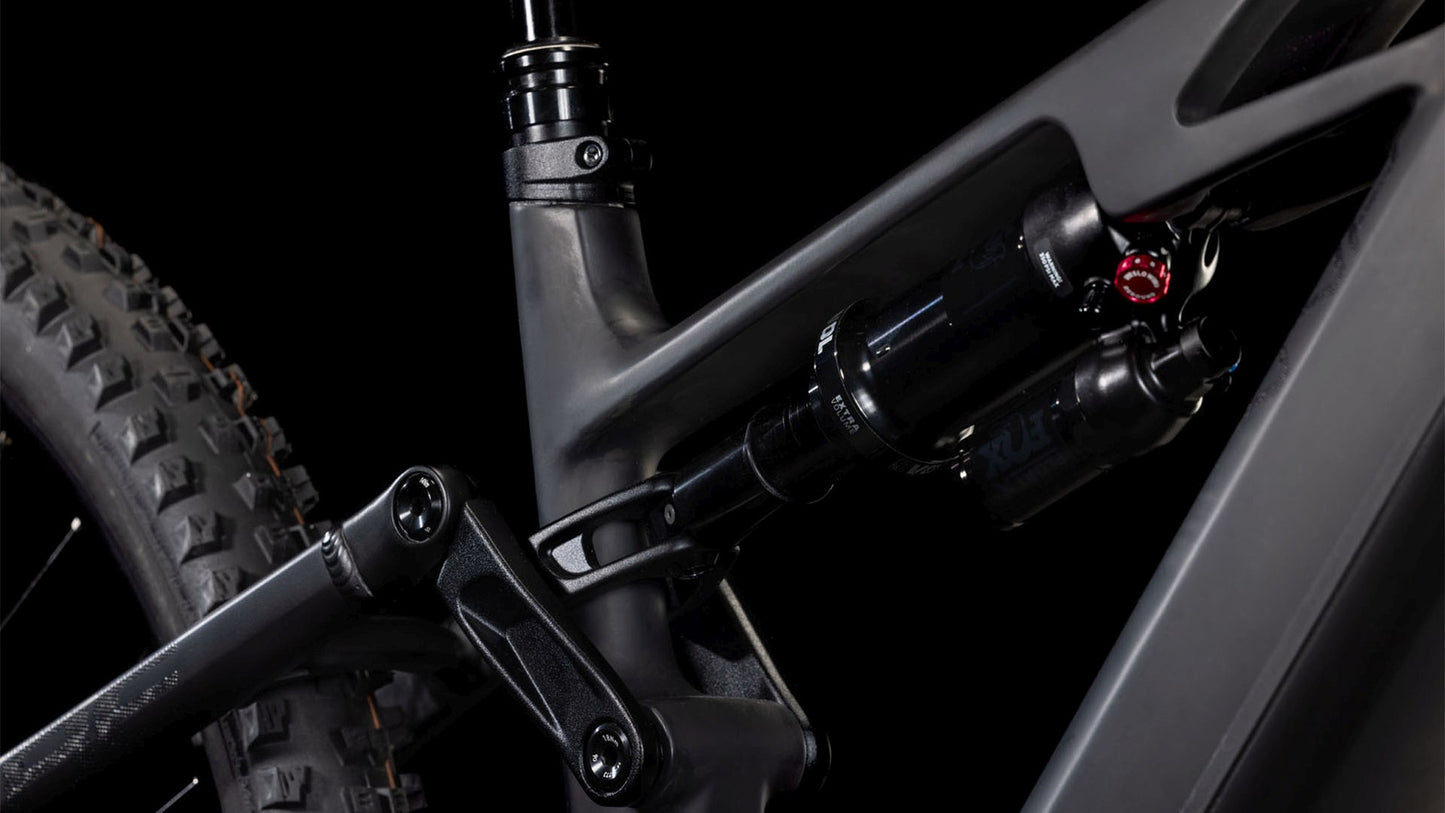

- Fox Float X Performance shock with 170 mm travel
- 12-speed Shimano XT drivetrain
- Powerful Shimano XT four-piston disc brakes
- Hydraulic dropper seatpost
- Strong Newmen Performance 30 wheels
- Grip-optimized Schwalbe Magic Mary and Tacky Chan Addix Soft tires
- UDH rear dropouts
Advisory points
- The Stereo Hybrid ONE77 HPC TM 800 features wireless shifting.
Description
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
803300
Model year
2025
Colour
blackline
Fork
Fox 38 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 170mm
E-bike System
Engine
Bosch Drive Unit Performance Line CX BDU38 Generation 5 (85Nm), Smart System
Battery
Bosch PowerTube 800
Drivetrain and brakes
Front brake
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Rear brake
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano XT SL-M8100-IR, Direct Attach
Crankset
Acid MTB Hybrid Pro, 36T
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
KMC e12
Cockpit
Headset
Acros AZF-675, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Handlebar
Cube Rise Trail Bar 35
Stem
Cube Performance Stem E-MTB 35, FPI-Link
Bar tape or grips
Acid Disrupt, Soft Compound
Wheels
Wheels
Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
Front tyre
Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4
Rear Tyre
Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4
Other parts
Saddle
Acid Venec EMTB Trail 140
Seatpost
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp
Cube Semi-Integrated
Pedals
NONE
