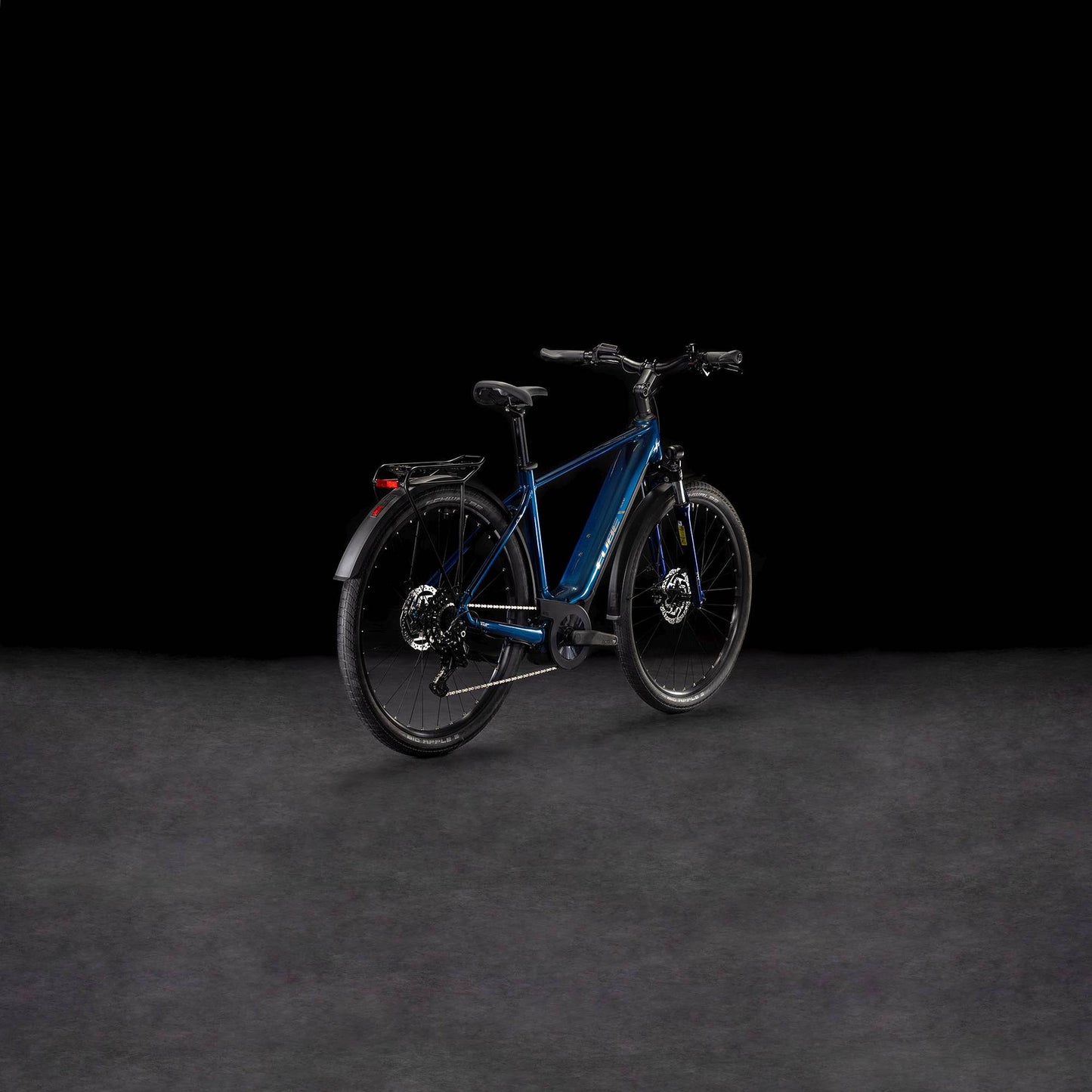

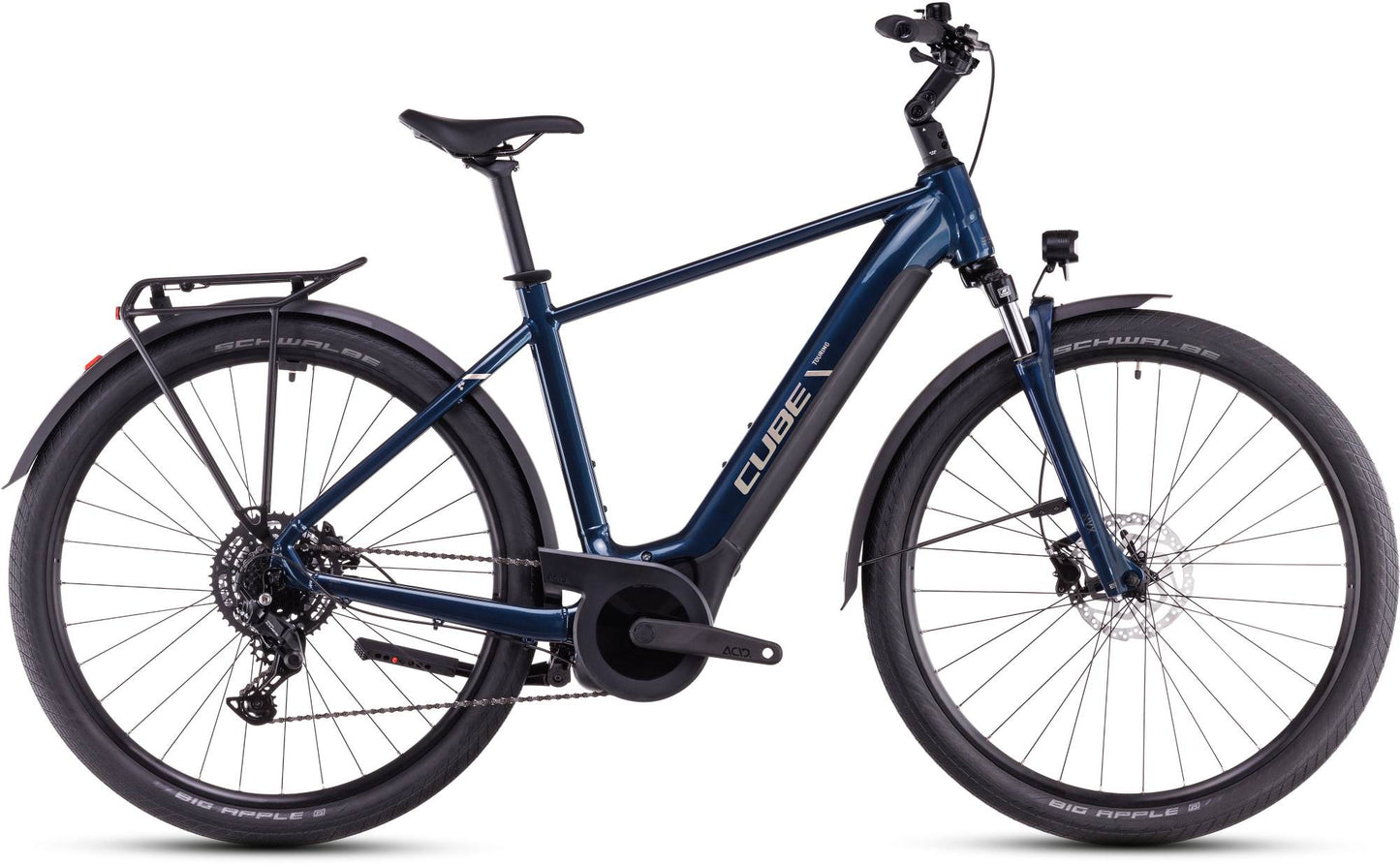

CUBE TOURING HYBRID ONE 500 DEEPSEA/CHROME
CUBE TOURING HYBRID ONE 500 DEEPSEA/CHROME
Plus Points
- Light yet strong frame made of Superlite aluminum
- Complete integration of motor and battery
- Fast yet comfortable CUBE Efficient Comfort geometry
- Semi-integrated luggage carrier
- Reliable hydraulic disc brakes
- Fast yet comfortable tires

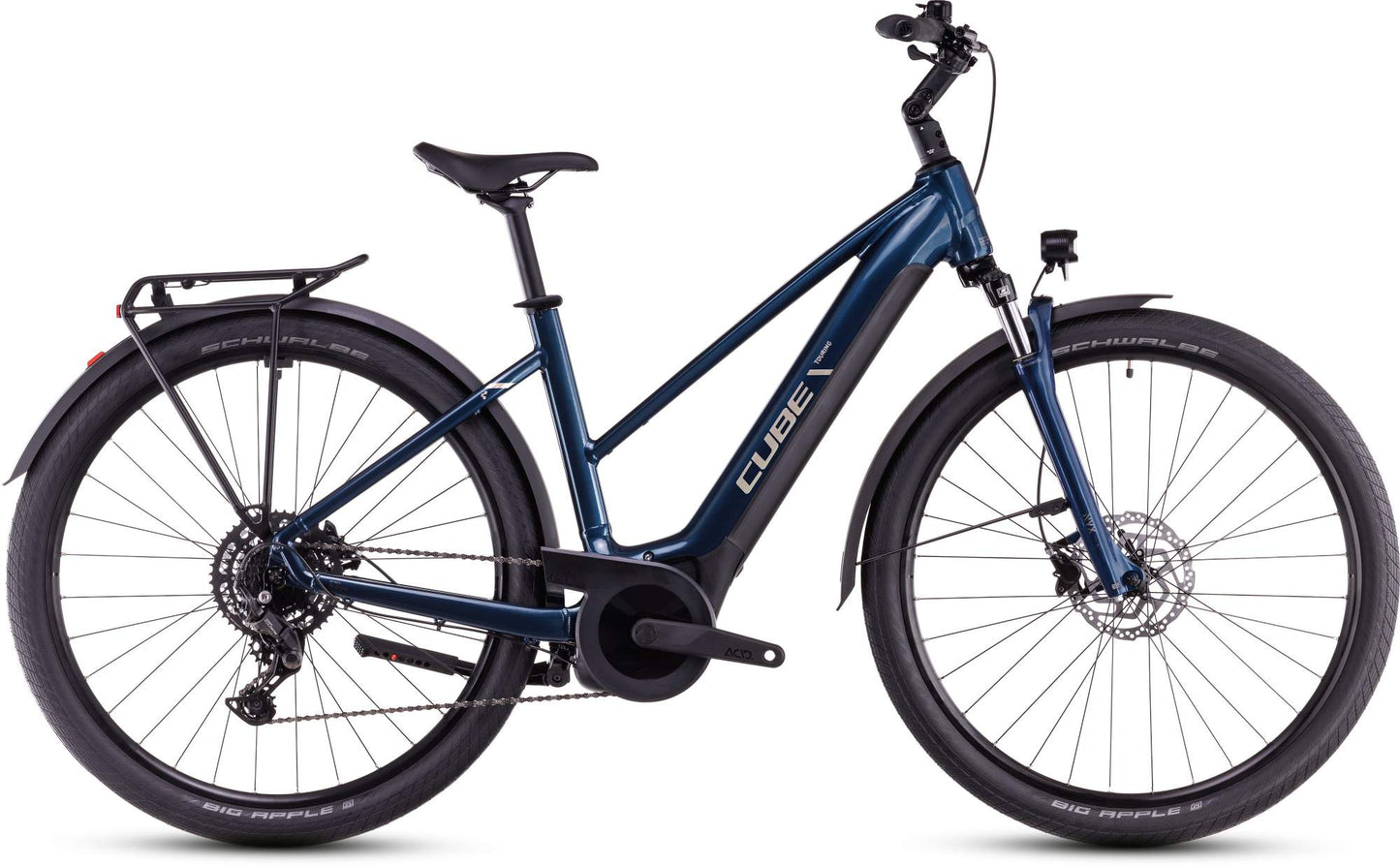

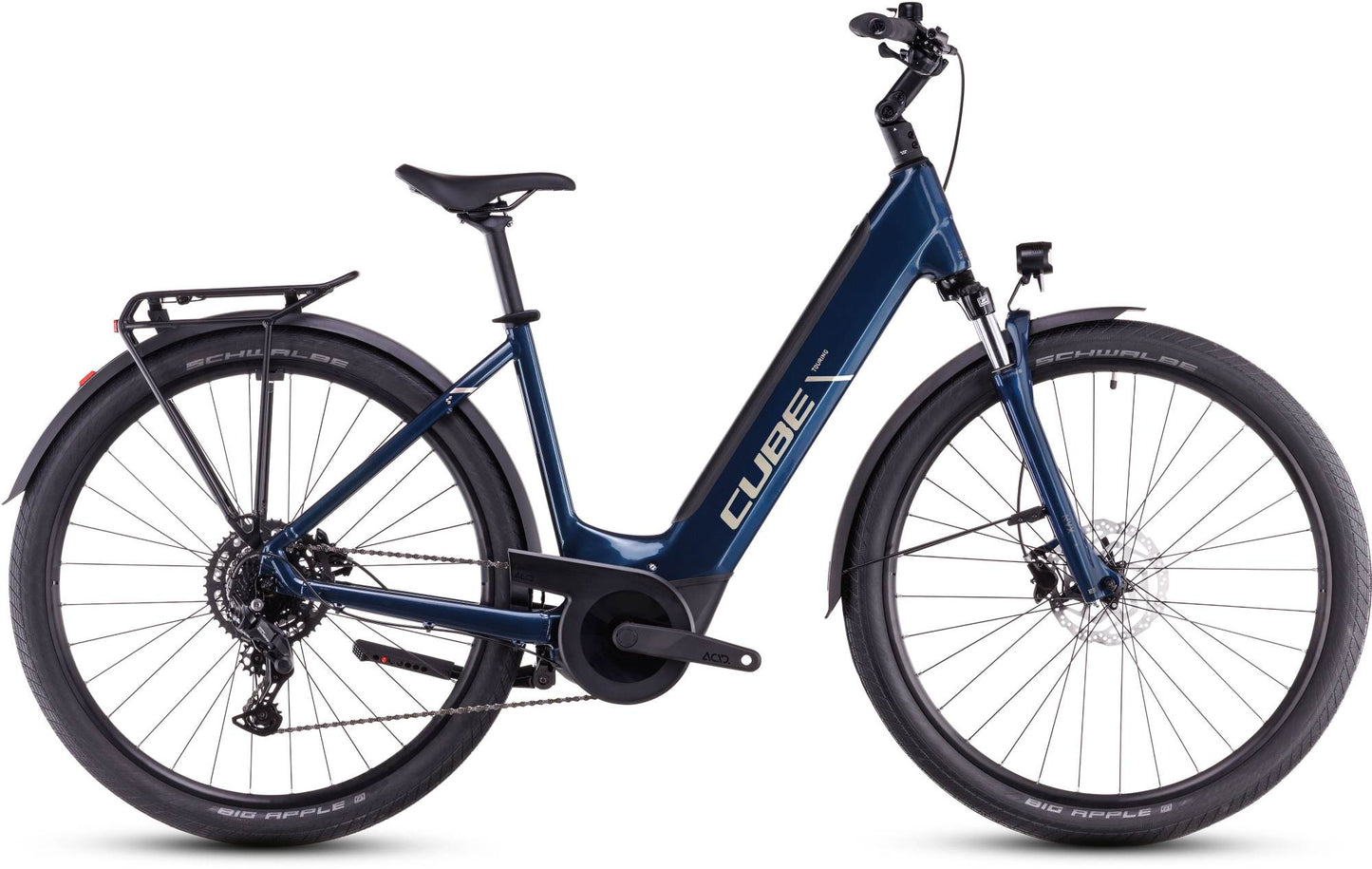

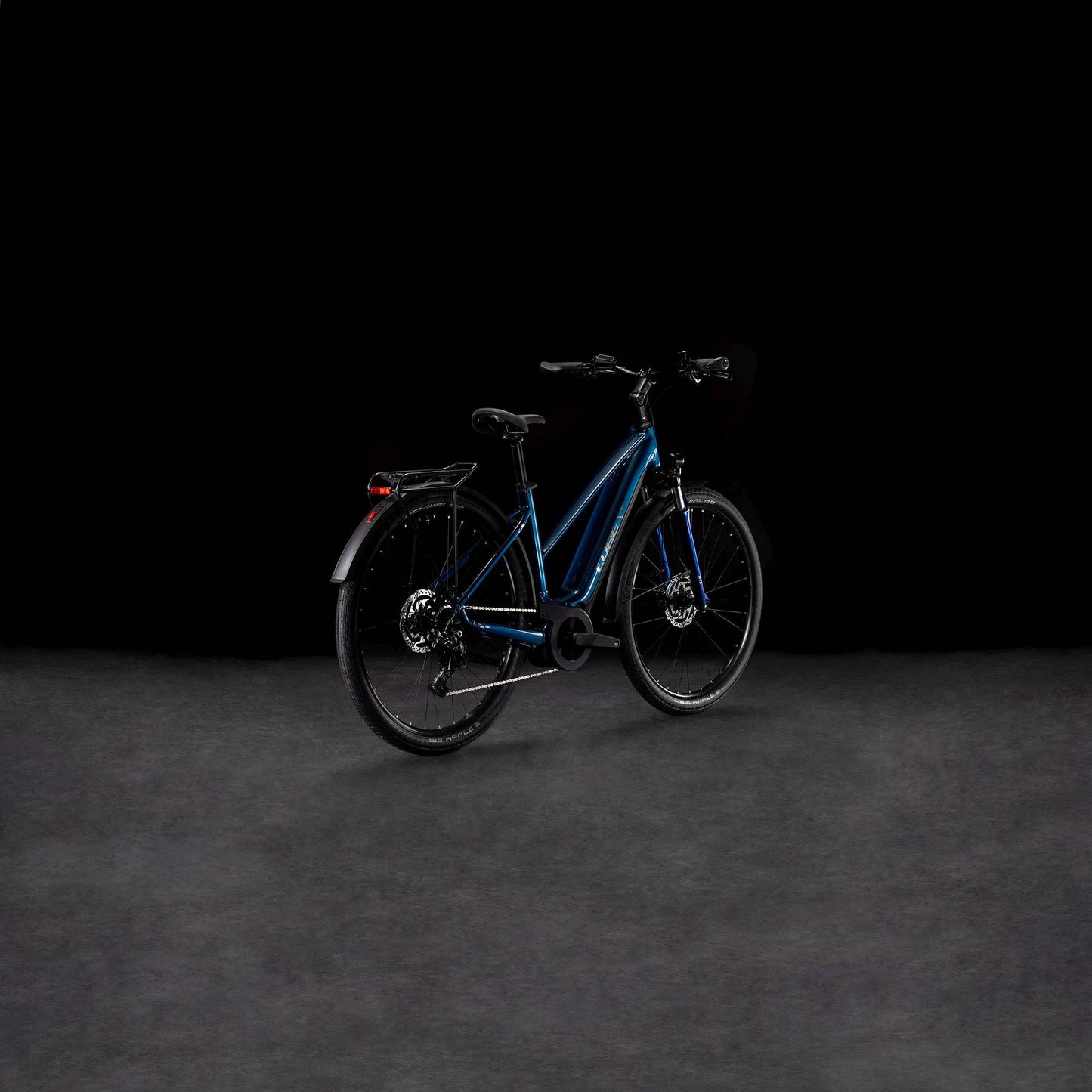

- With classic diamond frame, trapeze frame, or low step-through
Advisory points
- Smaller range than with 625 Wh battery
- No fully integrated luggage rack like the Pro version
- No air-suspended front fork
Description

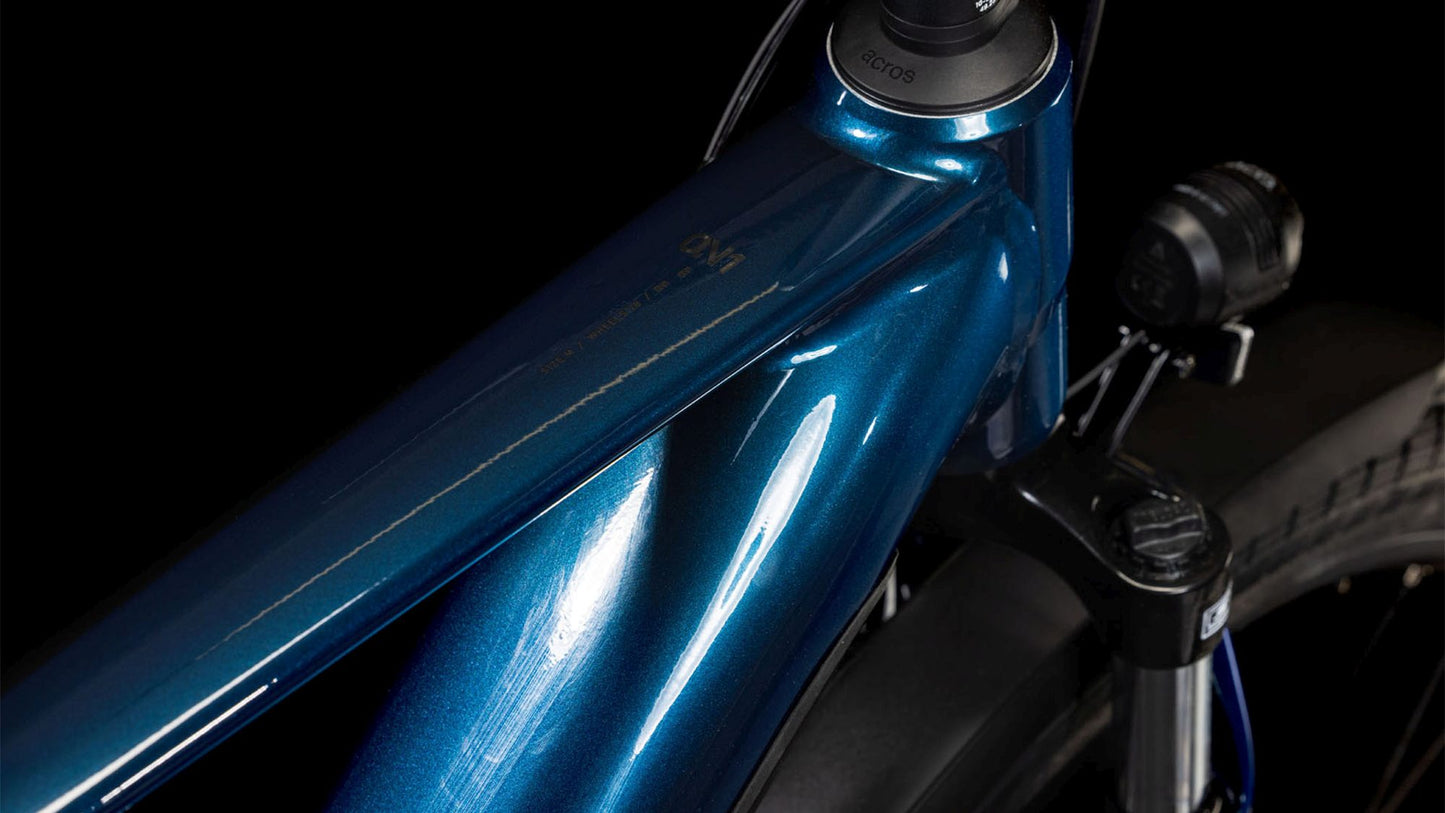

Frame description

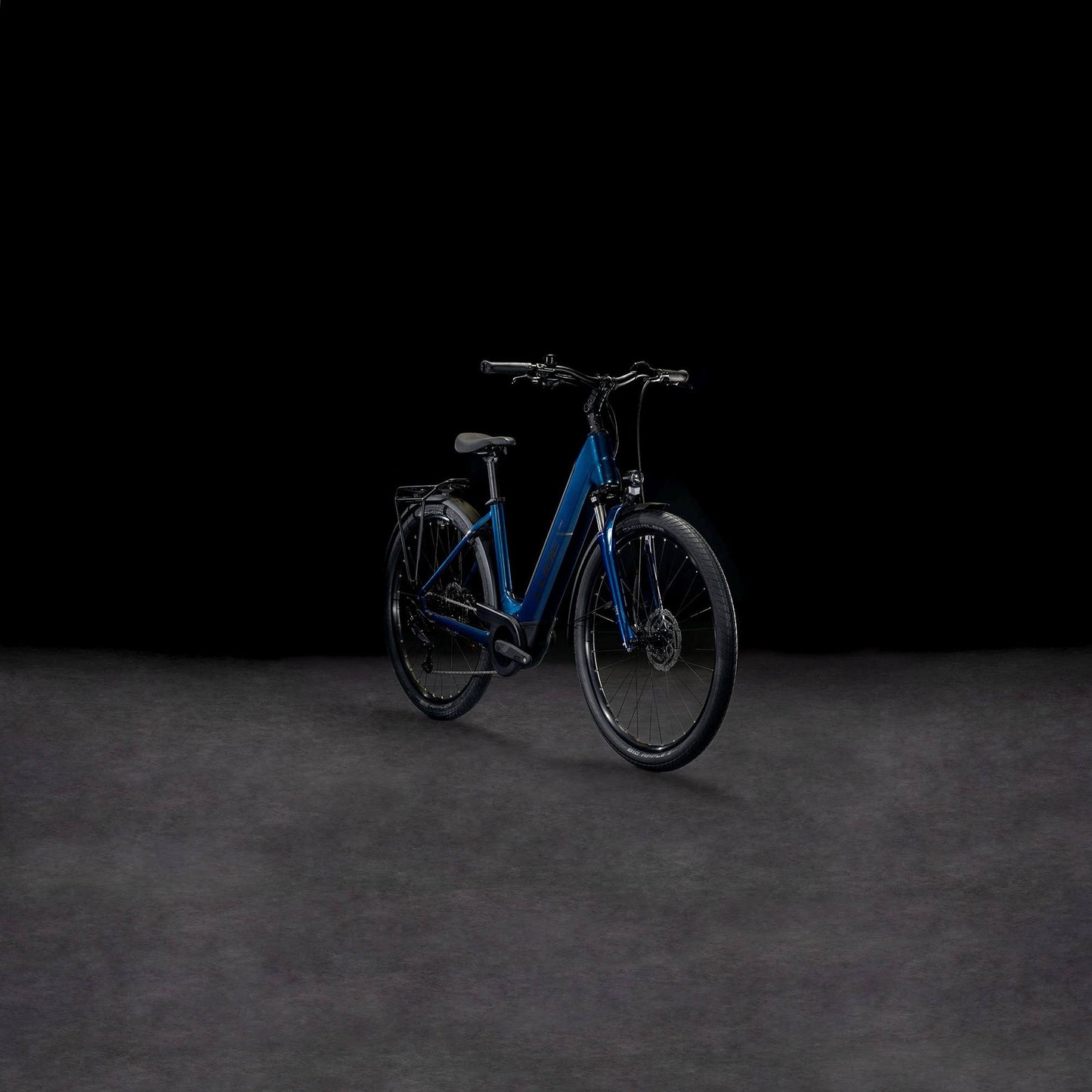

Classically understated and so simple to live with you'll wonder how you managed without it, the Touring Hybrid's Easy Entry frame is a masterpiece of form follows function. Key to it all, of course, is the Bosch Performance motor and 500Wh PowerTube battery, both so neatly integrated into the frame that they're barely noticeable. Our Efficient Comfort Geometry does exactly what it says, making every ride a pleasure. There's even a 63mm suspension fork for extra comfort on rough roads. And we've not forgotten the all-important practical touches, either. With its semi-integrated carrier, full-length mudguards, lighting system and kickstand, it has everything you need for life's adventures.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
811100101102
Model year
2025
Colour
deepsea/chrome

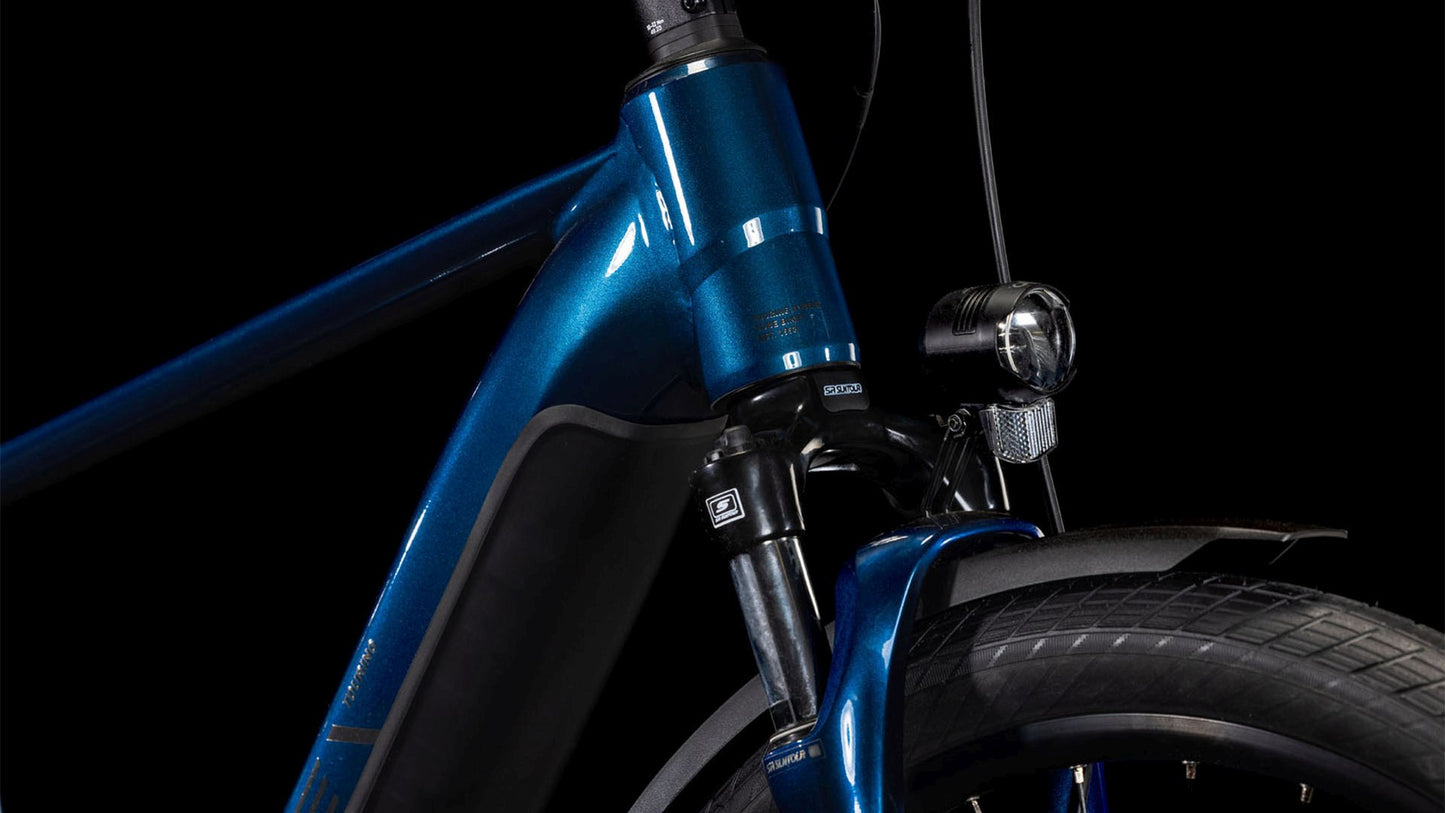

Fork
SR Suntour NVX30 Coil, 63mm
E-bike System
Engine
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System

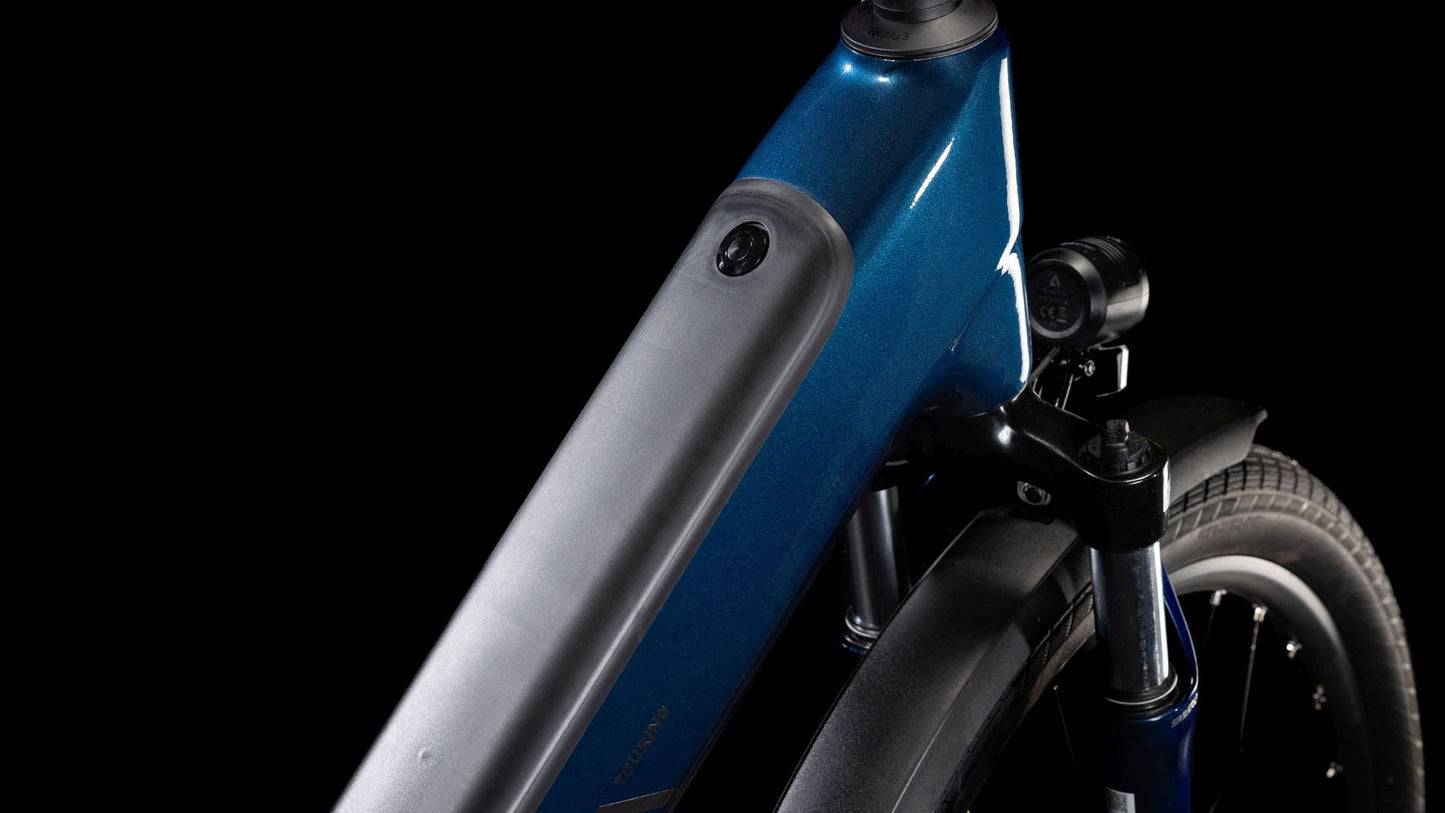

Battery
Bosch PowerTube 500
Drivetrain and brakes
Front brake
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear brake
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear derailleur
Shimano Cues RD-U4000-GS, 9-Speed
Shifters
Shimano Cues SL-U4010, Rapidfire-Plus
Crankset
Acid Trekking Hybrid, 40T
Cassette
Shimano Cues CS-LG300, 11-46T
Chain
KMC eGlide
Cockpit
Headset
Acros AZF-1030 Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

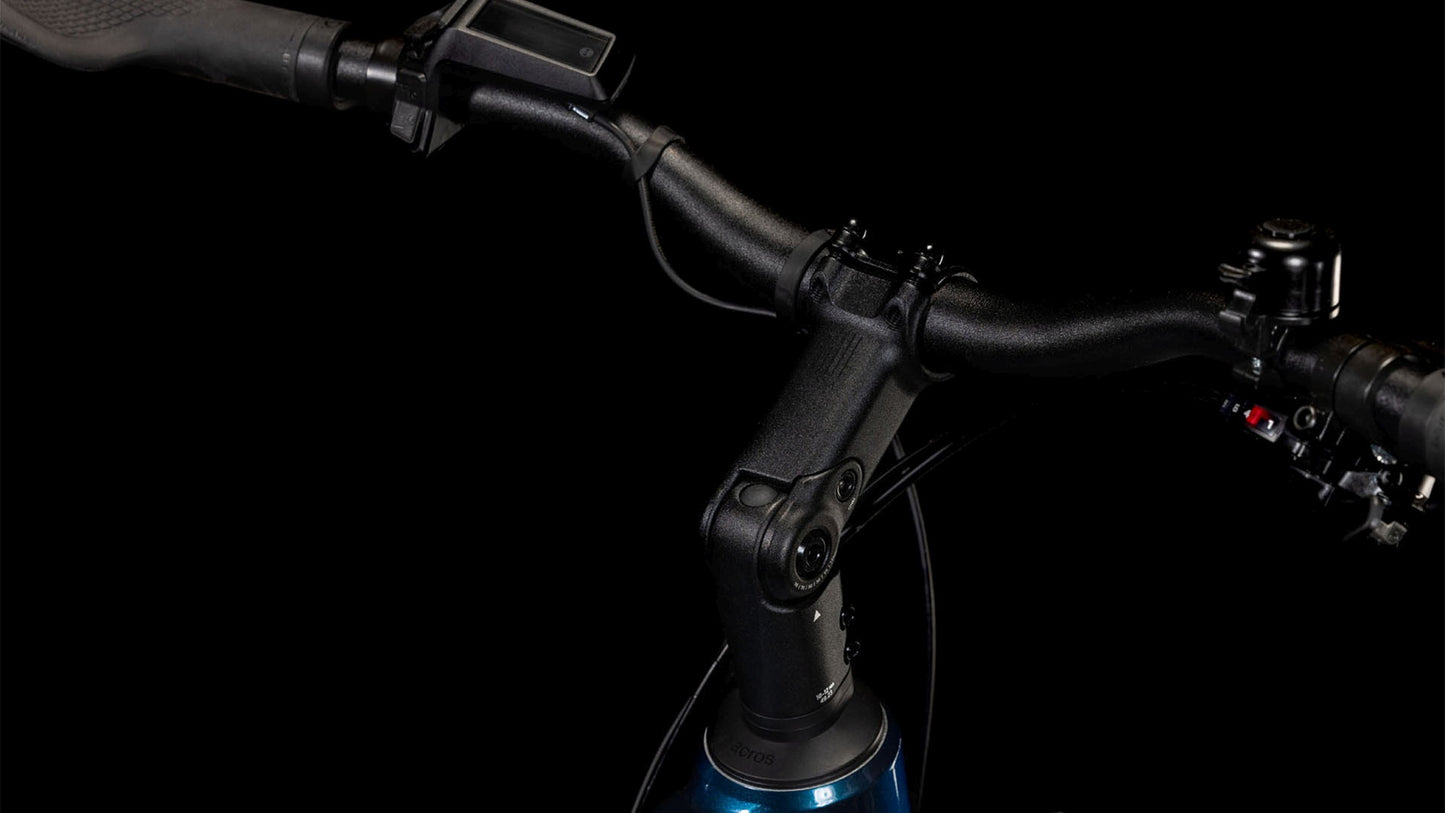

Handlebar
Cube Comfort Trail Bar, 700mm

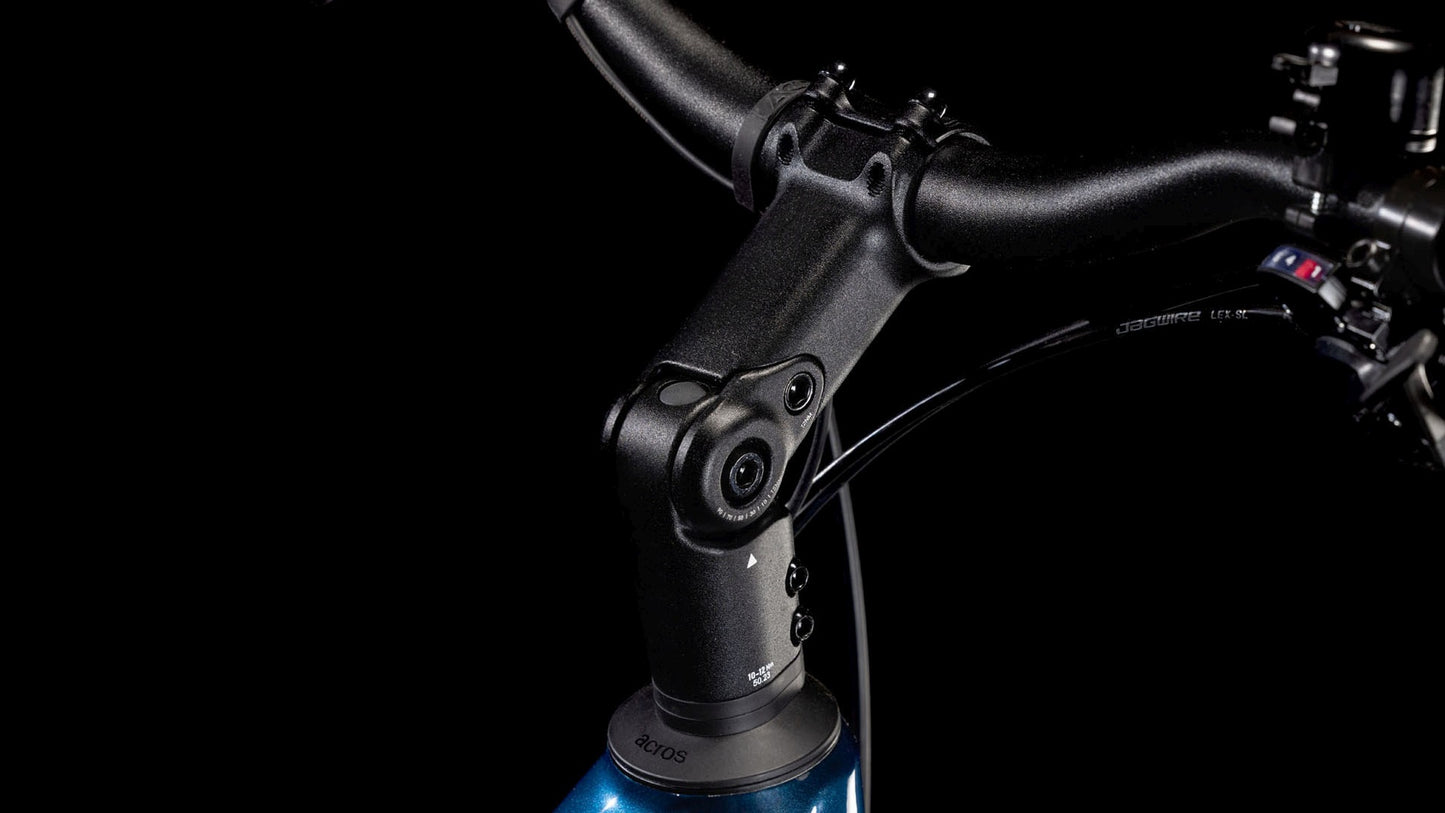

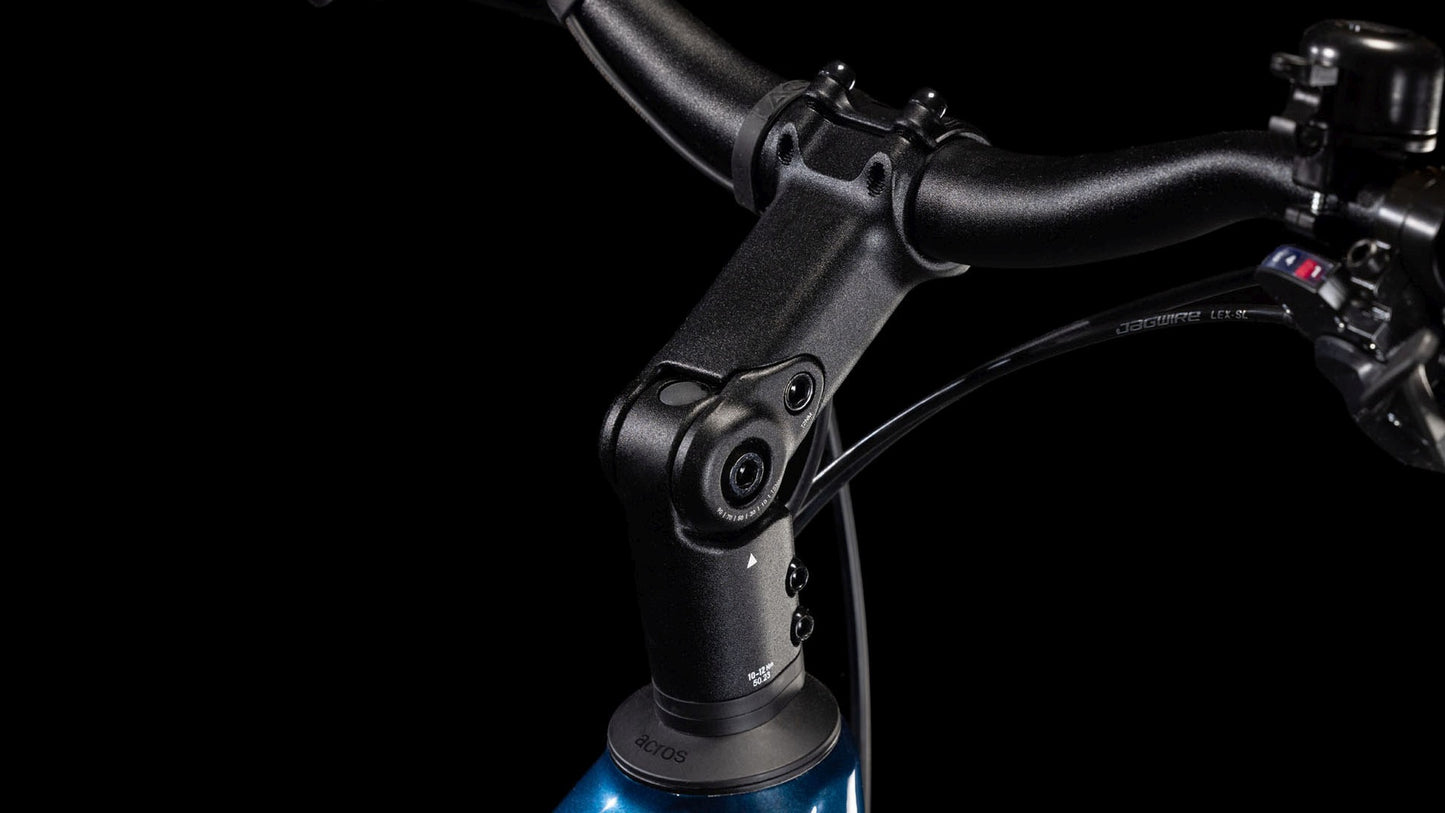

Stem
Cube Comfort Stem Pro, 31.8mm, Adjustable
Bar tape or grips
Acid Travel Comfort
Wheels
Rims
Cube EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano HB-QC300, QR, Centerlock
Rear Hub
Shimano FH-QC300-HM, QR, Centerlock
Front tyre
Schwalbe Big Apple, Active, 55-622
Rear Tyre
Schwalbe Big Apple, Active, 55-622
Other parts

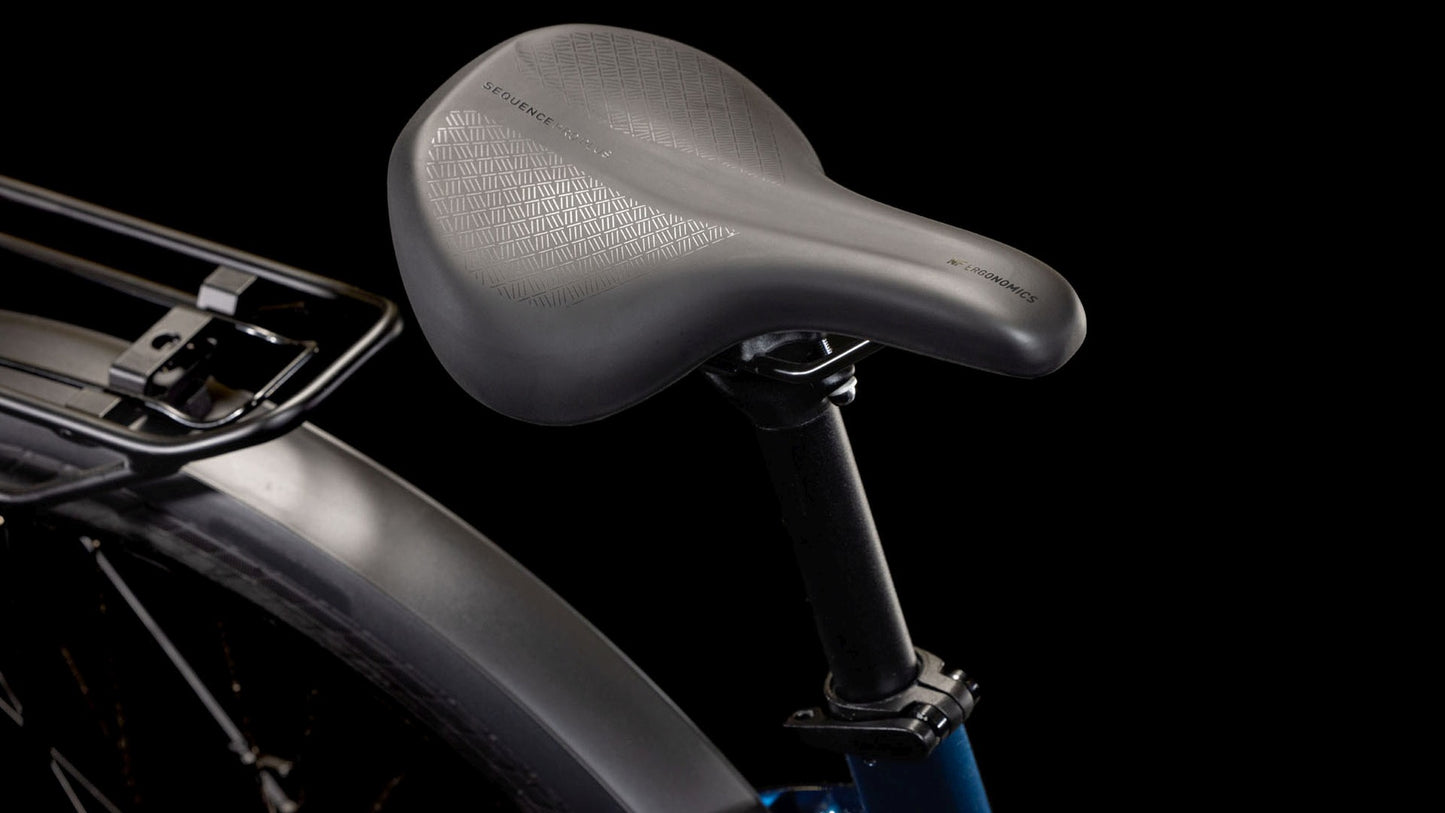

Saddle
Acid Sequence Pro Plus
Seatpost
Cube Performance Post, 30.9mm
Seatpost clamp

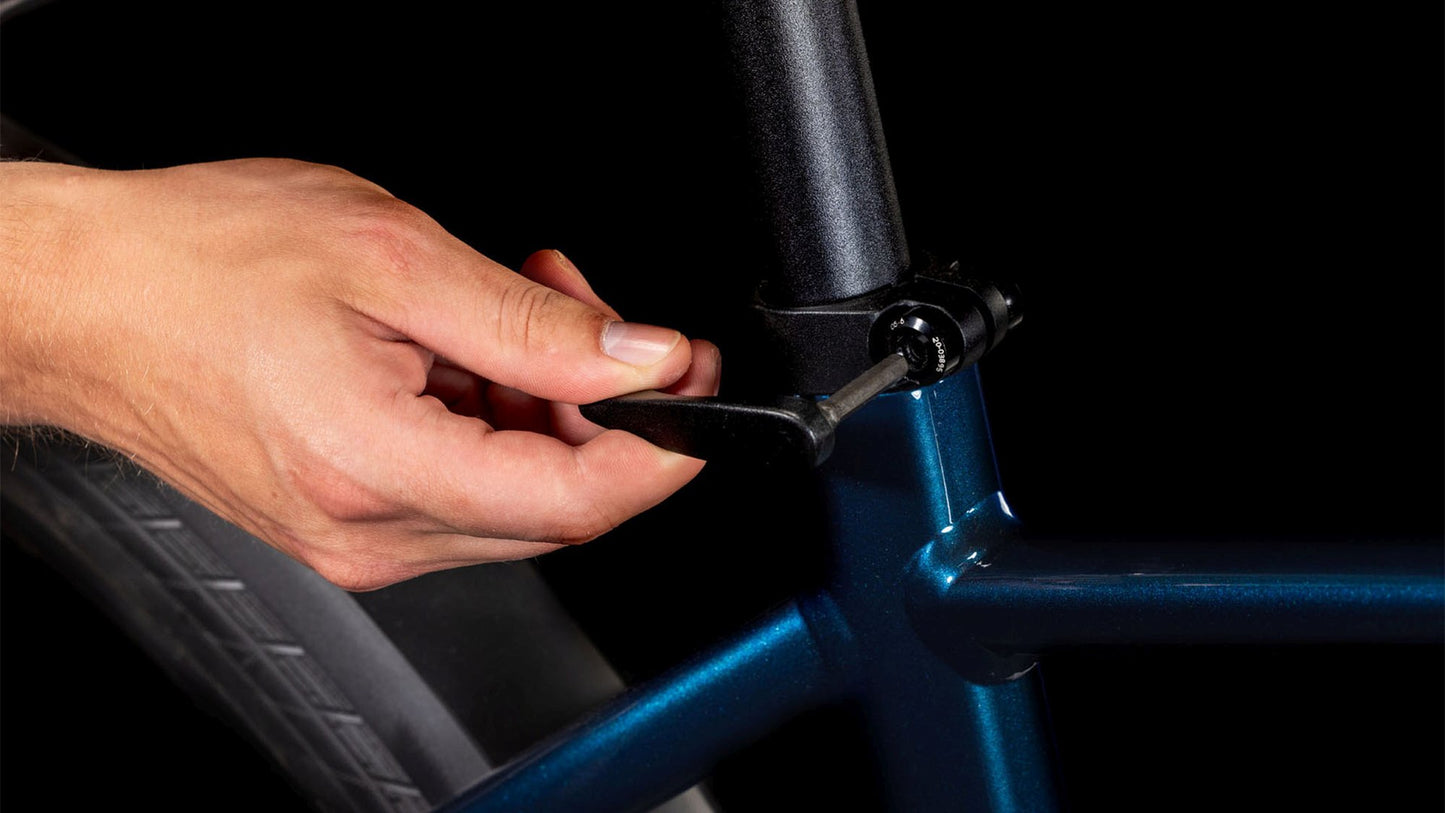

Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm
Pedals
Acid PP MTB

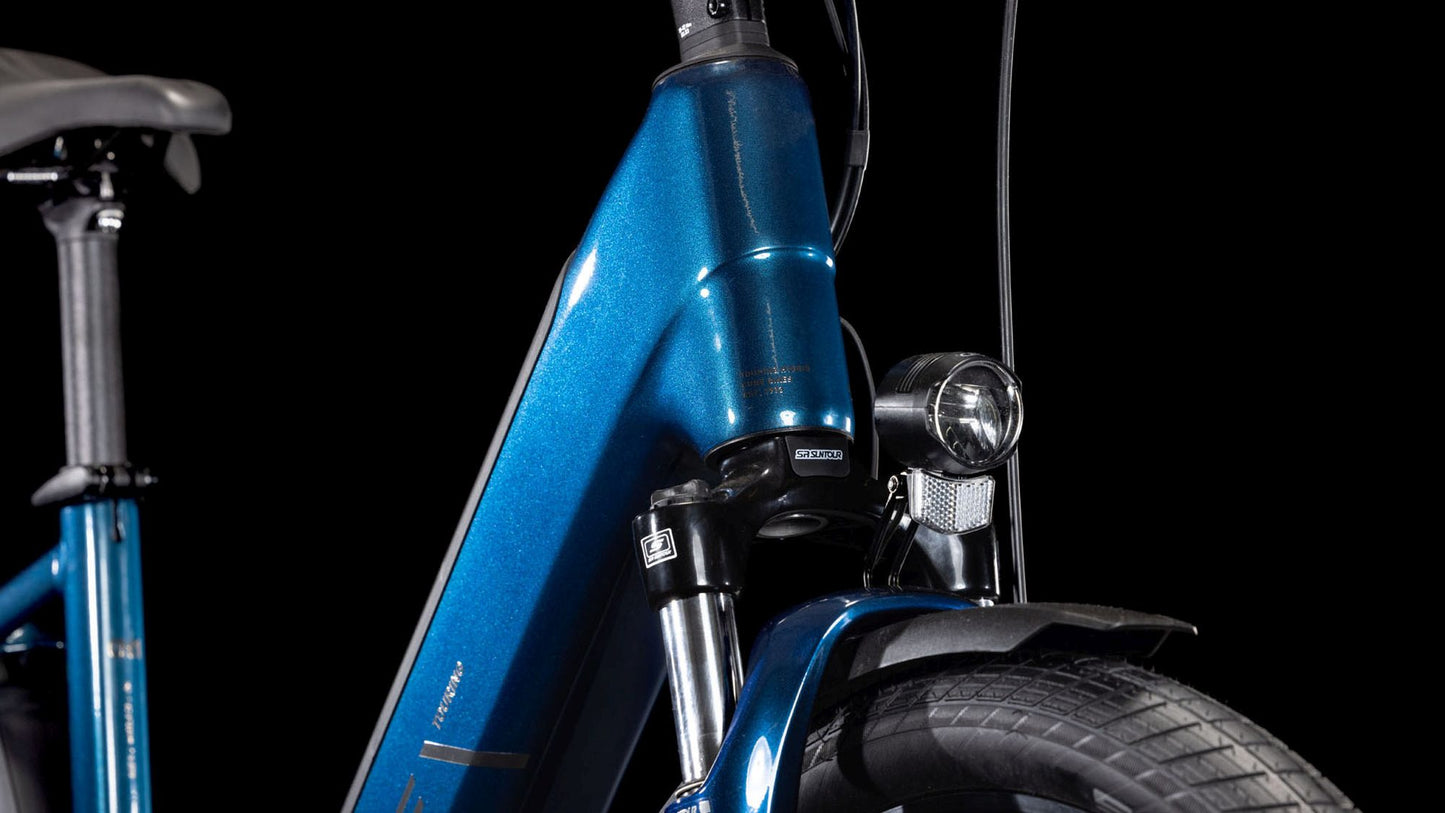

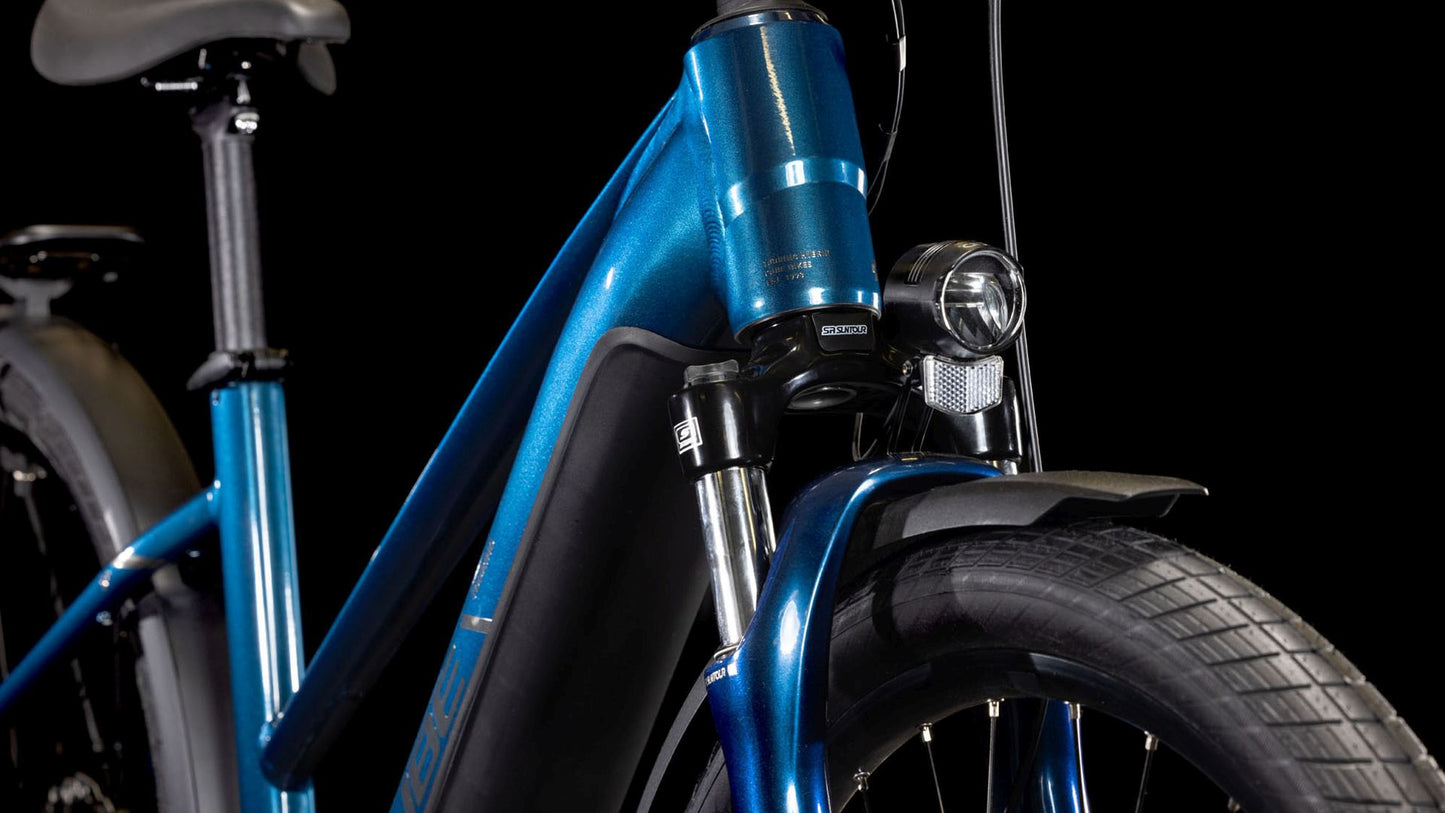

Front light
Acid Front Light PRO-E 60, 12V, DC
Rear light
Acid Mudguard Rear Light PRO-E, 12V, DC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65 BB-Mount
Bell
Cube Easy Bell

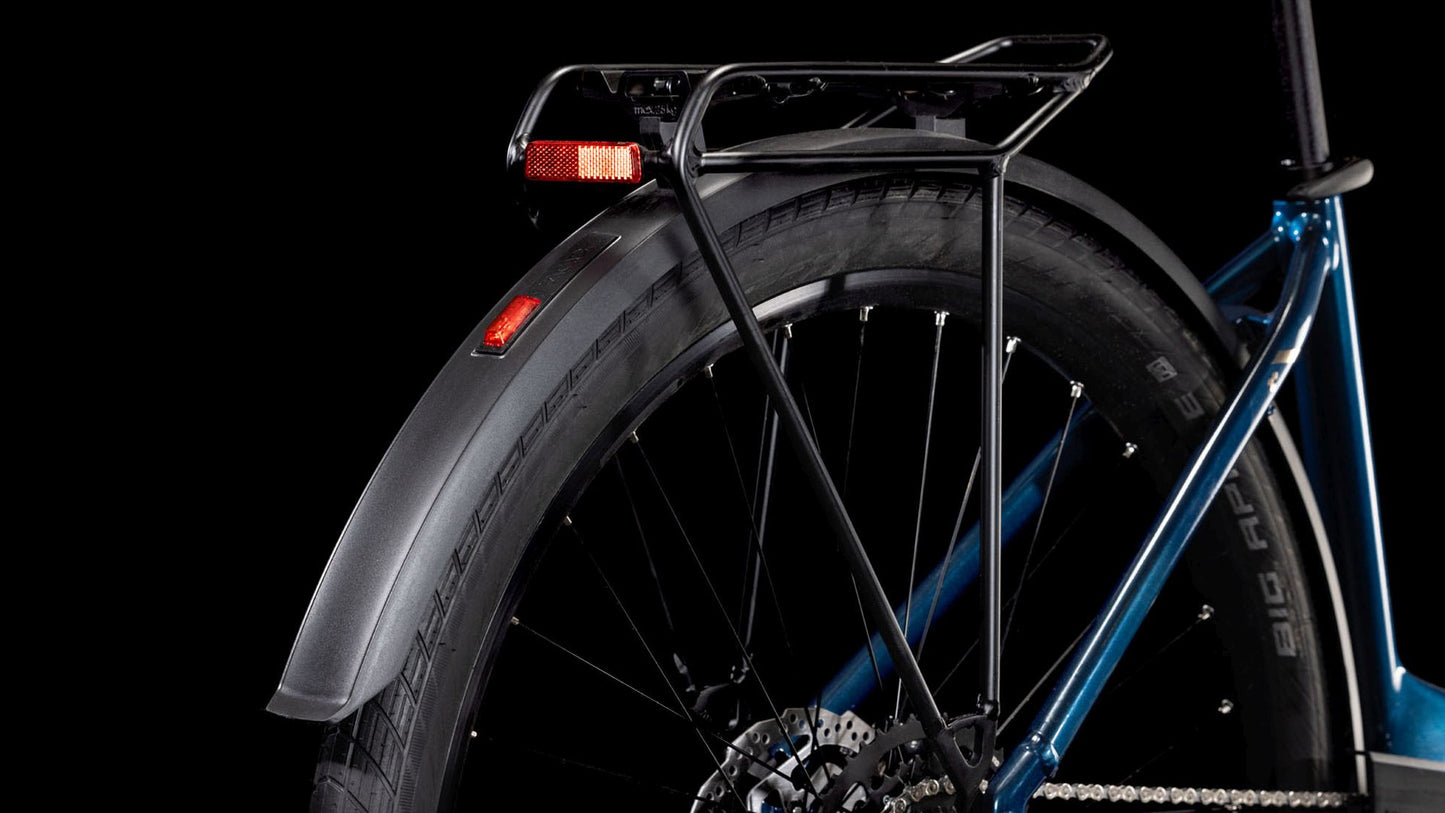

Carrier
Acid Semi-Integrated Carrier, RILink Adapter Compatible
