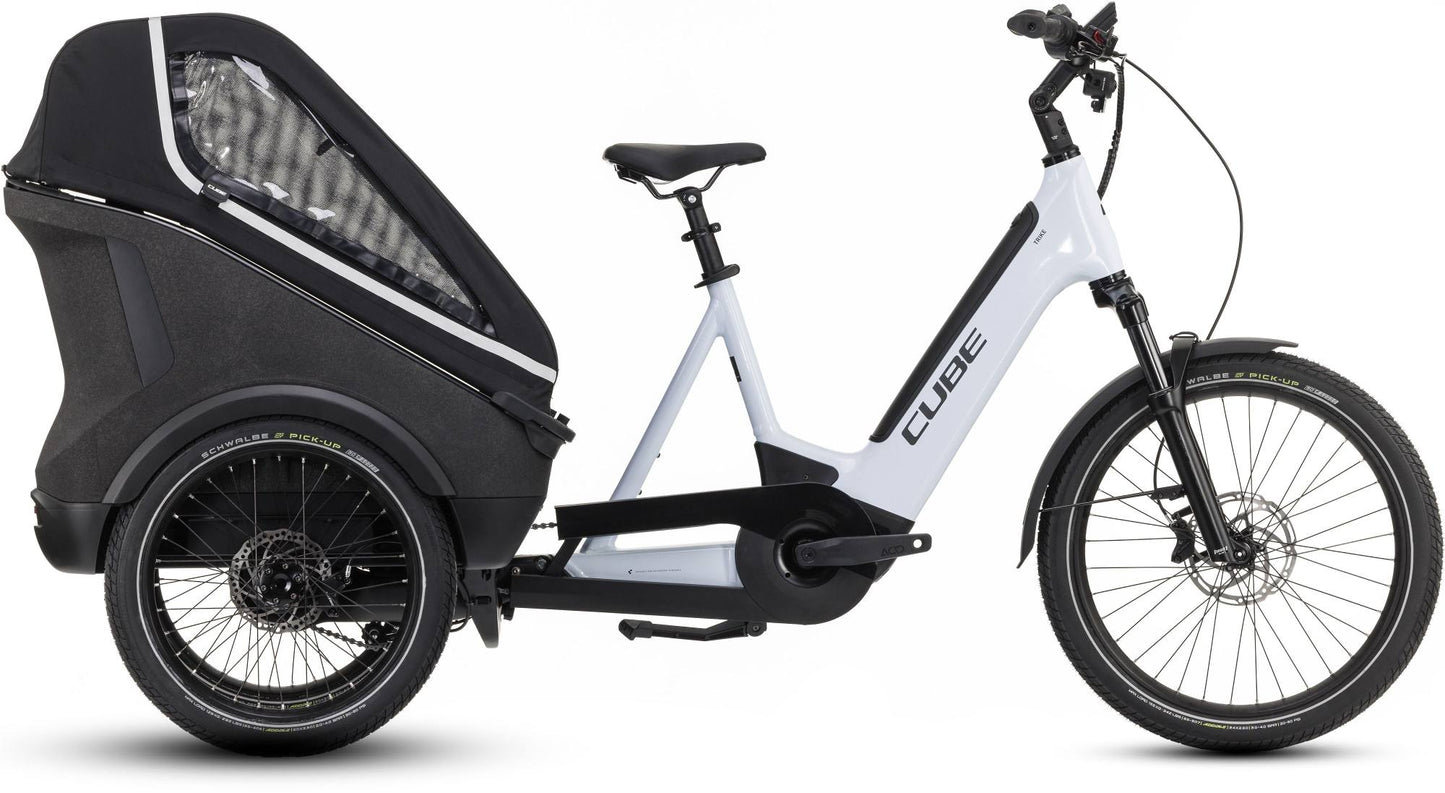

CUBE TRIKE FAMILY HYBRID 1500 WHITE/REFLEX
CUBE TRIKE FAMILY HYBRID 1500 WHITE/REFLEX
Plus Points
- High-quality aluminum frame
- Steers like a regular bike thanks to unique tilting mechanism
- Bosch Cargo Line motor
- Two large 750 Wh batteries
- Stepless Enviolo Cargo hub gear
- Suspension fork
- Hydraulic disc brakes all around
- Parking brake
- Height-adjustable handlebars and saddle
- Front rack available separately
- Cargo box with removable child seats, seat belts, and a rain canopy
Advisory points
- Harder to park than a two-wheeler
Description
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
789510
Model year
2025
Colour
FLASHWHITE/REFLEX
Fork
SR Suntour MOBIE 34 CARGO 24", 100mm
E-bike System
Engine
Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750 Axial + PowerTube 750 Axial
display
Bosch Kiox 300
Drivetrain and brakes
Front brake
Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)
Rear brake
Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)
Shifters
Enviolo Cargo manual
Crankset
Acid E-Crank, 170mm, 42T
Cassette
KMC 3mm, 18T
Chain
KMC e101 EPT
Cockpit
Headset
Acros Carrier Mount Headset
Handlebar
Cube Comfort Trail Bar, 700mm
Stem
Cube Comfort Stem Pro, 31.8mm, Adjustable
Bar tape or grips
Acid Travel Comfort Gripshift
Wheels
Rims
Cube EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready
Front hub
Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost
Rear Hub
Cube Trike Hub, Straightpull
Front tyre
Schwalbe Pick-Up, Super Defense, 65-507
Rear Tyre
Schwalbe Pick-Up, Super Defense, 65-406
Other parts
Saddle
Sequence Comfort
Seatpost
Satori Sorata 34.9mm, 280mm -440mm telescoping seatpost
Seatpost clamp
Cube Varioclose, 40mm
Pedals
Cube PP MTB
Front light
Acid Front Light PRO-E 110, 5-16V, DC
Rear light
Supernova T-M99
Kickstand
Ursus XXS
Mudguards
Acid 75
Bell
RING Bell
