What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Nice low top tube for easy mounting and dismounting

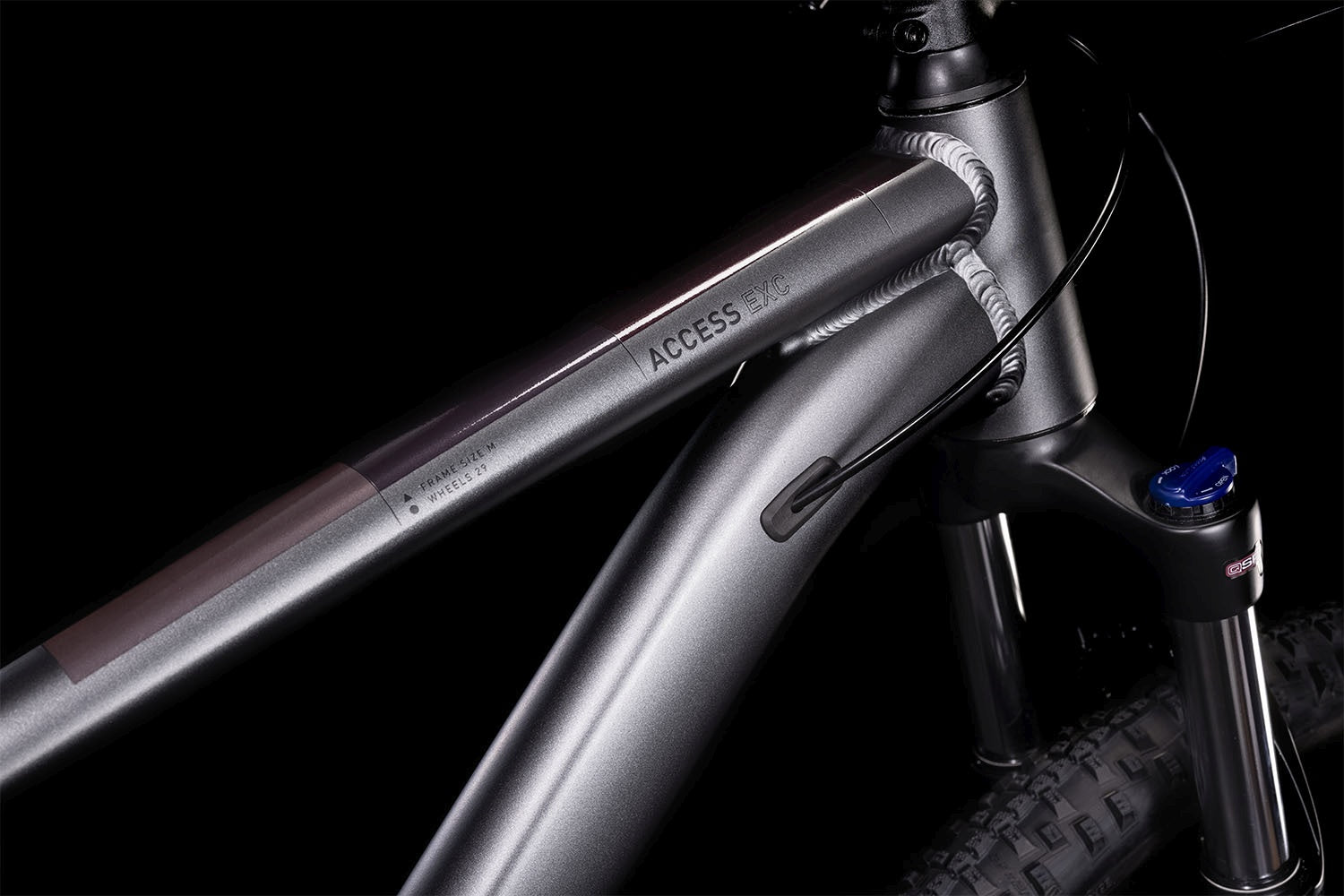

Sleek appearance with internal cable routing
Nice mix of agility and stability thanks to the CUBE Agile Ride geometry
Always a suitable size thanks to the CUBE Size Split system
Heavier than the more expensive Access models
No through axles
Shifting system less intuitively operable than on more expensive models
Product description
Ondanks de scherpe prijs komen in de instapmountainbike CUBE Access WS EXC prestaties en comfort perfect samen. Op mountainbikepaadjes in het bos, maar ook tijdens een ontspannen ritje door de polder. De hydraulische schijfremmen van Shimano vertragen zelfs in het slechtste weer en met de soepele versnellingen, eveneens van Shimano, kom je moeiteloos iedere heuvel op. De comfortabele verende voorvork van Suntour kan eventueel geblokkeerd worden. Fijn als je op glad asfalt rijdt. De juiste maat vinden? Of je nu klein of groot bent, dankzij ons Size Split-systeem hebben we voor iedereen een precies passende Access WS EXC. Je ziet het, we hebben aan alles gedacht.
Read more
Matching accessories
CUBE Bottle Cage Hpp Matt Berry/Black
£16.95
ACID Rear Carrier Sic 27.5" Rilink Black
£49.95
ACID Rear Carrier Sic 29" Rilink Black
£49.95
ACID Rear Carrier Sic Pure 27.5" Rilink Black
£29.95
ACID Mudguard Set 65 27.5" Black
£34.95
ACID Mudguard Set 65 29 Inch Black
£34.95
CUBE KICKSTAND FM BLACK
£32.95
ACID Carrier Sic Rail 29 Inch Black
£44.95
ACID Carrier Sic Rail 27.5 Inch Black
£44.95
ACID KICKSTAND FM PRO BLACK
£29.95
Often bought together
CUBE Bottle Feather 0.75L Black
£6.95
ACID Chain Lock Corvid K100 Black
£26.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Specifications
General
Model code
525300
Model year
2022
Colour
grey/berry
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
14.1
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCM RL Disc, 100mm, Remote Lockout
Drivetrain and brakes
Number of gears
16
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano RD-M360, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
?
Make and type of gear levers.
Shimano SL-M315, Rapidfire-Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano FC-M315, 36x22T, 170mm
Cassette
?
The set of gears on the back of the bicycle
Shimano CS-HG31, 11-34T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC Z8.3

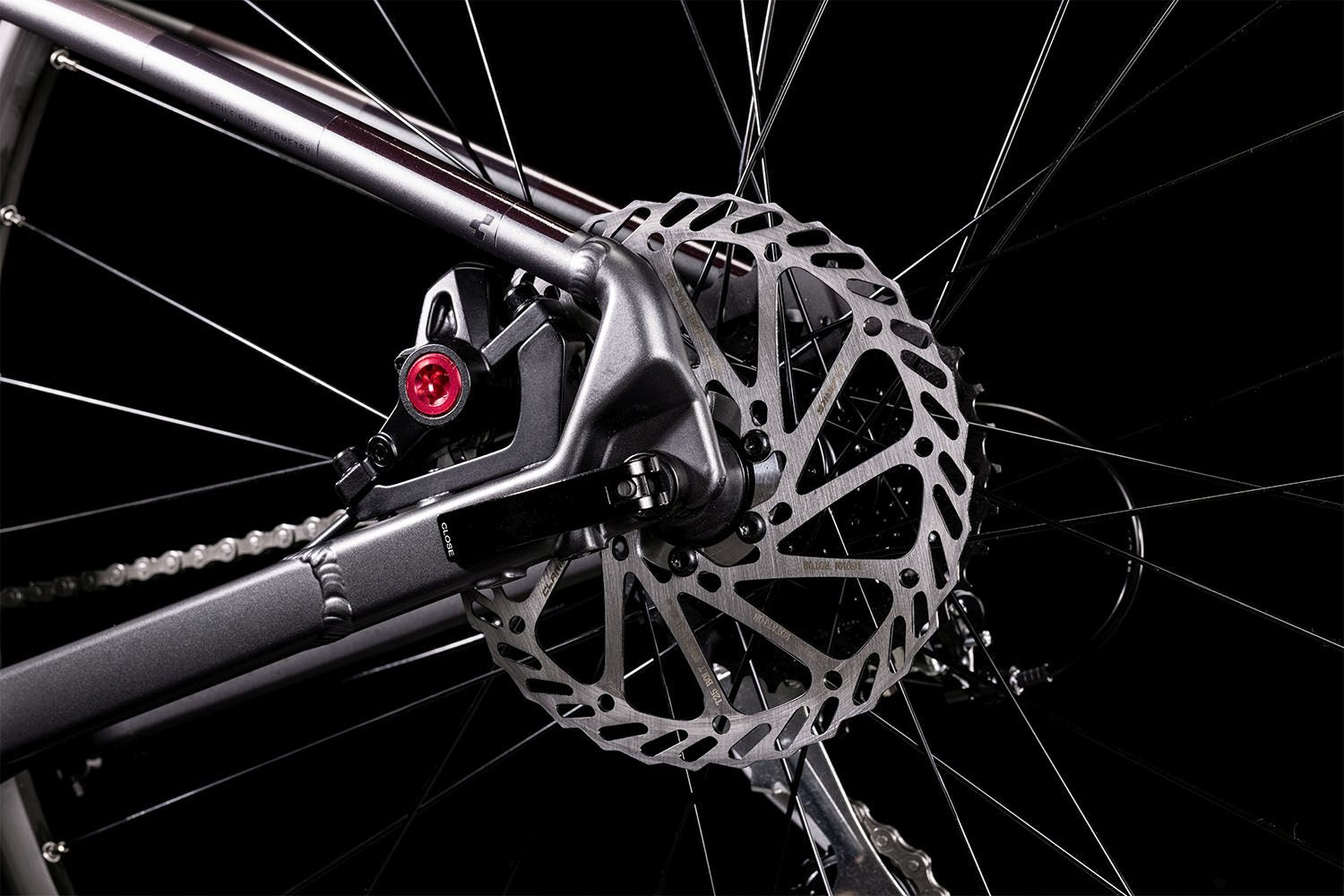

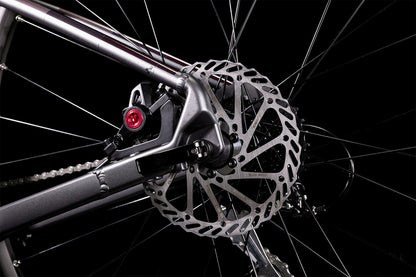

Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868, Top 1 1/8, Bottom 1 1/2, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem Pro, 31.8mm
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano HB-TX505, QR, Centerlock
Rear hub
Shimano FH-TX505, QR, Centerlock
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Schwalbe Smart Sam, Active, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Schwalbe Smart Sam, Active, 2.25
Other parts
Seat
Natural Fit Venec Lite WS
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
