What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.

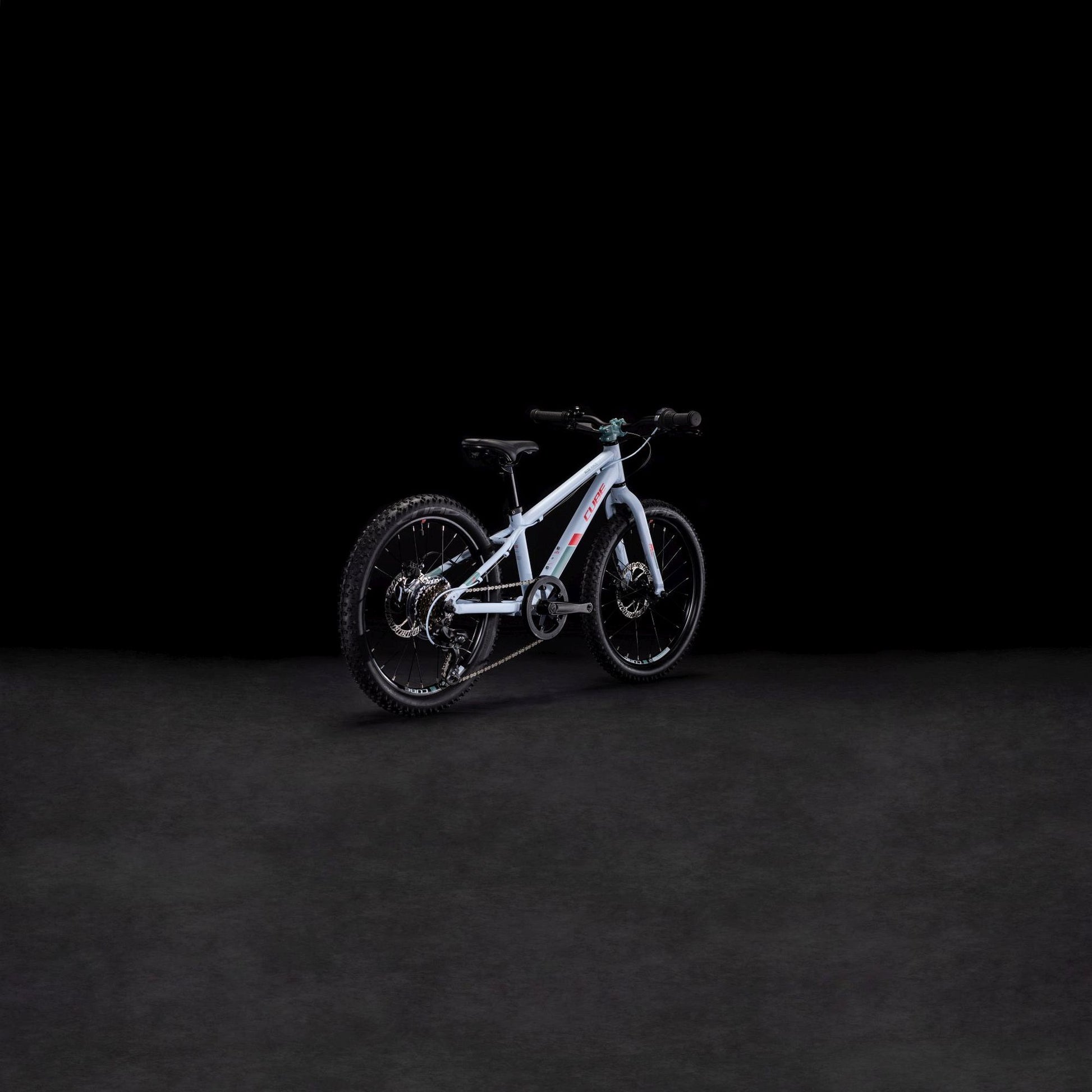

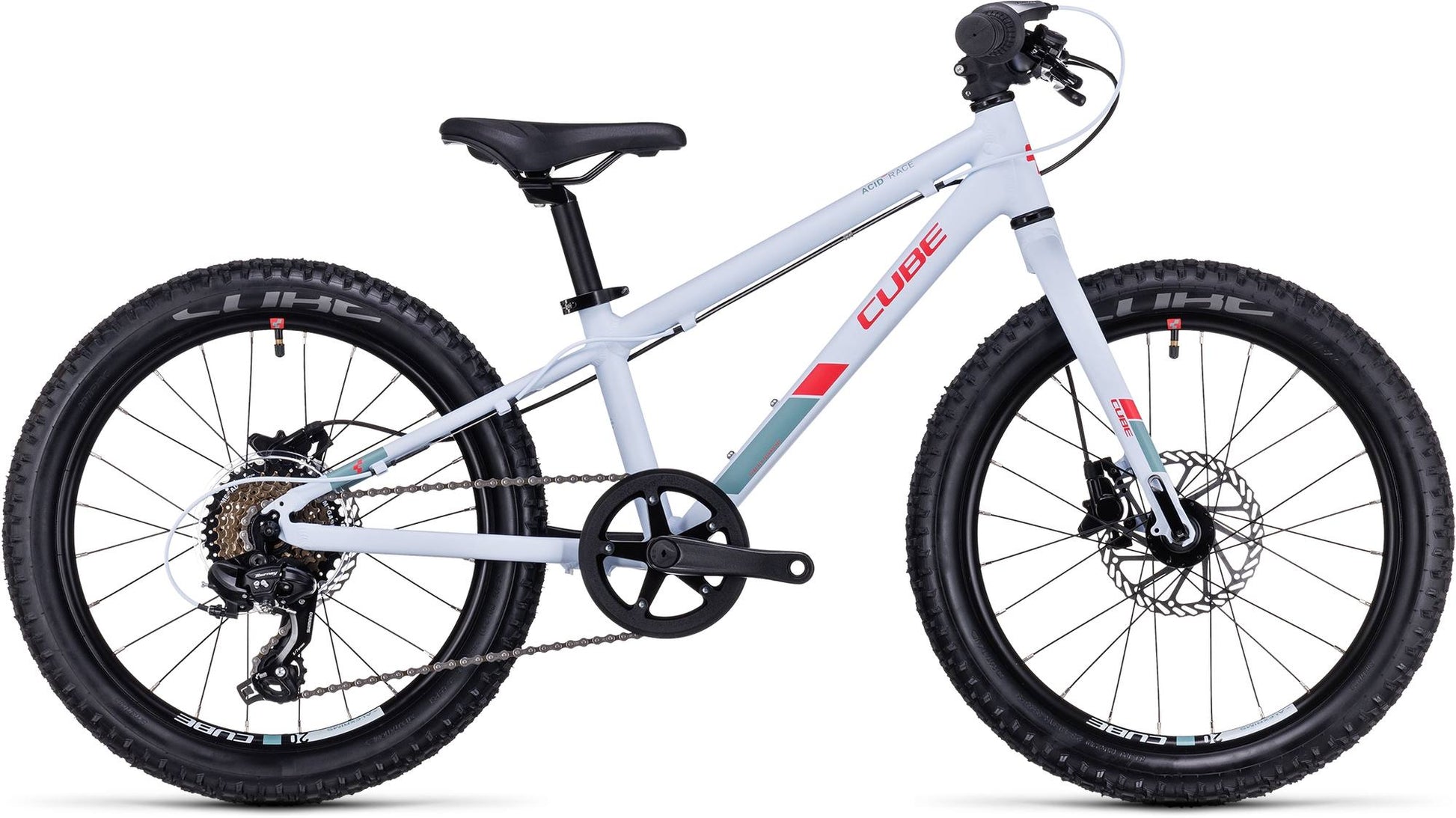

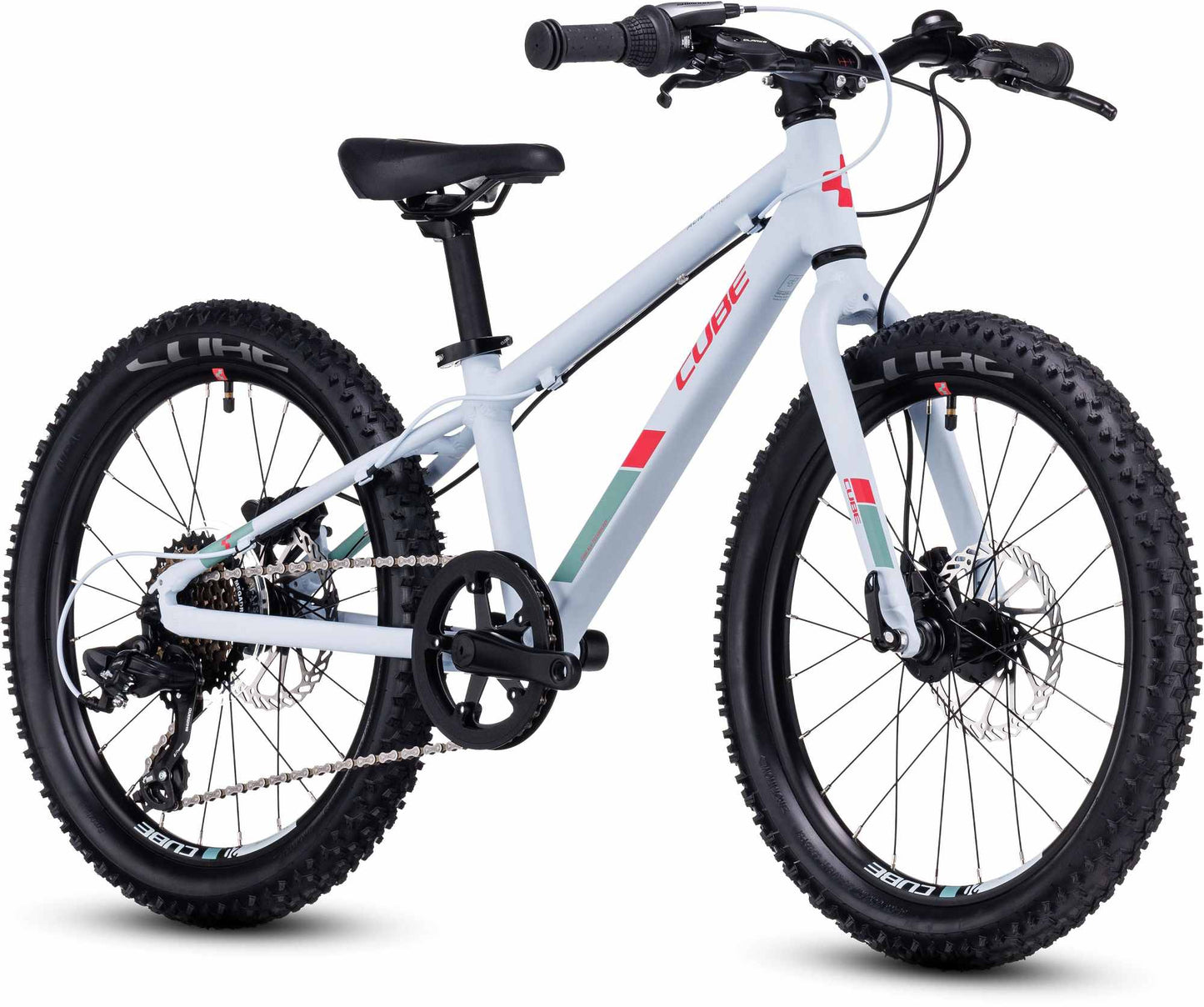

With the Acid 200 Disc, your child can have a mountain bike just like mum and dad's. Featuring strong, powerful hydraulic disc brakes front and rear and an easy-shifting Shimano 7-speed gear setup, it's got everything the aspiring junior mountain biker could wish for. There's a large 34-tooth bailout gear to provide some extra help for tired little legs on long or steep climbs, and the handling is designed to be fun but safe – perfect for young rippers looking to expand their riding horizons. Adventure awaits!

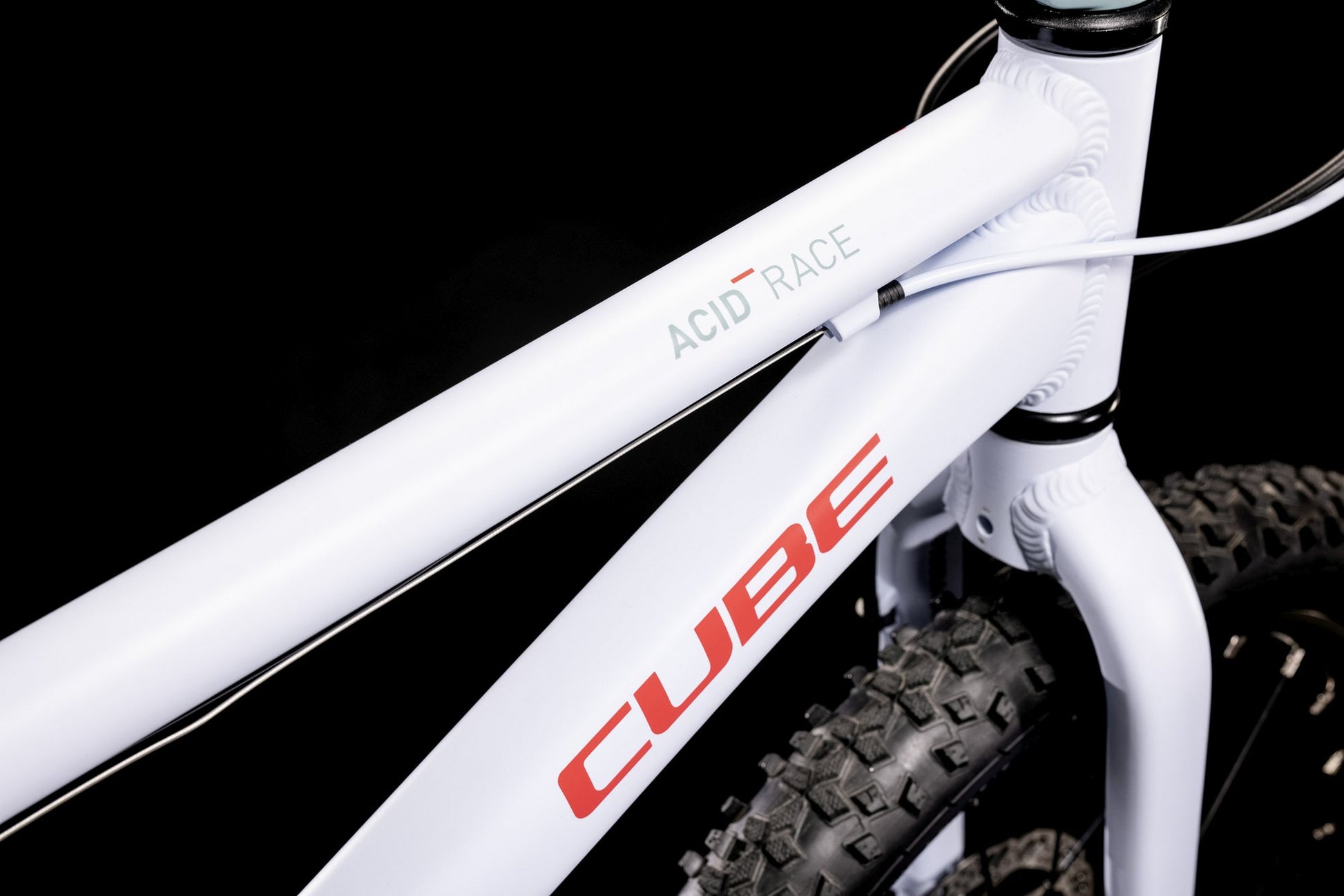

Frame description We don't cut corners on our kids' bikes, which is why you'll find the same high-quality 6061 aluminium tubing here as on our adult range. Strong, light and durable enough for loads of enthusiastic use, the Acid 200 Disc frame features disc mounts front and rear. There's also a replaceable derailleur hanger, so that the occasional mishap doesn't write off the entire frame. It's all in the detail...
Find your size! Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows: 1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart. 2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle. 3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Read more
Matching accessories
Cube Bottle Cage Flow 400 Black
£14.95
CUBE KICKSTAND CM KID BIKES
£12.95
ACID Mudguard Set Mud Rookie 18"/20"
£12.95
ACID CARRIER UNIVERSAL KIDS 20 INCH BLACK
£29.95
Often bought together
Cube Bottle Flow 400 Black/Yellow
£9.95
Cube Bottle Flow 400 Black/Black
£9.95
RFR SPOKE REFLECTOR SET PRO SILVER
£22.95
ACID LED LIGHT HPA WHITE LED BLACK
£19.95
ACID LED LIGHT HPA RED LED BLACK
£19.95
Acid Towingsystem Mountain Explorer Black
£29.95
Acid Bottle Flow 400 Black/Silver
£9.95
Acid Bottle Flow 400 Transparent/Black
£9.95
Spare parts
CUBE MECH HANGER ACID & REACTION 200/240
£14.95
CUBE Touch Up Pen Set Light Blue Pastel Matt 2166
£19.95
Specifications
General
Model code
622170
Model year
2024
Colour
blue/coral
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
9.5
Frame and front fork
Frame
Aluminium Lite 6061
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
Cube Rigid Alloy fork
Drivetrain and brakes
Number of gears
7
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano RD-TY300, 7-Speed
Shifters
?
Make and type of gear levers.
Shimano SL-RS45, Revoshift
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Samox 36T, 127mm with Chainguard, Aluminium

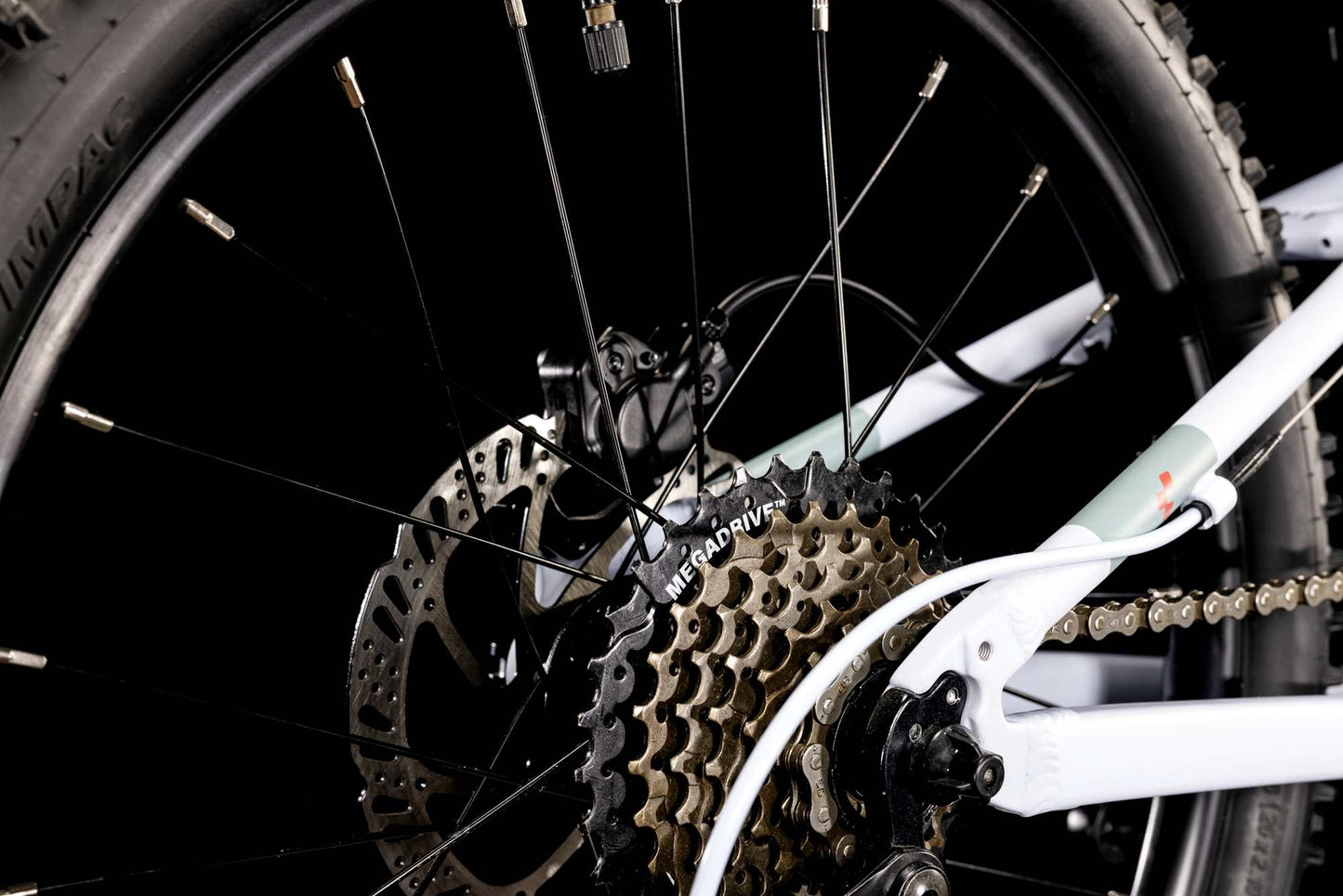

Cassette
?
The set of gears on the back of the bicycle
Sunrace MFM300.7, 13-34T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC HV500

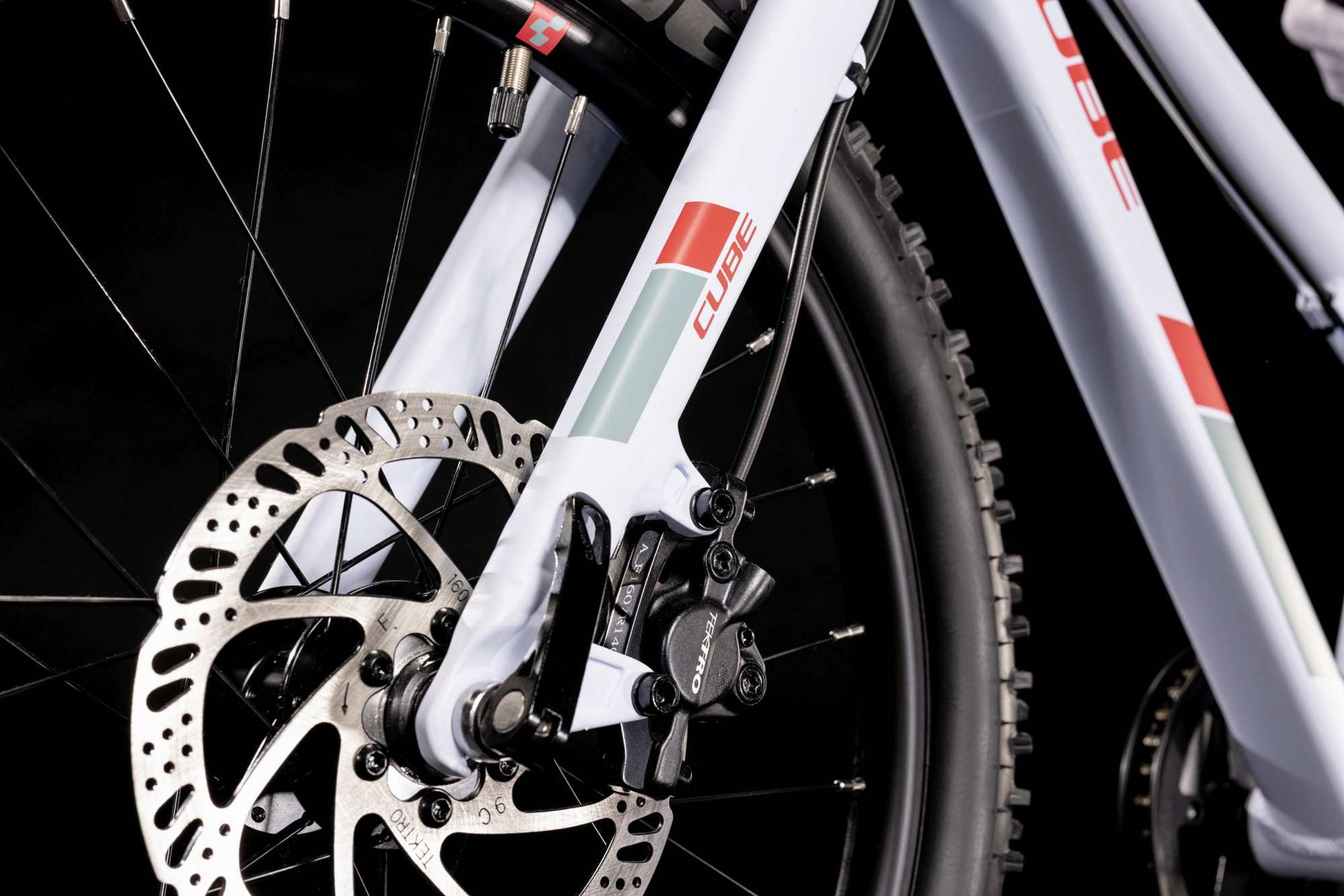

Brake system front
?
Brand, type of brake system and diameter of the brake disc.
Tektro HD-M282, Hydr. Disc Brake (160/160)
Brake system back
?
Brand, type of brake system and diameter of the brake disc.
Tektro HD-M282, Hydr. Disc Brake (160/160)
Cockpit
Headset
?
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube A-Headset

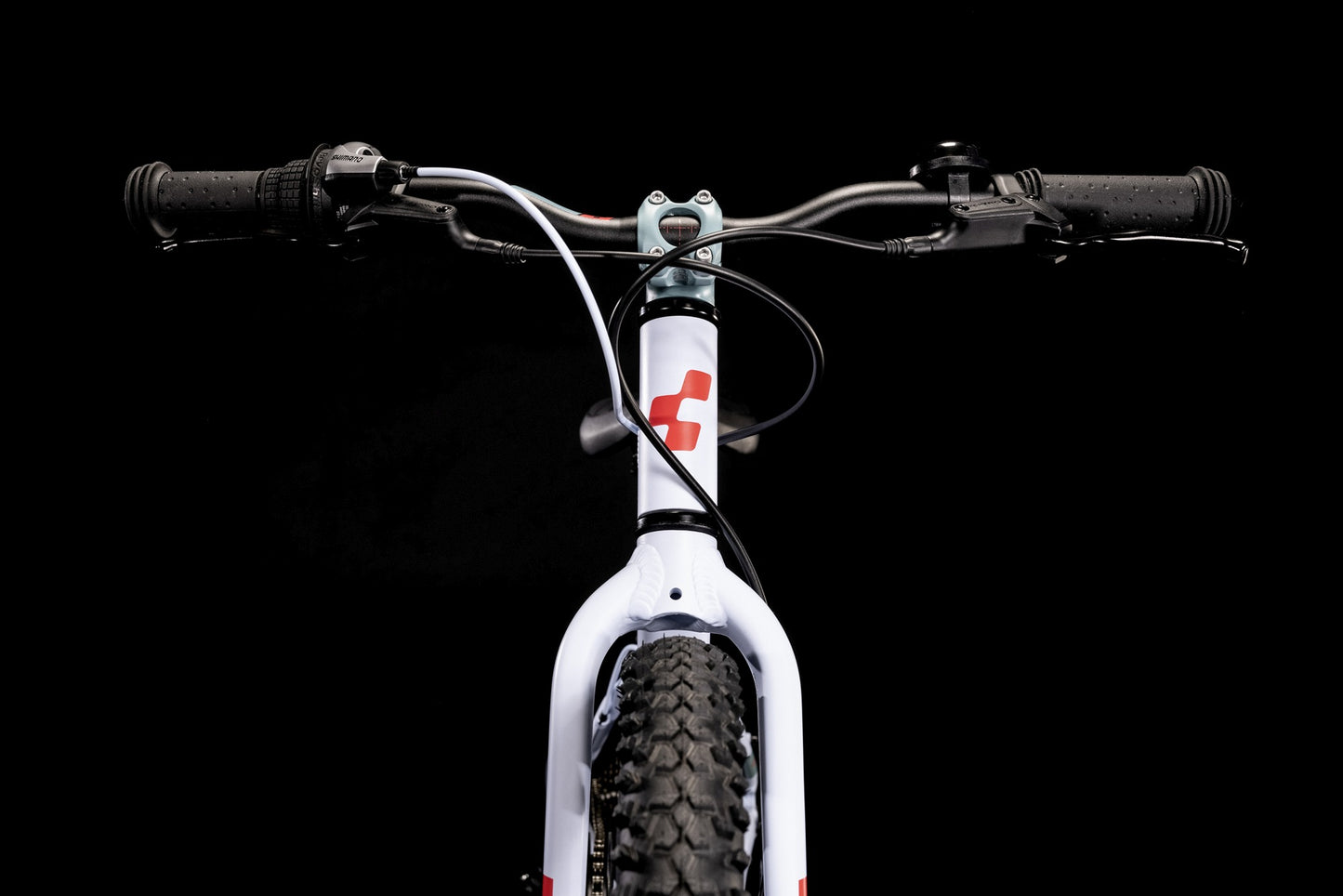

Handlebar
Cube Aluminium Lite, 560mm
Stem
Cube Aluminium Lite
Wheels
Rims
Cube Aluminium
Front hub
Cube Aluminium, QR
Rear hub
Cube Aluminium, QR
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube IMPAC Smartpac, 2.1
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube IMPAC Smartpac, 2.1
Other parts
Seat
Cube Kid
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Aluminium Lite
Seatpost clamp
Cube CUBE
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube Kid
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
