What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.

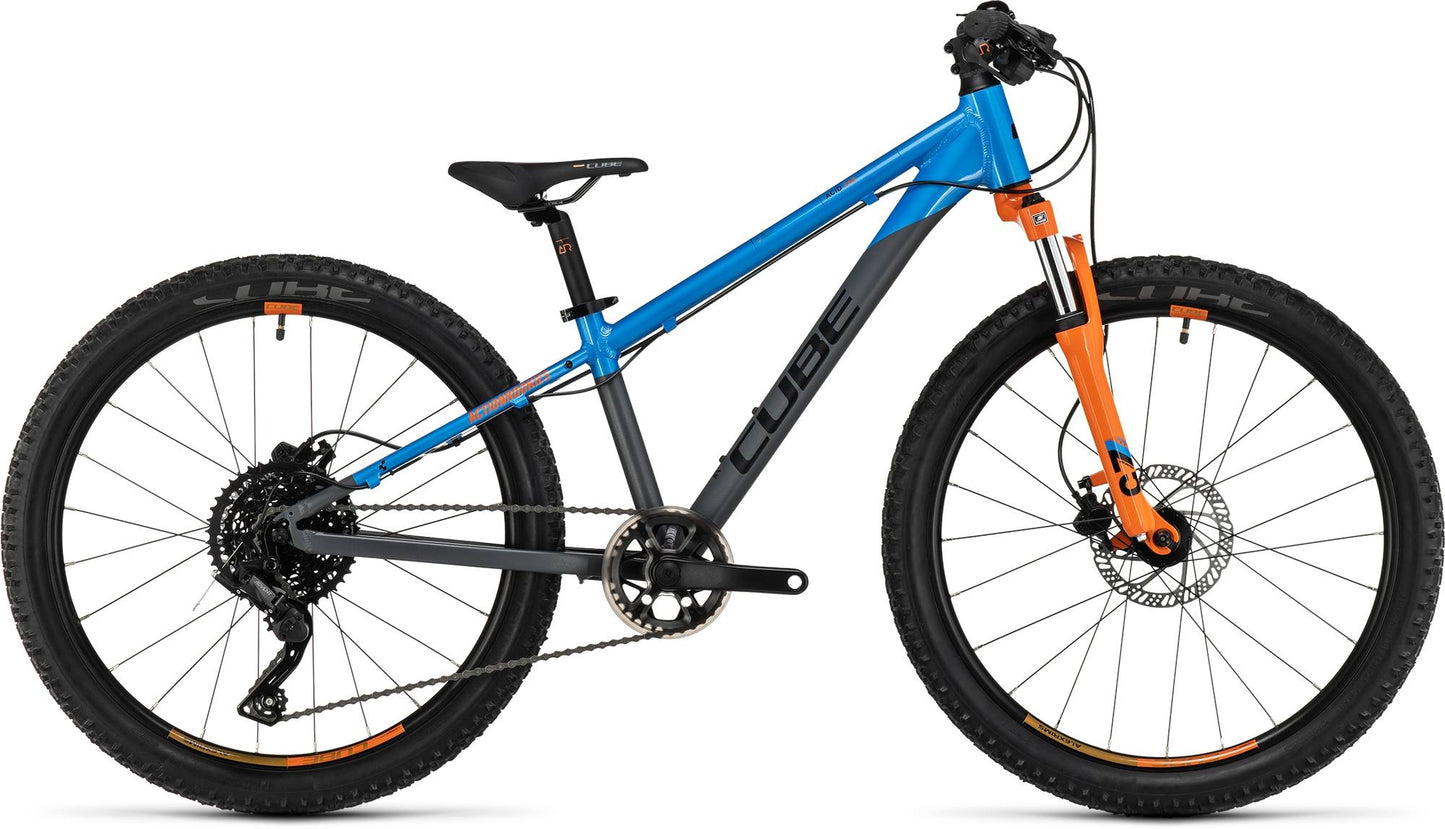

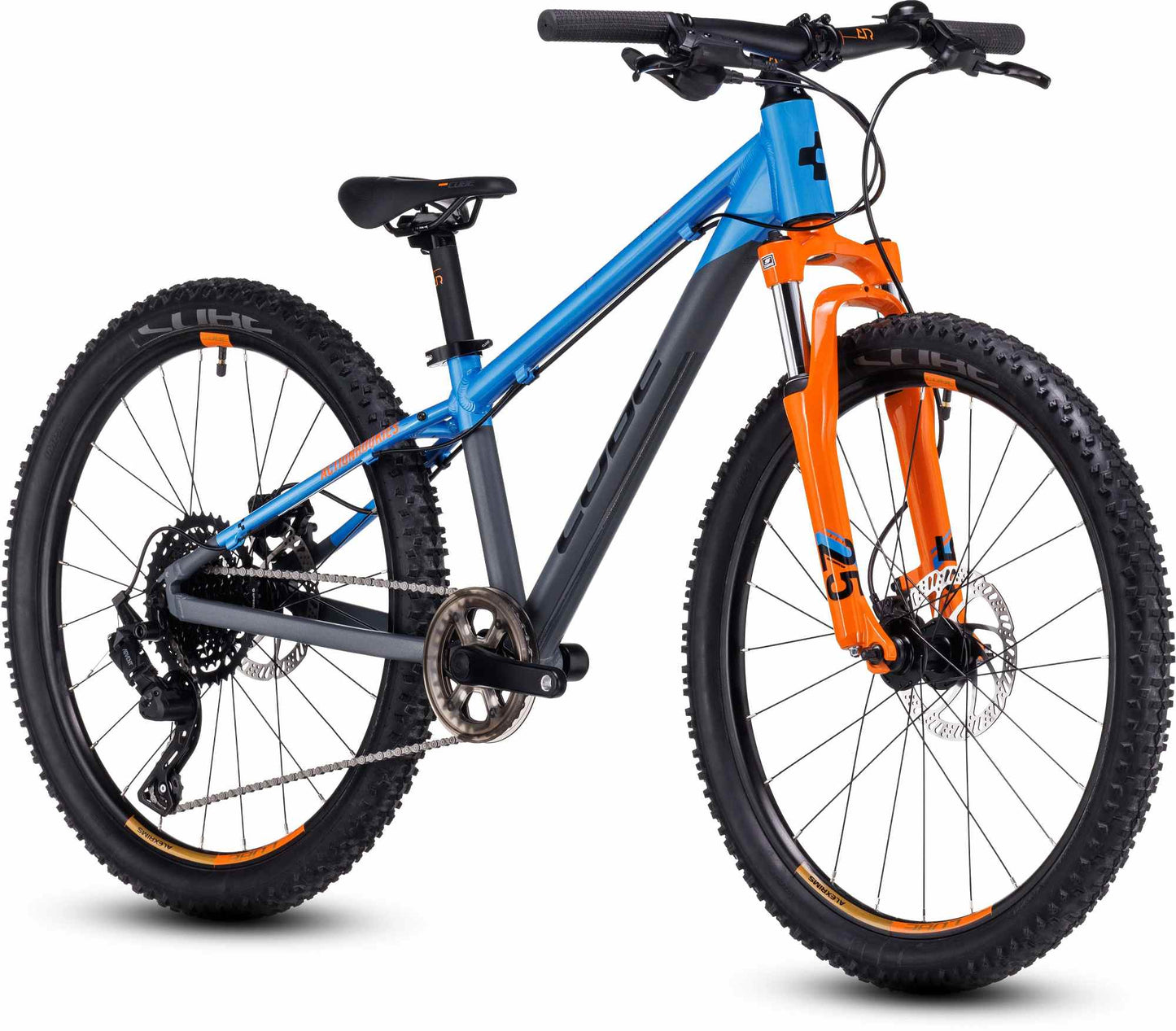

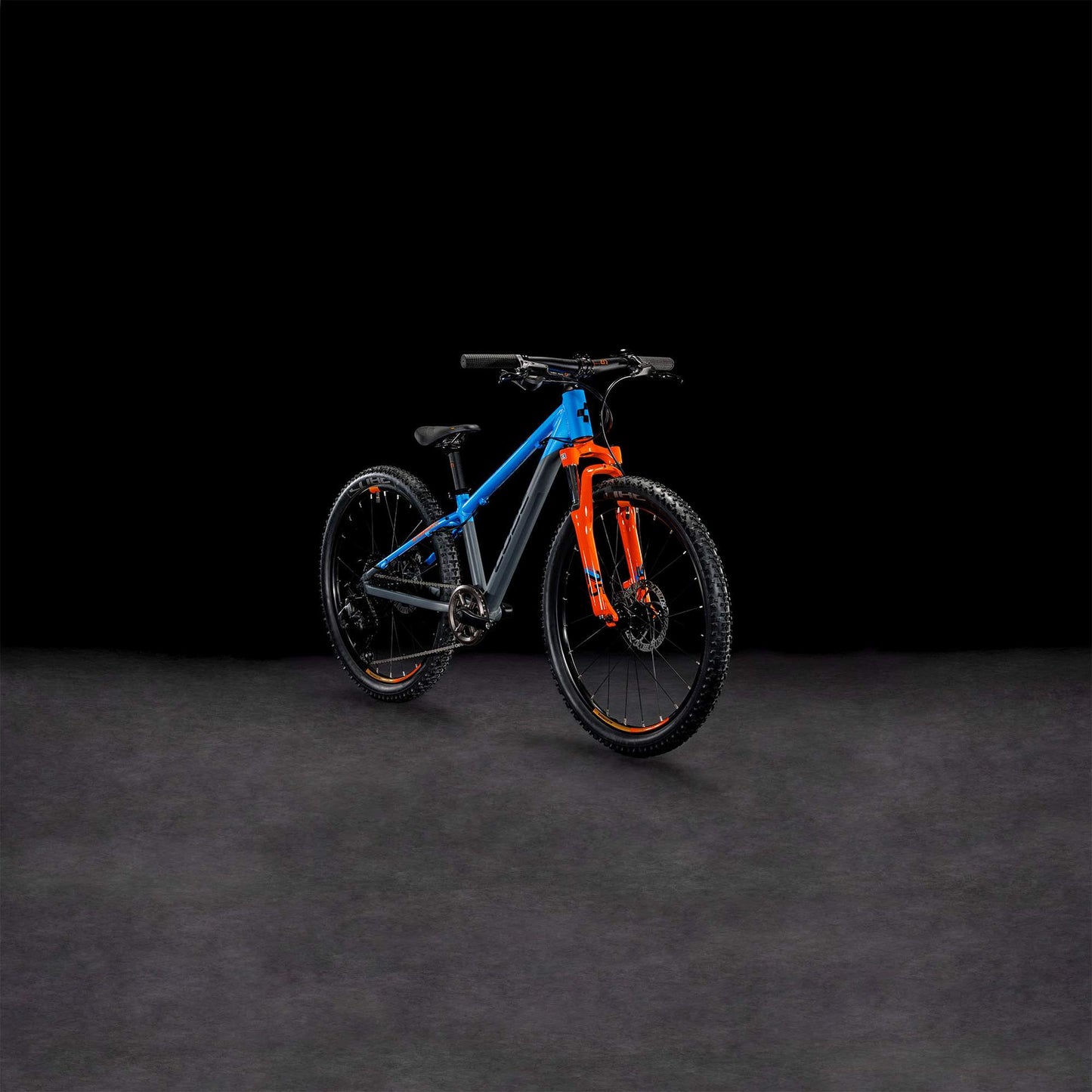

This is the bike that all youngsters are going to want – light, strong and equipped with everything they'll need for off-road adventuring with friends and family. Hydraulic disc brakes are powerful and easy to control, with levers specially designed for small hands. The Suntour suspension fork improves comfort and control on rough trails, and the wide-ranging 1x9-speed gears are easy to use and give a range that'll make light work of any hill. Off-road adventures are just a few pedal strokes away...

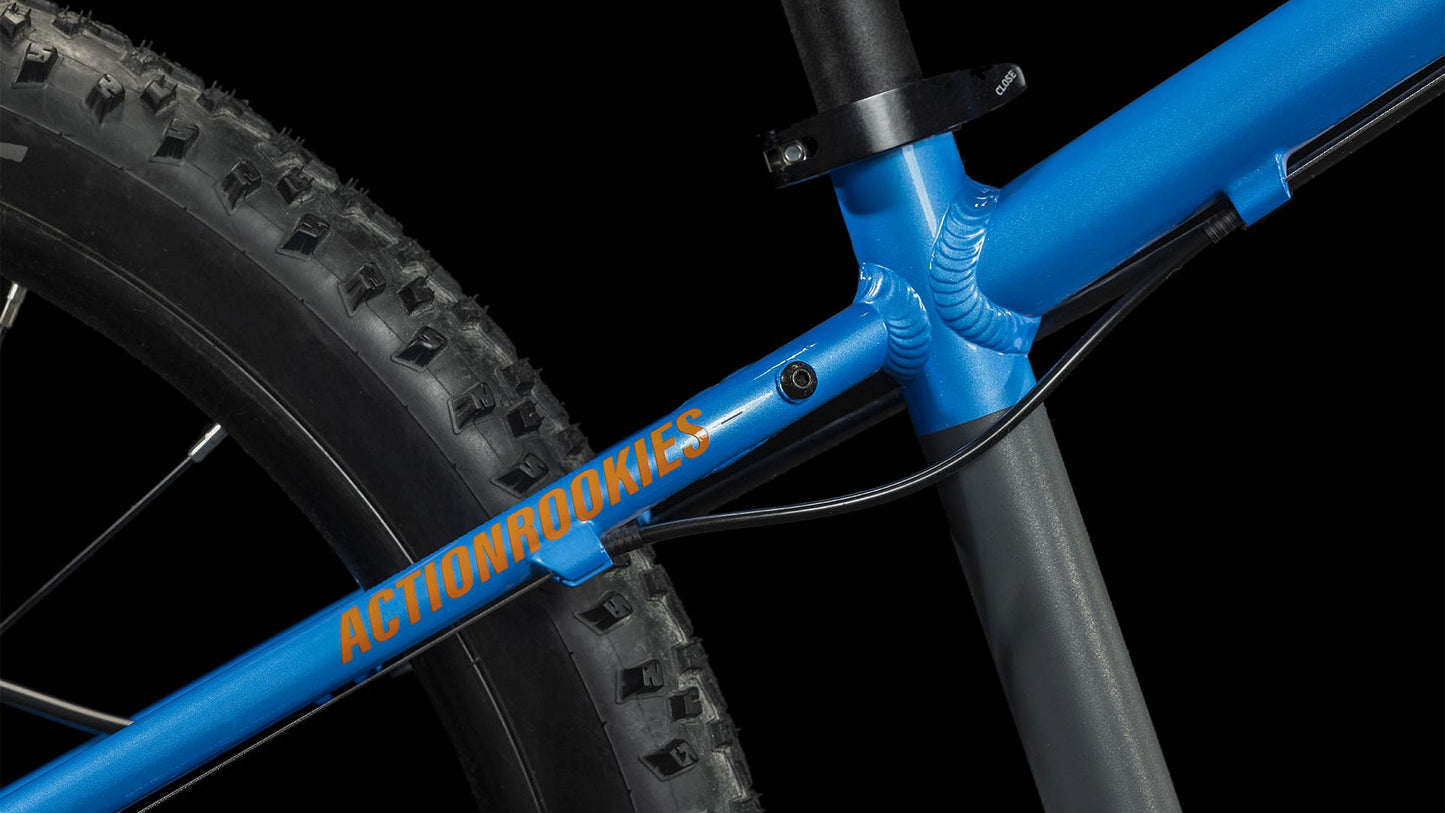

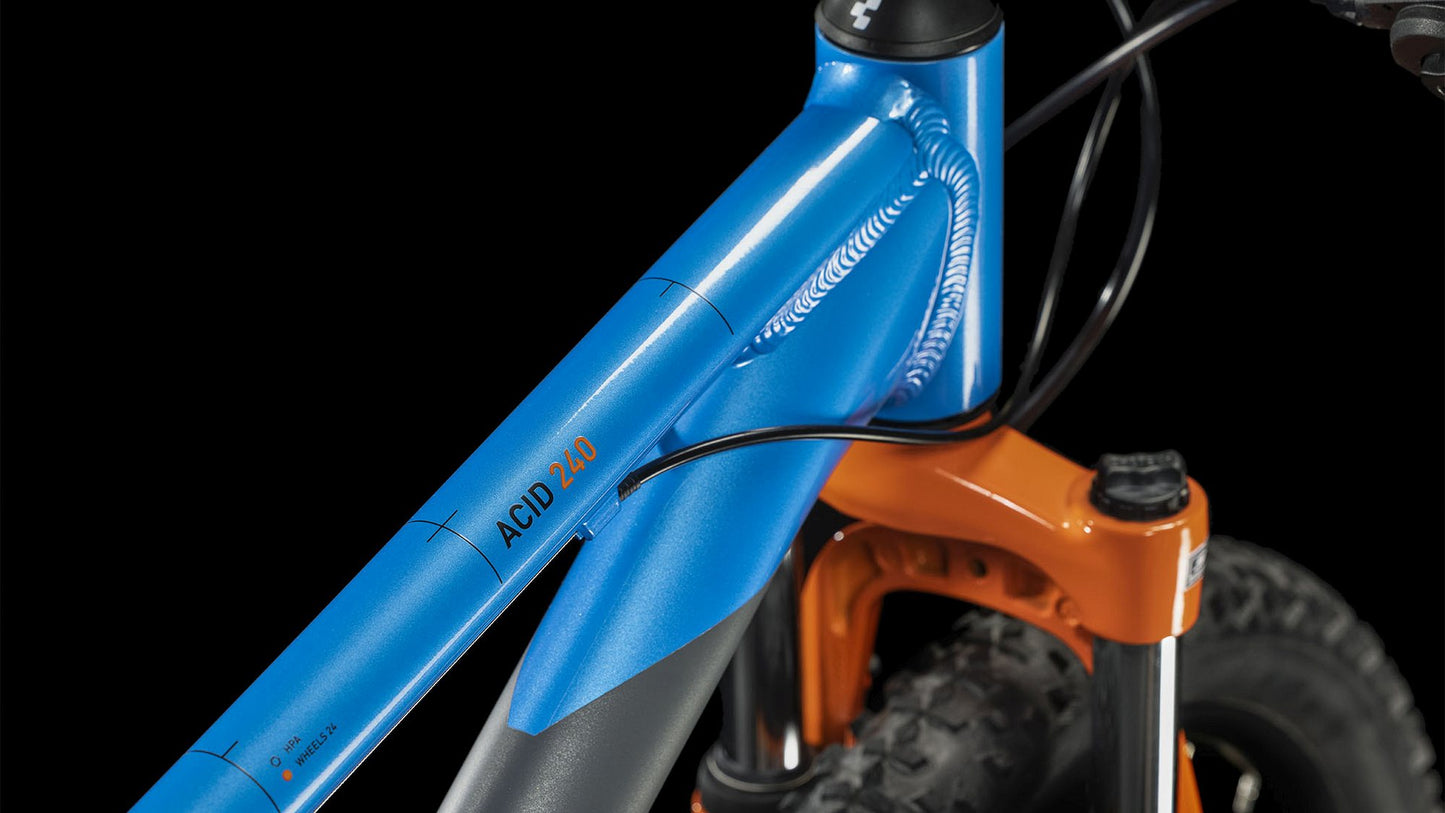

Frame description Built from the same heat-treated 6061 aluminium tubes as our adult bikes, the Acid 240 Disc's frame is every bit as tough as a full-size mountain bike, but with the right weight and proportions for a child. Disc mounts allow the use of these powerful, safe and easy-to-use brakes. There's a bottle mount for mid-ride refreshment and rack mounts, too. The handling is designed to be both fun and confidence-inspiring. And, because we know accidents can happen, we made the gear hanger easily replaceable so that a knock or crash needn't result in an expensive repair.
Find your size! Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows: 1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart. 2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle. 3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Read more
Matching accessories
CUBE KICKSTAND CM KID BIKES
£12.95
ACID Mudguard Set Mud Rookie 24"
£12.95
Often bought together
RFR SPOKE REFLECTOR SET PRO SILVER
£22.95
ACID LED LIGHT HPA WHITE LED BLACK
£19.95
ACID LED LIGHT HPA RED LED BLACK
£19.95
Acid Towingsystem Mountain Explorer Black
£29.95
Spare parts
CUBE Touch Up Pen Set Blue Glossy 2293
£19.95
CUBE Touch Up Pen Set Grey Matt 2295
£19.95
Specifications
General
Model code
623190
Model year
2024
Colour
actionteam
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
11.8
Frame and front fork
Frame
Aluminium Lite 6061

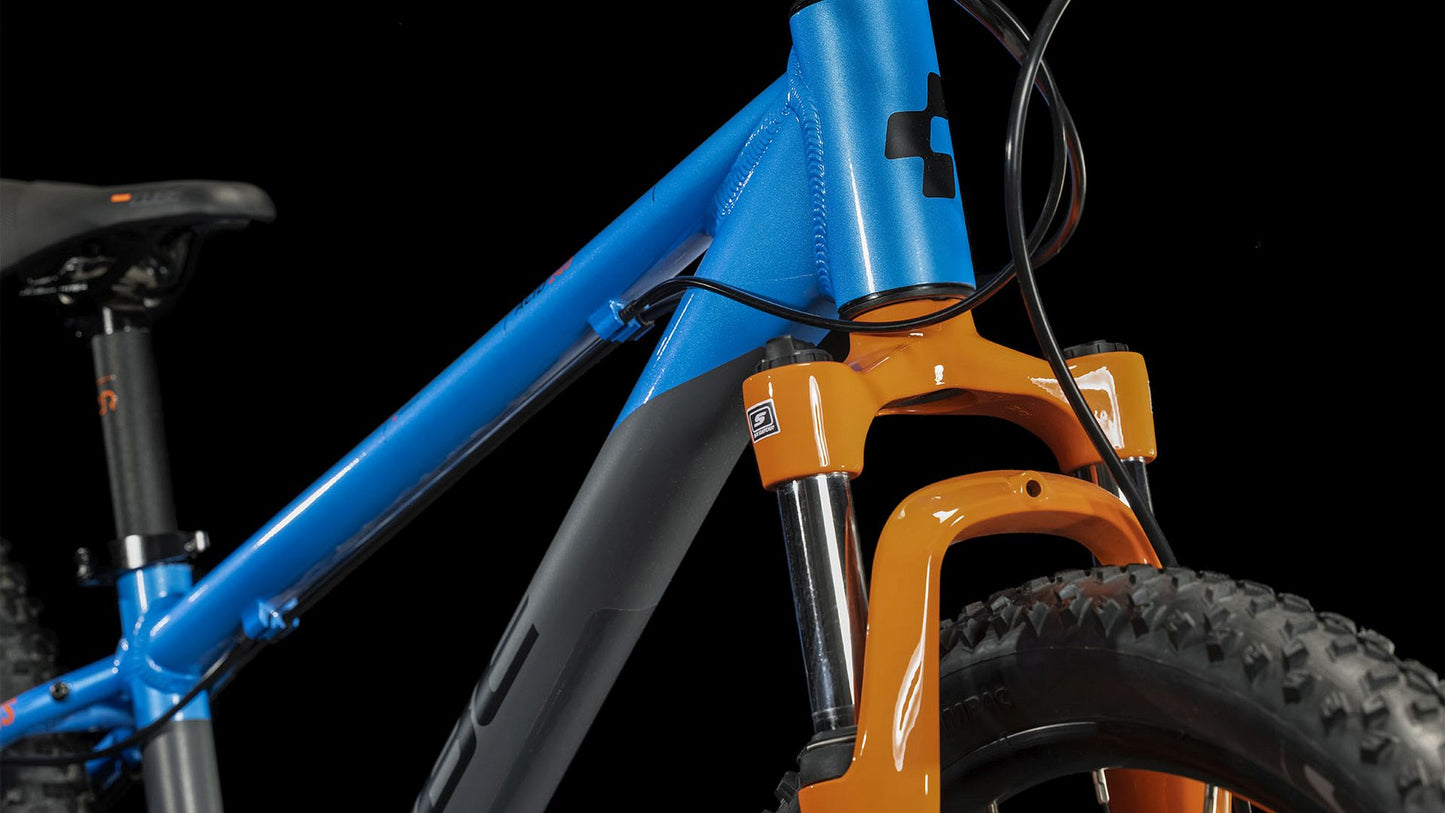

Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour SF20 XCT JR, 60mm
Drivetrain and brakes
Number of gears
9

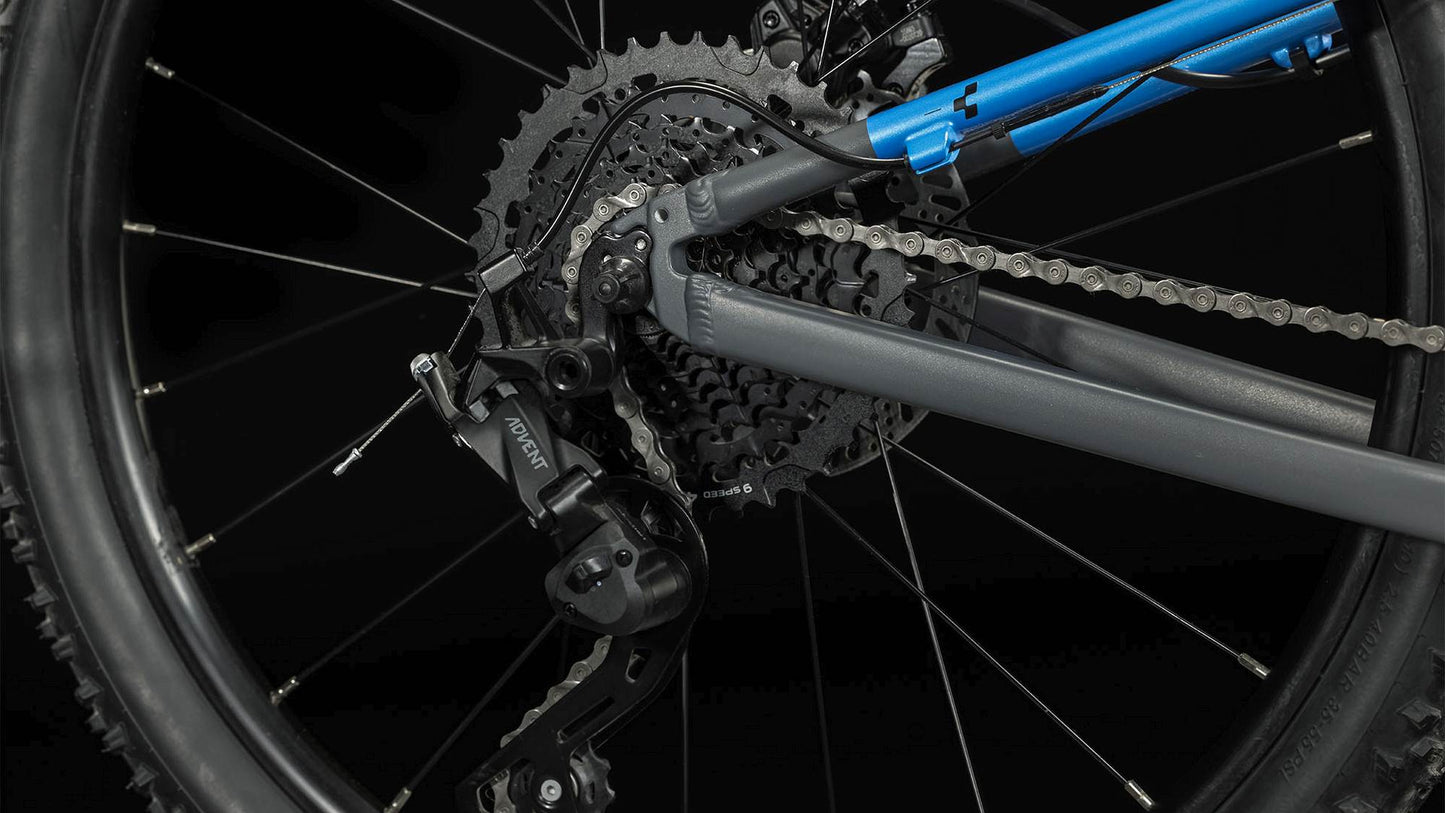

Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Microshift Advent RD-M619M
Shifters
?
Make and type of gear levers.
Microshift Advent SL-M8195-R, 9-Speed
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Samox 32T, 152mm with Chainguard, Aluminium
Cassette
?
The set of gears on the back of the bicycle
Microshift Advent CS-H093, 11-42T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC X9
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
Tektro HD-M275, Hydr. Disc Brake (160/160)
Brake system back
?
Brand, type of brake system and diameter of the brake disc.
Tektro HD-M275, Hydr. Disc Brake (160/160)
Cockpit
Headset
?
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH863, Semi-Integrated
Handlebar
Cube Aluminium Lite, 590mm
Stem
Cube Aluminium Lite
Wheels
Rims
Cube Aluminium
Front hub
Cube Aluminium, 28H
Rear hub
Cube Aluminium, 28H
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube IMPAC Smartpac, 2.1
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube IMPAC Smartpac, 2.1
Other parts
Seat
Cube Kid
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Aluminium Lite
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
