What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.

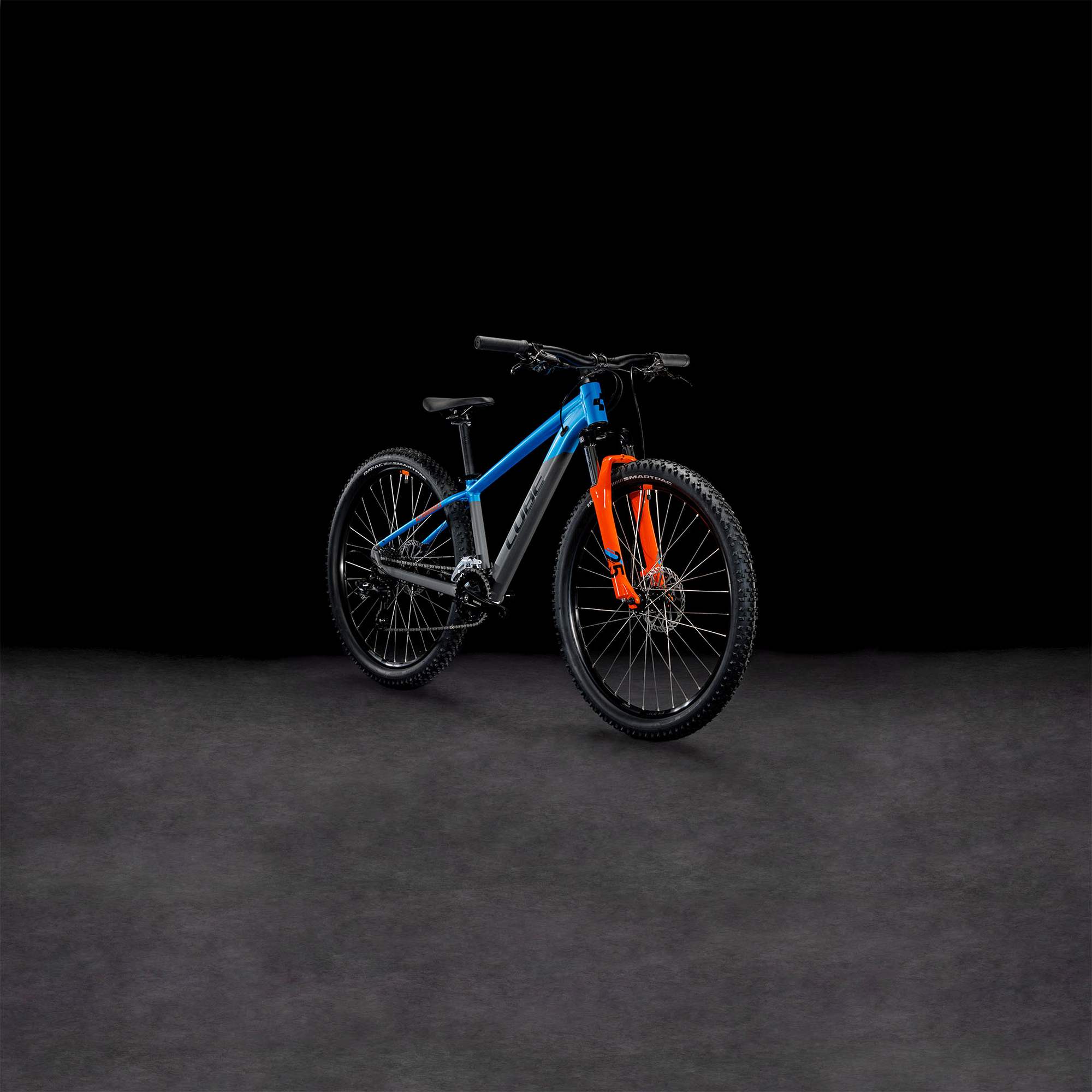

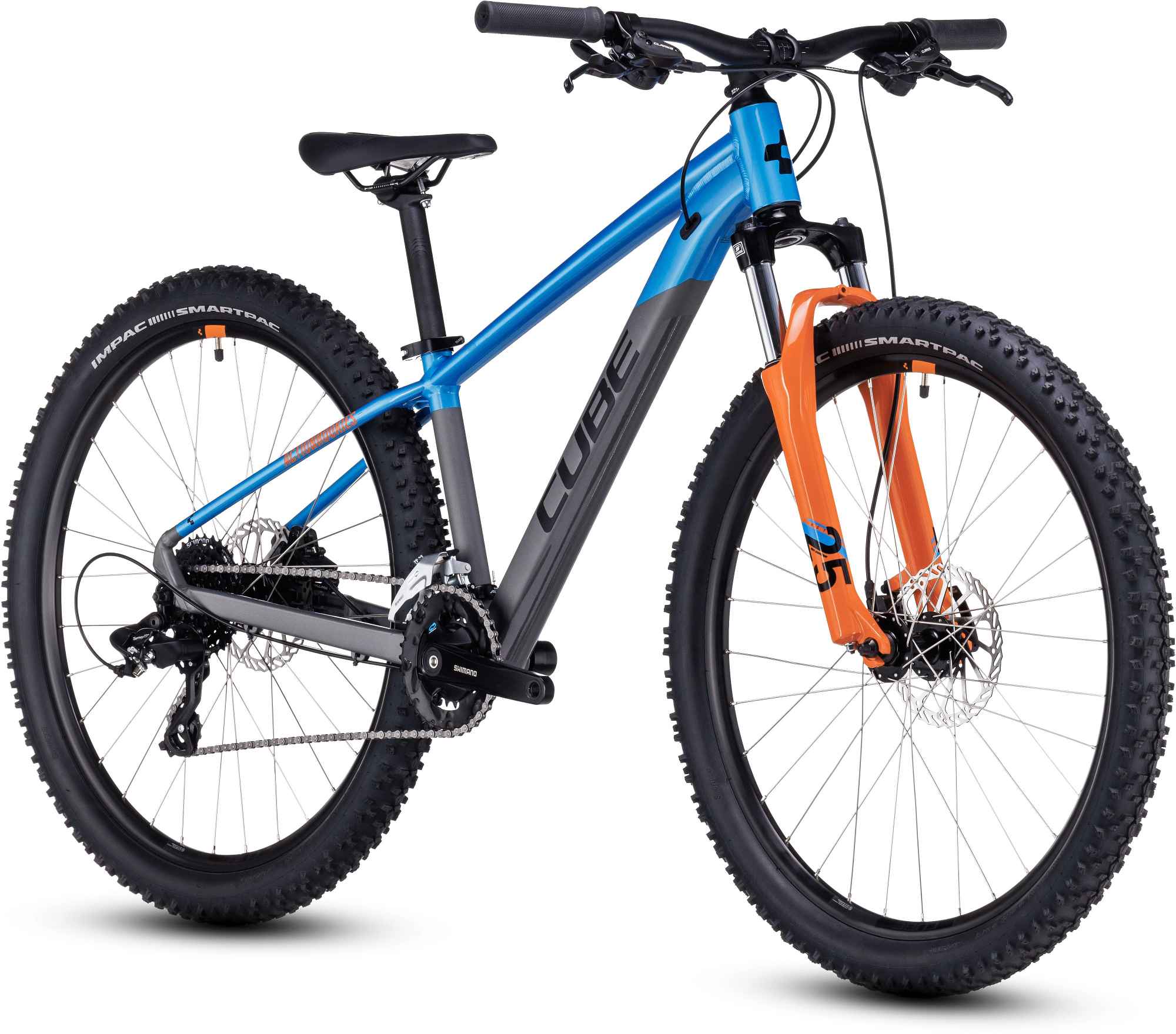

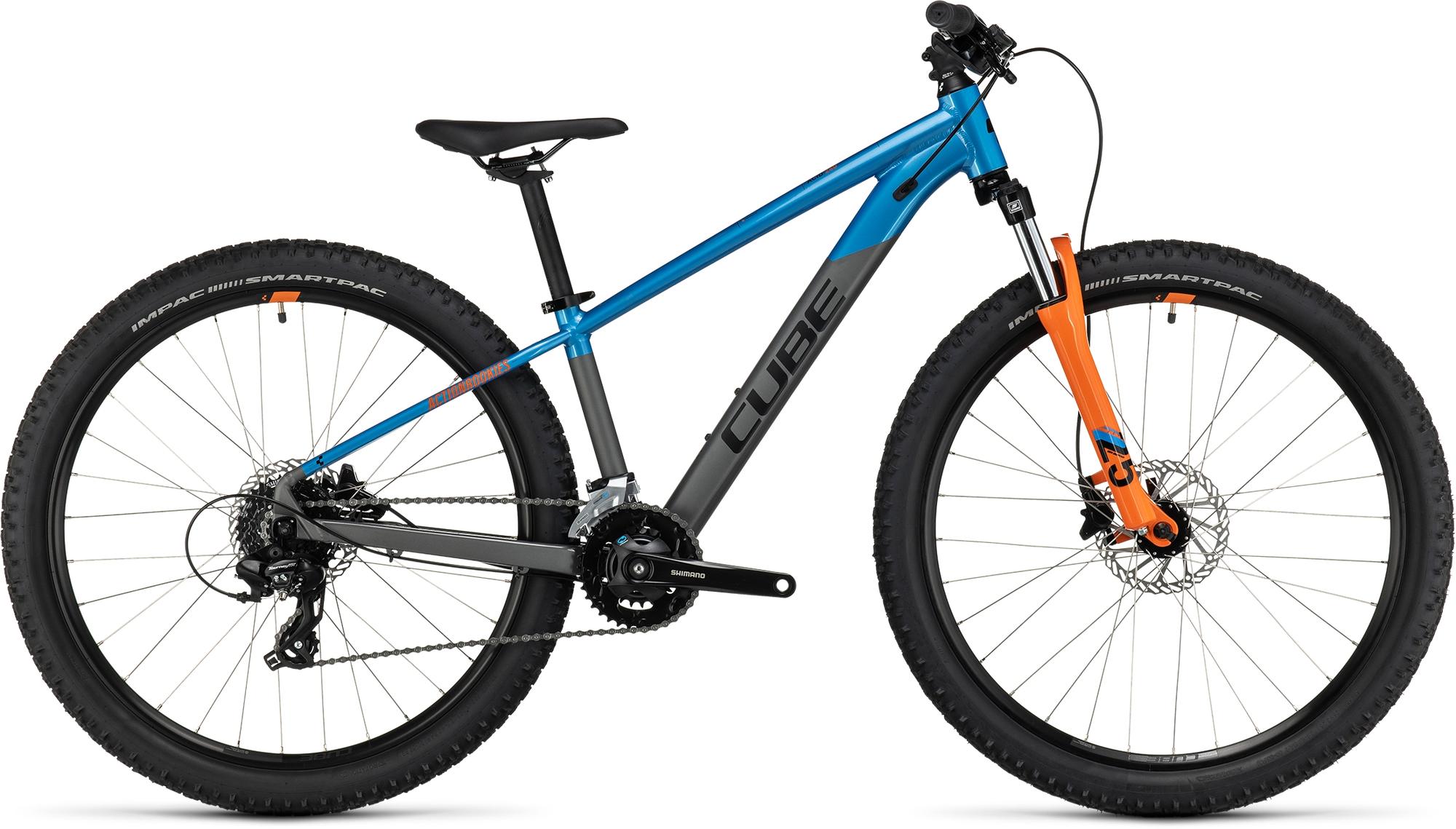

A proper mountain bike for younger riders, the Acid 260 Disc has everything a young shredder could want. With its sleek aluminium frame and Suntour suspension fork, it's designed to take tough trails in its stride. Shimano 2x8 gears with a wide range help tackle any route, and Clarks disc brakes have the power to control speed – and stop safely – in any weather conditions. With wide, grippy 2.25in tyres and CUBE finishing components, it's the complete junior trail riding package.

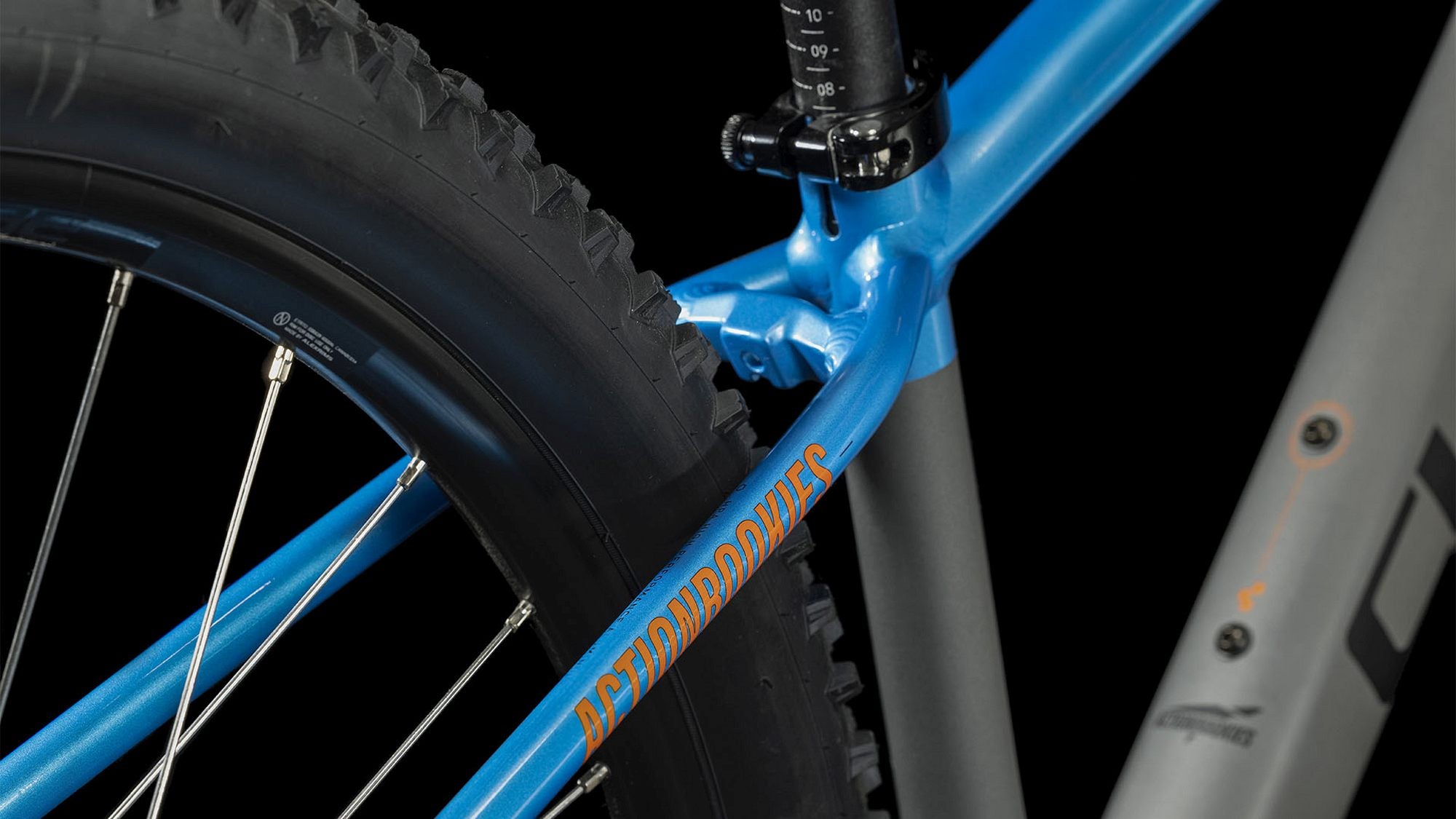

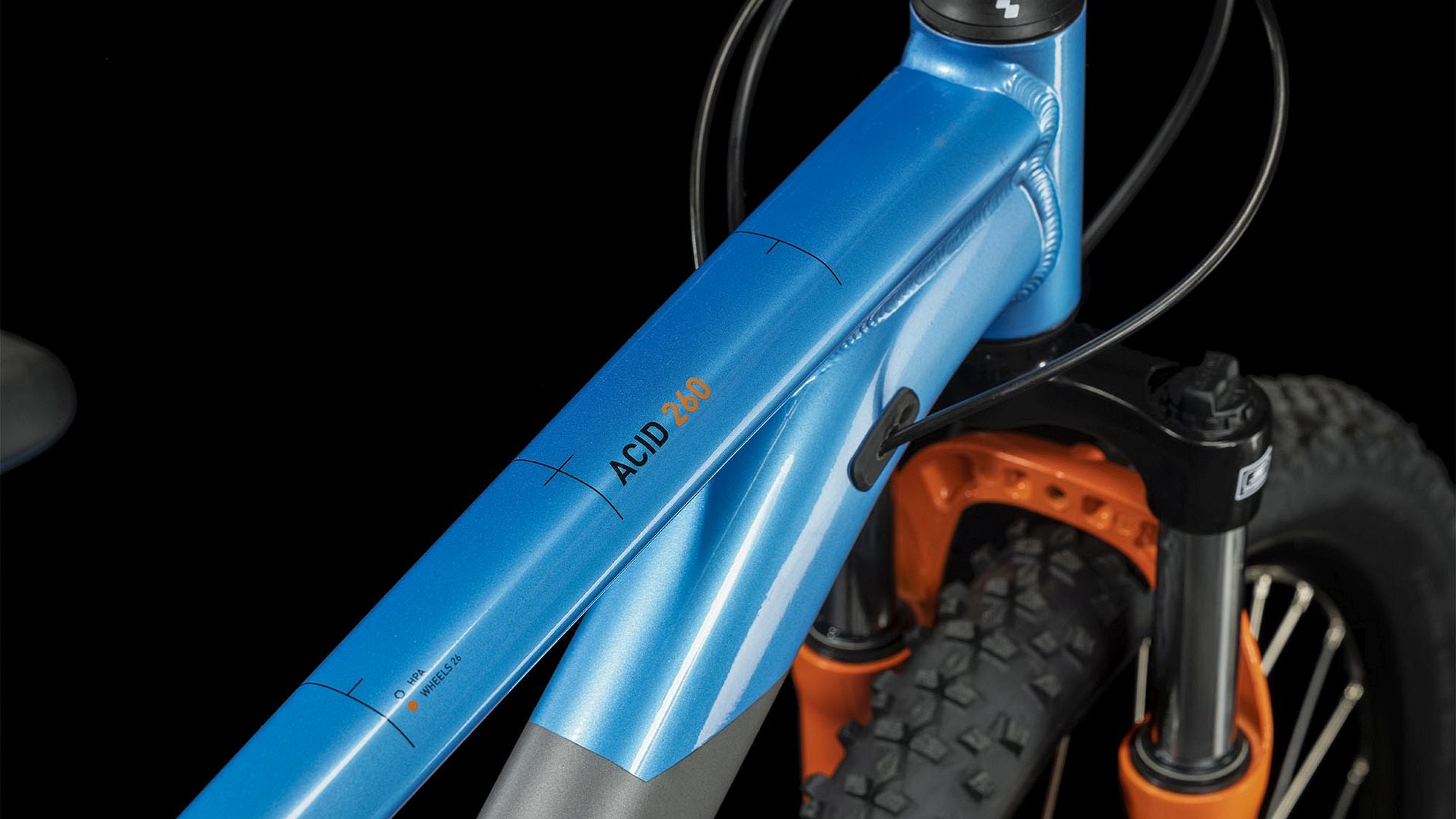

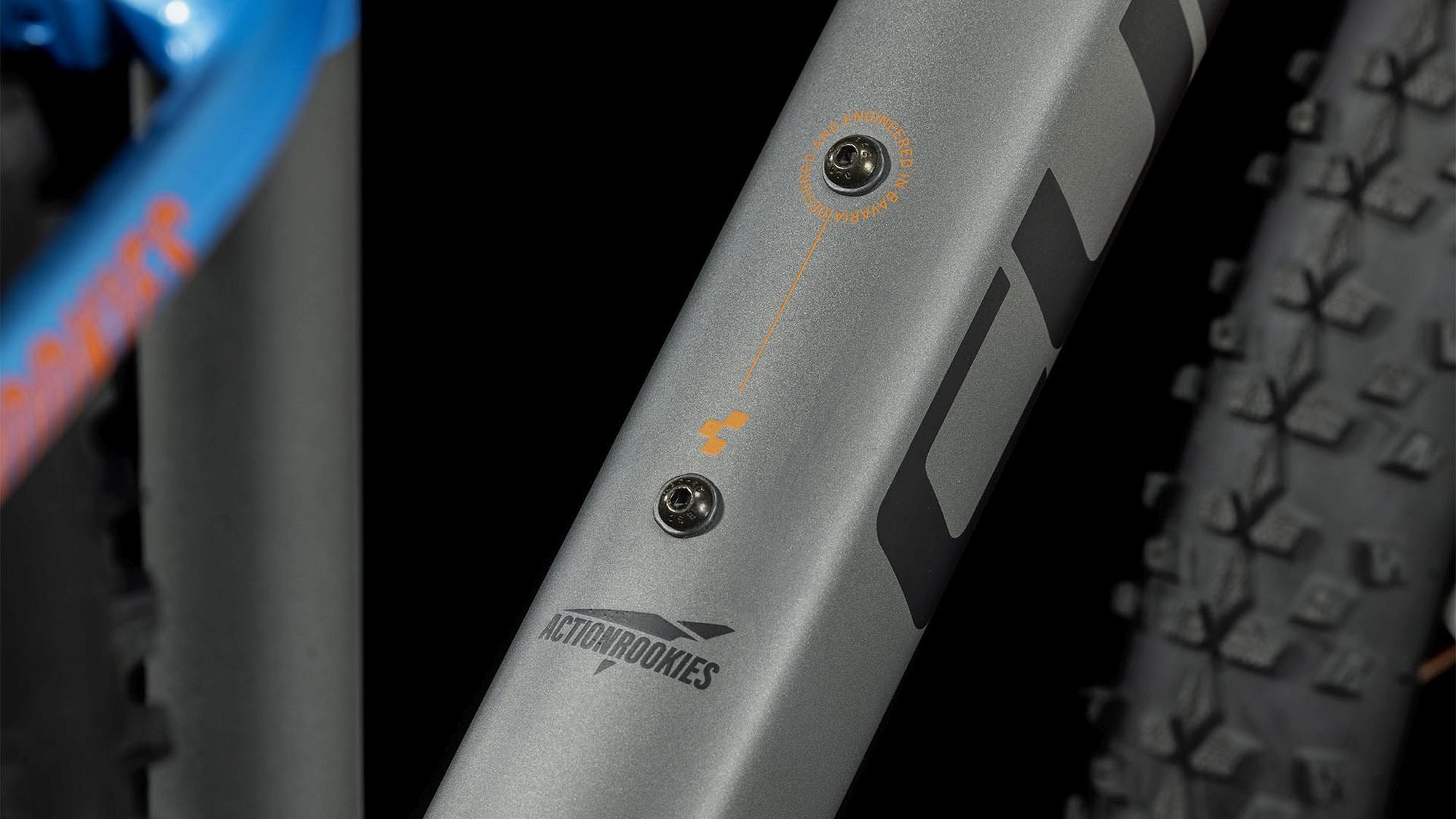

Frame description No excuses, no cut corners: the Acid 260 Disc Actionteam's frame has the same attention to detail as our full size mountain bike hardtails. So you'll find a threaded bottom bracket and internal cable routing, a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. The smooth-welded head tube and seat tube junctions are as strong as they are sleek, and the geometry is designed to be fun but stable. Your junior mountain biker will be stoked!
Find your size! Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows: 1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart. 2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle. 3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Read more
Matching accessories
ACID Carrier Sic 26" Rilink Black
£44.95
ACID Mudguard Set 60 26" Black
£34.95
new
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£29.95
ACID KICKSTAND FM BLACK
£29.95
New
ACID Mudguard Set Mud Rookie 26"
£12.95
Often bought together
RFR SPOKE REFLECTOR SET PRO SILVER
£22.95
ACID LED LIGHT HPA WHITE LED BLACK
£19.95
ACID LED LIGHT HPA RED LED BLACK
£19.95
Acid Towingsystem Mountain Explorer Black
£29.95
Spare parts
CUBE Touch Up Pen Set Blue Glossy 2293
£19.95
CUBE Touch Up Pen Set Grey Matt 2295
£19.95
Specifications
General
Model code
623770
Model year
2024
Colour
actionteam
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
13.9
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount

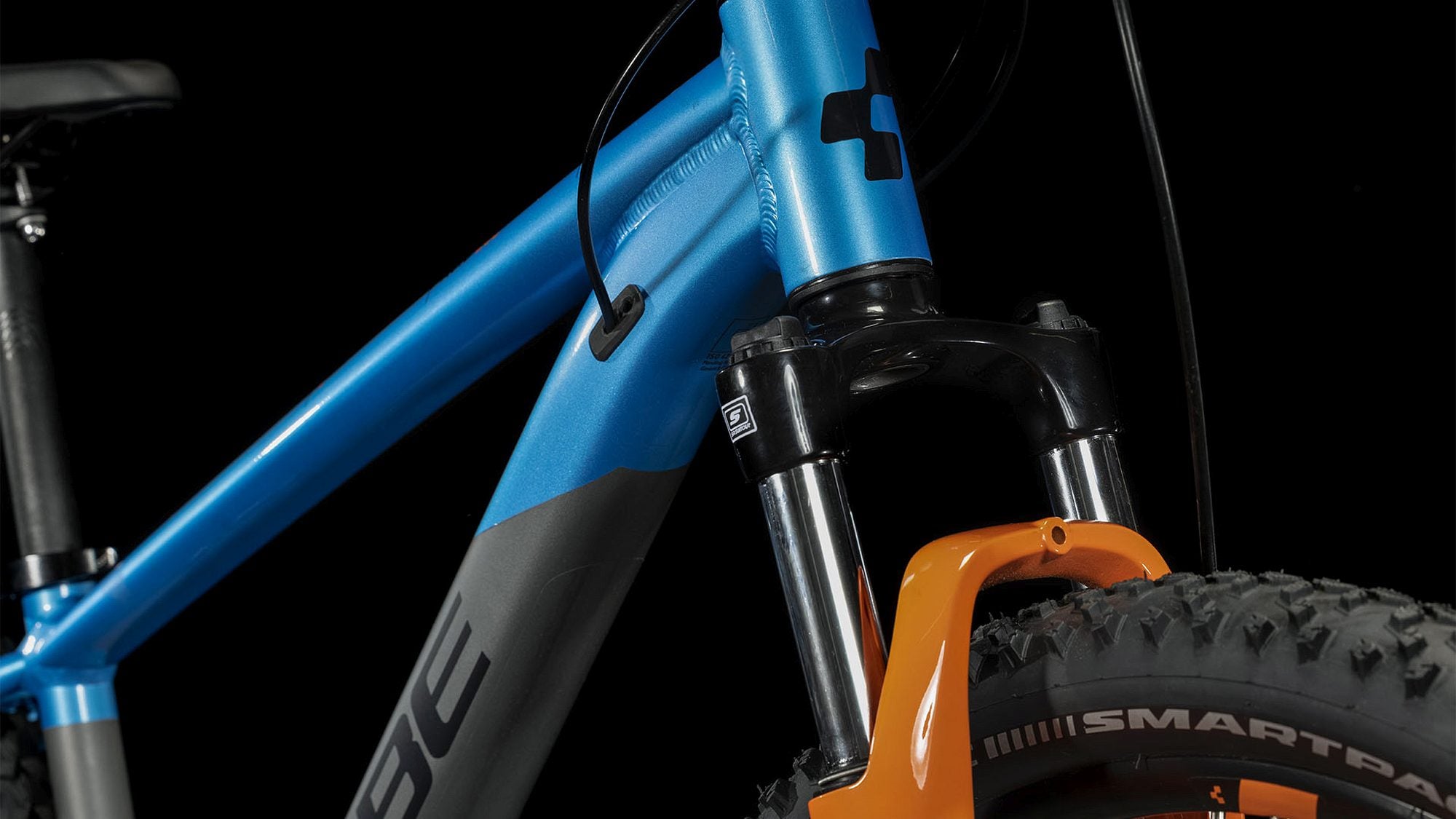

Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCE, 80mm
Drivetrain and brakes
Number of gears
16
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano RD-TX800, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
?
Make and type of gear levers.
Shimano SL-M315, Rapidfire-Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano FC-M315, 36x22T, 170mm
Cassette
?
The set of gears on the back of the bicycle
Shimano CS-HG200, 12-32T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC Z8.3
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
Clarks Clout 1, Hydr. Disc Brake PM/FM (160/160)
Brake system back
?
Brand, type of brake system and diameter of the brake disc.
Clarks Clout 1, Hydr. Disc Brake PM/FM (160/160)
Cockpit
Headset
?
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH863, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Cube Alloy Light, QR, 6-Bolt
Rear hub
Cube Alloy Light, QR, 6-Bolt
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube IMPAC Smartpac, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube IMPAC Smartpac, 2.25
Other parts

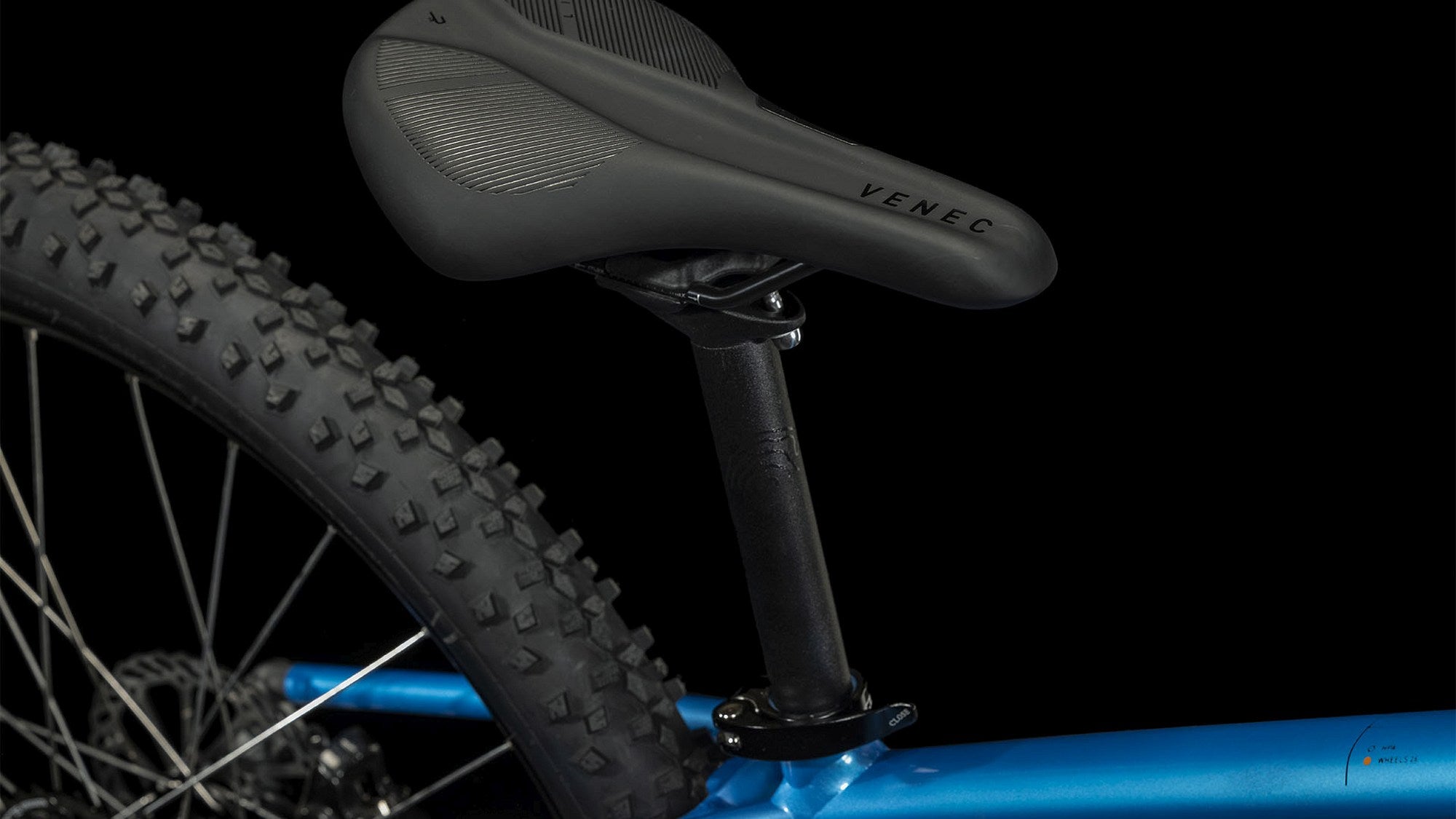

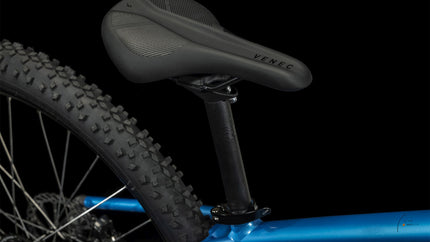

Seat
Natural Fit Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
