What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.

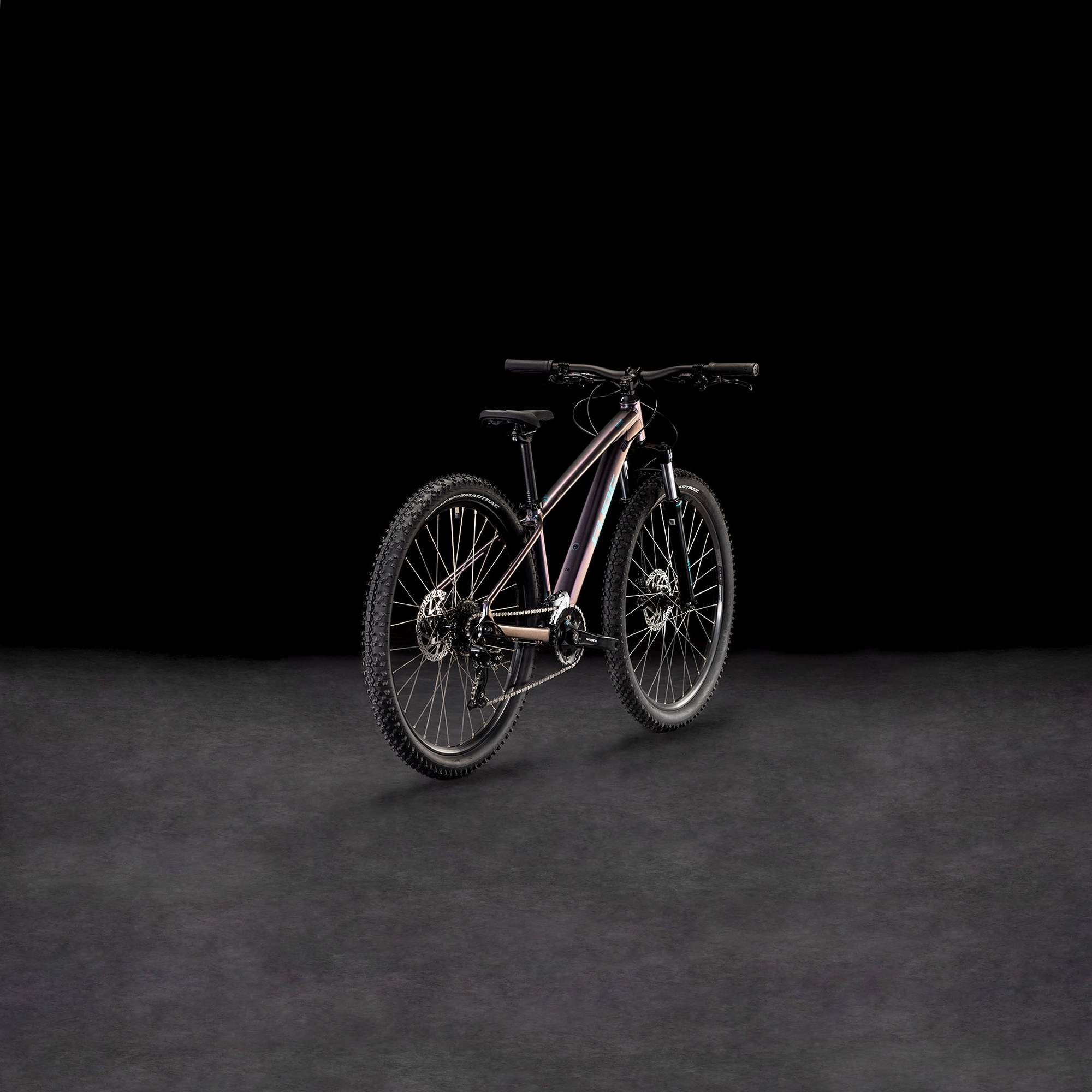

Serious mountain bikes for adults come with disc brakes. They are simply safer and more reliable, especially in bad weather. So, it makes sense that a serious junior bike like the Acid 260 Disc also has them. This ensures that young riders can maintain control of their mountain bike when the conditions require it. Comfort and grip are also a priority; a Suntour front fork offers 80mm of smooth suspension travel. And a 2x8 Shimano drivetrain ensures that even on steep hills, the top can be reached. In short, this is a true mountain bike, just a smaller size.
Read more
Matching accessories
ACID Carrier Sic 26" Rilink Black
£44.95
ACID Mudguard Set 60 26" Black
£34.95
new
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£29.95
ACID KICKSTAND FM BLACK
£29.95
ACID Mudguard Set Mud Rookie 26"
£12.95
Often bought together
CUBE Bottle 0,5L Icon Transparent
£4.95
RFR SPOKE REFLECTOR SET PRO SILVER
£22.95
RFR Mini - Bell Black
£3.95
ACID LIGHT SET PRO 30 BLACK
£34.95
ACID LED LIGHT HPA WHITE LED BLACK
£19.95
ACID LED LIGHT HPA RED LED BLACK
£19.95
ACID LED LIGHT SET HPA BLACK
£34.95
Acid Towingsystem Mountain Explorer Black
£29.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Specifications
General
Model code
851610
Model year
2026
Colour
GALACTIC/CYAN
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
13.9
Frame and front fork
Frame

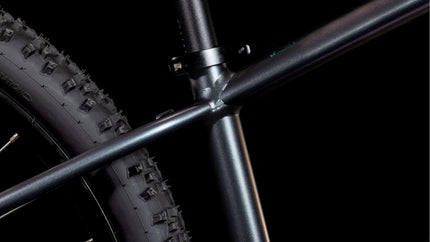

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCE, 80mm
Drivetrain and brakes
Number of gears
16
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano RD-M3020, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
?
Make and type of gear levers.
Shimano SL-M315, Rapidfire-Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano FC-M315, 36x22T, 170mm
Cassette
?
The set of gears on the back of the bicycle
Shimano CS-HG200, 12-32T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC Z8.3
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH863, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Wheels
Cube ZX20, 32H, Disc
Rims
Cube ZX20, 32H, Disc
Front hub
Cube Alloy Light, QR, 6-Bolt
Rear hub
Cube Alloy Light, QR, 6-Bolt
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB 26
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB 26
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
