What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Nice mix of agility and stability thanks to the CUBE Agile Ride geometry
Size Split: 27.5 inch wheels in the small sizes and 29er wheels in the large sizes
The most expensive aluminum model in the CUBE CMPT collection
No thru-axles
Anyone who wants an even lighter bike should switch to a model from the more expensive Reaction series
Product description

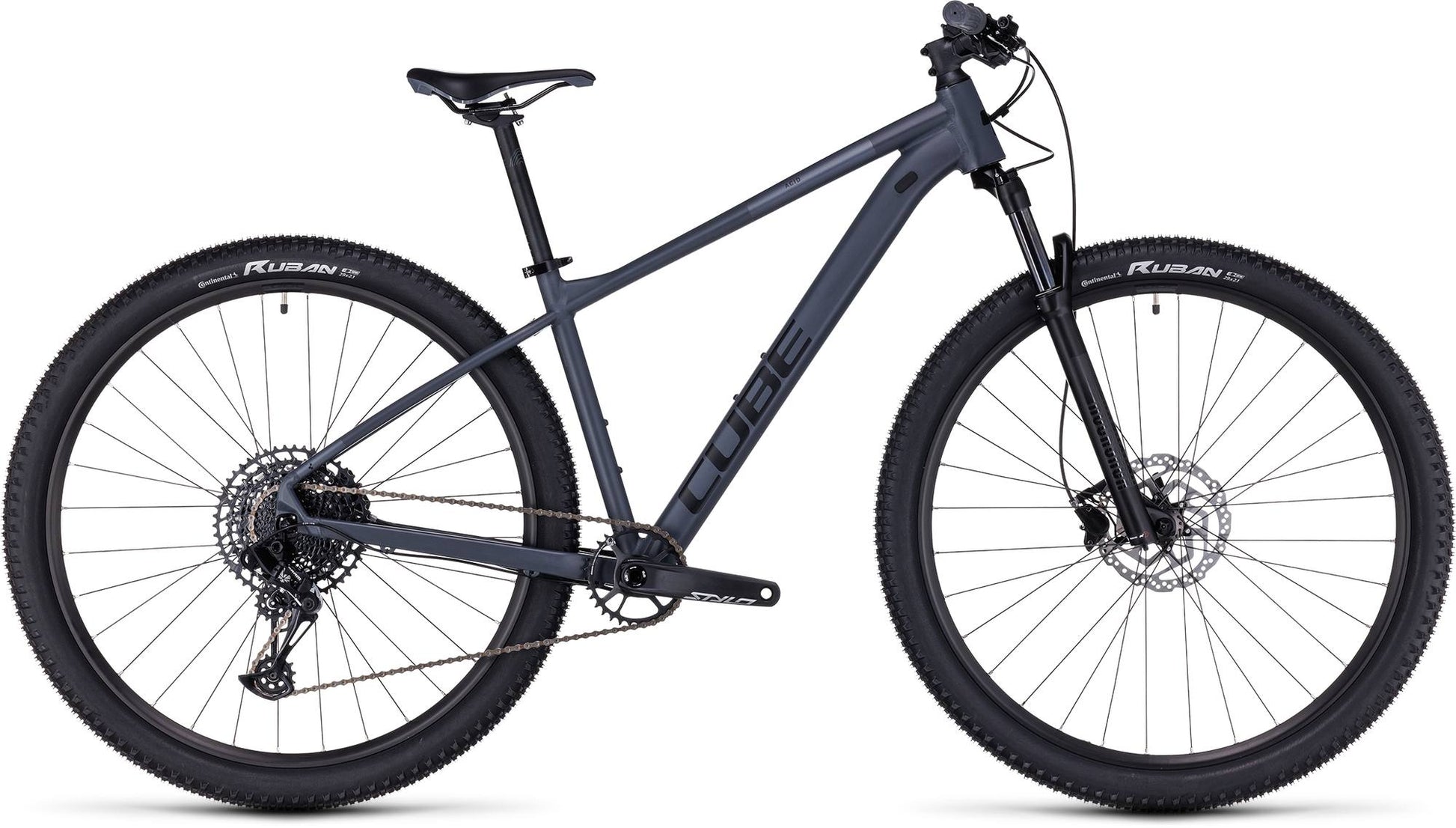

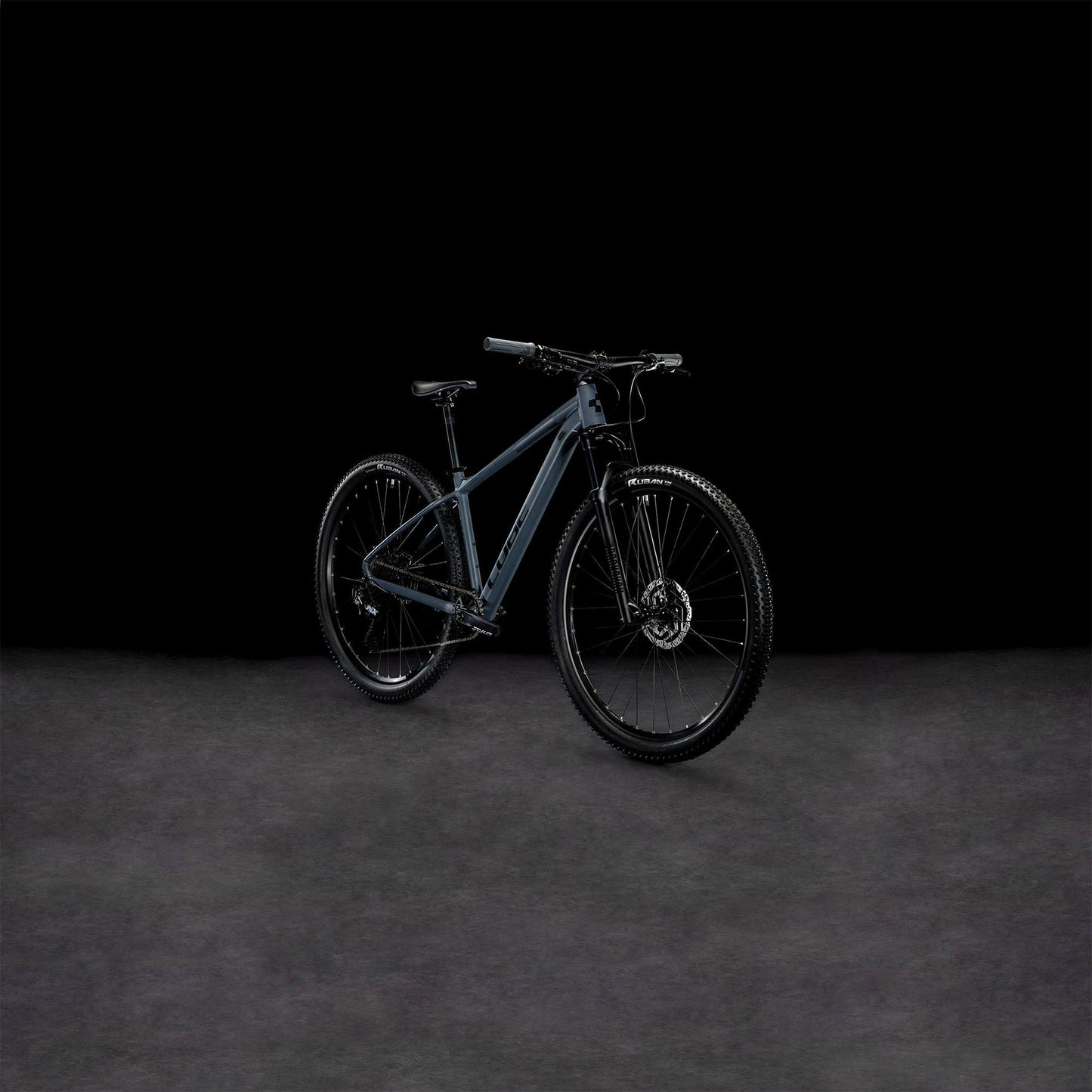

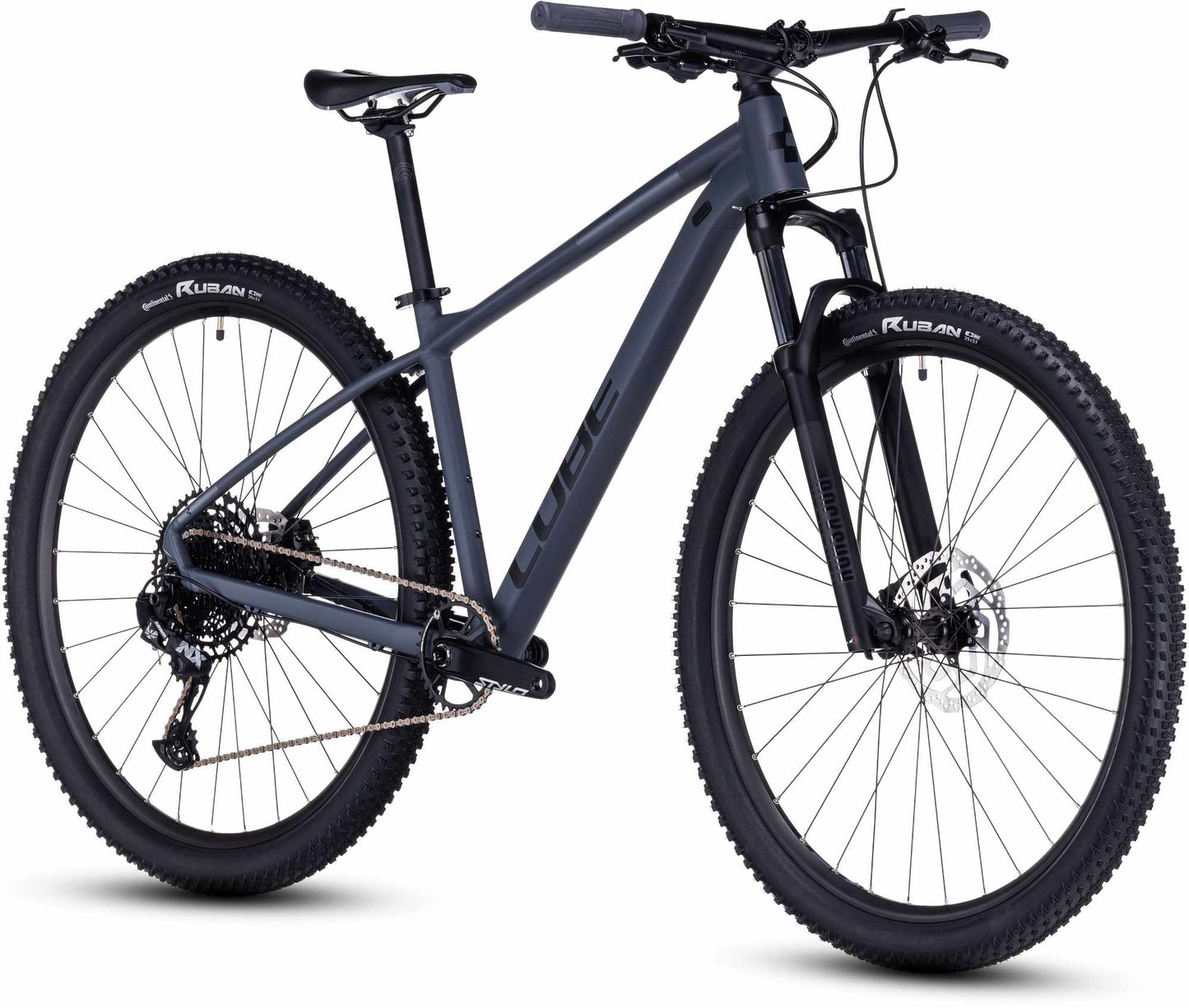

It's time to reassess how good you think a trail hardtail can be... Allow us to introduce the Acid: Its Sram Eagle 1x12 transmission has the range and performance you need for off-road adventures. We added a RockShox air-sprung fork, so that there's 100mm of smooth, easily adjustable travel on tap, with a remote lockout. Then we selected 2.1in tyres for comfort and grip, and hydraulic disc brakes so you're always on top of things. And the whole lot is fitted to our sleek, dropper-ready SizeSplit frame. The only component missing... is you.

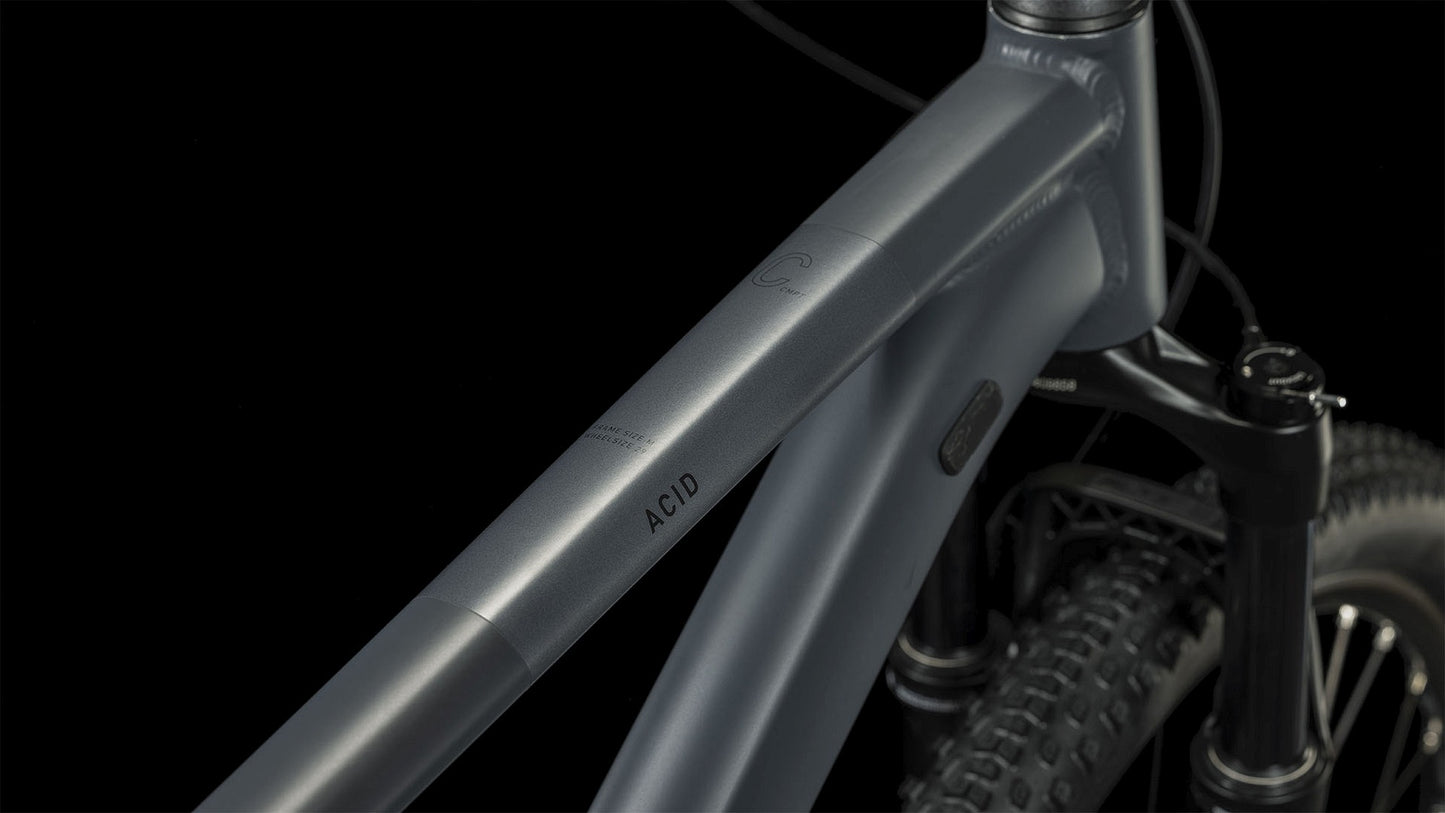

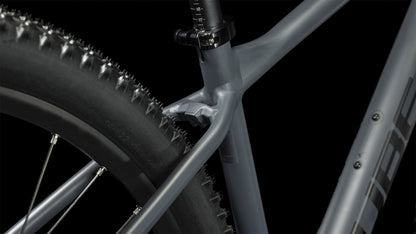

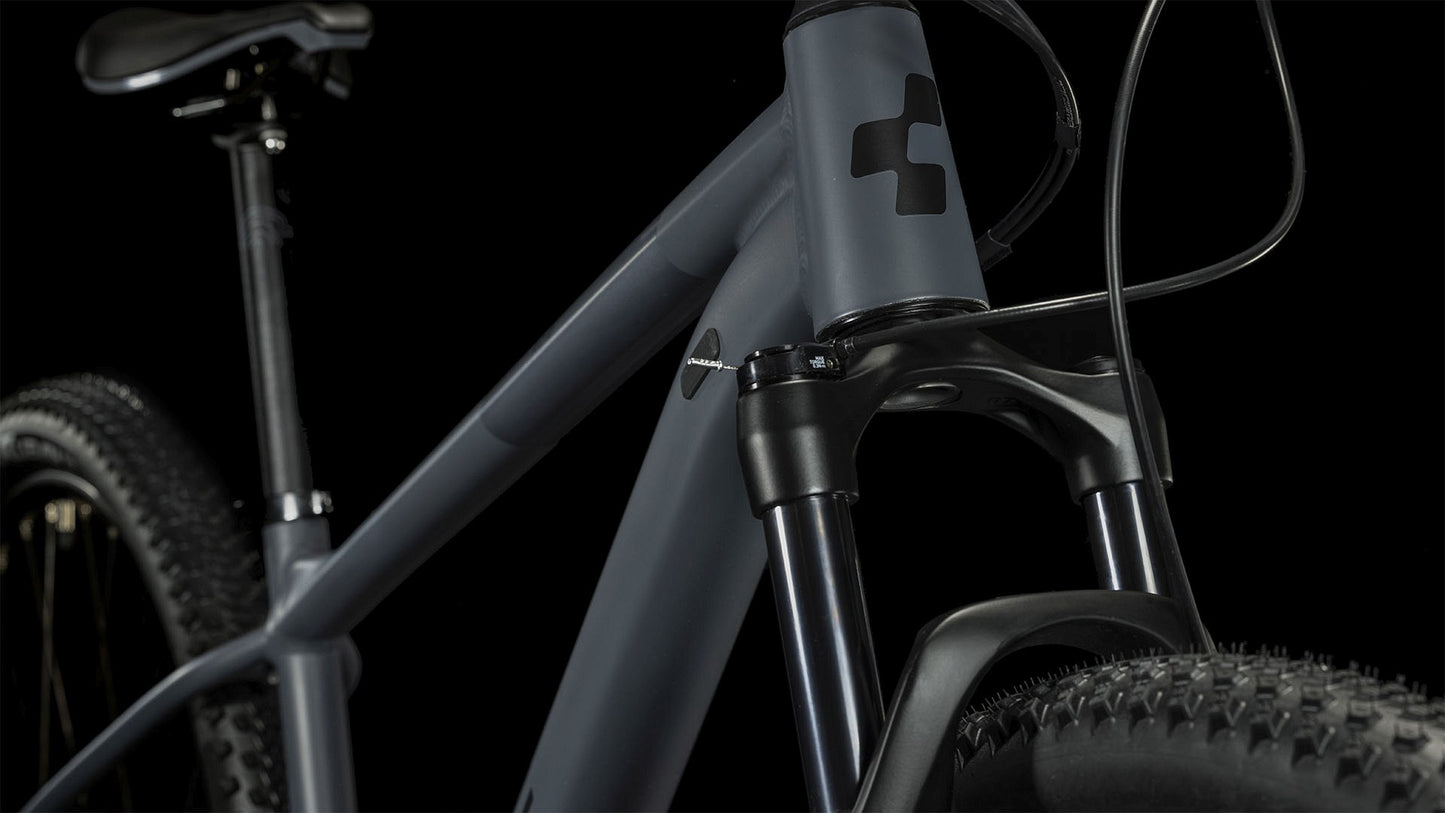

Frame description The Acid's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.1in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Acid that fits perfectly. And, as your skills increase, there's scope to fit a dropper post upgrade.
Find your size! Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows: 1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart. 2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle. 3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Read more
Matching accessories
New
CUBE Bottle Cage Hpp Sidecage Matt Blk/Glos Blk
£16.95
ACID Rear Carrier Sic 27.5" Rilink Black
£49.95
ACID Rear Carrier Sic Pure 27.5" Rilink Black
£29.95
new
ACID Mudguard Set 65 27.5" Black
£34.95
new
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£29.95
ACID KICKSTAND FM BLACK
£29.95
SHIMANO PEDALS PD-M540 MTB SPD BLACK
£74.99
SHIMANO PEDALS PD-M8100 XT MTB SPD BLACK
£109.99
Often bought together
Acid Towingsystem Mountain Explorer Black
£29.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
CUBE Touch Up Pen Set Cool Grey 11 Matt 2161
£19.95
Specifications
General
Model code
604100
Model year
2024
Colour
grey/pearlgrey
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
13.4
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
Rockshox Judy Silver TK AIR, 100mm, PopLoc
Drivetrain and brakes
Number of gears
12

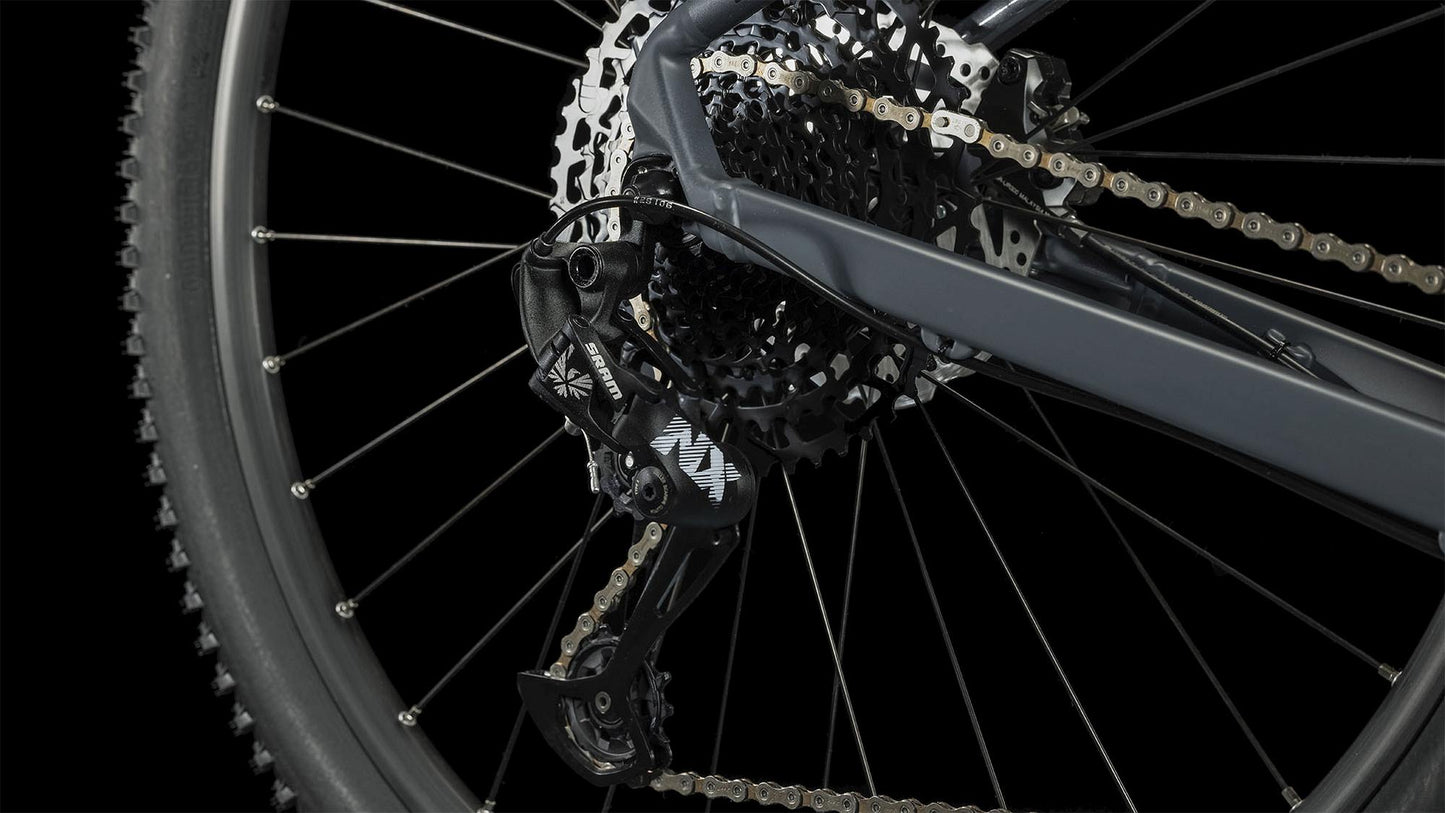

Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Sram NX Eagle™, 12-Speed
Shifters
?
Make and type of gear levers.
Sram NX Eagle™ Trigger

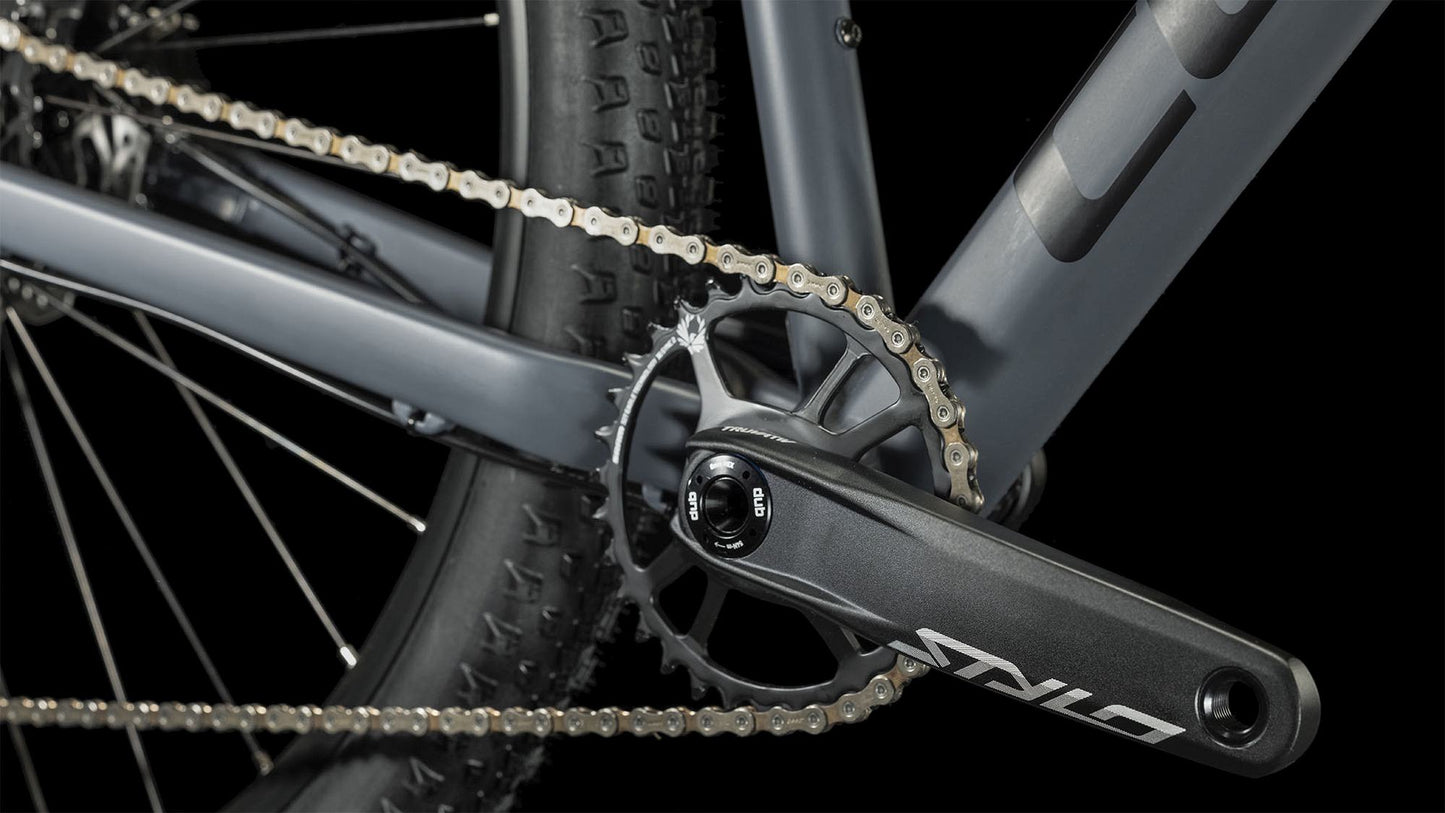

Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Sram Stylo Eagle™ DUB, 32T, 170mm
Cassette
?
The set of gears on the back of the bicycle
Sram PG-1210 Eagle™, 11-50T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
Sram SX Eagle™
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem SLX, 31.8mm
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano Deore HB-M6000, QR, Centerlock
Rear hub
Shimano Deore FH-M6000 ,QR, Centerlock
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Schwalbe Smart Sam, Active, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Schwalbe Smart Sam, Active, 2.25
Other parts
Seat
Natural Fit Venec
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Acid PP MTB
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
