What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Nice balance of agility and stability thanks to Agile Ride geometry

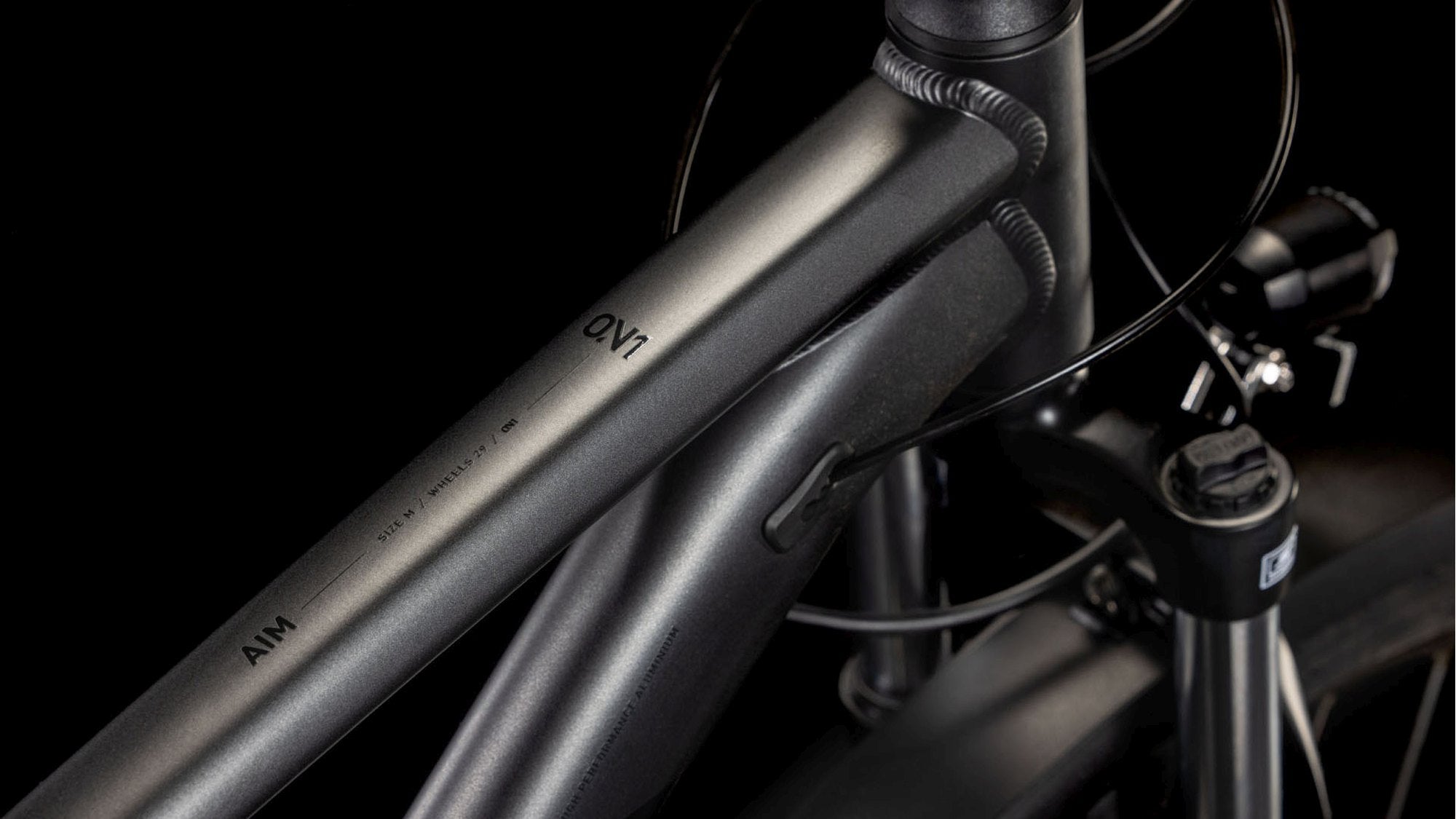

Sleek look with internal cable routing
Suspension fork with 100 mm travel
The regular Aim ONE is lighter
No thru-axles
No air suspension
Gear system with two chainrings (instead of one)
Product description

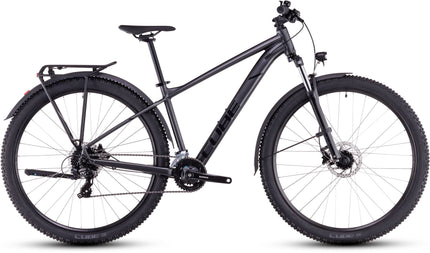

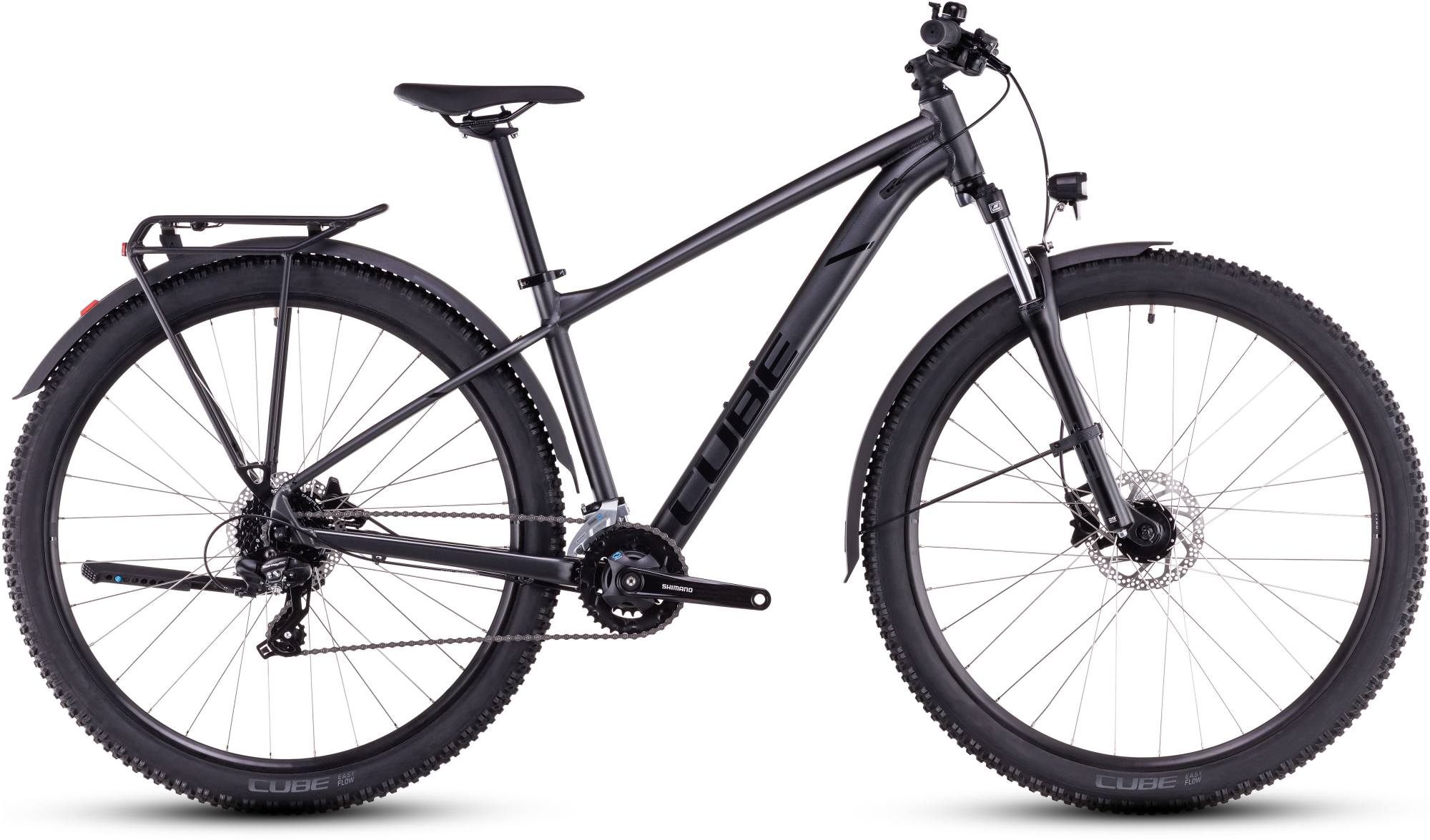

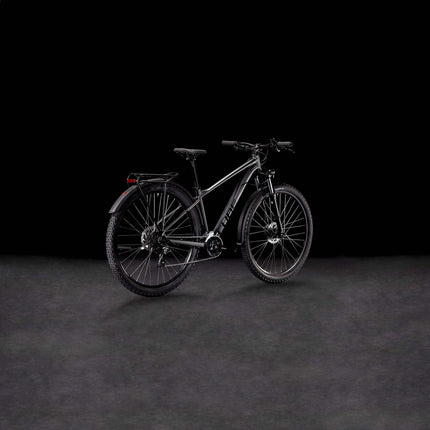

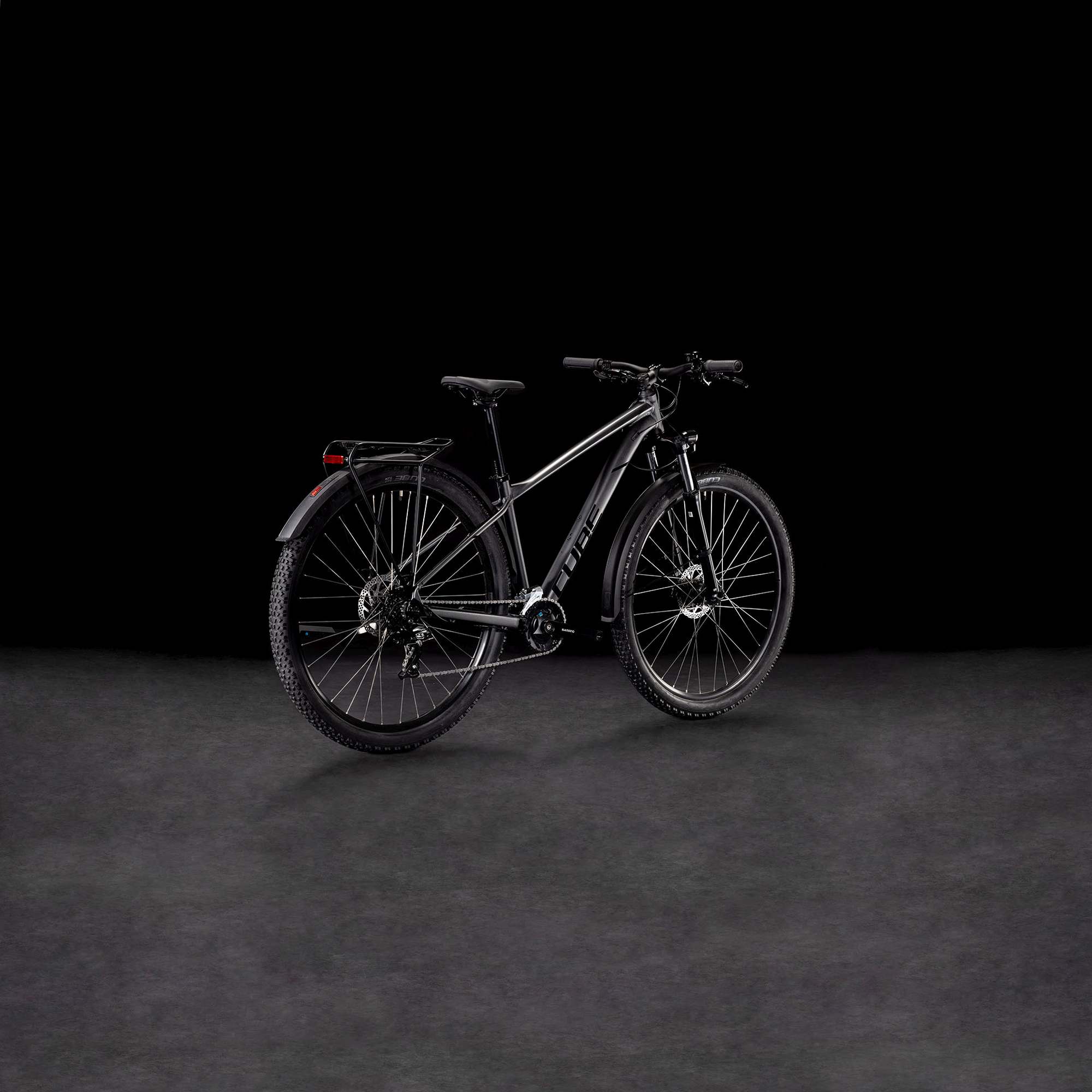

Weekend trail rides or weekday commutes? The Aim Allroad has you covered. This versatile bike combines the ruggedness of a mountain bike with the practicality of a city bike, thanks to its fenders, rack, and integrated lighting. Whether riding through forests or urban neighborhoods, you can rely on the smooth Shimano 2x8 drivetrain and hydraulic disc brakes. A suspension fork and wide CUBE tires ensure grip, control, and comfort. With our Size Split system, there’s always a perfect fit for riders big or small. What’s holding you back?
Read more
Matching accessories
CUBE Bottle Cage Hpp Matt Black/Glossy Black
£16.95
Often bought together
new
CUBE Backpack Pure 12 Cmpt Black
£34.95
Cube Bottle Flow 500 Black
£4.95
ACID Chain Lock Corvid K100 Black
£26.95
ACID Pump Race Flex Hv Black
£29.95
ACID LIGHT SET PRO 40 BLACK
£44.95
ACID Saddle Bag Click M Black
£29.95
ACID DERAILLEUR GUARD BLACK
£9.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Cube Touch Up Pen Set Slateblack Matt 2256
£19.95
Specifications
General
Model code
840140
Model year
2025
Colour
slateblack/black
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
16.9
Frame and front fork
Frame

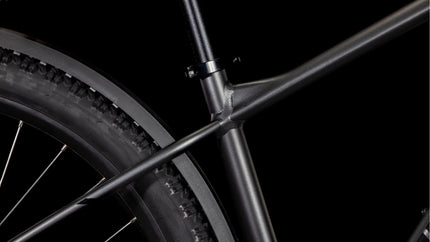

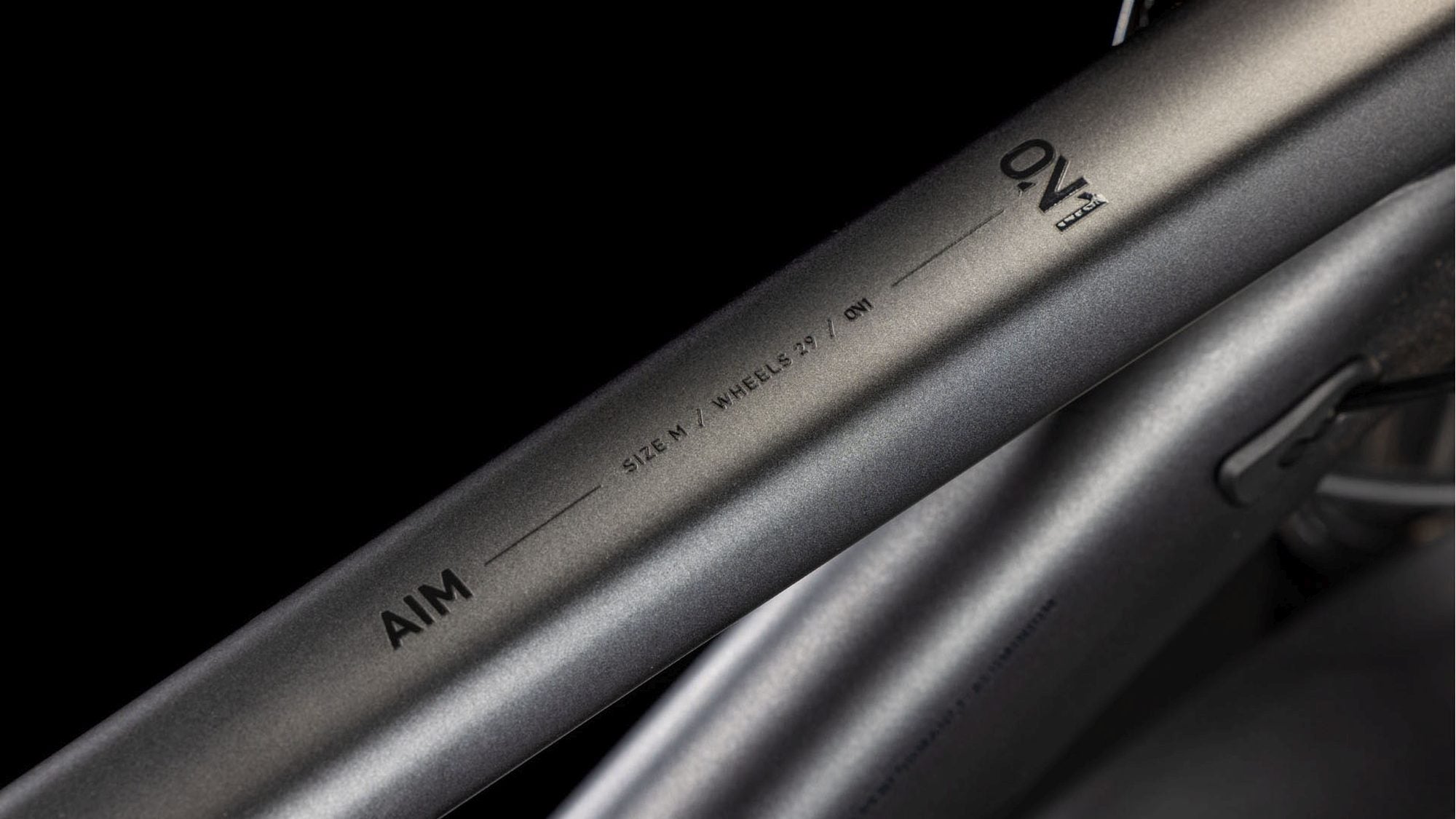

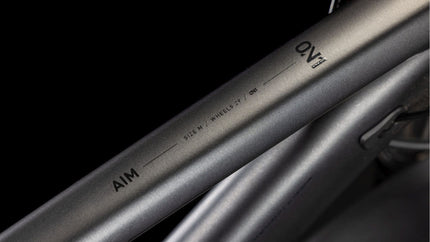

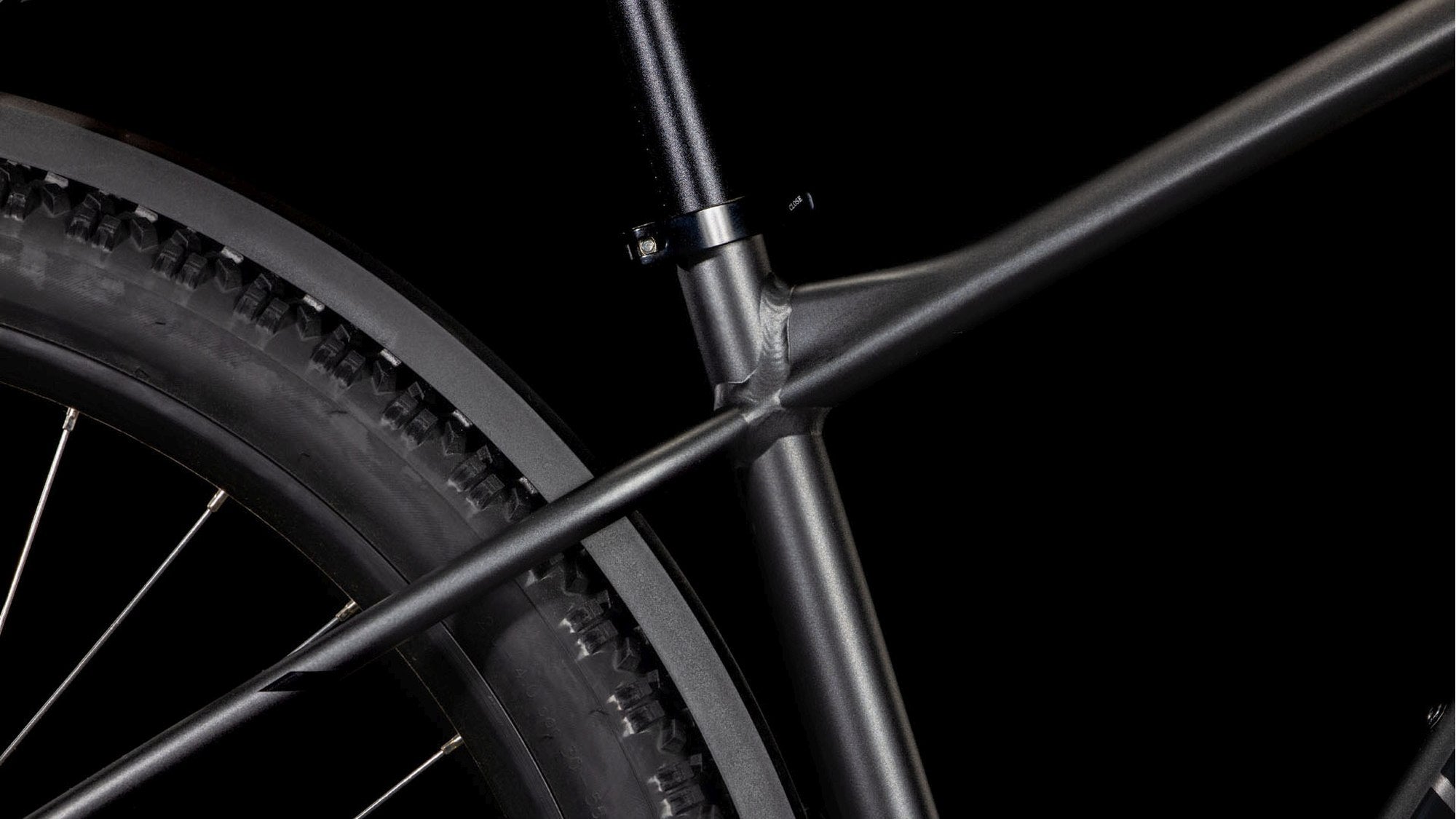

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCE, 100mm
Drivetrain and brakes
Number of gears
16
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano RD-TX800, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
?
Make and type of gear levers.
Shimano SL-M315, Rapidfire-Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano FC-M315, 36x22T, 170mm
Cassette
?
The set of gears on the back of the bicycle
Shimano CS-HG200, 12-32T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC Z8.3
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
Clarks Clout 1, Hydr. Disc Brake PM/PM (160/160)
Brake system back
?
Brand, type of brake system and diameter of the brake disc.
Clarks Clout 1, Hydr. Disc Brake PM/PM (160/160)
Cockpit
Headset
?
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH863, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Wheels
Cube EX25, 32H, Disc, Tubeless Ready
Rims
Cube EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano DH-3D32, Hub Dynamo, QR
Rear hub
Cube Alloy Light, QR, 6-Bolt
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Front lighting

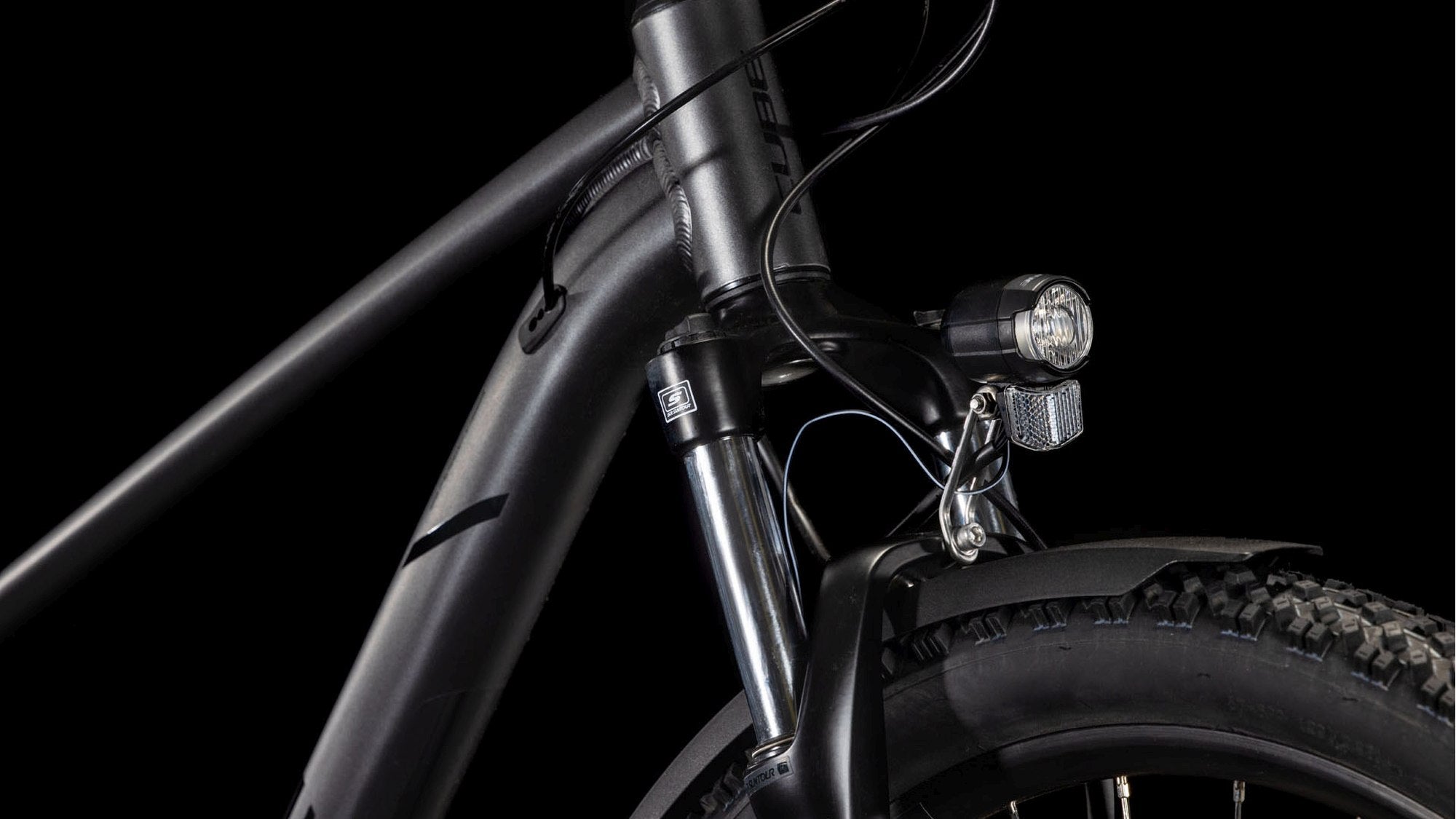

Cube Shiny 50
Rear lighting
Acid Mudguard Rear Light PRO-D, 6V, AC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65
Carrier

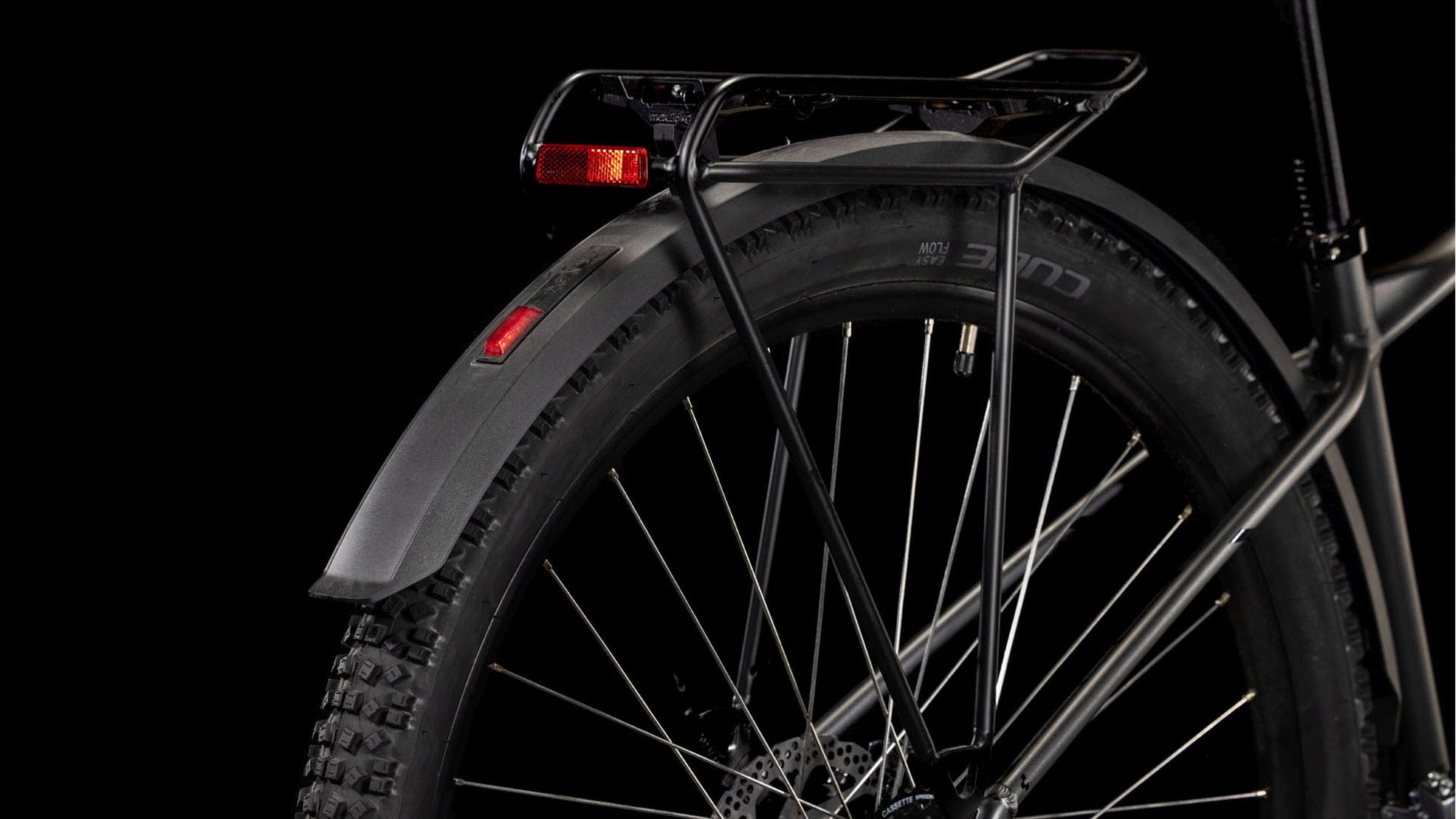

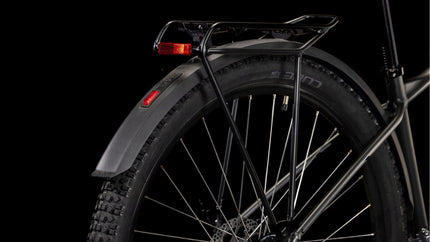

Acid Semi-Integrated Carrier, RILink Adapter Compatible and Rail
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
