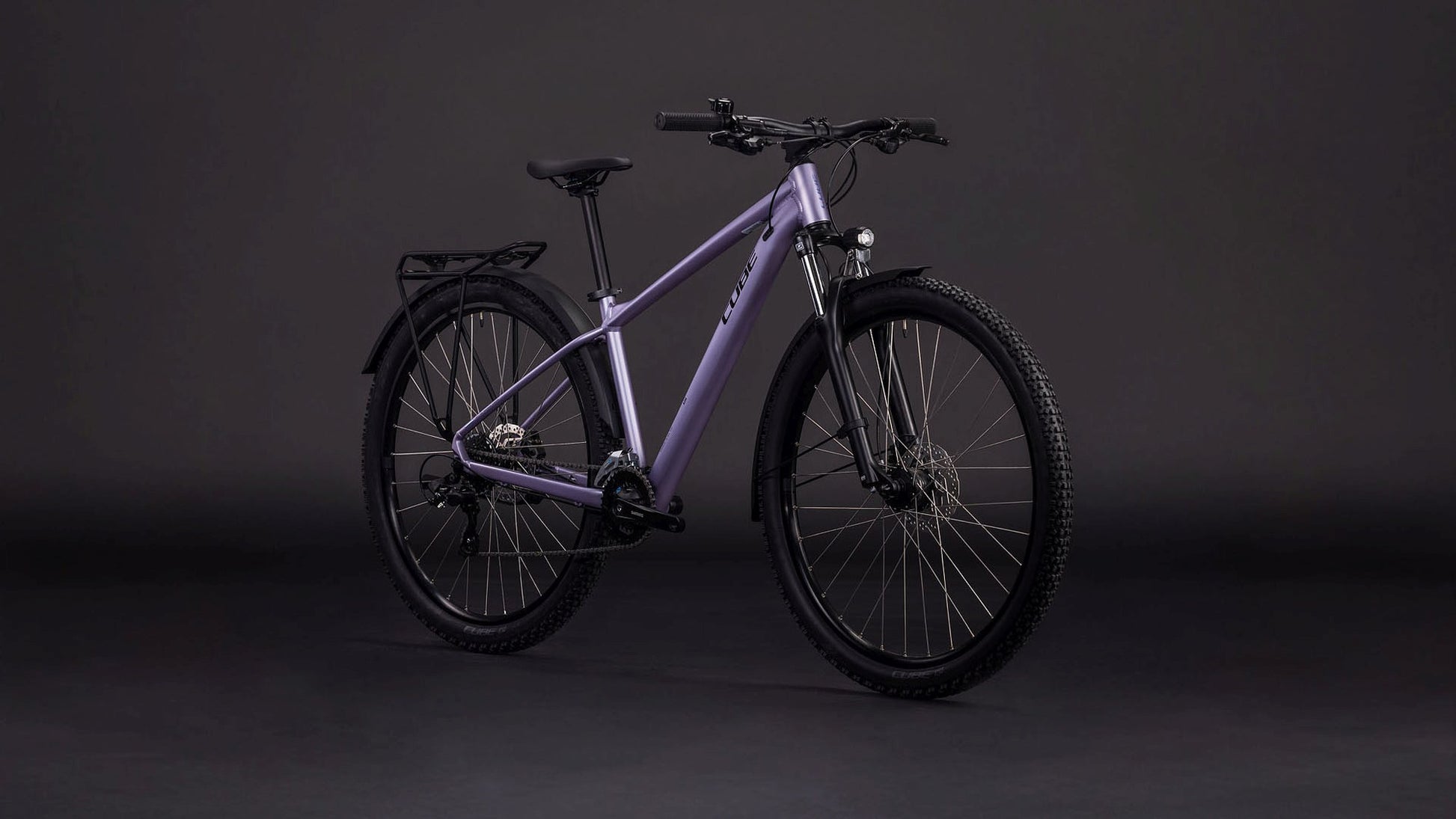

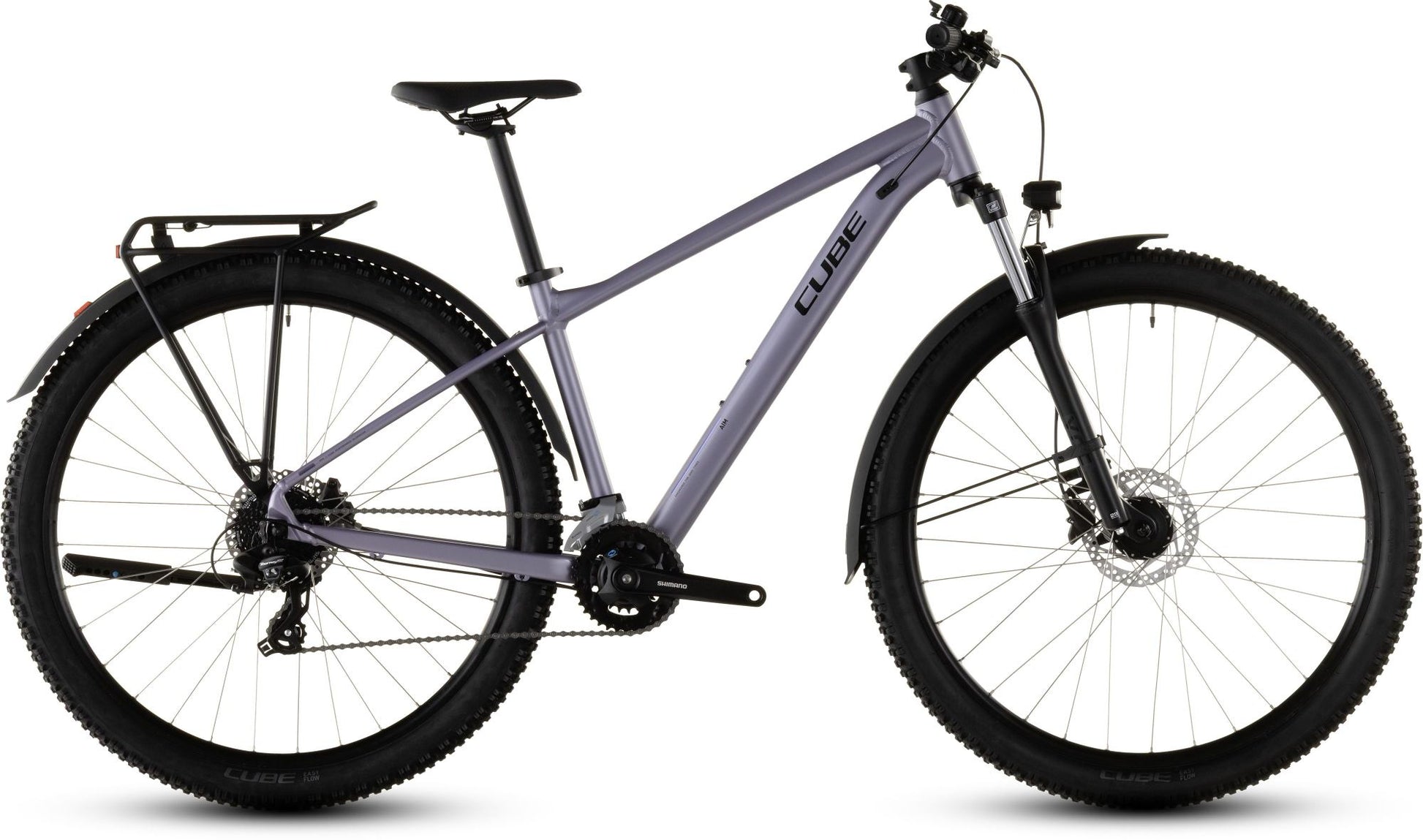

CUBE AIM ONE FE LIGHTPURPLE/CHROME
CUBE AIM ONE FE LIGHTPURPLE/CHROME








Description

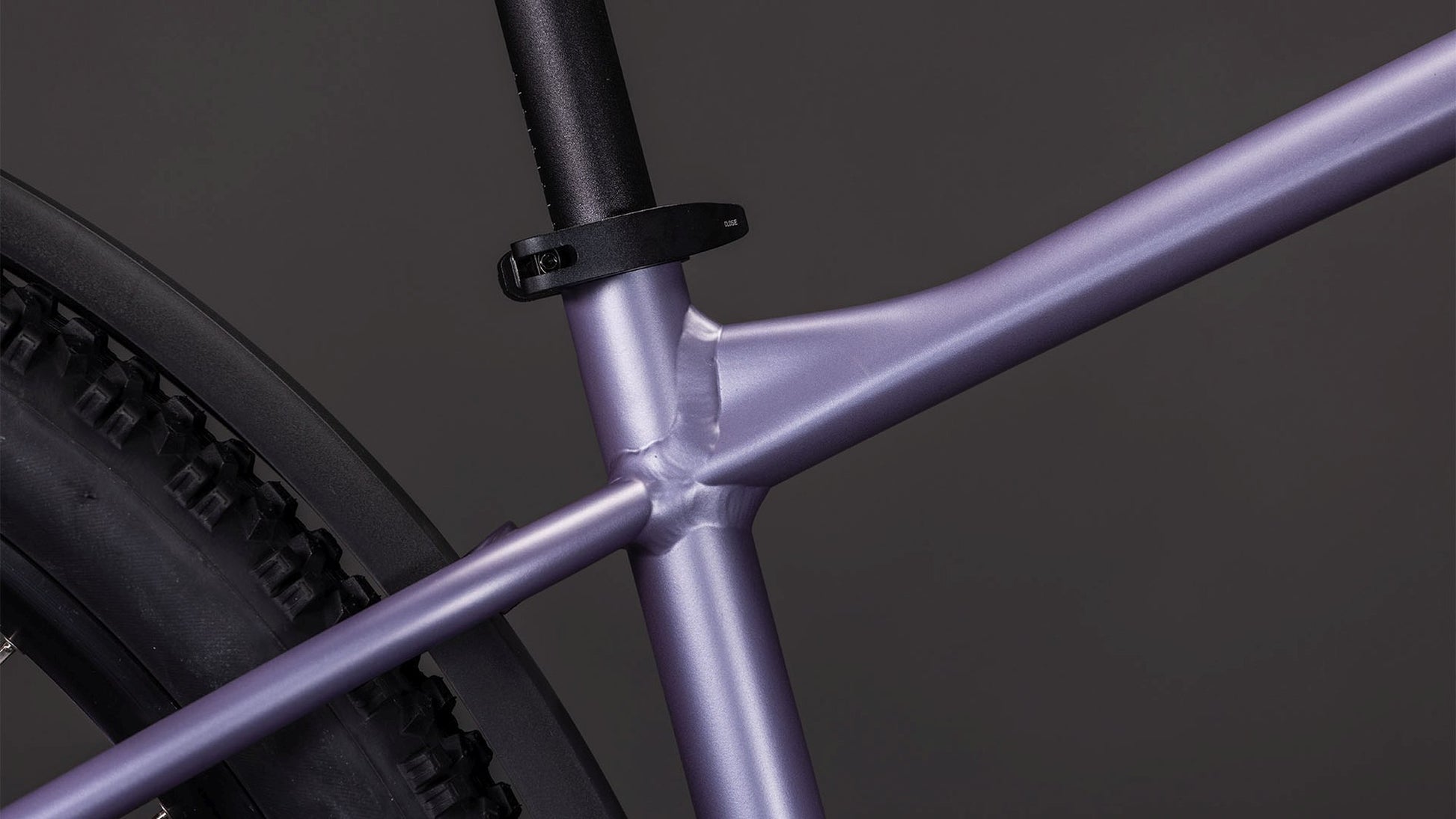

Frame description

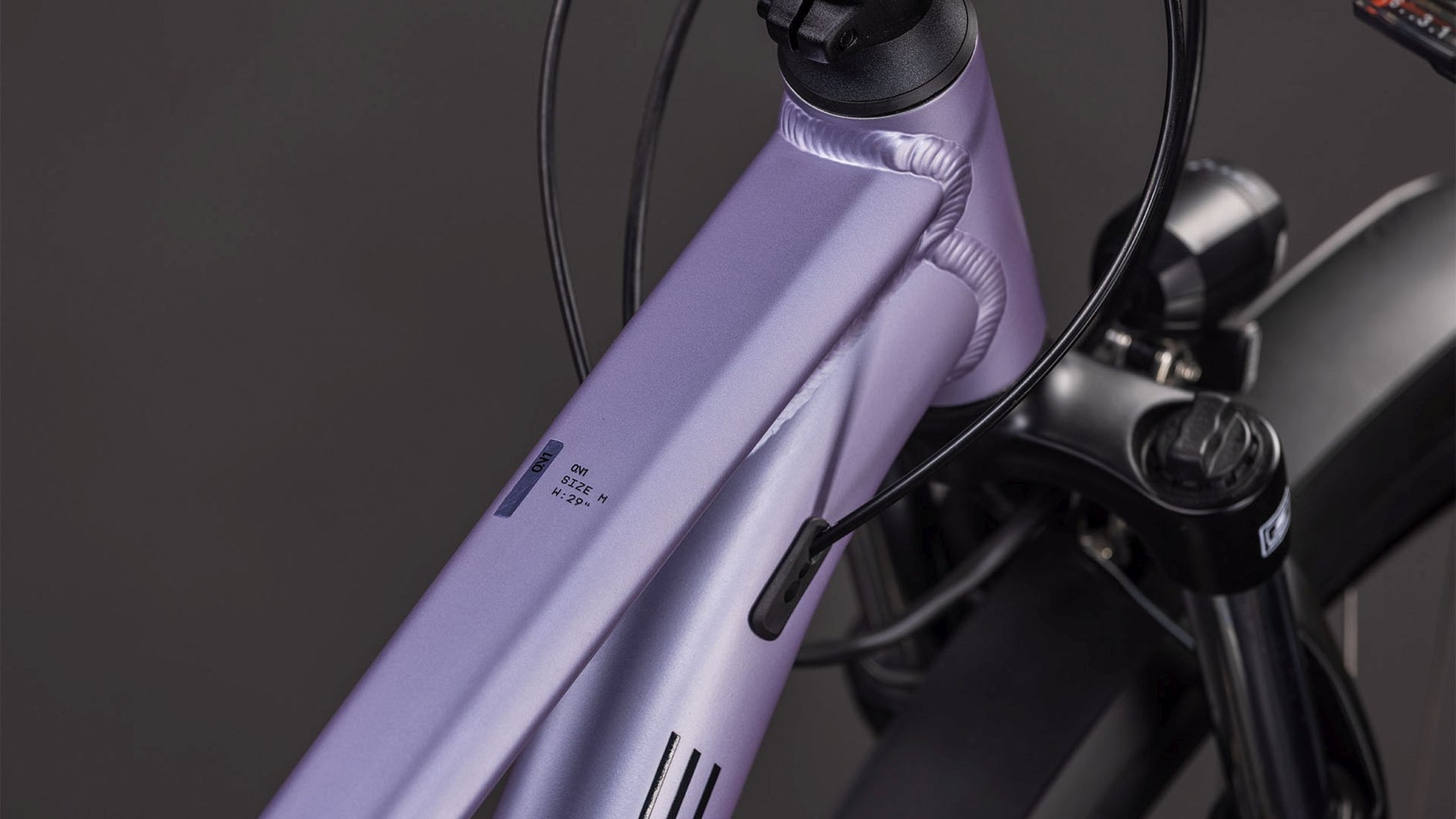

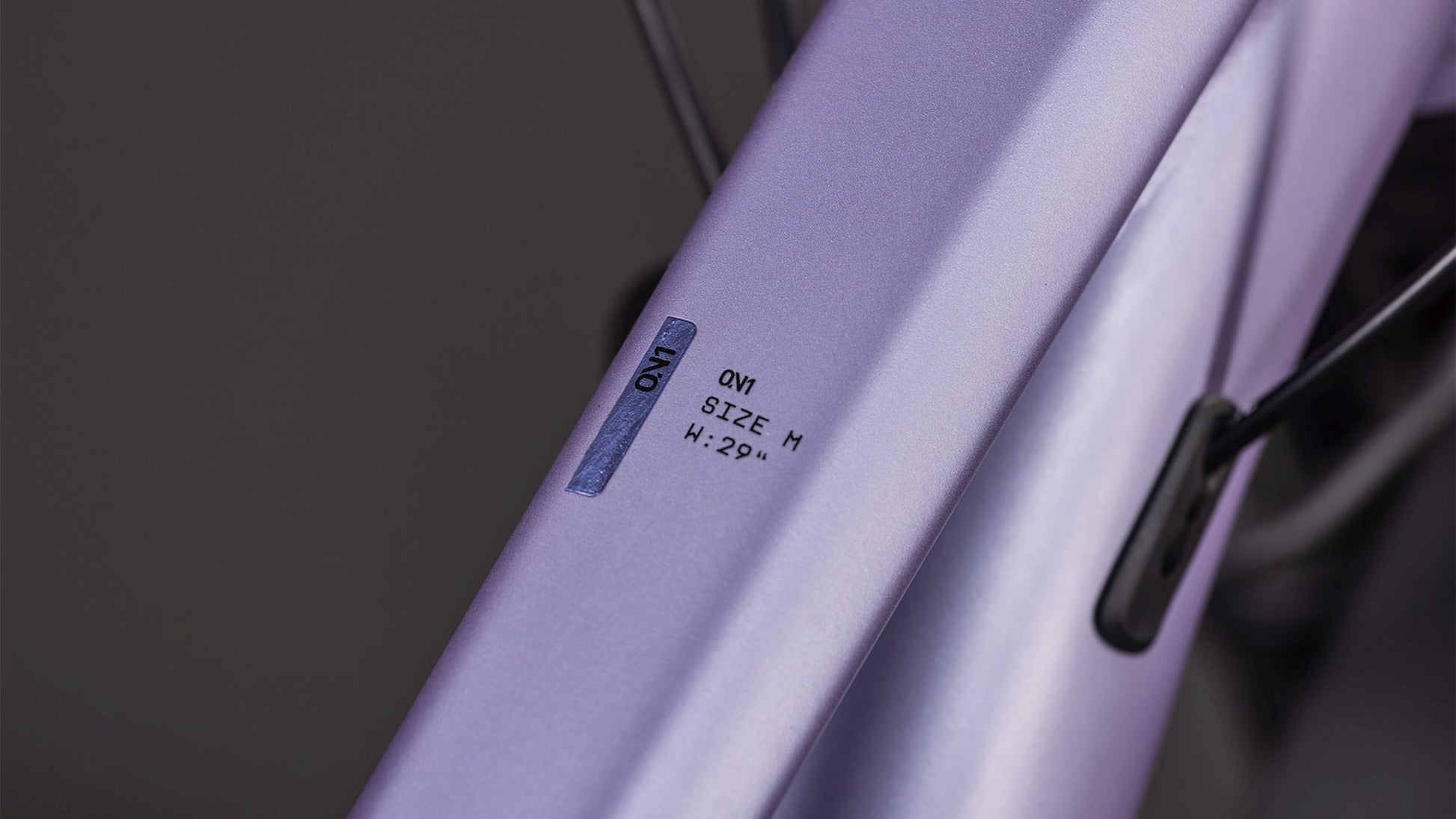

With the Aim FE we're redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There's a threaded bottom bracket and Internal Cable Routing, and the flat disc mount integrates seamlessly with the included kickstand. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim FE that fits perfectly.
Product specifications
Frame
Model year
2026
Fork
SR Suntour XCE, 100mm
Drivetrain and brakes
Front brake
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Rear brake
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Rear derailleur
Shimano RD-TX800, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
Shimano SL-M315, Rapidfire-Plus

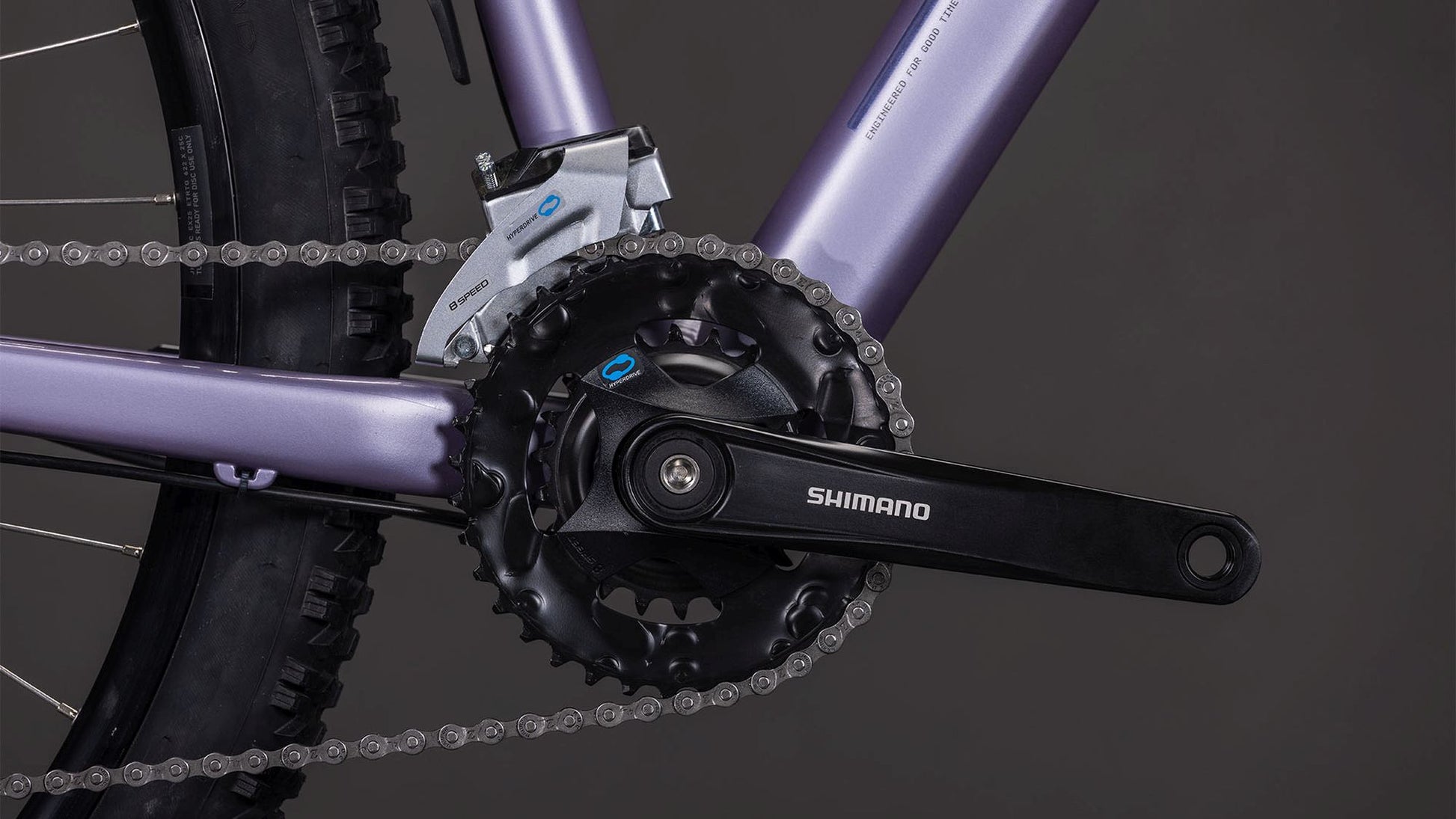

Crankset
Shimano FC-M315, 36x22T, 170mm
Cassette
Shimano CS-HG200, 12-32T
Chain
KMC Z8.3
Cockpit
Headset
Cube FPH863, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Bar tape or grips
Acid Icon
Wheels
Rims
Acid EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
Acid Pro, QR, 6-Bolt
Front tyre
Cube MTB, 2.25
Rear Tyre
Cube MTB, 2.25
Other parts
Saddle
Acid Venec Lite

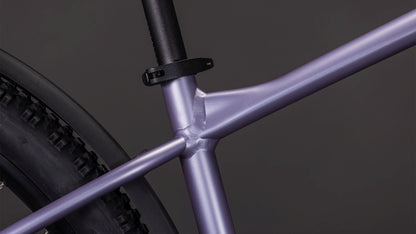

Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Seatpost clamp
Pedals
Cube PP MTB

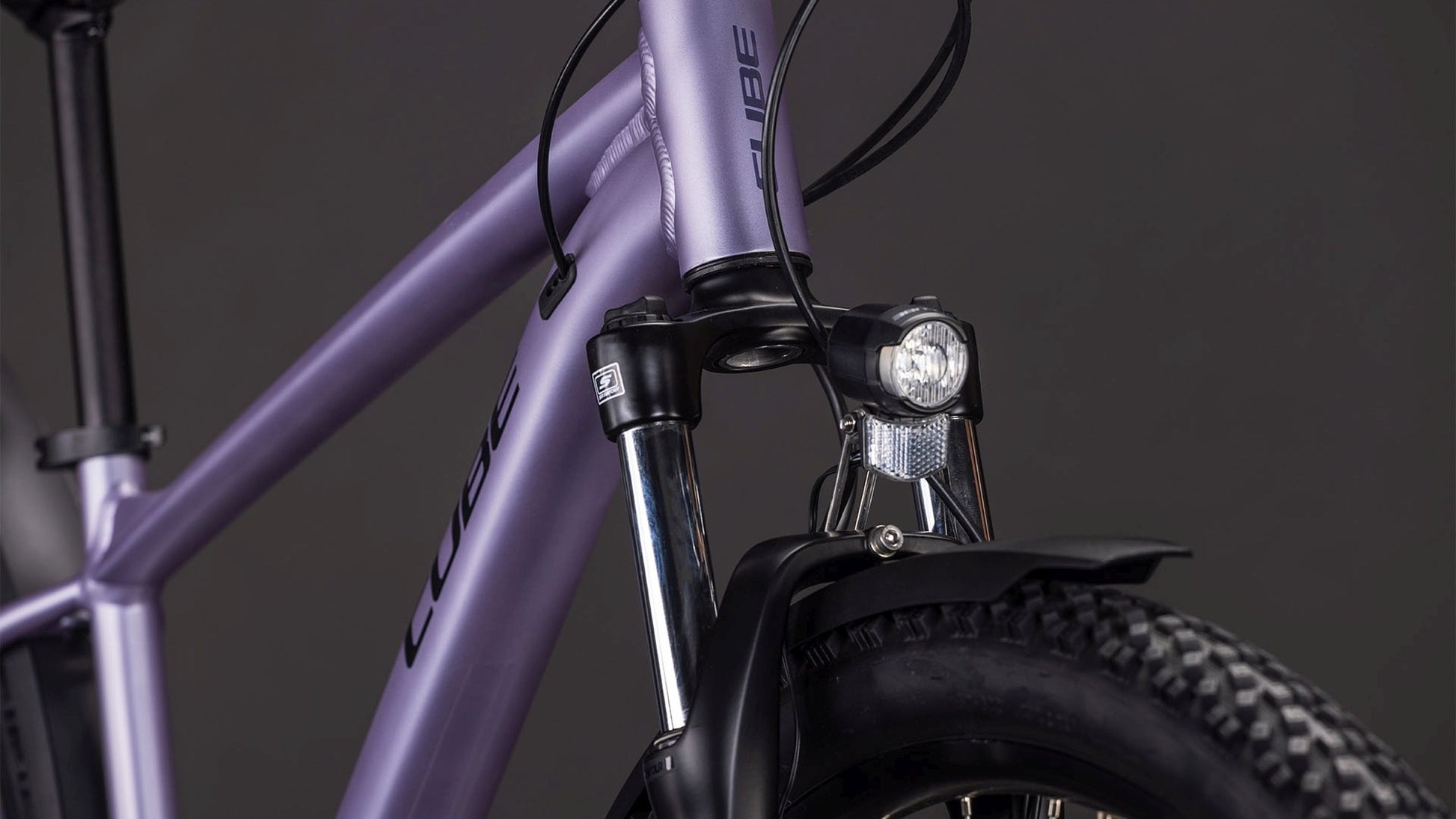

Front light
Cube Shiny 50
Rear light
Acid Mudguard Rear Light PRO-D, 6V, AC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65
Bell
Acid Bell

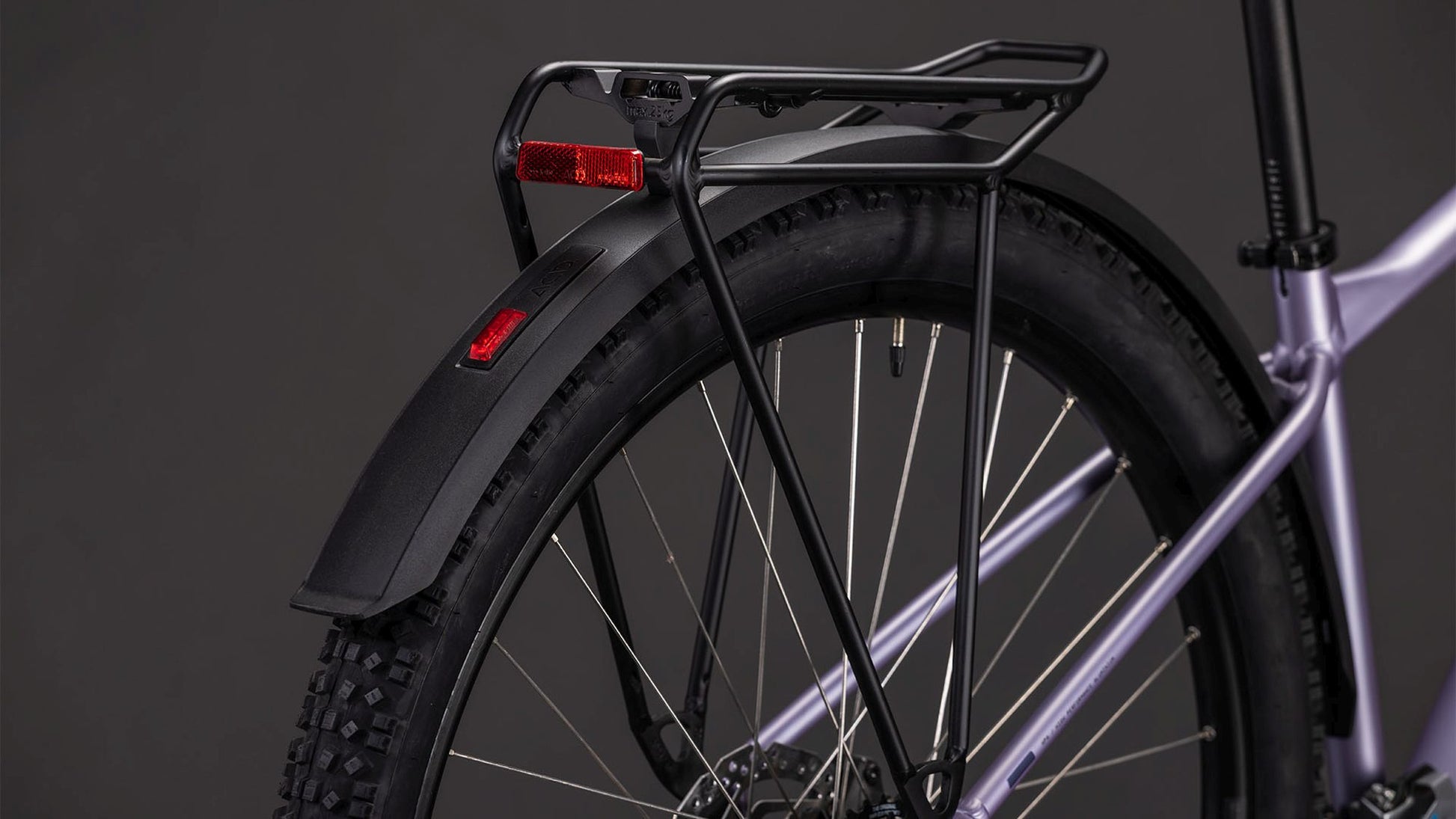

Carrier
Acid Semi-Integrated Carrier, RILink Adapter Compatible and Rail
