What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Fully equipped (FE) with mudguards, a rack, dynamo-powered lights and rear kickstand
Size Split sizing: 27.5-inch wheels on small sizes and 29-inch wheels on large sizes
No air suspension
No thru-axles
Product description

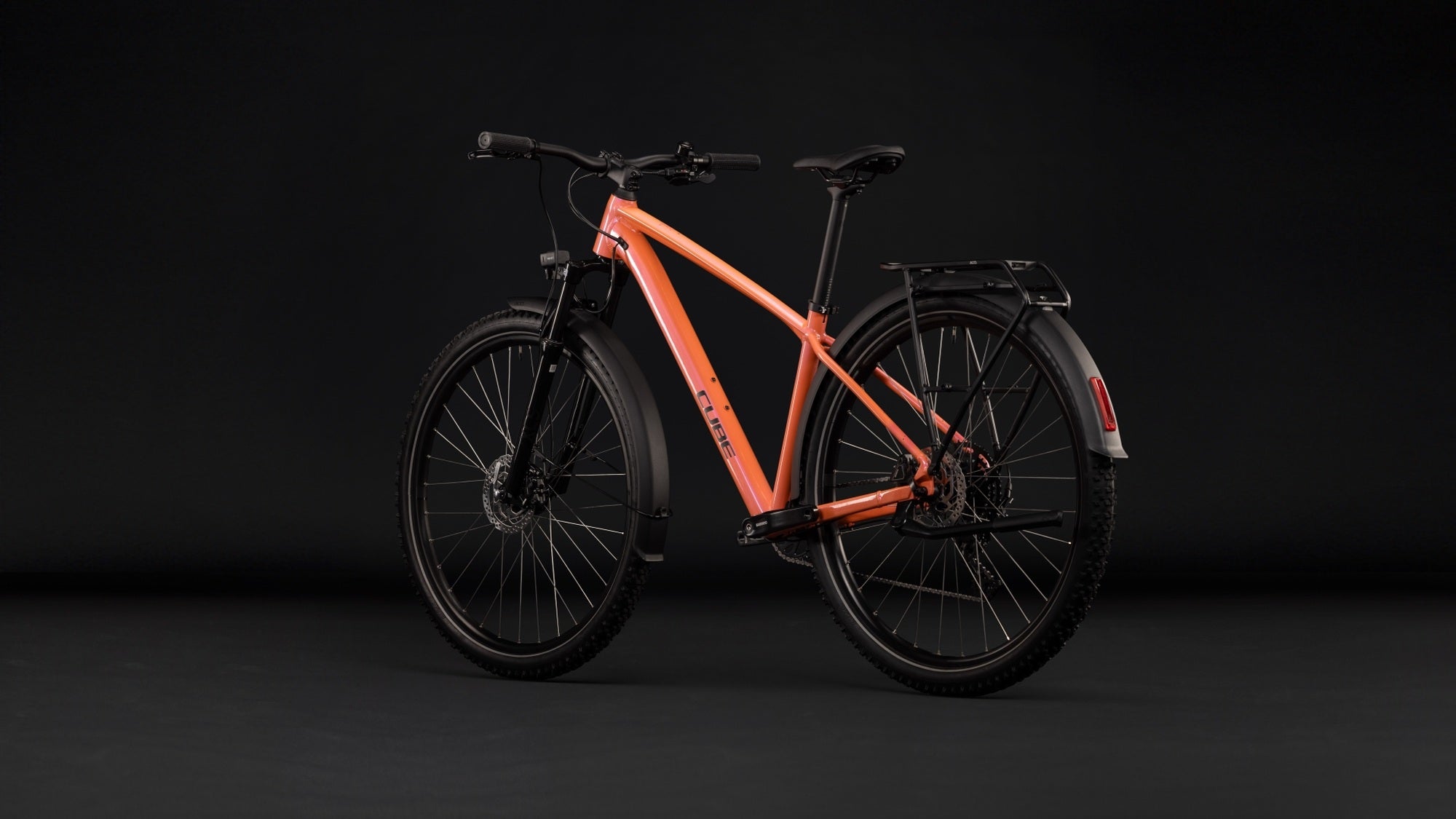

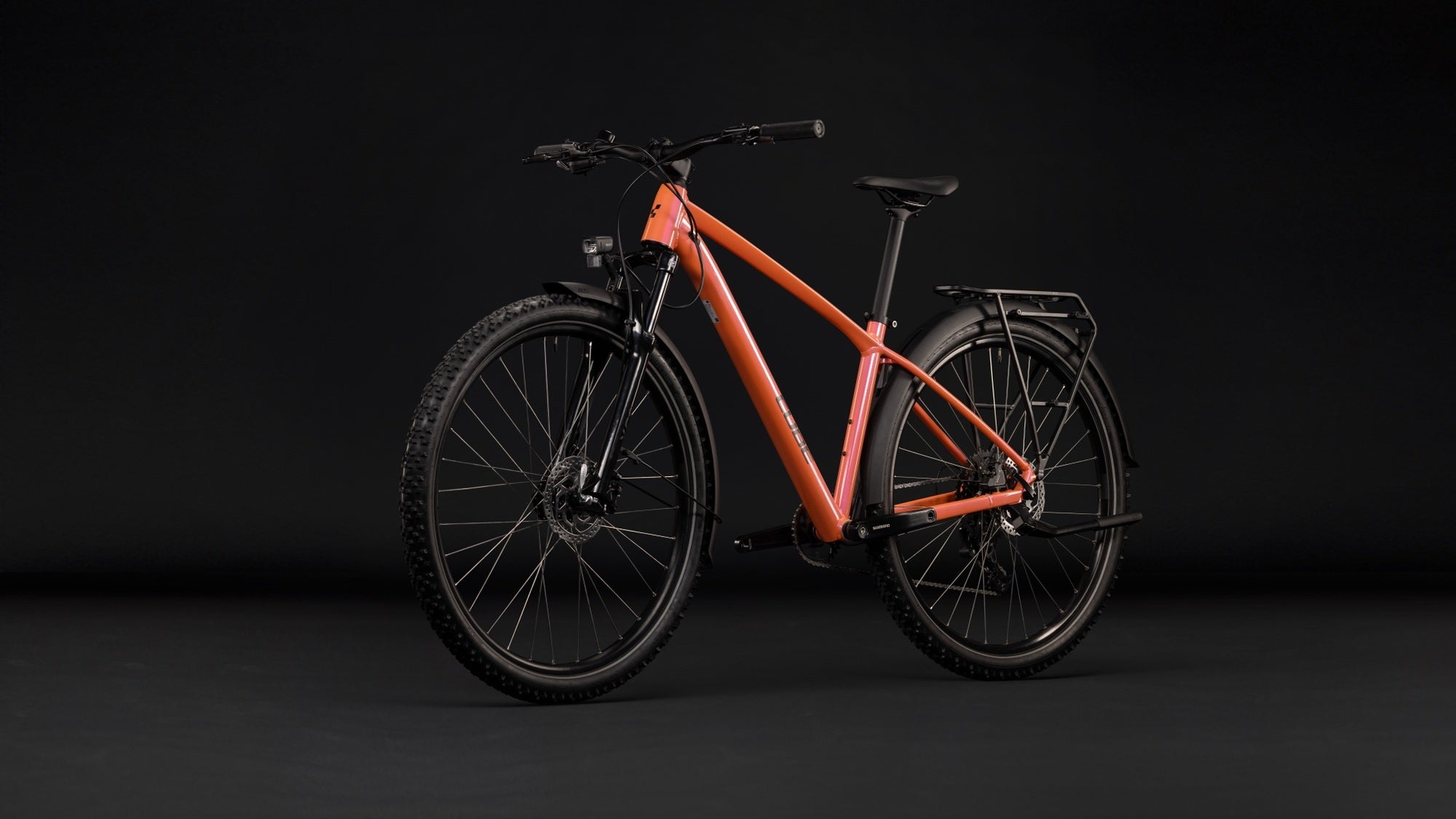

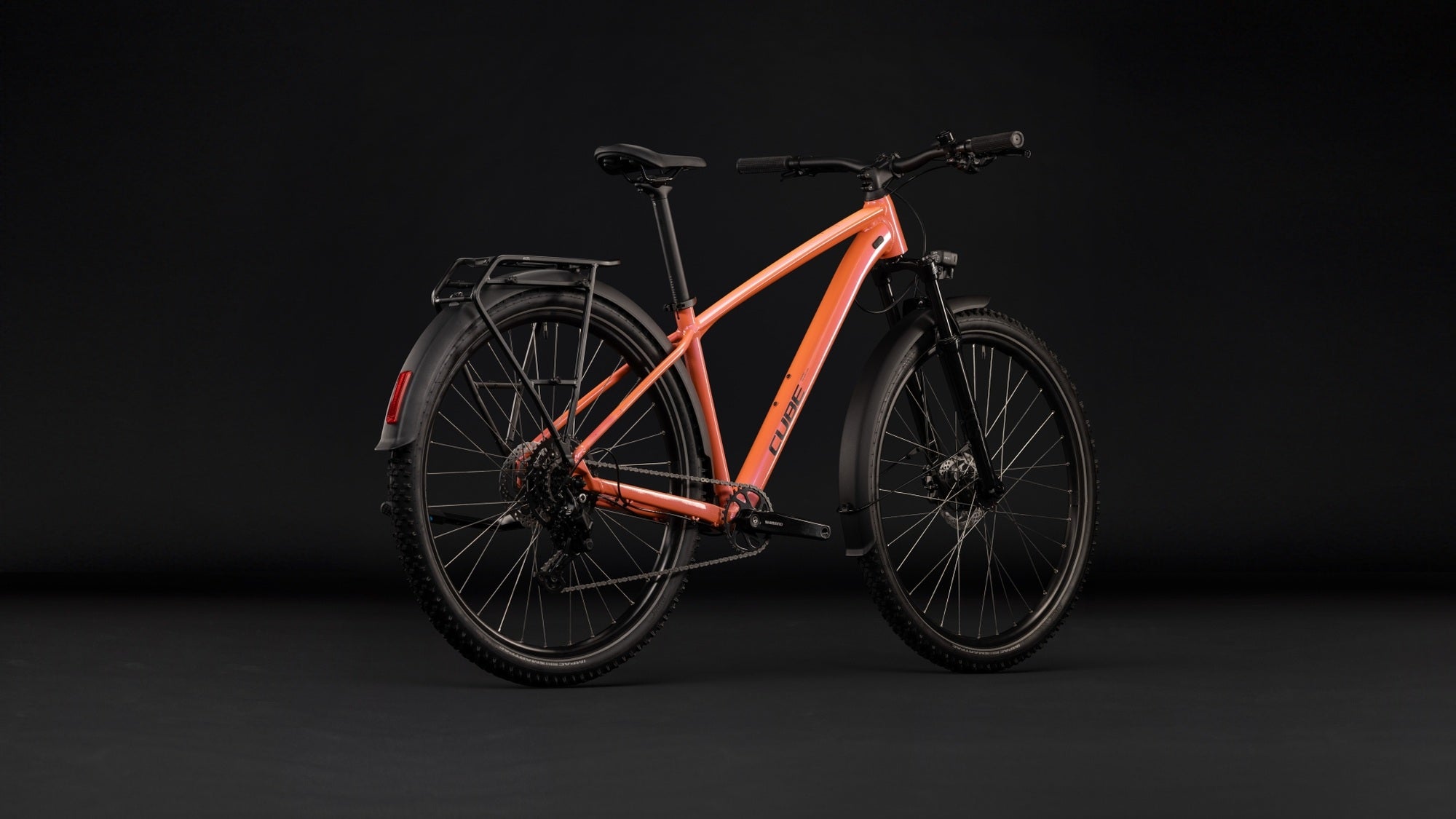

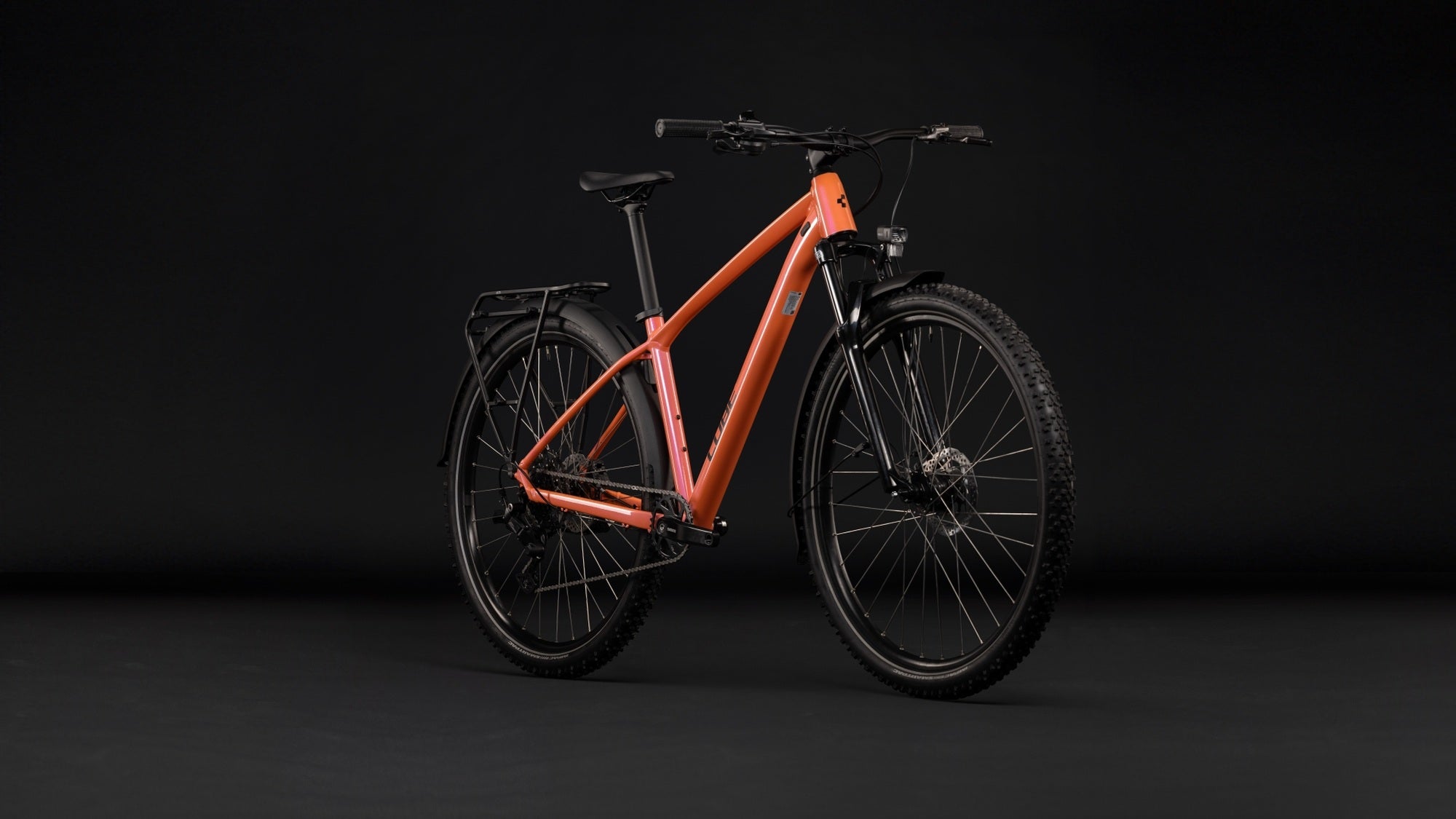

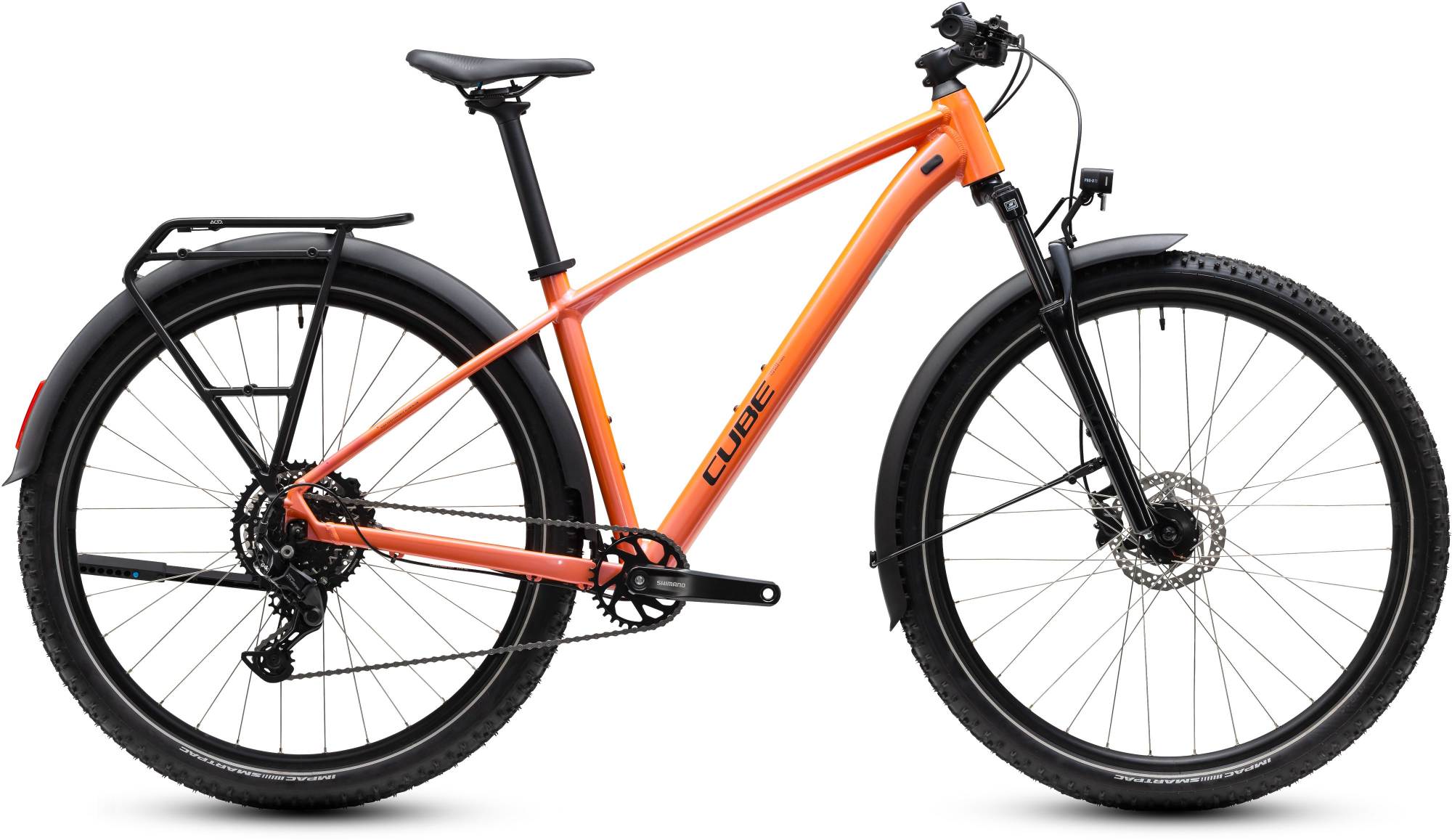

Whether heading off-road at the weekend or commuting during the week, the Aim ONE FE is ready. Fully Equipped means exactly that: lights, mudguards, a semi-integrated rack and stable rear kickstand are included as standard. Its foundation is the same thoughtfully designed aluminium frame as the Aim ONE, with internal cable and hose routing, a tapered head tube and our carefully considered Size Split sizing.
A Suntour suspension fork with ten centimetres of travel smoothly handles rough roads and bumpy trails. Wide, comfortable 2.25-inch tyres provide grip on tarmac and off-road. Powerful hydraulic Shimano disc brakes keep speed under control. A reliable Shimano Cues 1x9 drivetrain with a wide-range 11-to-46-tooth cassette puts the right gear at your fingertips in every situation. Fully equipped, ready for work and adventure.
Read more
Matching accessories
CUBE BOTTLE CAGE HPP MATT BLACK/GLOSSY BLACK
£16.95
ACID PUMP RACE FLEX HV BLACK
£34.95
ACID PEDALS FLAT A40 BLACK
£69.95
ACID MUDGUARD SET 65 27.5 INCH BLACK
£39.95
ACID BOTTLE CAGE UNIVERSAL BLACK/BLACK
£19.95
Often bought together
CUBE BOTTLE FLOW 500 BLACK
£4.95
CUBE Bottle 0,5L Icon Transparent
£4.95
RFR CYCLE COMPUTER WIRELESS CMPT BLACK/WHITE
£24.95
ACID LIGHT SET PRO 40 BLACK
£49.95
ACID Saddle Bag Click M Black
£29.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Specifications
General
Model code
1140170
Model year
2027
Colour
Salmon/Black
Sizes
Size Split: 27.5: XS, S // 29: M, L, XL
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
17.3
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCS, 100mm
Drivetrain and brakes
Number of gears
9
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Cues RD-U4000-GS, 9-Speed
Shifters
?
Make and type of gear levers.
Shimano Cues SL-U4010, Rapidfire-Plus

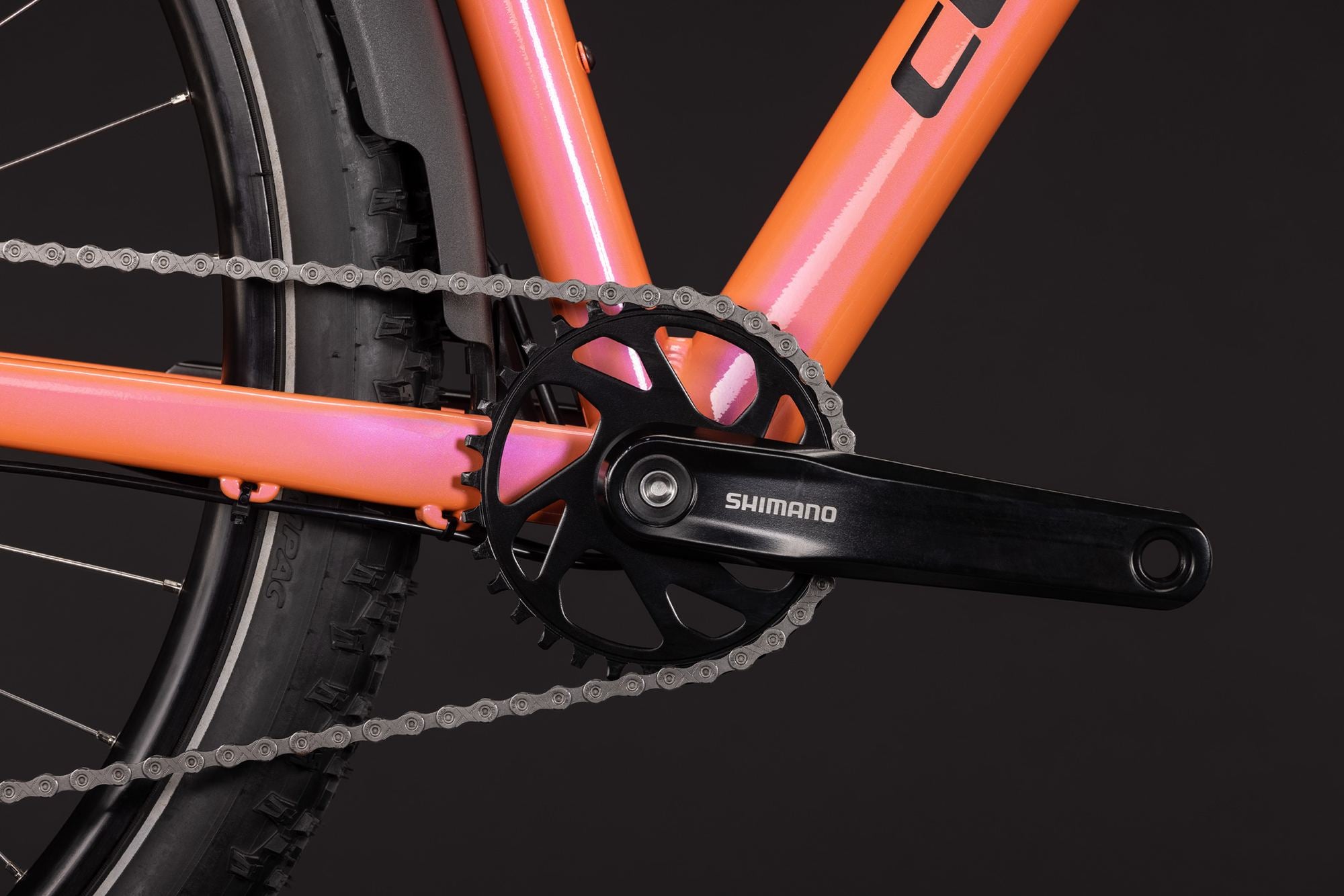

Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano Cues FC-UT400, 32T
Cassette
?
The set of gears on the back of the bicycle
Shimano Cues CS-LG300, 11-46T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC xGlide
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868p, Tapered, Semi-Integrated

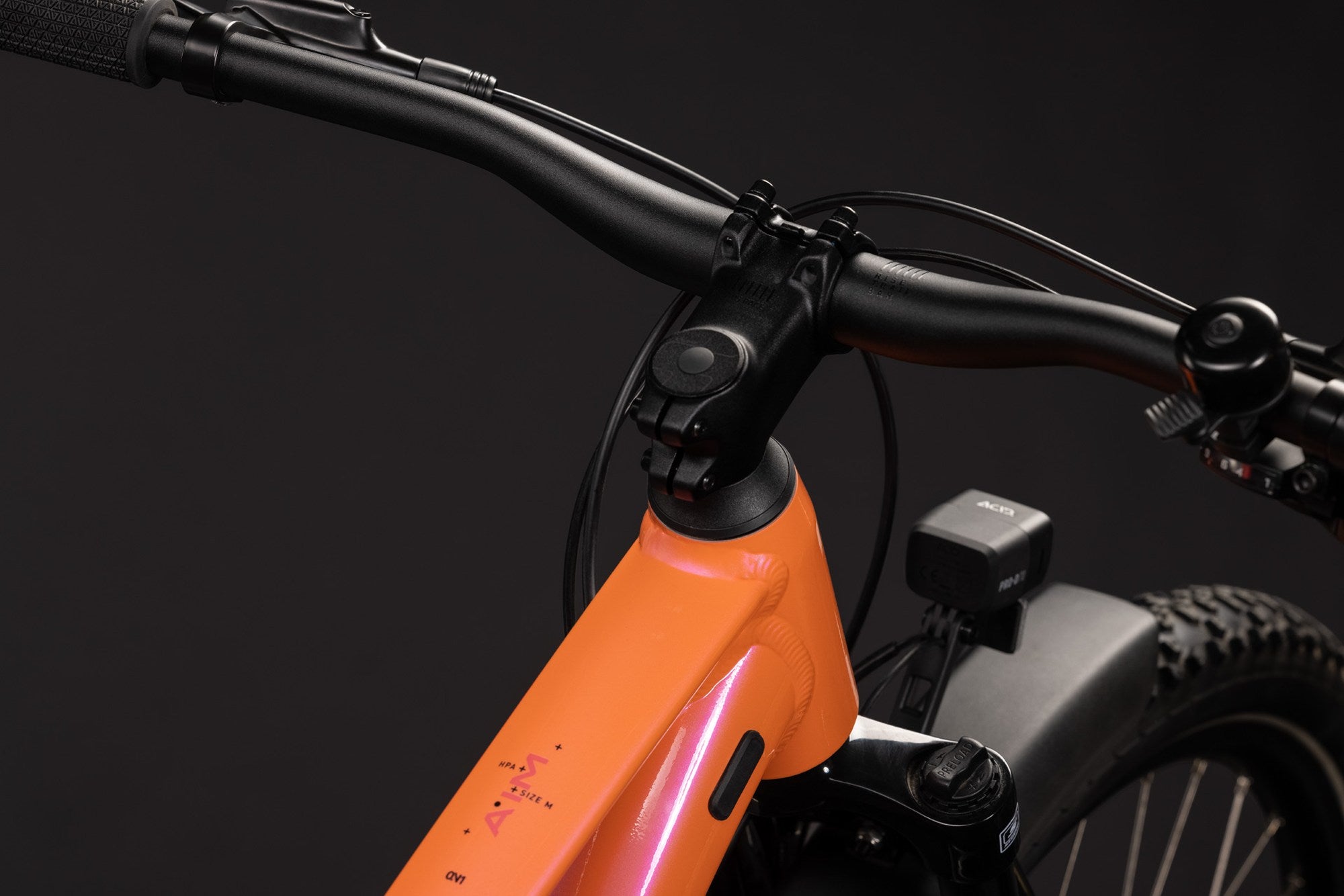

Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Rims
Acid EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano DH-3D32, Hub Dynamo, QR
Rear hub
Acid Pro, QR, 6-Bolt
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, Draht, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, Draht, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 30.9mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB

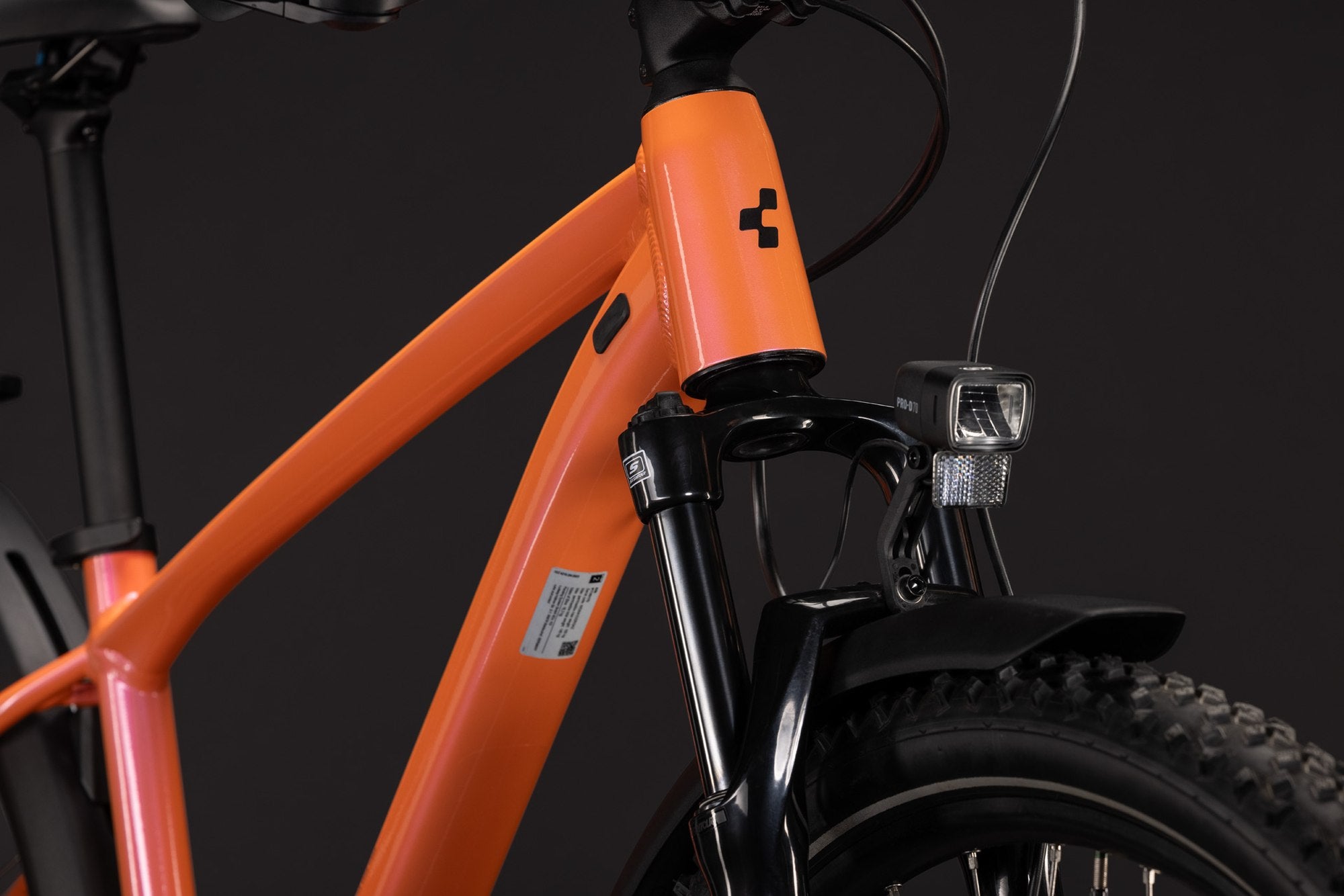

Front lighting
Acid Pro-D 70
Rear lighting
Acid Pro-D SIC 2.0
Kickstand
Acid FM Pure Silent
Mudguards
Acid 57 SIC 2.0
Bell
Acid Bell

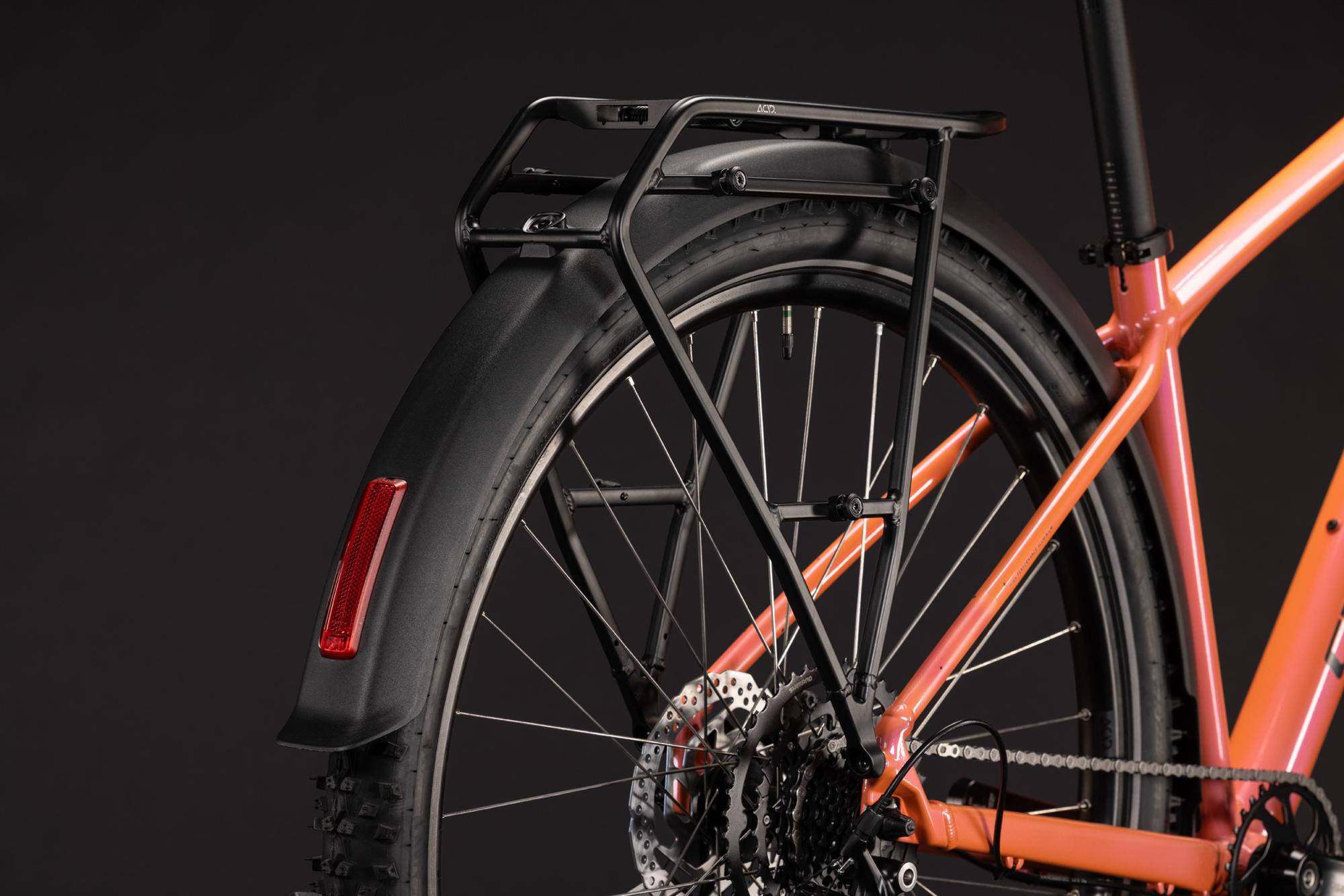

Carrier
Acid SIC 2.1 RILink
Touch up pen
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
Slot
?
Een ART-2 keurmerk op een fietsslot garandeert een goede diefstalbeveiliging en wordt door de meeste verzekeraars geëist voor de allriskverzekering van fietsen (en e-bikes). Het keurmerk, afgegeven door de Stichting ART, betekent dat het slot uitgebreide testen heeft doorstaan, zoals knip- en aanvalstesten.
Niet inbegrepen – apart verkrijgbaar / Not included – available separately
