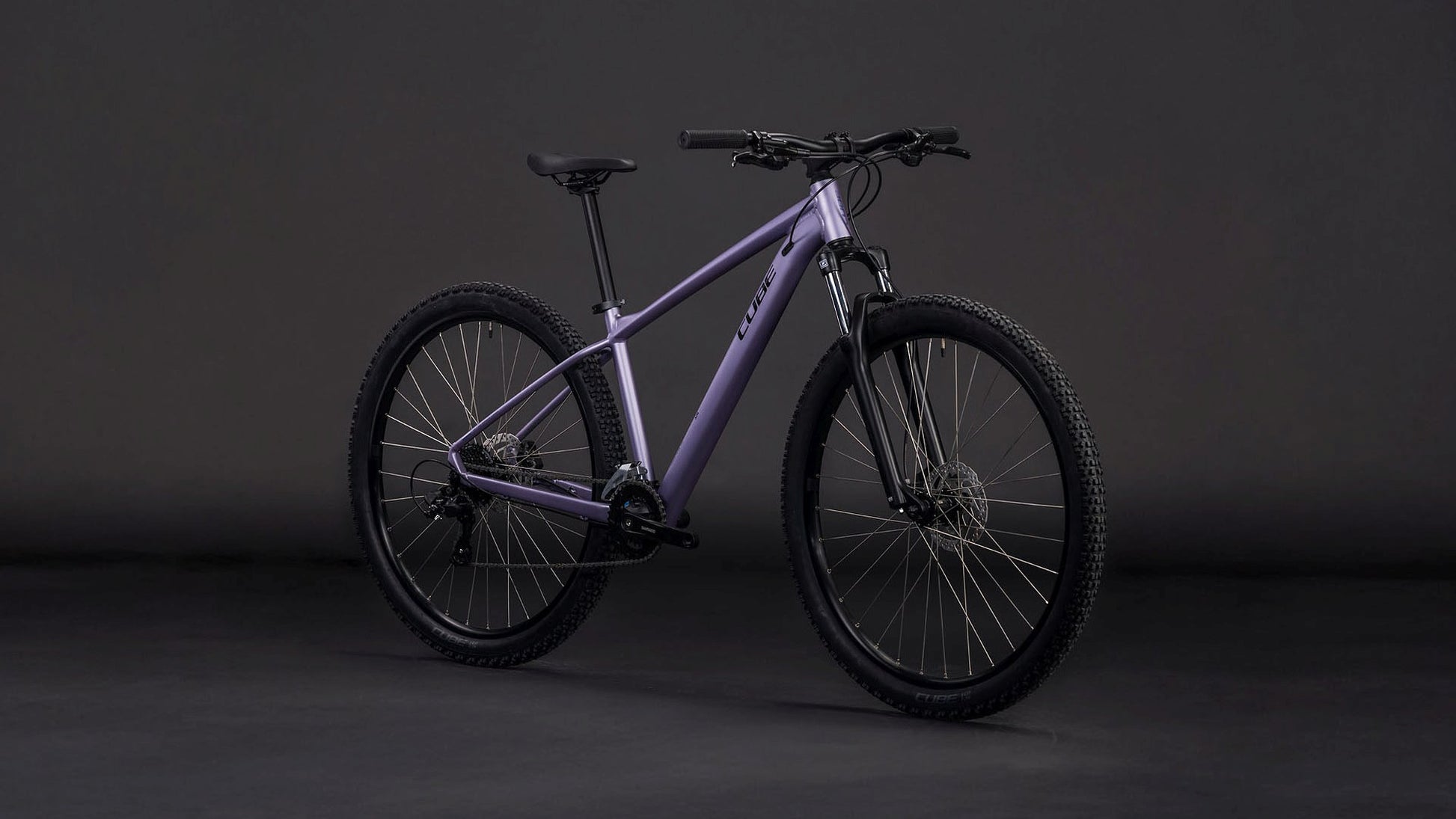

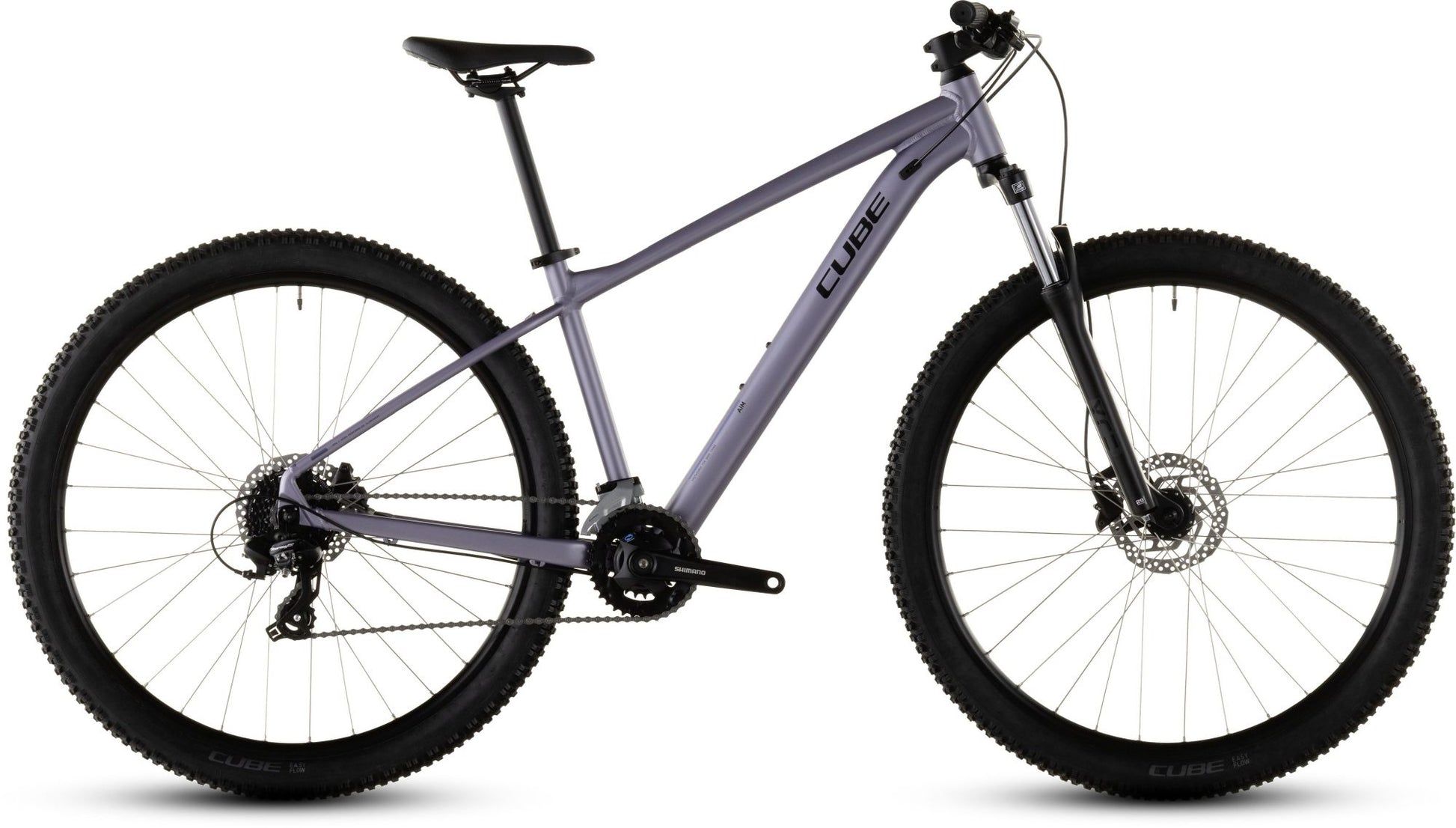

CUBE AIM ONE LIGHTPURPLE/CHROME
CUBE AIM ONE LIGHTPURPLE/CHROME







Description
Frame description

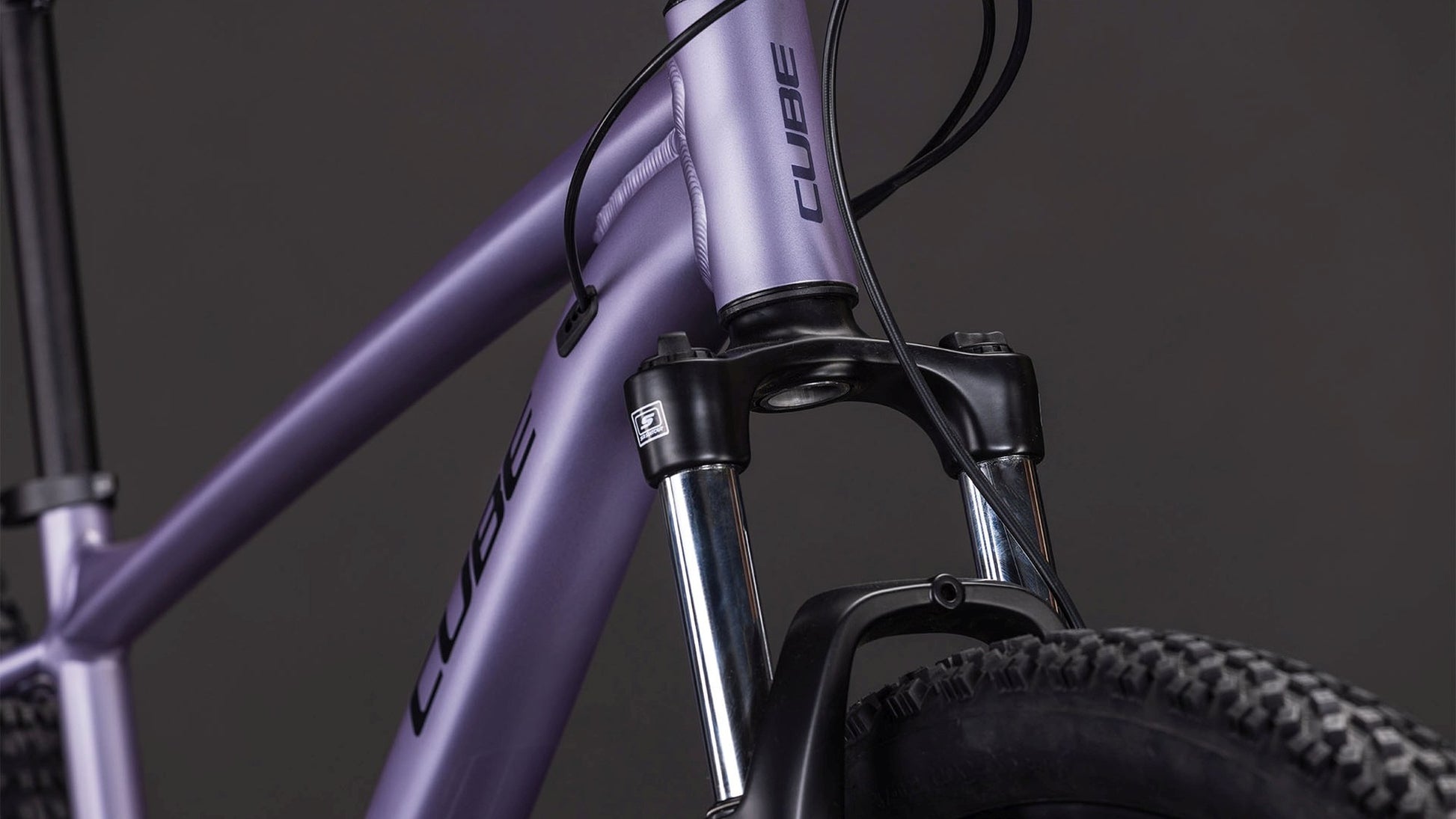

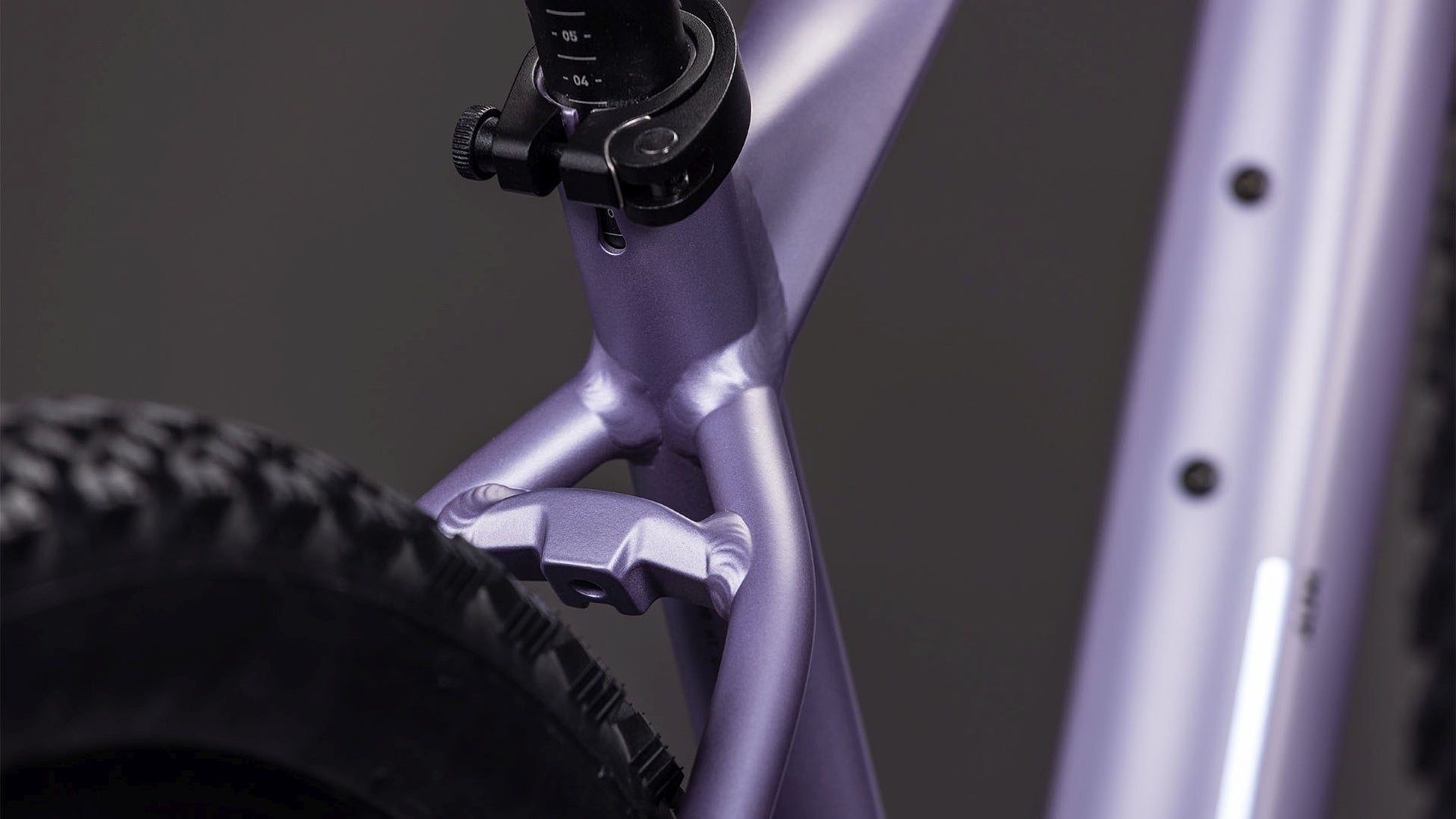

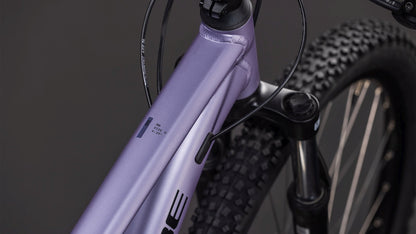

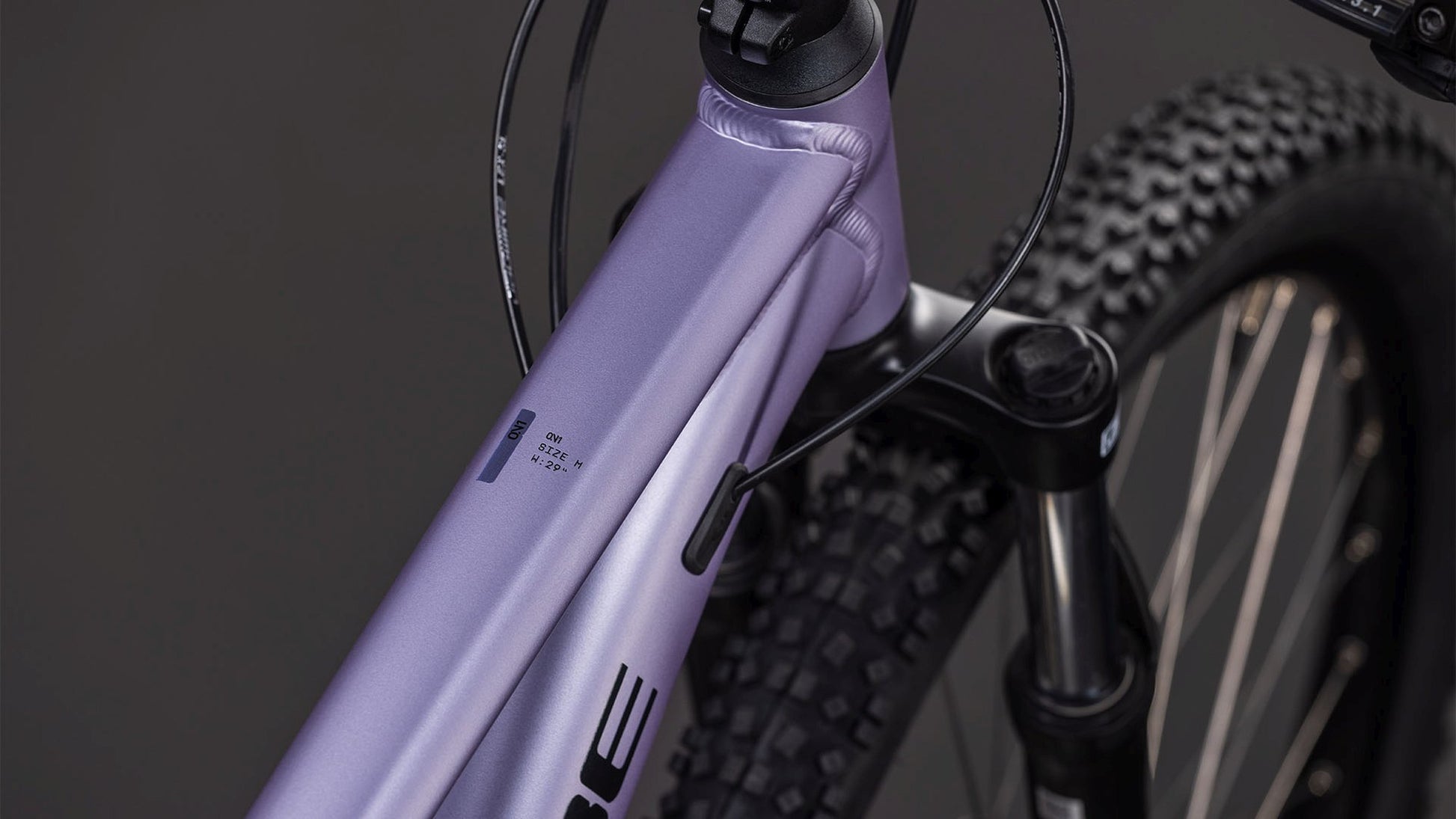

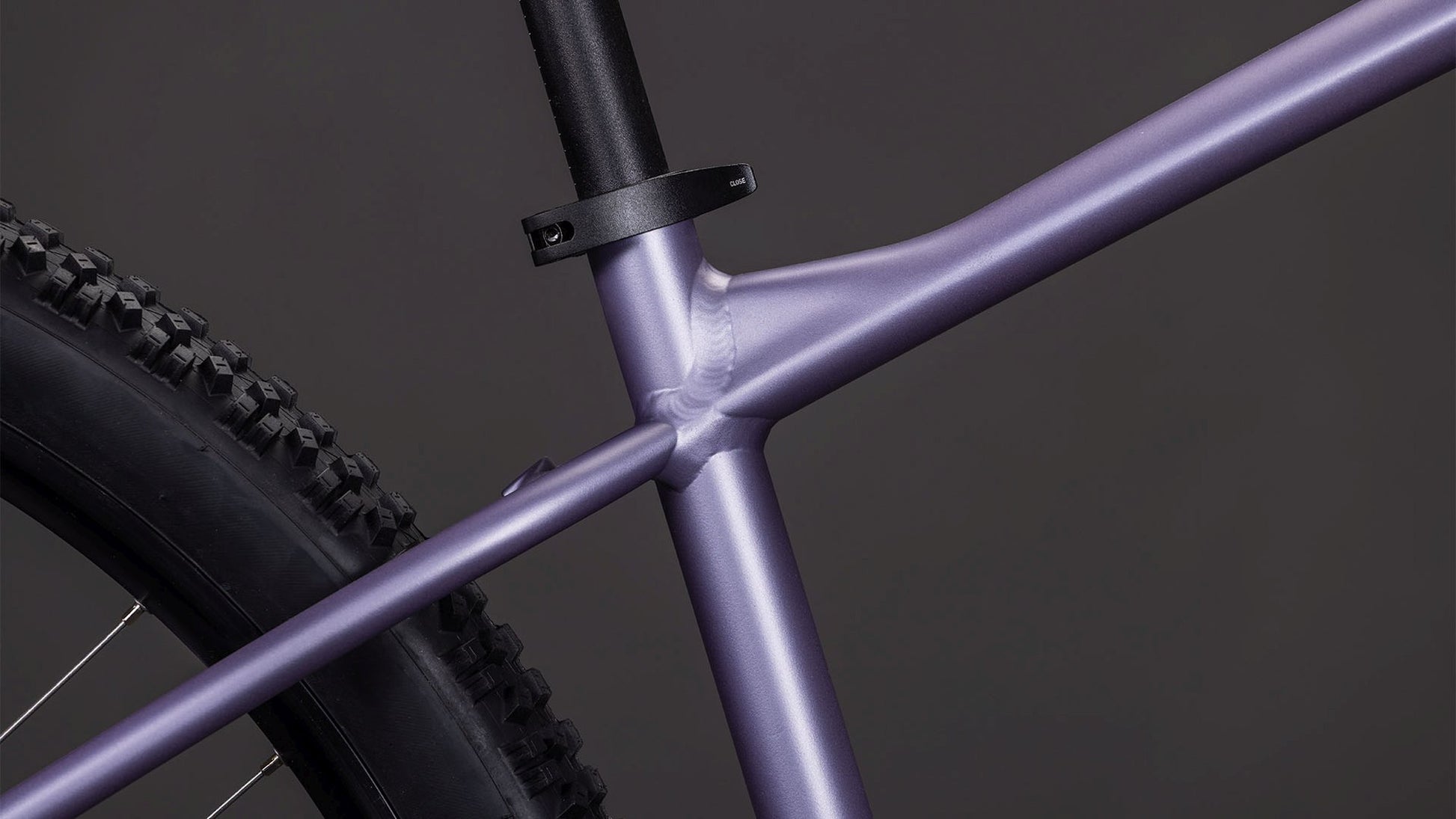

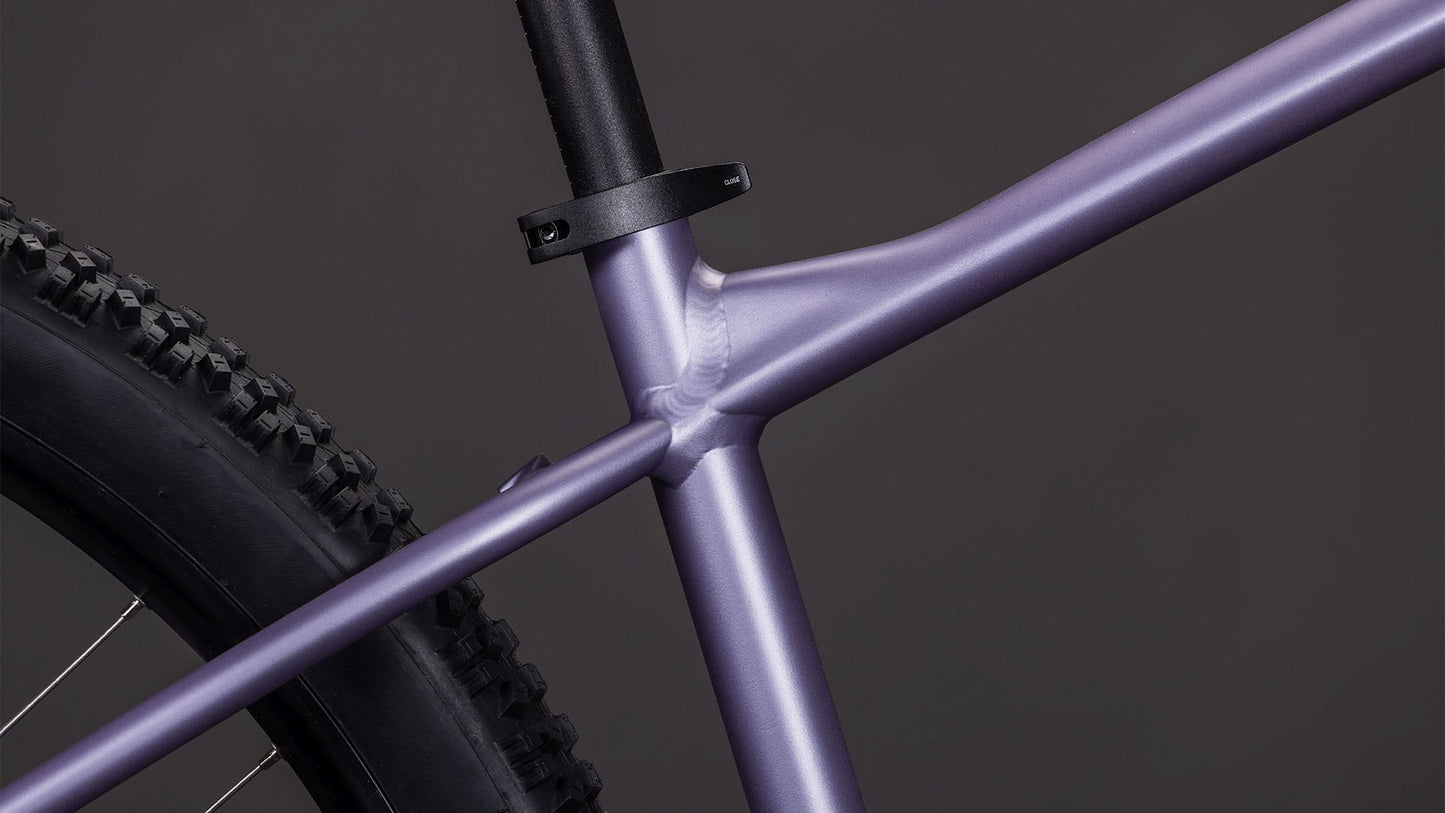

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Product specifications
Frame
Model year
2026
Fork
SR Suntour XCE, 100mm
Drivetrain and brakes
Front brake
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Rear brake
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Rear derailleur
Shimano RD-TX800, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
Shimano SL-M315, Rapidfire-Plus
Crankset
Shimano FC-M315, 36x22T, 170mm
Cassette
Shimano CS-HG200, 12-32T
Chain
KMC Z8.3
Cockpit
Headset
Cube FPH863, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Bar tape or grips
Acid Icon
Wheels
Wheels
Acid Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
Front tyre
Cube MTB, 2.25
Rear Tyre
Cube MTB, 2.25
Other parts
Saddle
Acid Venec Lite
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Seatpost clamp
Pedals
Cube PP MTB
