What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Integrated mounts for mudguards, a rack and rear kickstand
Size Split sizing: 27.5-inch wheels on small sizes and 29-inch wheels on large sizes
No air suspension
No thru-axles
Product description

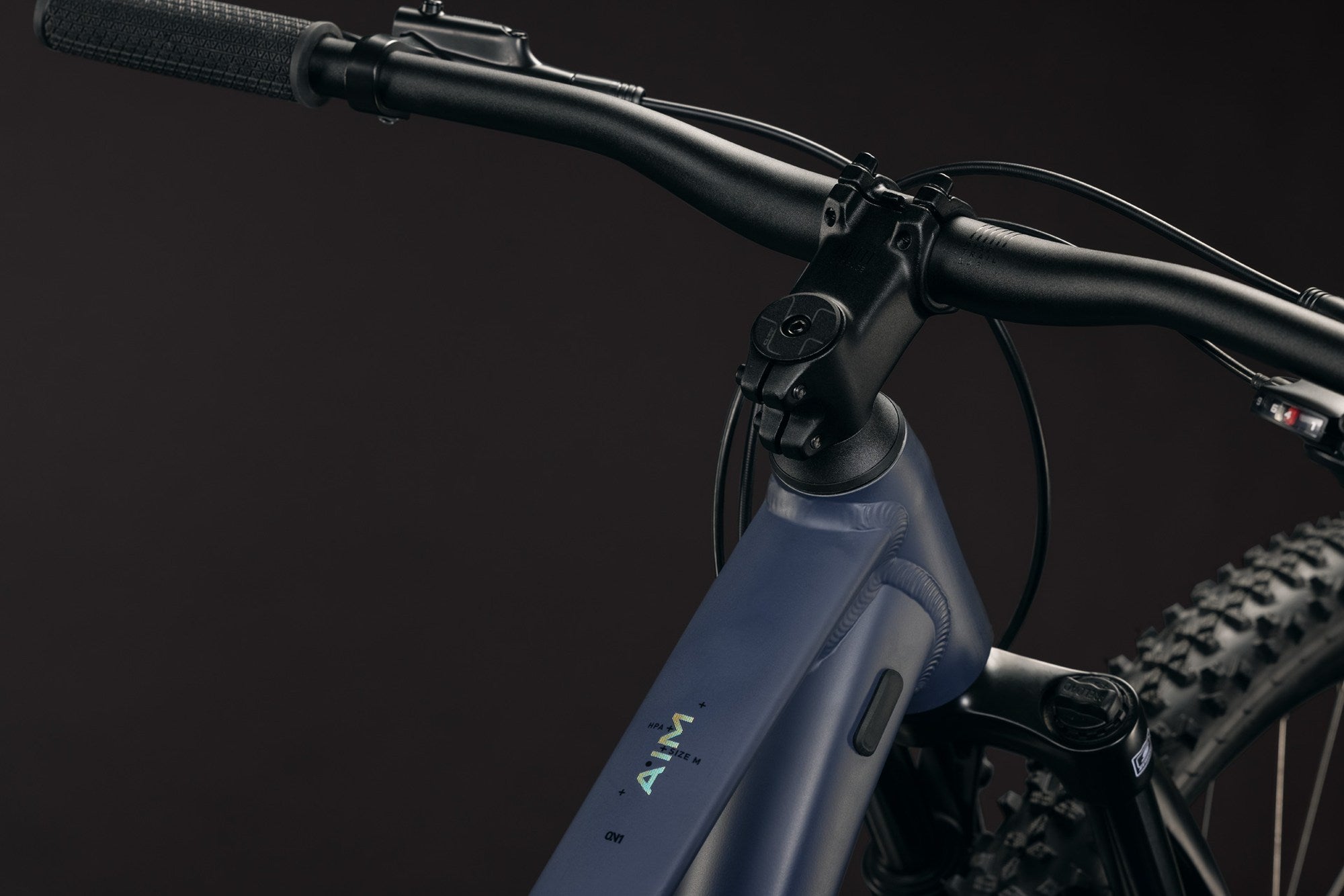

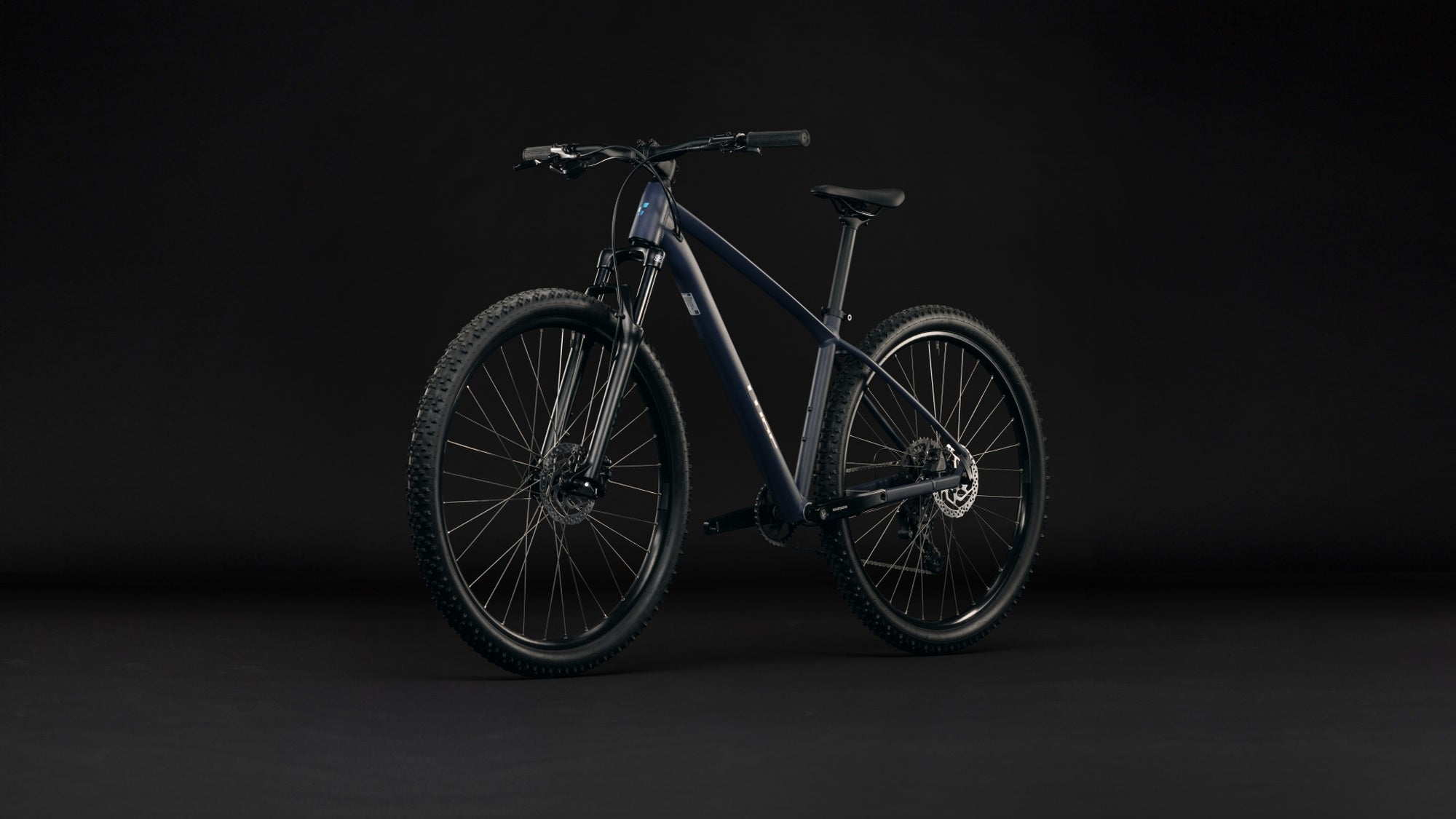

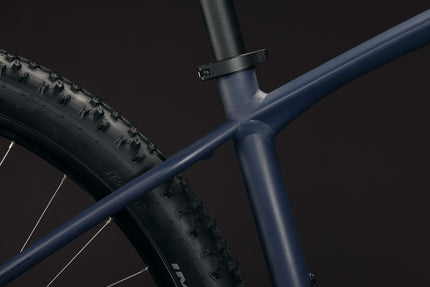

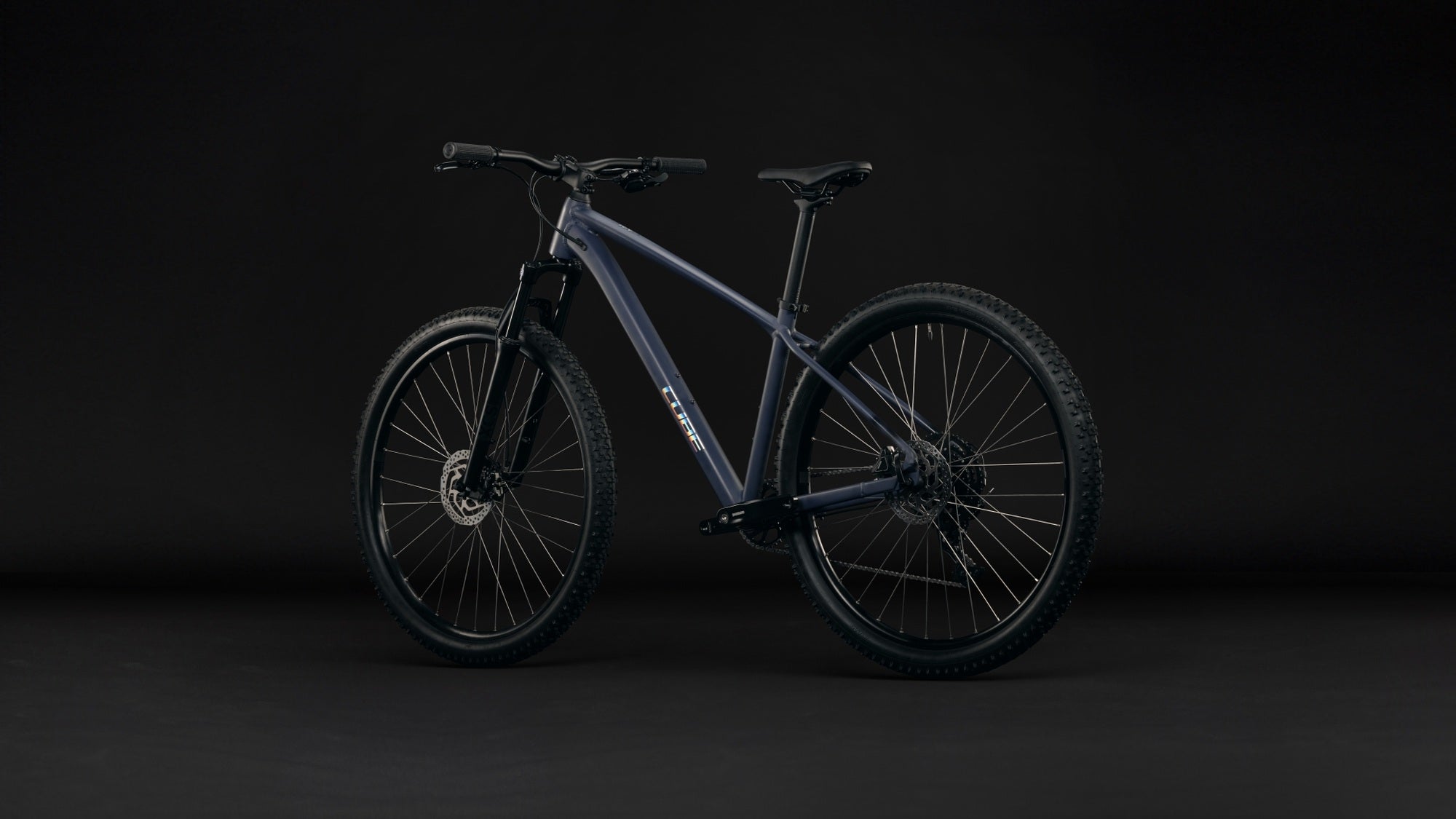

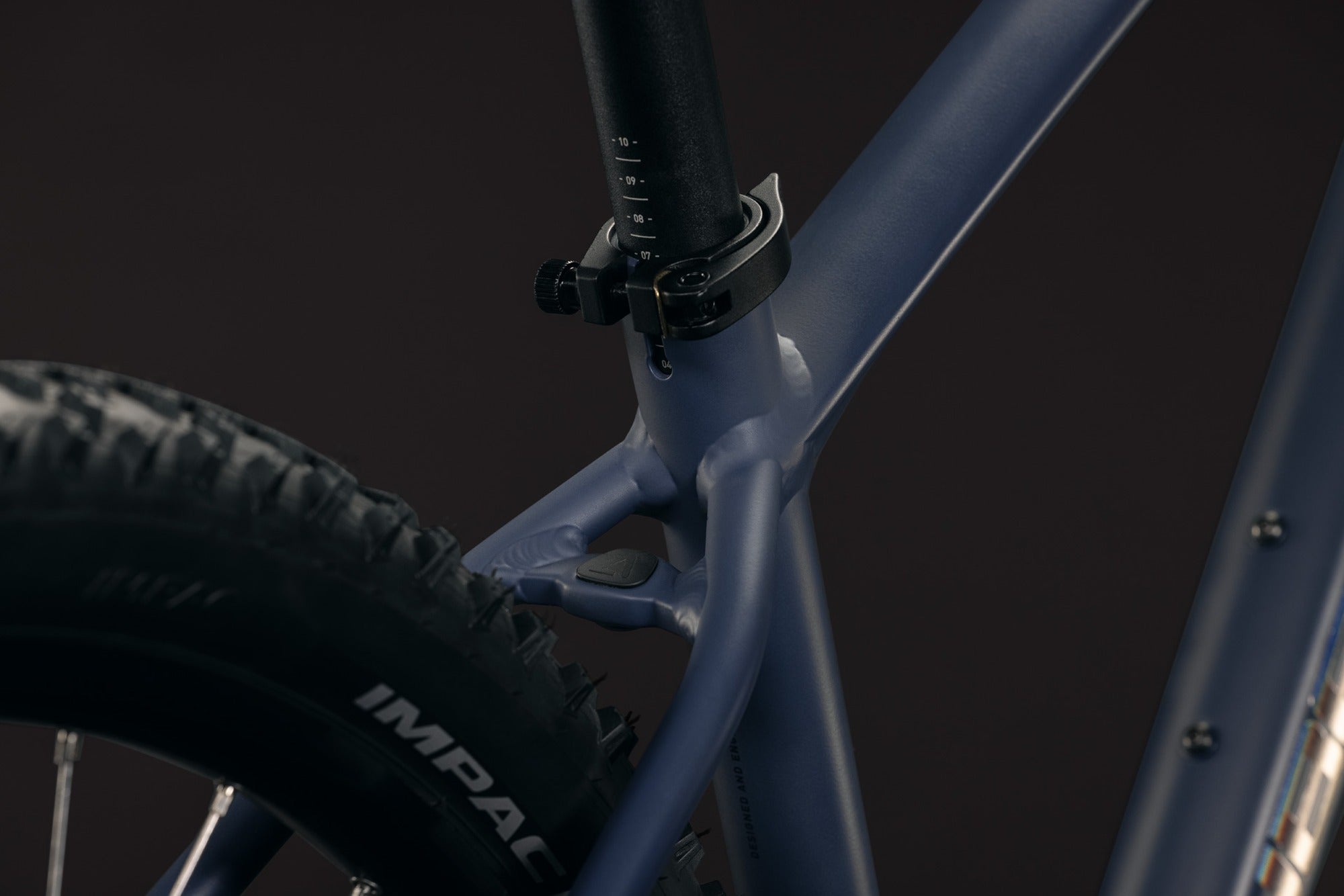

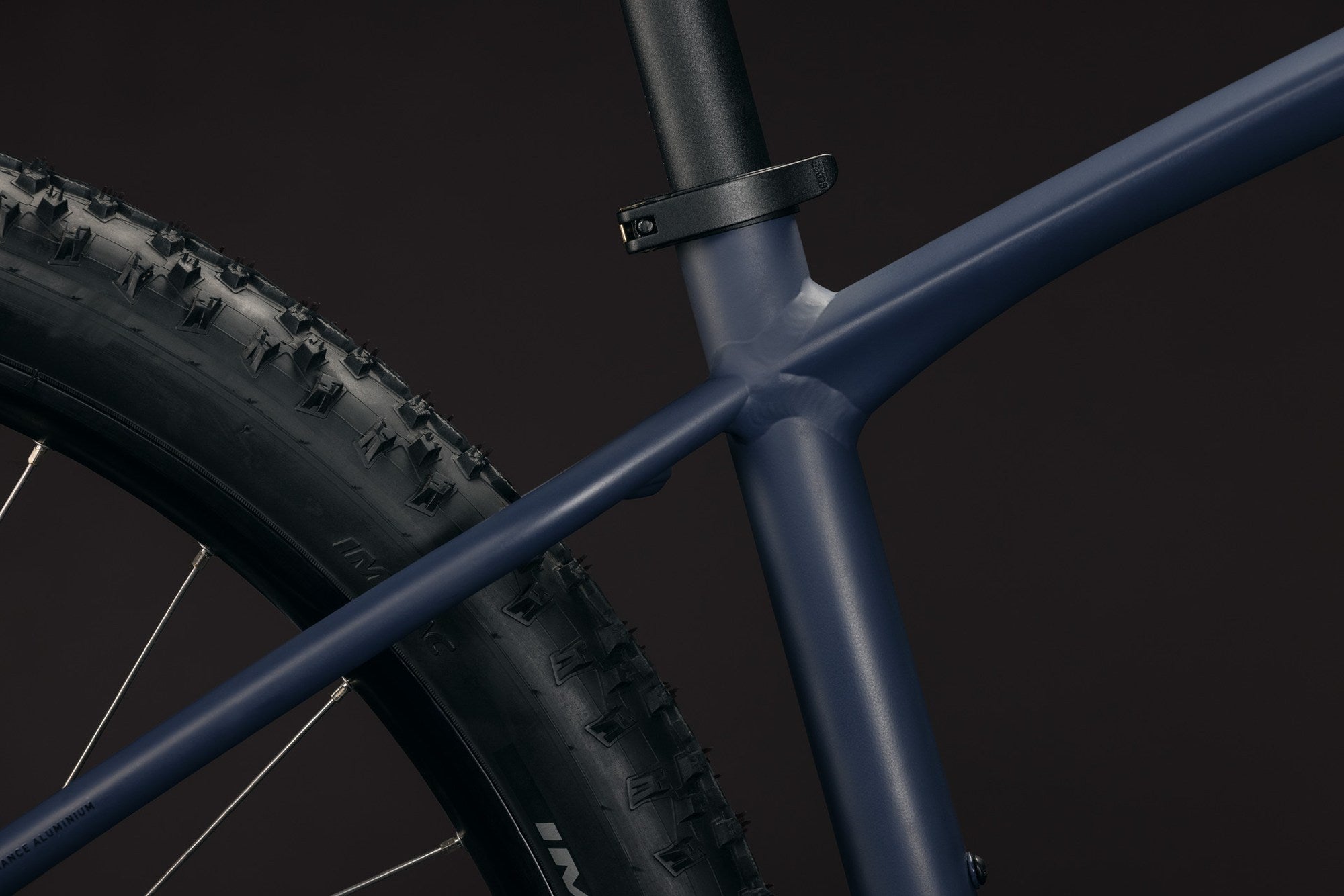

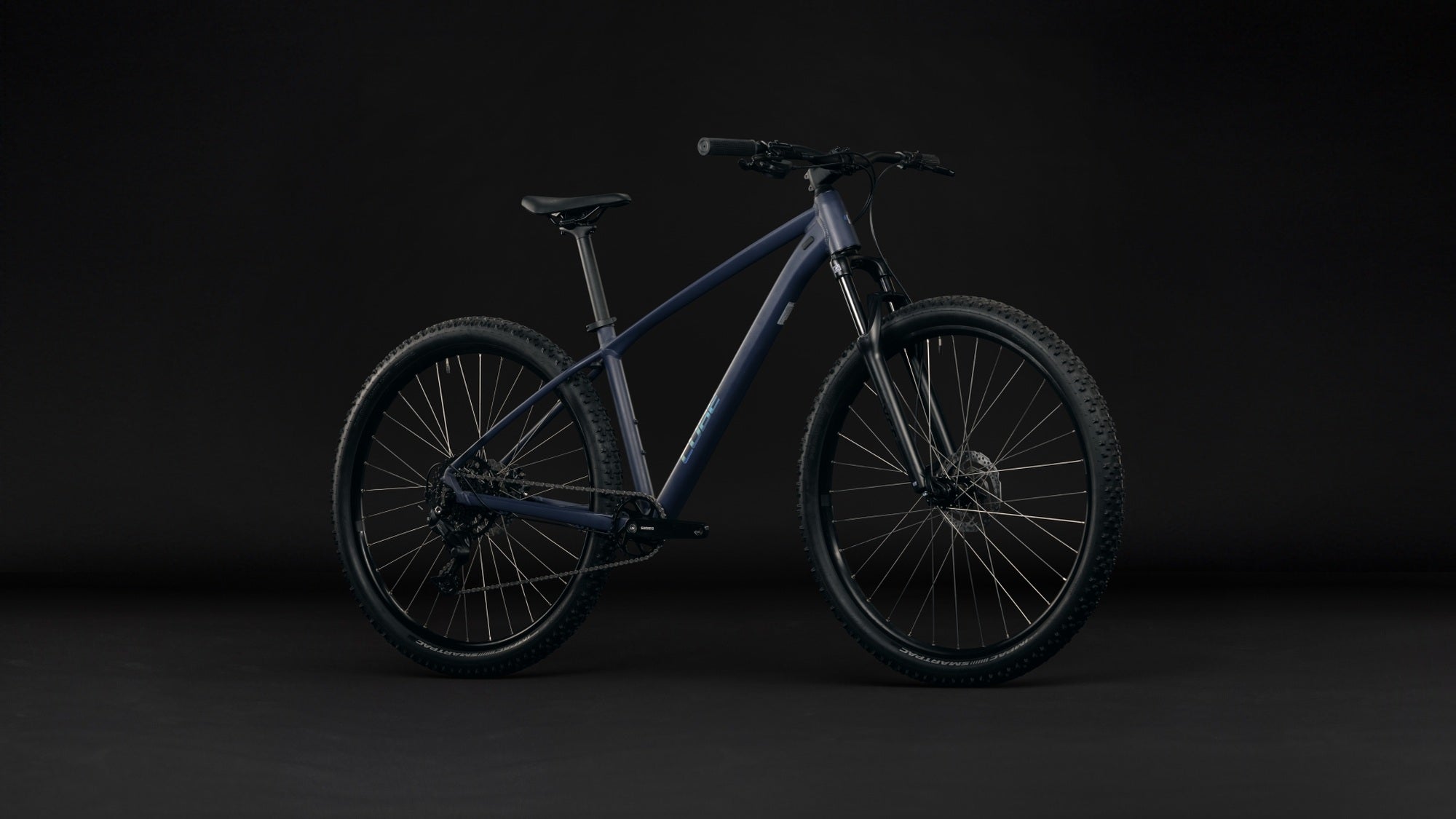

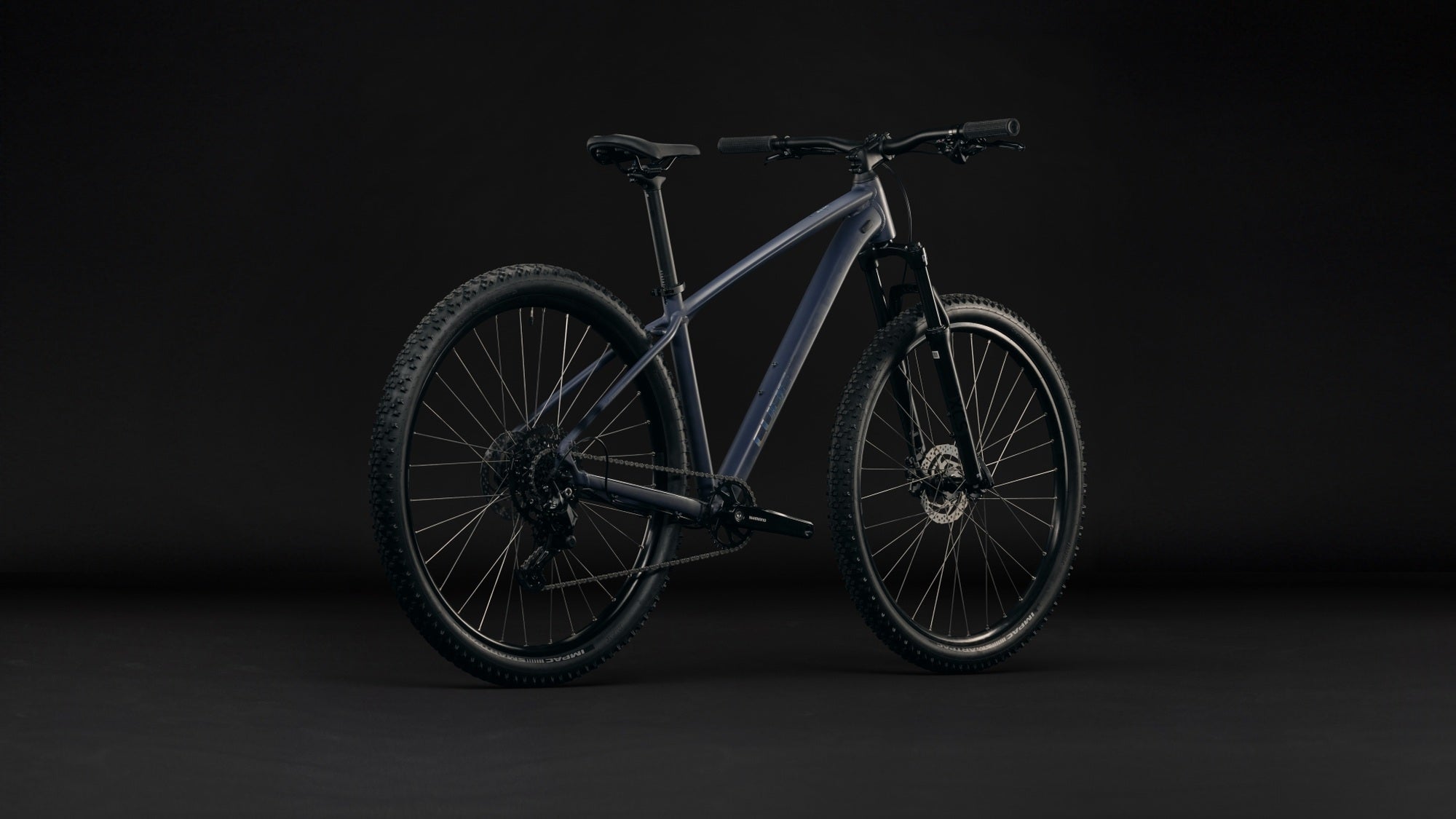

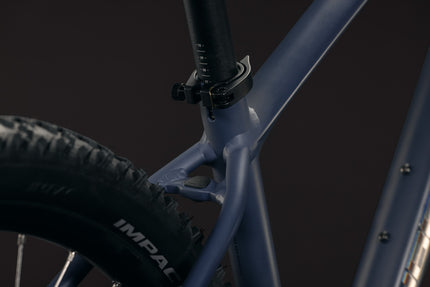

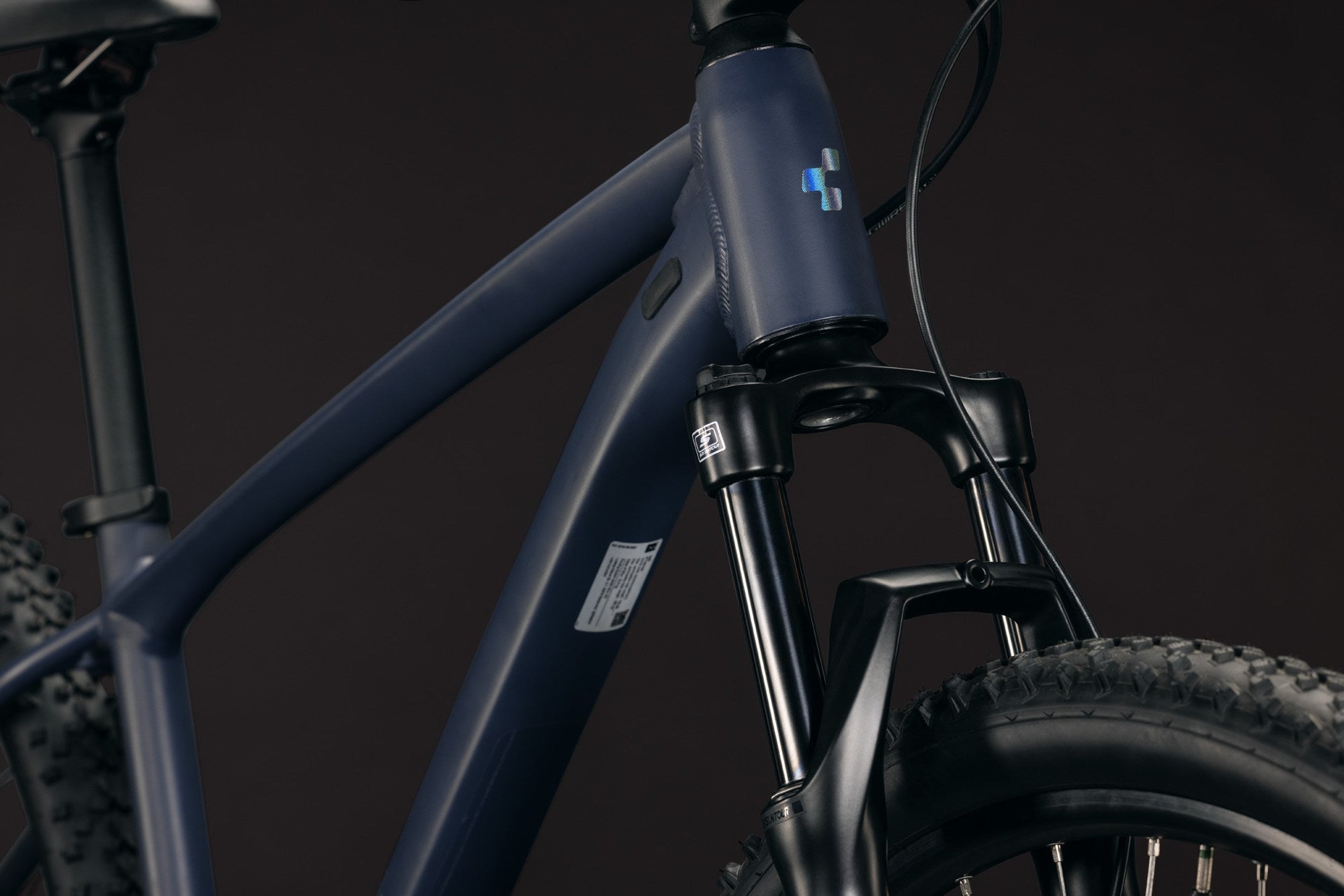

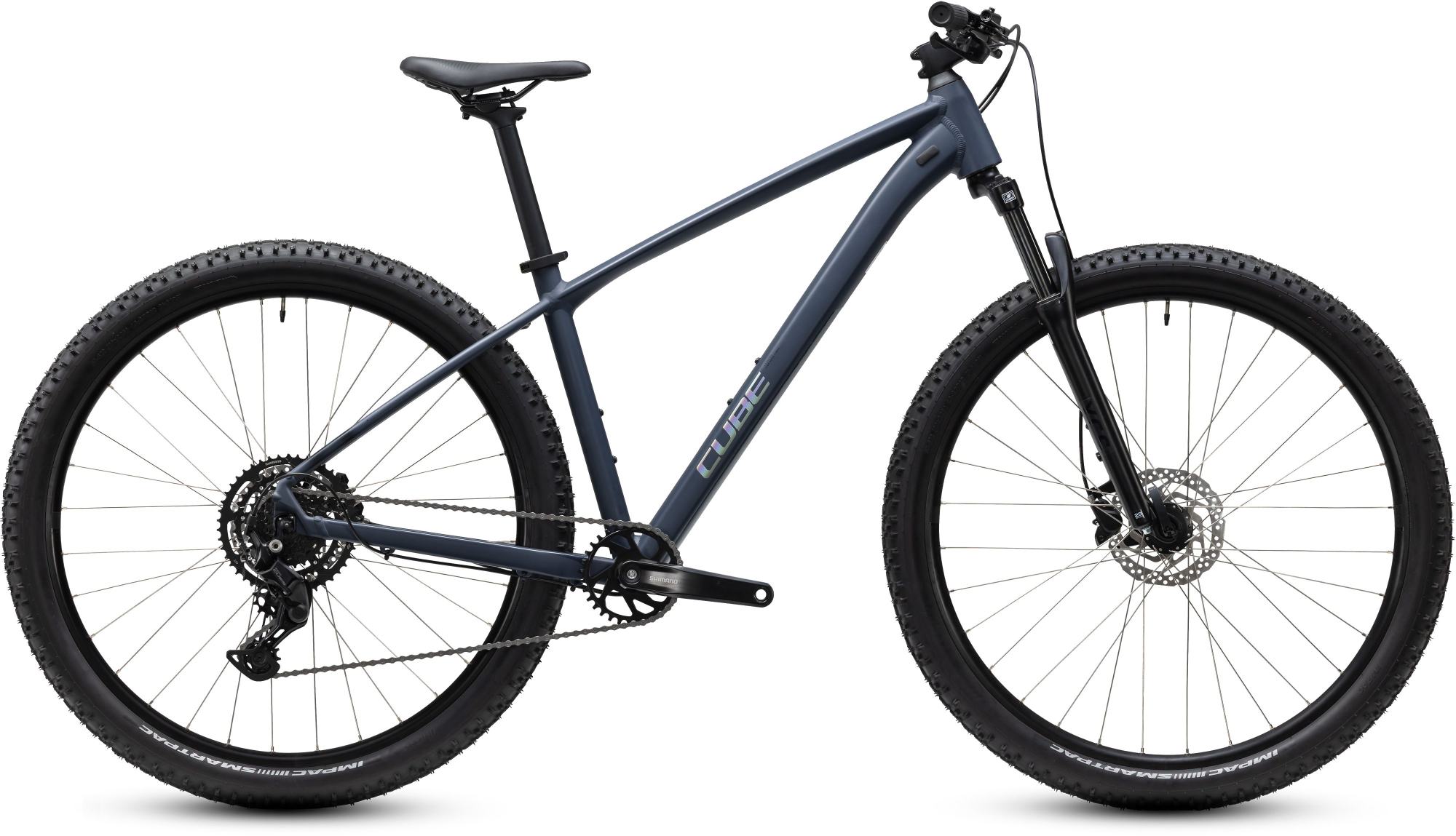

Robust. Simple. Reliable. The Aim ONE does what it should and lets you enjoy the ride. Its foundation is a high-quality aluminium frame with flowing lines, carefully designed tube shapes, clean welds and internally routed cables and hoses. A tapered head tube provides stable steering. Practical mounts accommodate our semi-integrated rack and rear kickstand, among other things. Our thoughtful Size Split sizing ensures a suitable Aim for every rider.
A reliable Shimano Cues 1x9 drivetrain with an 11-to-46-tooth cassette offers a wide range and simple, precise shifting. Powerful hydraulic Shimano disc brakes keep speed under control, while comfortable 2.25-inch tyres provide the necessary grip on trails and tarmac. The Suntour suspension fork with ten centimetres of travel makes short work of rocks, roots and holes. A robust, reliable hardtail that does what it should. Just enjoy riding.
Read more
Matching accessories
CUBE BOTTLE CAGE HPP MATT BLACK/GLOSSY BLACK
£16.95
RFR Mini - Bell Black
£3.95
ACID PEDALS FLAT A20 OIL SLICK
£49.95
ACID PUMP RACE FLEX HV BLACK
£34.95
ACID REAR CARRIER SIC 29 INCH RILINK BLACK
£59.95
ACID REAR CARRIER SIC PURE 29 INCH RILINK BLACK
£34.95
ACID PEDALS FLAT A40 BLACK
£69.95
ACID MUDGUARD SET 65 29 INCH BLACK
£39.95
ACID CARRIER SIC RAIL 29 INCH BLACK
£49.95
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£34.95
ACID KICKSTAND FM BLACK
£29.95
New
ACID CARRIER TOP RAIL 120MM RILINK
£29.95
ACID BOTTLE CAGE UNIVERSAL BLACK/BLACK
£19.95
ACID MUDGUARD VANE PRO 27.5-29 INCH FRONT BLACK/BLACK
£19.95
Often bought together
CUBE BOTTLE FLOW 500 BLACK
£4.95
CUBE Bottle 0,5L Icon Transparent
£4.95
ACID CHAIN LOCK CORVID K100 BLACK
£26.95
RFR CYCLE COMPUTER WIRELESS CMPT BLACK/WHITE
£24.95
ACID LIGHT SET PRO 30 BLACK
£39.95
ACID LIGHT SET PRO 40 BLACK
£49.95
ACID LED LIGHT SET HPA BLACK
£39.95
ACID Saddle Bag Click M Black
£29.95
ACID CHAIN LOCK CORVID C120 BLUE
£29.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Specifications
General
Model code
1140100
Model year
2027
Colour
Mole/Prism
Sizes
Size Split: 27.5: XS, S // 29: M, L, XL
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
15.1
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCS, 100mm
Drivetrain and brakes
Number of gears
9
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Cues RD-U4000-GS, 9-Speed
Shifters
?
Make and type of gear levers.
Shimano Cues, SL-U4010, Rapidfire Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano Cues FC-UT400, 32T
Cassette
?
The set of gears on the back of the bicycle
Shimano Cues CS-LG300, 11-46T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC xGlide
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Wheels
Acid Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, Draht, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, Draht, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 30.9mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Kickstand
Niet inbegrepen – apart verkrijgbaar / Not included – available separately
Touch up pen
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
Slot
?
Een ART-2 keurmerk op een fietsslot garandeert een goede diefstalbeveiliging en wordt door de meeste verzekeraars geëist voor de allriskverzekering van fietsen (en e-bikes). Het keurmerk, afgegeven door de Stichting ART, betekent dat het slot uitgebreide testen heeft doorstaan, zoals knip- en aanvalstesten.
Niet inbegrepen – apart verkrijgbaar / Not included – available separately
