What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Comfortably low top tube for easy mounting and dismounting
Great mix of agility and stability thanks to Agile Ride geometry
Sleek look with internal cable routing
Size Split: 27.5-inch wheels on the smaller sizes and 29er wheels on the larger sizes
Not the lightest version of the Aim
No quick-release skewers
No air suspension
A single chainring gearing system (instead of two) is more practical
Product description

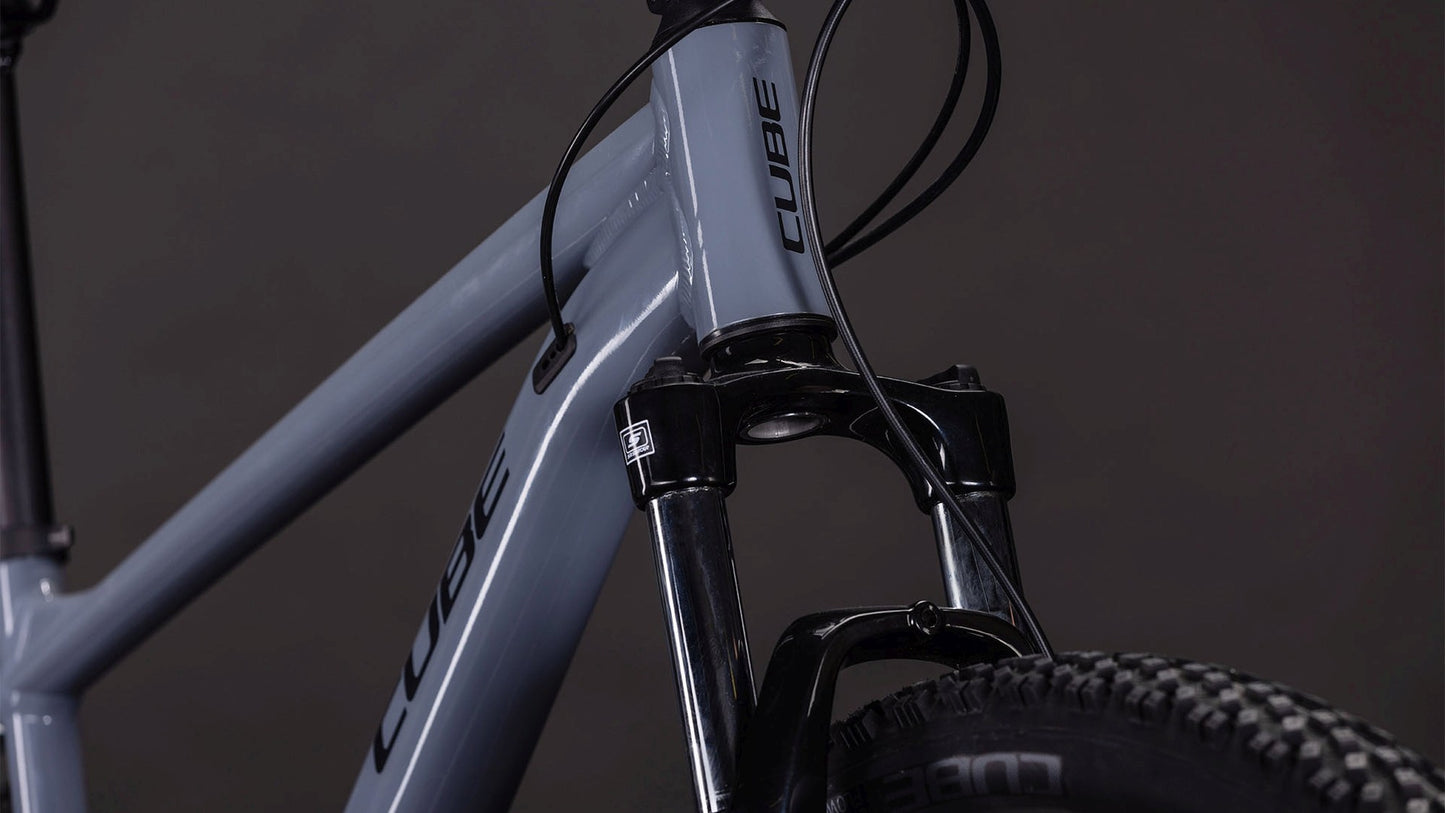

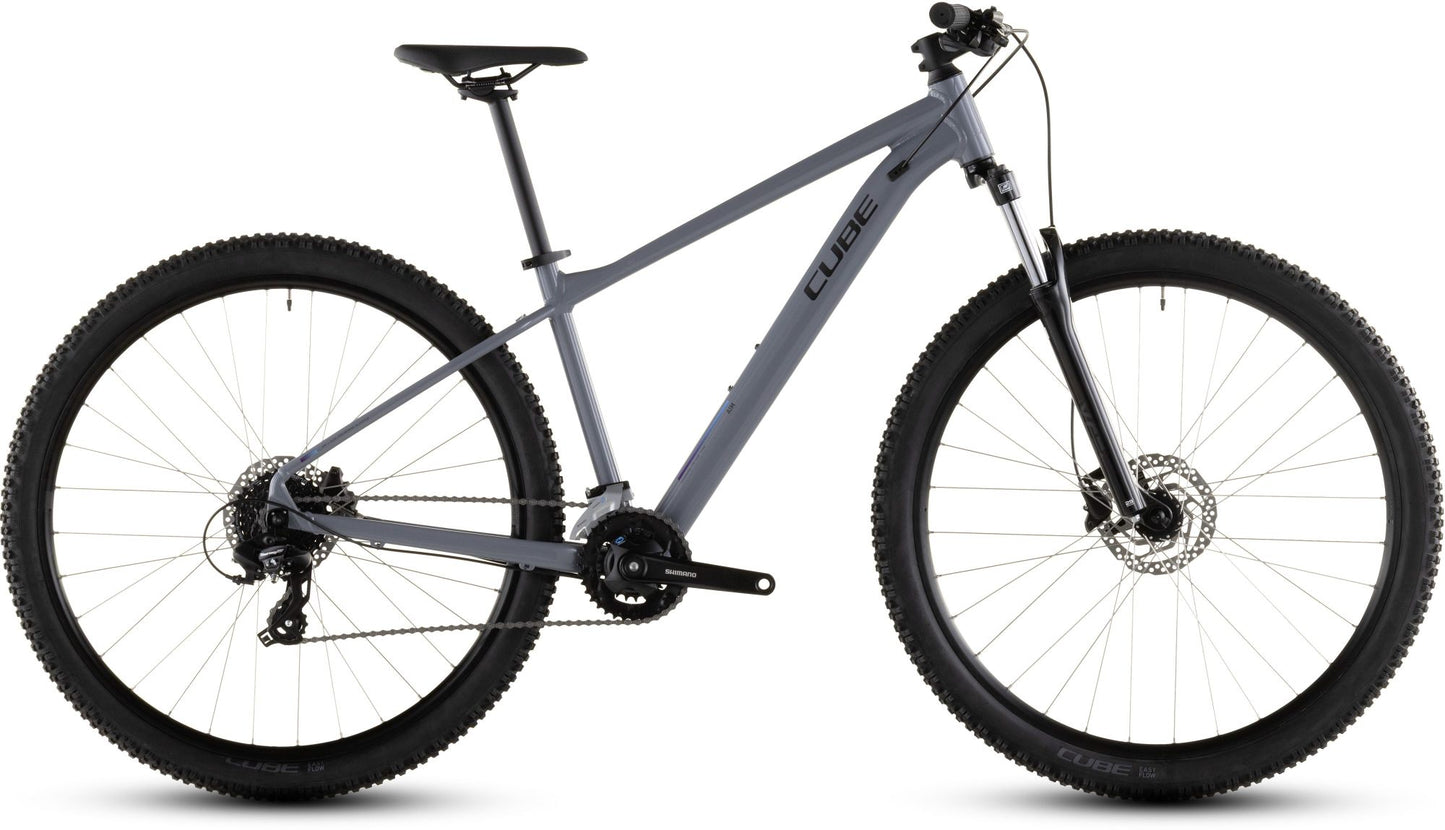

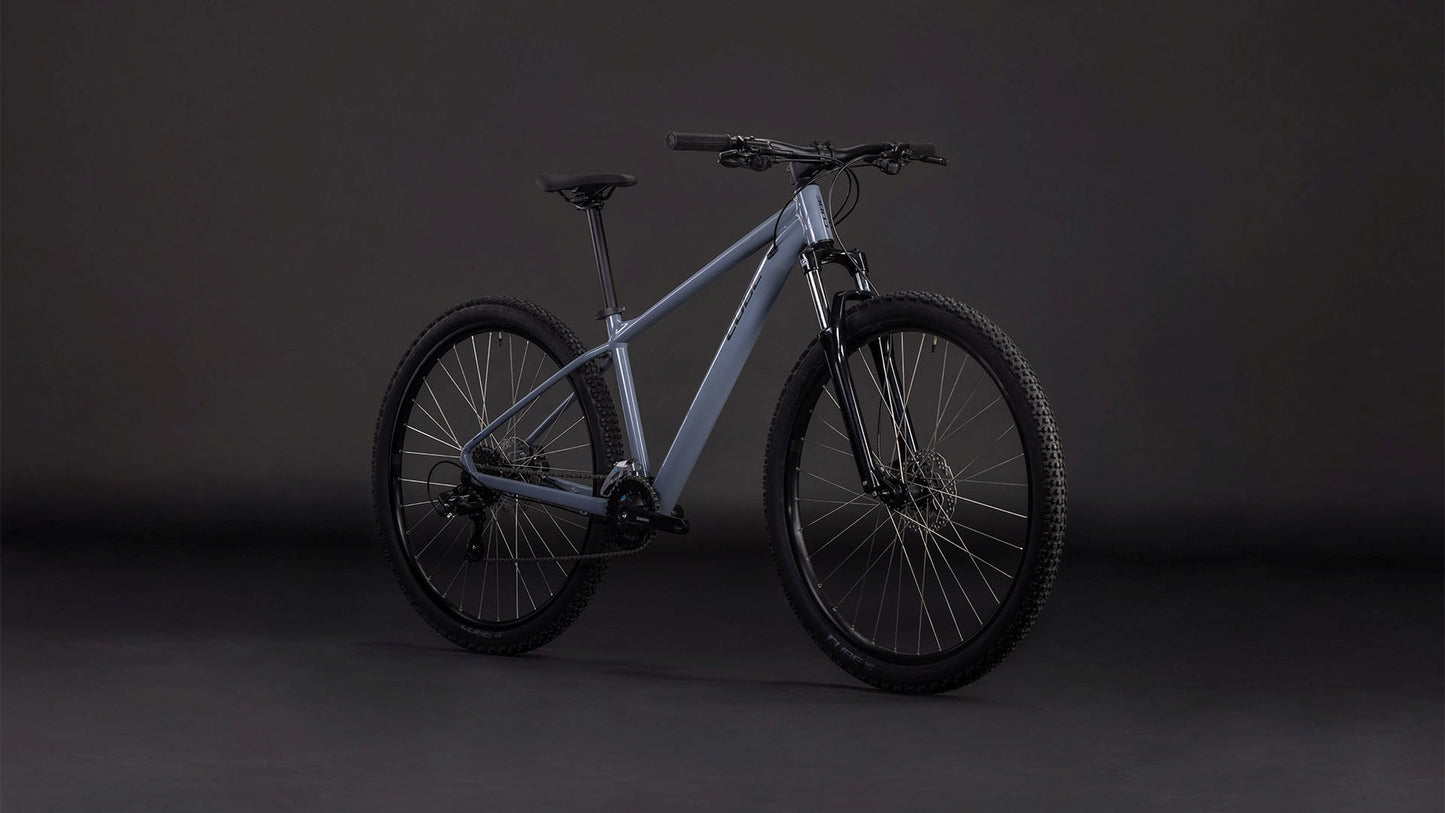

Your bike should be an extension of you, so that you can just enjoy the ride. That's why, with the Aim ONE, we fitted a 100mm suspension fork and grippy 2.25in tyres. Together, they help keep you comfortable and in control, no matter what surface you're riding on. Shimano's 2x8-speed gears give you the range you need at the push of a button, and powerful Shimano hydraulic disc brakes bring you safely to a stop no matter what the weather's doing. And Size Split, with its huge range of sizes, means every rider can find their perfect Aim.

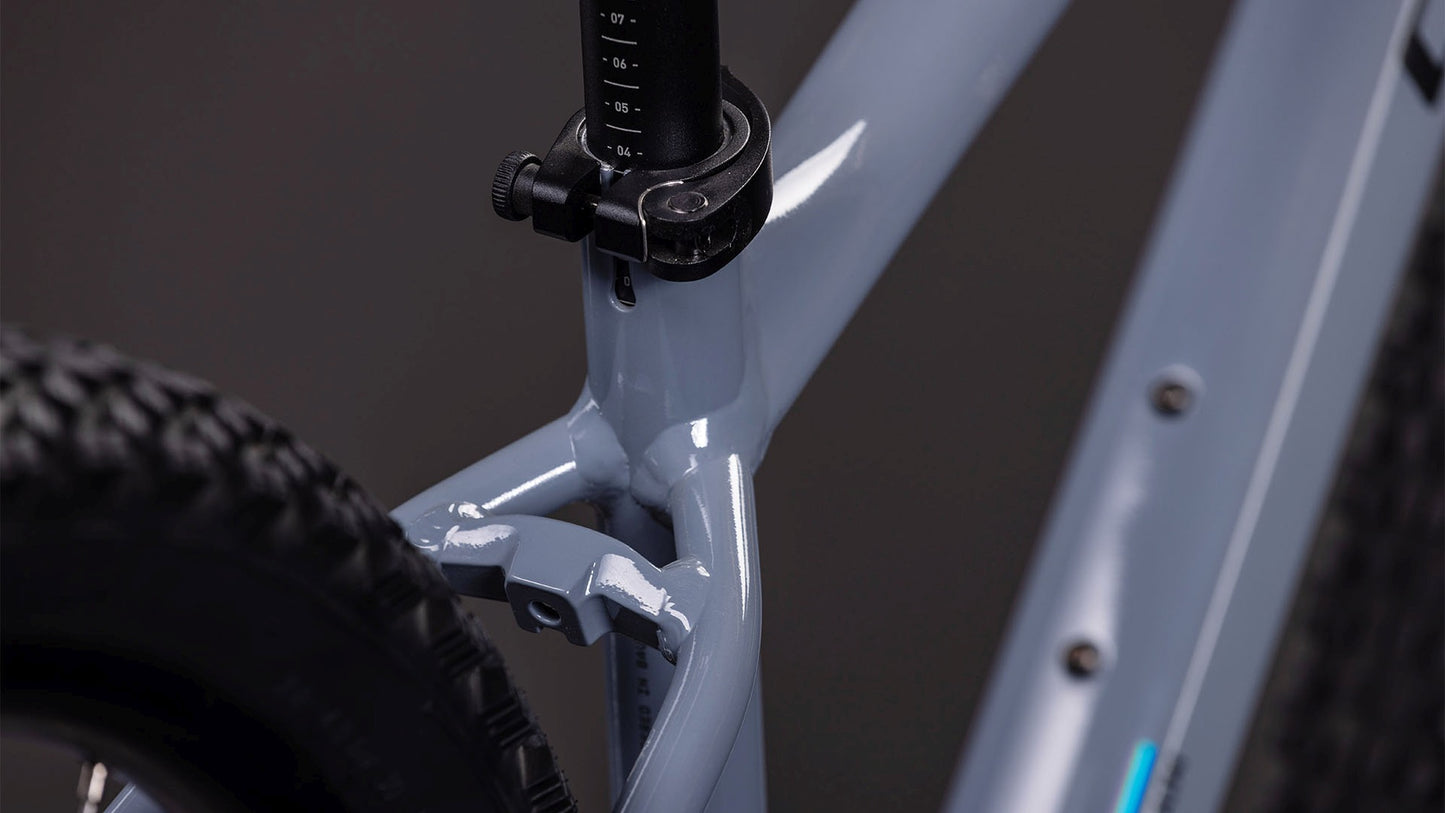

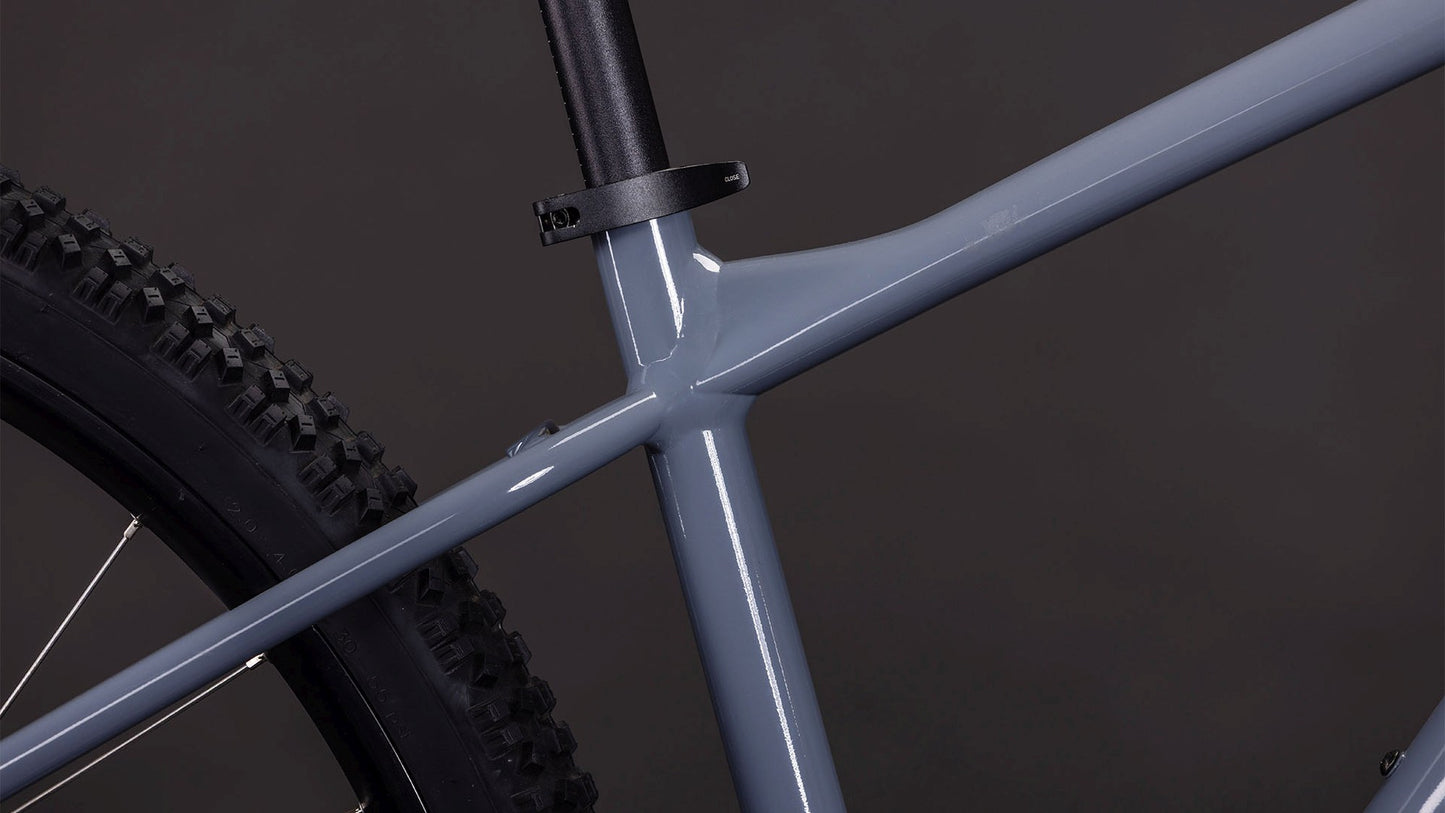

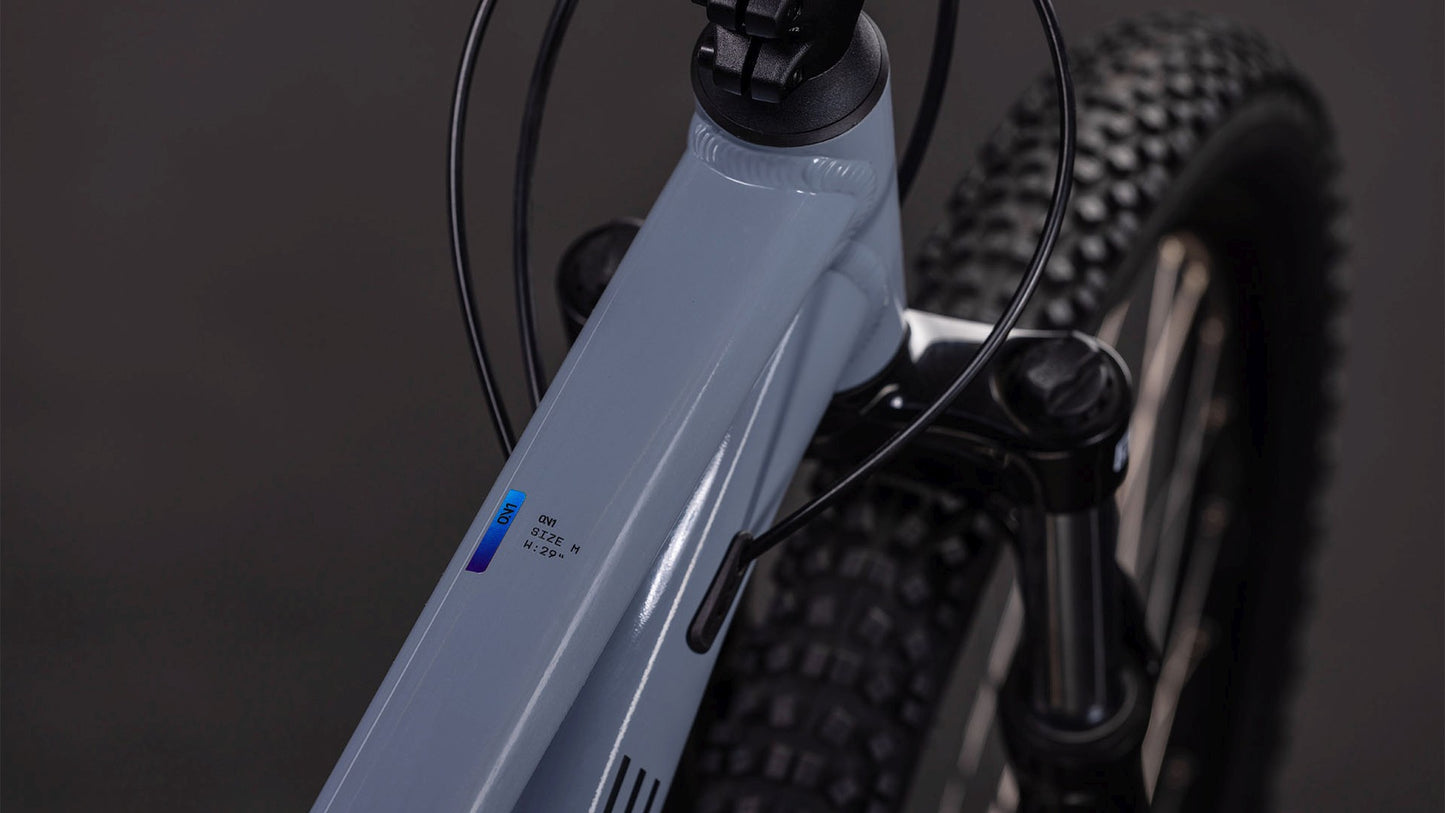

Frame description Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Read more
Matching accessories
CUBE Bottle Cage Hpp Matt Black/Glossy Black
£16.95
CUBE Bottle Cage Hpp Matt Bluegrey/Black
£16.95
ACID PEDALS FLAT A3-ZP R OIL SLICK
£44.95
ACID Rear Carrier Sic 27.5" Rilink Black
£49.95
ACID Rear Carrier Sic 29" Rilink Black
£49.95
ACID Rear Carrier Sic Pure 27.5" Rilink Black
£29.95
ACID PEDALS FLAT A2-IB BLACK
£59.95
new
ACID Mudguard Set 65 27.5" Black
£34.95
ACID Mudguard Set 65 29 Inch Black
£34.95
ACID Mudguard Set 65 27.5" Bb Mount Black
£34.95
ACID Carrier Sic Rail 29 Inch Black
£44.95
ACID Carrier Sic Rail 27.5 Inch Black
£44.95
new
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£29.95
ACID KICKSTAND FM BLACK
£29.95
ACID Carrier Top Rail 120Mm Rilink
£29.95
Often bought together
new
CUBE Backpack Pure 12 Cmpt Black
£34.95
Cube Bottle Flow 500 Black
£4.95
CUBE Bottle 0,5L Icon Transparent
£4.95
ACID Chain Lock Corvid K100 Black
£26.95
RFR Cycle Computer Wireless Cmpt Black/White
£24.95
RFR Mini - Bell Black
£3.95
ACID Pump Race Flex Hv Black
£29.95
ACID LIGHT SET PRO 30 BLACK
£34.95
ACID LIGHT SET PRO 40 BLACK
£44.95
ACID LED LIGHT SET HPA BLACK
£34.95
ACID Saddle Bag Click M Black
£29.95
ACID CHAIN LOCK CORVID C120 BLUE
£29.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Cube Touch Up Pen Set Smoke Glossy 2226
£19.95
Specifications
General
Model code
140100
Model year
2026
Colour
SMOKE/BLACK
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
15.1
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCE, 100mm
Drivetrain and brakes
Number of gears
16
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano RD-TX800, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
?
Make and type of gear levers.
Shimano SL-M315, Rapidfire-Plus

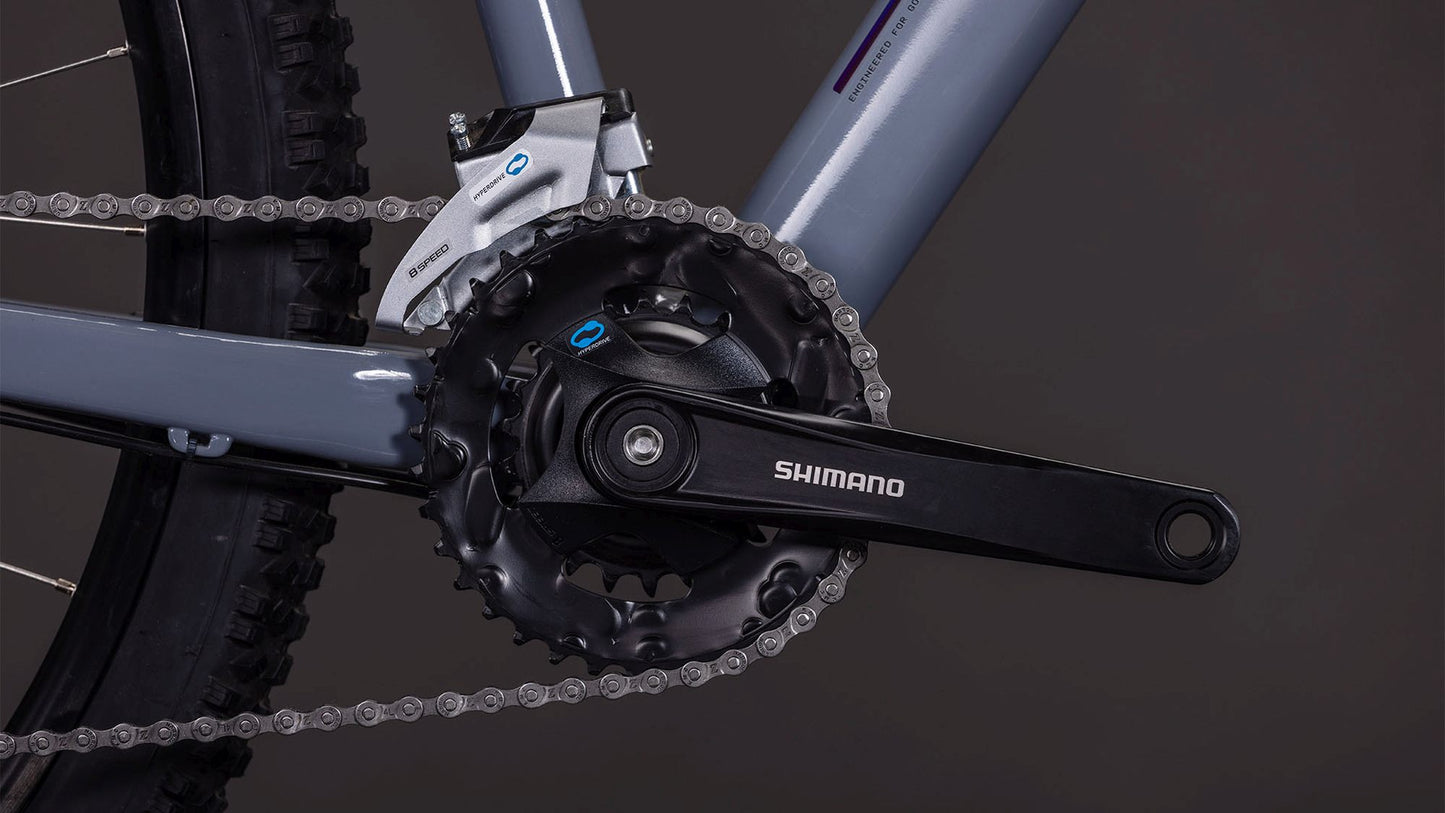

Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano FC-M315, 36x22T, 170mm
Cassette
?
The set of gears on the back of the bicycle
Shimano CS-HG200, 12-32T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC Z8.3
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
