What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Nice low top tube for easy mounting and dismounting
Great mix of agility and stability thanks to Agile Ride geometry

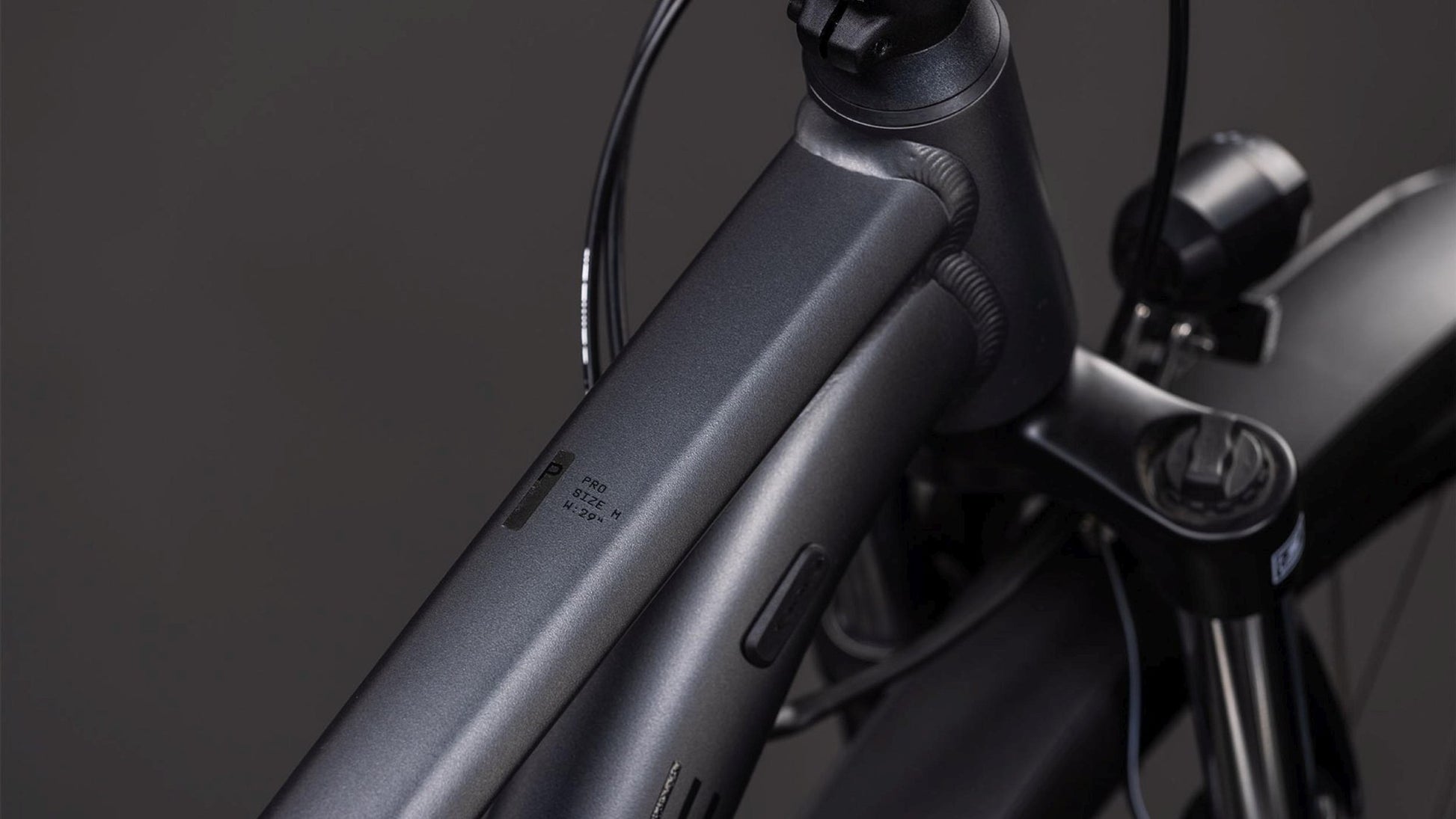

Sleek look with internal cable routing

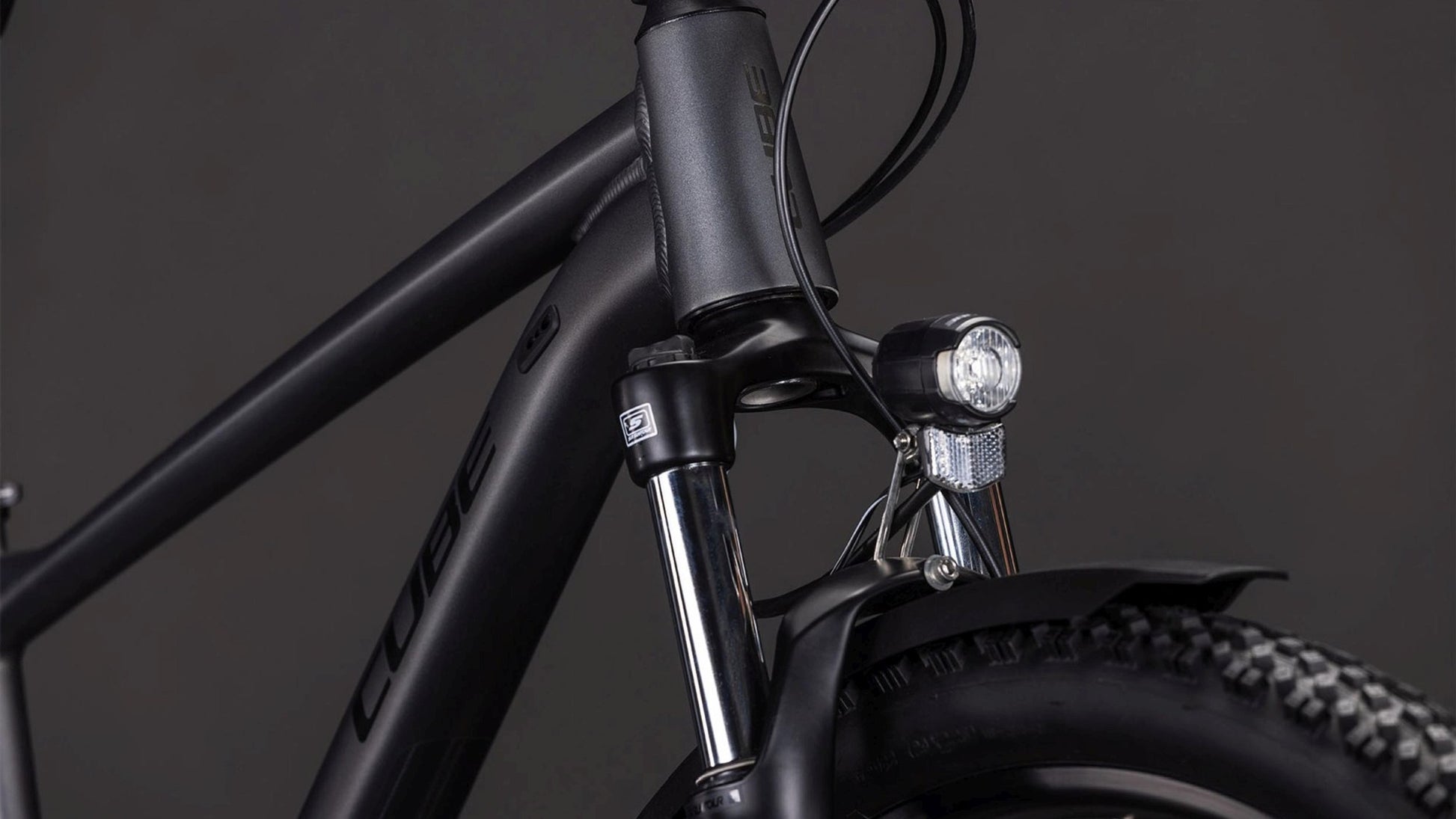

Suspension fork with 100 mm travel
The 'bare' Aim Pro is lighter
No thru-axles
No air suspension
Product description

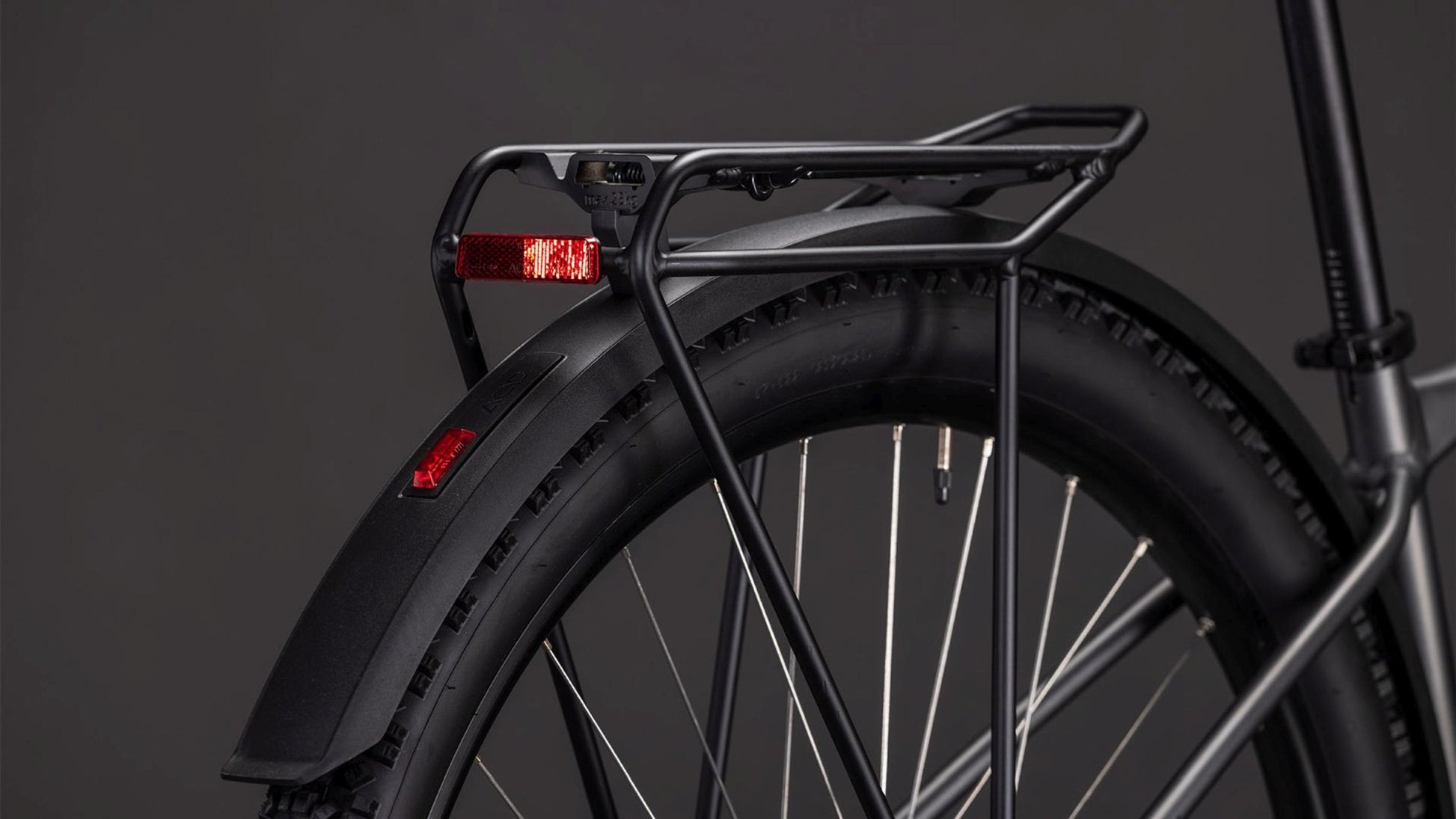

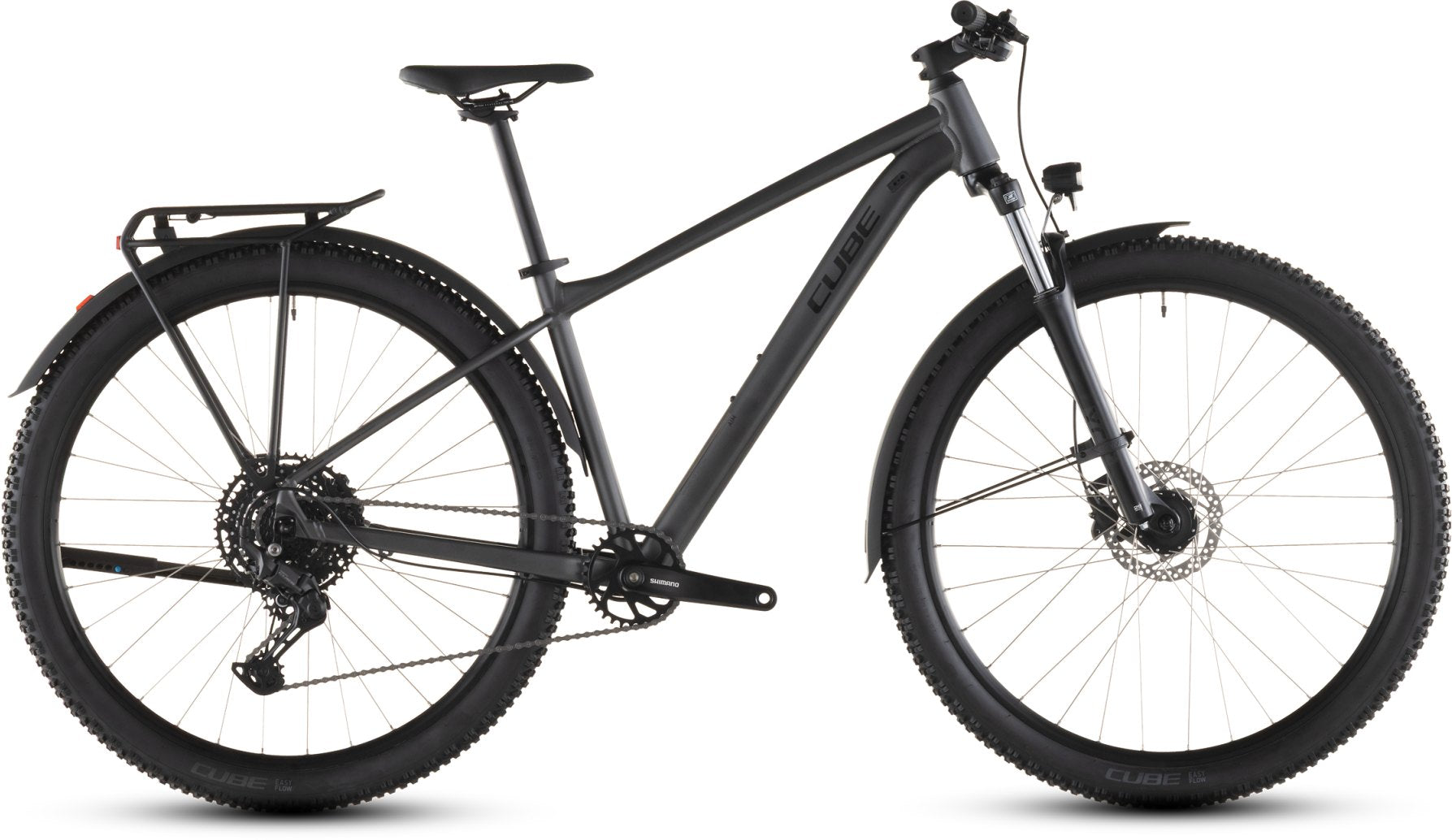

Mountain bikes remove barriers – and that's why we made the Aim Pro FE as adaptable as we possibly could. Fully kitted out with mudguards, a lighting system, luggage carrier and kickstand, it's ready to get you to work or haul your shopping across town. And, with its 100mm suspension fork, Shimano hydraulic disc brakes and 10-speed Shimano Cues gears, it's just as ready to take on weekend off-road adventures. Add grippy, comfortable 2.25in tyres and you're all set for pretty much anything.

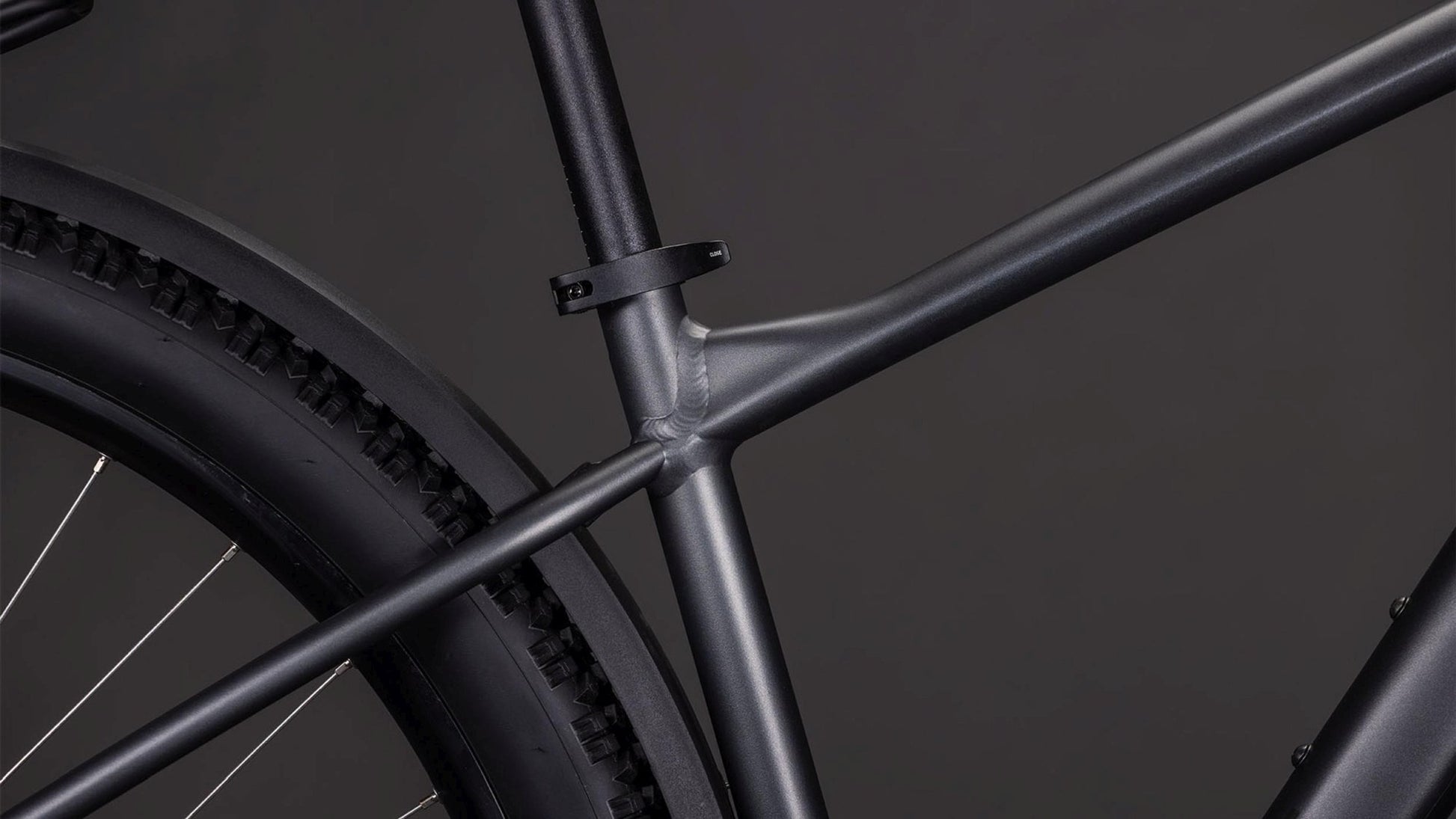

Frame description Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, there's plenty of room to run wide, grippy and comfortable 2.25in tyres, and a tapered head tube helps ensure accurate steering. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Read more
Matching accessories
CUBE Bottle Cage Hpp Matt Black/Glossy Black
£16.95
CUBE Bottle Cage Hpp Matt Grey/Black
£16.95
New
ACID PEDALS FLAT A40 BLACK
£69.95
ACID FRAME LOCK LATCH 6078 ART2
£49.95
ACID Carrier Sic Rail 29 Inch Black
£49.95
ACID Carrier Sic Rail 27.5 Inch Black
£49.95
ACID Carrier Top Rail 120Mm Rilink
£29.95
Often bought together
CUBE Backpack Pure 12 Black
£49.95
New
Cube Bottle Flow 500 Black
£4.95
New
CUBE Bottle 0,5L Icon Transparent
£4.95
ACID Chain Lock Corvid K100 Black
£26.95
RFR Cycle Computer Wireless Cmpt Black/White
£24.95
New
RFR Mini - Bell Black
£3.95
New
ACID Pump Race Flex Hv Black
£34.95
ACID LIGHT SET PRO 30 BLACK
£39.95
ACID LIGHT SET PRO 40 BLACK
£49.95
ACID LED LIGHT SET HPA BLACK
£39.95
ACID Saddle Bag Click M Black
£29.95
Acid Chain Extension Pro 100 For Latch Lock 6078 Black
£24.95
Acid Chain Extension Pro 150 For Latch Lock 6078 Black
£29.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
New
Cube Touch Up Pen Set Slateblack Matt 2256
£19.95
ACID Rear Carrier Sic 27.5" Rilink Black
£59.95
ACID Rear Carrier Sic 29" Rilink Black
£59.95
ACID Rear Carrier Sic Pure 27.5" Rilink Black
£29.95
ACID Mudguard Set 65 27.5" Black
£39.95
ACID Mudguard Set 65 29 Inch Black
£39.95
ACID Mudguard Set 65 27.5" Bb Mount Black
£39.95
ACID Mudguard Set 65 29" Bb Mount Black
£39.95
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£34.95
ACID KICKSTAND FM BLACK
£29.95
Specifications
General
Model code
140230
Model year
2026
Colour
SLATEBLACK/BLACK
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
17.2
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCT, 100mm
Drivetrain and brakes
Number of gears
11
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Cues, 11-48T, 10-Speed
Shifters
?
Make and type of gear levers.
Shimano Cues SL-U6000, Rapidfire-Plus
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
Shimano BR-MT200/UR300
Brake system back
?
Brand, type of brake system and diameter of the brake disc.
Shimano BR-MT200/UR300
Cockpit
Headset
?
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868p, Tapered, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Rims
Acid EX25, 32H, Disc, Tubeless Ready
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Seatpost clamp
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Hele fijne fiets precies hoe ze het beschrijven een minpuntje het wieletje tussen de shifters en de derailleurhanger was gebogen maar als je naar de fietsenmaker gaat zet hij hem voor 5 euro recht maar echt een hele fijne fiets zelfs op ruw terein voel je niks door de voorvering en hij schakelt prima en trekt snel op!
