What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Nice low top tube for easy mounting and dismounting
Great mix of agility and stability thanks to Agile Ride geometry
Sleek look with internal cable routing
Suspension fork with 100 mm travel
Not the lightest version of the Aim
No thru-axles
No air suspension
No 11-speed
Product description

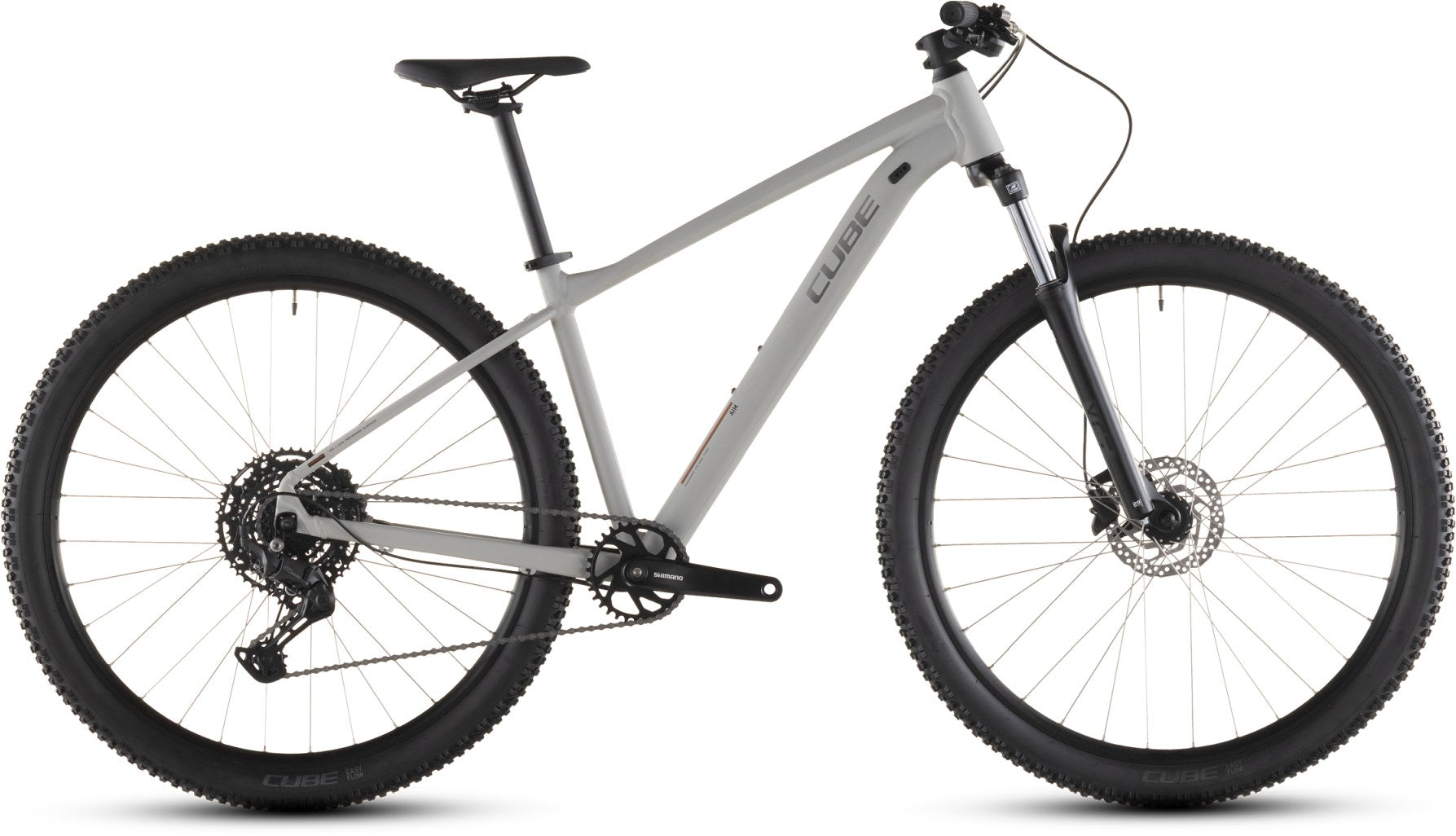

Got an off-road itch that needs scratching? The Aim Pro could be the relief you're looking for. With its grippy 2.25in tyres and 100mm suspension fork, it's got the comfort and control you'll need to keep riding when you reach the end of the road. Wide-ratio Shimano Cues 10-speed gears will help you see off the steepest climbs, and strong hydraulic brakes put you in control on the descents. Best of all, Size Split makes it easy to find the perfect fit for every rider – and the frame is even ready to accept a future dropper post upgrade.

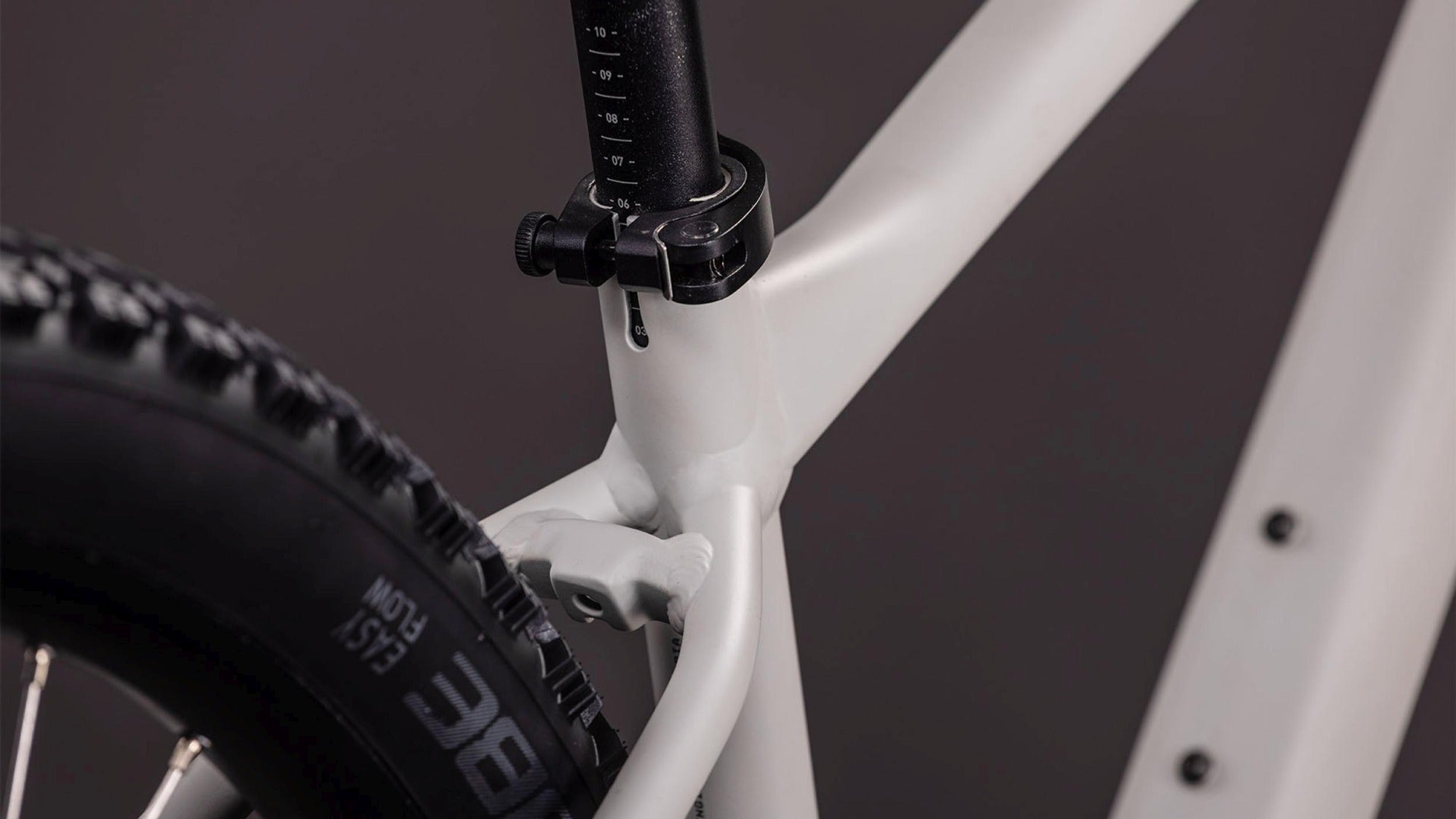

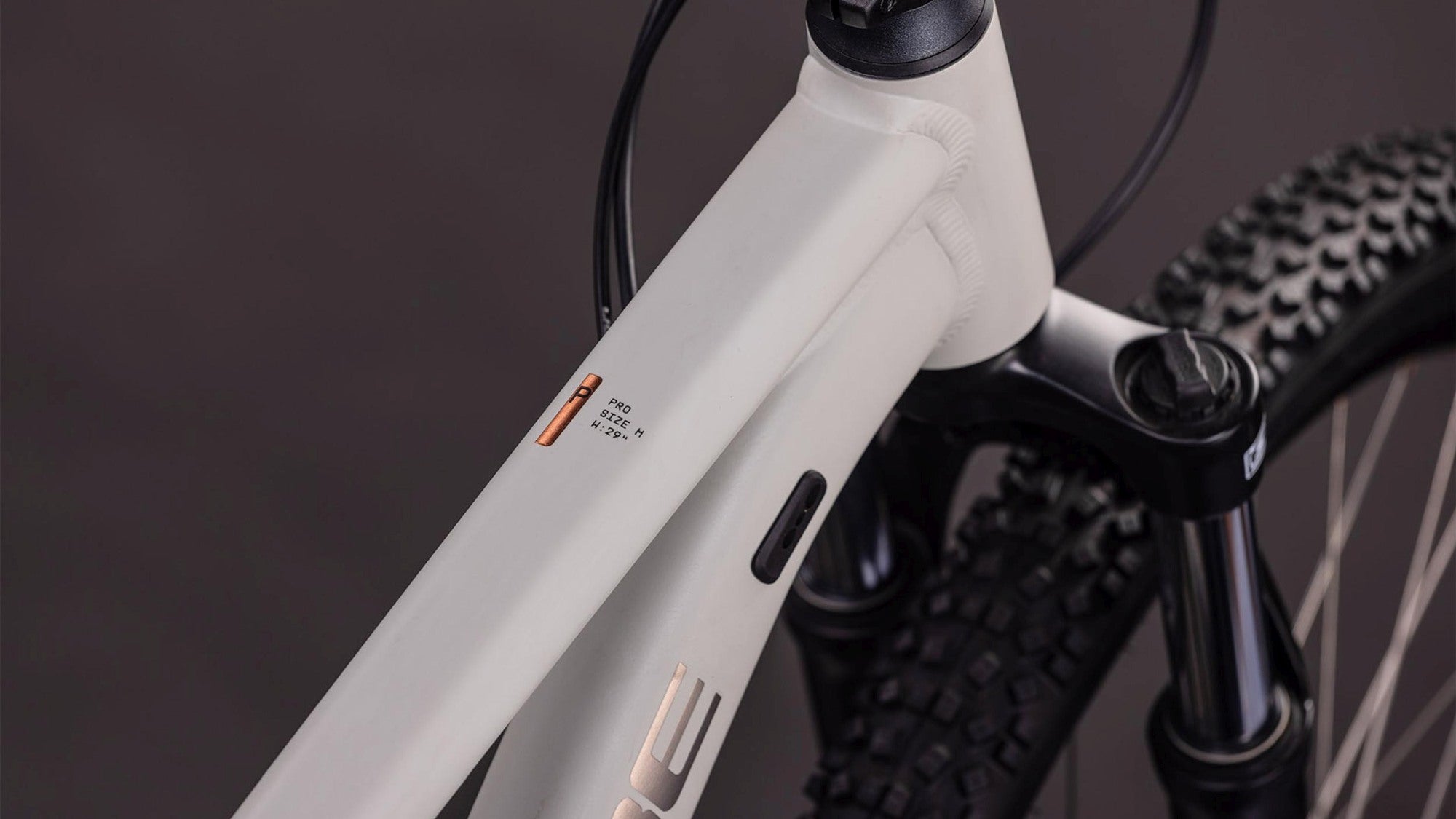

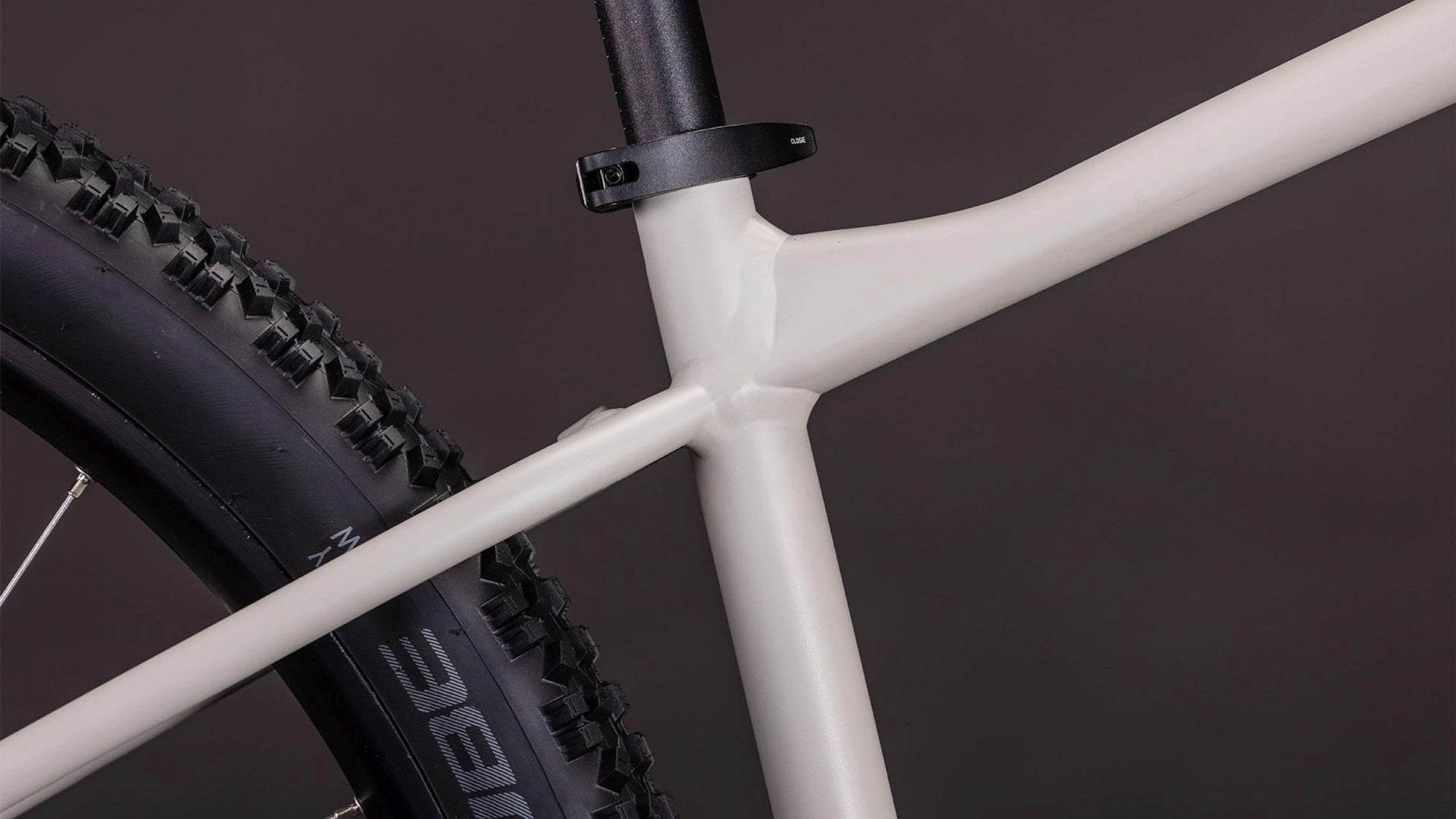

Frame description Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Read more
Matching accessories
CUBE Bottle Cage Hpp Left Sidecage Matt Lgrey/Blk
£16.95
CUBE Bottle Cage Hpp Matt Black/Glossy Black
£16.95
CUBE Bottle Cage Hpp Matt White/Black
£16.95
ACID Rear Carrier Sic 27.5" Rilink Black
£49.95
ACID Rear Carrier Sic 29" Rilink Black
£49.95
ACID Rear Carrier Sic Pure 27.5" Rilink Black
£29.95
ACID PEDALS FLAT A2-IB BLACK
£59.95
new
ACID Mudguard Set 65 27.5" Black
£34.95
ACID Mudguard Set 65 29 Inch Black
£34.95
ACID Mudguard Set 65 27.5" Bb Mount Black
£34.95
ACID Carrier Sic Rail 29 Inch Black
£44.95
ACID Carrier Sic Rail 27.5 Inch Black
£44.95
new
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£29.95
ACID KICKSTAND FM BLACK
£29.95
ACID Carrier Top Rail 120Mm Rilink
£29.95
Often bought together
new
CUBE Backpack Pure 12 Cmpt Black
£34.95
Cube Bottle Flow 500 Black
£4.95
CUBE Bottle 0,5L Icon Transparent
£4.95
ACID Chain Lock Corvid K100 Black
£26.95
RFR Cycle Computer Wireless Cmpt Black/White
£24.95
RFR Mini - Bell Black
£3.95
ACID Pump Race Flex Hv Black
£29.95
ACID LIGHT SET PRO 30 BLACK
£34.95
ACID LIGHT SET PRO 40 BLACK
£44.95
ACID LED LIGHT SET HPA BLACK
£34.95
ACID Saddle Bag Click M Black
£29.95
ACID CHAIN LOCK SOLID PRO K120 ART2 BLACK
£79.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Specifications
General
Model code
140220
Model year
2026
Colour
GREIGE/TITAN
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
15.1
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.

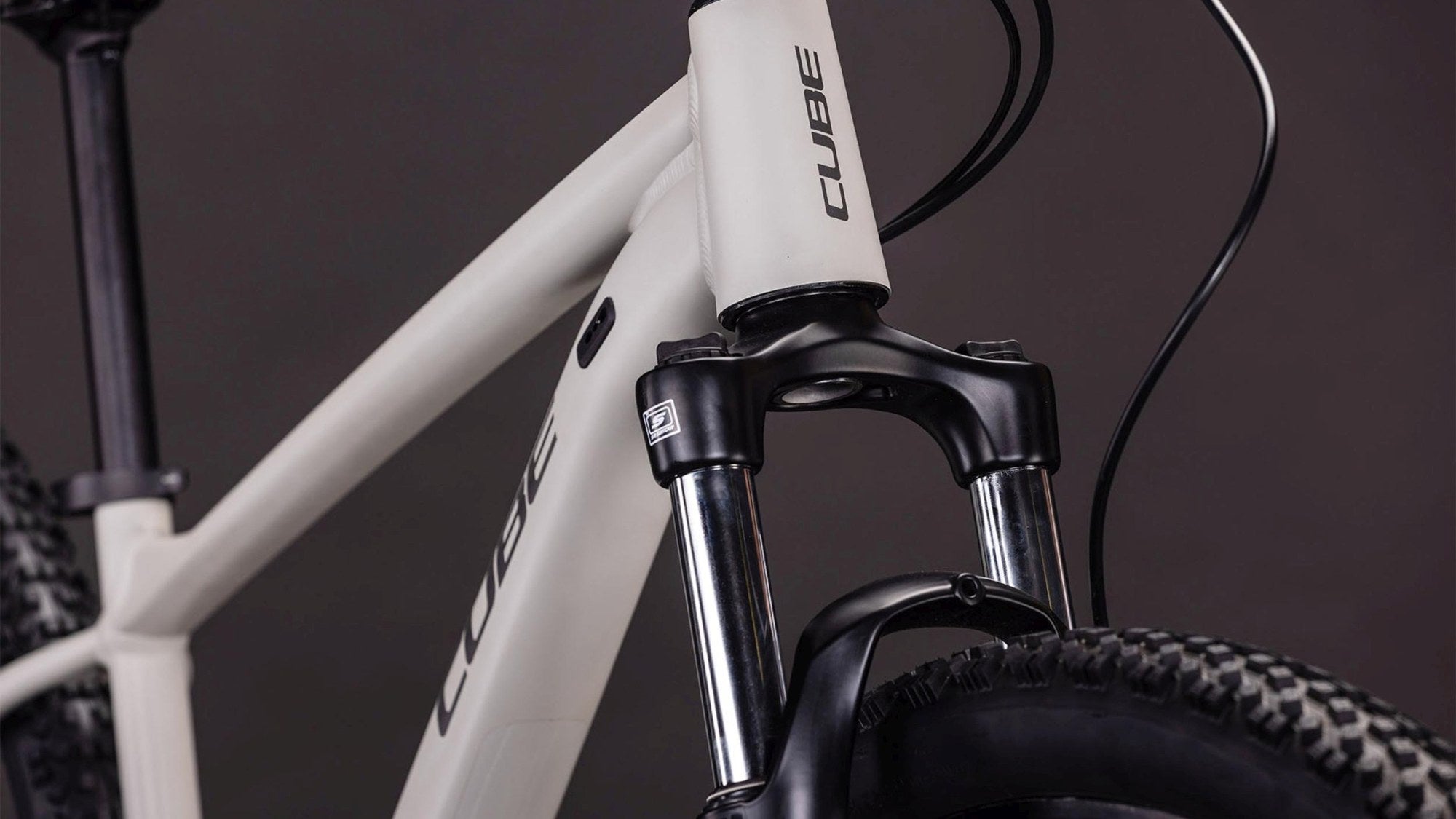

SR Suntour XCT, 100mm
Drivetrain and brakes
Number of gears
11
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Cues, 11-48T, 10-Speed
Shifters
?
Make and type of gear levers.
Shimano Cues SL-U6000, Rapidfire-Plus
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
Shimano BR-MT200/UR300
Brake system back
?
Brand, type of brake system and diameter of the brake disc.
Shimano BR-MT200/UR300
Cockpit
Headset
?
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868p, Tapered, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Wheels
Acid Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Seatpost clamp
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
