What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Frame made of lightweight aluminum with smooth welds
Nice low top tube for easy mounting and dismounting
Great balance of agility and stability thanks to Agile Ride geometry
Clean look with internal cable routing

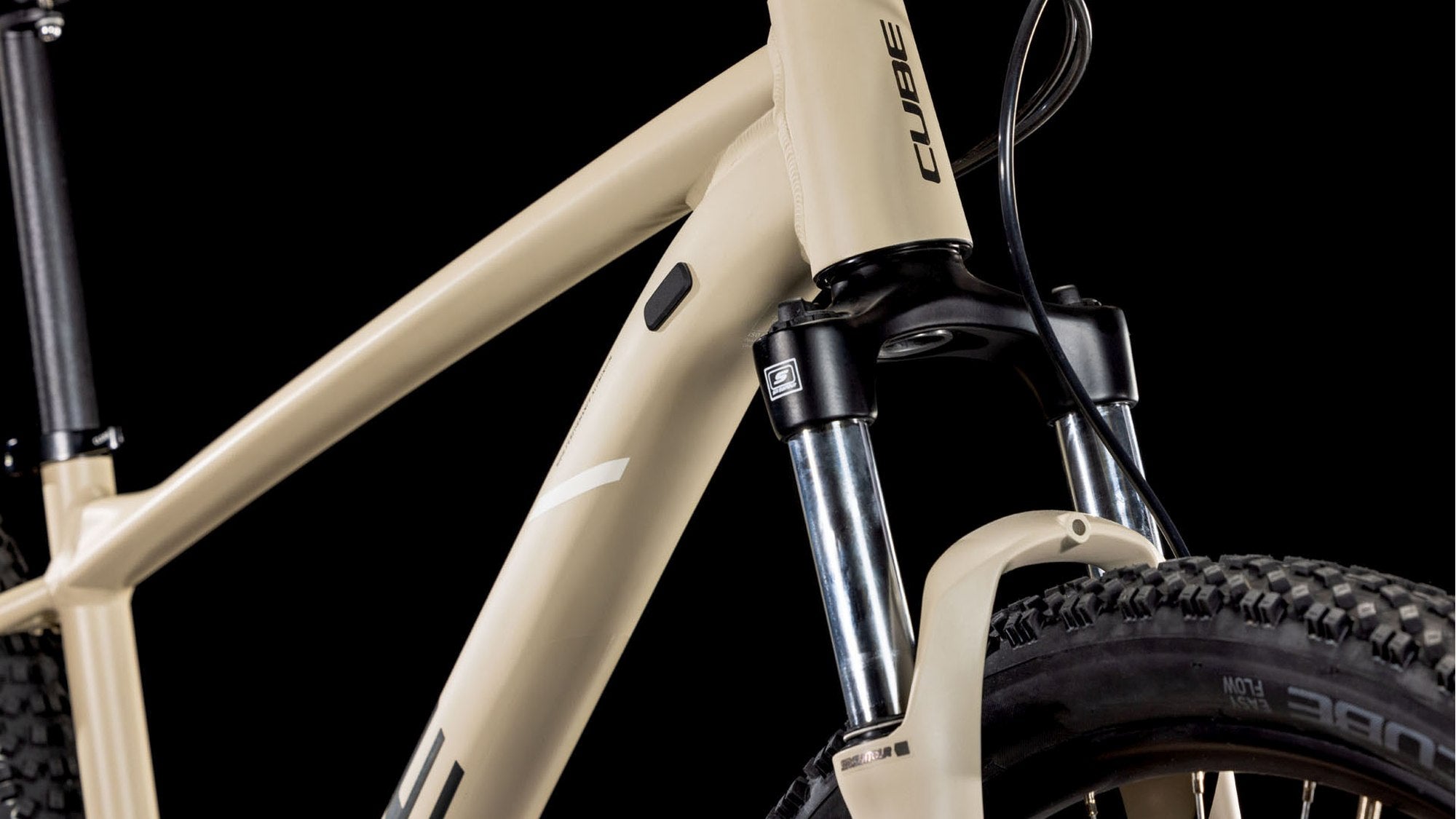

Suspension fork with 100 mm of travel
Not the lightest version of the Aim
No thru-axles
No air suspension
No 10-speed
Product description

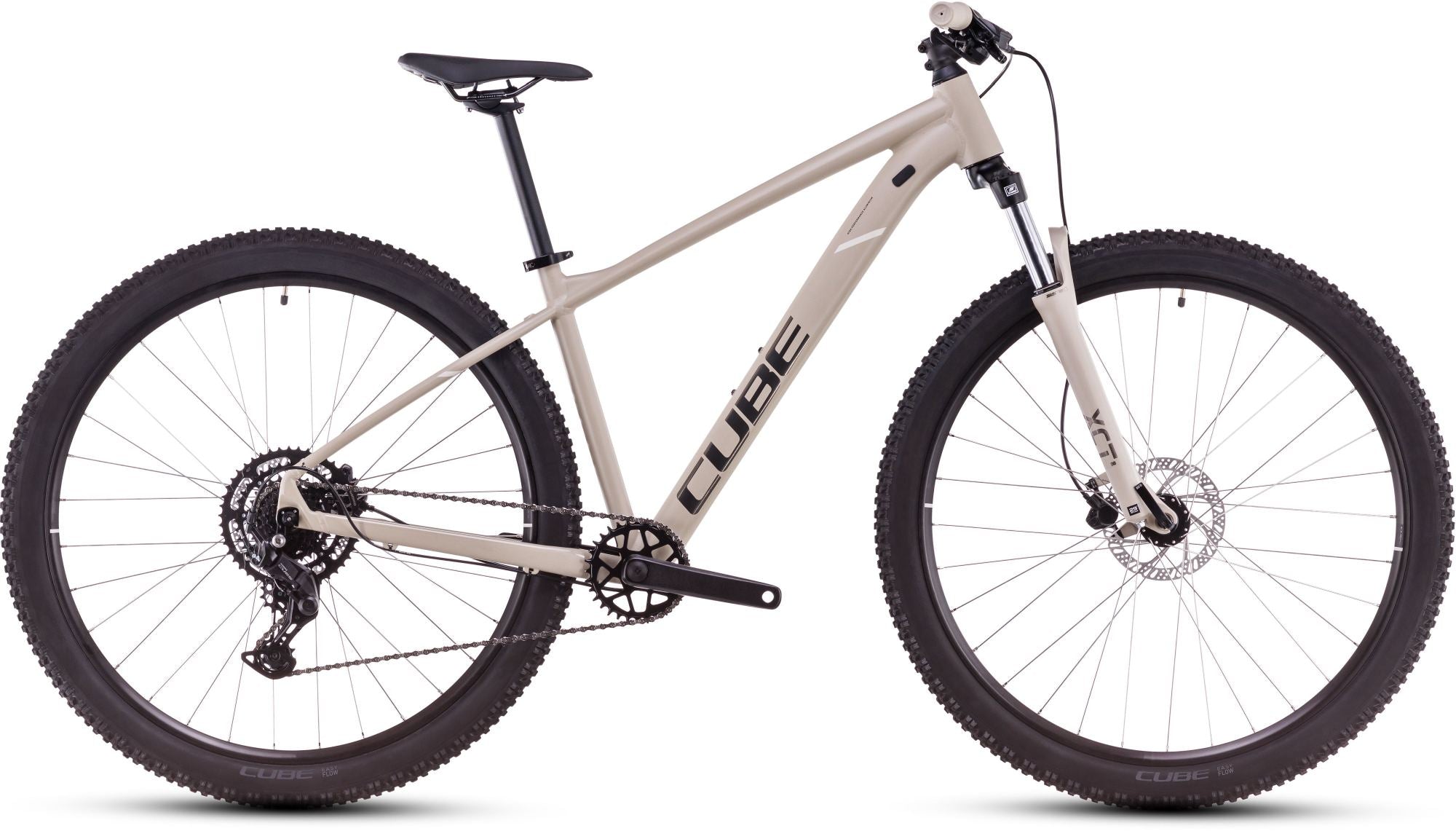

Caught the off-road bug? We’ve got just the cure: the Aim Pro. This aluminum-framed mountain bike stands out with its meticulous attention to detail, such as smooth welds, integrated mounts for a kickstand and disc brakes, and fender/rack compatibility. Its hydraulic disc brakes deliver reliable stopping power, and the responsive suspension fork provides comfort and control – whether navigating root-laden forest paths or city tram tracks. With Shimano’s durable 9-speed Cues drivetrain, even steep hills become a breeze.
Read more
Matching accessories
CUBE Bottle Cage Hpp Matt Black/Glossy Black
£16.95
ACID Rear Carrier Sic 27.5" Rilink Black
£49.95
ACID Rear Carrier Sic Pure 27.5" Rilink Black
£29.95
new
ACID Mudguard Set 65 27.5" Black
£34.95
new
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM BLACK
£29.95
Often bought together
new
CUBE Backpack Pure 12 Cmpt Black
£34.95
Cube Bottle Flow 500 Black
£4.95
ACID Chain Lock Corvid K100 Black
£26.95
ACID Pump Race Flex Hv Black
£29.95
ACID LIGHT SET PRO 40 BLACK
£44.95
ACID Saddle Bag Click M Black
£29.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Cube Touch Up Pen Set Linen Grey Matt 2213
£19.95
Specifications
General
Model code
840220
Model year
2025
Colour
linen/bronze
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
14.1
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCT Disc, 100mm
Drivetrain and brakes
Number of gears
9
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Cues RD-U4000-GS, 9-Speed
Shifters
?
Make and type of gear levers.
Shimano Cues SL-U4010- Rapidfire-Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Prowheel CC10Y-NW, 32T, 170mm
Cassette
?
The set of gears on the back of the bicycle
Shimano Cues CS-LG300, 11-46T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC eGlide
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
Tektro HD-M275, Hydr, Disc Brake, PM/FM (160/160)
Brake system back
?
Brand, type of brake system and diameter of the brake disc.
Tektro HD-M275, Hydr, Disc Brake, PM/FM (160/160)
Cockpit
Headset
?
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868p, Tapered, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Wheels
Cube EX25, 32H, Disc, Tubeless Ready
Rims
Cube EX25, 32H, Disc, Tubeless Ready
Front hub
Cube Alloy Light, QR, 6-Bolt
Rear hub
Cube Alloy Light, QR, 6-Bolt
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
