What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Light yet strong hardtail frame made of Lite aluminum
Suspension fork
Reliable shifting with 11-speed Shimano Cues
Integrated mounting points for fenders, rear rack, and kickstand
Size Split sizing: 27.5-inch wheels in the small sizes and 29er wheels in the larger sizes
No air suspension
No through axles
Product description

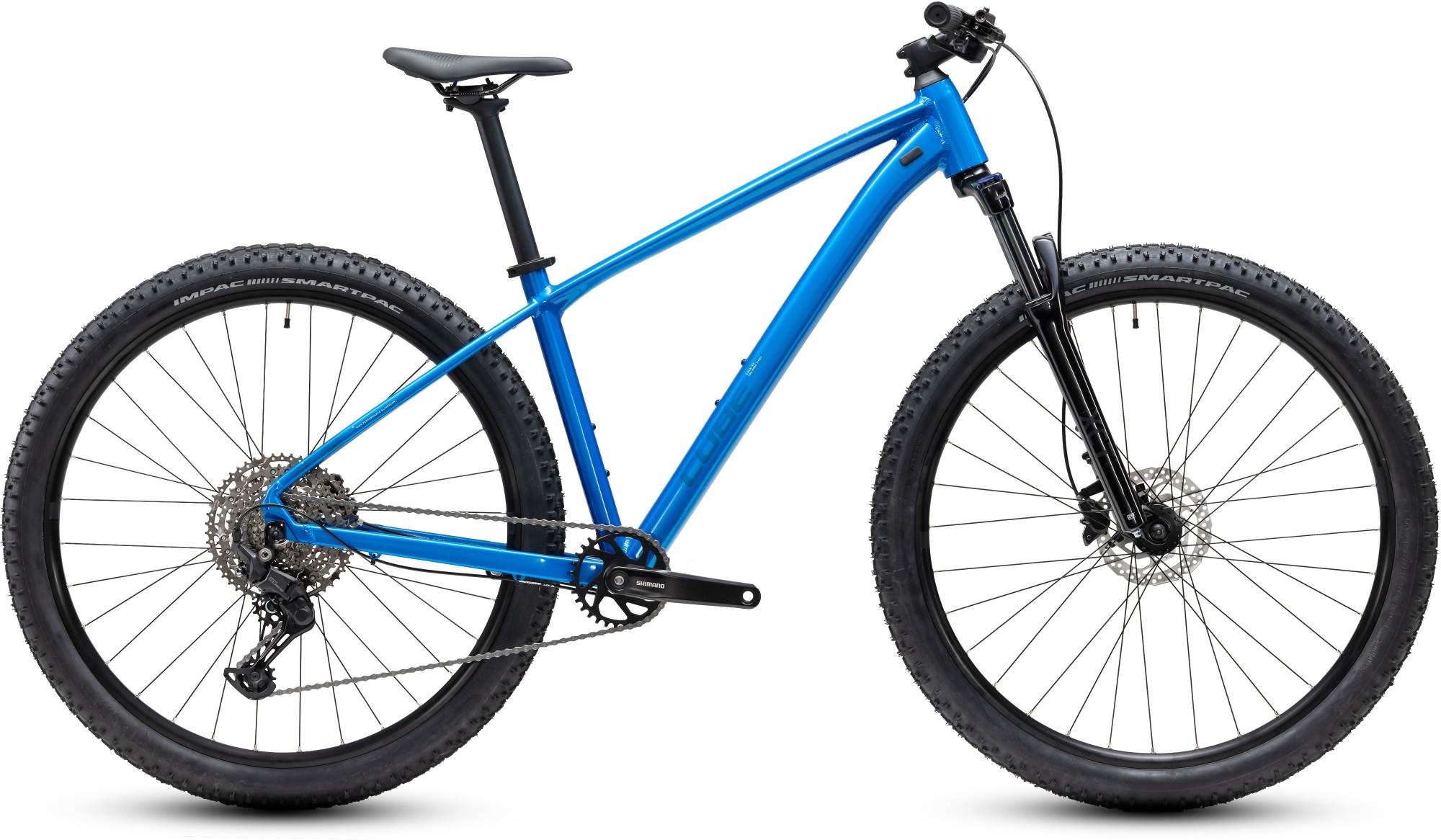

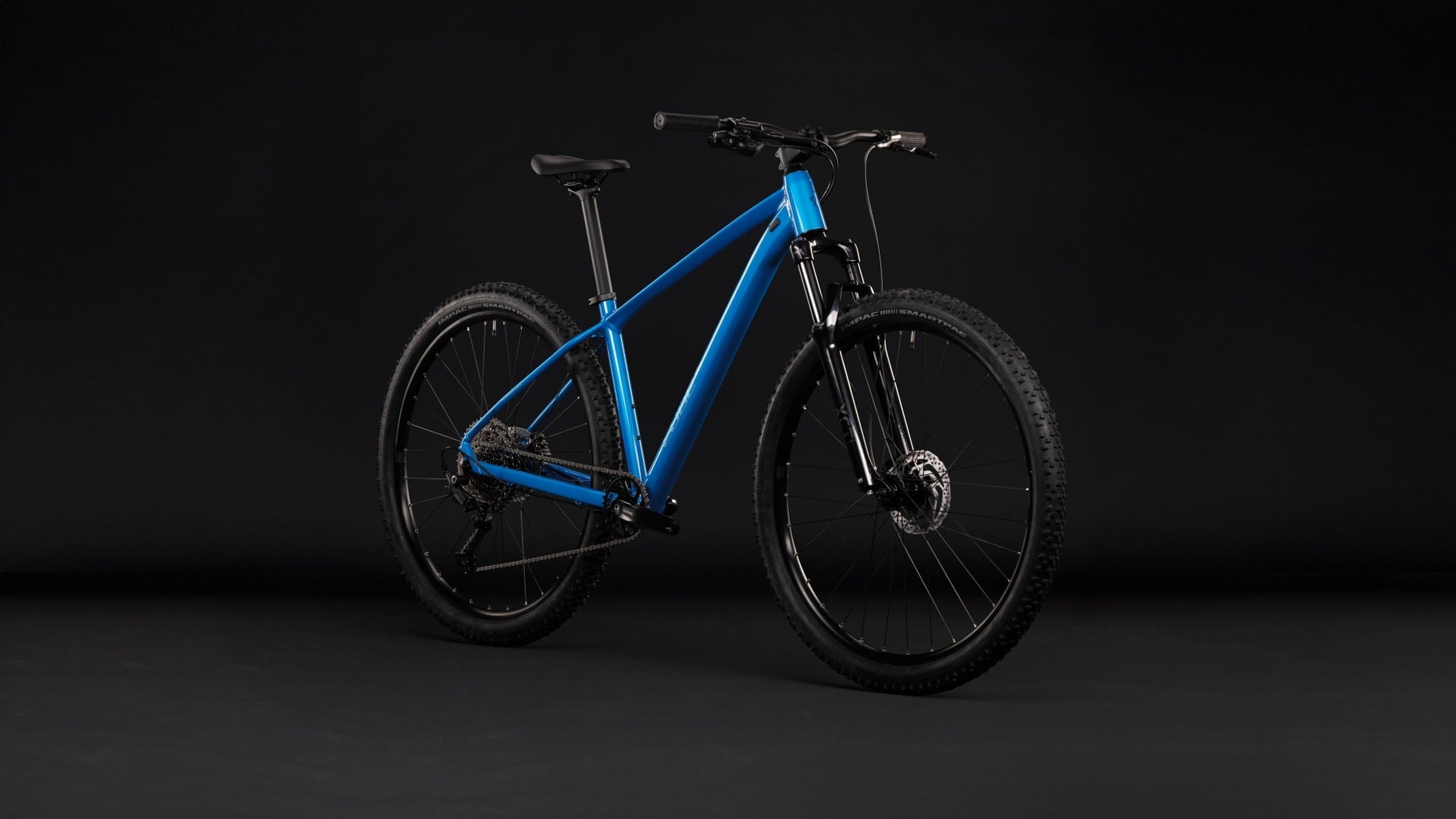

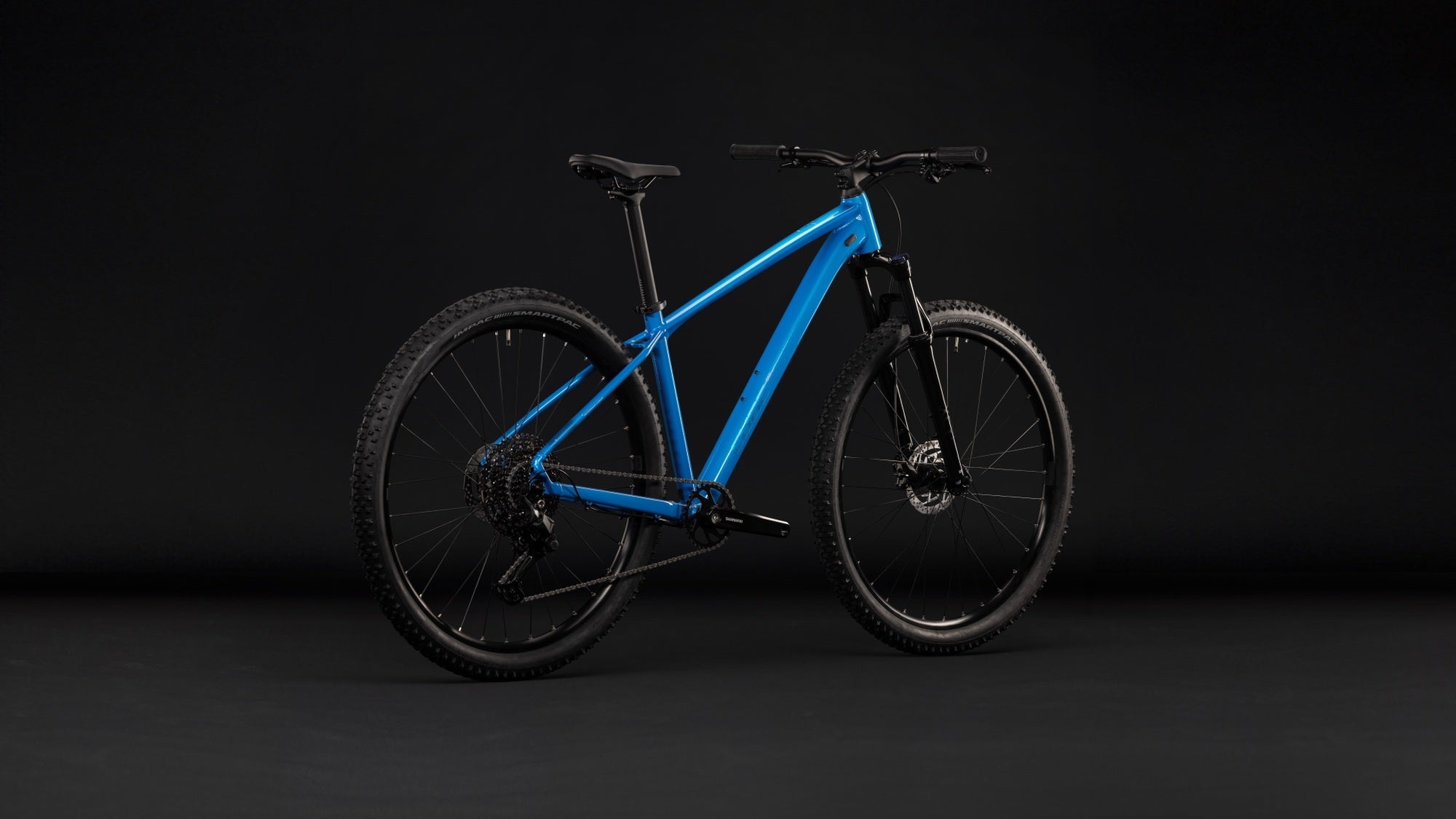

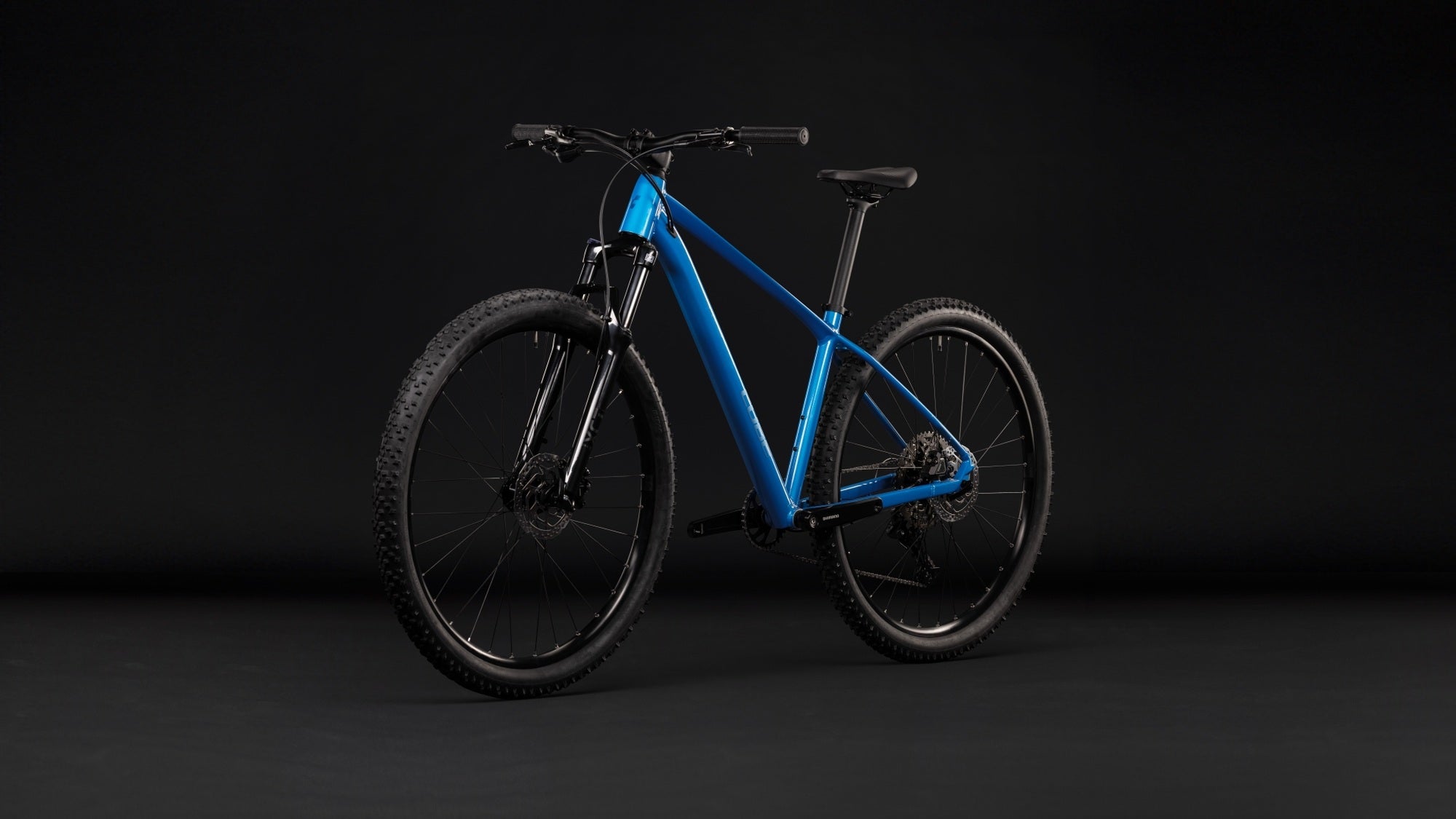

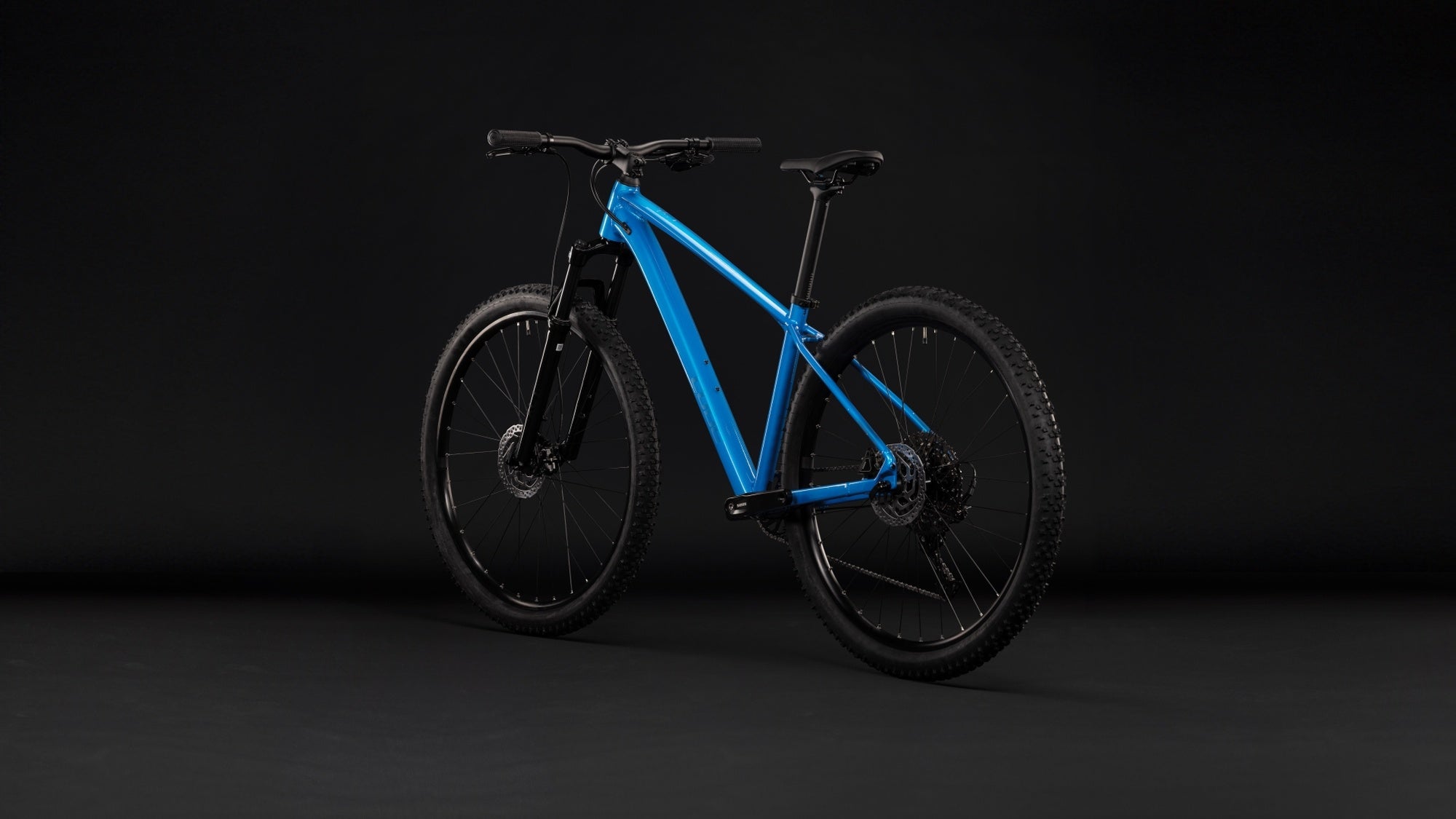

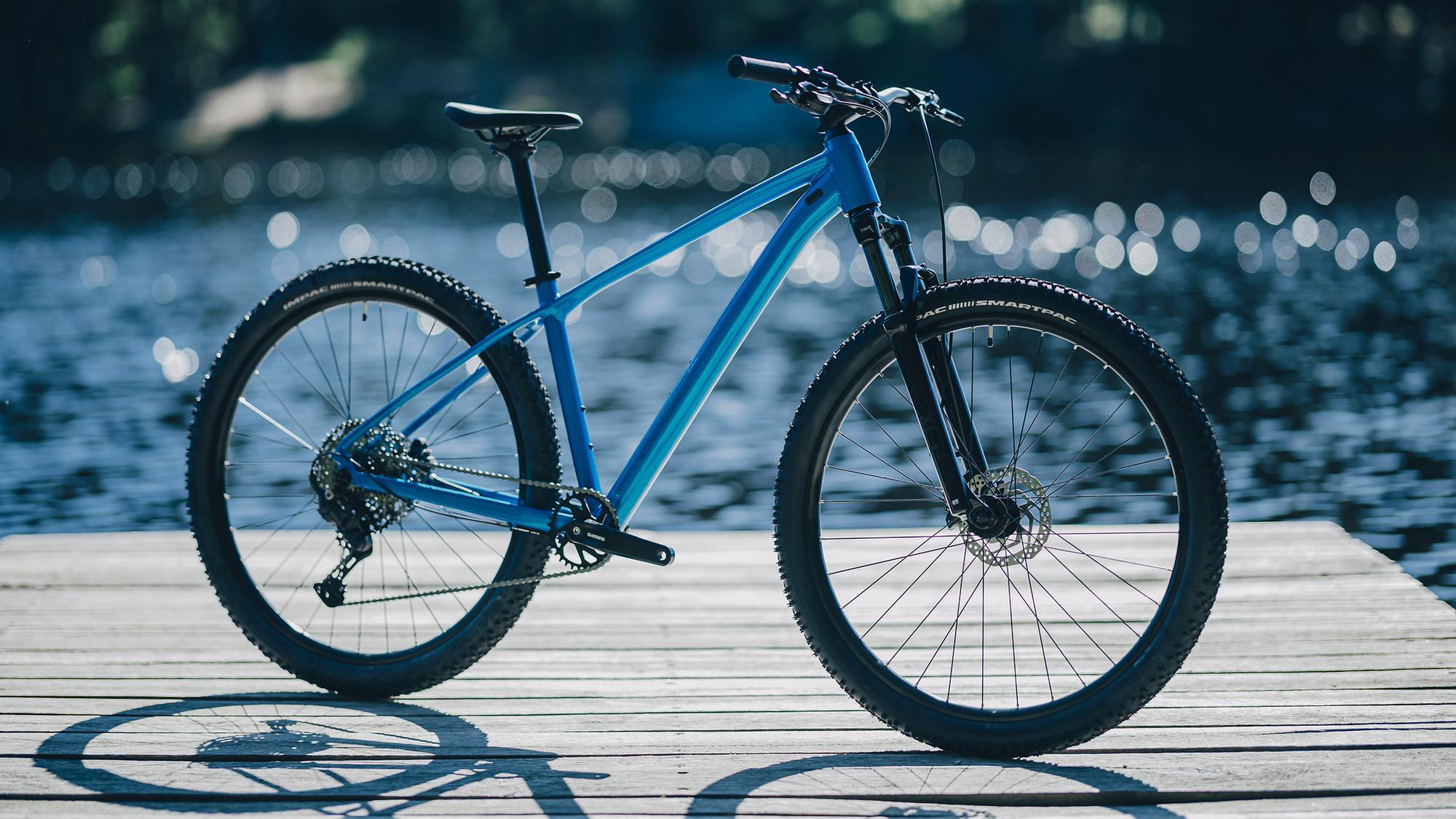

If you have an off-road itch that needs scratching, the Aim Pro could be the relief you're looking for. Its 100mm Suntour suspension fork and grippy 2.25in tyres are designed to keep you rolling, even on rougher routes. Slick-shifting Shimano Cues 1x11-speed gears have a huge range, so you can make light work of even the toughest climbs. But we haven't forgotten the descents – Shimano hydraulic discs ensure you'll always be in full control of your speed. Dropper post compatibility simplifies a future upgrade. And Size Split makes it easy to find the perfect fit.

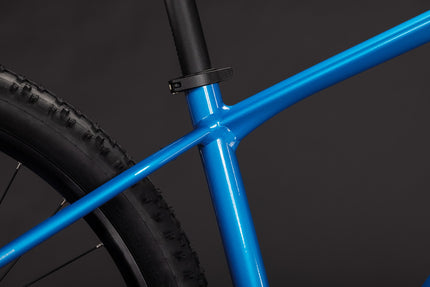

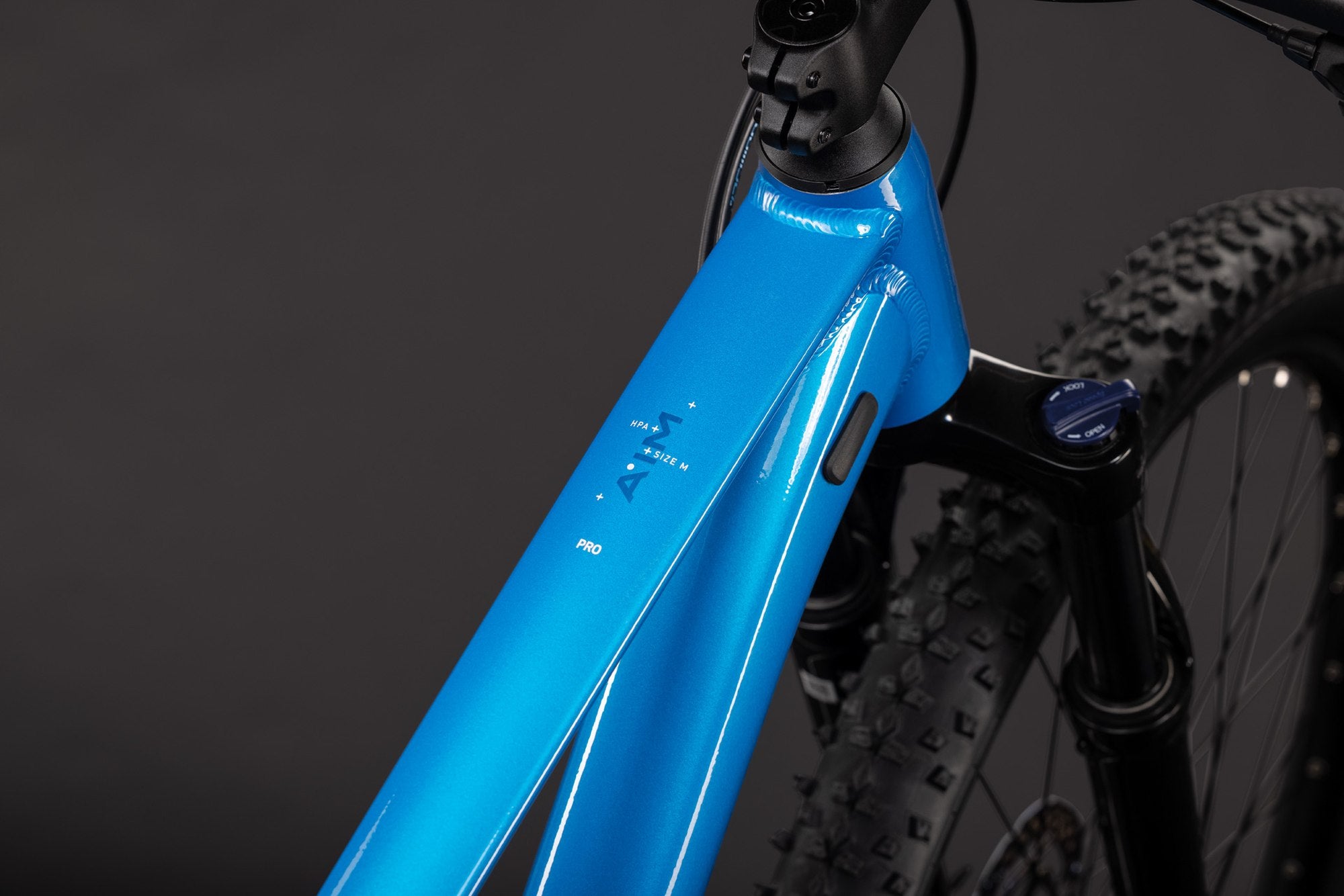

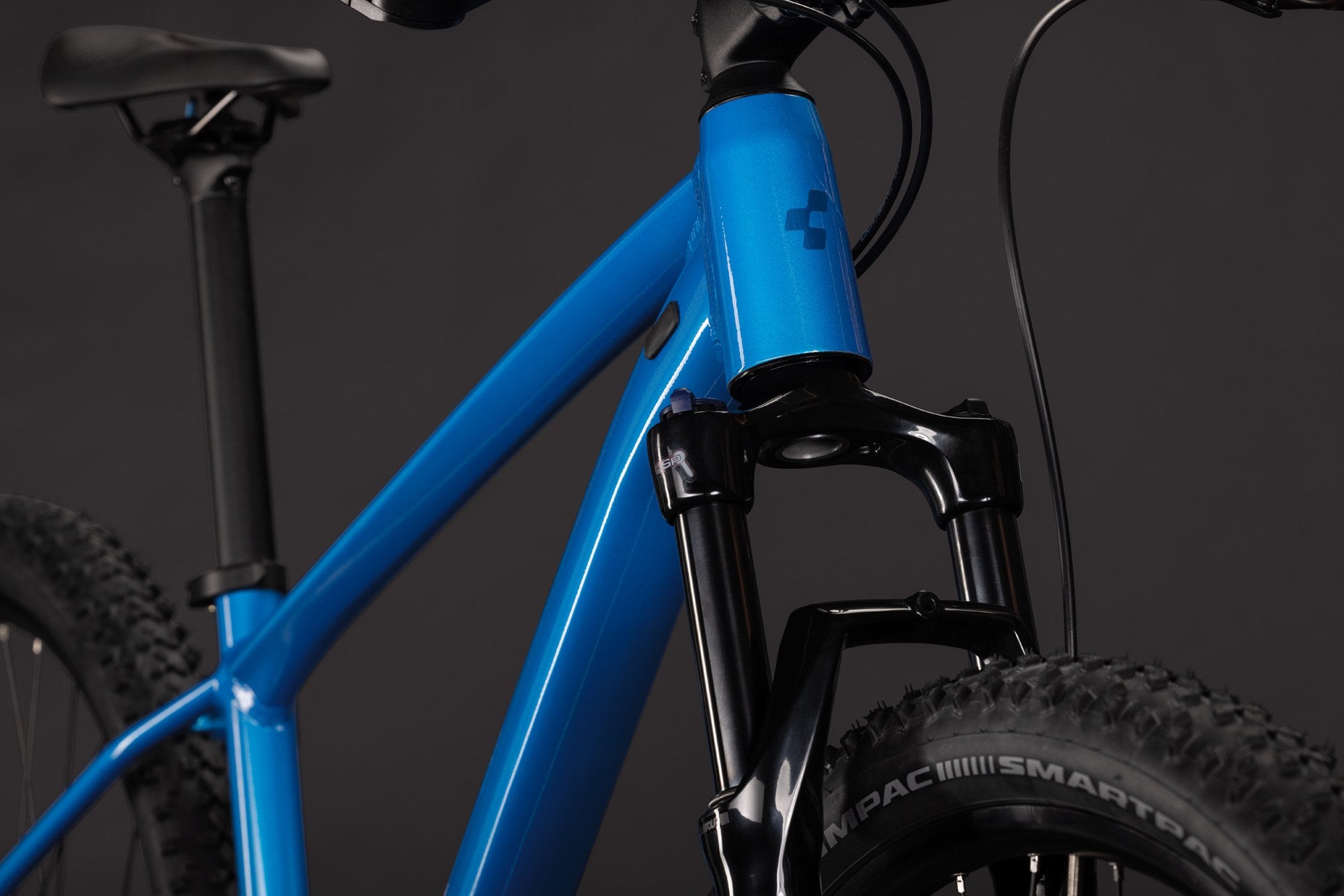

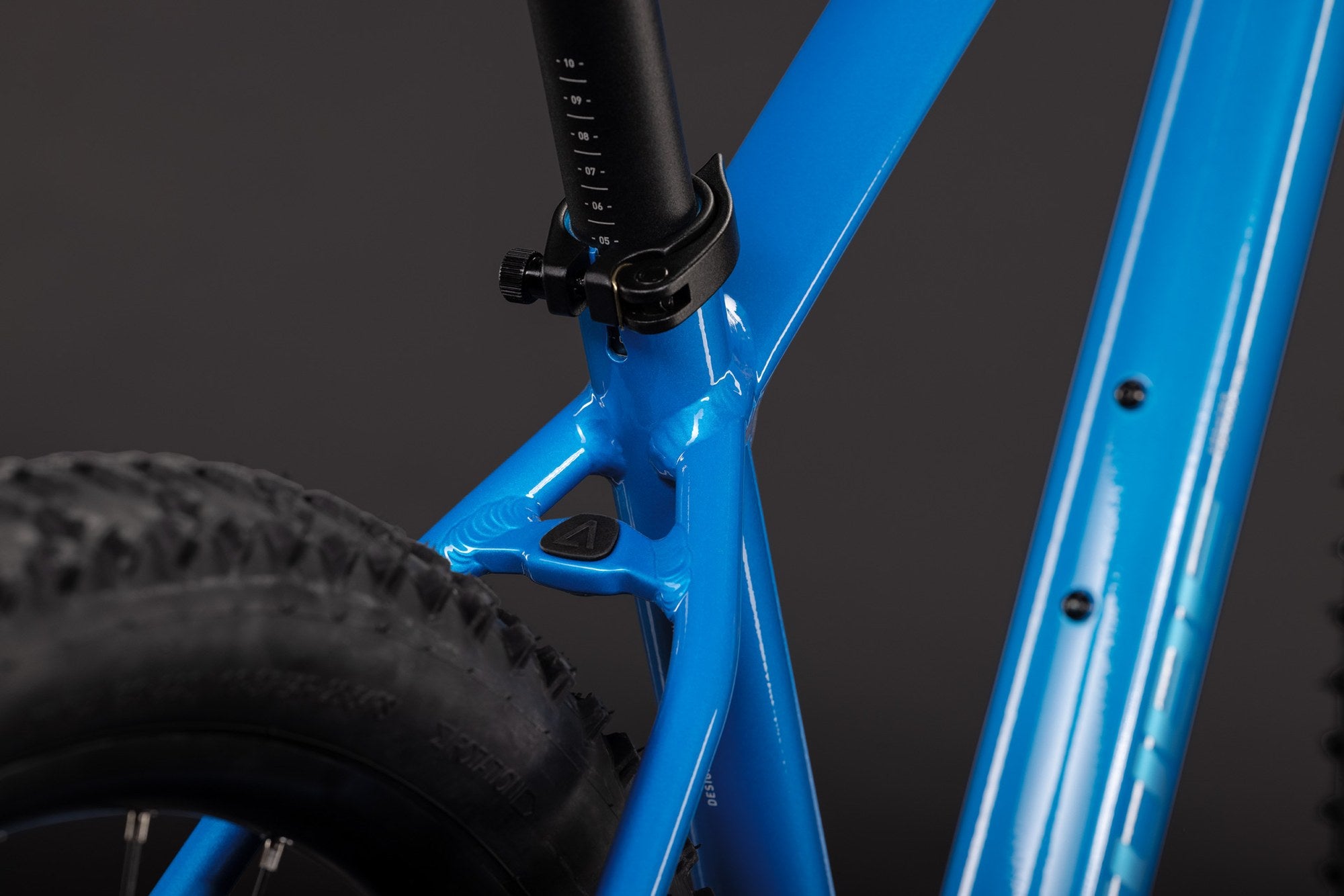

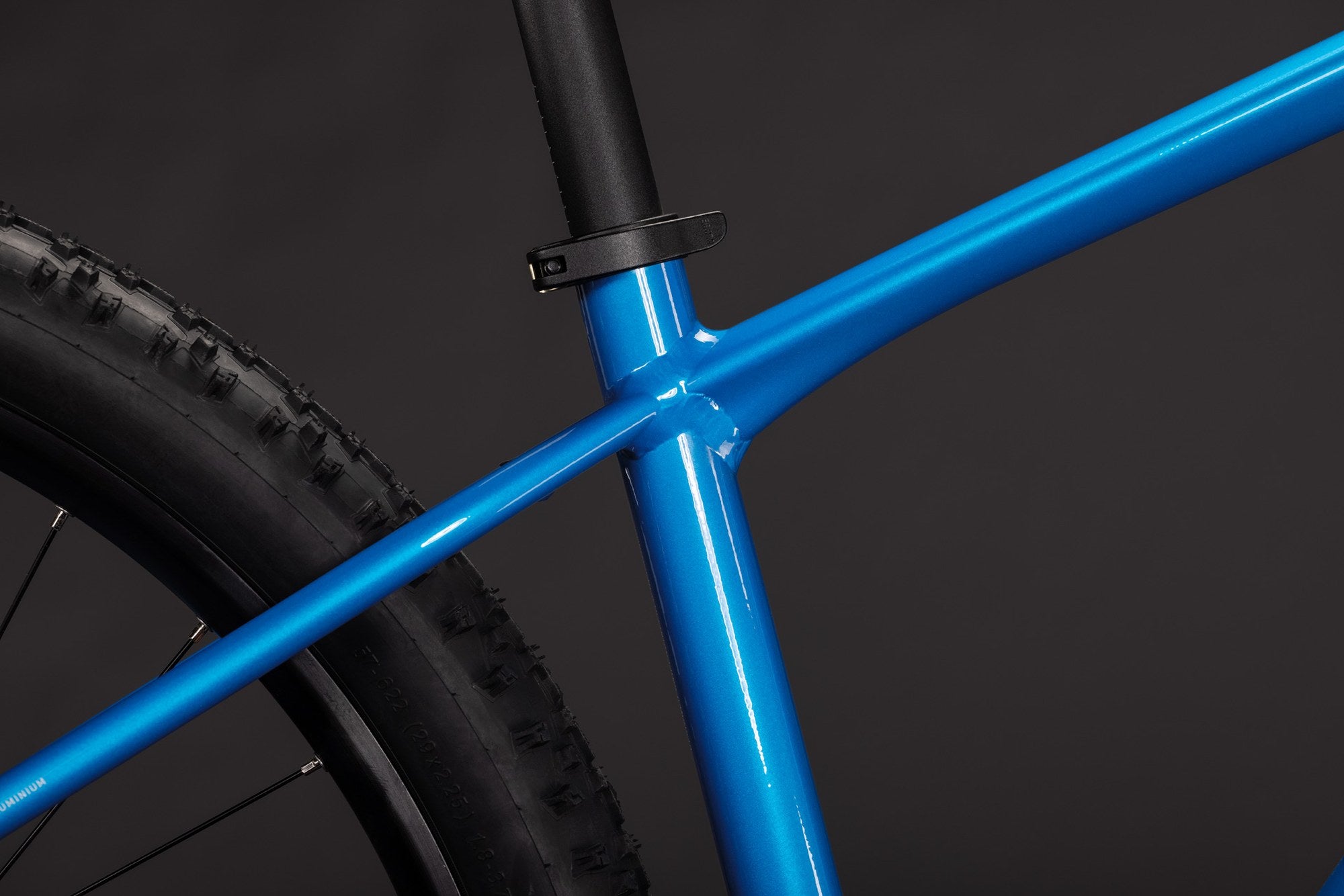

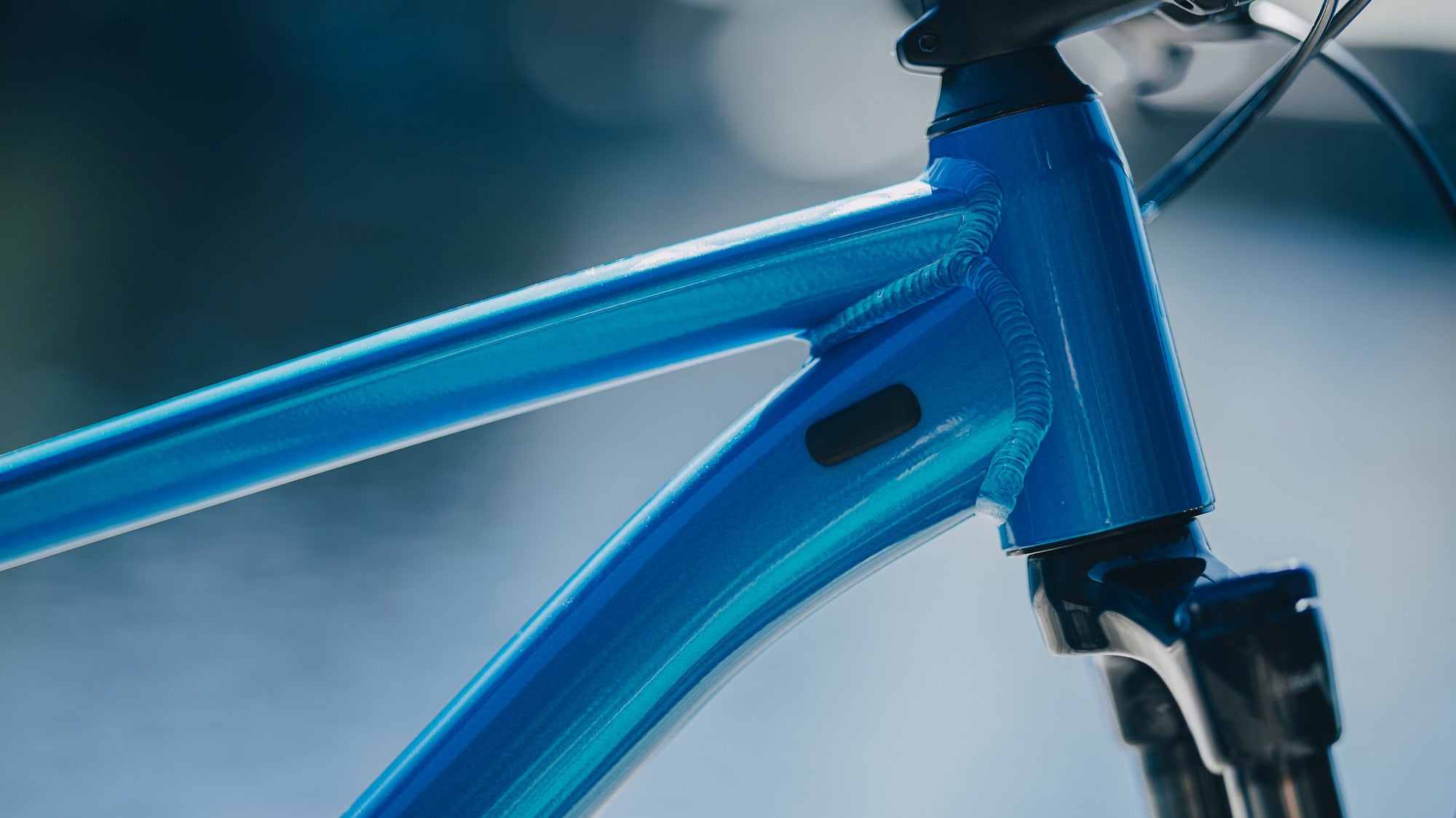

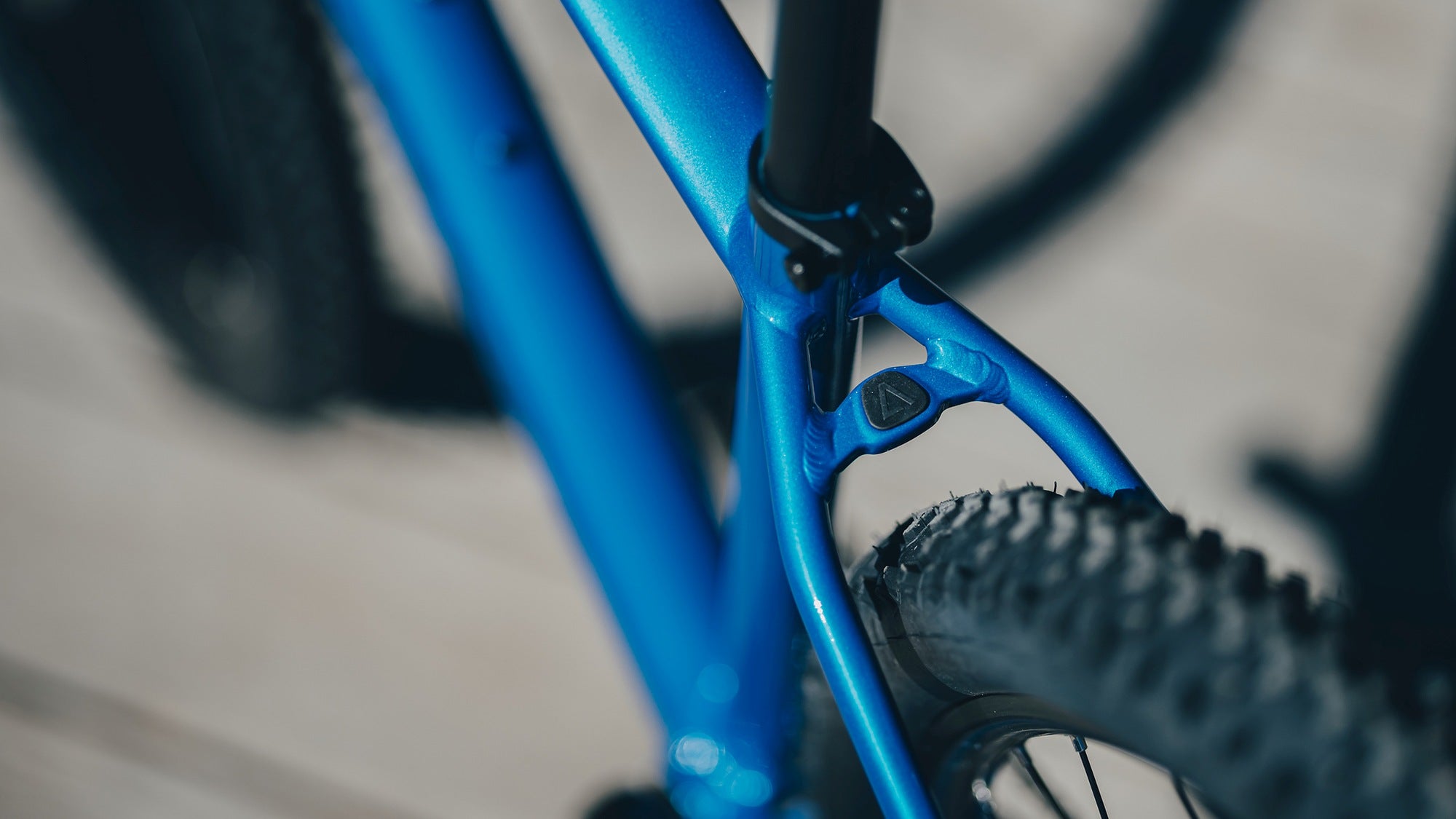

Frame description You'll notice that the Aim's High Performance Aluminium frame features almost organic lines, carefully crafted tube profiles and joints that are so smooth, one tube practically flows into the next. None of that is an accident – we believe a frame that functions brilliantly should also have an elegant form. To that end, we routed cables internally – including provision for a dropper seatpost. Mounting points include compatibility with our Semi-Integrated Carrier 2.1 and a flat mount kickstand, while a tapered head tube ensures confidence-inspiring handling and the replaceable gear hanger means it's easy to get up and running again in the event of a knock to the derailleur. We sweat the detail, so you can just pedal...
Read more
Matching accessories
CUBE BOTTLE CAGE HPP MATT BLACK/GLOSSY BLACK
£16.95
RFR Mini - Bell Black
£3.95
ACID PEDALS FLAT A20 OIL SLICK
£49.95
ACID PUMP RACE FLEX HV BLACK
£34.95
ACID REAR CARRIER SIC 27.5 INCH RILINK BLACK
£59.95
ACID REAR CARRIER SIC PURE 27.5 INCH RILINK BLACK
£29.95
ACID PEDALS FLAT A40 BLACK
£69.95
ACID MUDGUARD SET 65 27.5 INCH BLACK
£39.95
ACID CARRIER SIC RAIL 27.5 INCH BLACK
£49.95
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£34.95
ACID KICKSTAND FM BLACK
£29.95
ACID CARRIER TOP RAIL 120MM RILINK
£29.95
ACID BOTTLE CAGE UNIVERSAL BLACK/BLACK
£19.95
Often bought together
CUBE BACKPACK PURE 12 CMPT BLACK
£34.95
CUBE BOTTLE FLOW 500 BLACK
£4.95
CUBE Bottle 0,5L Icon Transparent
£4.95
ACID CHAIN COMBINATION LOCK CORVID C120 BLACK
£29.95
ACID CHAIN LOCK CORVID K100 BLACK
£26.95
RFR CYCLE COMPUTER WIRELESS CMPT BLACK/WHITE
£24.95
ACID LIGHT SET PRO 30 BLACK
£39.95
ACID LIGHT SET PRO 40 BLACK
£49.95
ACID LED LIGHT SET HPA BLACK
£39.95
ACID Saddle Bag Click M Black
£29.95
Specifications
General
Model code
1140210
Model year
2027
Colour
Topasblue/Blue
Maatserie
Size Split: 27.5: XS, S // 29: M, L, XL
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
15.1
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCT, 100mm
Drivetrain and brakes
Number of gears
11

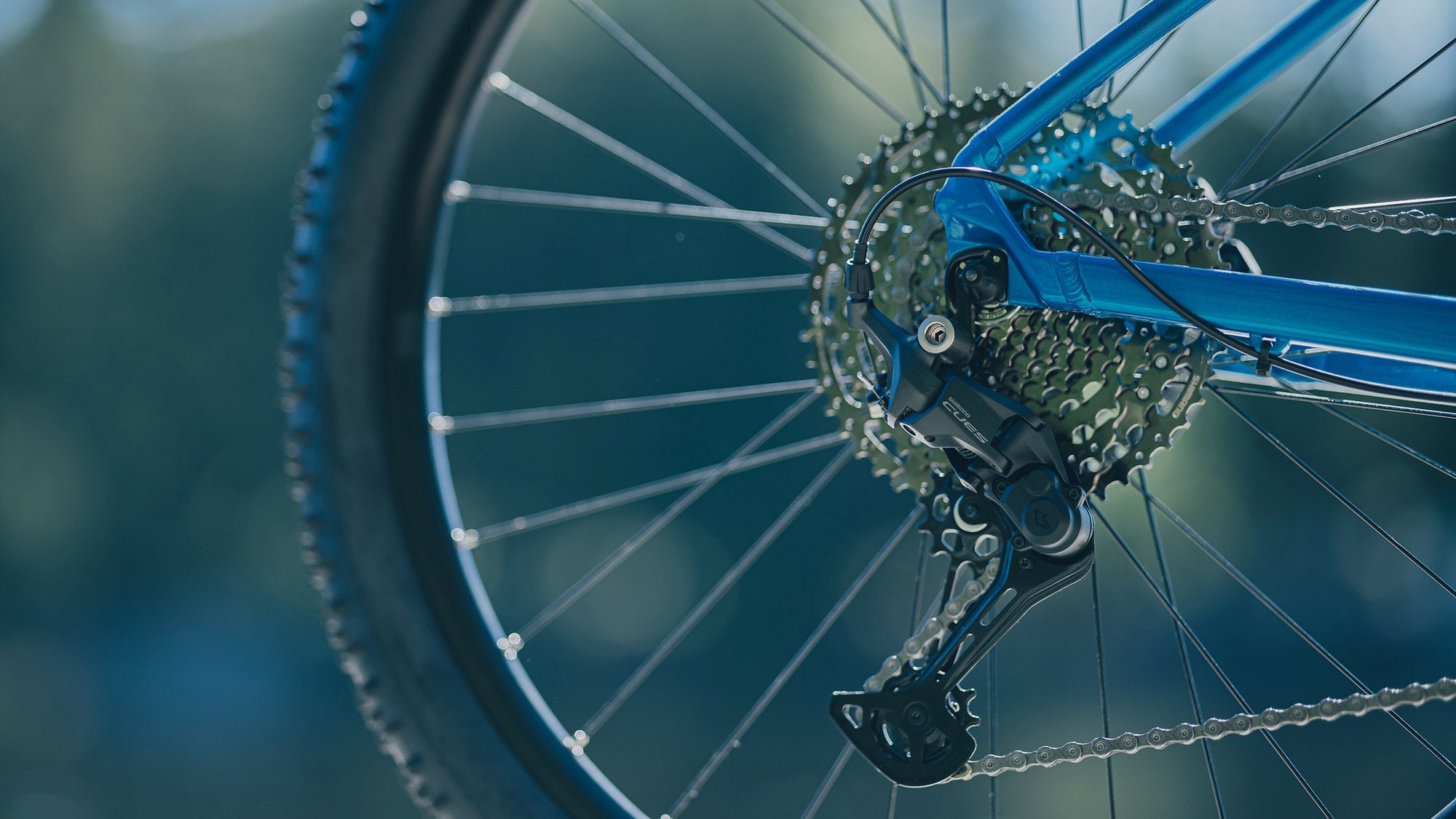

Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Cues RD-U6000-GS, 11-Speed
Shifters
?
Make and type of gear levers.
Shimano Cues SL-U6000, Rapidfire-Plus

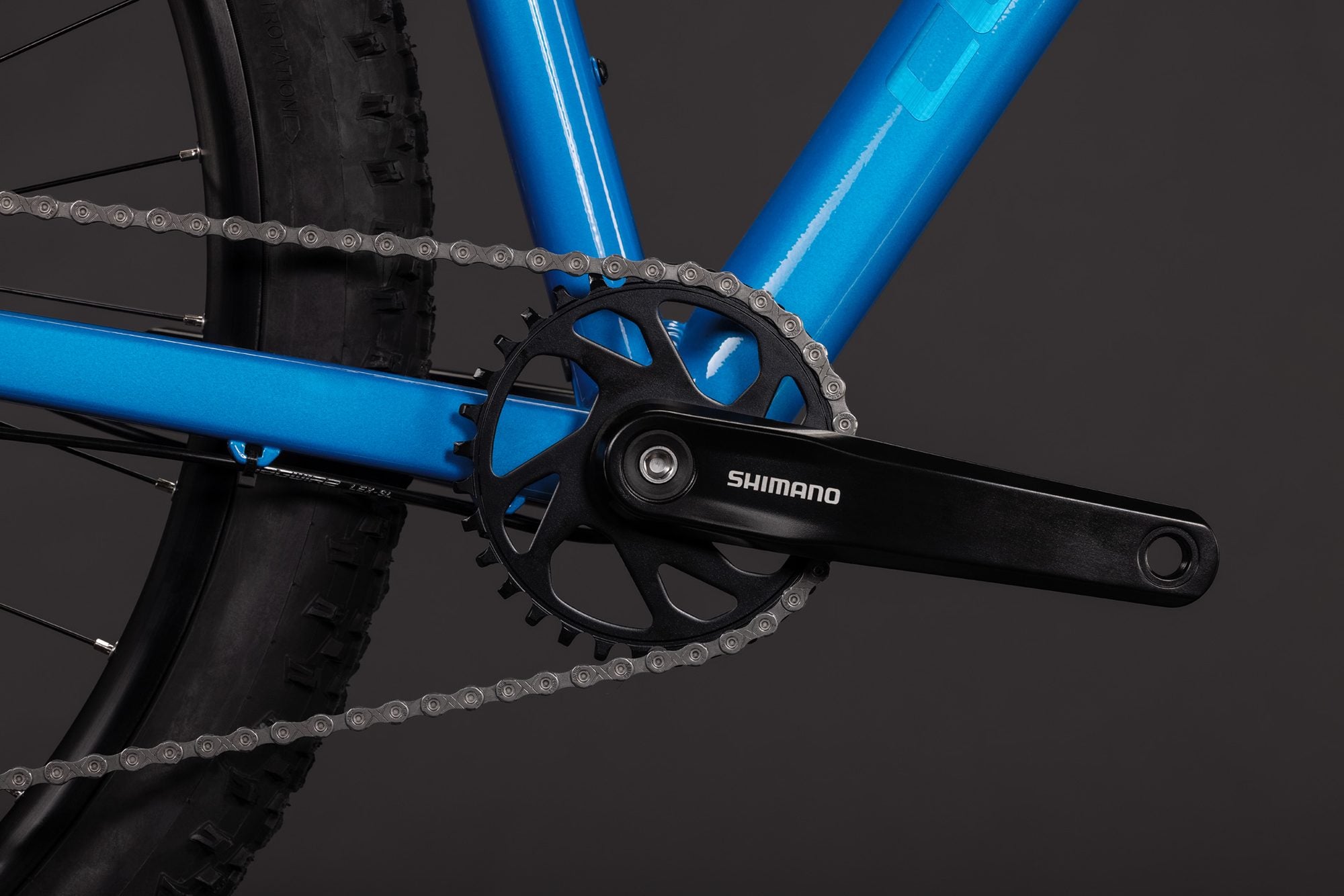

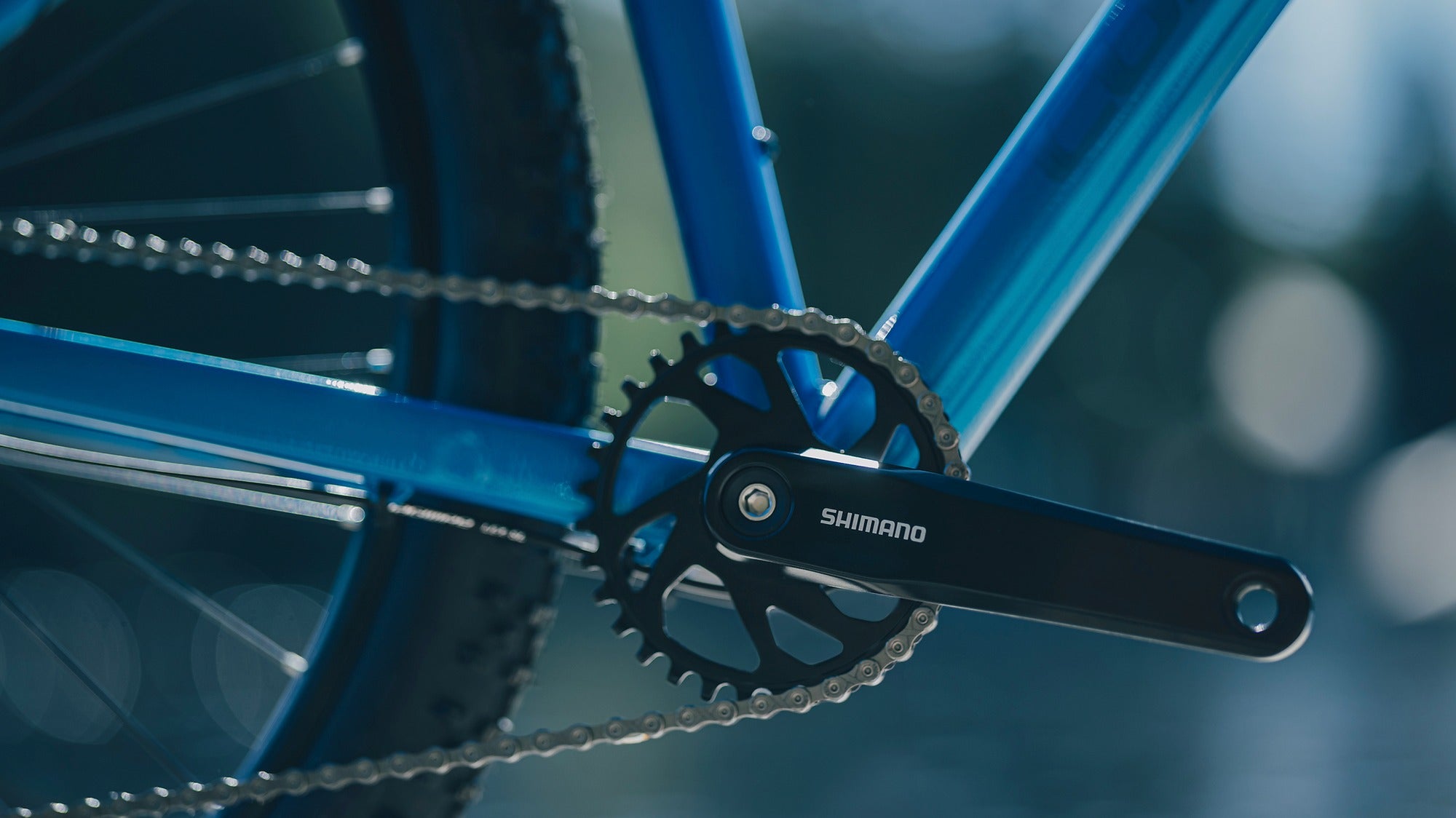

Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano Cues FC-UT400, 32T
Cassette
?
The set of gears on the back of the bicycle
Shimano Cues CS-LG400, 11-50T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC xGlide

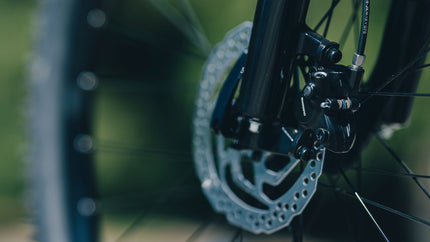

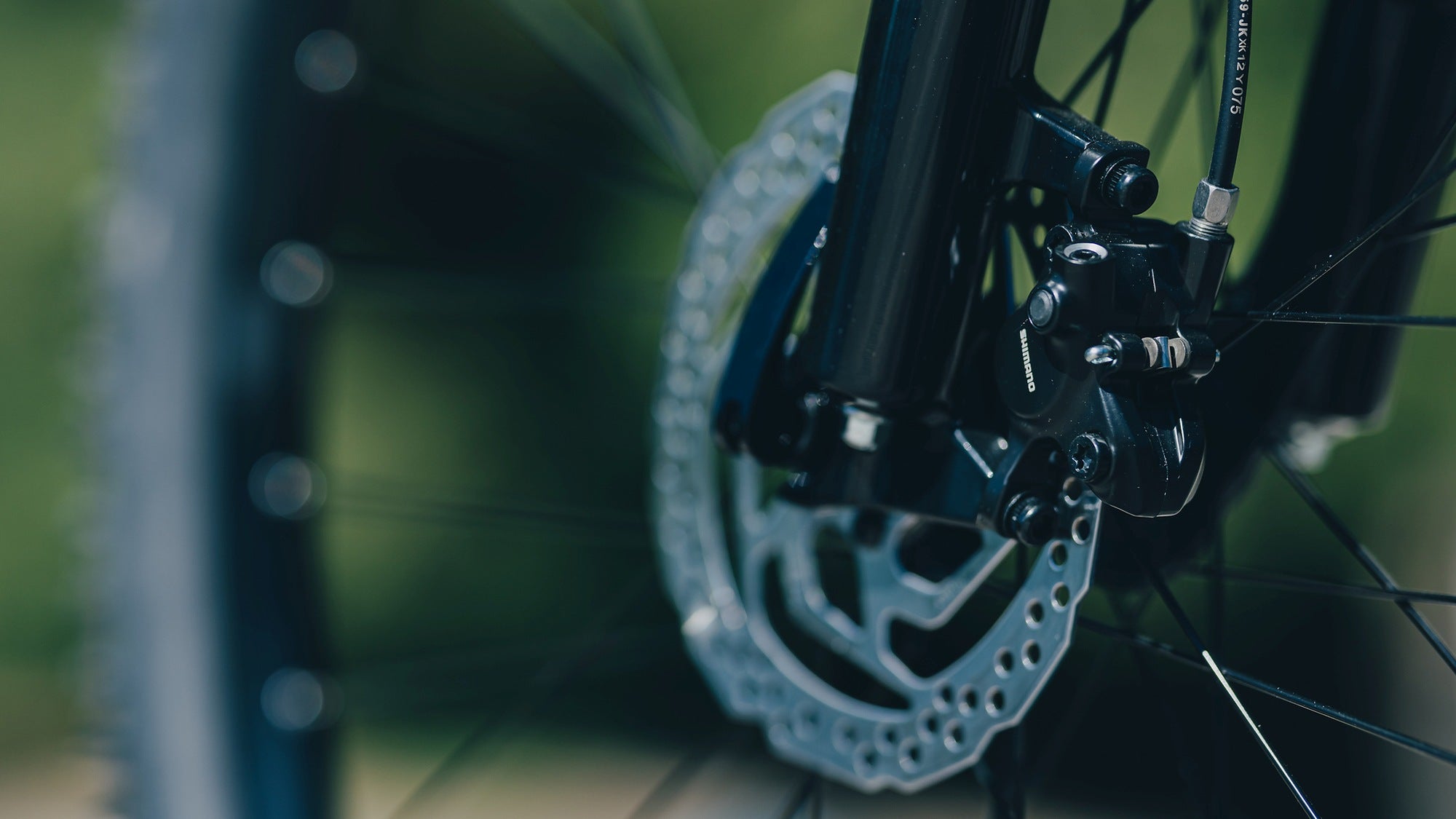

Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868p, Tapered, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Wheels
Acid Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Impac Smartpac, Draht, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Impac Smartpac, Wire, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 30.9mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
