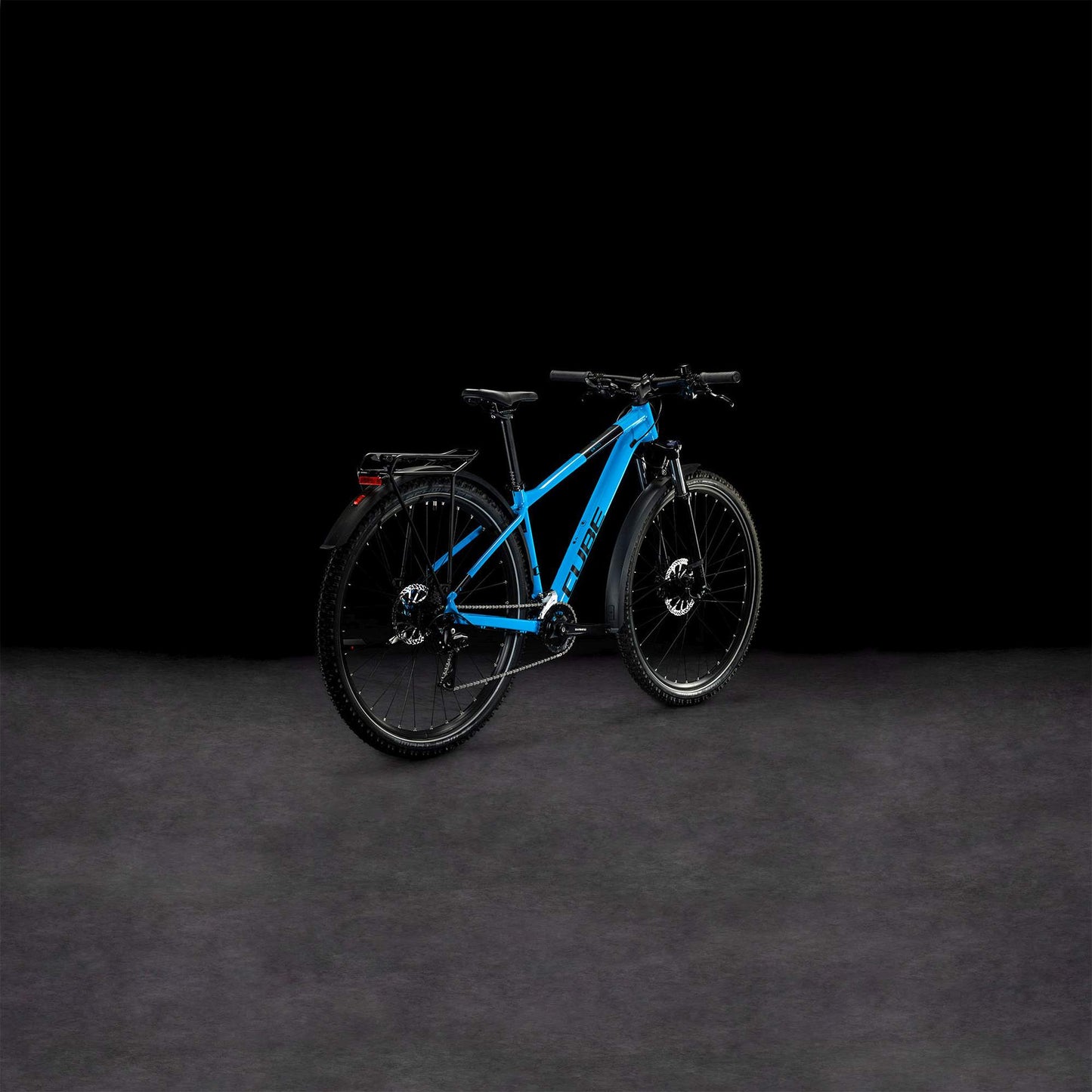

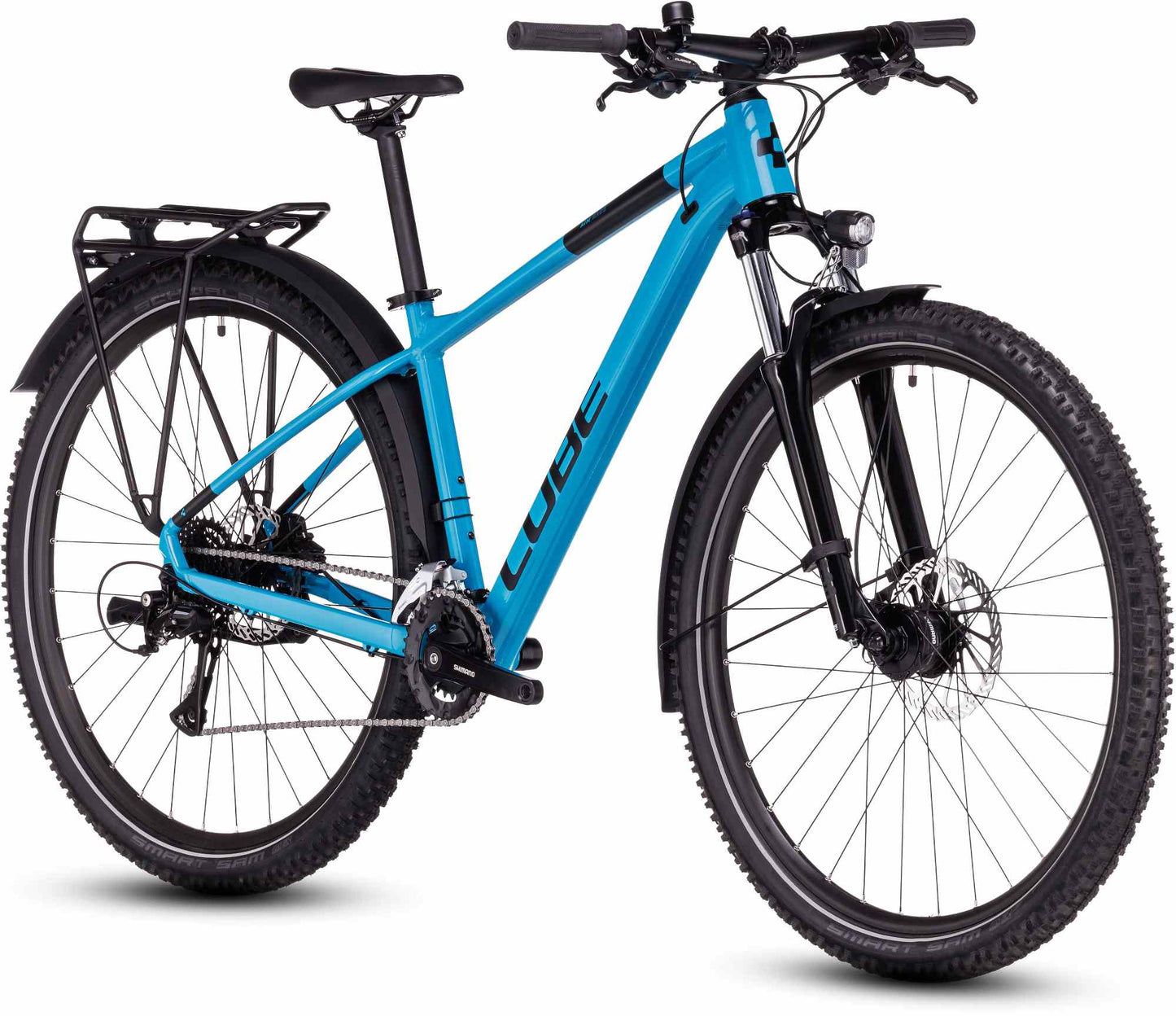

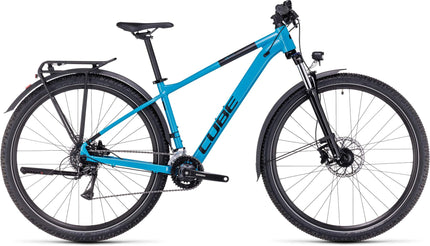

CUBE AIM RACE ALLROAD BLUE/BLACK
CUBE AIM RACE ALLROAD BLUE/BLACK
Plus Points
- High-quality, lightweight aluminum frame
- Nice low top tube for easy mounting and dismounting
- Sleek design with internal cable routing
- Great mix of agility and stability thanks to the CUBE Agile Ride geometry
- Size Split: 27.5 inch wheels in the small sizes and 29er wheels in the large sizes
- Includes fenders, luggage carrier, and rear kickstand
Advisory points
- Heavier than the 'bare' Aim Race
- No thru-axles
- No air suspension
Description
CUBE AIM RACE ALLROAD BLUE/BLACK XXL
Can one bike really do it all? At CUBE, we think the answer is 'yes' – and you're looking at it. Fully kitted out with mudguards, a lighting system, luggage carrier and kickstand, the Aim Race Allroad is ready to get you to work or haul your shopping across town. And, with its lockout-equipped 100mm suspension fork and hydraulic disc brakes, it's just as ready to take on weekend off-road adventures. Add grippy, comfortable tyres and wide-ranging gears and you're all set for pretty much anything.
Frame description

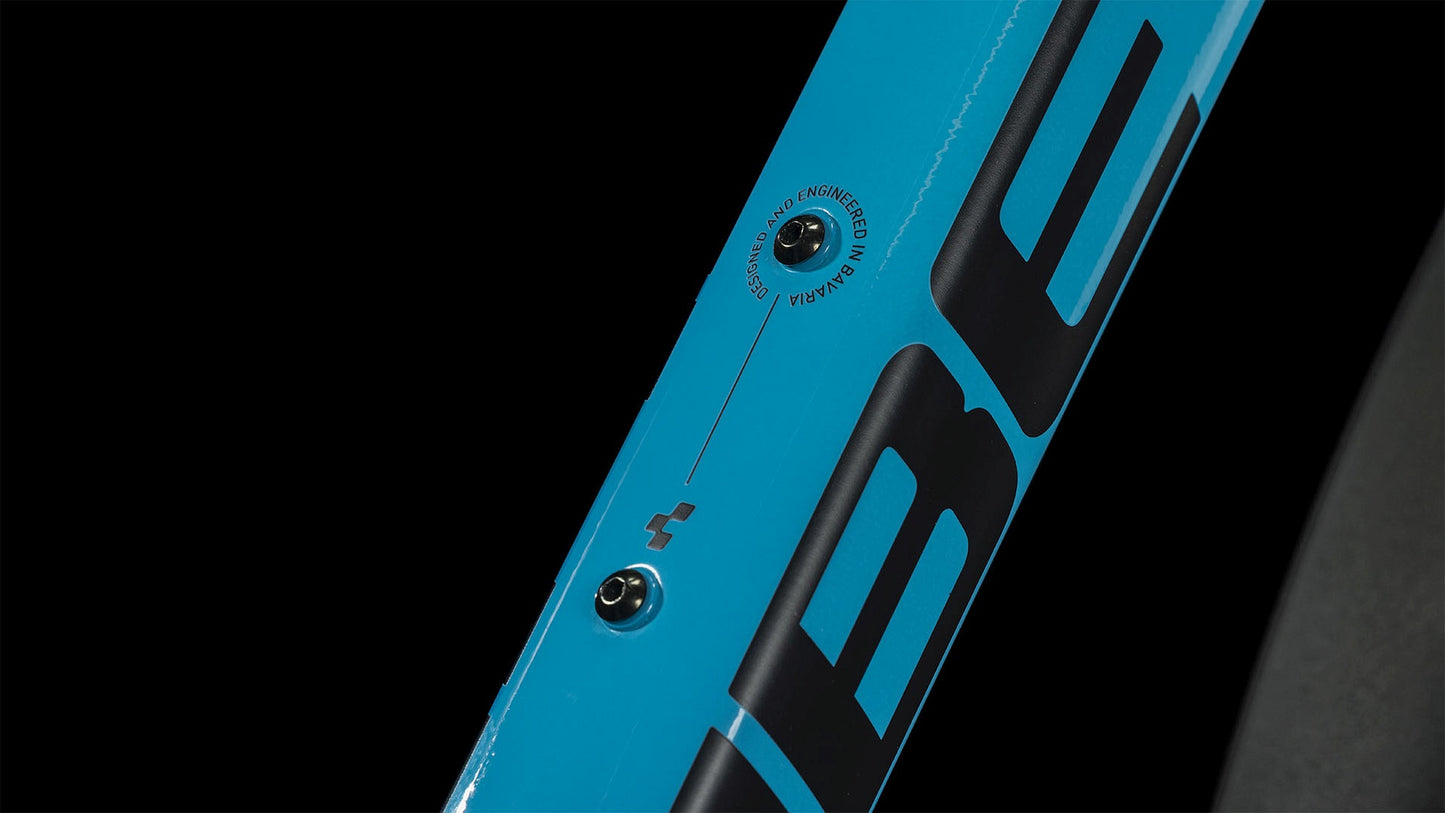

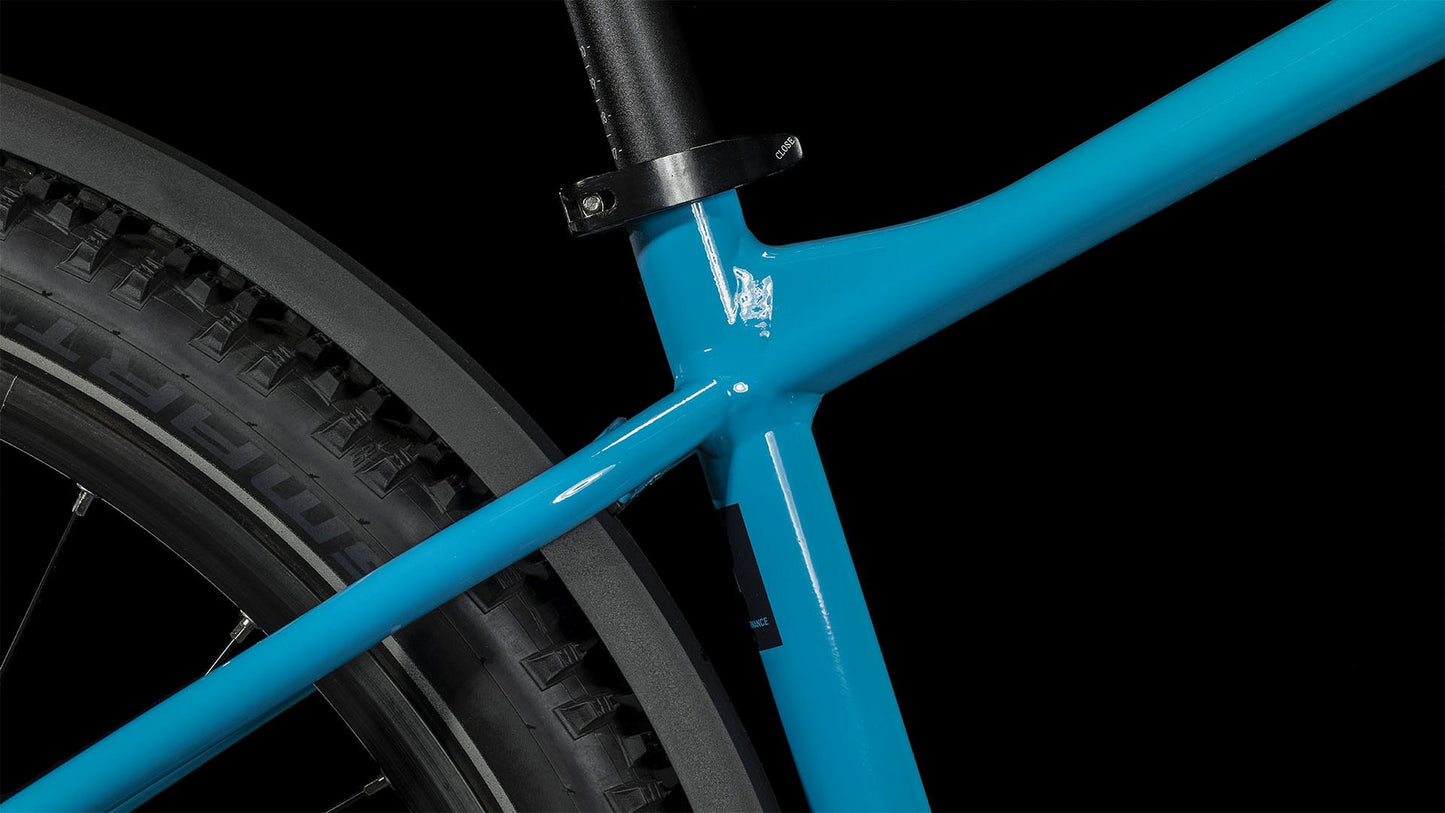

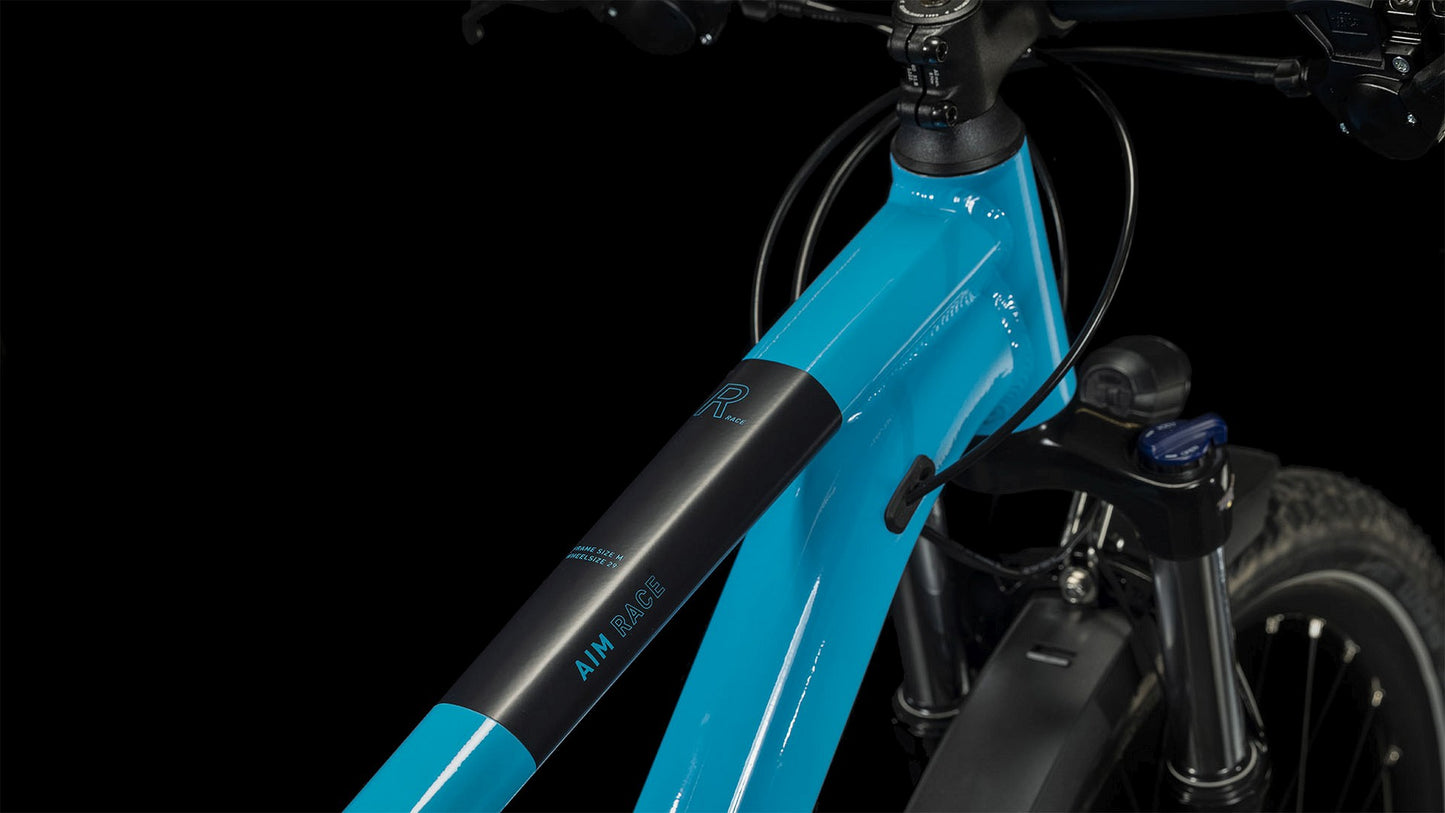

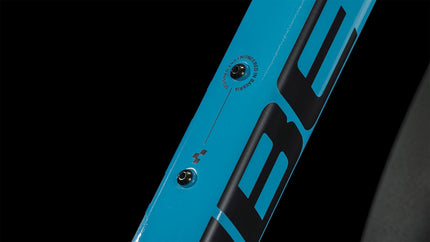

With the Aim Allroad we're redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There's a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance, and the flat disc mount integrates seamlessly with the included kickstand. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim Allroad that fits perfectly.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
601430
Model year
2024
Colour
blue/black
Fork
SR Suntour XCM Disc, 100mm, Lockout
Drivetrain and brakes
Front brake
Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)
Rear brake
Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)
Rear derailleur
Shimano RD-M3020, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
Shimano SL-M315, Rapidfire-Plus
Crankset
Shimano FC-M315, 36x22T, 170mm
Cassette
Shimano CS-HG31, 11-34T
Chain
KMC Z8.3
Cockpit
Headset
Cube FPH868, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem Race, 31.8mm
Bar tape or grips
Acid React
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
Shimano HB-TX506, QR, 6-Bolt
Front tyre
Schwalbe Smart Sam, Active, 2.25
Rear Tyre
Schwalbe Smart Sam, Active, 2.25
Other parts
Saddle
Venec Lite
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
Acid PP MTB

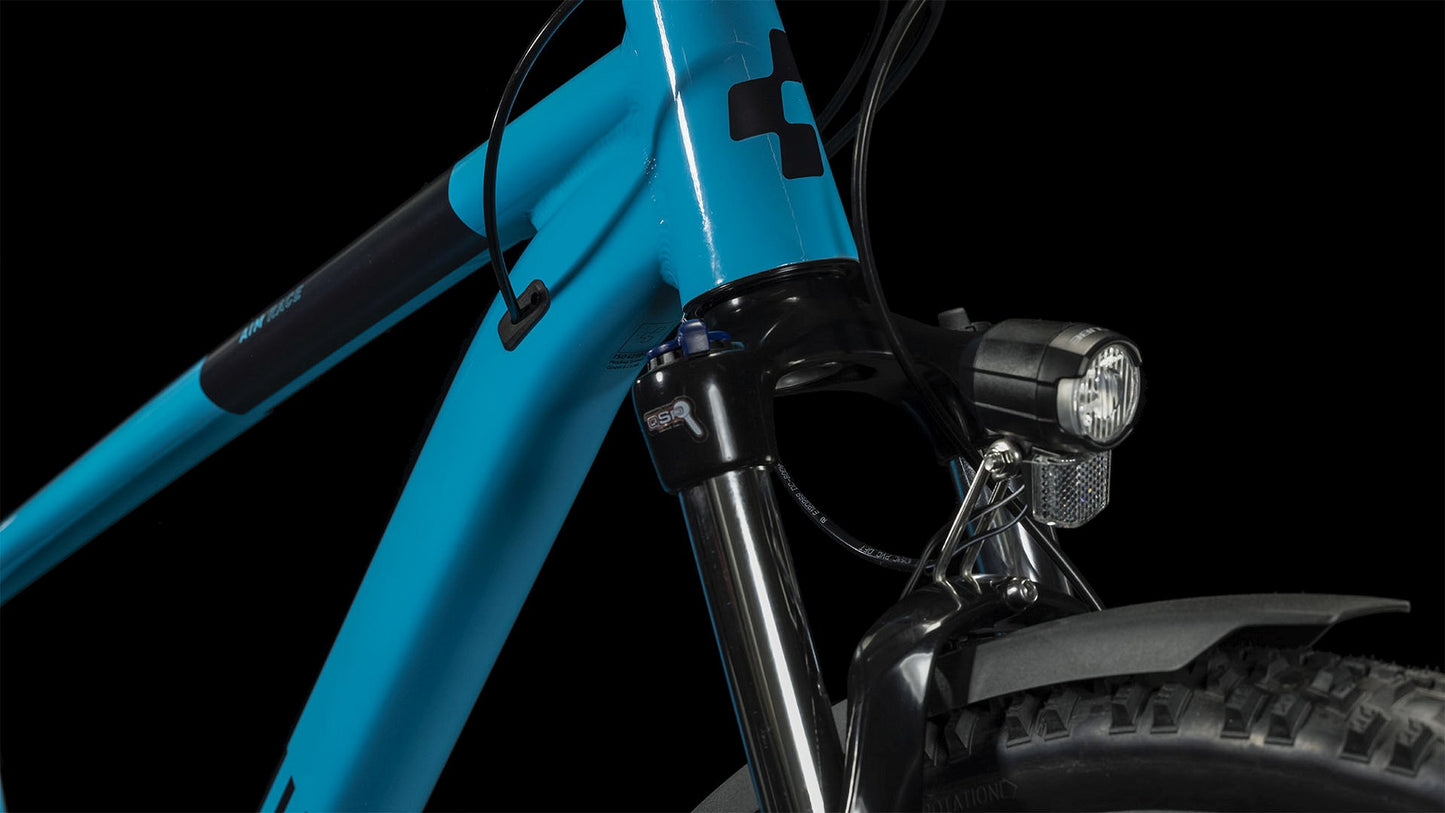

Front light
Cube Shiny 50

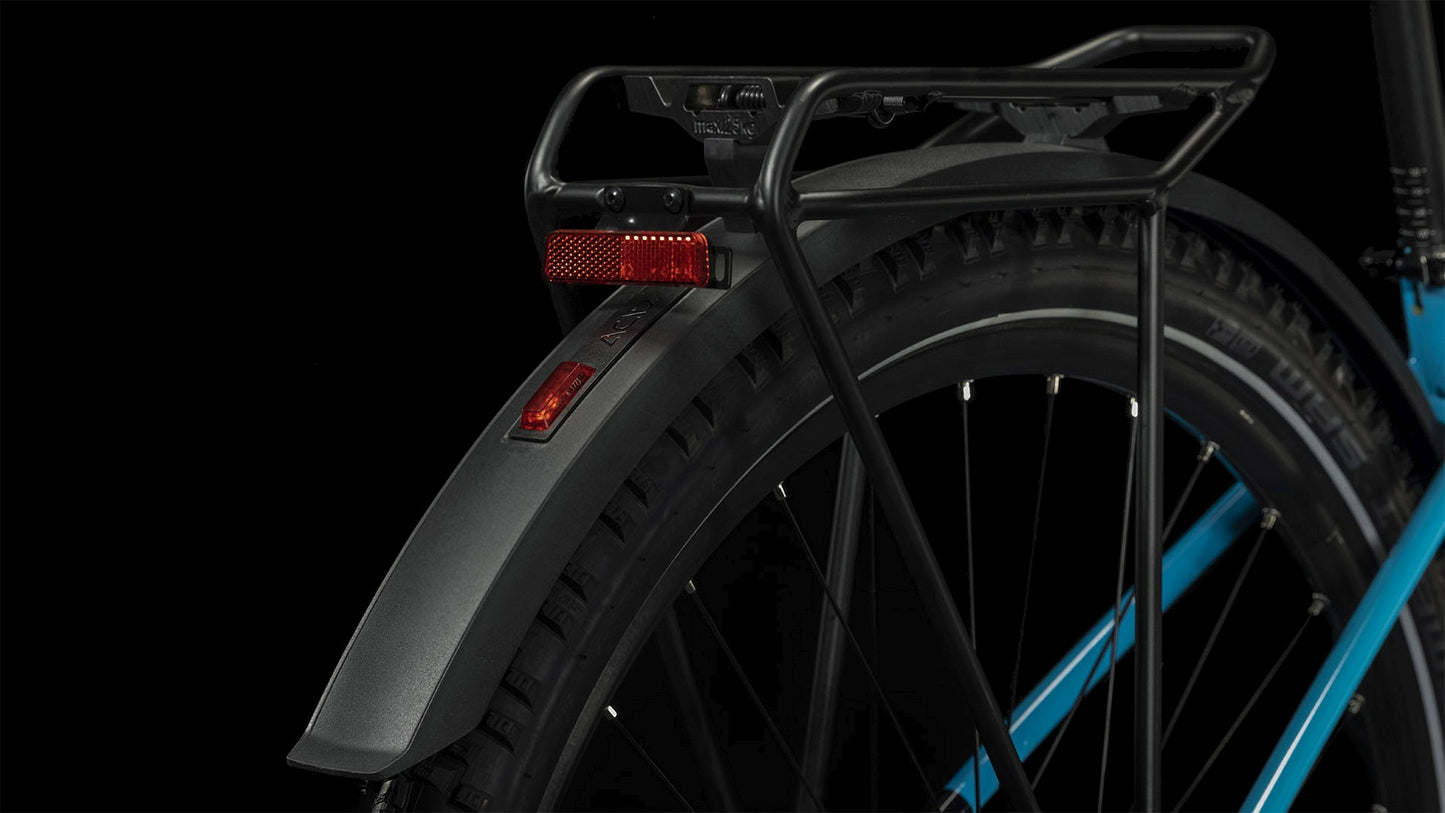

Rear light
Acid Mudguard Rear Light PRO-D, 6V, AC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65
Carrier
Acid Semi-Integrated Carrier, RILink Adapter Compatible
