What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.

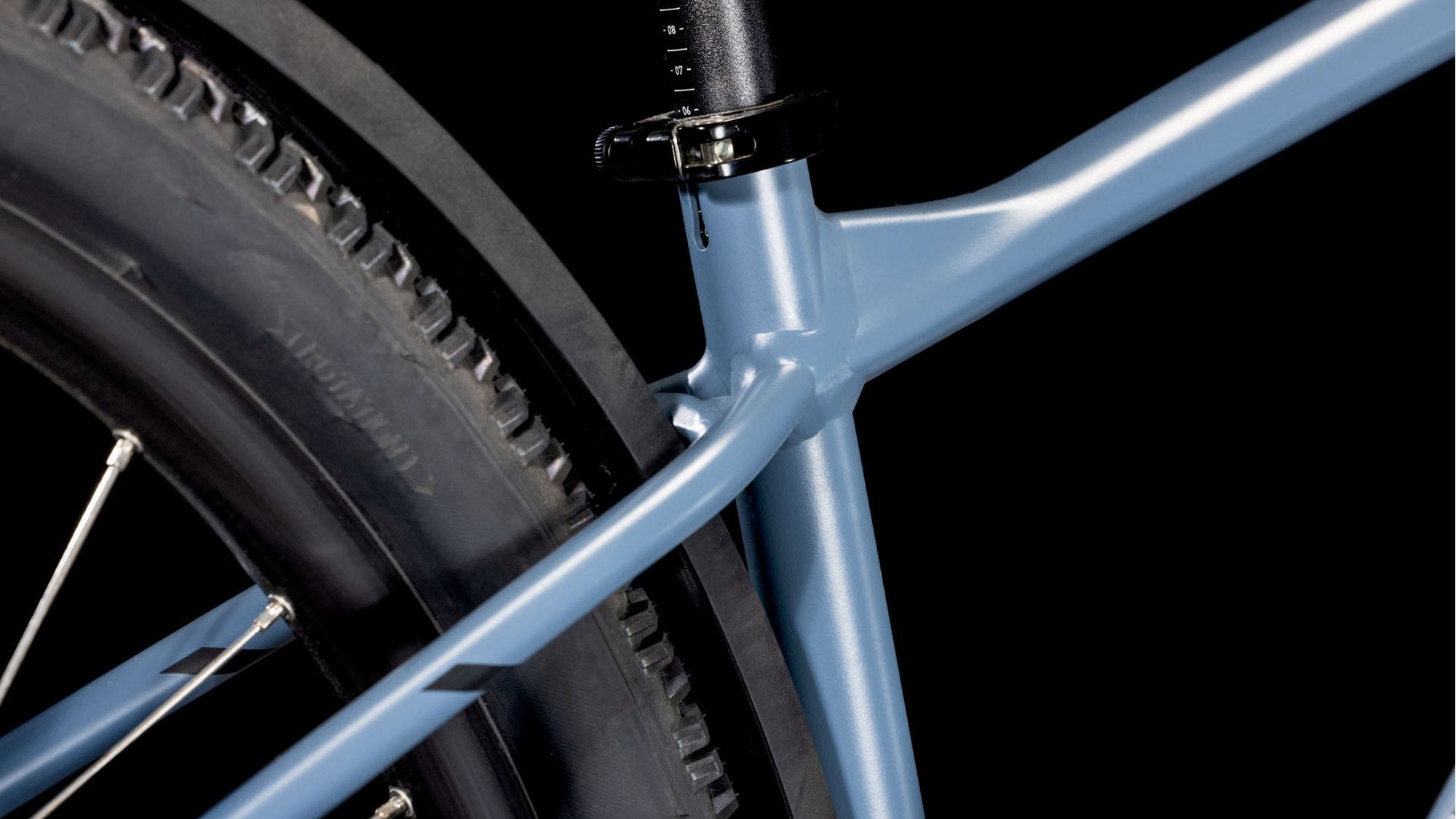

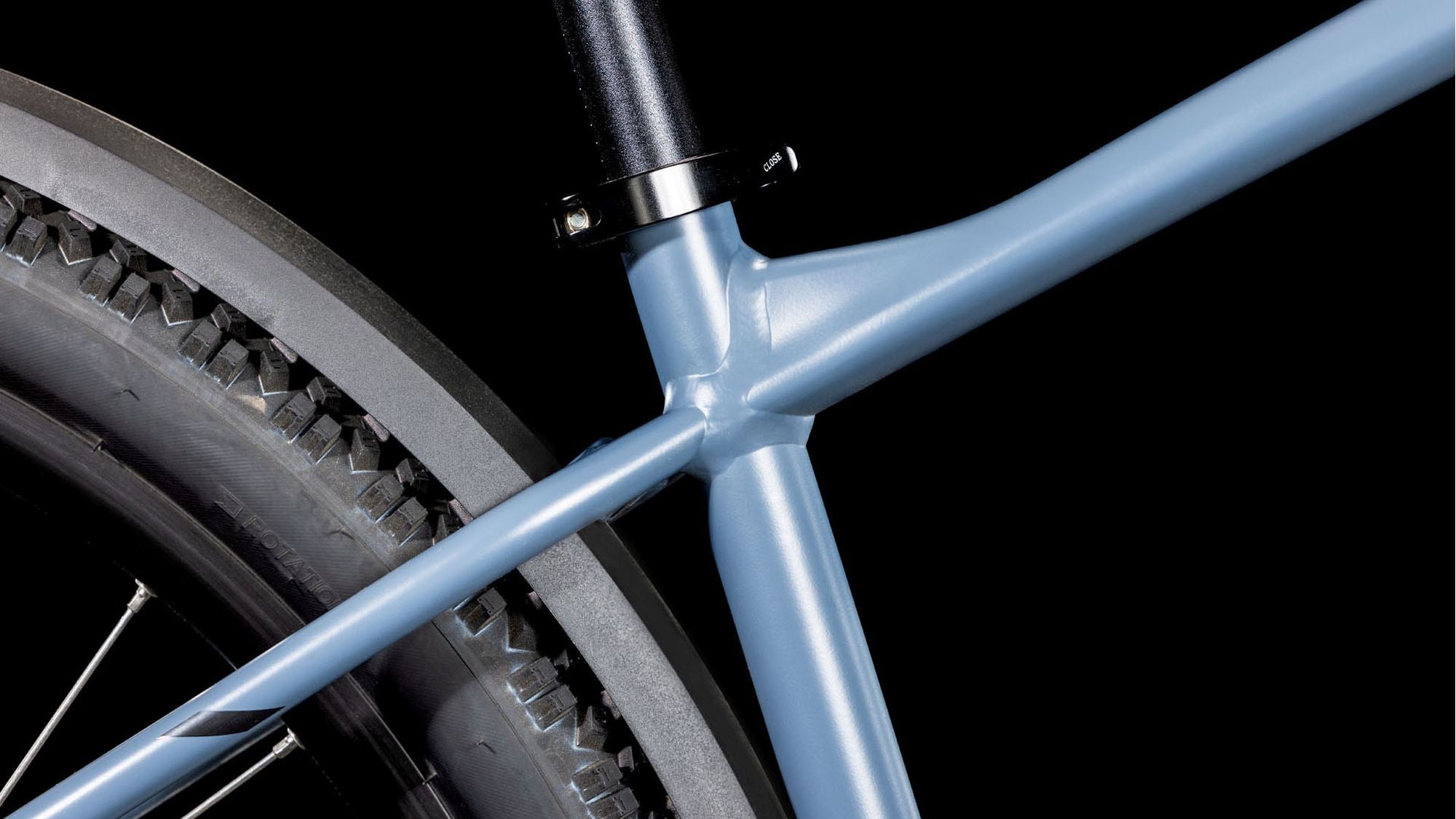

Frame made of lightweight aluminum with smooth welds
Low top tube for easy mounting and dismounting
Great balance of agility and stability thanks to Agile Ride geometry
Sleek appearance with internal cable routing

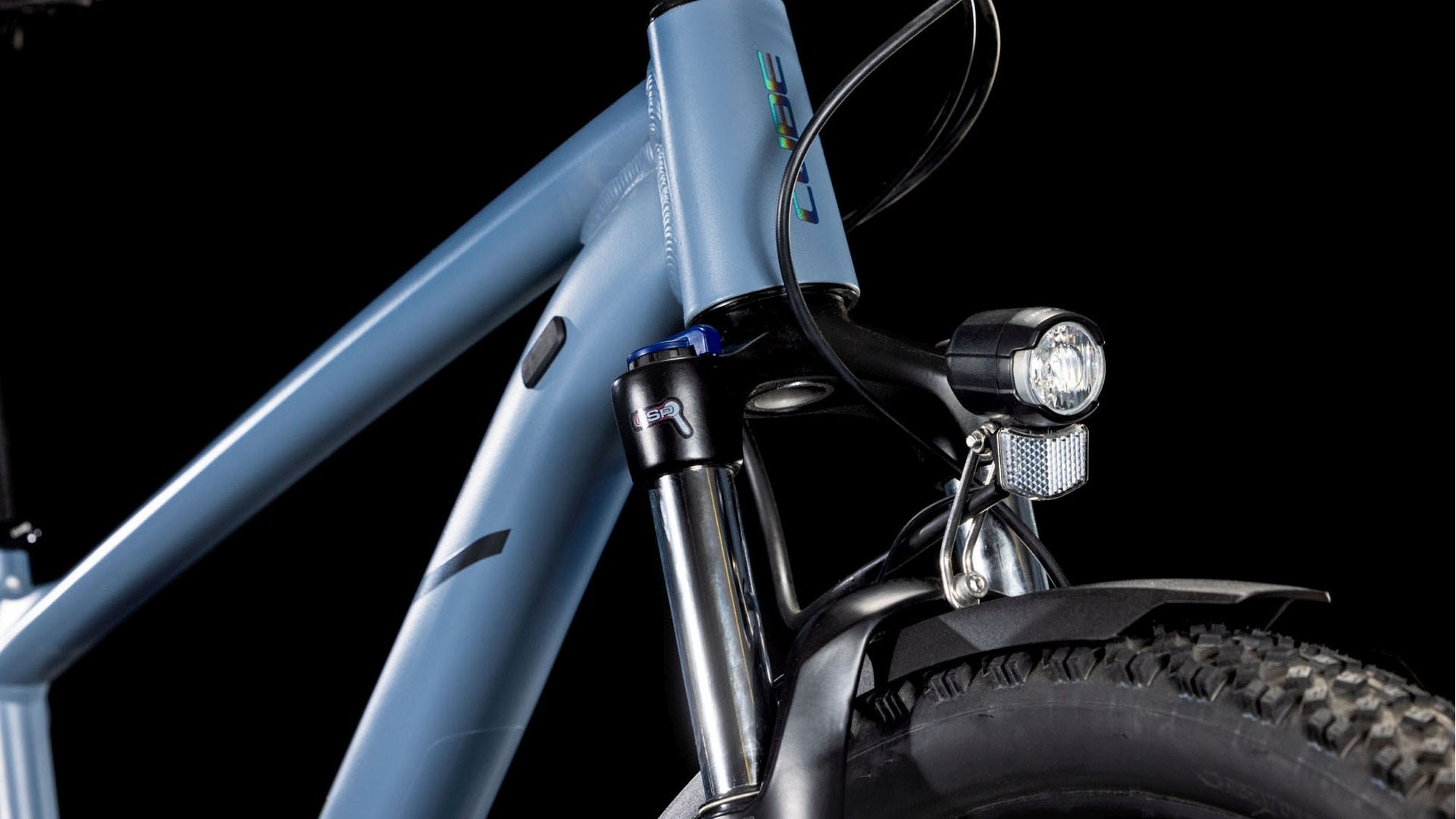

Suspension fork with 100 mm of travel
The regular Aim Race is lighter
No thru-axles
No air suspension
No 11-speed
Product description

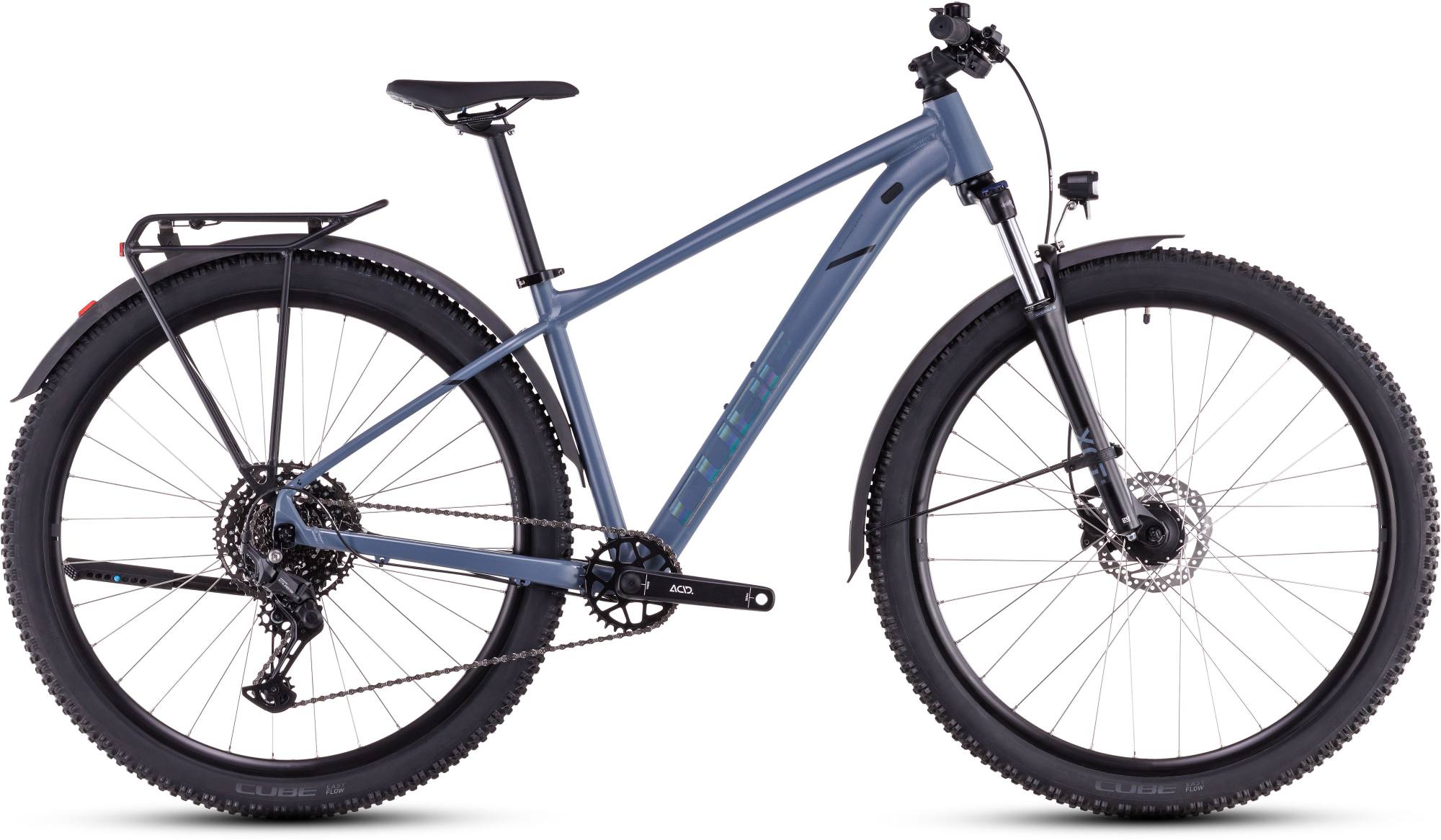

The Aim Race Allroad blends the best of three worlds: mountain bike, city bike, and commuter. Its durability and agility, hallmarks of a mountain bike, also shine in urban settings. Add in easily detachable fenders, a sturdy rack, integrated lighting, and a practical rear kickstand, and you have a bike ready for anything. For off-road adventures, you can rely on the suspension fork, hydraulic disc brakes, and Shimano Cues 10-speed drivetrain. Searching for a versatile bike that adapts to every situation? This is it.
Read more
Matching accessories
CUBE Bottle Cage Hpp Matt Black/Glossy Black
£16.95
Often bought together
CUBE Backpack Pure 12 Black
£49.95
Cube Bottle Flow 500 Black
£4.95
ACID Chain Lock Corvid K100 Black
£26.95
ACID Pump Race Flex Hv Black
£29.95
ACID LIGHT SET PRO 40 BLACK
£44.95
ACID Saddle Bag Click M Black
£29.95
ACID DERAILLEUR GUARD BLACK
£9.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
Cube Touch Up Pen Set Wolfgrey Matt 2206
£19.95
Specifications
General
Model code
841140
Model year
2025
Colour
wolfgrey/black
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
17.0
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCT Disc, 100mm, Lockout
Drivetrain and brakes
Number of gears
10
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Cues RD-U6000-GS, 10-Speed
Shifters
?
Make and type of gear levers.
Shimano Cues SL-U6000, Rapidfire-Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Prowheel CC10Y-NW, 32T, 170mm
Cassette
?
The set of gears on the back of the bicycle
Shimano Cues CS-LG400, 11-48T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC eGlide
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868p, Tapered, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Wheels
Cube ZX20, 32H, Disc
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear hub
Shimano FH-QC300-HM, QR, Centerlock
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube MTB, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Front lighting
Cube Shiny 50
Rear lighting
Acid Mudguard Rear Light PRO-D, 6V, AC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65
Carrier
Acid Semi-Integrated Carrier, RILink Adapter Compatible and Rail
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
