What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Light yet strong hardtail frame made of Lite aluminum
Suspension fork with lightweight air spring
Reliable shifting with 12-speed Shimano featuring XT derailleur
Integrated mounting points for fenders, rack, and rear stand
Size Split sizing: 27.5-inch wheels on the small sizes and 29er wheels on the larger sizes
No drive shafts
Product description

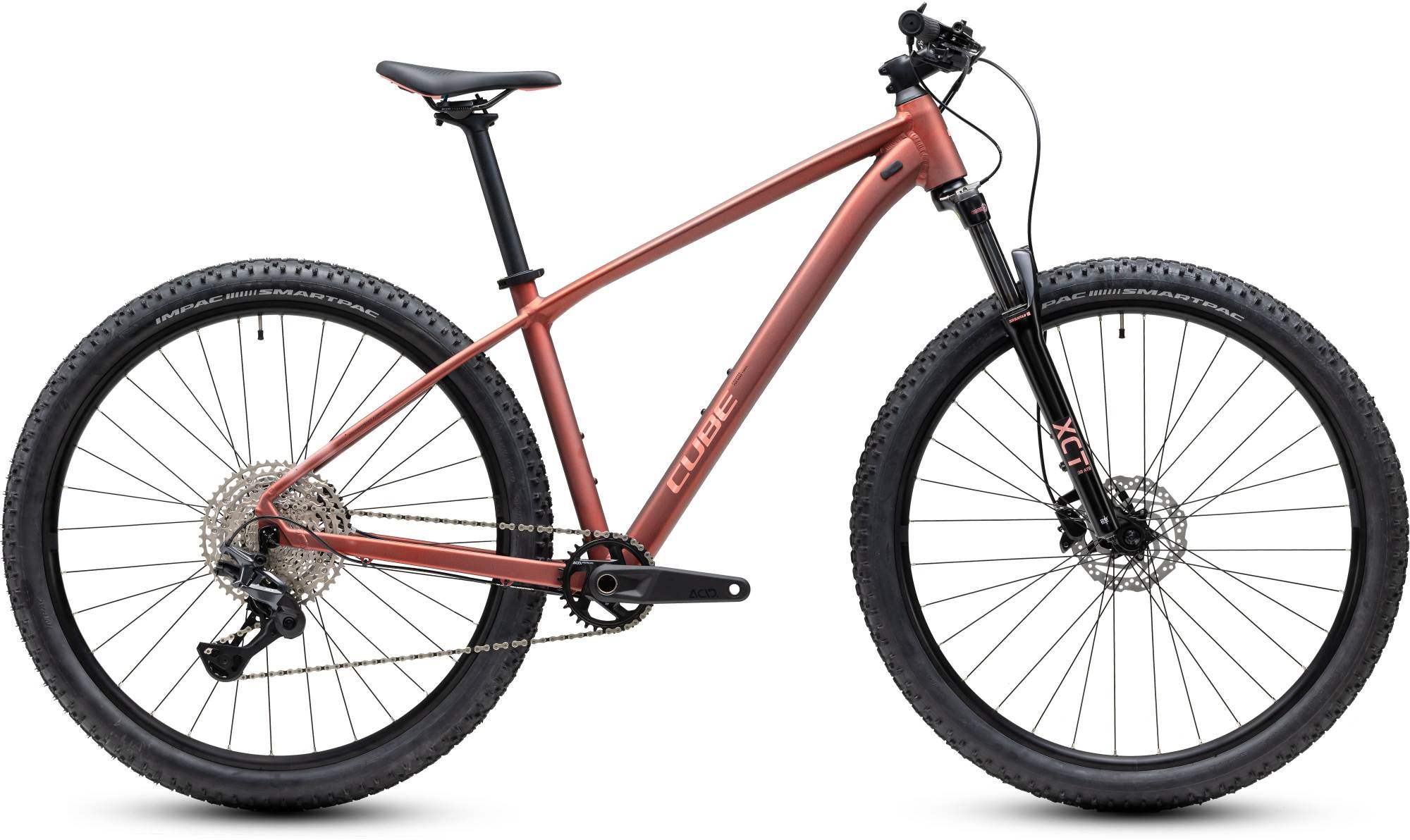

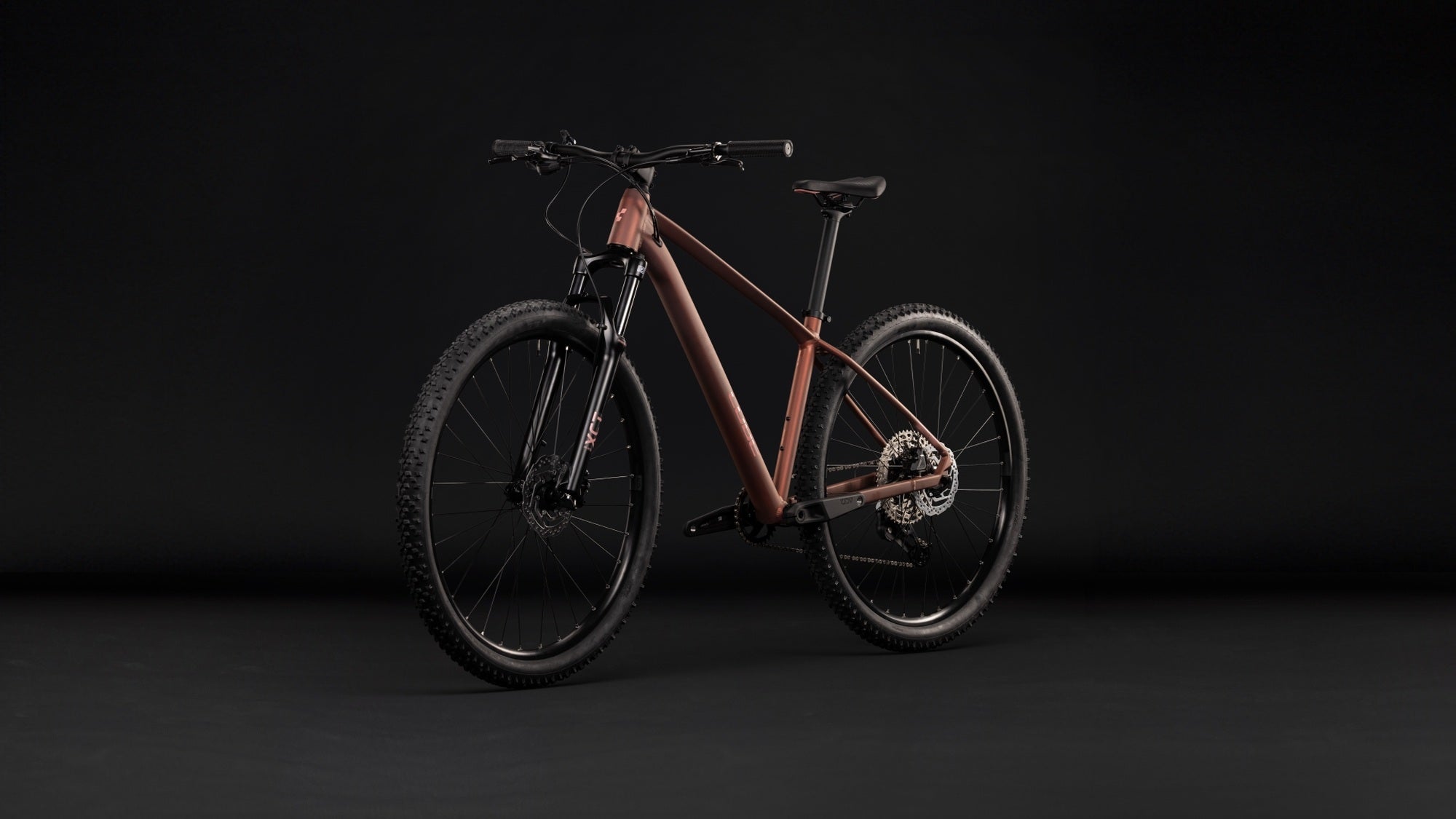

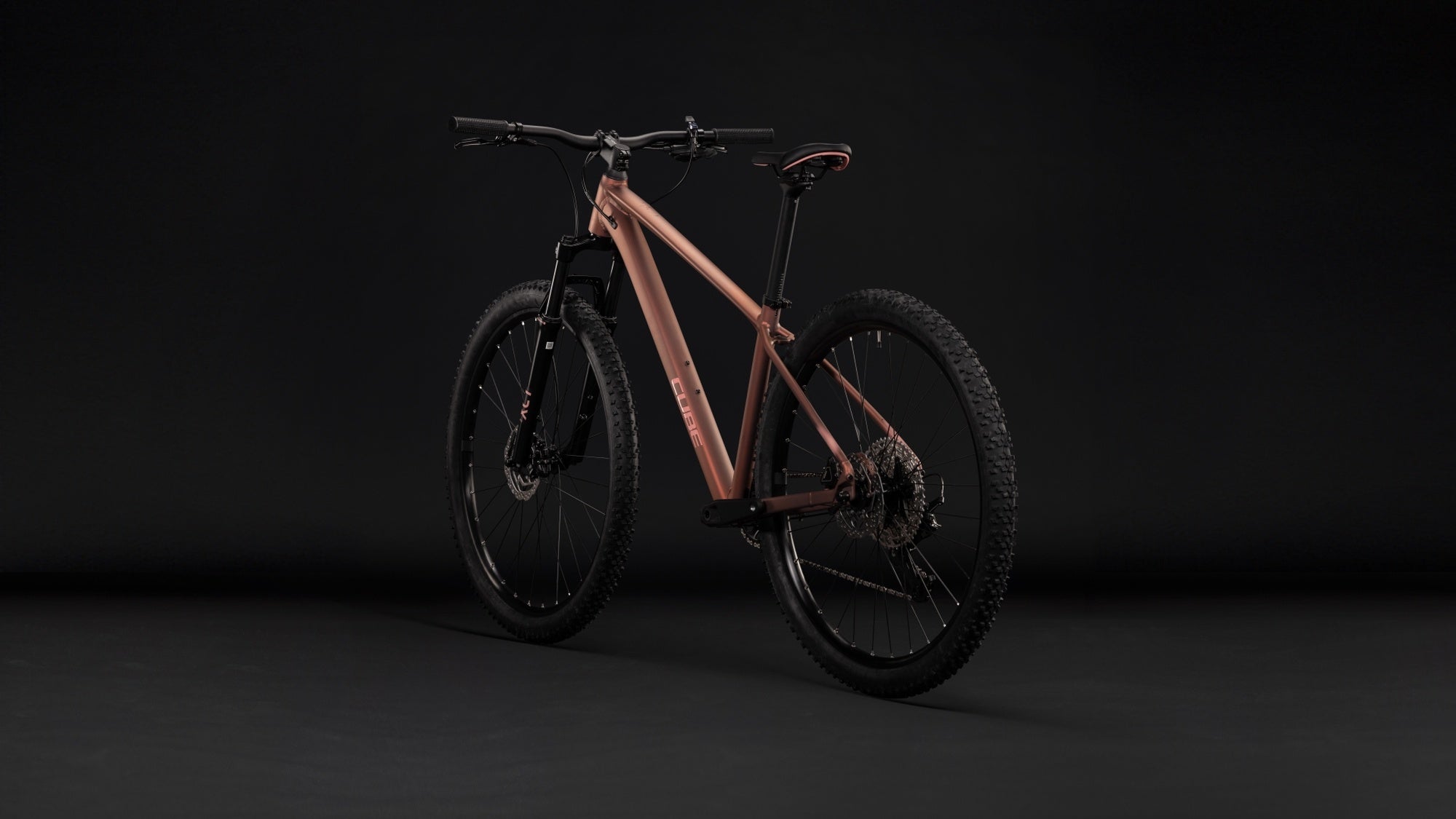

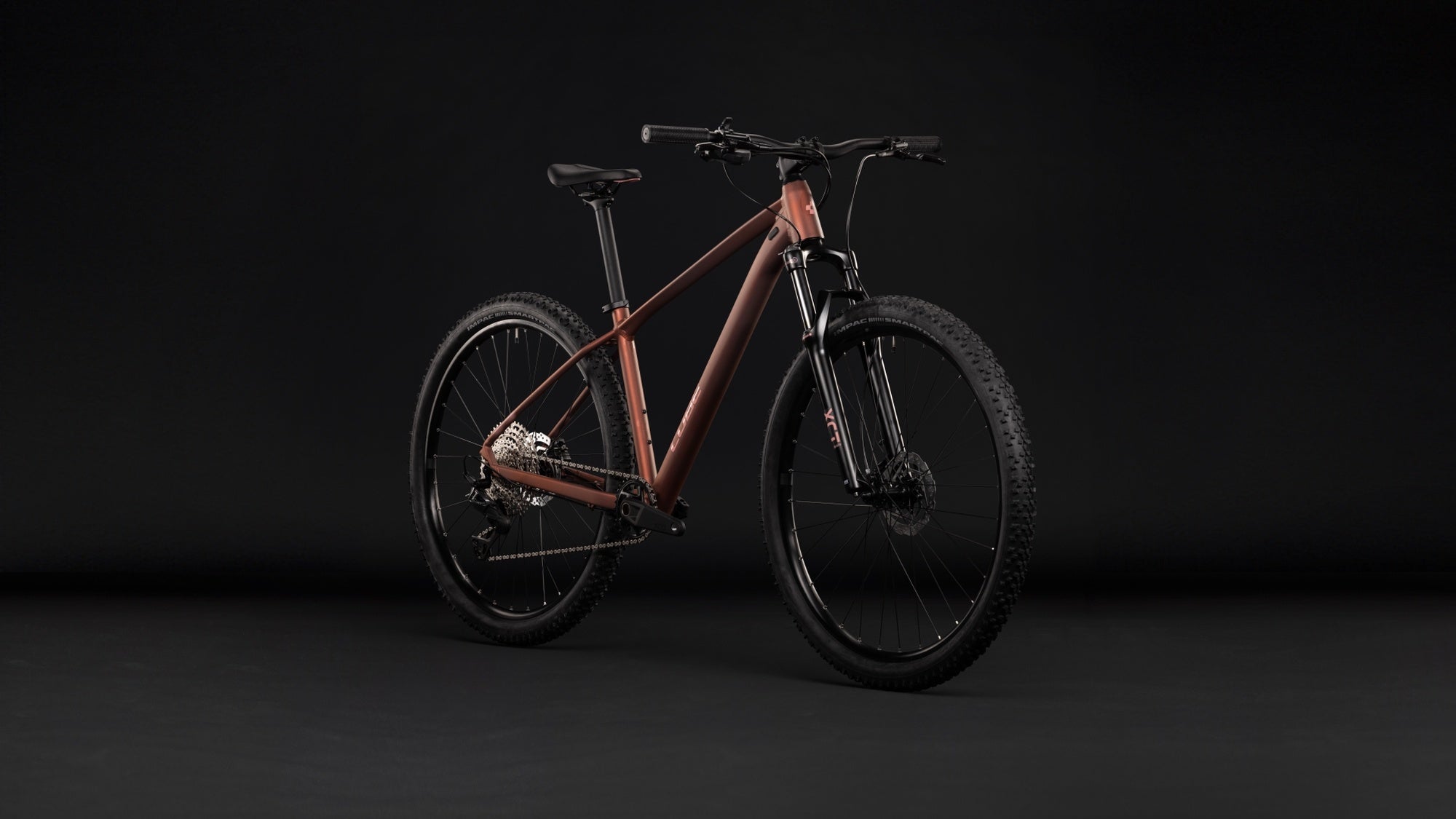

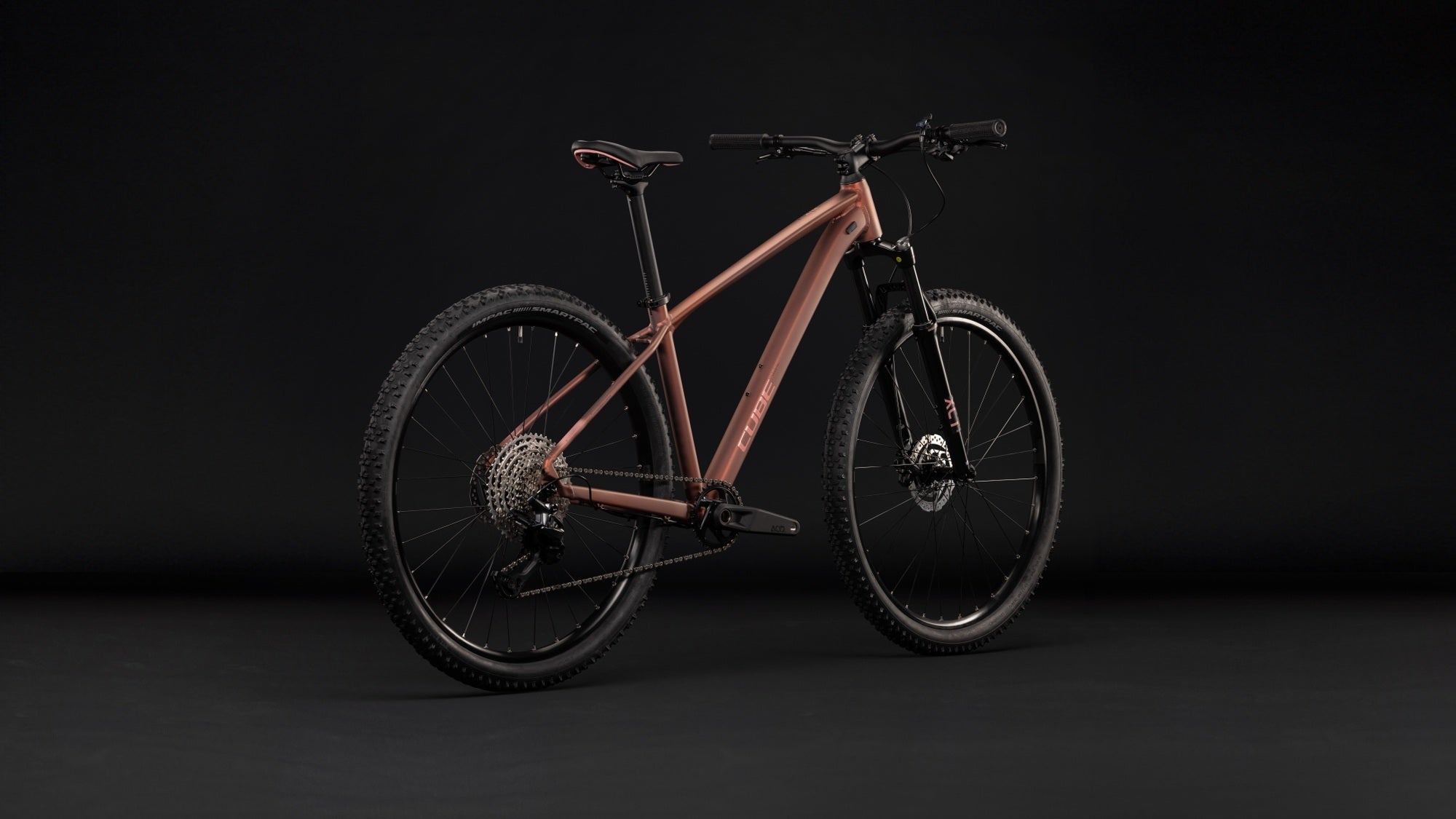

There are two things you want from a great mountain bike: control and dependability. The Aim SLX's 100mm Suntour suspension fork, strong Shimano hydraulic disc brakes and wide, grippy 2.25in tyres take care of the control side of things. Rain or shine, tarmac or trail, it's everything you need to take the rough with the smooth, safely. As for dependability, it doesn't come any better than Shimano's legendary 1x12 gears with an XT derailleur. With a huge range and a decades-long reputation for off-road performance, it's the go-to system for many riders. Where will it take you?

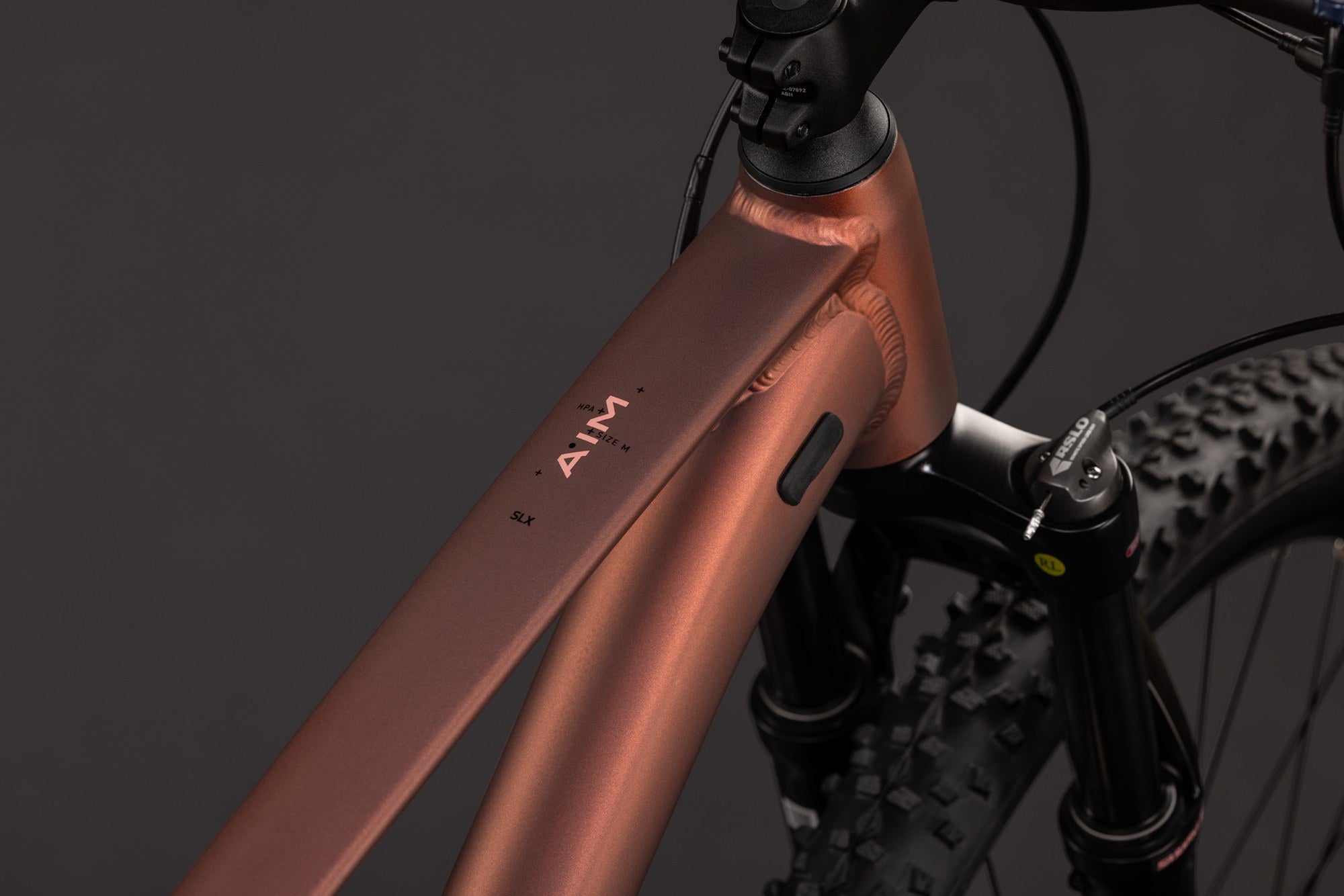

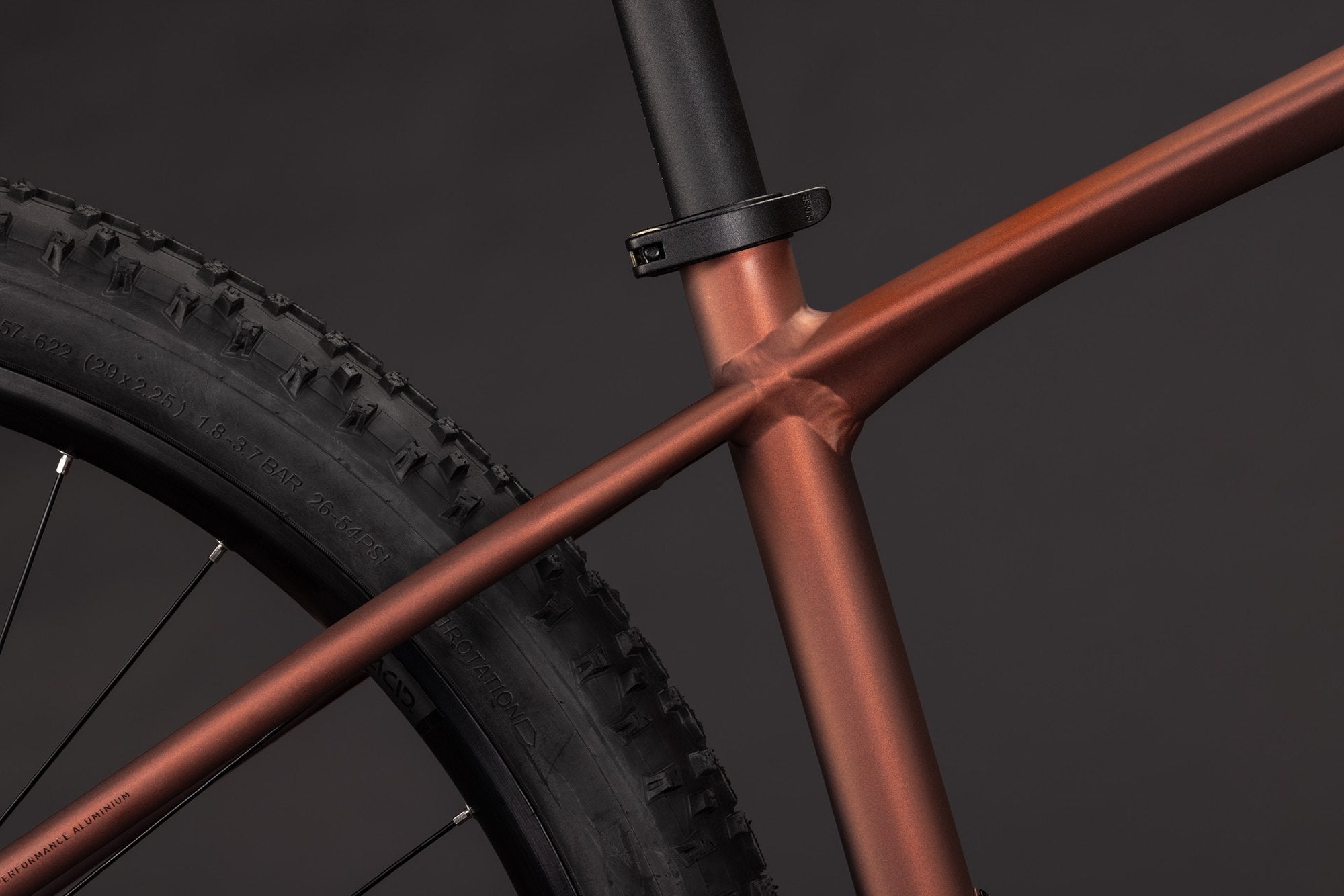

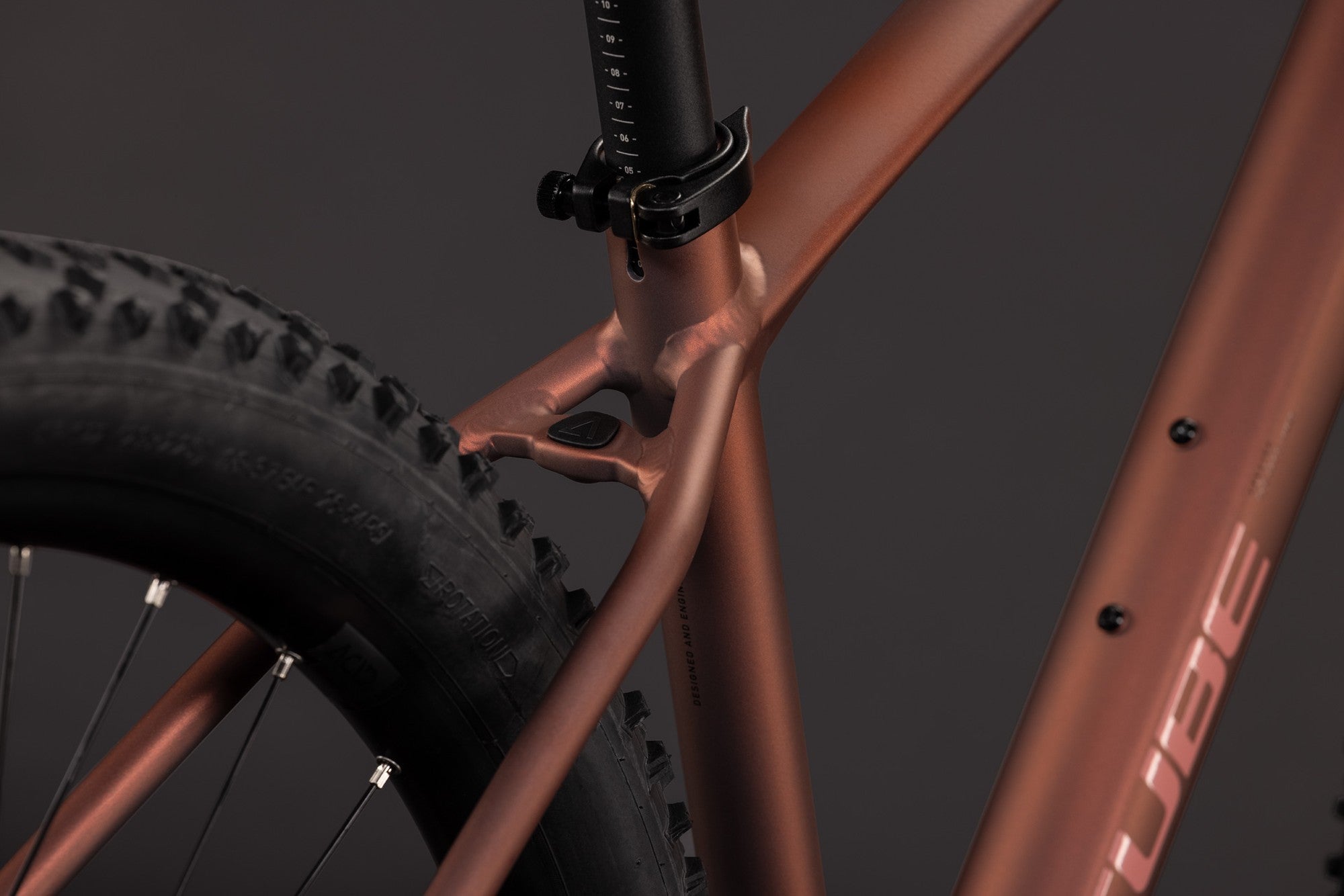

Frame description You'll notice that the Aim's High Performance Aluminium frame features almost organic lines, carefully crafted tube profiles and joints that are so smooth, one tube practically flows into the next. None of that is an accident – we believe a frame that functions brilliantly should also have an elegant form. To that end, we routed cables internally – including provision for a dropper seatpost. Mounting points include compatibility with our Semi-Integrated Carrier 2.1 and a flat mount kickstand, while a tapered head tube ensures confidence-inspiring handling and the replaceable gear hanger means it's easy to get up and running again in the event of a knock to the derailleur. We sweat the detail, so you can just pedal...
Read more
Matching accessories
CUBE BOTTLE CAGE HPP MATT BLACK/GLOSSY BLACK
£16.95
RFR Mini - Bell Black
£3.95
ACID PUMP RACE FLEX HV BLACK
£34.95
ACID REAR CARRIER SIC 27.5 INCH RILINK BLACK
£59.95
ACID REAR CARRIER SIC PURE 27.5 INCH RILINK BLACK
£29.95
ACID PEDALS FLAT A40 BLACK
£69.95
ACID MUDGUARD SET 65 27.5 INCH BLACK
£39.95
ACID CARRIER SIC RAIL 27.5 INCH BLACK
£49.95
ACID KICKSTAND FM PURE
£24.95
ACID KICKSTAND FM PRO BLACK
£34.95
ACID KICKSTAND FM BLACK
£29.95
ACID CARRIER TOP RAIL 120MM RILINK
£29.95
ACID BOTTLE CAGE UNIVERSAL BLACK/BLACK
£19.95
Often bought together
CUBE BOTTLE FLOW 500 BLACK
£4.95
CUBE Bottle 0,5L Icon Transparent
£4.95
ACID CHAIN COMBINATION LOCK CORVID C120 BLACK
£29.95
ACID CHAIN LOCK CORVID K100 BLACK
£26.95
RFR CYCLE COMPUTER WIRELESS CMPT BLACK/WHITE
£24.95
ACID LIGHT SET PRO 30 BLACK
£39.95
ACID LIGHT SET PRO 40 BLACK
£49.95
ACID LED LIGHT SET HPA BLACK
£39.95
ACID Saddle Bag Click M Black
£29.95
Specifications
General
Model code
1140620
Model year
2027
Colour
Rustyrose/Peach
Maatserie
Size Split: 27.5: XS, S // 29: M, L, XL
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
15.4
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.

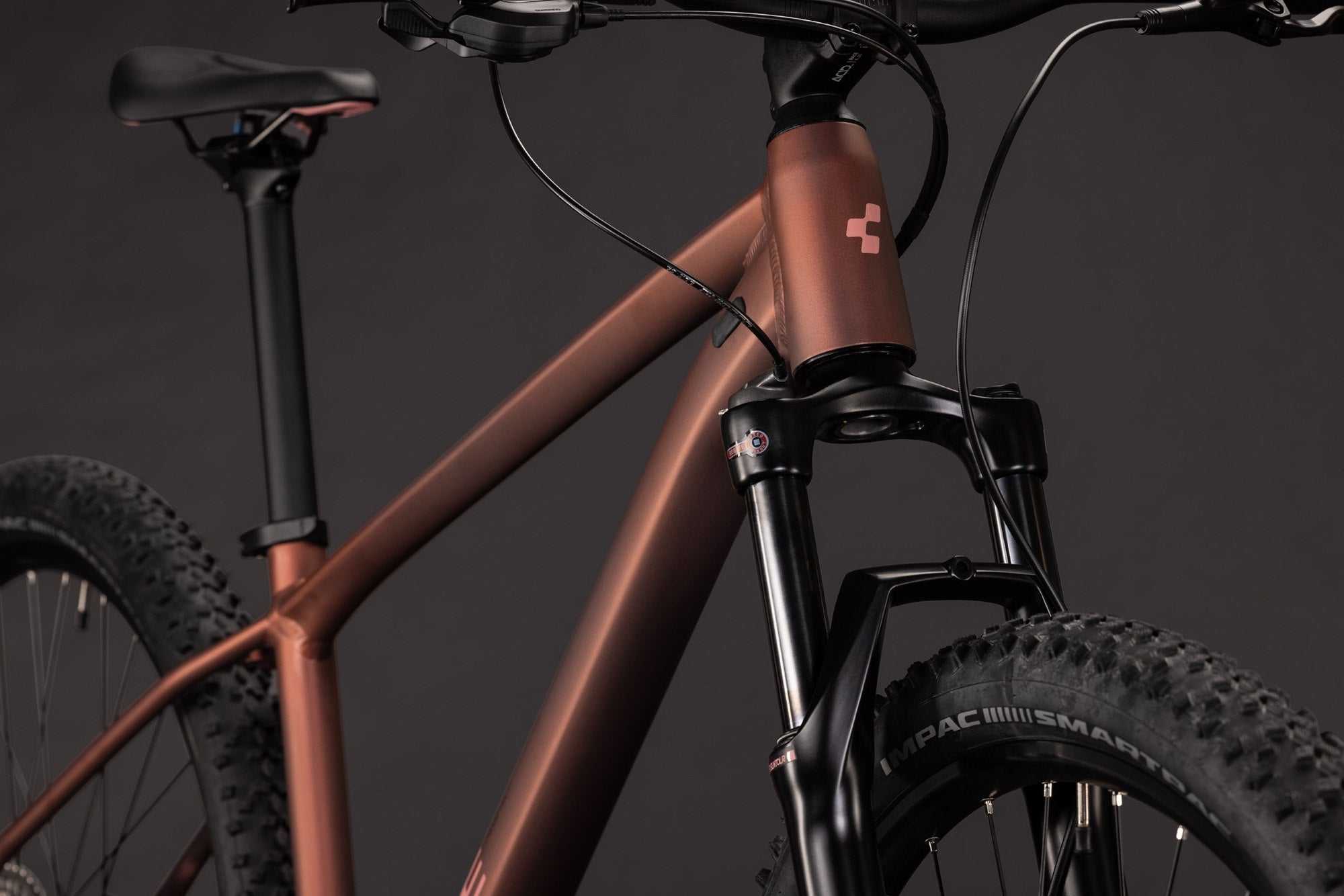

SR Suntour XCT 30 ATB Disc, 100mm, Remote Lockout
Drivetrain and brakes
Number of gears
12
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
Shifters
?
Make and type of gear levers.
Shimano Deore SL-M6200-R, Rapidfire Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.

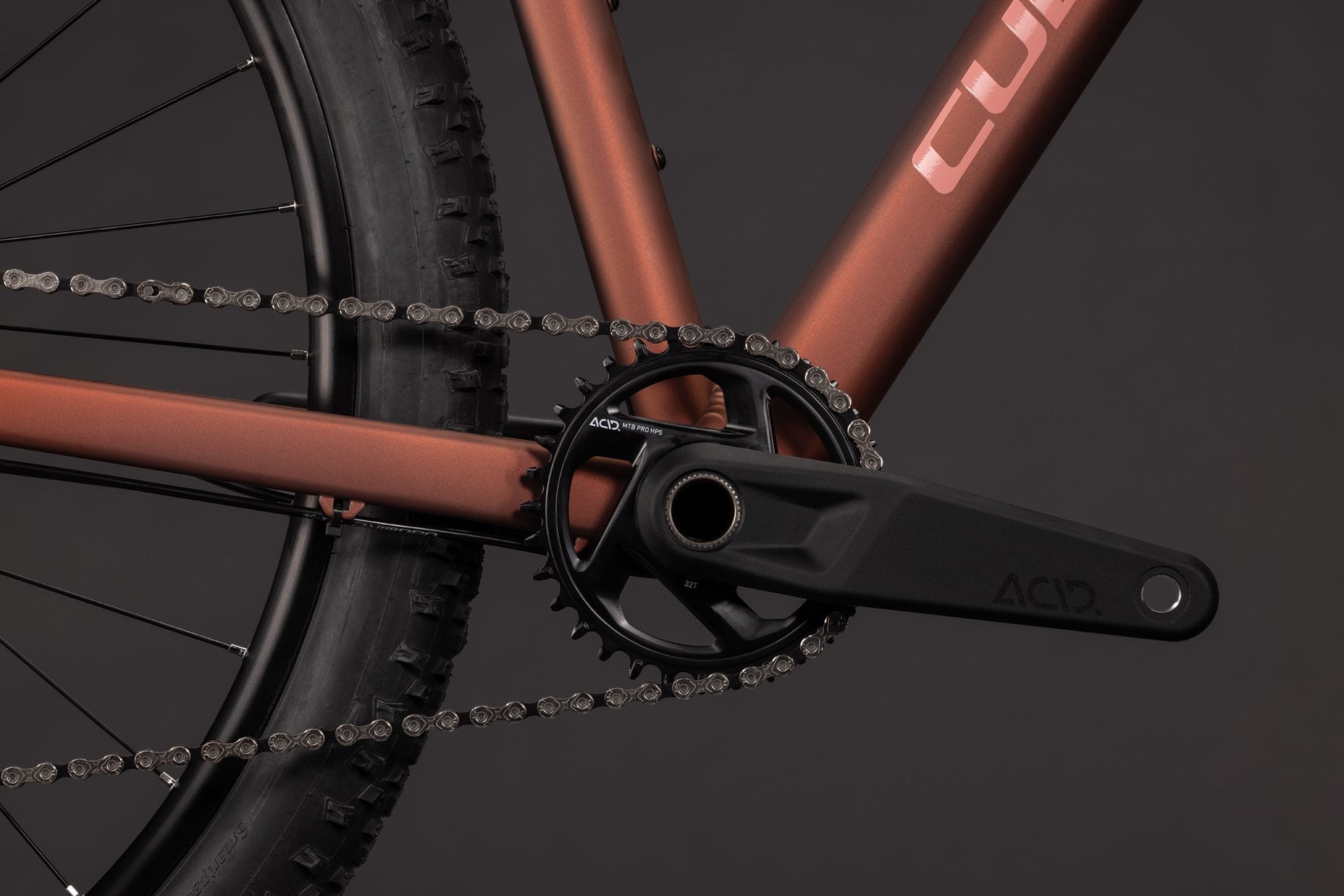

Acid MTB Pro, 32T
Cassette
?
The set of gears on the back of the bicycle
Shimano Deore CS-M6100, 10-51T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC X12
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868p, Tapered, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Rims
Acid EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano HB-QC300, QR, Centerlock
Rear hub
Shimano FH-QC500-MS, QR, Centerlock
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Impac Smartpac, Draht, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Impac Smartpac, Wire, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Lakstift
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
