What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Reliable shifting with 12-speed Shimano and an XT derailleur
Integrated mounts for mudguards, a rack and rear kickstand
Size Split sizing: 27.5-inch wheels on small sizes and 29-inch wheels on large sizes
No thru-axles
Product description
You expect two things from a good mountain bike: control and reliability. The Aim SLX has an excellent foundation for both. Its high-quality aluminium frame combines flowing lines and carefully designed tube shapes with clean welds and internal cable and hose routing. A tapered head tube provides confidence-inspiring handling, and our Size Split sizing ensures a suitable frame size for every rider.
On the trail, the Suntour suspension fork with ten centimetres of travel does exactly what you expect: smoothly absorbing rocks, roots and holes. Wide, grippy 2.25-inch tyres provide contact with the ground, and hydraulic Shimano disc brakes deliver the necessary stopping power. Then there is the Shimano 1x12 drivetrain with an XT derailleur. Wide range, precise shifting and a reputation needing no introduction. A hardtail you can trust when the tarmac ends. The only question is: where does the route lead?
Read more
Matching accessories
New
CUBE BOTTLE CAGE HPP MATT BLACK/GLOSSY BLACK
£16.95
New
RFR Mini - Bell Black
£3.95
New
ACID PEDALS FLAT A20 OIL SLICK
£49.95
New
ACID PUMP RACE FLEX HV BLACK
£34.95
New
ACID REAR CARRIER SIC 29 INCH RILINK BLACK
£59.95
New

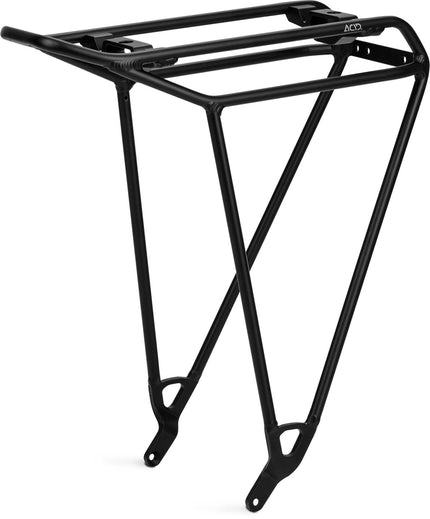

ACID REAR CARRIER SIC PURE 29 INCH RILINK BLACK
£34.95
New
ACID PEDALS FLAT A40 BLACK
£69.95
New
ACID MUDGUARD SET 65 29 INCH BLACK
£39.95
New
ACID CARRIER SIC RAIL 29 INCH BLACK
£49.95
New
ACID KICKSTAND FM PURE
£24.95
New
ACID KICKSTAND FM PRO BLACK
£34.95
New
ACID KICKSTAND FM BLACK
£29.95
New
ACID BOTTLE CAGE UNIVERSAL BLACK/BLACK
£19.95
Often bought together
New
CUBE BOTTLE FLOW 500 BLACK
£4.95
New
CUBE Bottle 0,5L Icon Transparent
£4.95
New
ACID CHAIN LOCK CORVID K100 BLACK
£26.95
New
RFR CYCLE COMPUTER WIRELESS CMPT BLACK/WHITE
£24.95
New
ACID LIGHT SET PRO 30 BLACK
£39.95
New
ACID LIGHT SET PRO 40 BLACK
£49.95
New
ACID LED LIGHT SET HPA BLACK
£39.95
New
ACID Saddle Bag Click M Black
£29.95
Specifications
General
Model code
1140600
Model year
2027
Colour
Slateblack/Chrome
Sizes
Size Split: 27.5: XS, S // 29: M, L, XL
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
15.1
Frame and front fork
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour XCT 30 ATB Disc, 100mm, Remote Lockout
Drivetrain and brakes
Number of gears
12
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
Shifters
?
Make and type of gear levers.
Shimano Deore SL-M6200-R, Rapidfire Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Acid MTB Pro, 32T
Cassette
?
The set of gears on the back of the bicycle
Shimano Deore CS-M6100, 10-51T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC X12
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH868p, Tapered, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Wheels
Rims
Acid EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano HB-QC300, QR, Centerlock
Rear hub
Shimano FH-QC500-MS, QR, Centerlock
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Impac Smartpac, Draht, 2.25
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Impac Smartpac, Wire, 2.25
Other parts
Seat
Acid Venec Lite
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Cube PP MTB
Kickstand
Niet inbegrepen – apart verkrijgbaar / Not included – available separately
Touch up pen
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
