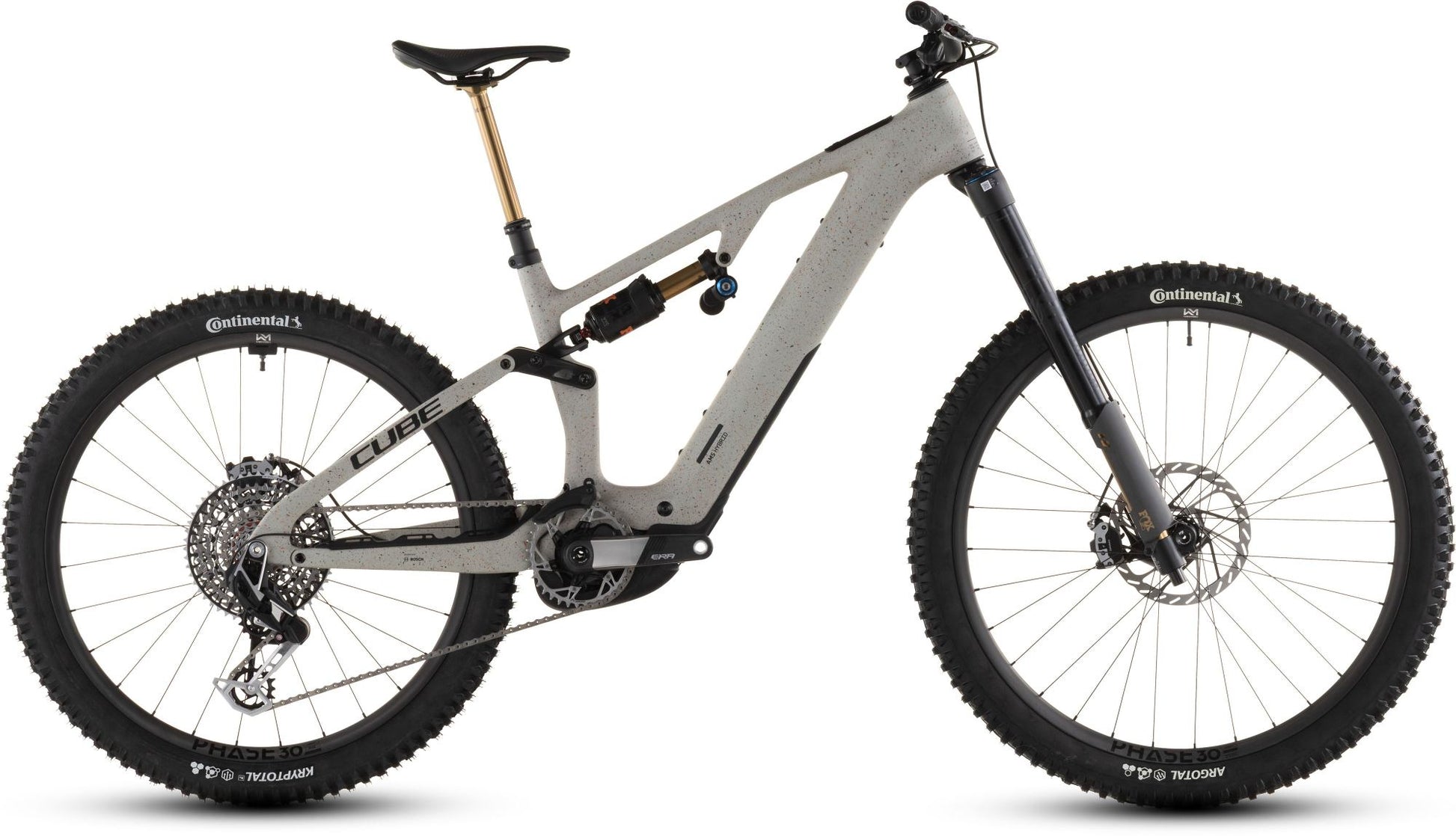

CUBE AMS HYBRID ONE77 C:62 SUPER TM 600X REEDBEIGEGRIT
CUBE AMS HYBRID ONE77 C:62 SUPER TM 600X REEDBEIGEGRIT










Description
Frame description

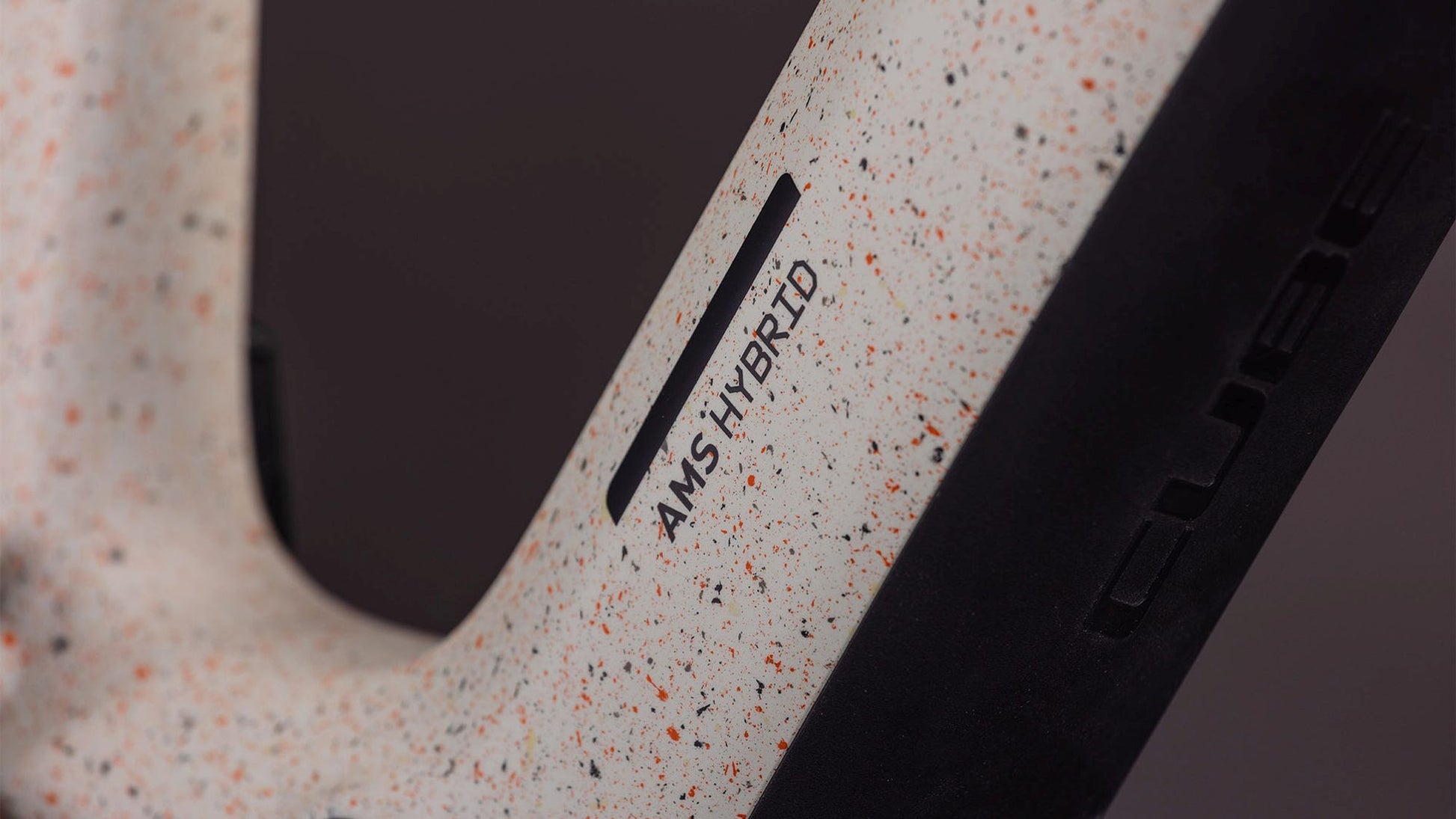

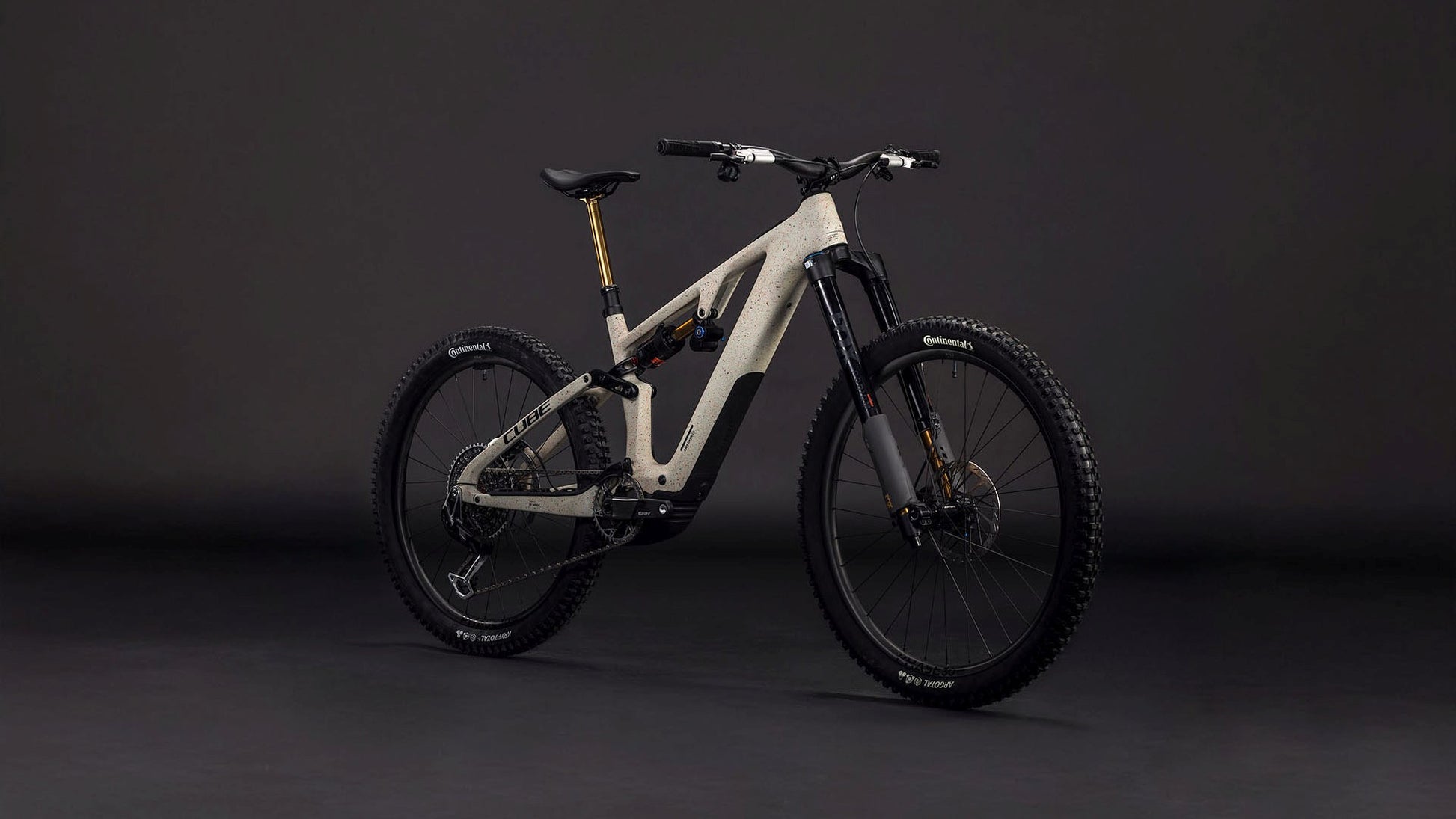

We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62 carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!
Product specifications
Frame
Model year
2026
Fork
Fox Podium Factory GRIPX2, Tapered, 15x110mm, 170mm
E-bike System
Engine
Bosch Drive Unit Performance Line CX-R 100Nm (BDU38)
Battery
Bosch PowerTube 600
display

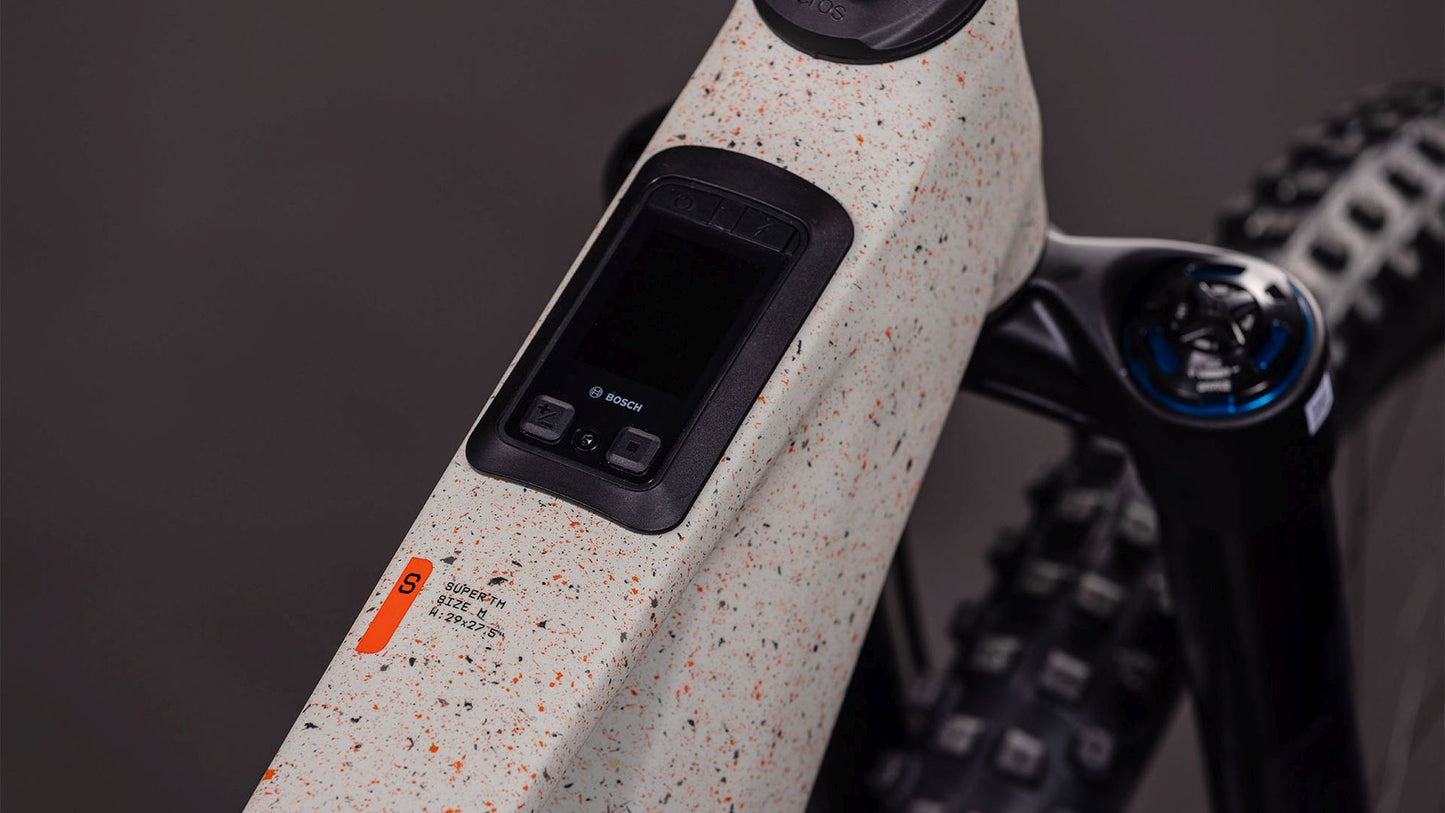

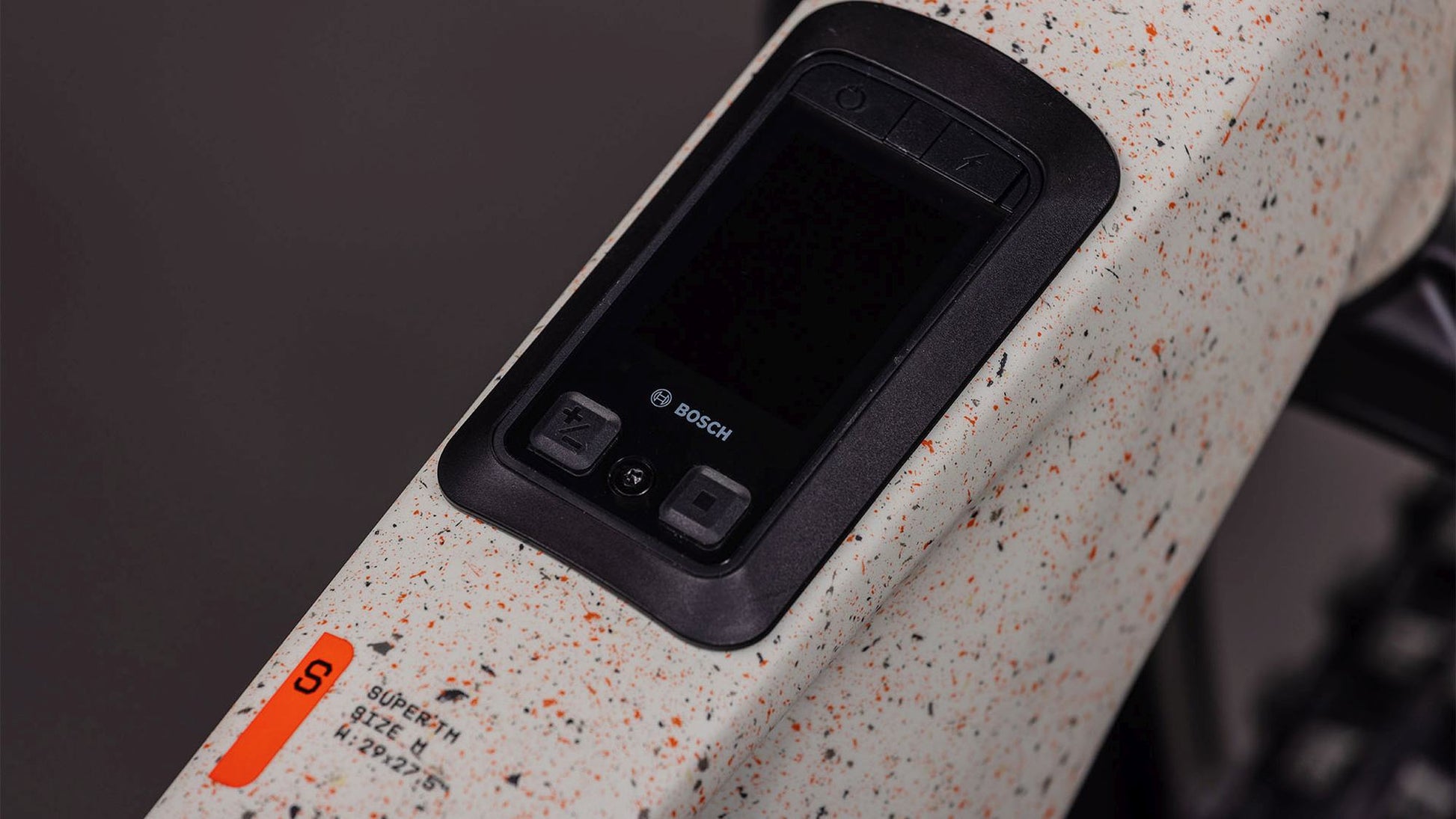

Bosch Kiox 400C
Drivetrain and brakes
Front brake
Sram Maven Ultimate, Hydr. Disc Brake (200/200)
Rear brake
Sram Maven Ultimate, Hydr. Disc Brake (200/200)
Rear derailleur
Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
Shifters
Sram AXS™ Pod Ultimate Controller
Crankset

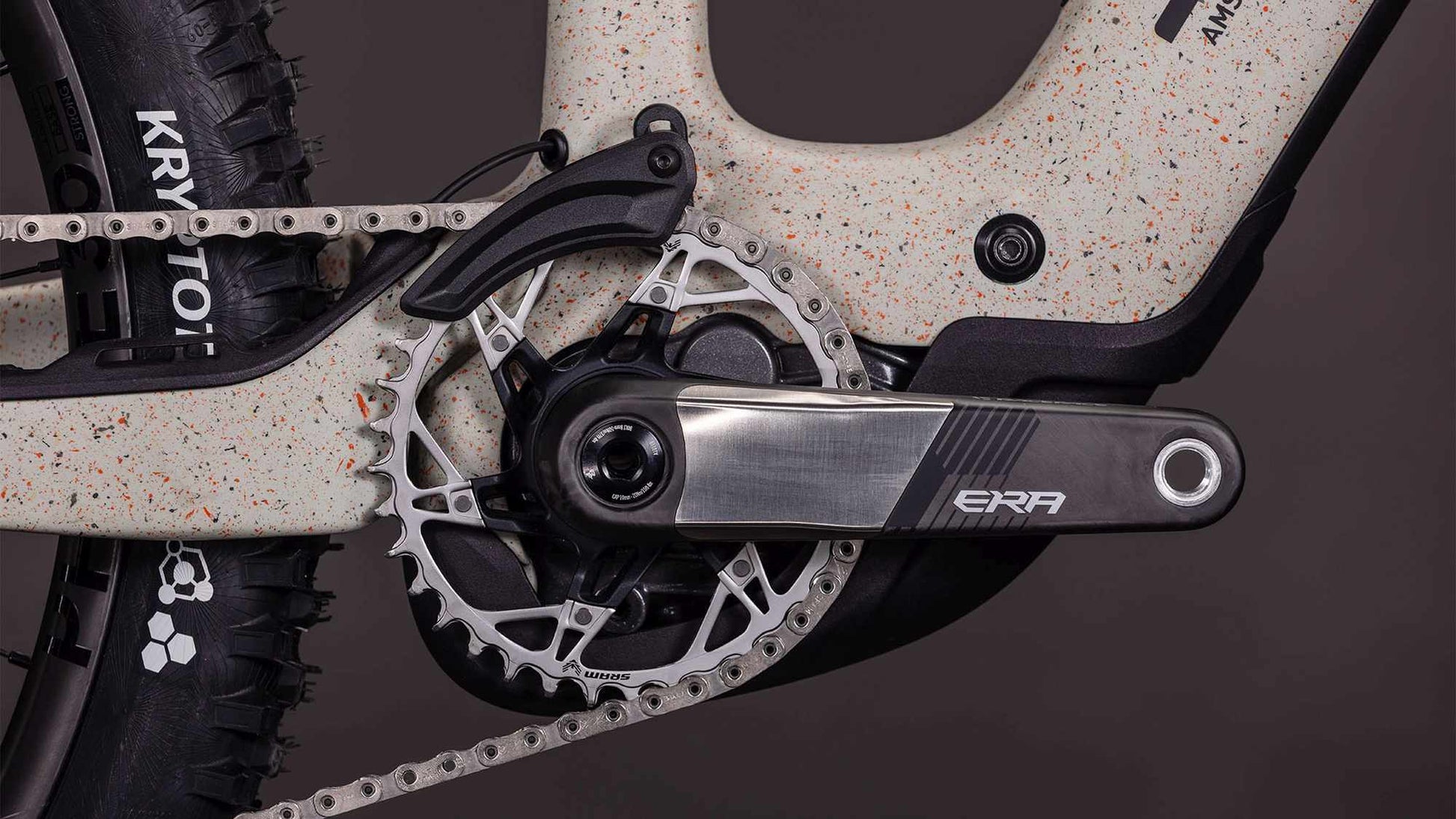

RaceFace ERA E-MTB, 36T
Cassette
Sram XS-1297, 10-52T
Chain
Sram XX Eagle Transmission
Cockpit
Headset

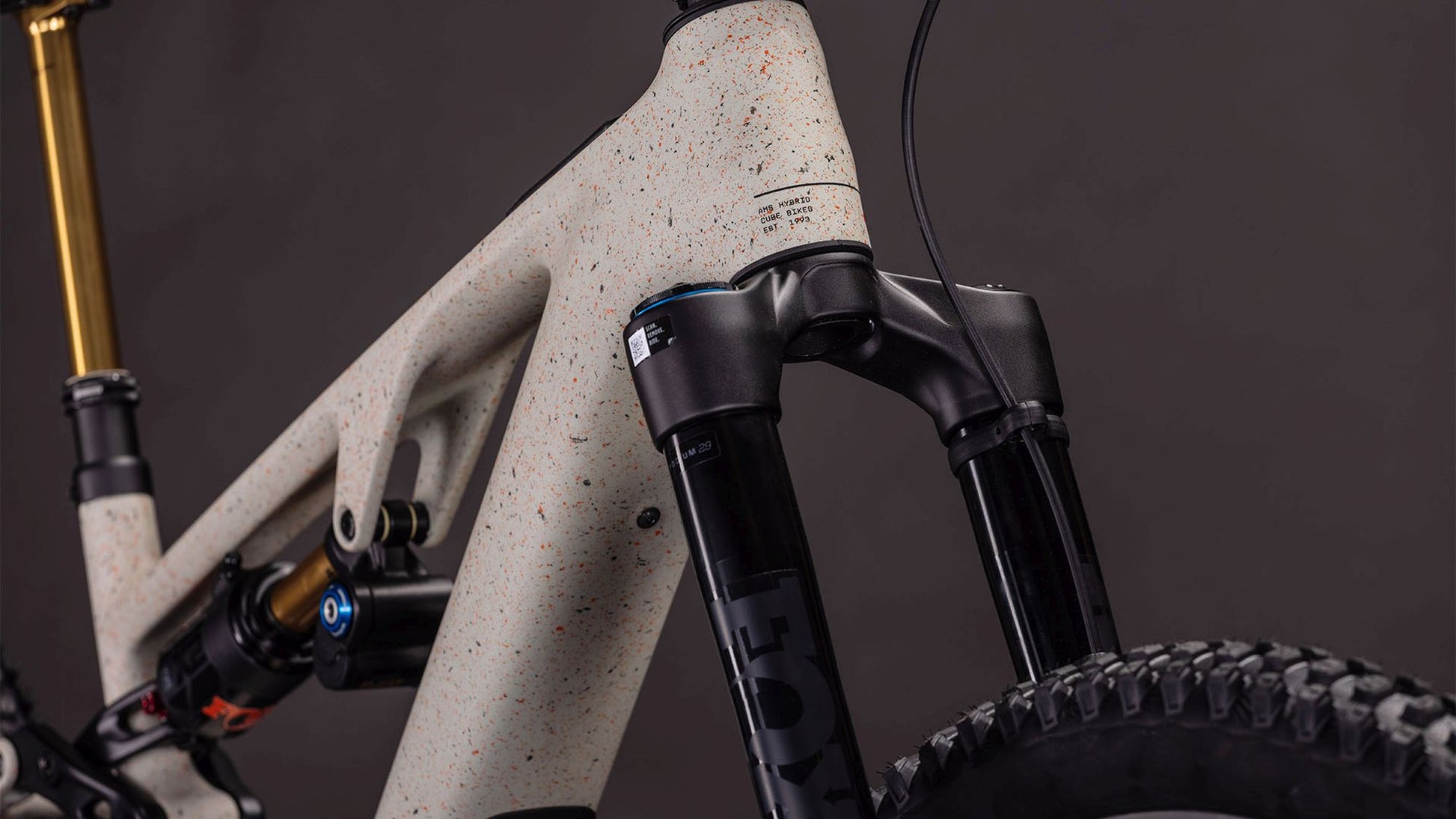

Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Handlebar
RaceFace ERA 35
Stem
RaceFace Turbine R 35
Bar tape or grips
Acid Disrupt, Soft Compound
Wheels
Wheels
Newmen Phase 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre
Continental Argotal, Enduro Super Soft, Tubeless Ready, 2.4
Rear Tyre
Continental Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Other parts
Saddle
Acid Venec EMTB Trail 140
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated
Seatpost clamp
Cube Seatpost clamp
Pedals
Acid PP MTB
