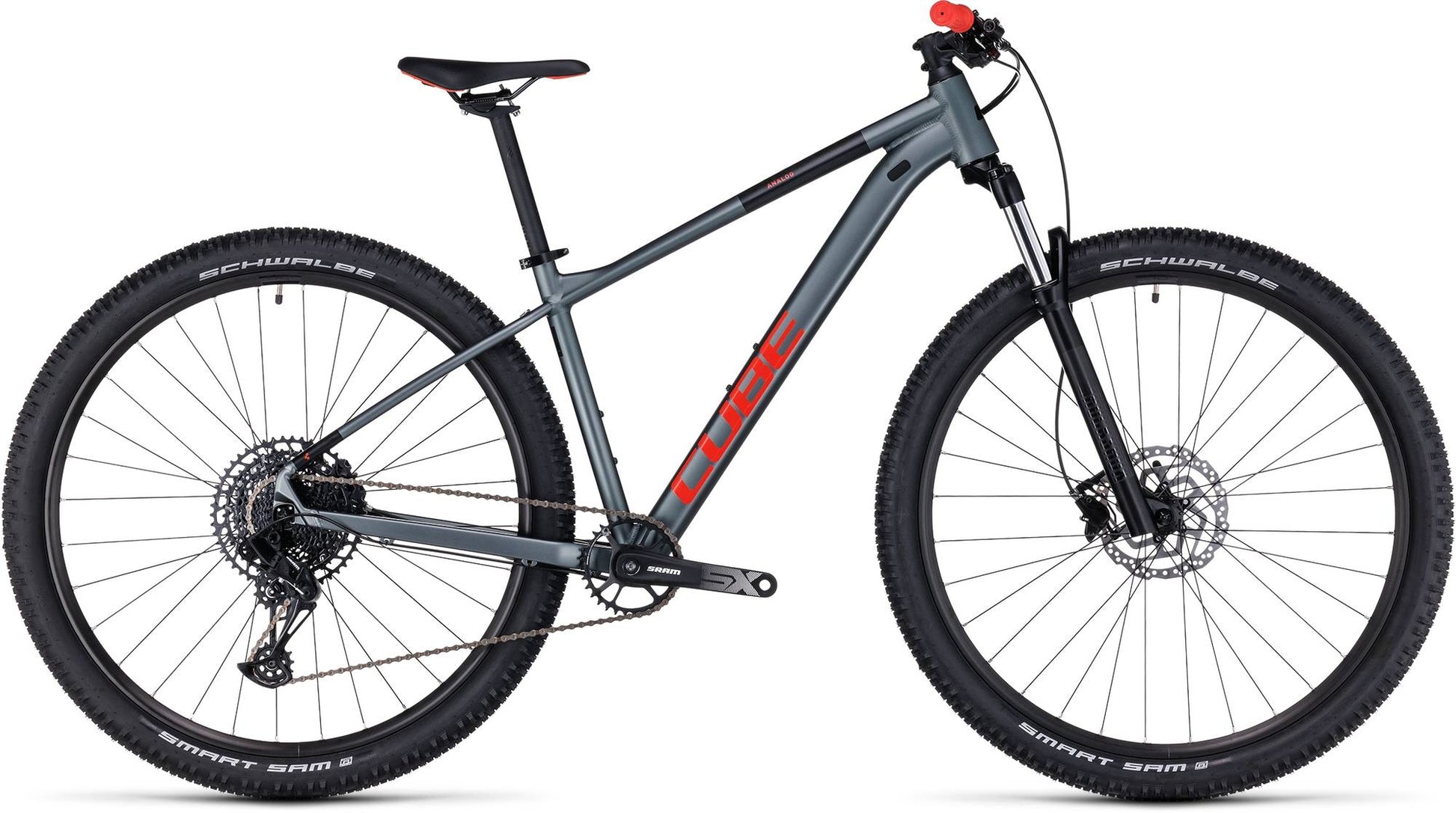

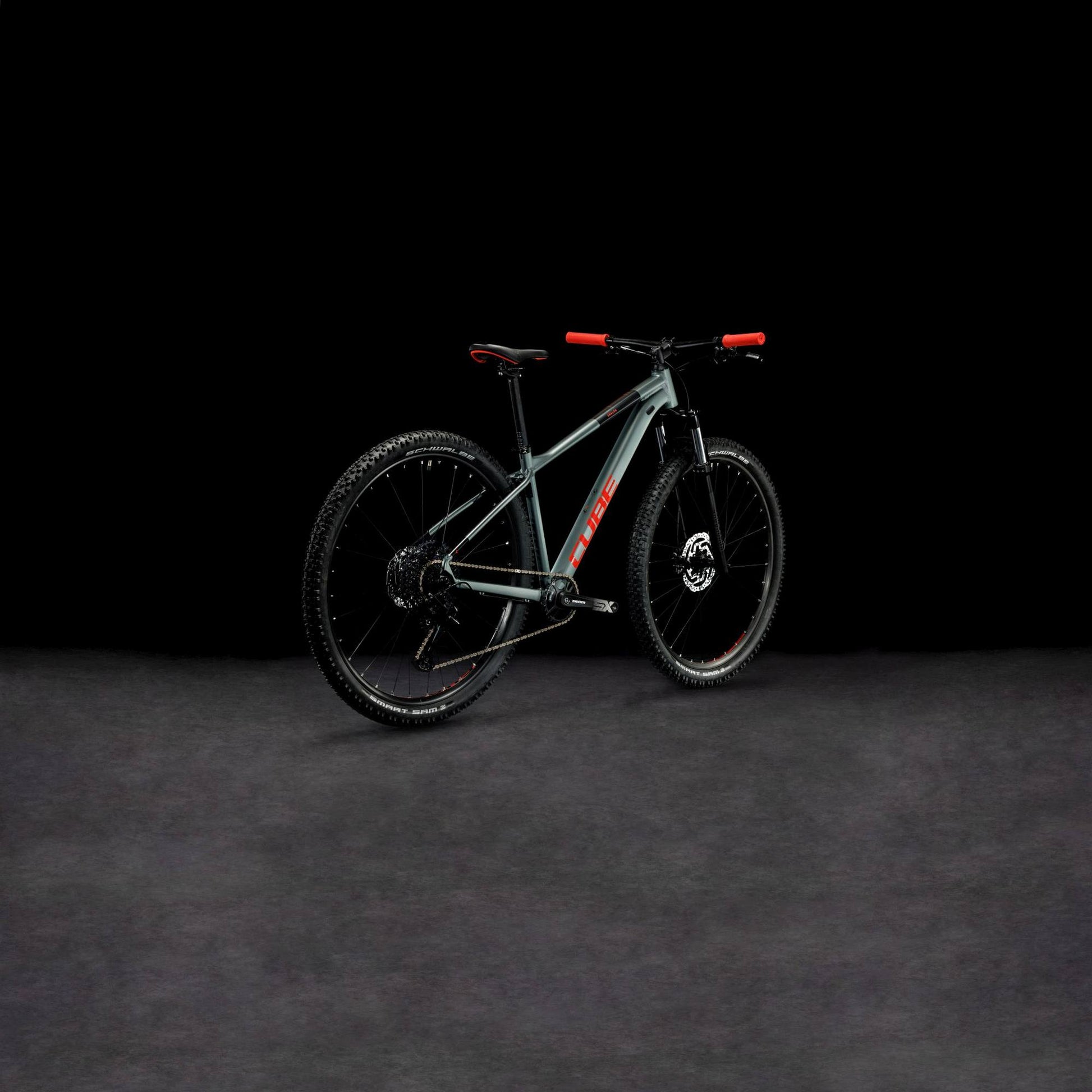

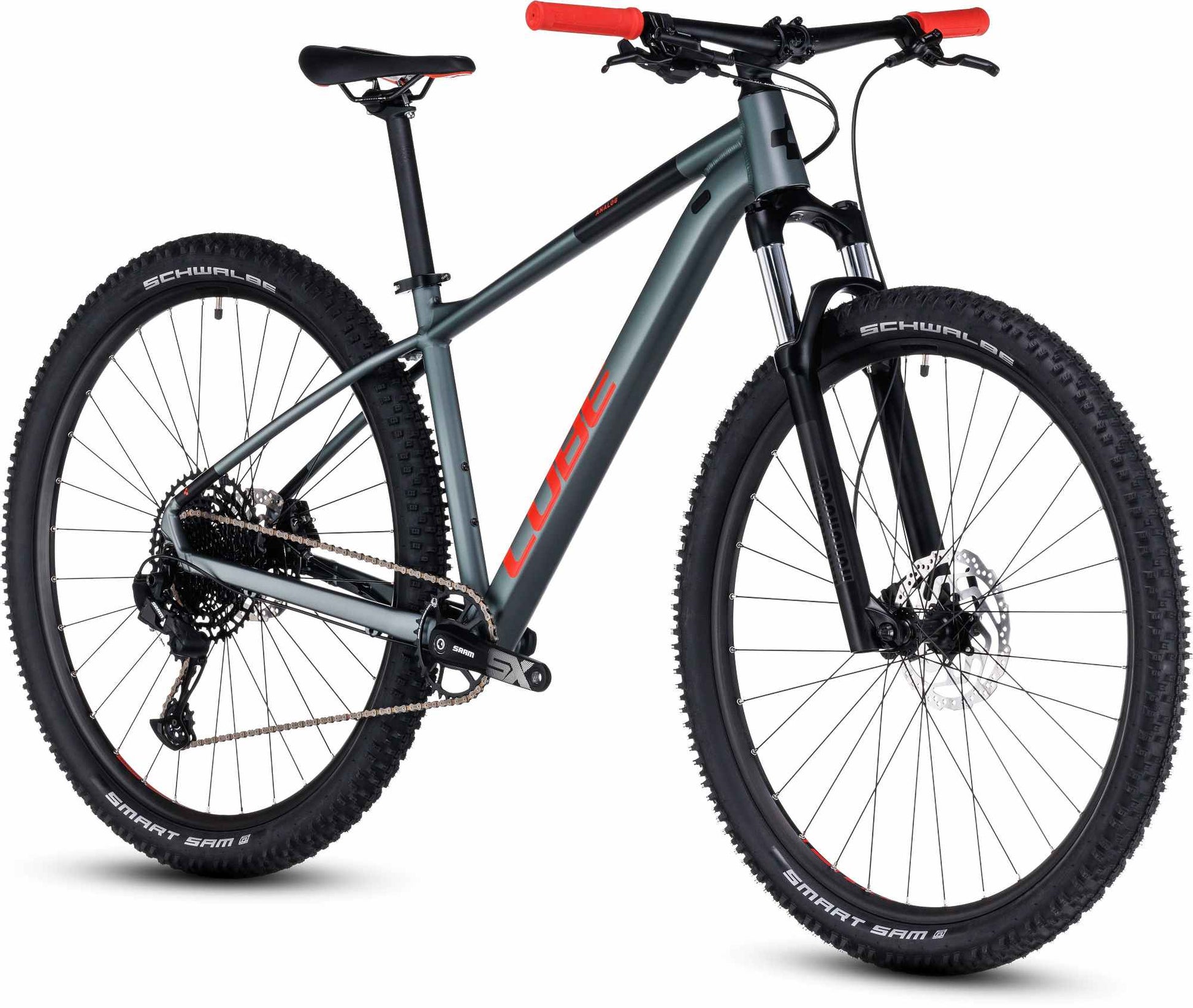

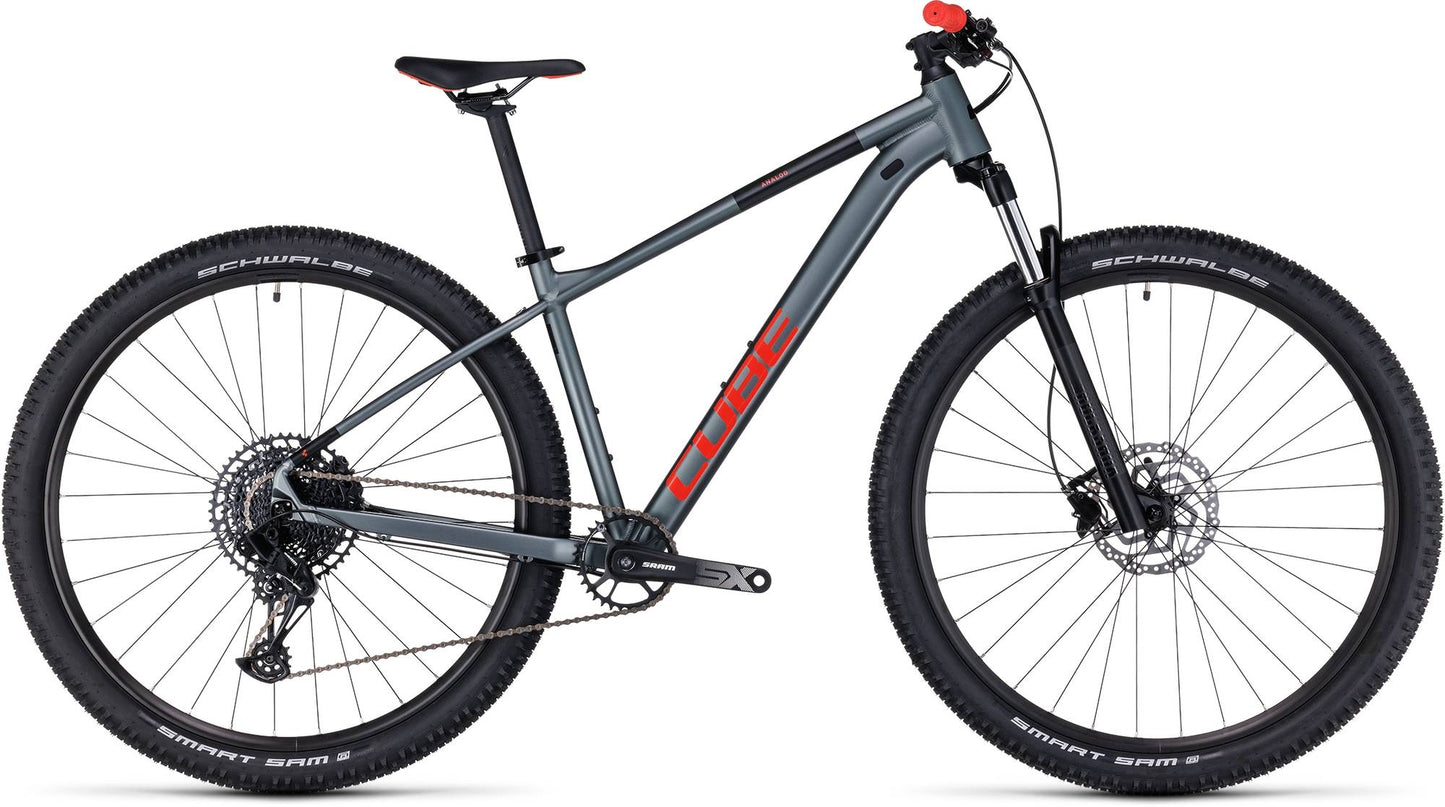

CUBE ANALOG FLASHGREY/RED
CUBE ANALOG FLASHGREY/RED
Plus Points
- High-quality, lightweight aluminum frame
- Nice low top tube for easy mounting and dismounting
- Sleek design with internal cable routing
- Great mix of agility and stability thanks to the CUBE Agile Ride geometry
- Size Split: 27.5 inch wheels in the small sizes and 29er wheels in the large sizes
- Integrated mounting points for fenders, rack, and kickstand
- Lightweight and very user-friendly 1x12 drivetrain
Advisory points
- Heavier than the CUBE Attention
- and Acid models
- No thru-axles
- No air suspension
Description
CUBE ANALOG FLASHGREY/RED M
A hardtail is a versatile beast, so it helps to have the right kit to get the most out of that versatility. With the Analog we started by choosing Sram's Eagle 1x12 transmission. With its huge range, ease of use and reliable performance, it's the go-to for many keen riders. Paired with powerful hydraulic disc brakes and a smooth RockShox suspension fork, it puts you firmly in control. Grippy 2.25in tyres, perfect sizing from our SizeSplit system and the option of a future dropper post upgrade complete the package.
Frame description

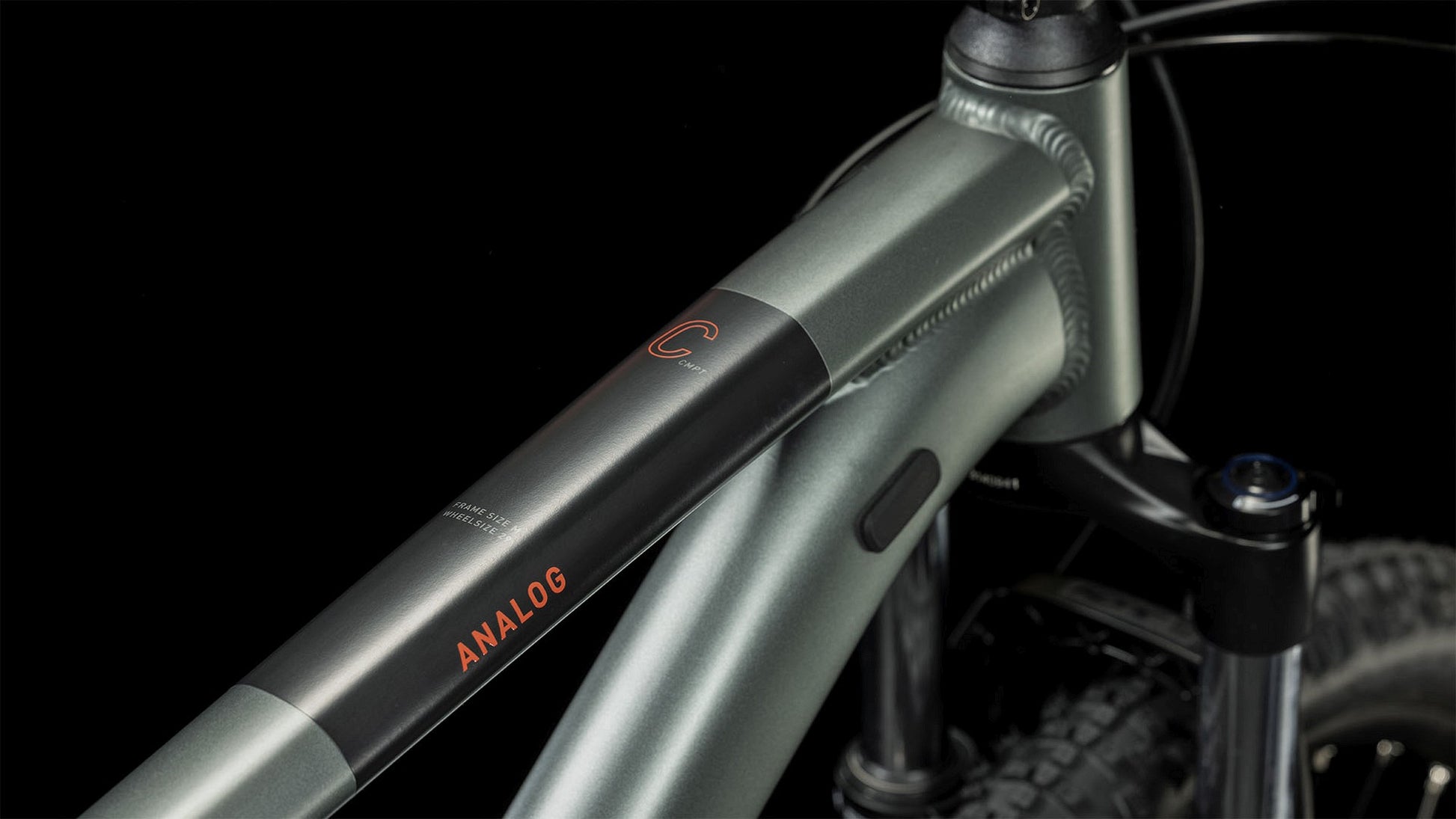

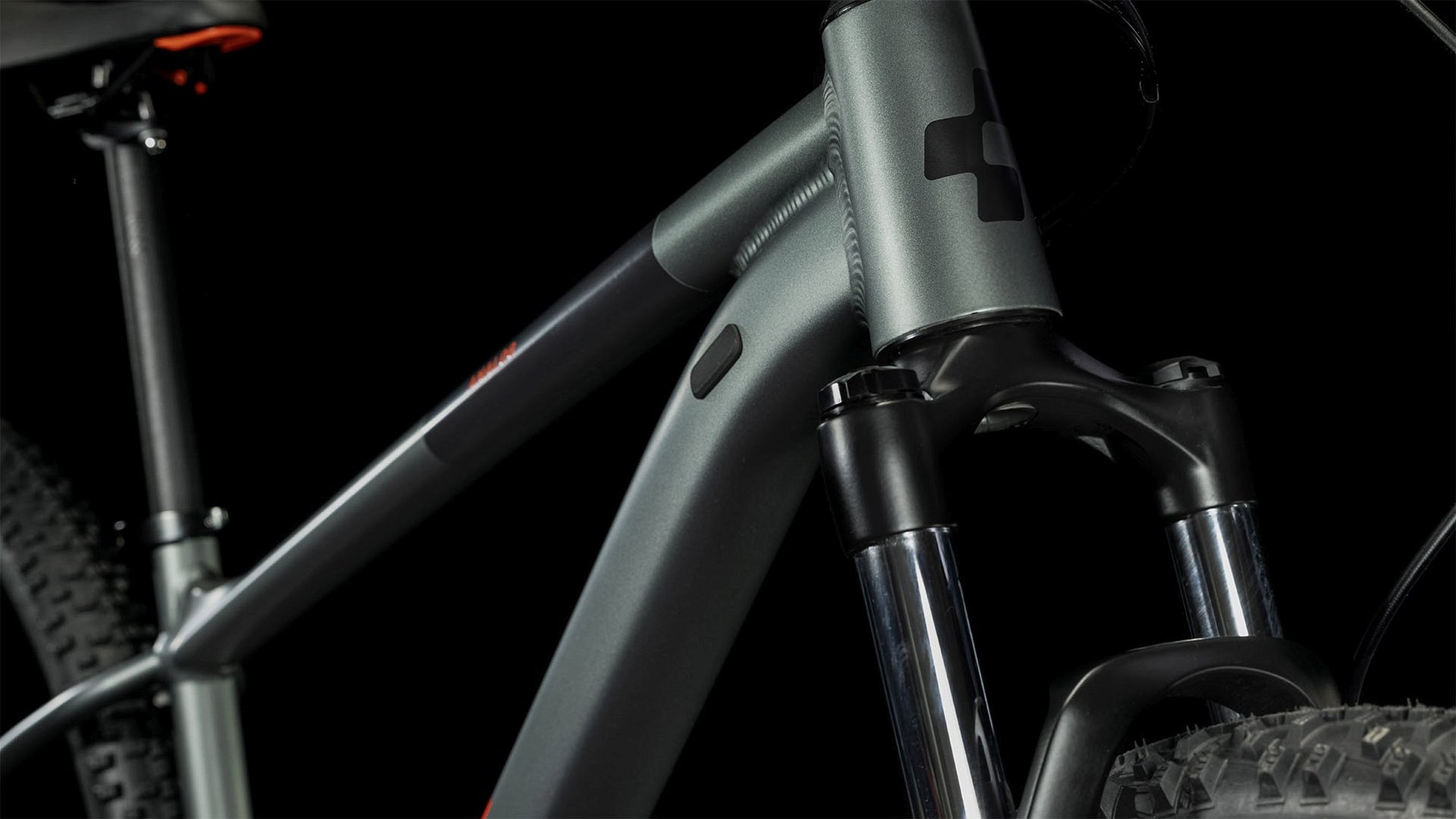

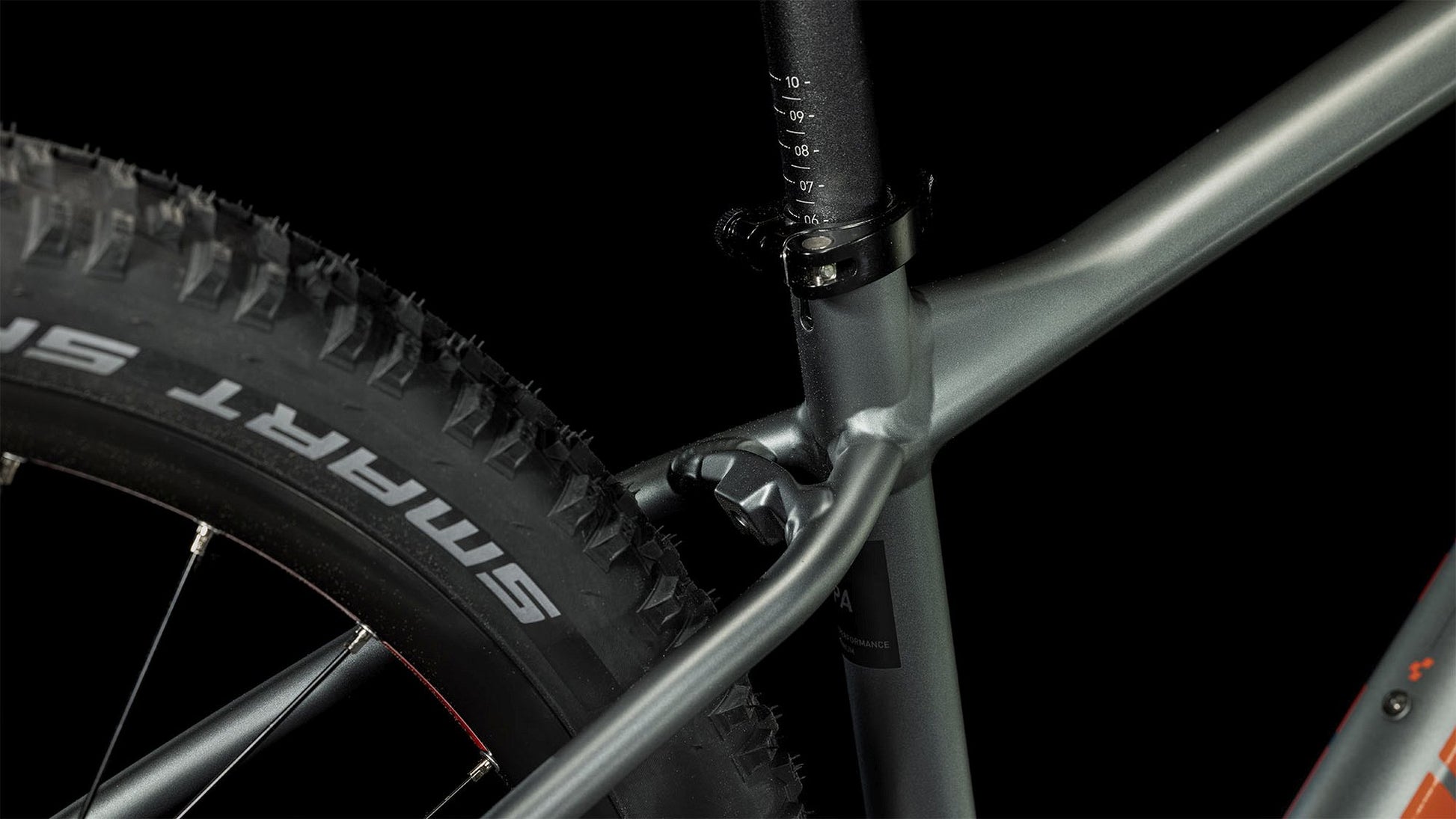

The Analog's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Analog that fits perfectly. And, as your skills increase, there's scope to fit a dropper post upgrade.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
602100
Model year
2024
Colour
flashgrey/red
Fork
Rockshox Judy Silver TK Coil, 100mm, Lockout
Drivetrain and brakes
Front brake
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160)
Rear brake
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160)

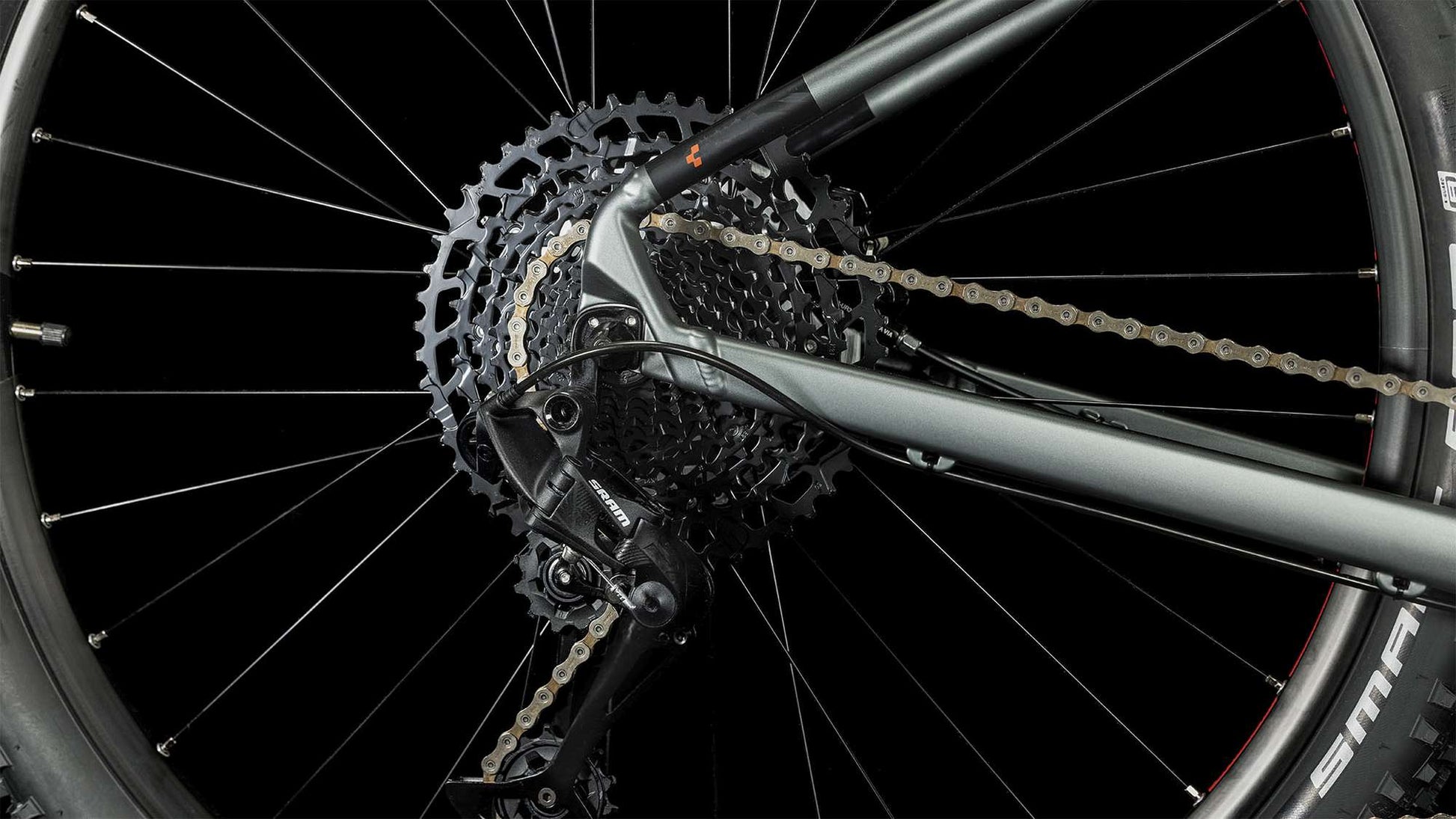

Rear derailleur
Sram SX Eagle™, 12-Speed
Shifters
Sram SX Eagle™ Trigger

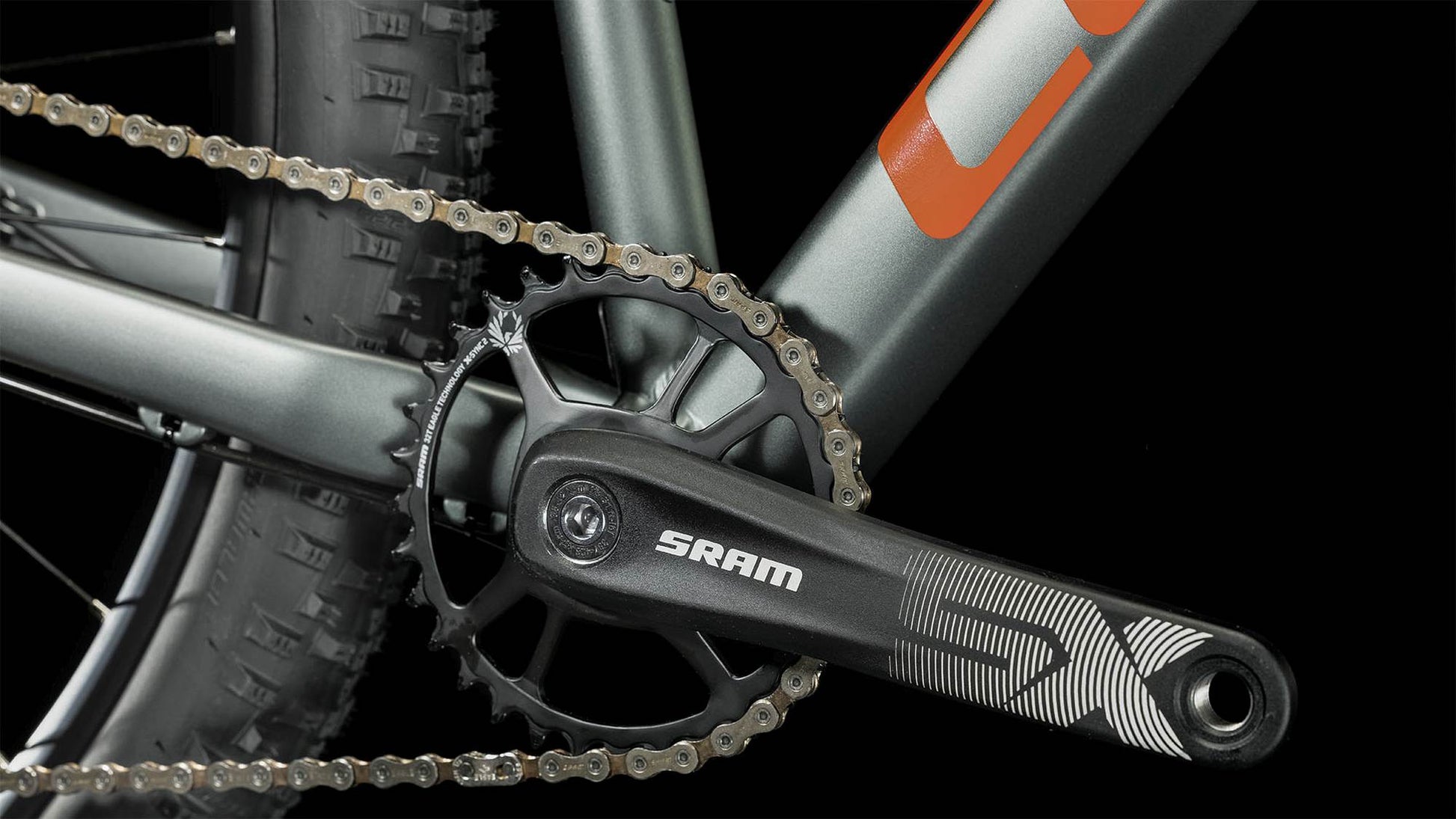

Crankset
Sram SX Eagle™ Powerspline, 32T, 175mm
Cassette
Sram PG-1210 Eagle™, 11-50T
Chain
Sram SX Eagle™
Cockpit
Headset
Cube FPH868, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem SLX, 31.8mm
Bar tape or grips
Acid React
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Front tyre
Schwalbe Smart Sam, Active, 2.25
Rear Tyre
Schwalbe Smart Sam, Active, 2.25
Other parts
Saddle
Venec Lite
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
Acid PP MTB
