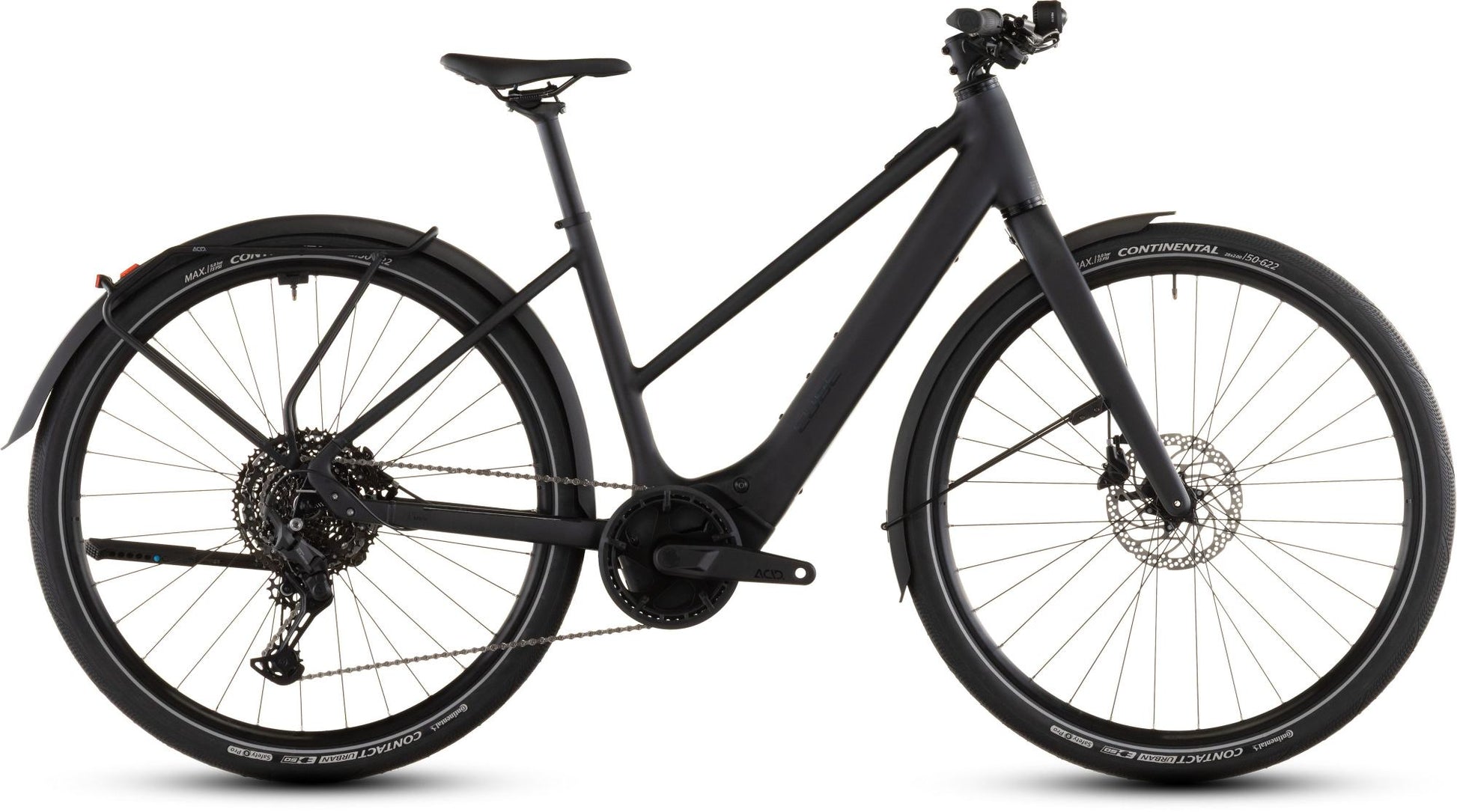

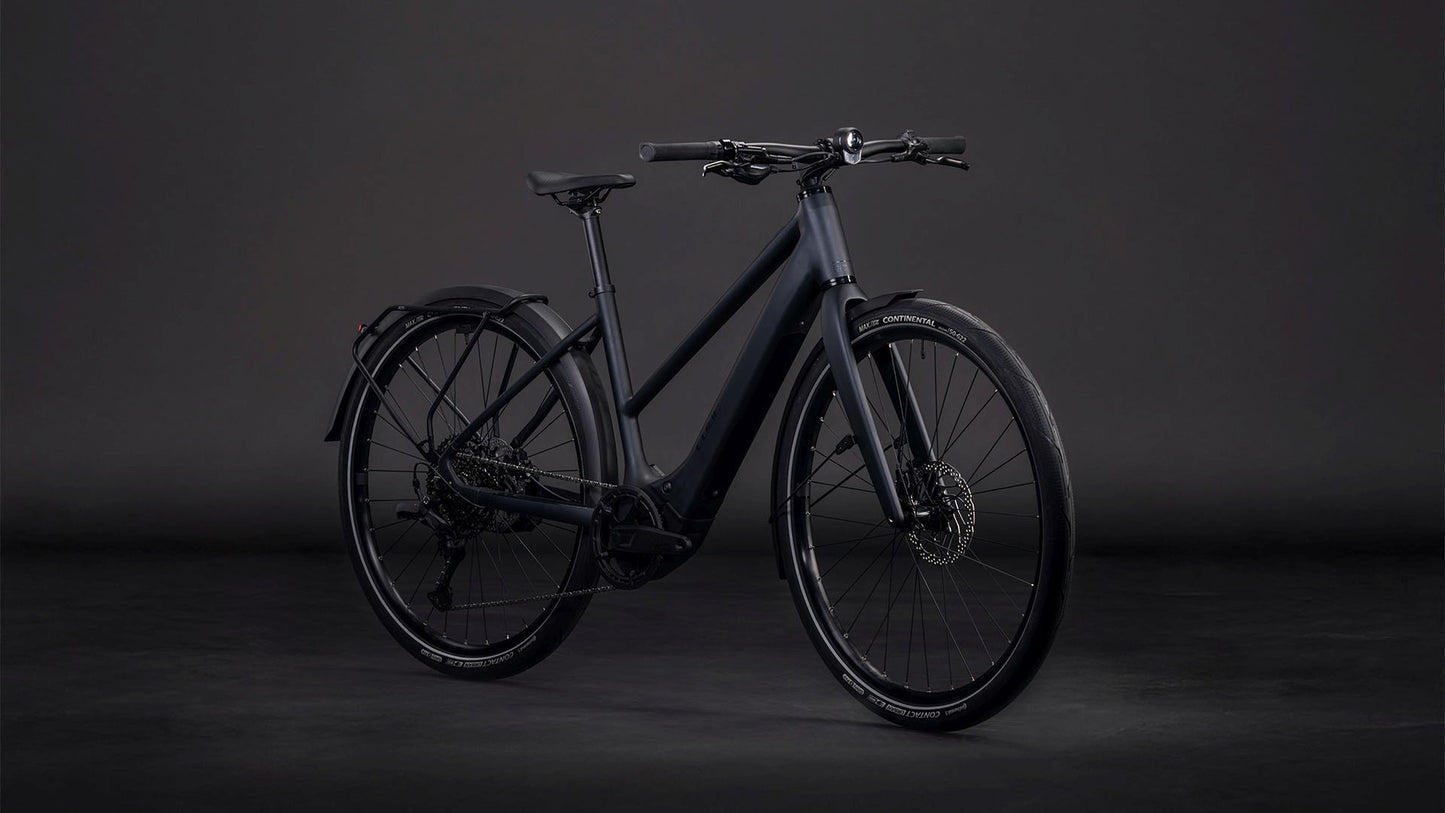

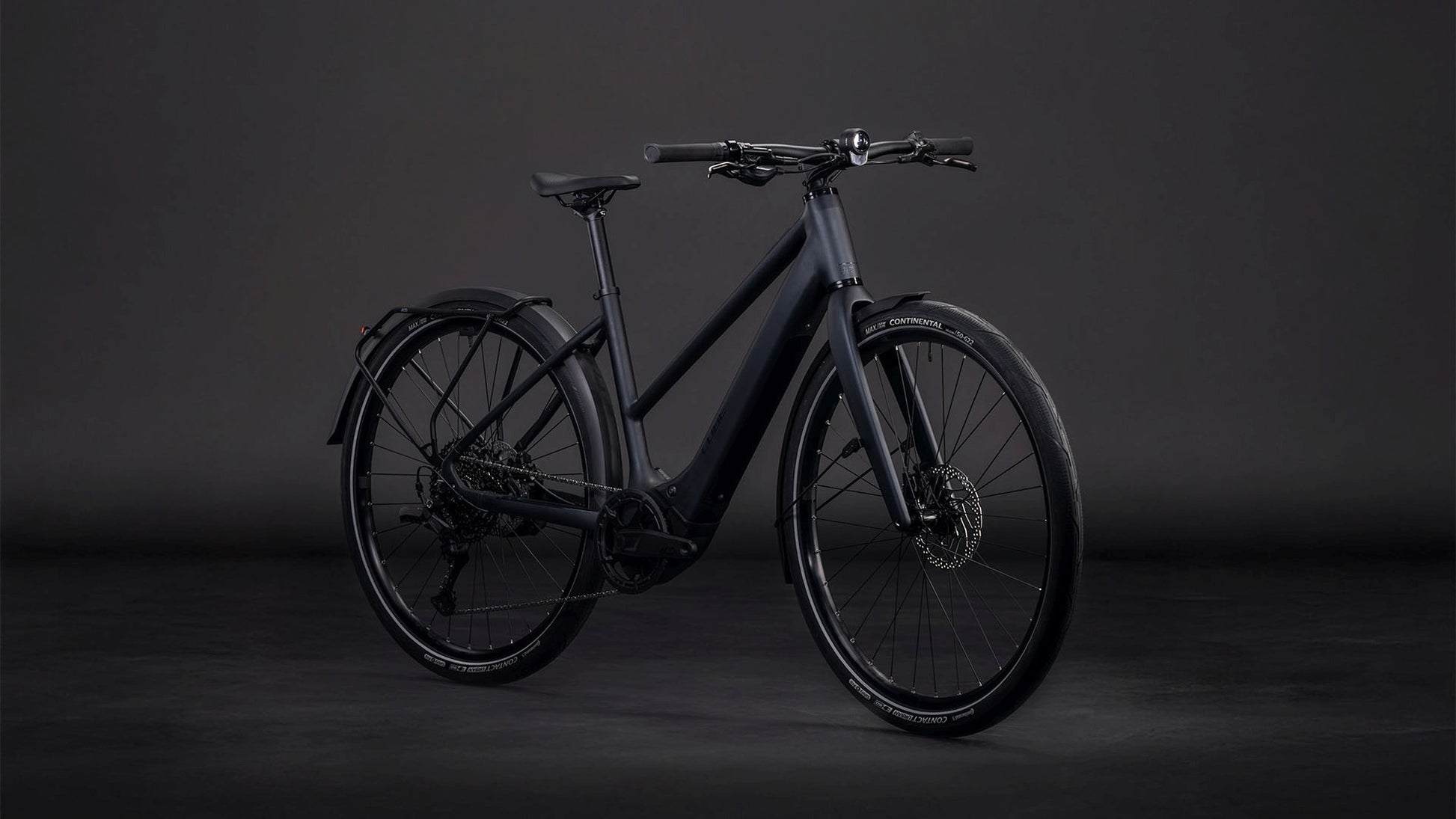

CUBE EDITOR HYBRID PRO 400X FE COAL/PRISM
CUBE EDITOR HYBRID PRO 400X FE COAL/PRISM







Description
Frame description
First impressions can't always tell you everything, and that certainly applies to the Editor Hybrid FE's understated Trapeze frame. Lightweight, durable aluminium construction with Smooth Welding at the main tube joints creates an elegant frame, while the full carbon fork is both light and strong. We integrated the cables to complement the frame's clean lines, and the 400Wh battery is built into the down tube to save space and weight. There's a versatile, rugged rear carrier and an optional front carrier for carrying your belongings. And we included full mudguards, a bright lighting set and a practical kickstand, so you've got everything you need.
Product specifications
Frame
Model year
2026

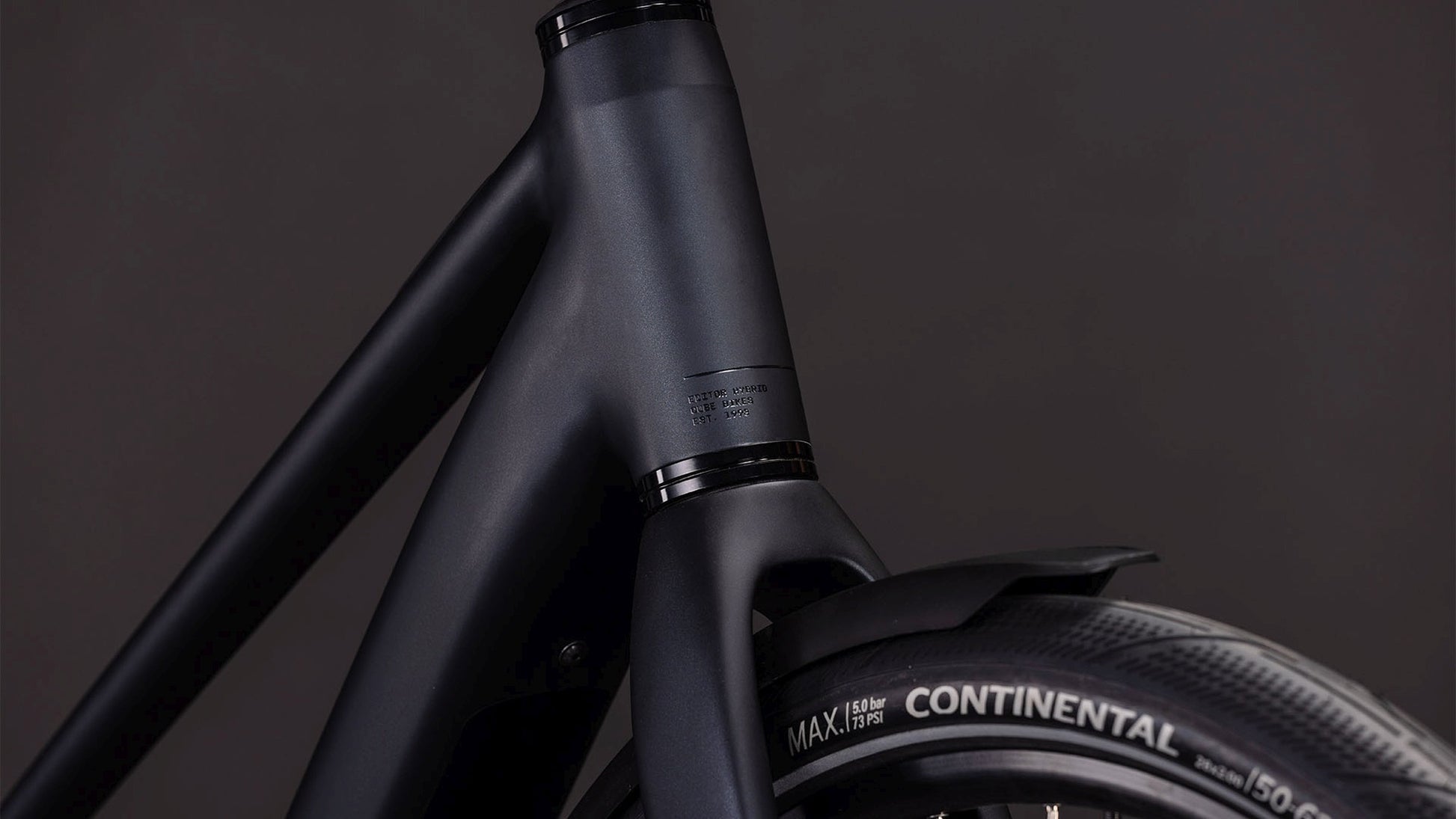

Fork
Cube Editor Full Carbon, 1 1/8" - 1 1/2" Tapered, Internal Cable Routing, 12x100mm
E-bike System
Engine
Bosch Drive Unit Performance SX max. 60Nm (BDU31)

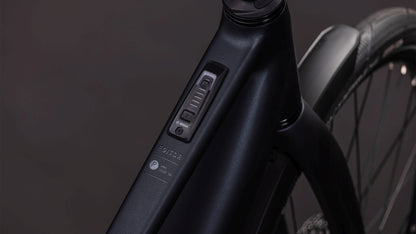

Battery
Bosch CompactTube 400
Drivetrain and brakes
Front brake
Shimano BR-MT200, Hydr. Disc Brake (180)
Rear brake
Shimano BR-MT200, Hydr. Disc Brake (180)
Rear derailleur
Shimano Cues RD-U6000-GS
Shifters
Shimano Cues SL-U6000, Rapidfire Plus

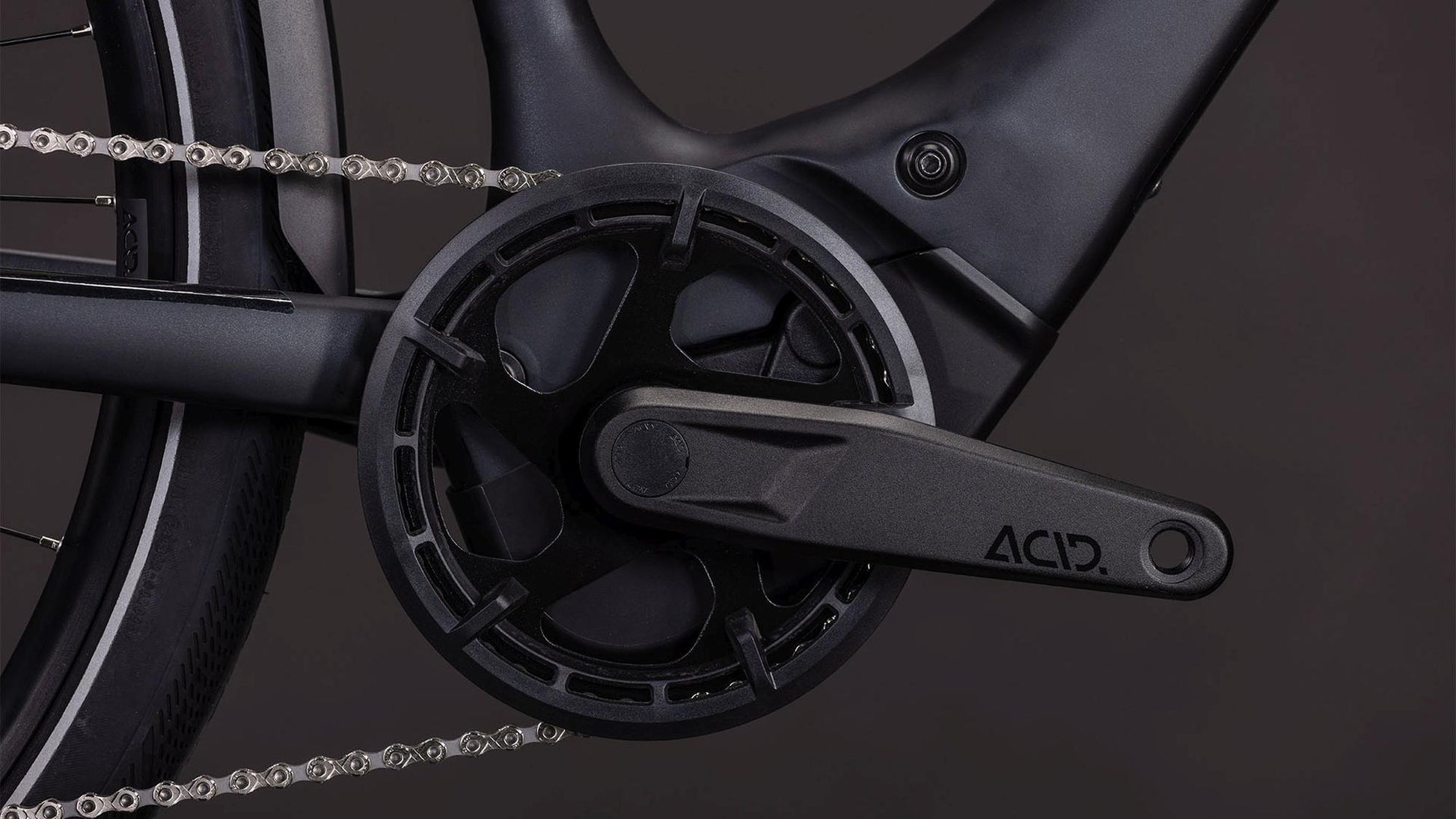

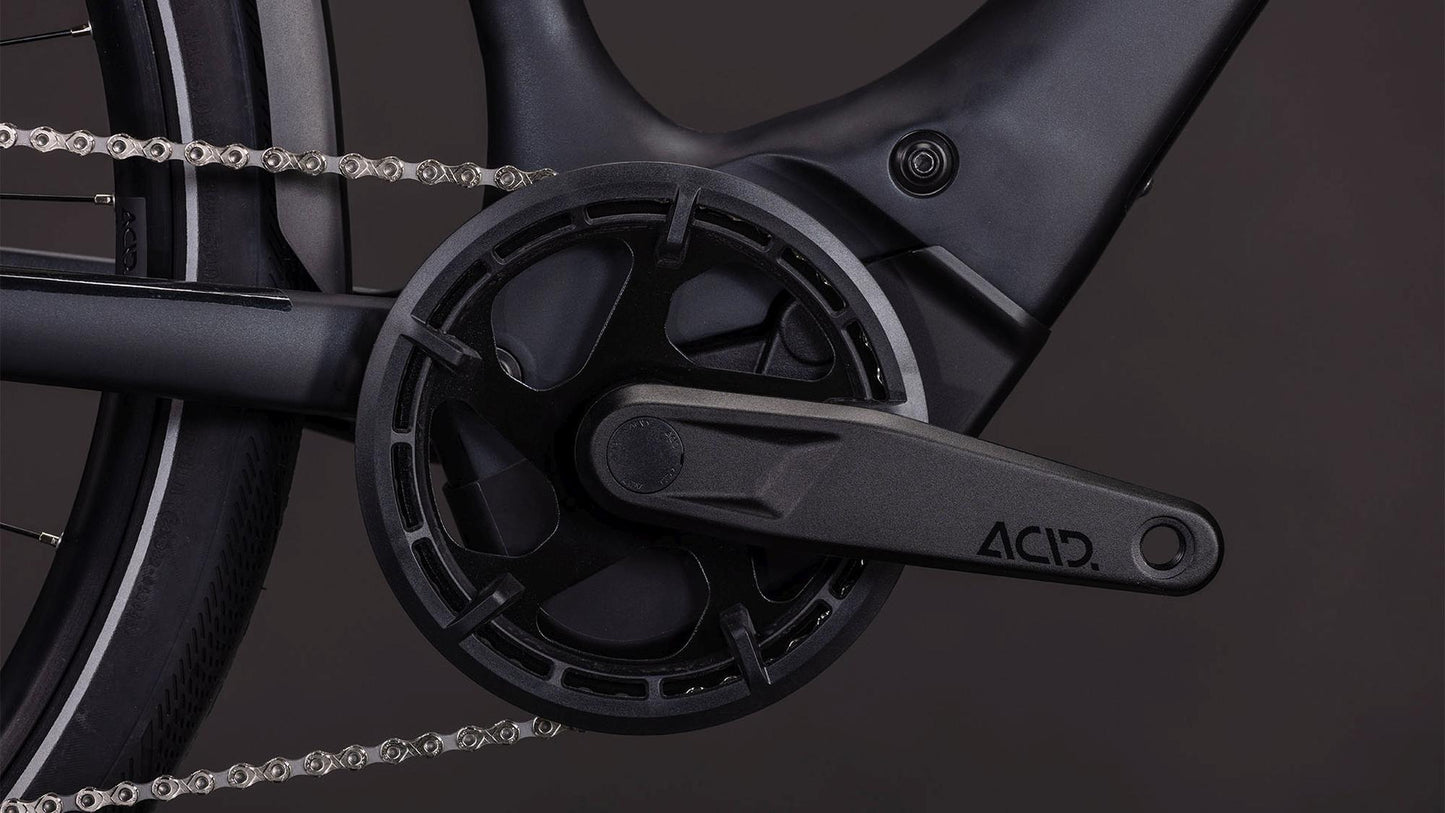

Crankset
Acid MTB Hybrid Pro, 44T
Cassette
Shimano Cues CS-LG400, 11-50T
Chain
KMC eGlide
Cockpit
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Bar tape or grips
Acid Hybrid Tour
Wheels
Rims
Acid EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano Tiagra HB-RS470, 12x100mm, Centerlock
Rear Hub
Shimano FH-QC300-HM, QR, Centerlock
Front tyre
Continental Contact Urban, 50-622
Rear Tyre
Continental Contact Urban, 50-622
Other parts
Saddle
Acid Venec Lite
Seatpost
Cube Performance Post, 30.9mm
Seatpost clamp
Cube Seatpost clamp
Pedals
Cube PP MTB medium

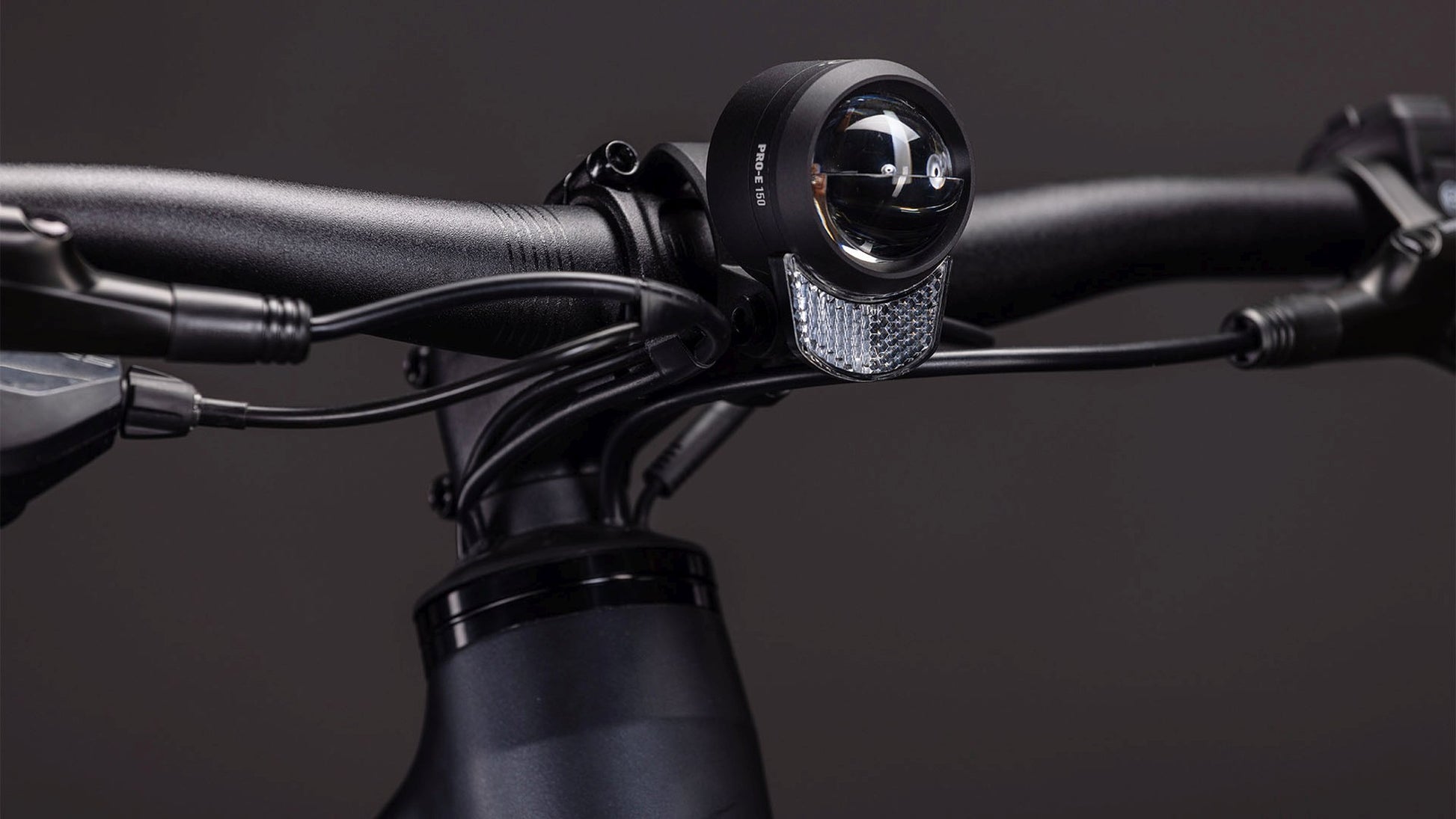

Front light
Acid Front Light PRO-E 150 X-Connect, 12V, DC

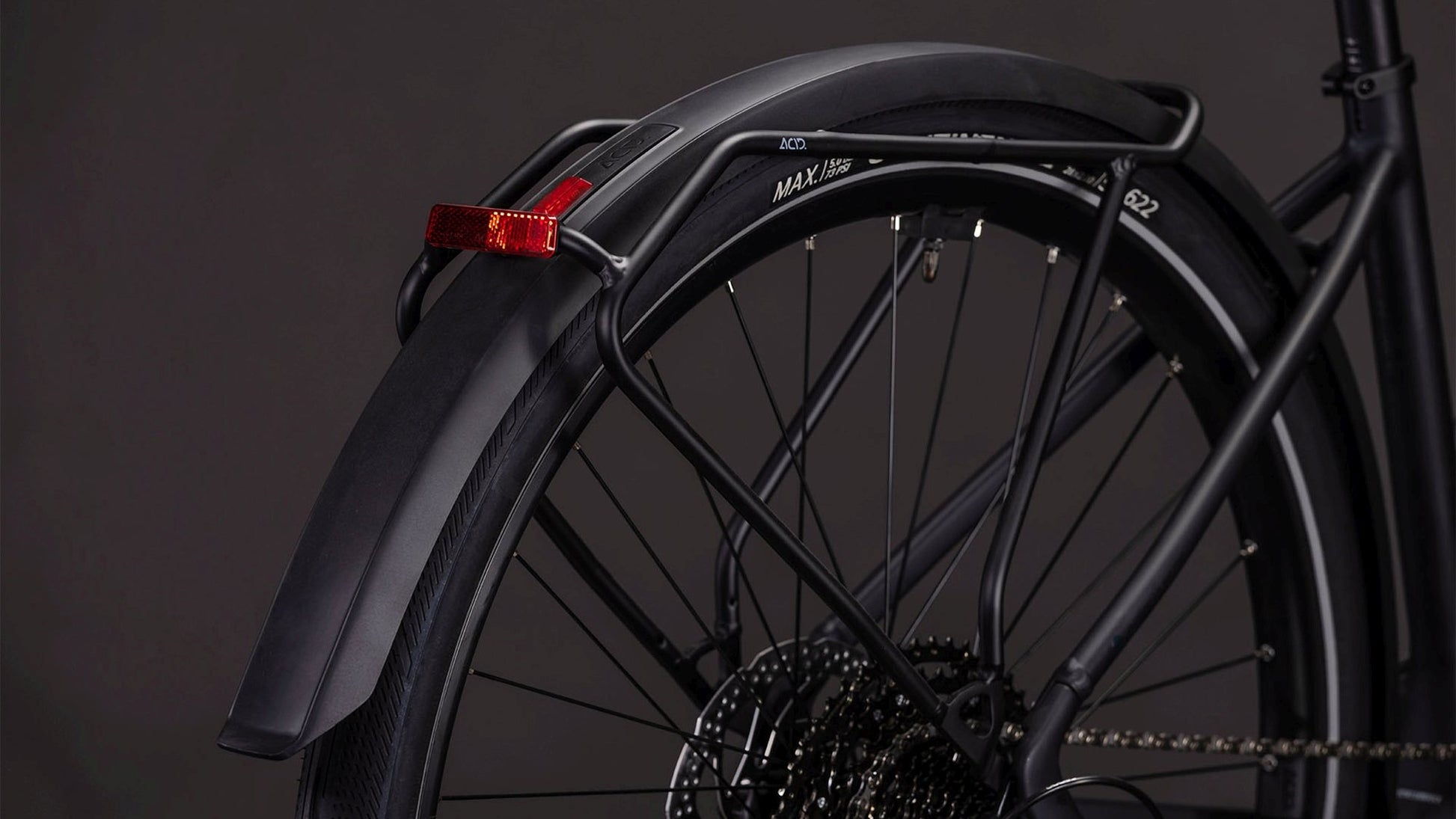

Rear light
Acid Mudguard Rear Light PRO-E, 12V, DC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 60 BB-Mount
Bell
Knog Oi
Carrier
Acid Gravel
