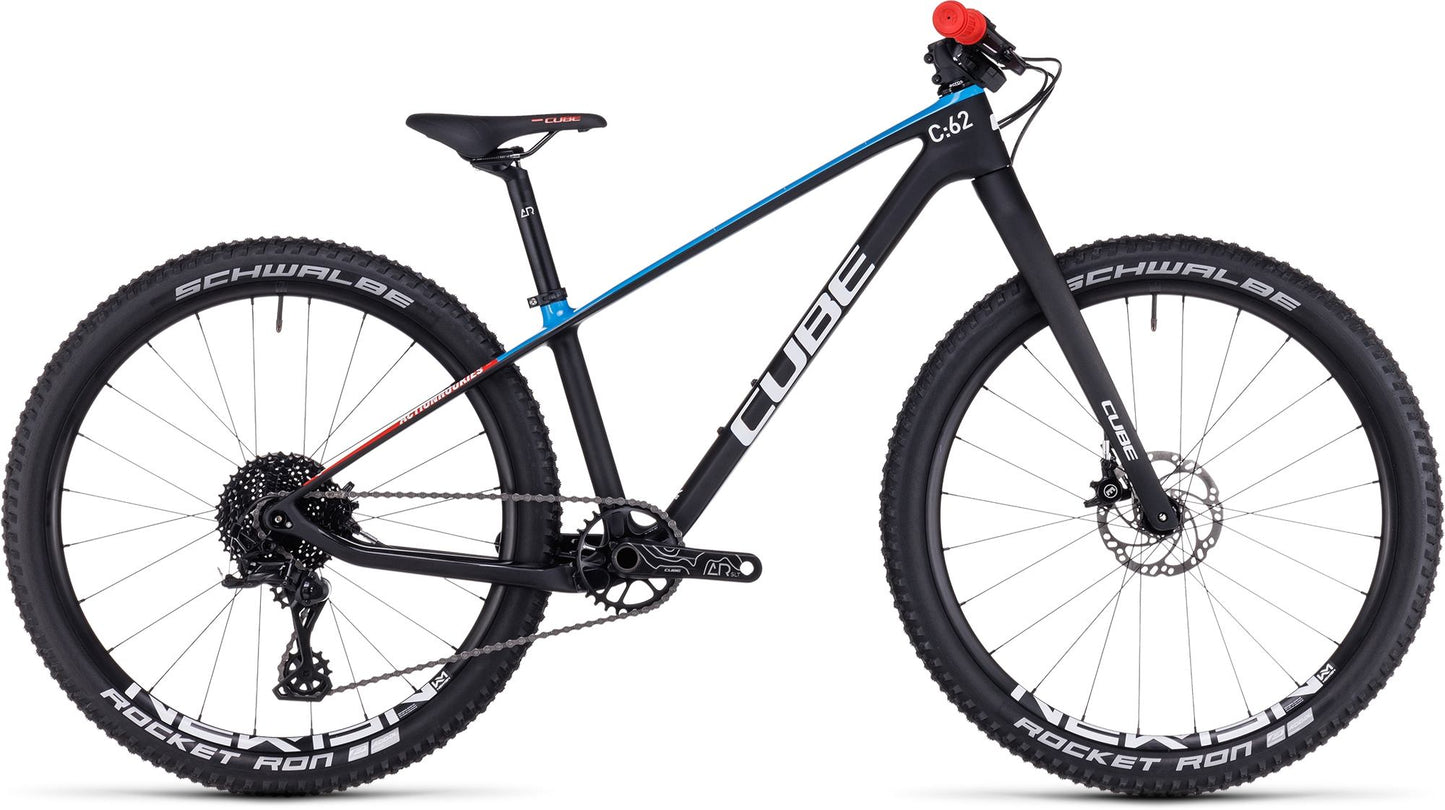

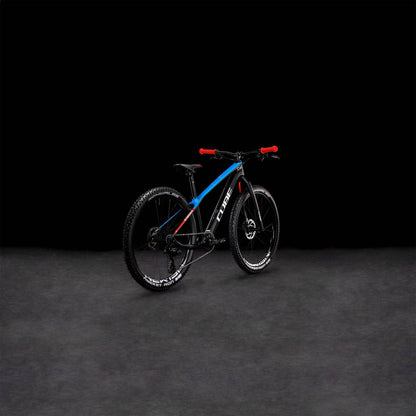

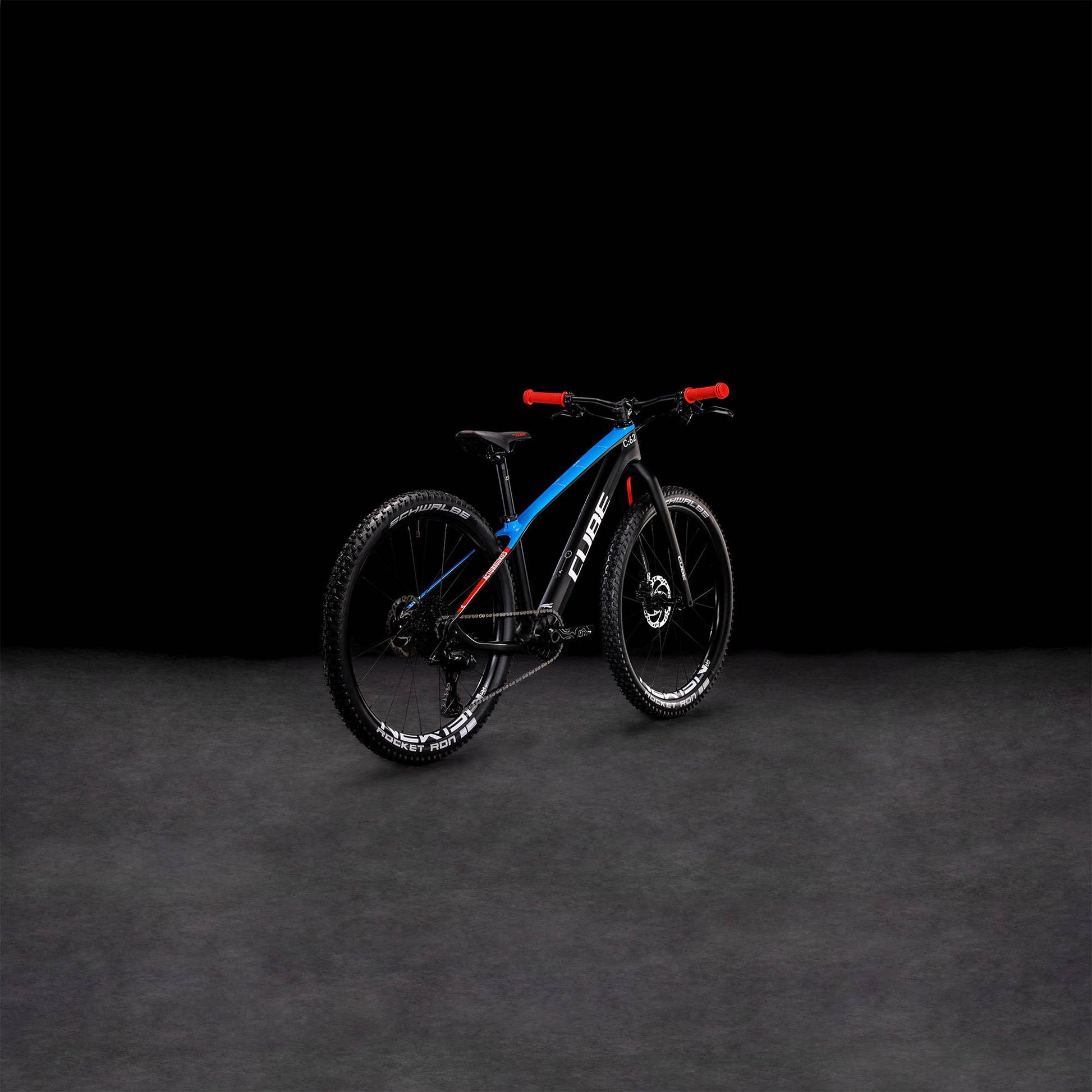

CUBE ELITE 240 C:62 PRO CARBON/BLUE/RED
CUBE ELITE 240 C:62 PRO CARBON/BLUE/RED
Plus Points
- Lightweight carbon frame
- Lightweight carbon front fork with thru-axle
- Nice mix of agility and stability
- 10 speeds with aggressive 11-36 cassette
- Hydraulic disc brakes with smaller brake levers
- Light Newmen Evolution X.A.25 wheels
- Lightweight and low-rolling resistance tires with Kevlar bead
Advisory points
- Not as light as Elite 240 C:62 SLX
- A suspension fork is more comfortable
Description
CUBE ELITE 240 C:62 PRO CARBON/BLUE/RED 24"
Even young riders know that speed wins races. It's the reason we developed the Elite 240 C:62 Pro, which takes everything we've learnt about building podium-capable racing mountain bikes and condenses it into pint-sized perfection. The full carbon frame and fork are just the lightweight start. We fitted Advent X 1x10 gears for their easy shifting, wide range and simple reliability. There's a headset limiter to prevent top tube damage in the event of a crash. A 12x100 thru axle up front and child-sized handlebars, grips and brake levers – with hydraulic discs – ensure accurate control at all times. And little touches like the ultra-lightweight Schwalbe Aerothan inner tubes and Newmen wheels are just the kind of details you'd expect from a thoroughbred.
Frame description

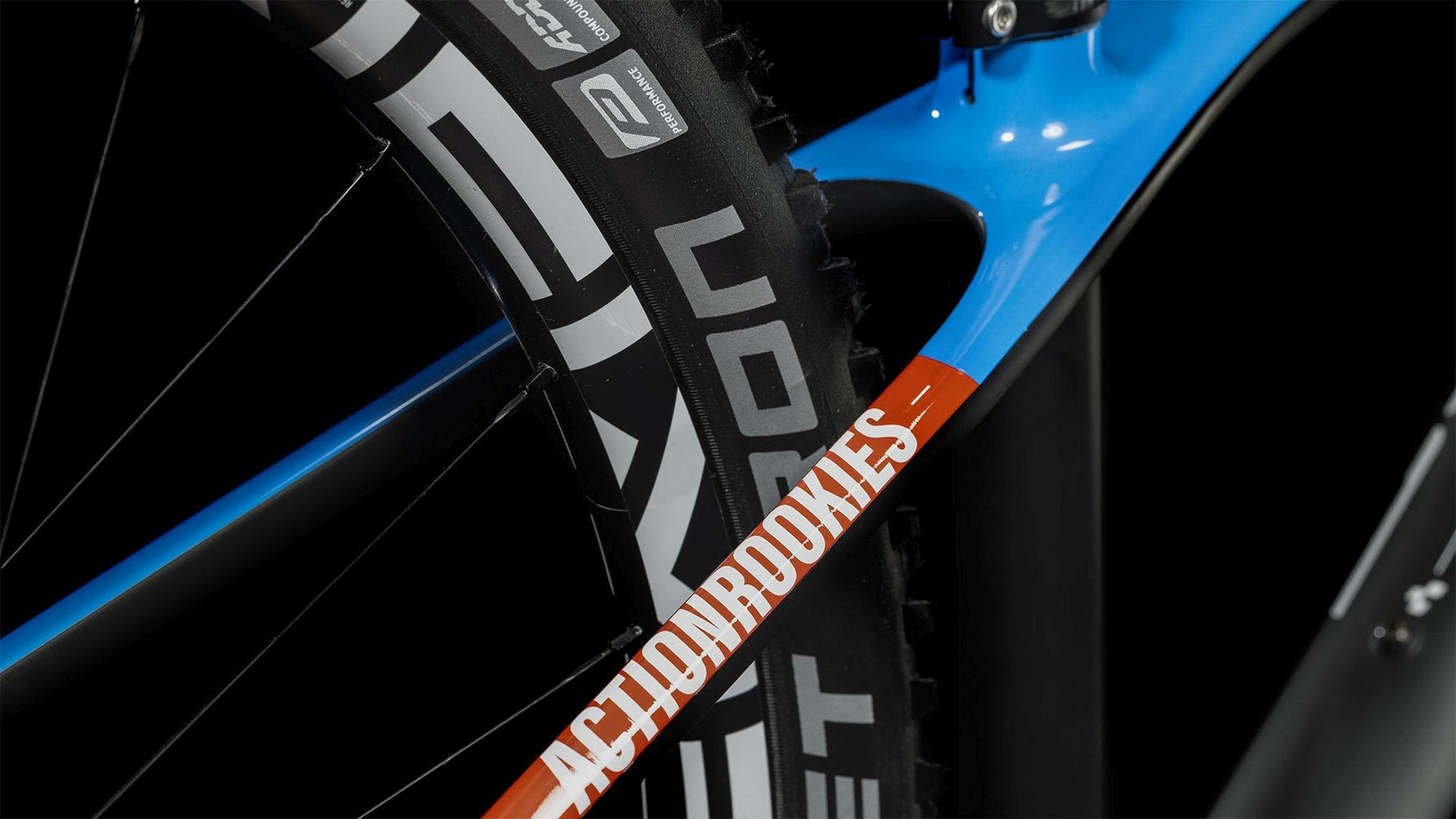

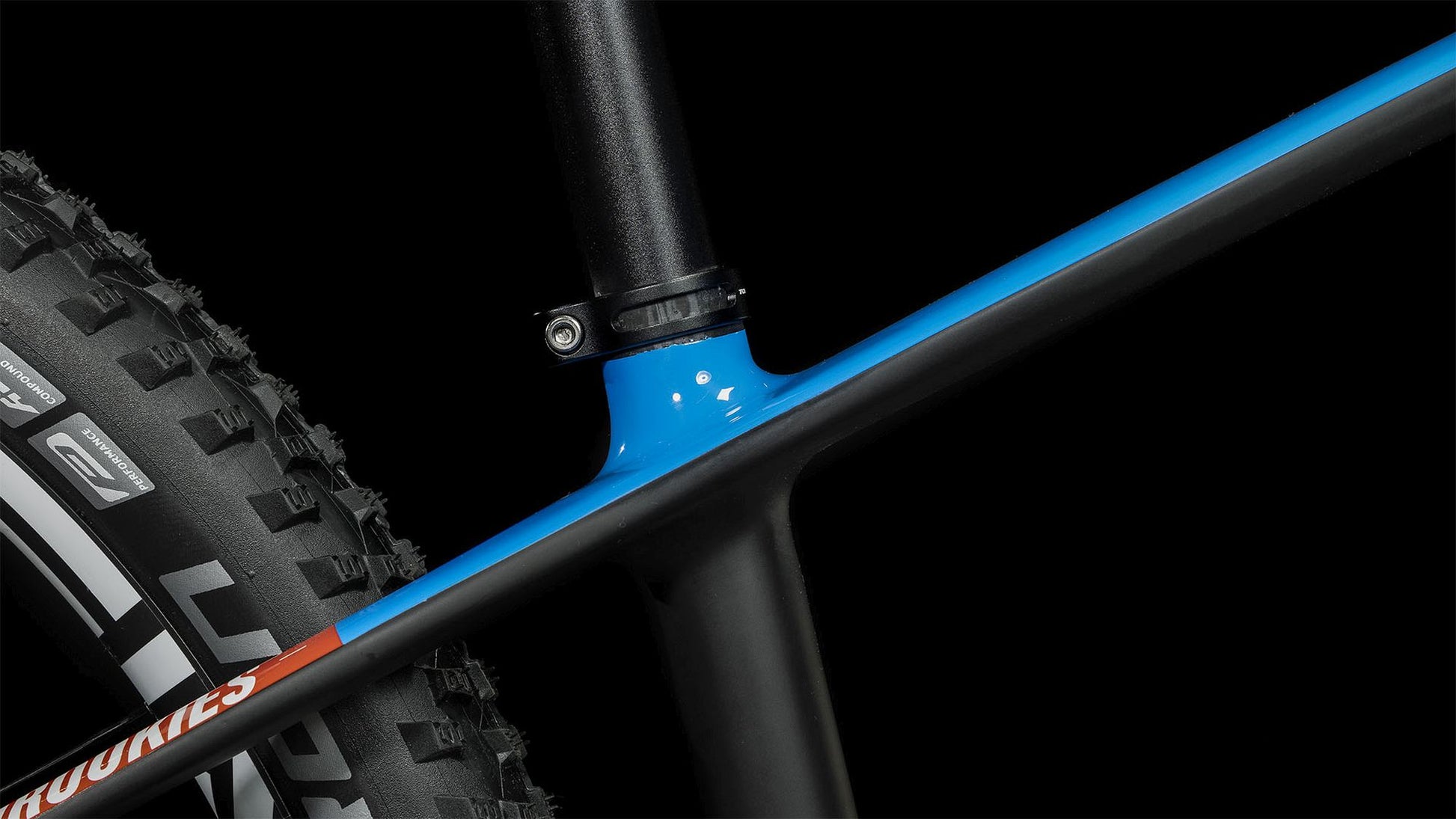

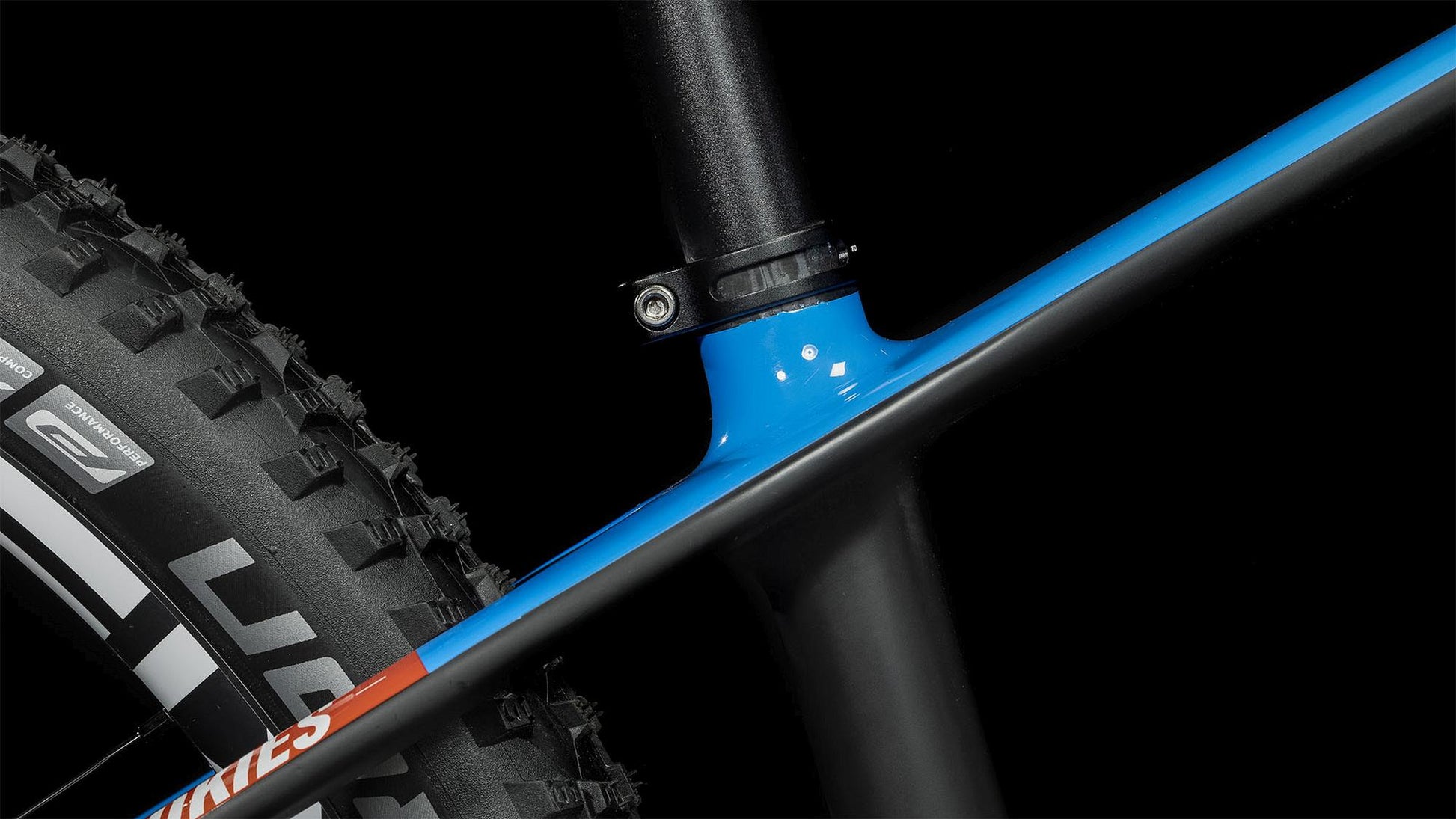

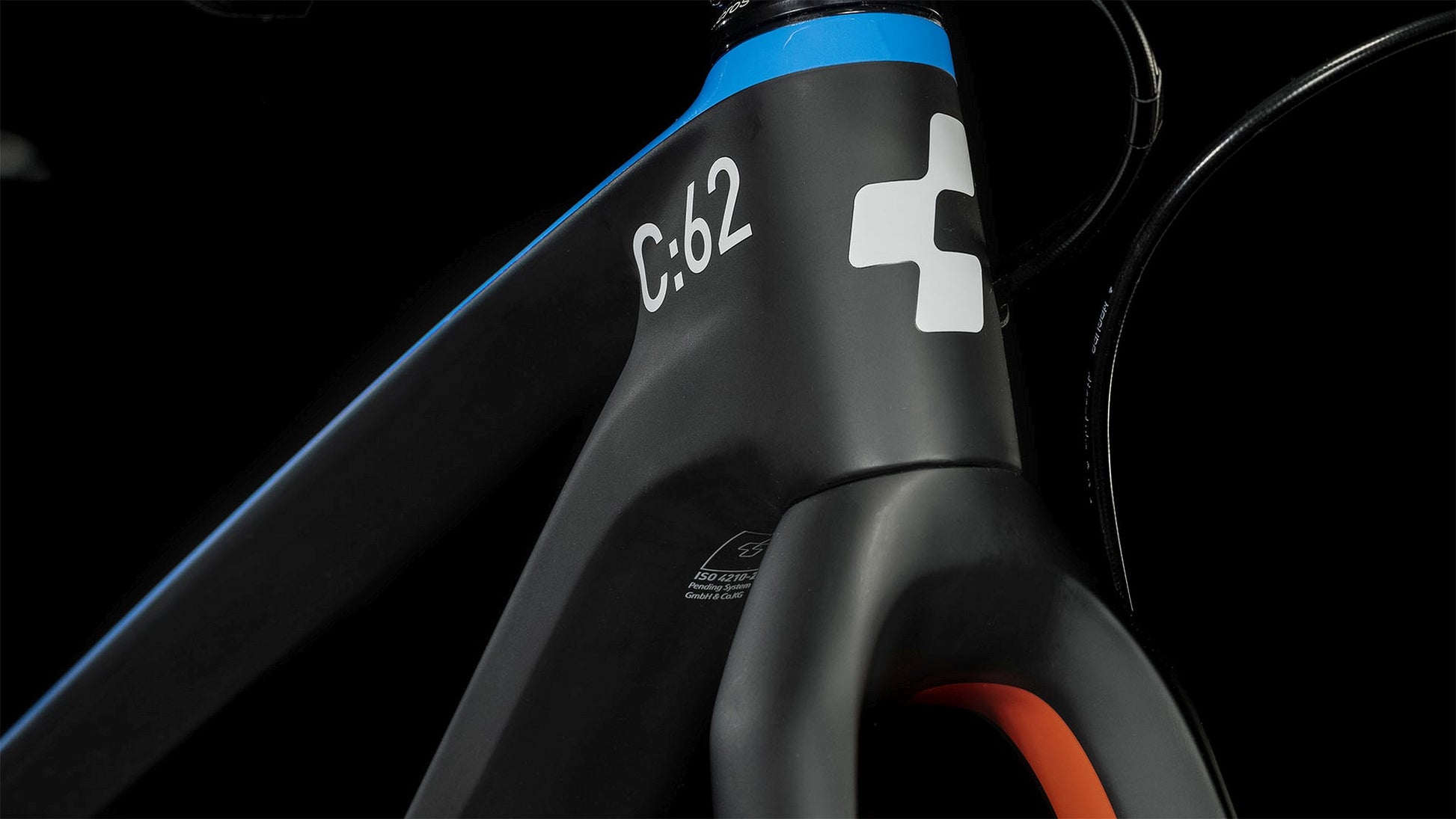

We know from working with elite racers that they want a frame that's stiff, responsive and, above all, light. So these are exactly the qualities we built into our Elite 240 C:62's lightweight carbon frame, but scaled down perfectly to fit younger riders. Every single detail of the frame design is aimed at reducing weight without sacrificing strength or stiffness. A tapered head tube, full carbon fork and 12mm thru axles front and rear ensure precise steering and efficient power transfer. We kept the seatstays narrow for a comfortable ride. And cables are routed internally for long-lasting precise shifting, so mum and dad can spend less time tweaking and more time cheering.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
623410
Model year
2024
Colour
carbon/blue/red
Fork
Cube Carbon, 1 1/8", Internal Cable Routing, Flat Mount Disc, 12x100mm
Drivetrain and brakes
Front brake
Magura MT4, Flat Mount, Hydr. Disc Brake (140/140)
Rear brake
Magura MT4, Flat Mount, Hydr. Disc Brake (140/140)
Rear derailleur
Microshift Advent X, RD-M6205AM, 10-Speed
Shifters
Microshift Advent X SL-M9605
Crankset
Cube CUBE SL DMA 30T, 130mm
Cassette
Sunrace 11-36T
Chain
KMC X10
Cockpit
Headset
Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/8"
Handlebar
Cube CUBE Aluminium, 540mm, 25.4
Stem
Cube CUBE Aluminium Lite
Bar tape or grips
Cube Kids Grip, Ø 19mm
Wheels
Wheels
Newmen Evolution X.A.25, 24/24 Spokes, Tubeless Ready
Front tyre
Schwalbe Rocket Ron Kevlar, 2.1
Rear Tyre
Schwalbe Rocket Ron Kevlar, 2.1
Other parts
Saddle
Cube Kid
Seatpost
Cube Prolight, 27.2mm
Seatpost clamp
Cube Superlight, 31.8mm
Pedals
NONE
