CUBE ELLA RIDE HYBRID 500 GREEN/GREEN
CUBE ELLA RIDE HYBRID 500 GREEN/GREEN
Plus Points
- High-quality and lightweight aluminum frame
- Bosch Active Plus motor
- Integrated 500 Wh battery
- Low step-through
- Chain guard
- Hydraulic disc brakes
- Suspension front fork
Advisory points
- Choice stress: which color will it be?
- Derailleur system requires more maintenance than a hub gear
Description
CUBE ELLA RIDE HYBRID 500 GREEN/GREEN EE L

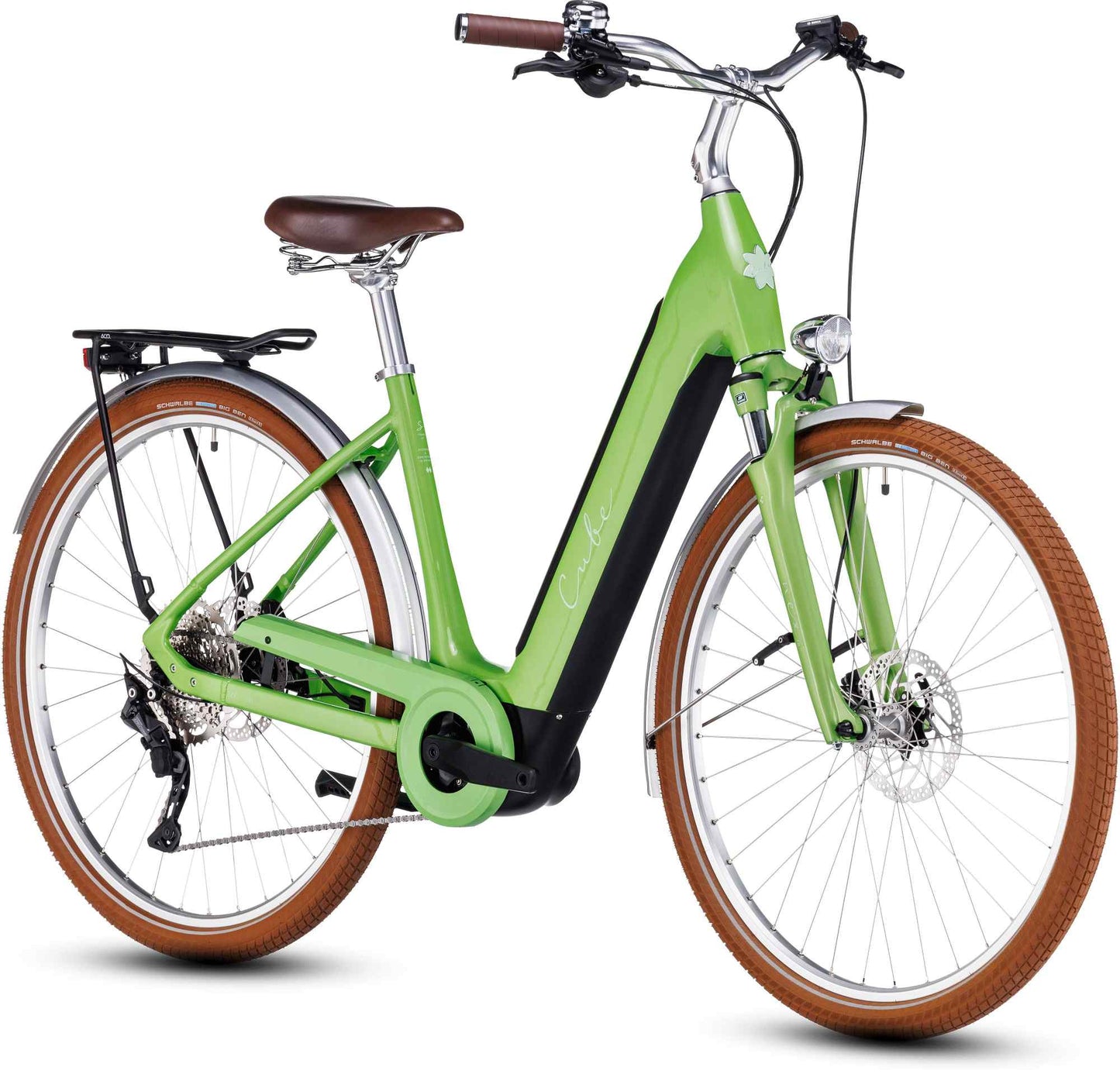

The Ella Ride Hybrid is the environmentally friendly Bosch e-bike for your inner fashionista, but its beauty is far more than skin deep. The Easy Entry frame is comfortable to ride, with a practical step-through design that's ideal for everyday use and won't cramp your style. The sturdy carrier is a handy way to carry whatever you need with you. The chain guard, mudguards, lighting system and kickstand mean you're all set for any eventuality. And, of course, the powerful Bosch motor and easy-to-use Shimano Deore 10-speed gears make light work of any journey, backed up by strong and dependable Shimano hydraulic disc brakes to help keep you safe.
Frame description
Effortlessly chic and good-looking it may be, but the Ella Hybrid's engineering detail is every bit as cool. Our PowerTube design incorporates the Bosch battery inside the frame, and its head-turning elegance is finished with our smooth-welding technique for an organic flow to the frame's lines. We fitted a tapered head tube because it's strong, safe and improves steering accuracy for easy, intuitive handling. There's a semi-integrated luggage carrier, and Easy Entry does exactly what it says, making access simple for any rider. It's a companion that won't let you down.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
632501
Model year
2024
Colour
green/green
Fork
SR Suntour NEX-E25, 50mm
E-bike System
Engine
Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
display
Bosch Purion
Drivetrain and brakes
Front brake
Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
Rear brake
Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
Rear derailleur
Shimano Deore RD-M5120-SGS, 10-Speed
Shifters
Shimano Deore SL-M4100-IR, Direct Attach, Rapifire-Plus
Crankset
Acid Semi-Integrated Carrier, RILink Adapter Compatible
Cassette
Shimano Deore CS-M4100, 11-46T
Chain
KMC X10
Cockpit
Headset
Cube FPH885B, Semi-Integrated
Handlebar
Cube Comfort Shape Bar
Stem
Cube Comfort City Stem, 31.8mm
Bar tape or grips
Cube Retro
Wheels
Rims
Cube SX24, Disc, 36H
Front hub
Shimano HB-M4050, QR, Centerlock
Rear Hub
Shimano FH-M4050, QR, Centerlock
Front tyre
Schwalbe Big Ben, Active, K-Guard, 50-622
Rear Tyre
Schwalbe Big Ben, Active, K-Guard, 50-622
Other parts
Saddle
Cube Retro
Seatpost
Cube Performance Post, 30.9mm
Seatpost clamp
Cube Screwlock, 36mm
Pedals
Acid PP Trekking
Front light
Trelock Bike-i Retro Ebike, 12V, DC
Rear light
Cube Edge IC 2.0 Rear LED, 12V, DC
Kickstand
Acid FM Pure Kickstand
Mudguards
SKS Chrom Shiny
Bell
Cube Classic
Carrier
Acid Semi-Integrated Carrier, RILink Adapter Compatible
