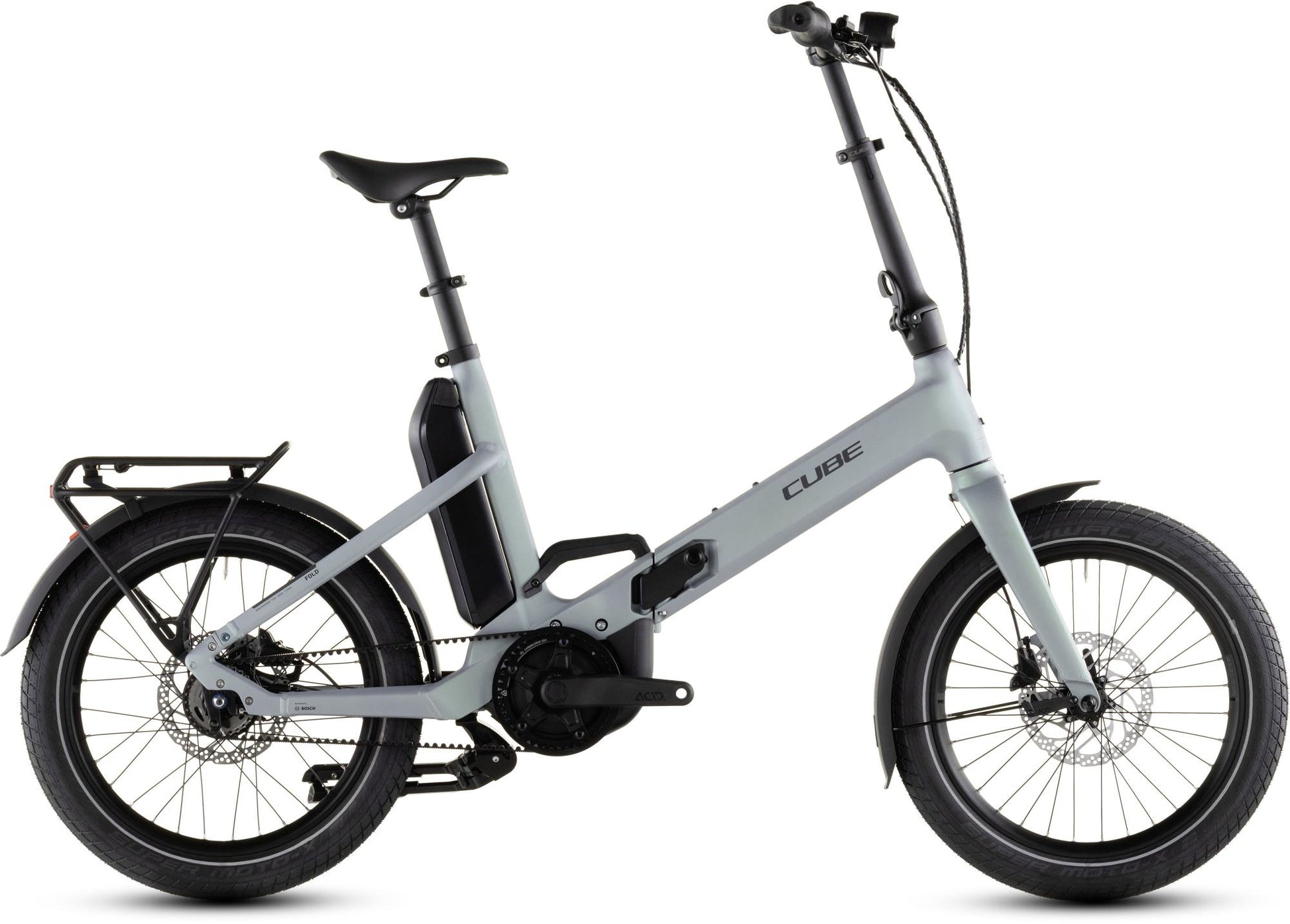

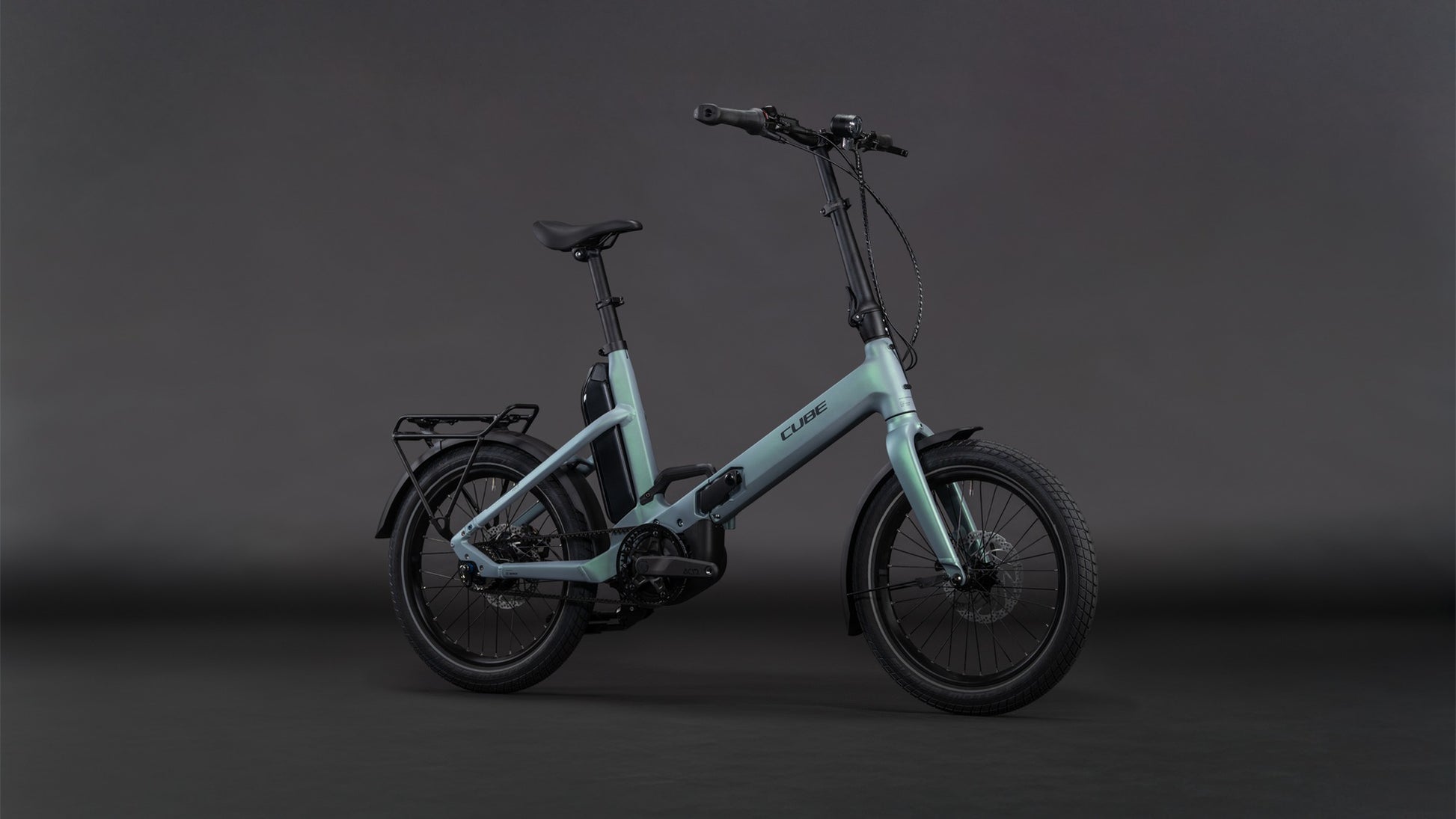

CUBE FOLD HYBRID COMFORT 545 SEAGREY/REFLEX
CUBE FOLD HYBRID COMFORT 545 SEAGREY/REFLEX







Description
Frame description

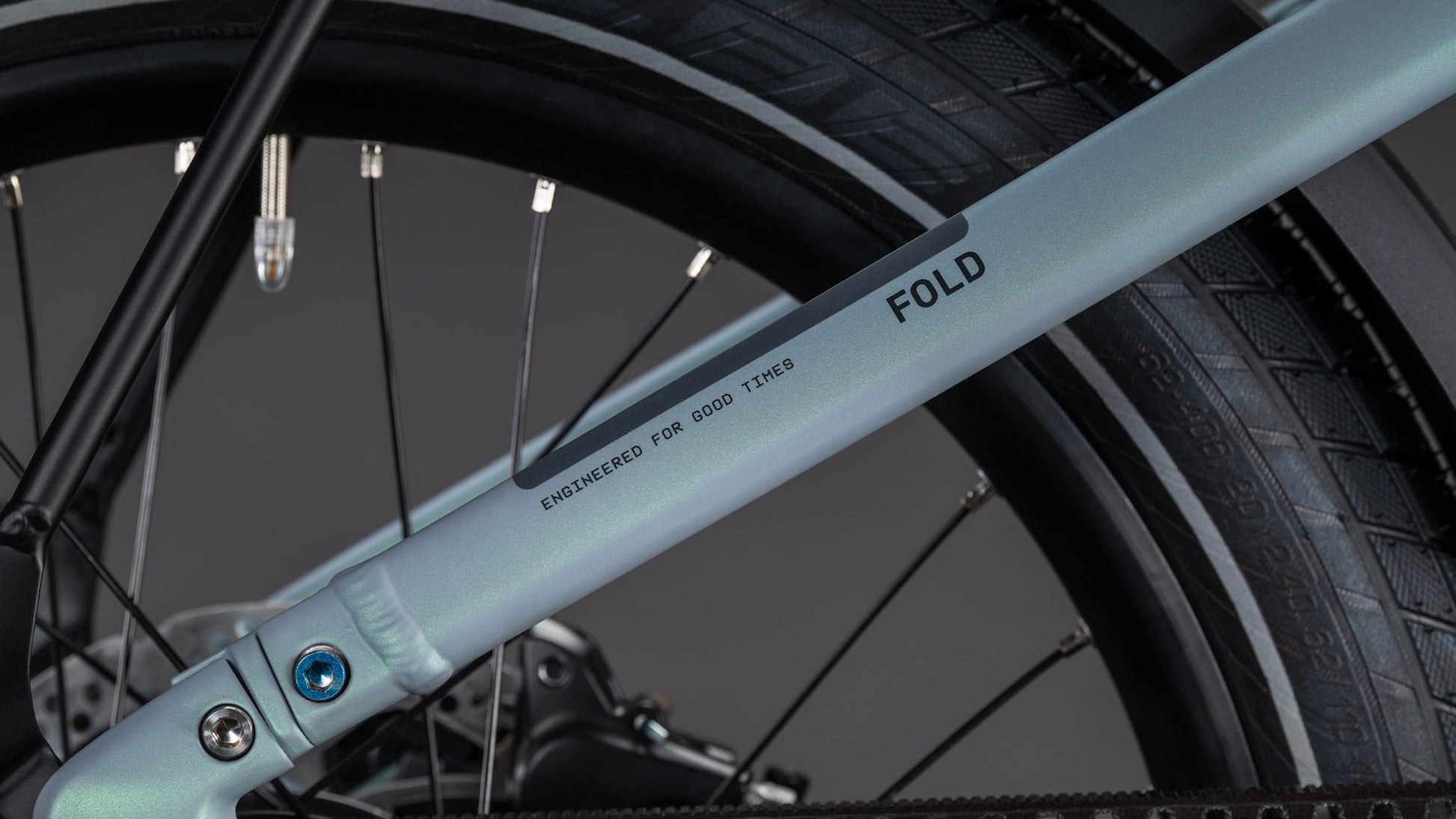

When we set out to design our foldable Bosch e-bike, we wanted it to set new standards for flexibility, mobility and functionality. The fact that it also looks great is no coincidence, because form often follows function. With its clever folding mechanism and integrated carry handle, the Fold Hybrid is easy to store or transport in an efficient, space-saving size and shape. The 545Wh battery sits neatly behind the seat tube, and Bosch's Smart System gives you more control via the eBike Flow app. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height. We included mudguards, a really stable kickstand and a sturdy rear carrier. And an optional front carrier – plus a wide range of bags and baskets that attach quickly and simply via innovative mechanisms – make it simple to carry whatever you need along for the ride. You'll wonder how you ever managed without it.
Product specifications
Frame
Model year
2026
Fork
Cube Aluminium Rigid Fork, 20"
E-bike System
Engine
Bosch Drive Unit Performance Line 75Nm (BDU34)
Battery
Bosch PowerPack 545
Drivetrain and brakes
Front brake
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear brake
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Shifters
Shimano Nexus SL-C7000-5, Revoshift

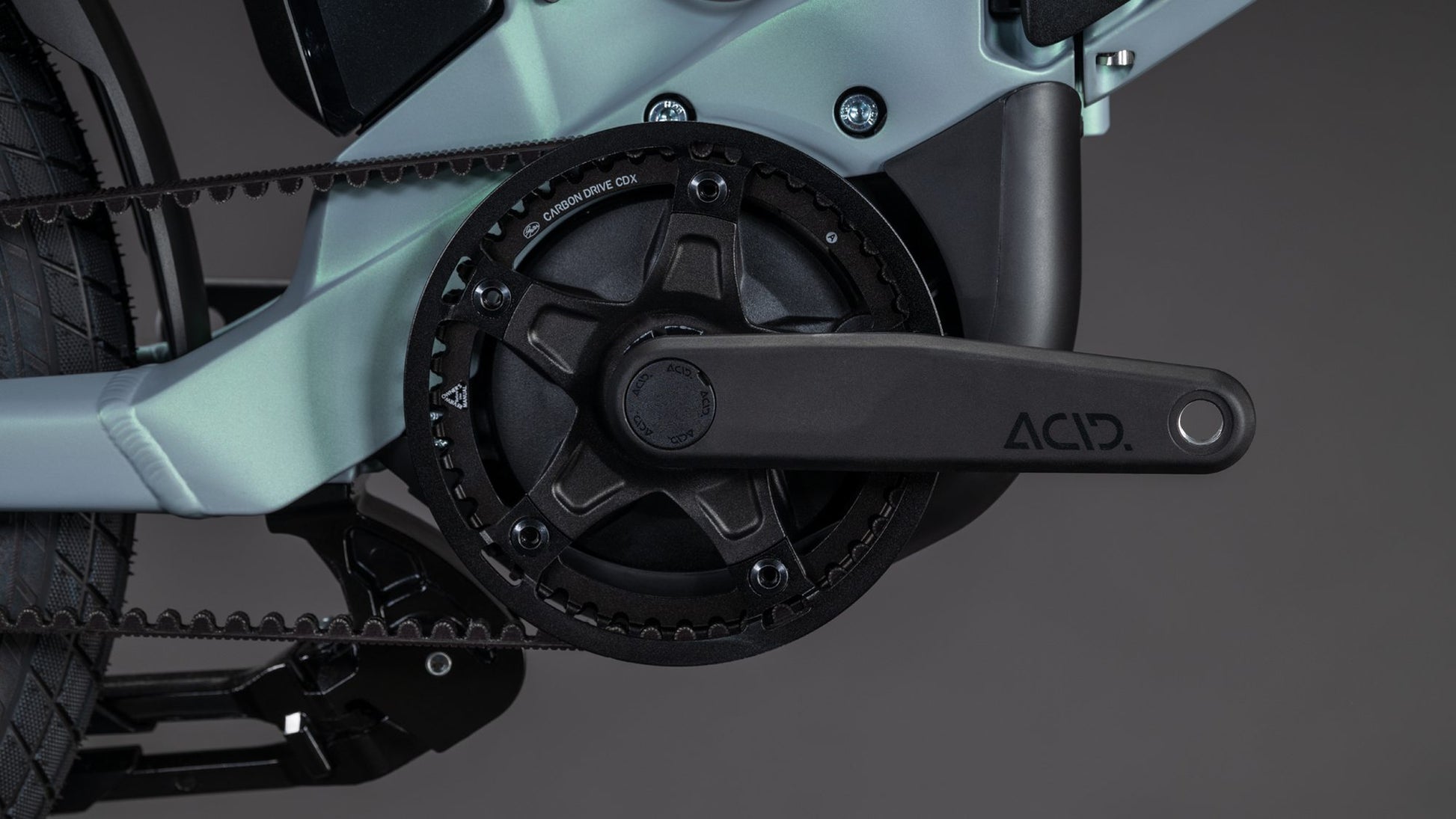

Crankset
Acid Trekking Hybrid, 46T
Cockpit

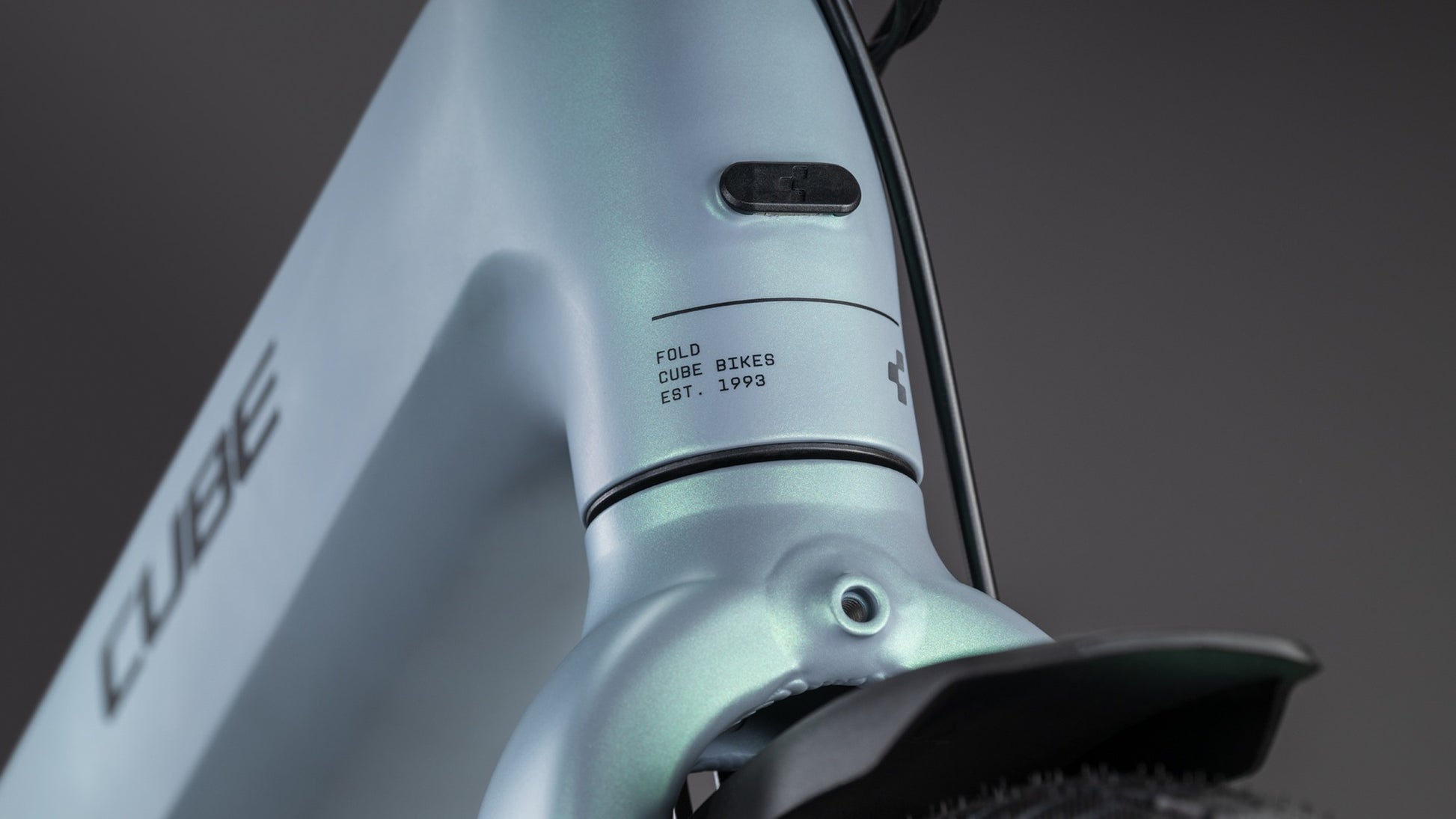

Headset
Acros AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Handlebar
Cube Comfort Trail Bar, 680mm, 25.4mm
Stem
Cube Folding Stem, Adjustable Length, 25,4mm Clamp
Bar tape or grips
Acid Travel Comfort Gripshift
Wheels
Rims
Acid EX30, 32H, Disc, Tubeless Ready
Front hub
Shimano HB-QC300, QR, Centerlock
Rear Hub
Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut
Front tyre
Schwalbe Super Moto-X, Double Defense, 62-406
Rear Tyre
Schwalbe Super Moto-X, Double Defense, 62-406
Other parts
Saddle
Acid Sequence Pro 160
Seatpost
Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
Seatpost clamp
Cube Seatpost clamp
Pedals
Cube Folding Pedal, Aluminium
Front light
Acid Front Light PRO-E 60 X-Connect, 12V, DC
Rear light
Acid Mudguard Rear Light PRO-E, 12V, DC
Kickstand
Cube Two Leg Kickstand
Mudguards
Acid 75, BB-Mount
Bell
Bell

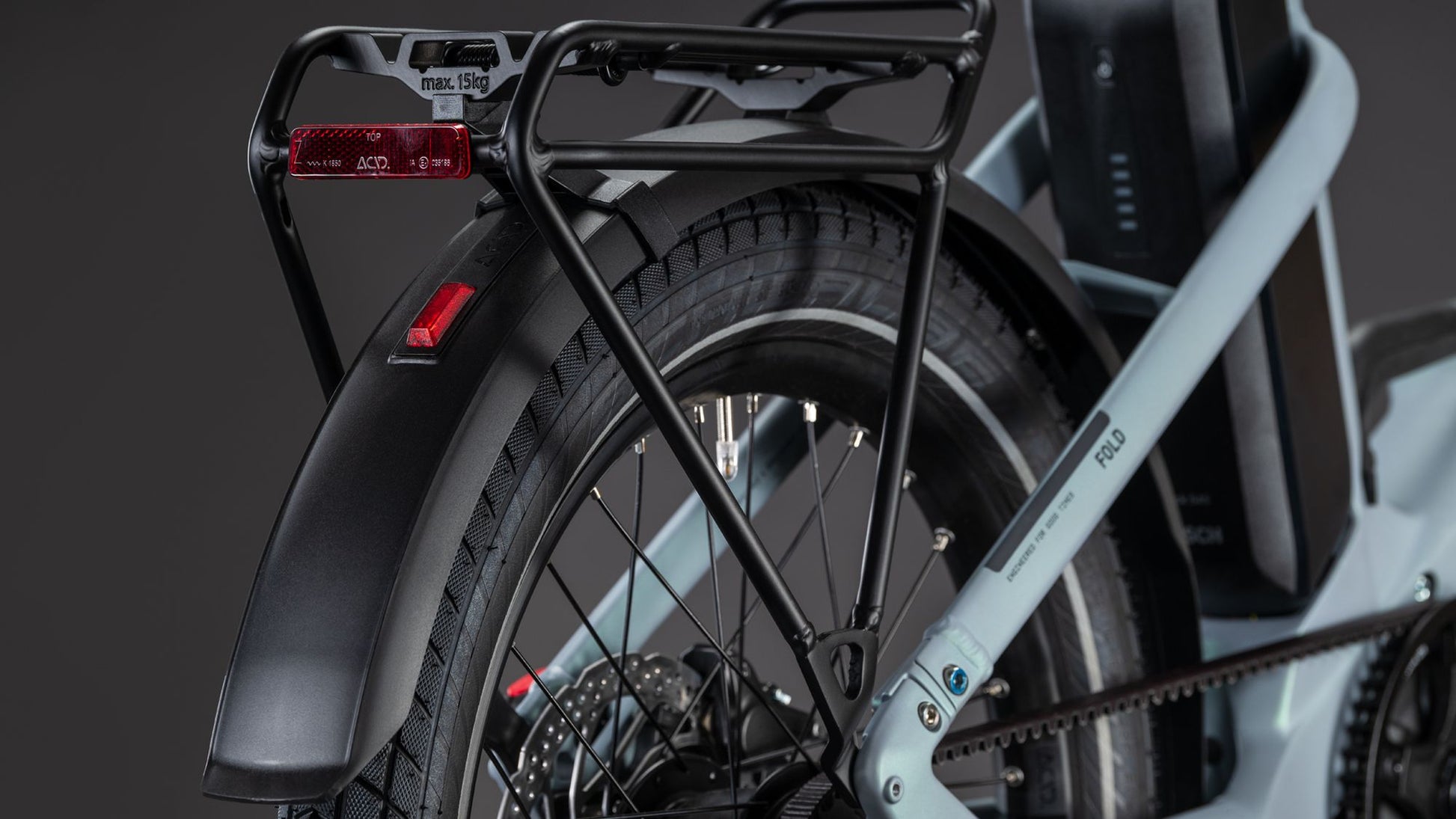

Carrier
Acid 20" Semi-Integrated Carrier, RILink Adapter Compatible
