What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.

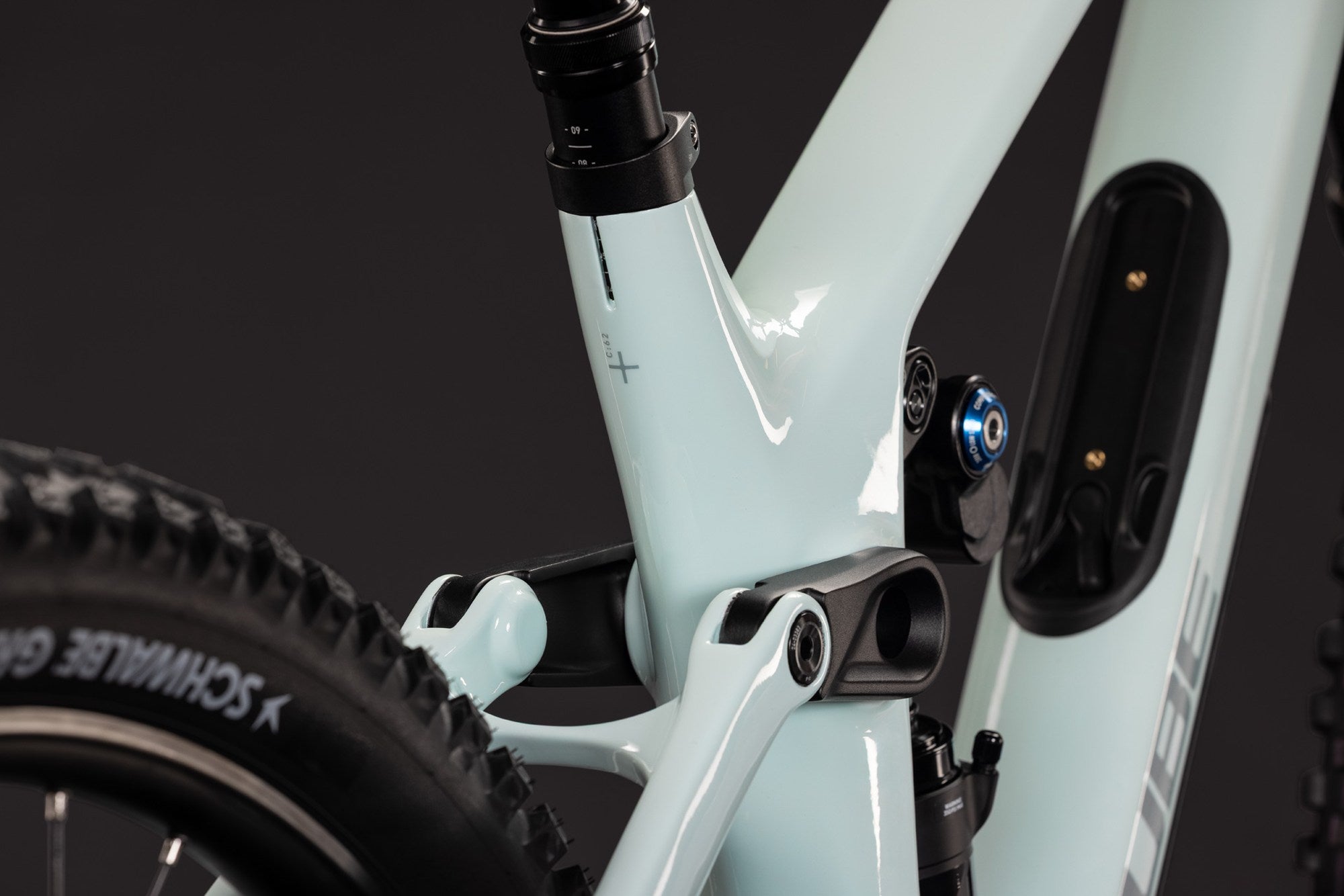

High-pivot C:62 carbon frame with 170 millimetres of travel
Mullet configuration (27.5 inches / 29 inches)
Adjustable head angle

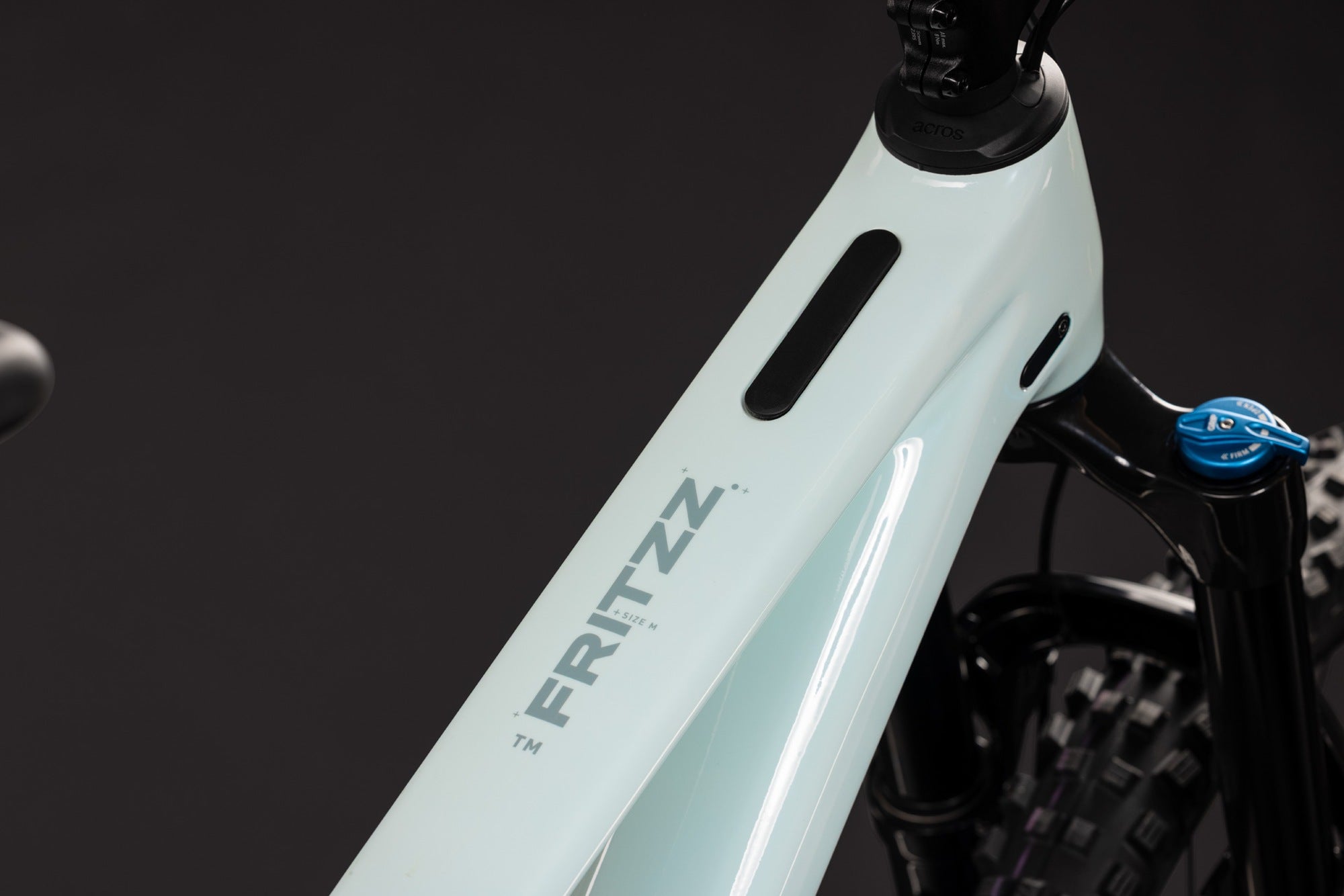

Cables routed through the upper headset bearing or side openings

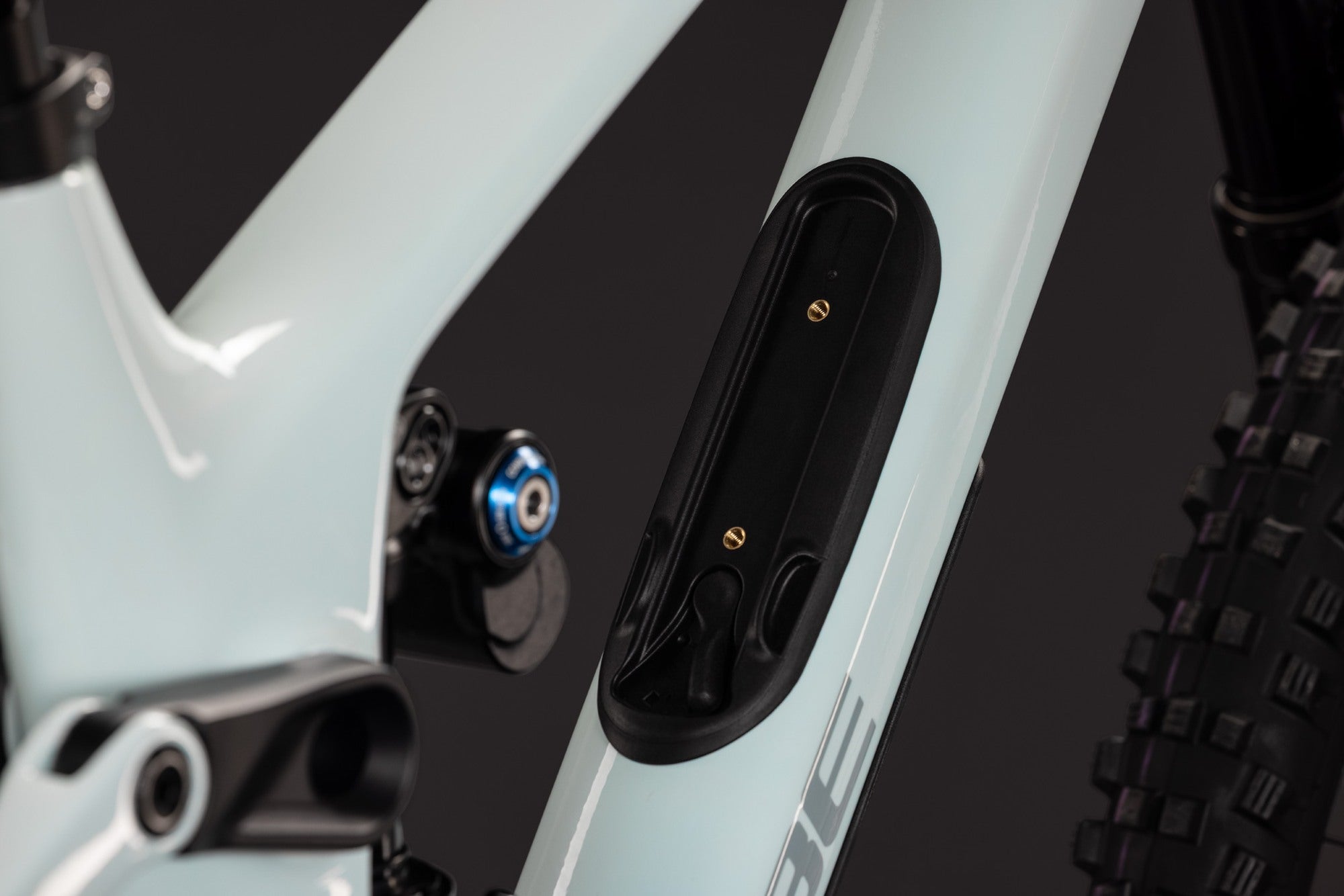

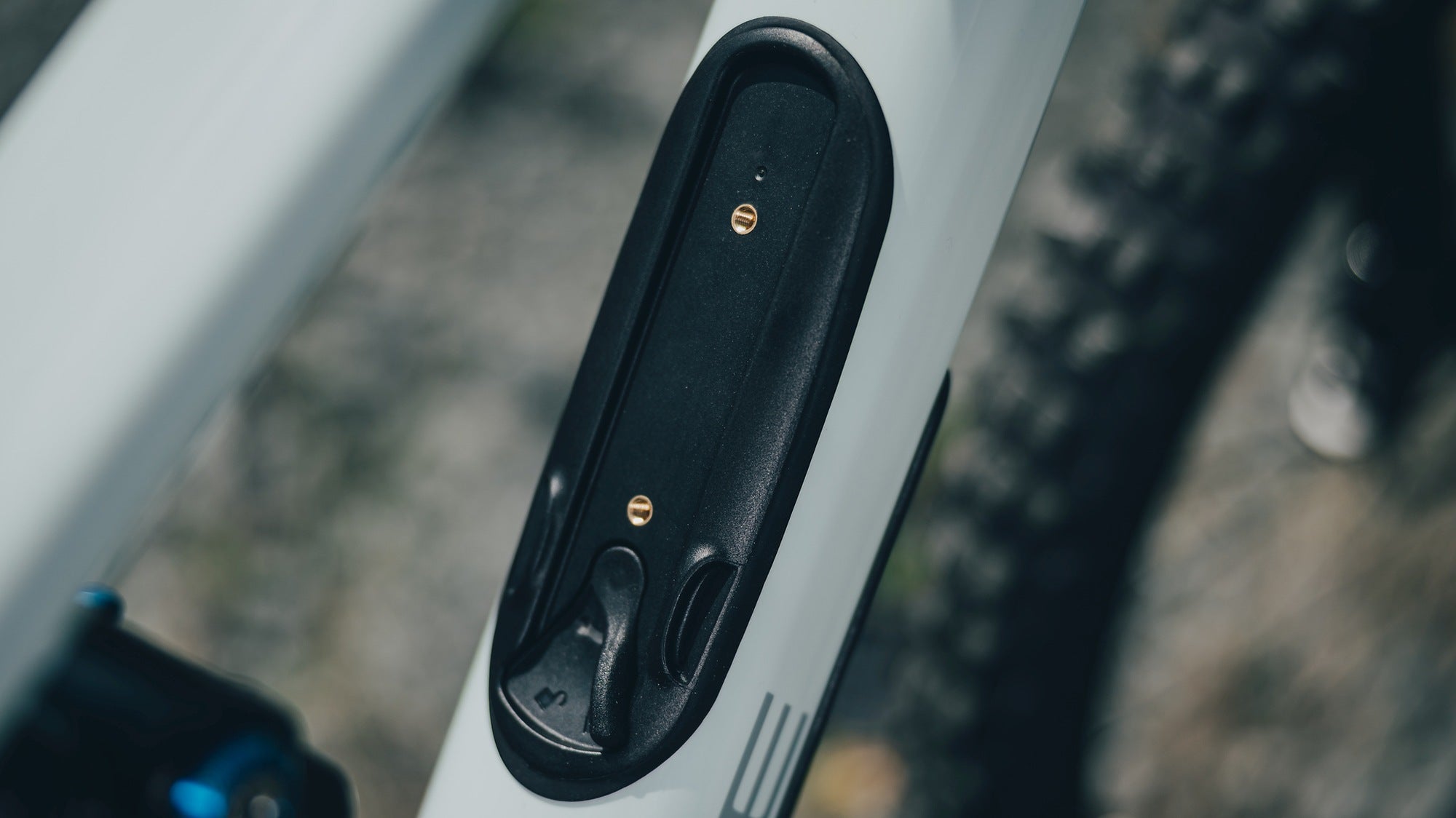

Down-tube storage
The more expensive Fritzz C:62 Super TM shifts electronically
Product description

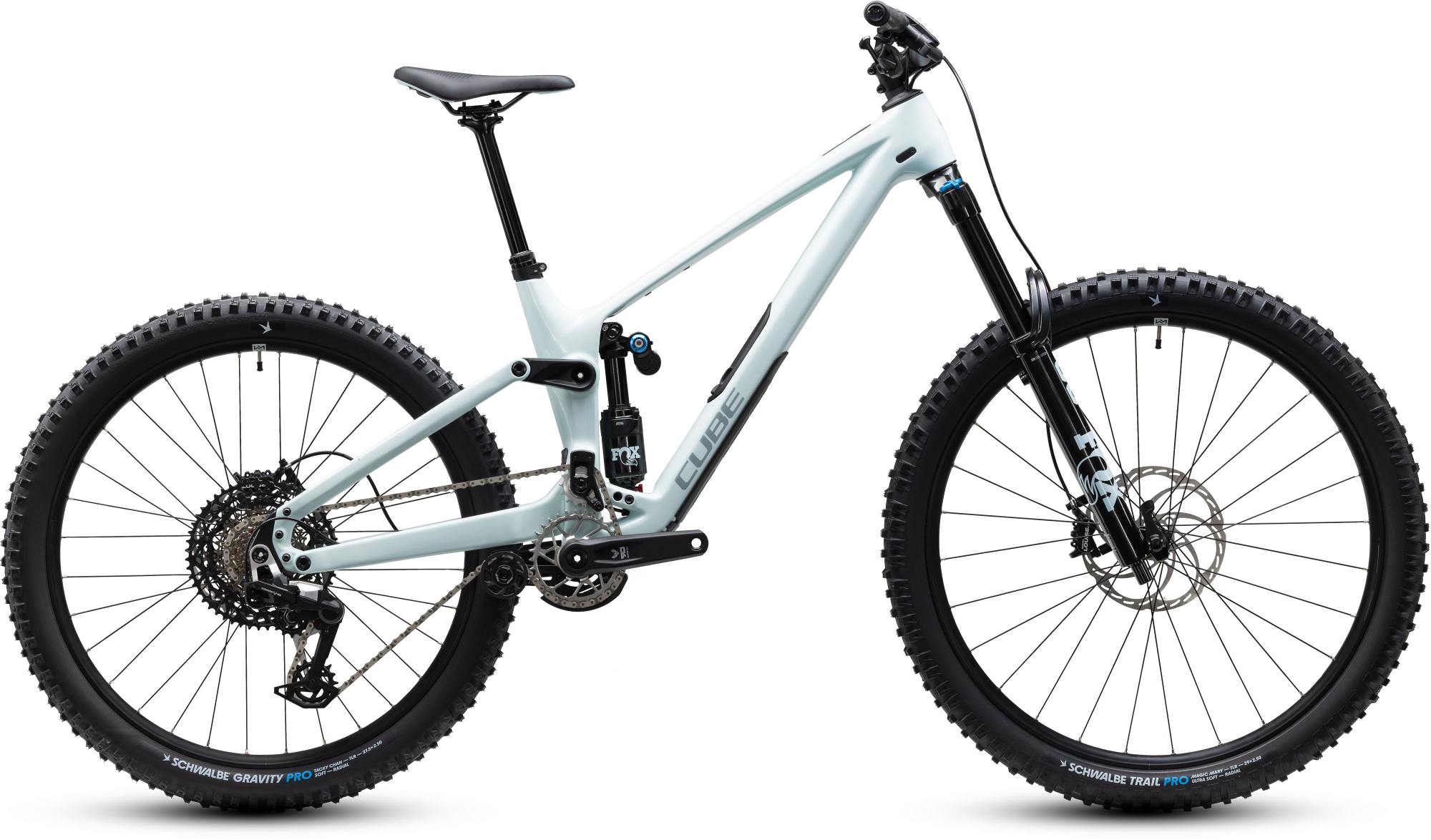

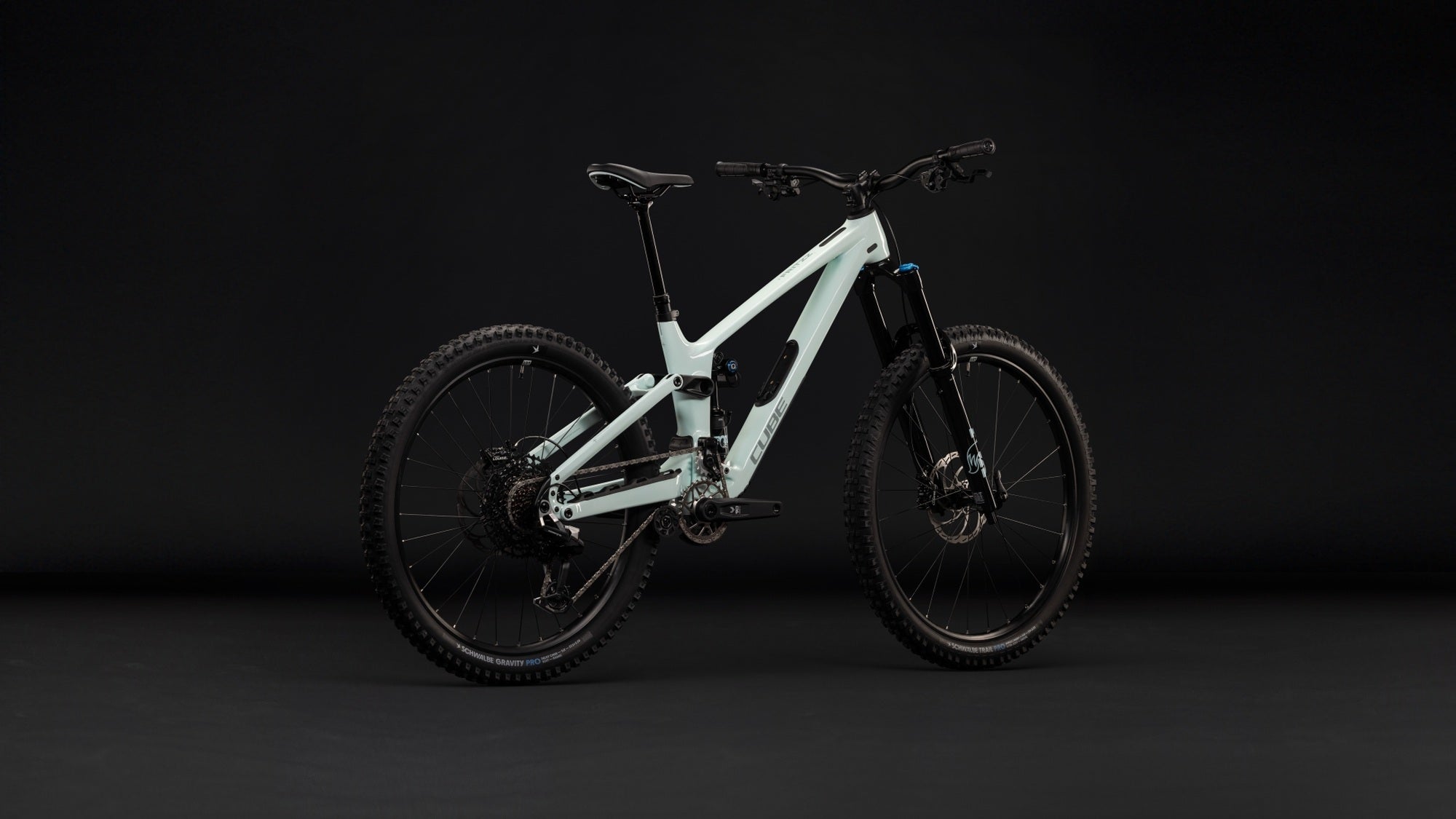

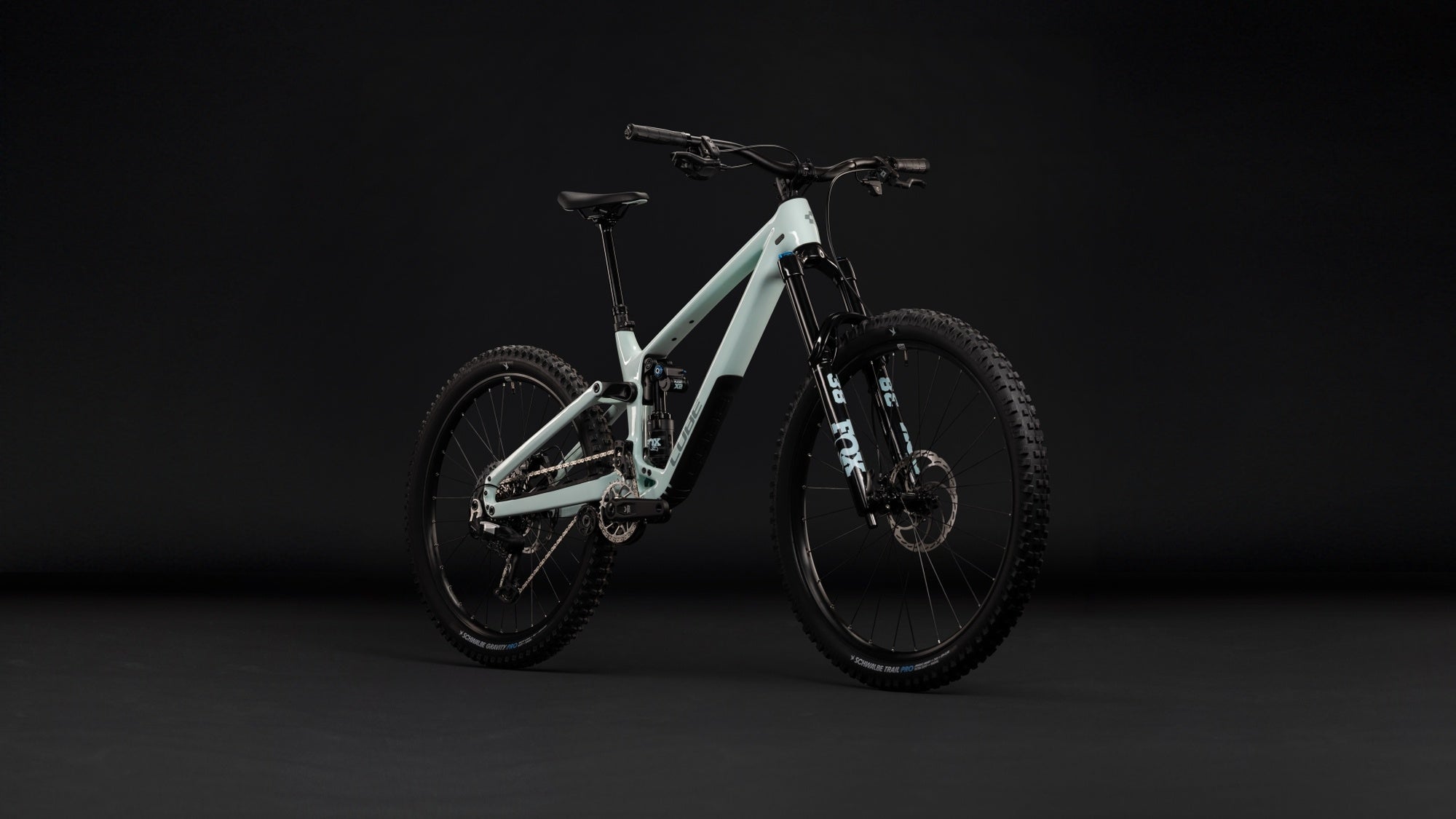

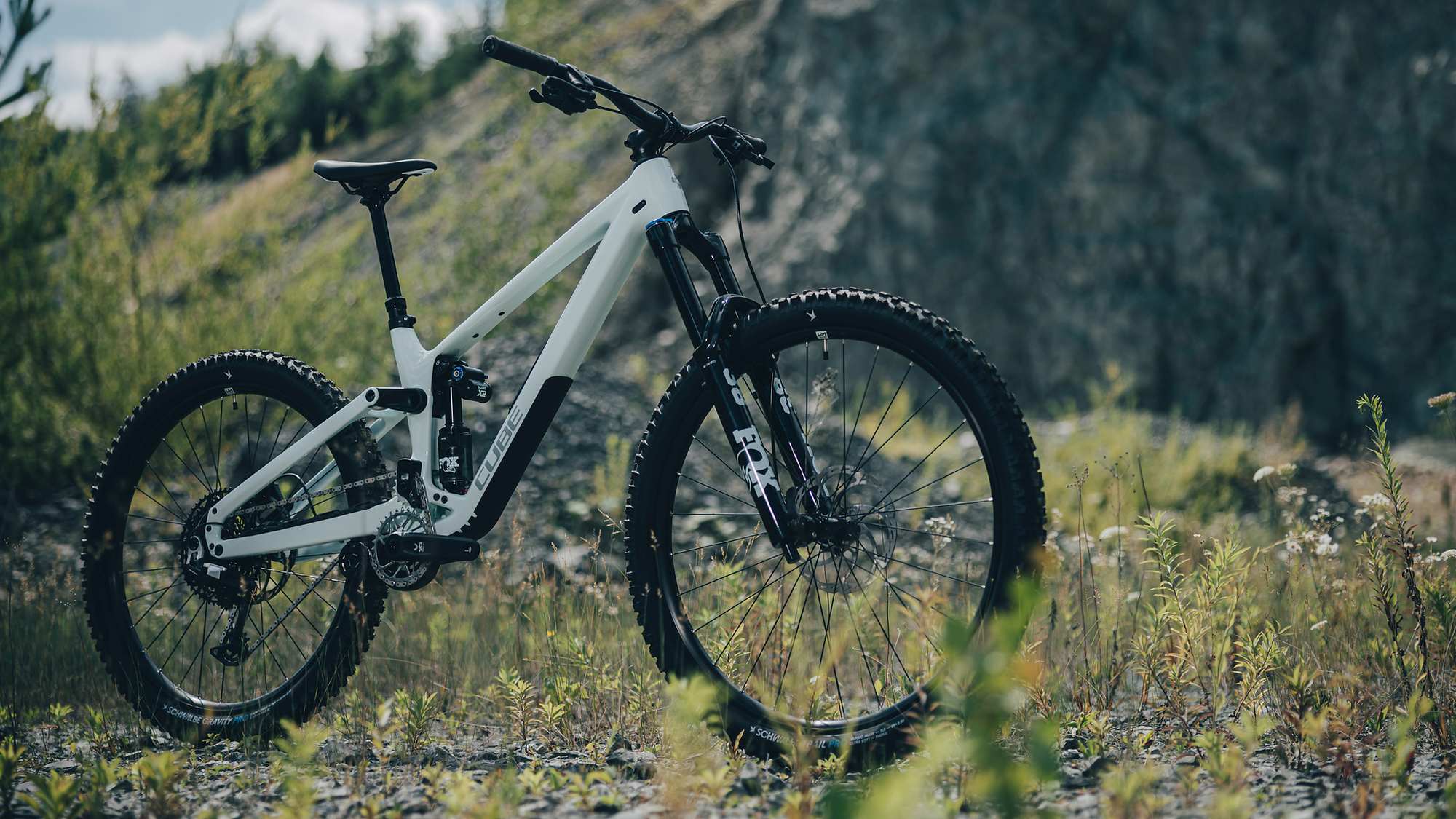

Stability, agility and versatility guided the development of the Fritzz C:62 TM. The robust C:62® carbon frame has 170 millimetres of travel at both ends, with a high-pivot design optimising grip and control. Choice comes first. An adjustable shock mount lets you tailor rear suspension progression, for example. You can therefore replace the air spring with a coil spring if desired. Although the Fritzz comes as a mullet, the included dropouts also allow a 29-inch rear wheel. The head angle is adjustable too, and cables can enter through the top of the headset or the side of the frame. Under the top tube are mounts for a multitool or inner tube, with a GPS holder on top.

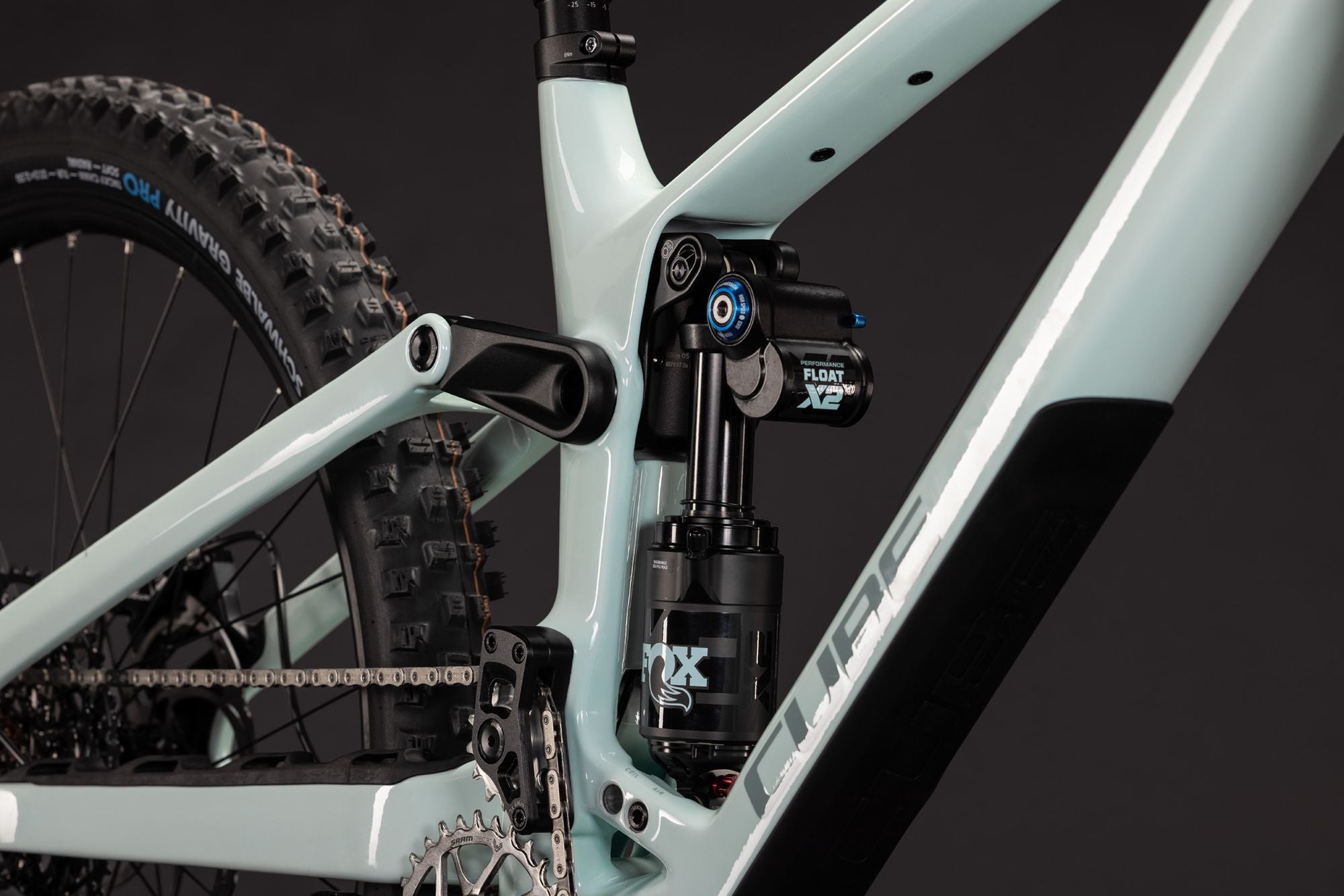

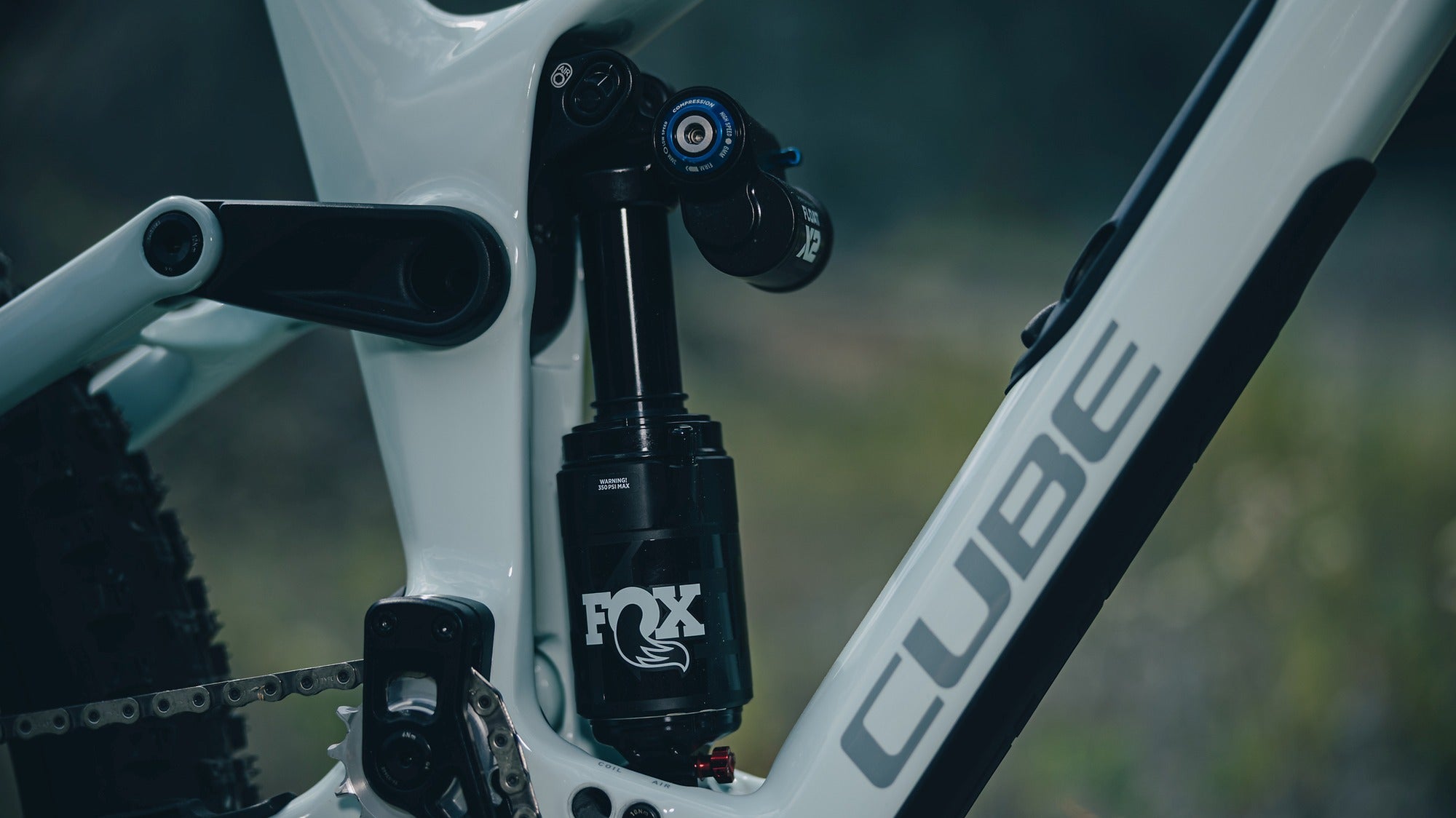

All Fritzz versions take speed and control seriously, but the TM version raises the bar considerably. Take the burly Fox 38 Float fork and matching Float X2 rear shock. Or Newmen's Performance 30 wheels with the exceptionally grippy Schwalbe Magic Mary and Tacky Chan combination. Exceptionally powerful Magura Louise disc brakes handle slowing down, while SRAM's 12-speed Transmission 90 handles speeding up. Bring on the mountains: Fritzz knows what to do.
Read more
Matching accessories
CUBE BOTTLE CAGE HPP MATT BLACK/GLOSSY BLACK
£16.95
CUBE BOTTLE CAGE HPC 2.0 MATT BLACK/GLOSSY
£49.95
CUBE PEDALS SLASHER BLACK
£89.95
ACID BOTTLE CAGE HPC BLACK
£49.95
ACID MUDGUARD PURE FRONT
£9.95
Often bought together
CUBE HYDRATION BLADDER HIP BAG 1.5 TRANSPARENT
£39.95
Cube Hip Bag Vertex 3 Tm Olive
£59.95
ACID LIGHT SET PRO 30 BLACK
£39.95
ACID LED LIGHT SET HPA BLACK
£39.95
Specifications
General
Model code
1173700
Model year
2027
Colour
Hintofmint/Grey
Sizes
S, M, L, XL
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
16.1
Frame and front fork
Frame

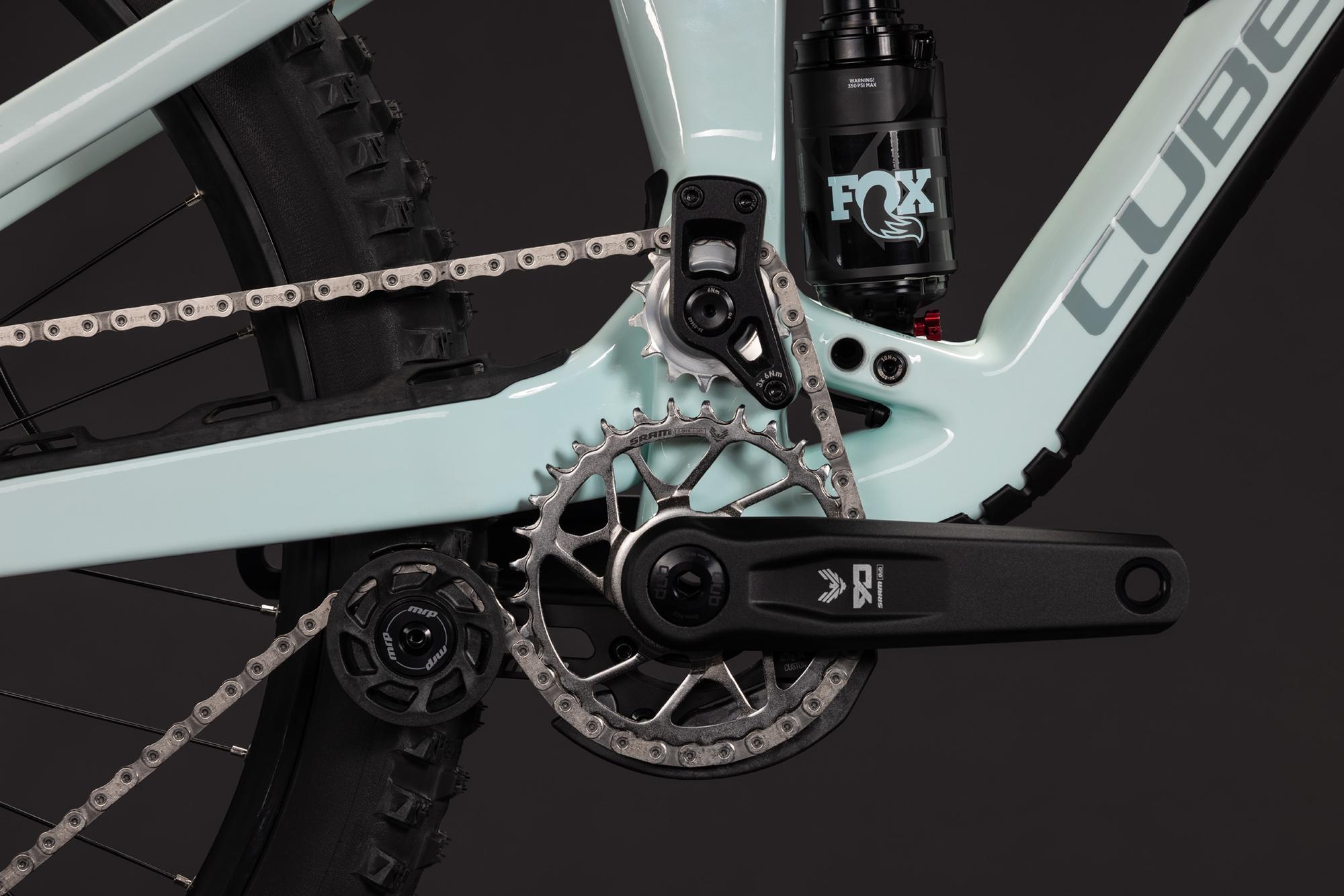

C:62® Monocoque Advanced Twin Mold Technology, ISCG 05, UDH™, Air/Coil Shock Mount Flip-Chip, High Main Pivot with Idler Pulley
Front fork
?
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.

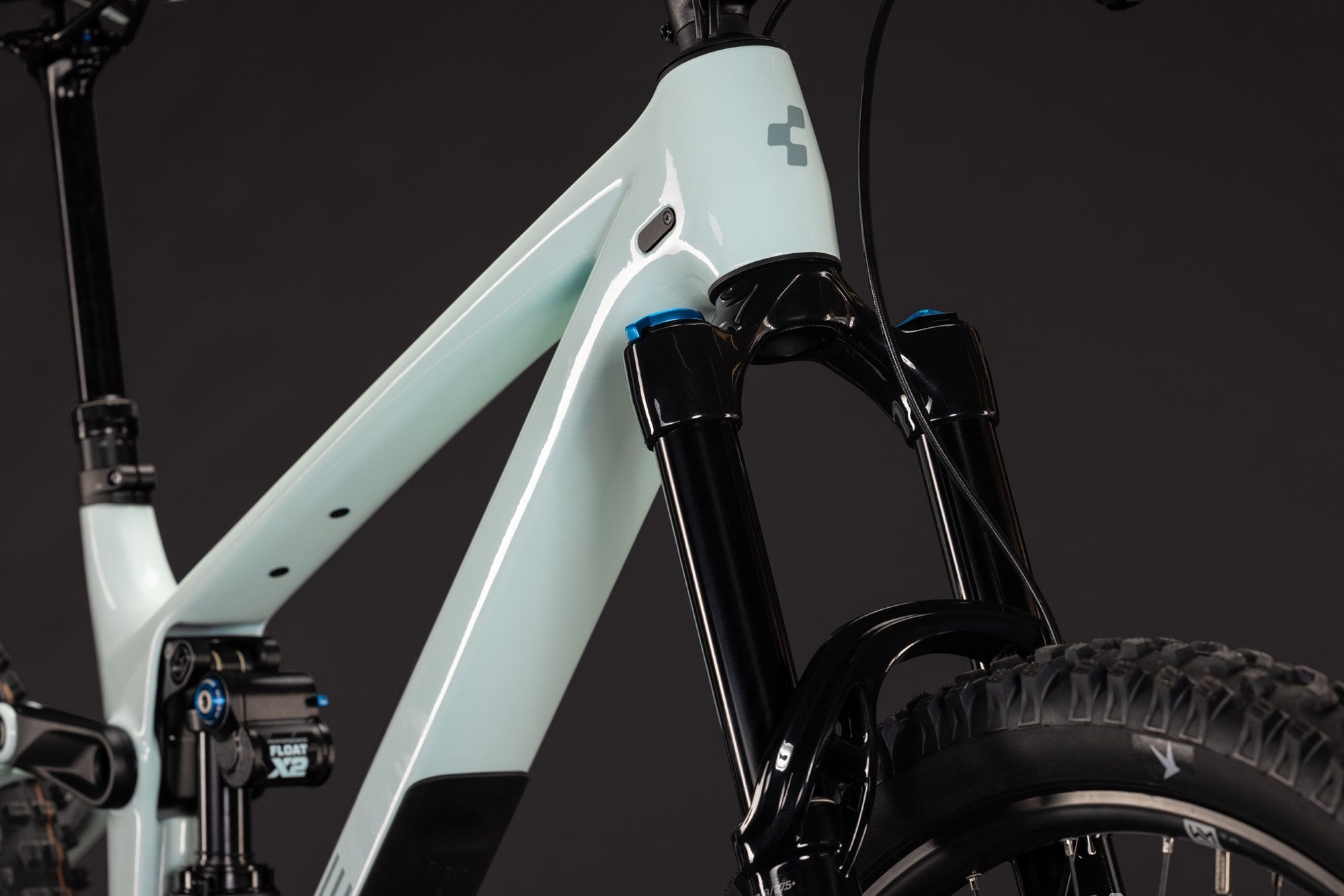

Fox 38 Float Performance GRIP, Tapered, 15x110mm, 170mm
Drivetrain and brakes
Number of gears
12
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Sram Eagle™ 90 Transmission, 12-Speed
Shifters
?
Make and type of gear levers.
Sram Eagle™ 90 Transmission
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.

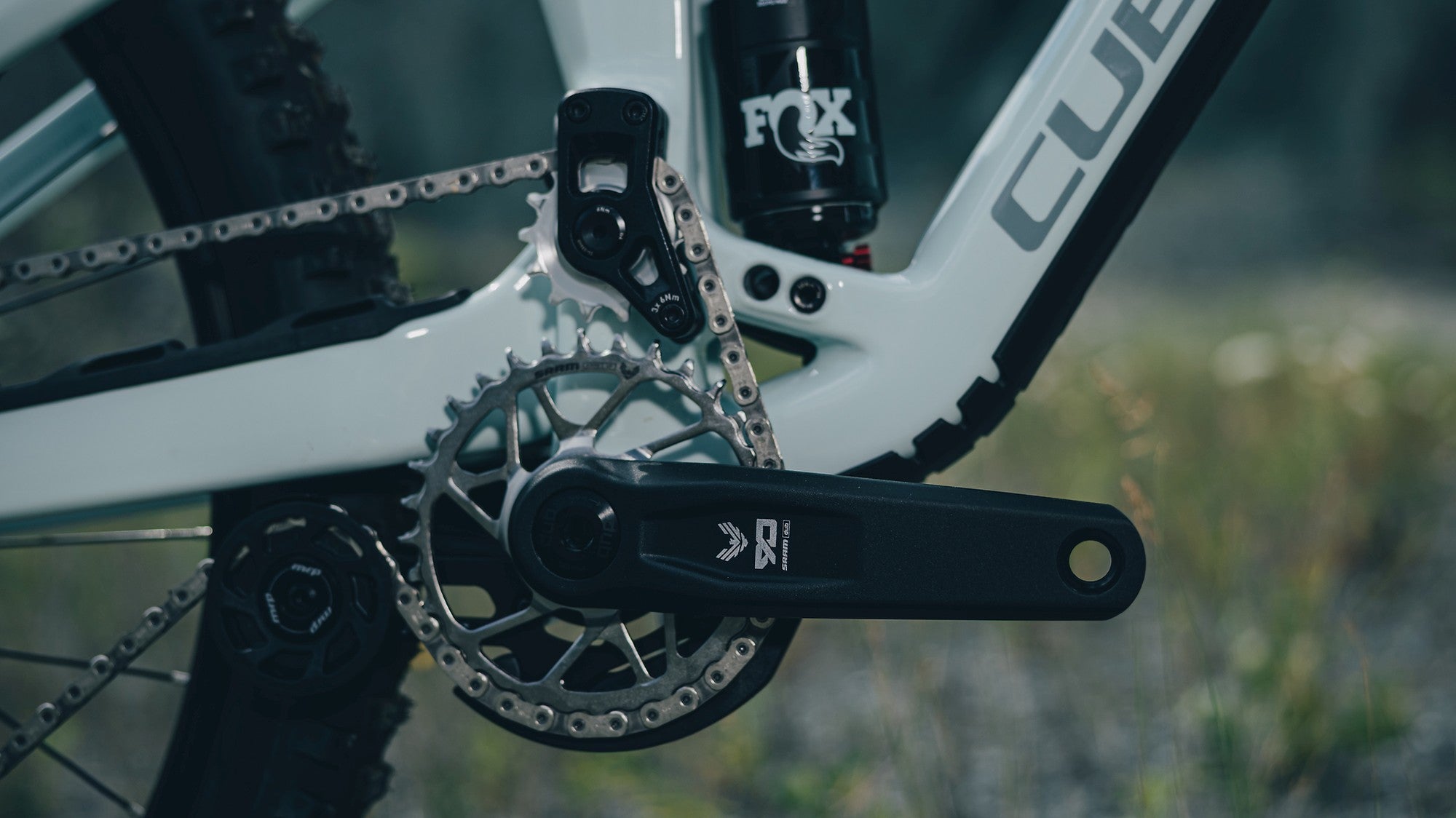

Sram Eagle™ 90 Transmission DUB, 32T
Cassette
?
The set of gears on the back of the bicycle
Sram XS-1270, 10-52T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
Sram GX Eagle™ Transmission
Brake system front
?
Brand, type of brake system and diameter of the brake disc.

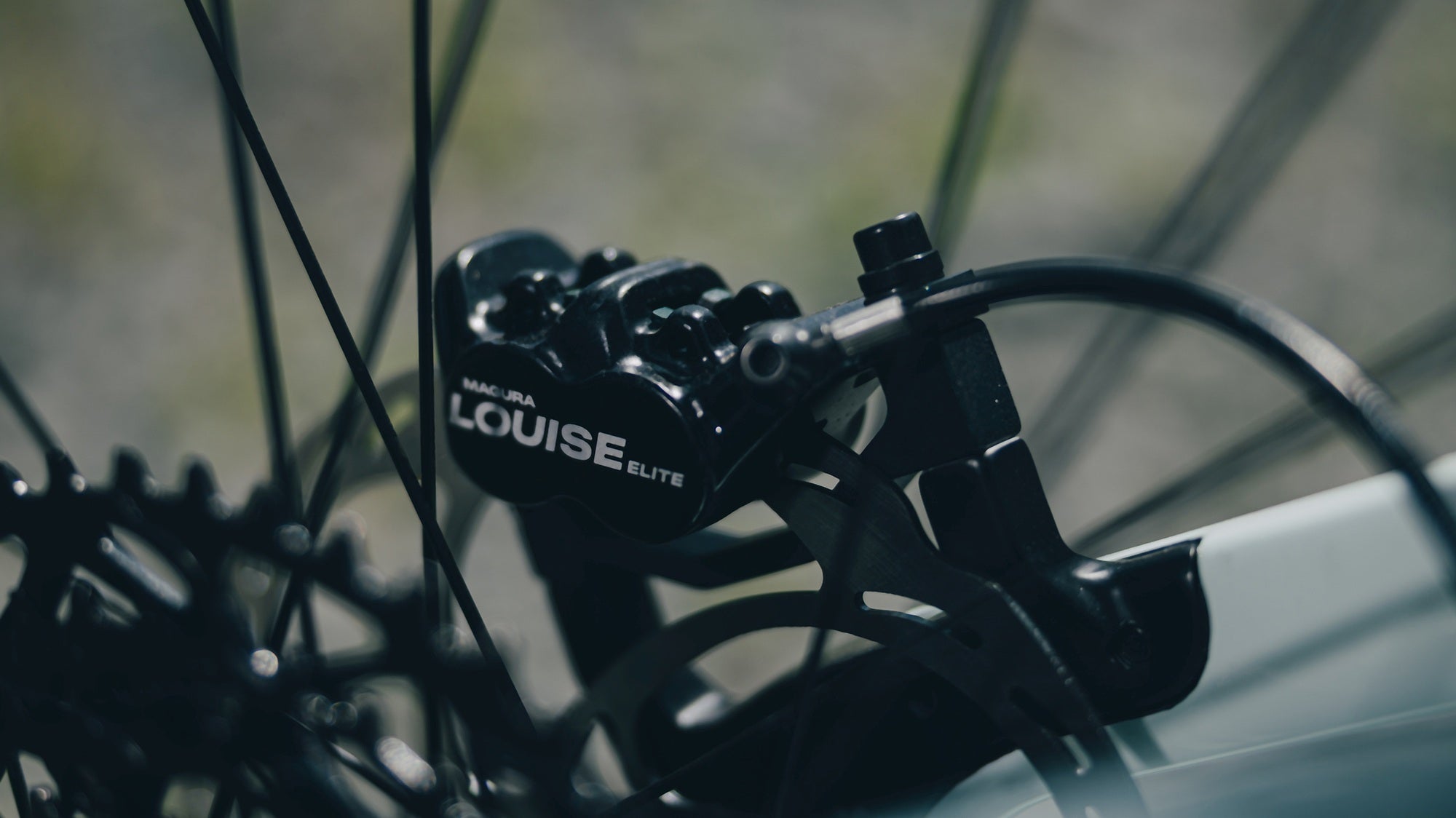

Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Brake system back
?
Brand, type of brake system and diameter of the brake disc.
Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Headset
?
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
The bike usually comes with pedals. If not, it is indicated here.
Niet inbegrepen – apart verkrijgbaar / Not included – available separately
Kickstand
Niet inbegrepen – apart verkrijgbaar / Not included – available separately
Touch up pen
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
Slot
?
Een ART-2 keurmerk op een fietsslot garandeert een goede diefstalbeveiliging en wordt door de meeste verzekeraars geëist voor de allriskverzekering van fietsen (en e-bikes). Het keurmerk, afgegeven door de Stichting ART, betekent dat het slot uitgebreide testen heeft doorstaan, zoals knip- en aanvalstesten.
Niet inbegrepen – apart verkrijgbaar / Not included – available separately
