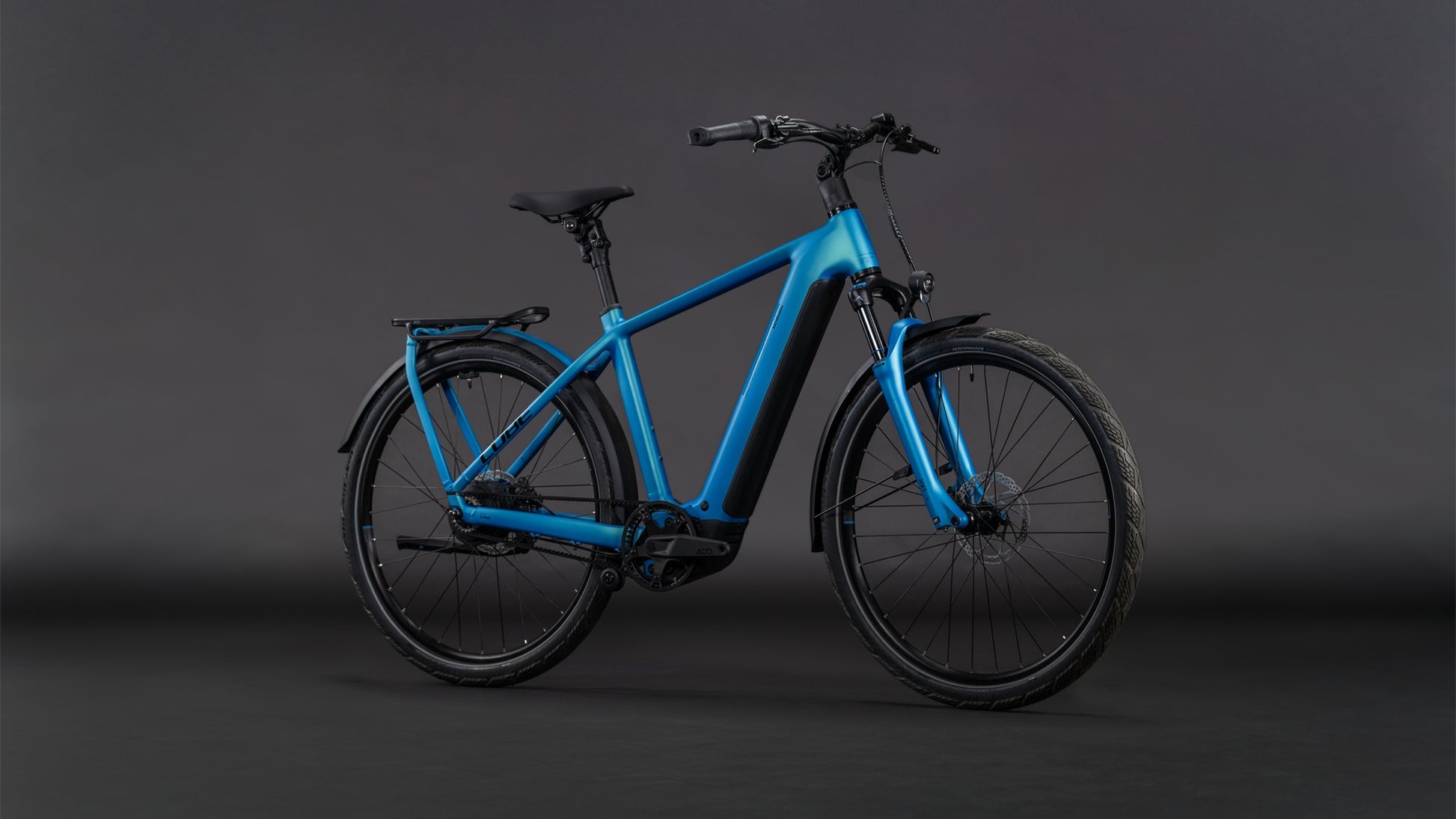

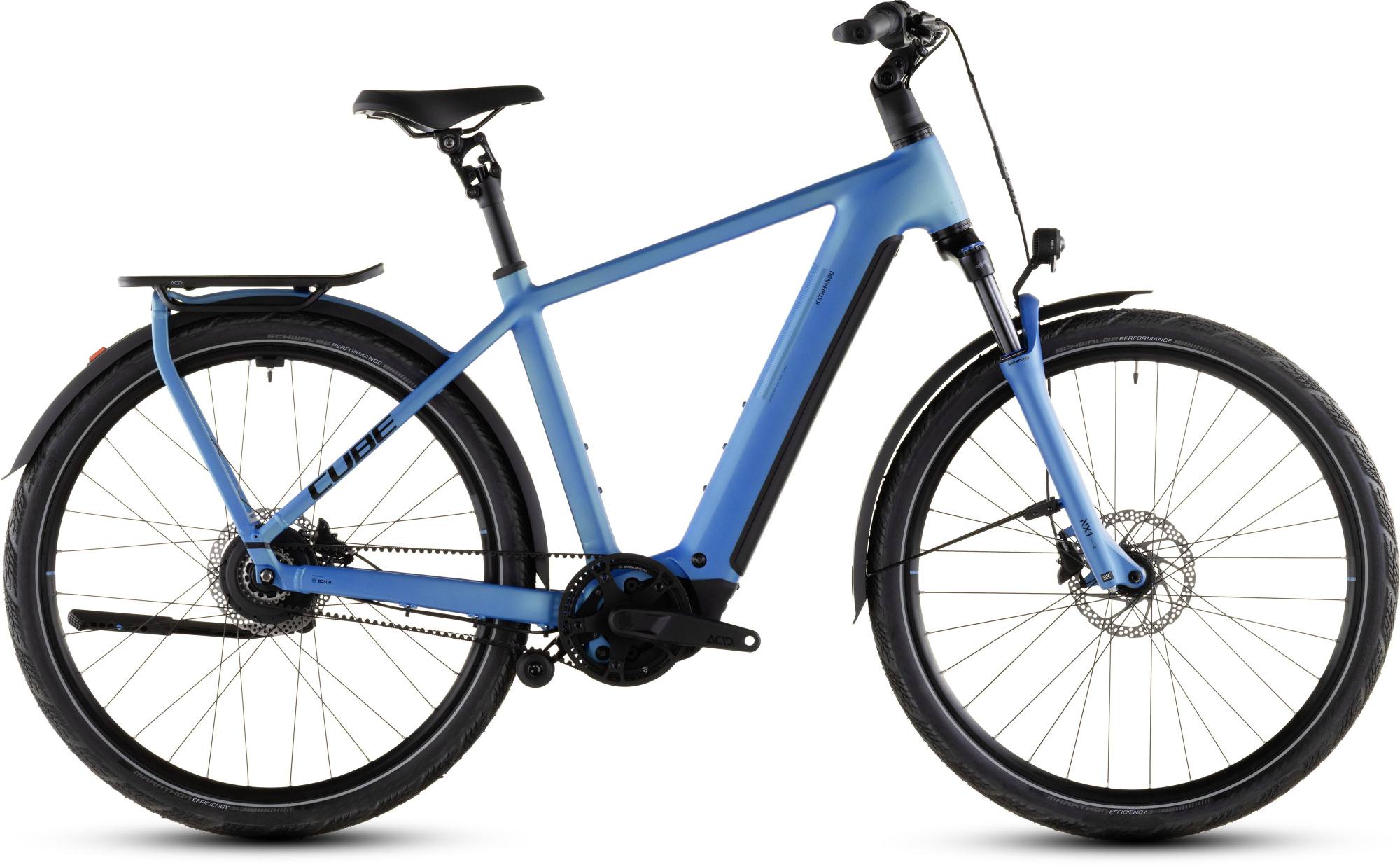

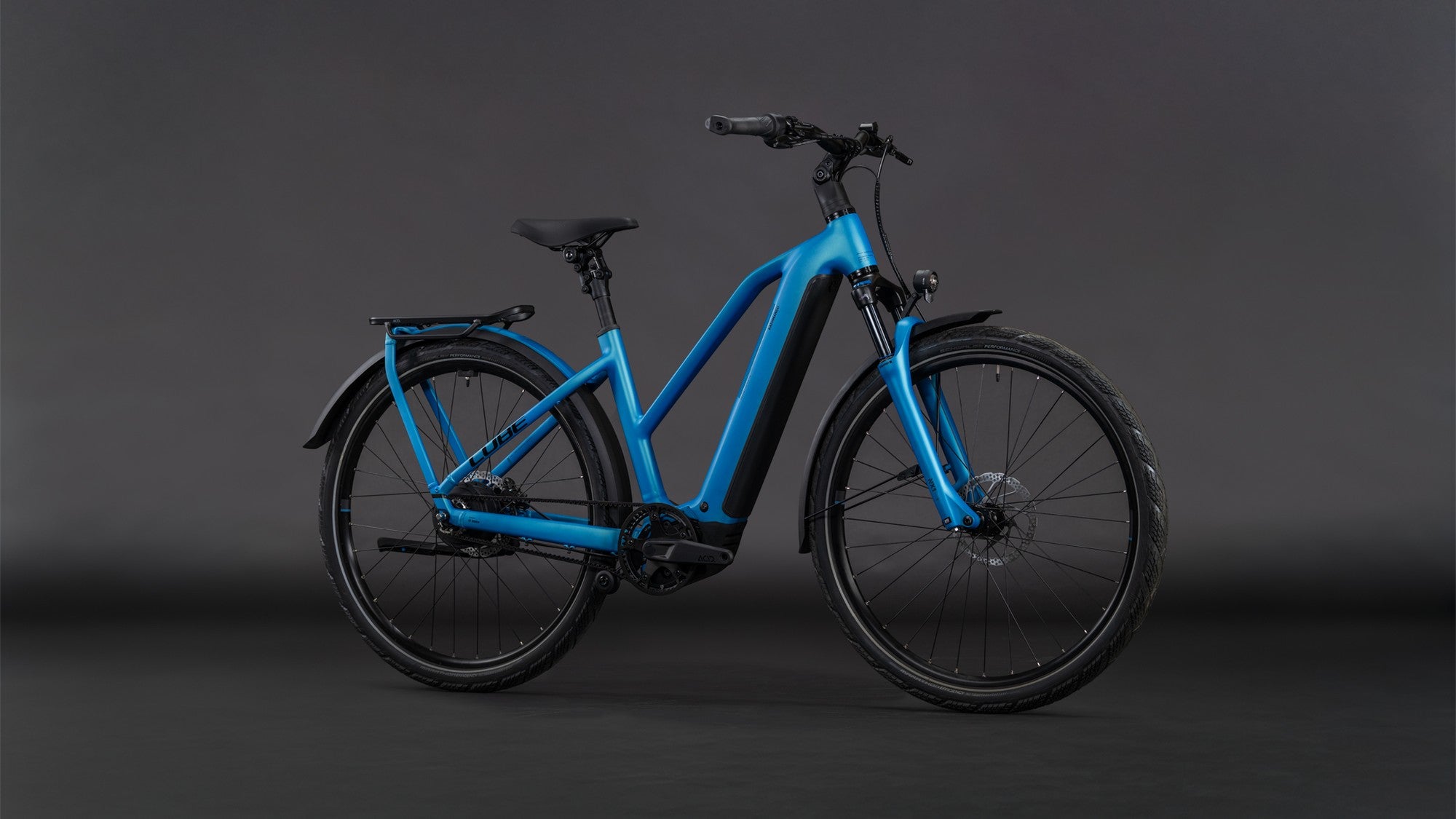

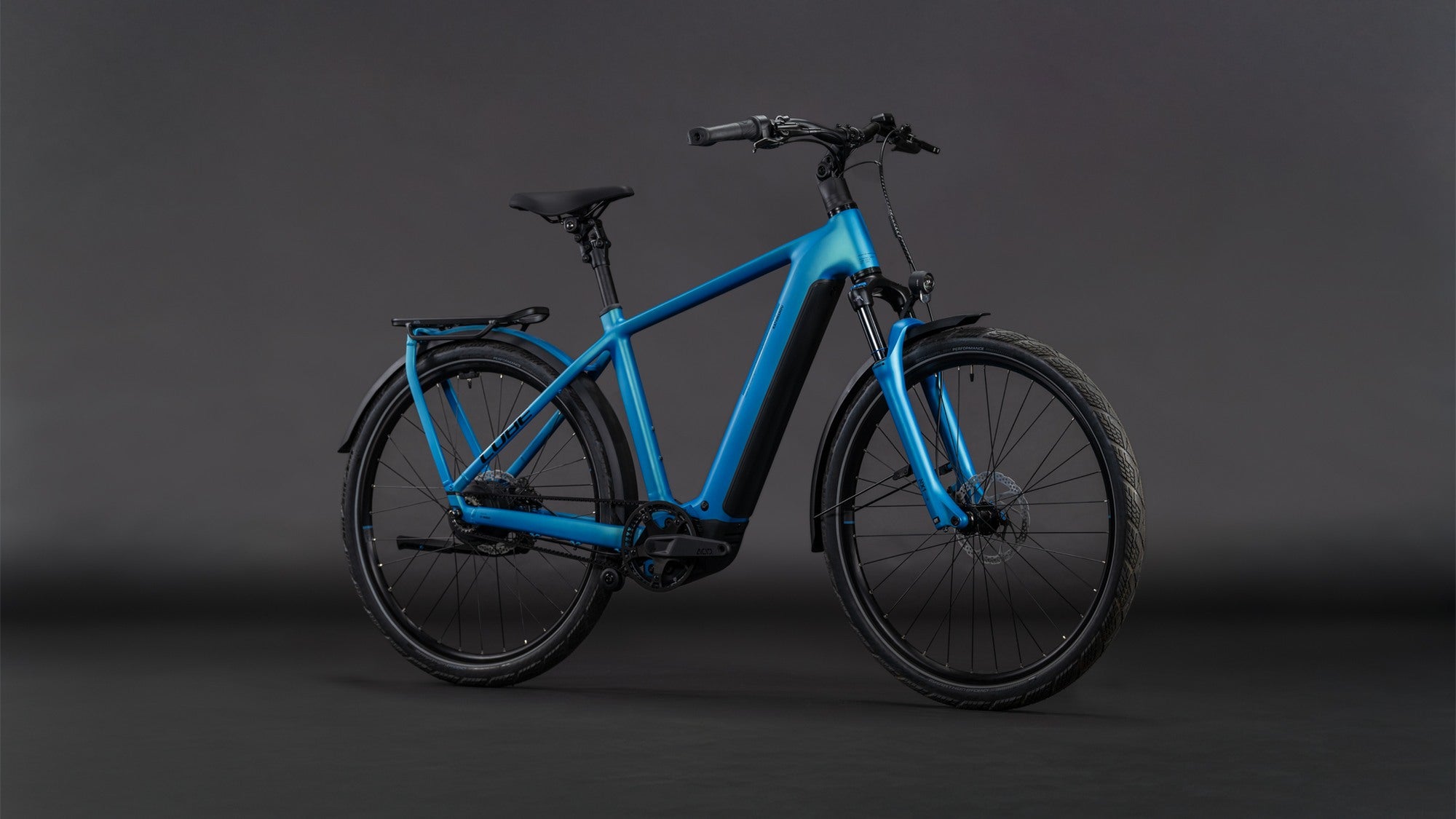

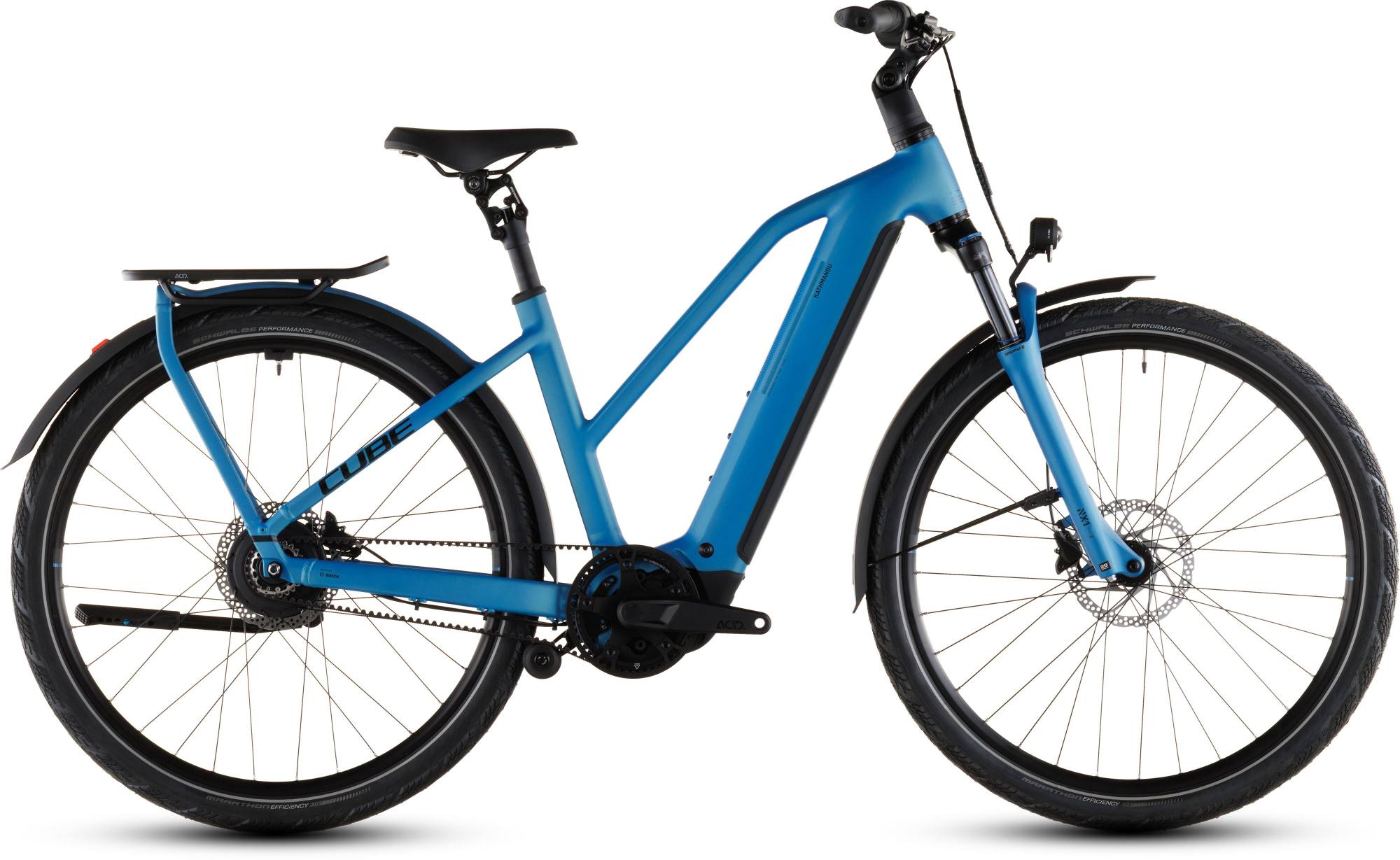

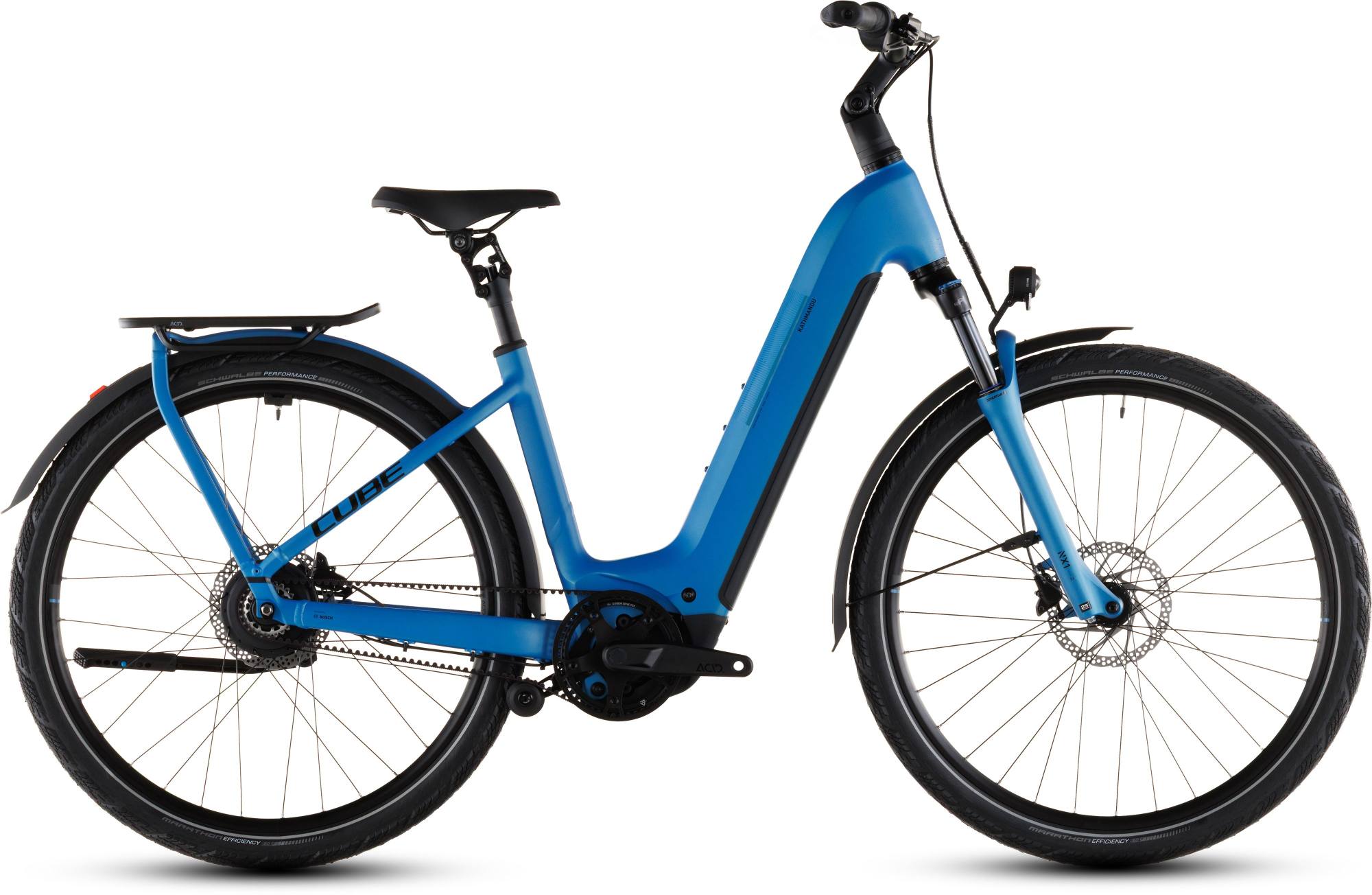

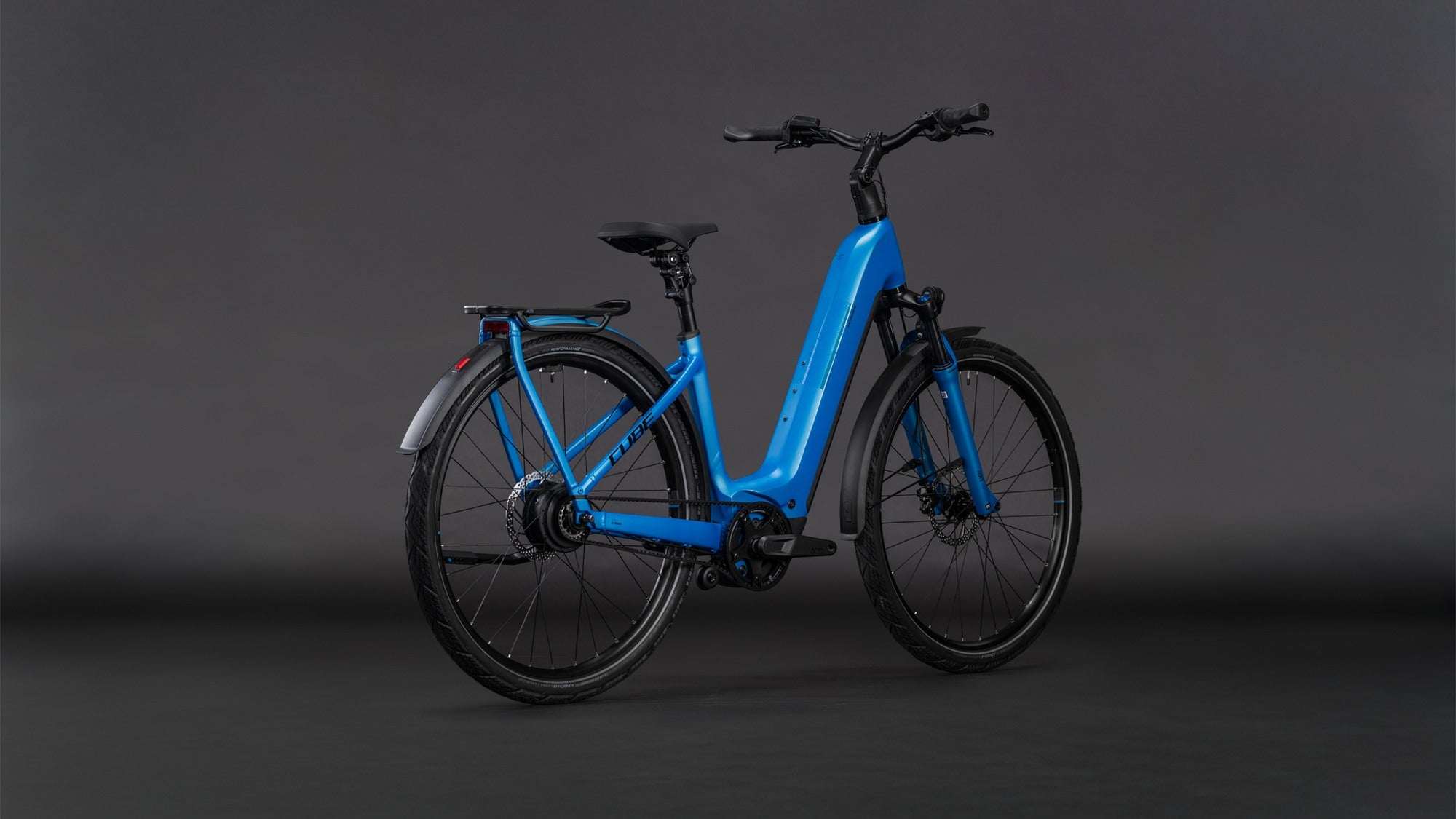

CUBE KATHMANDU HYBRID COMFORT PRO 800 AZURE/BLACK
CUBE KATHMANDU HYBRID COMFORT PRO 800 AZURE/BLACK
























Description
Frame description

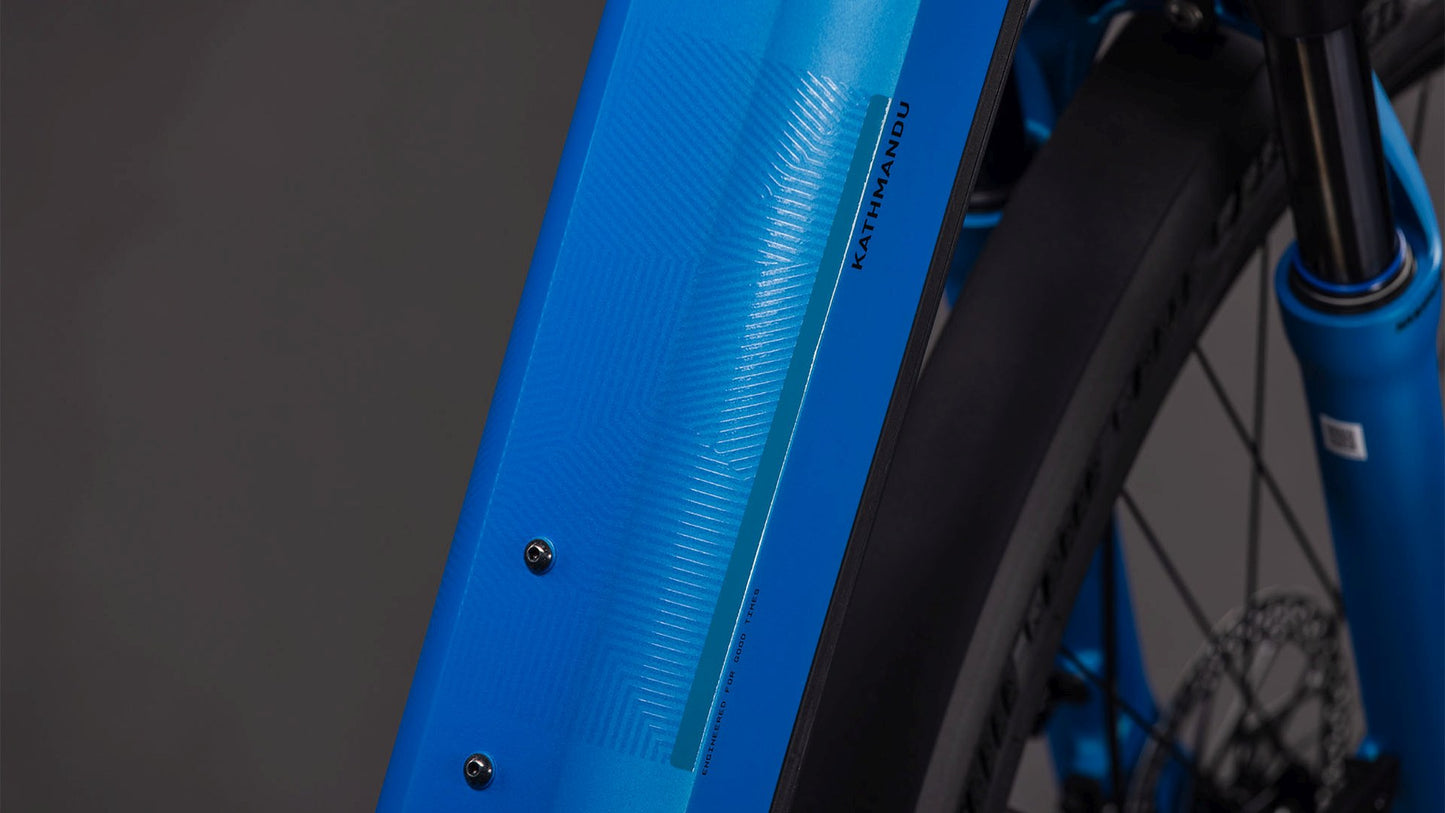

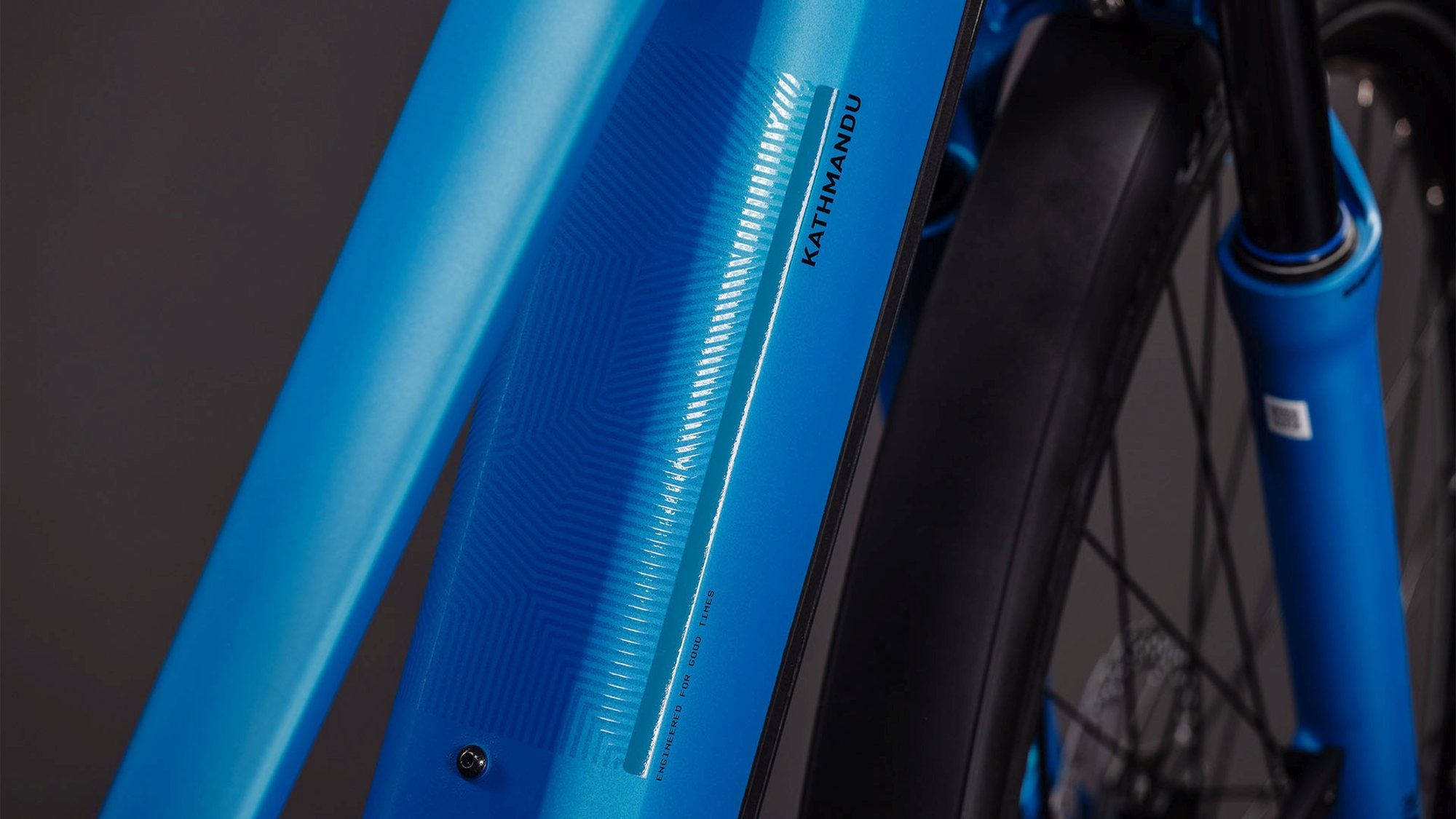

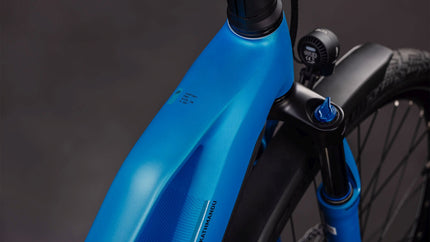

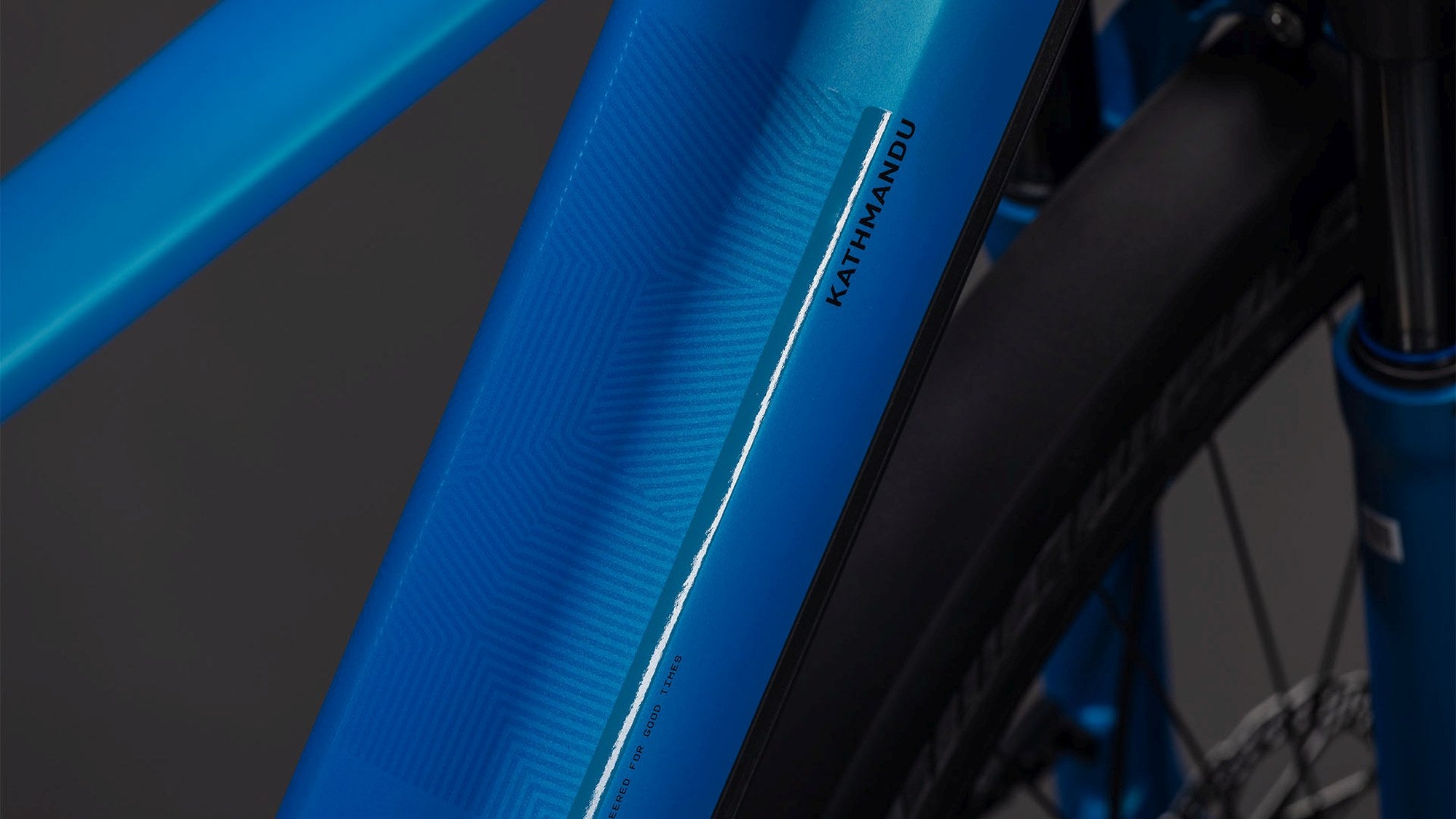

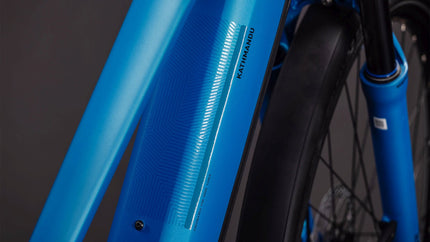

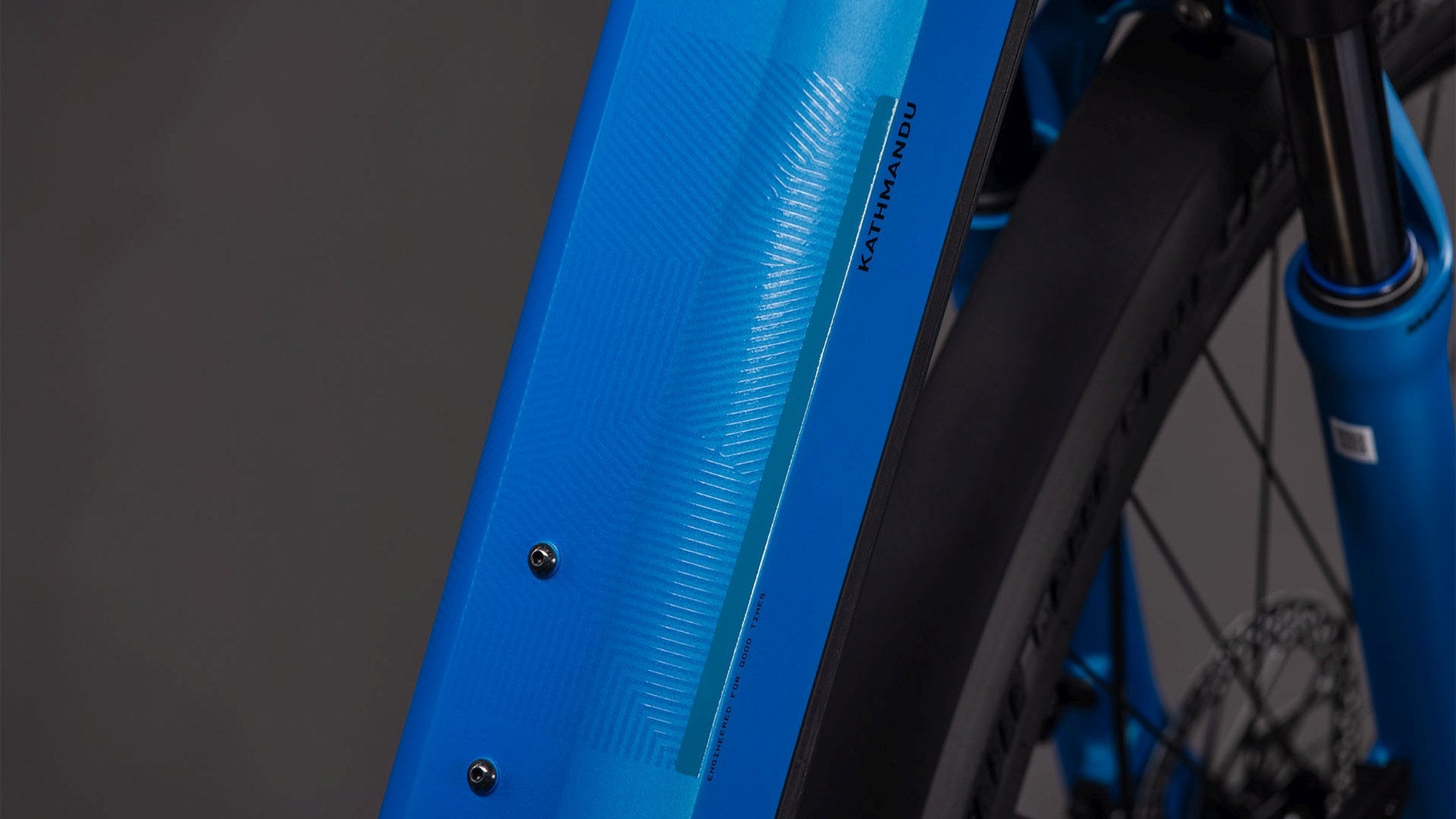

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
Product specifications
Frame
Model year
2026

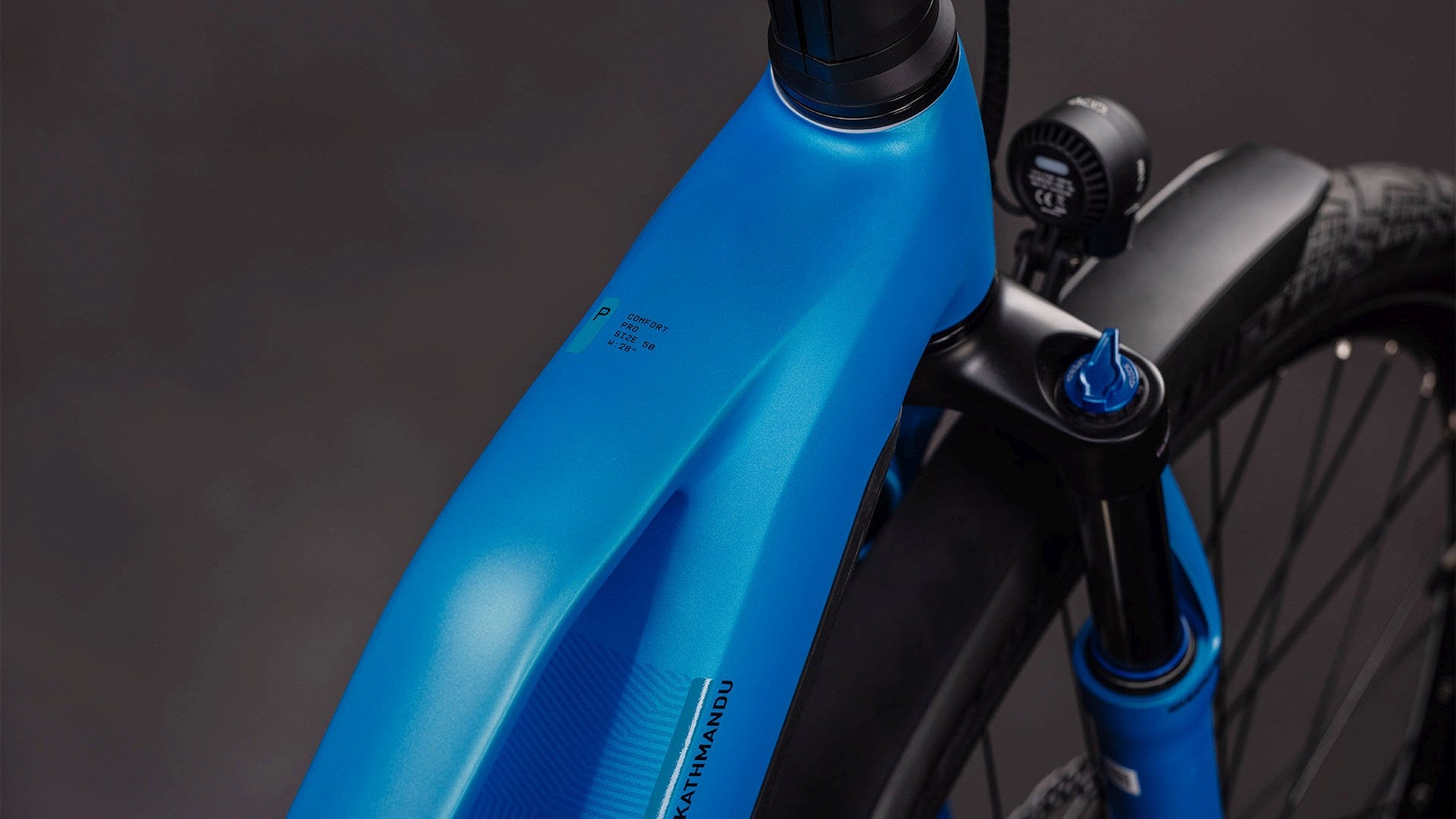

Fork

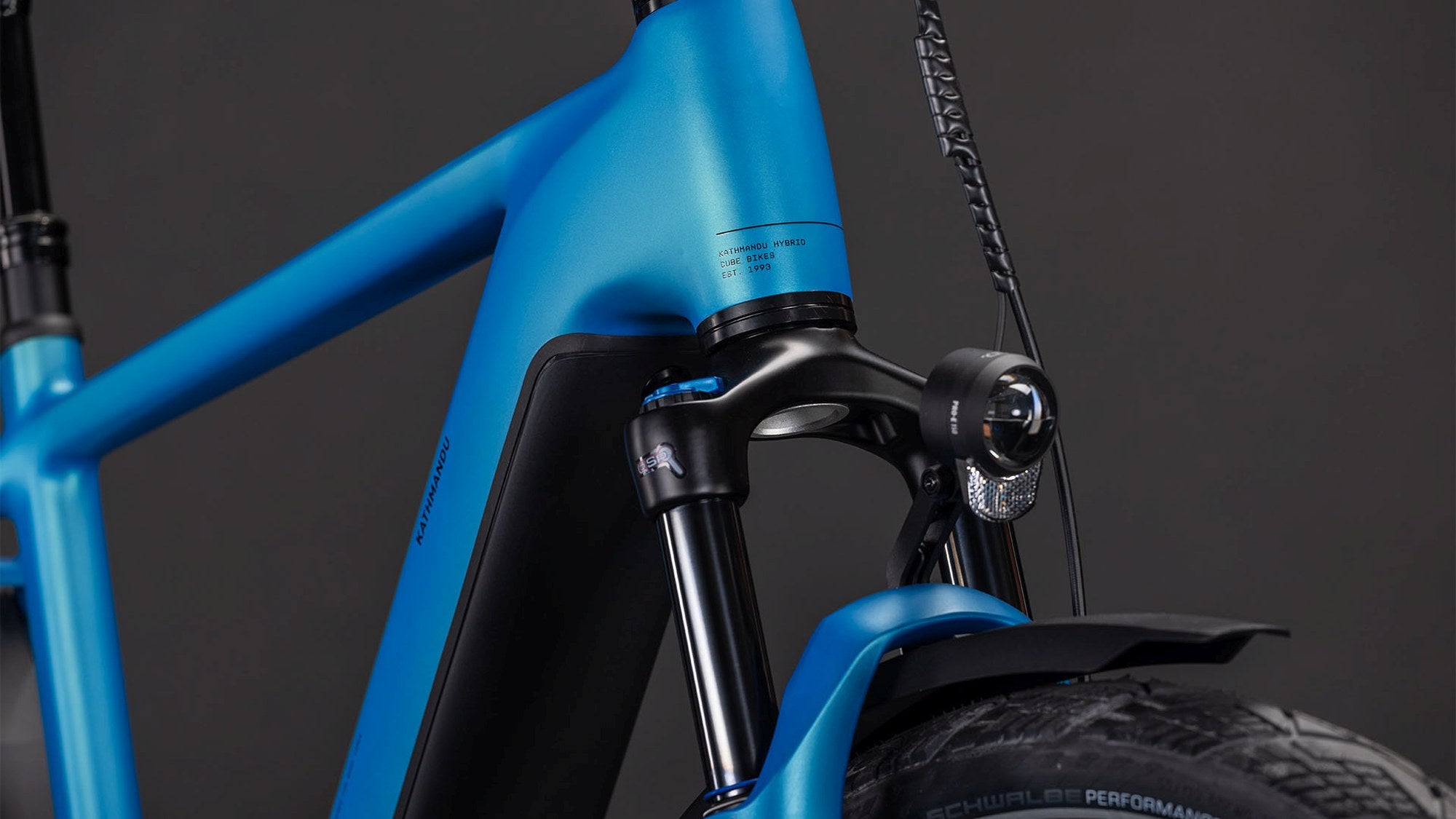

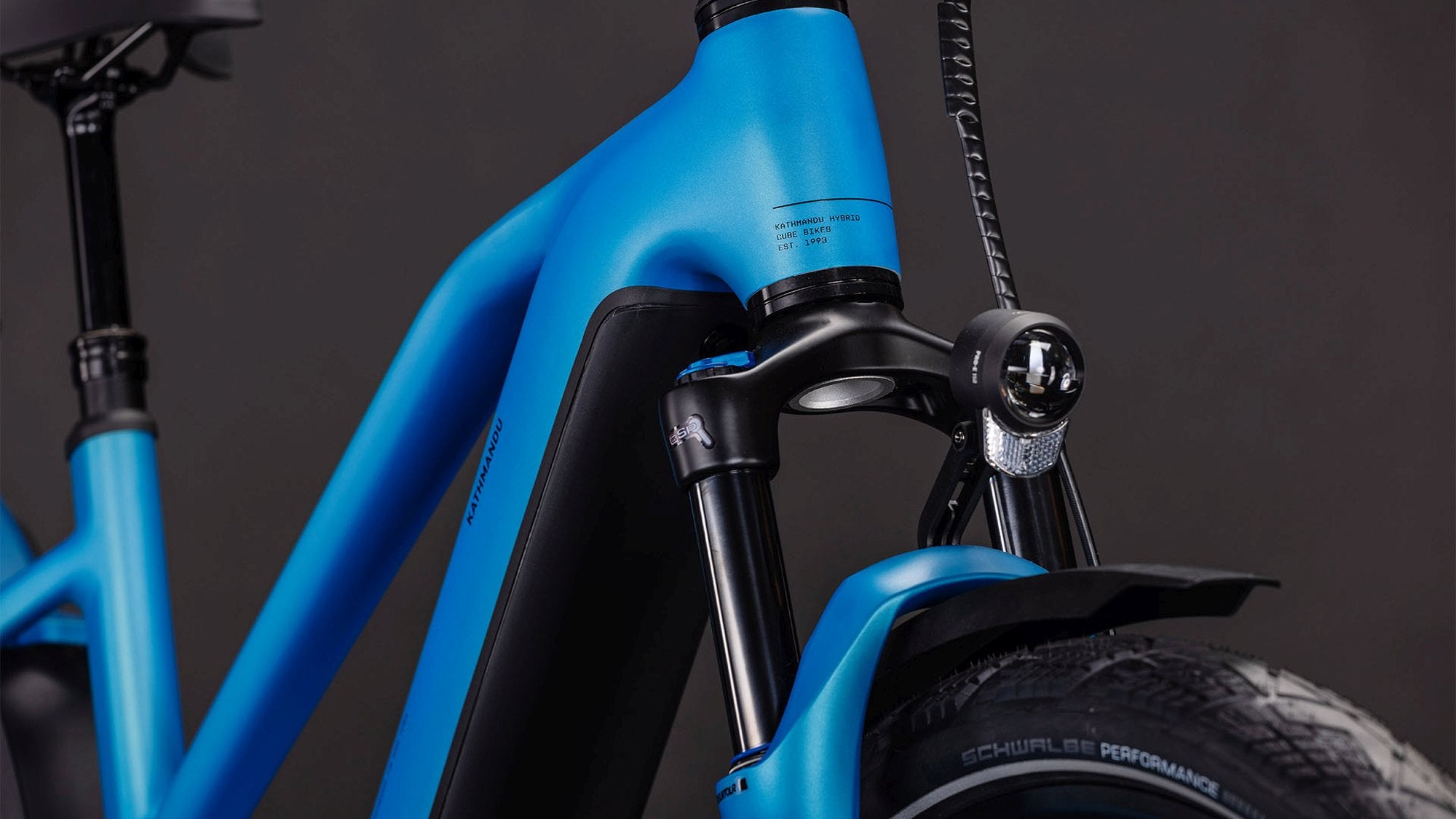

SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
E-bike System
Engine
Bosch Drive Unit Performance Line CX max. 90Nm (BDU38)
Battery
Bosch PowerTube 800
Drivetrain and brakes
Front brake
Shimano BR-MT200, Hydr. Disc Brake (180)
Rear brake
Shimano BR-MT200, Hydr. Disc Brake (180)
Shifters
Enviolo MC-TWIST

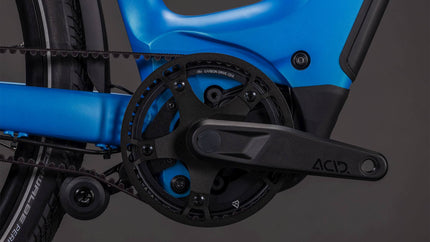

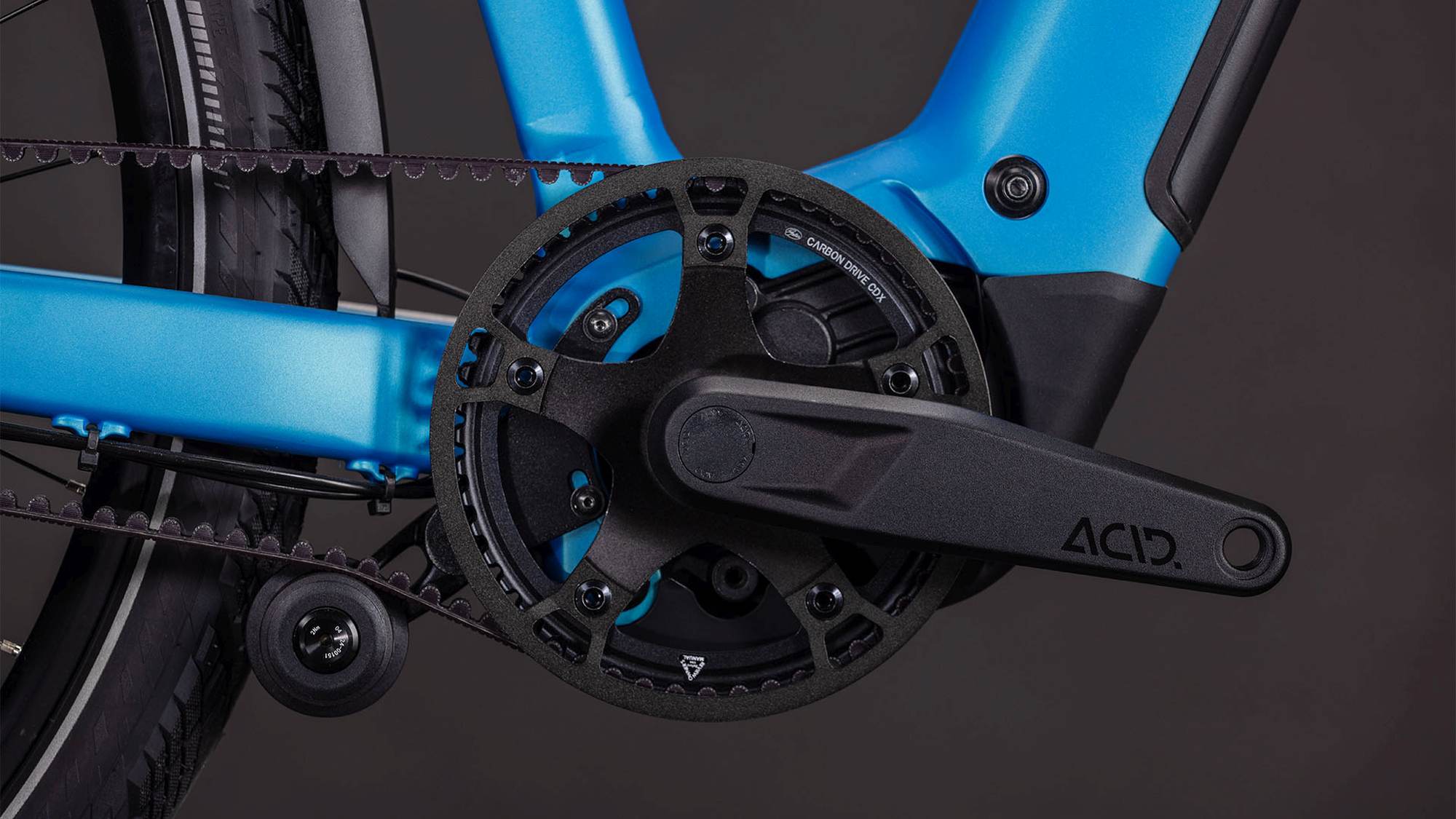

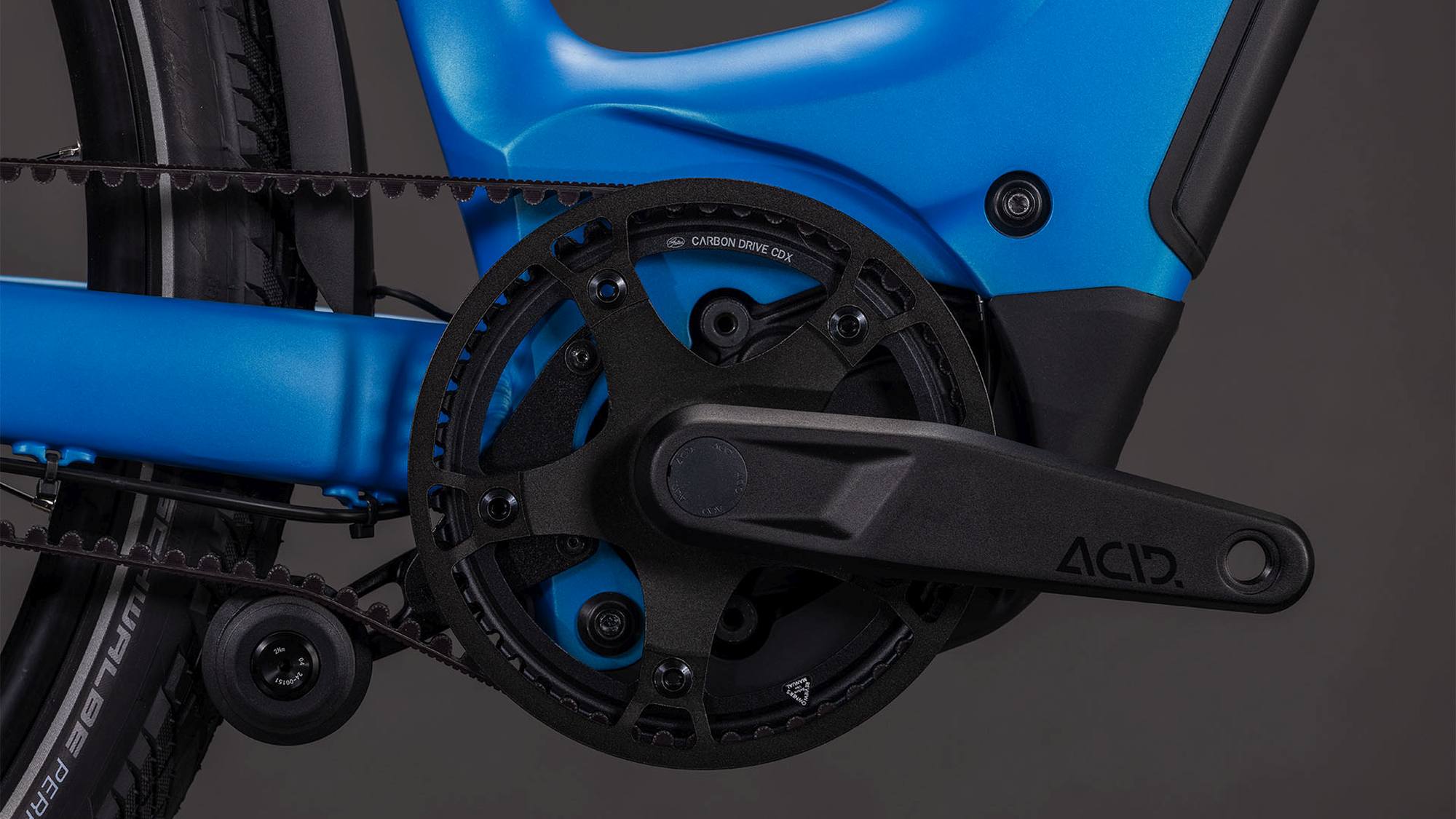

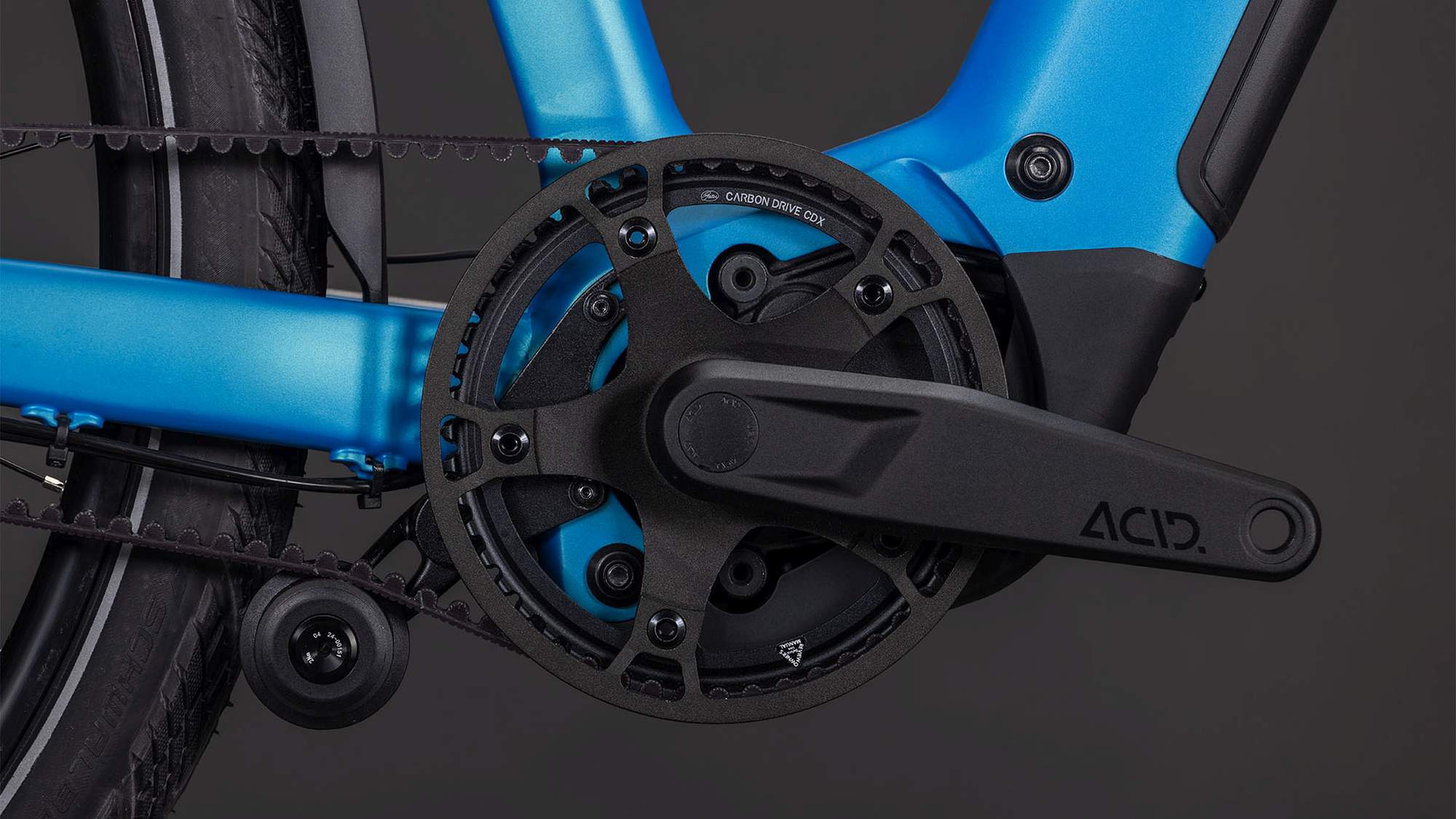

Crankset
Acid MTB Hybrid Pro, 50T
Cockpit

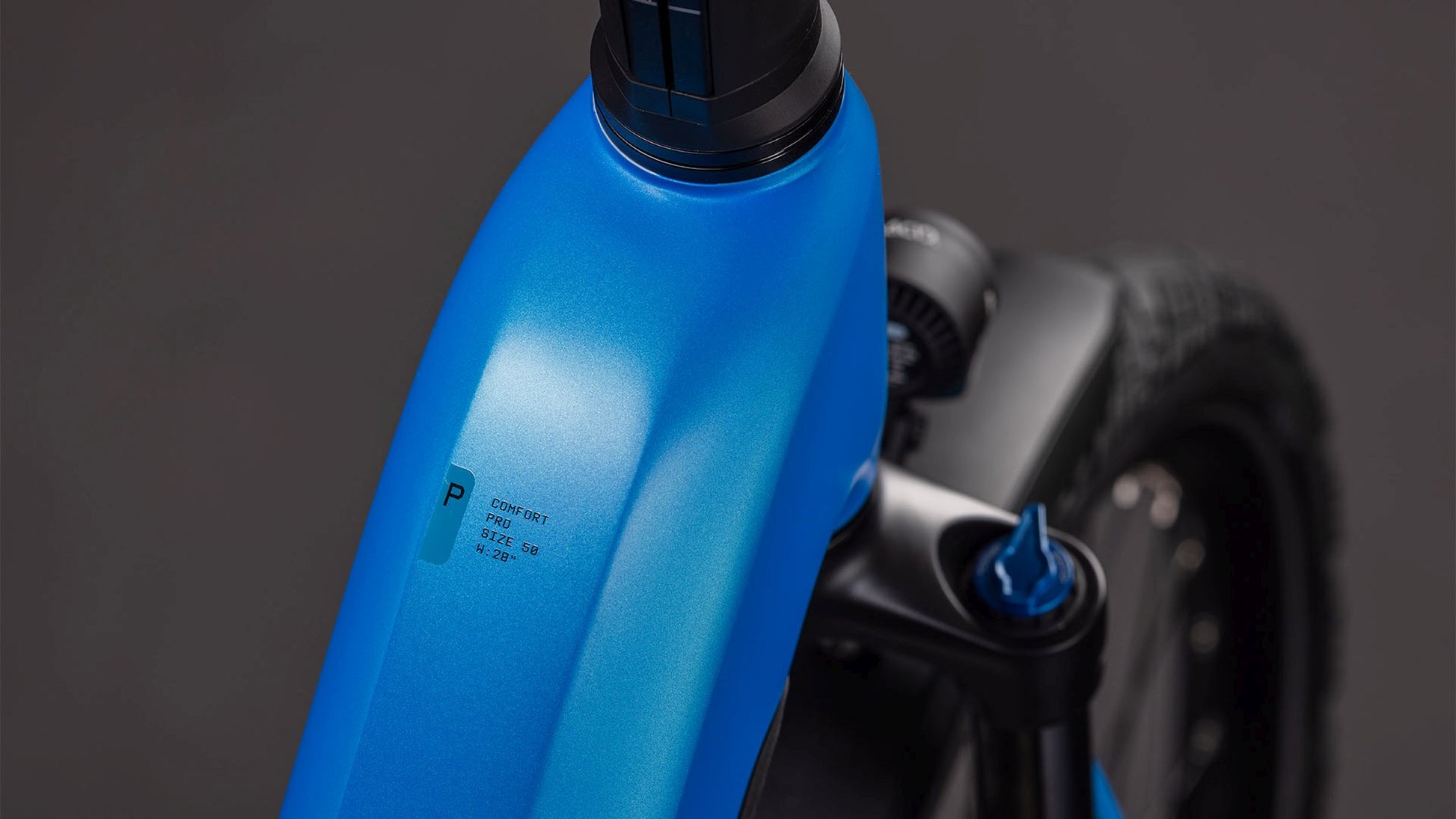

Headset

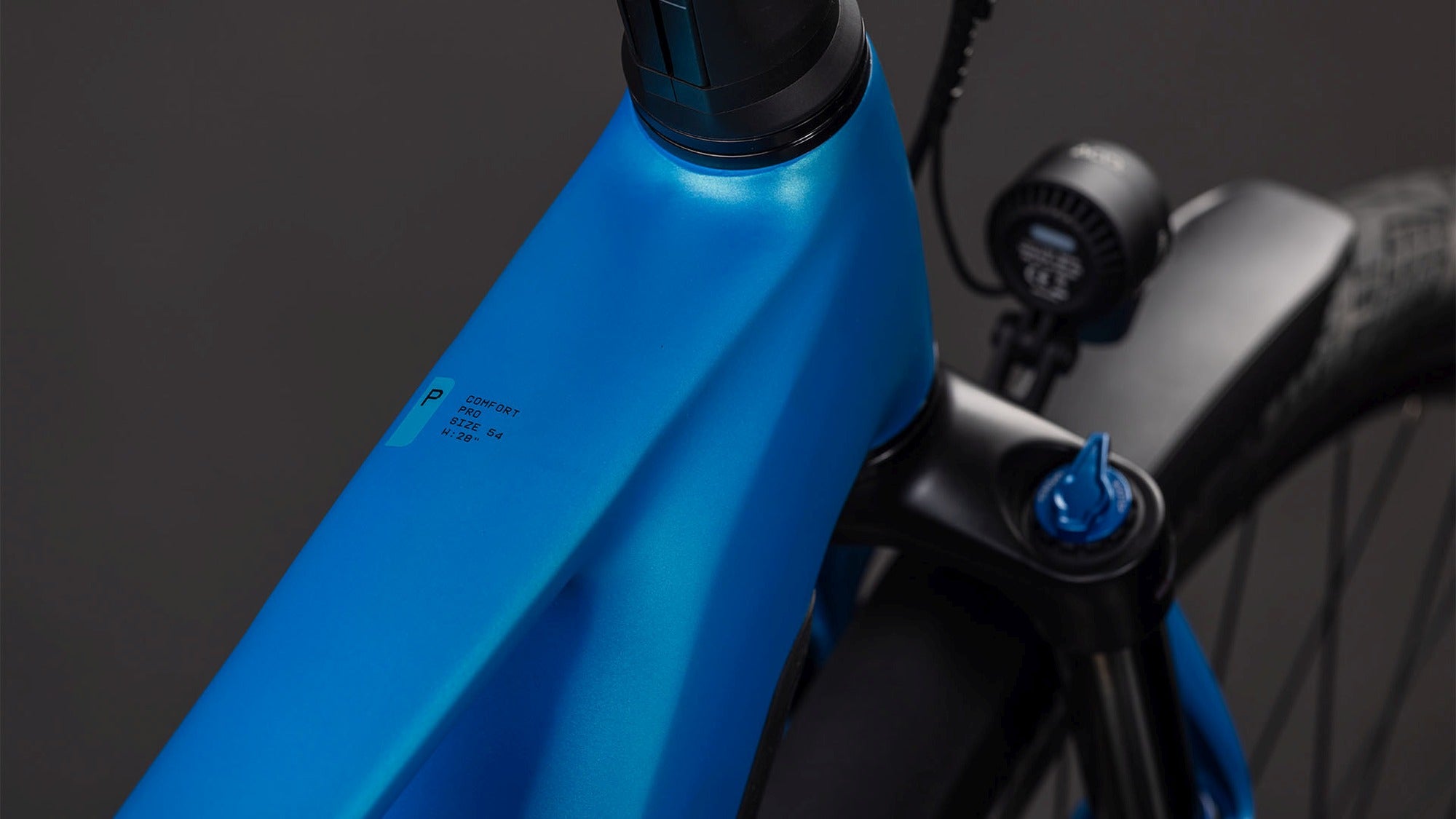

Acros AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Handlebar
Cube Comfort Trail Bar, 700mm
Stem
Cube Comfort Stem Pro, 31.8mm, Adjustable
Bar tape or grips
Acid Travel Comfort Gripshift
Wheels
Rims
Acid SLX 25, 32H, Disc, Tubeless Ready
Front hub
Acid SLX, 15mm, Boost, 6-Bolt
Rear Hub
Enviolo Trekking, 380%, 6-Bolt, 135mm
Front tyre
Schwalbe Marathon Efficiency, PerfL, 55-622
Rear Tyre
Schwalbe Marathon Efficiency, PerfL, 55-622
Other parts

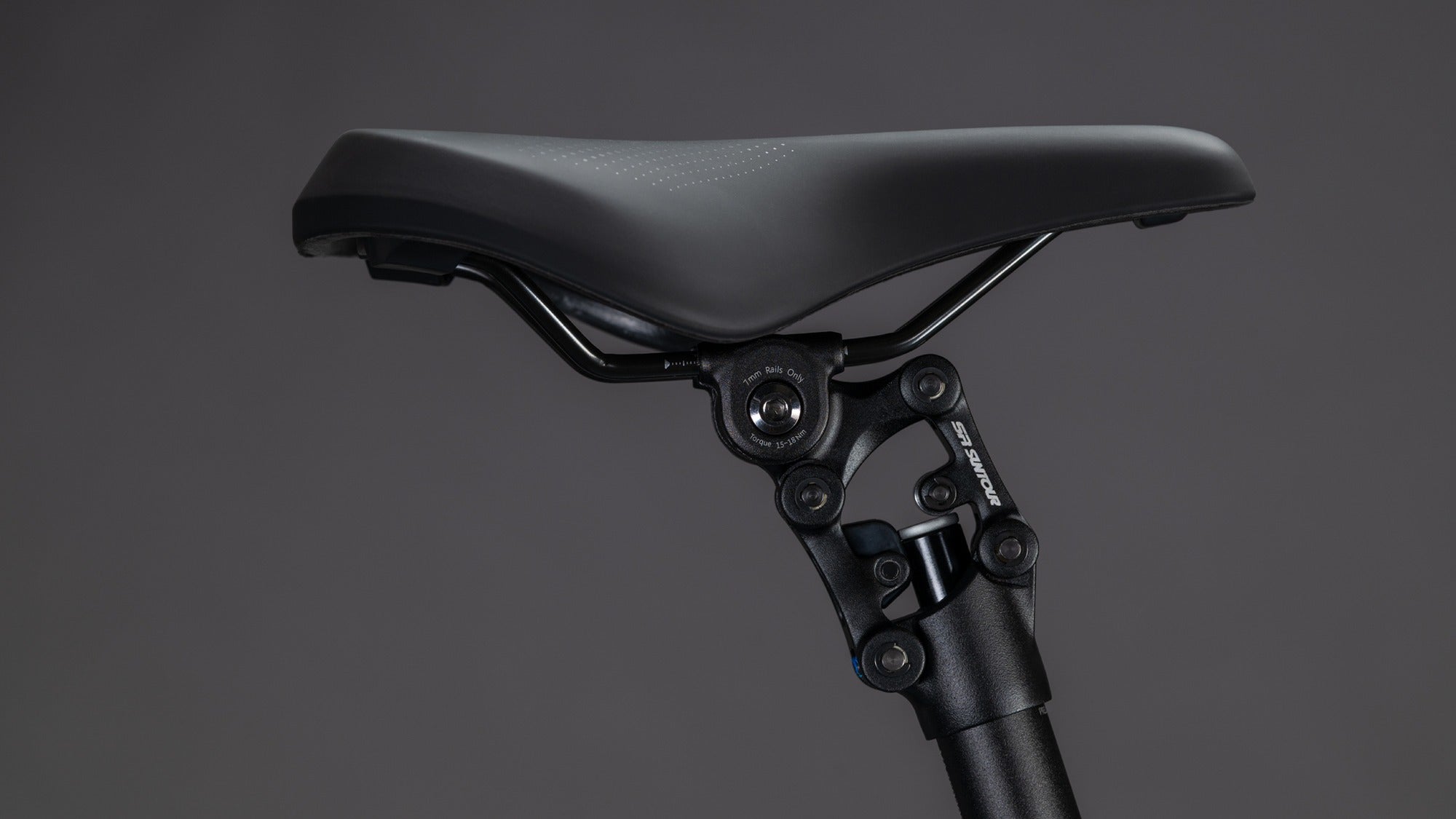

Saddle
Acid Shen Pro

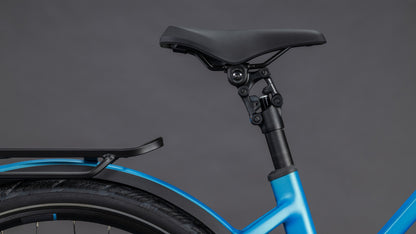

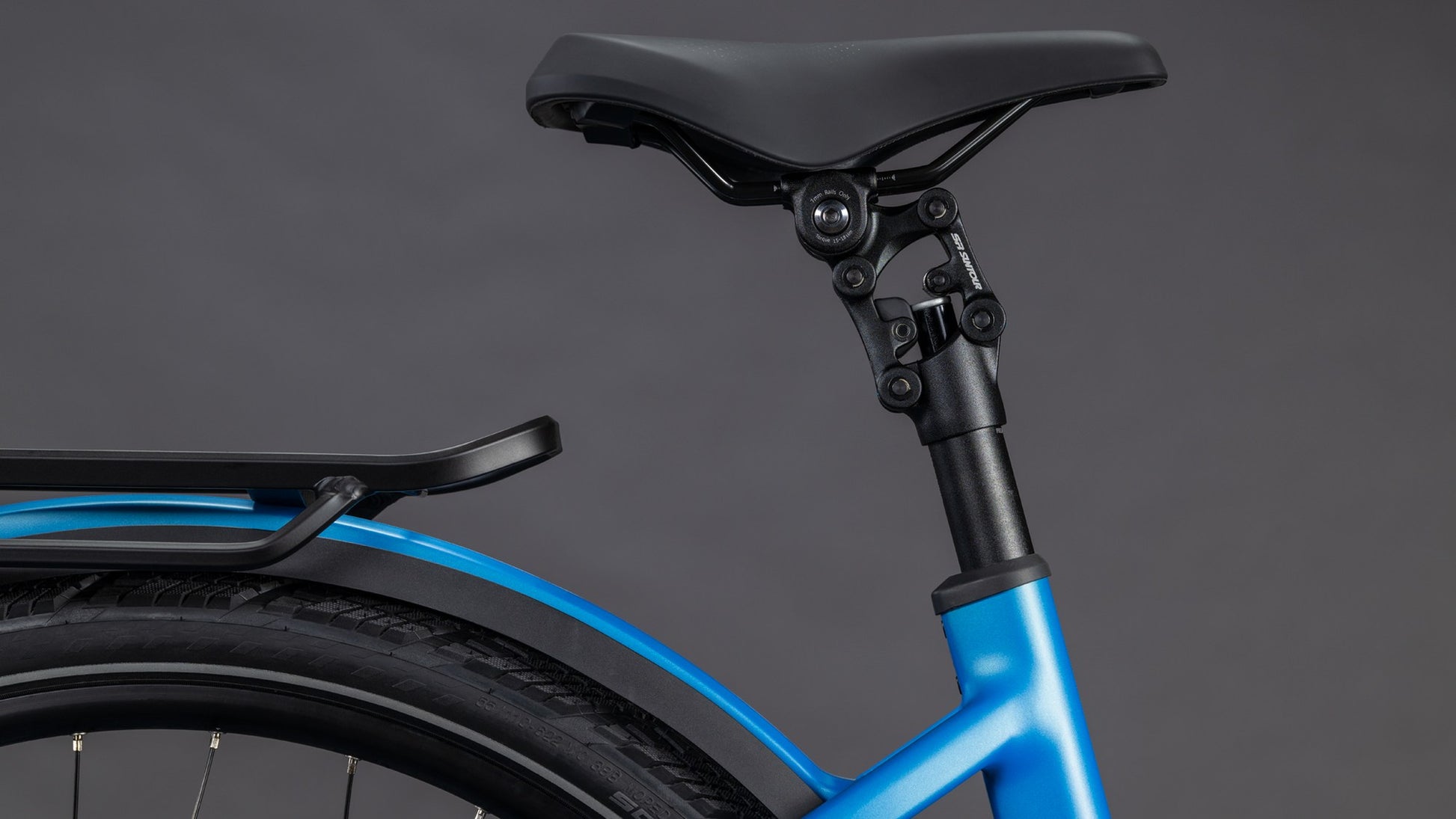

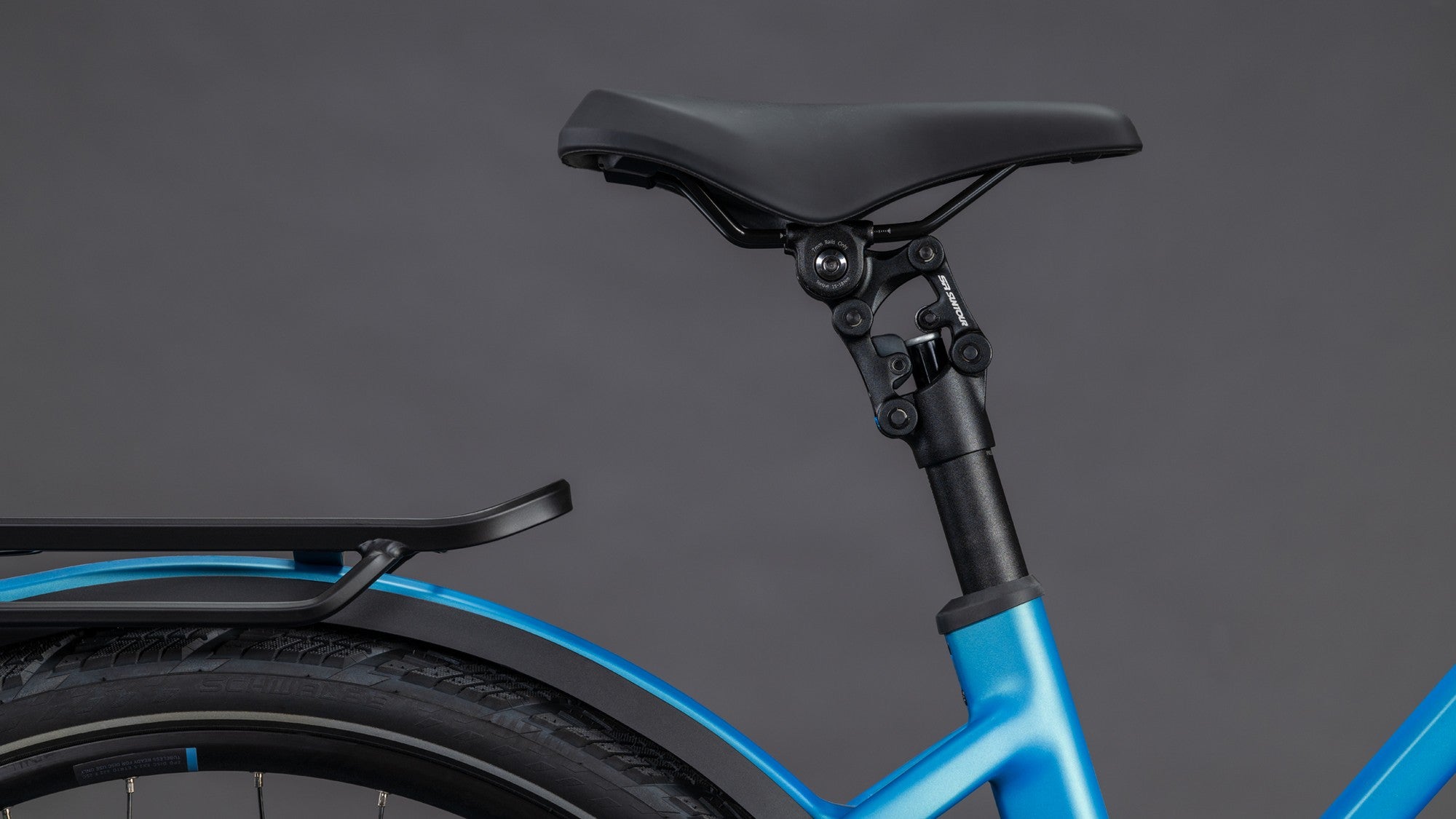

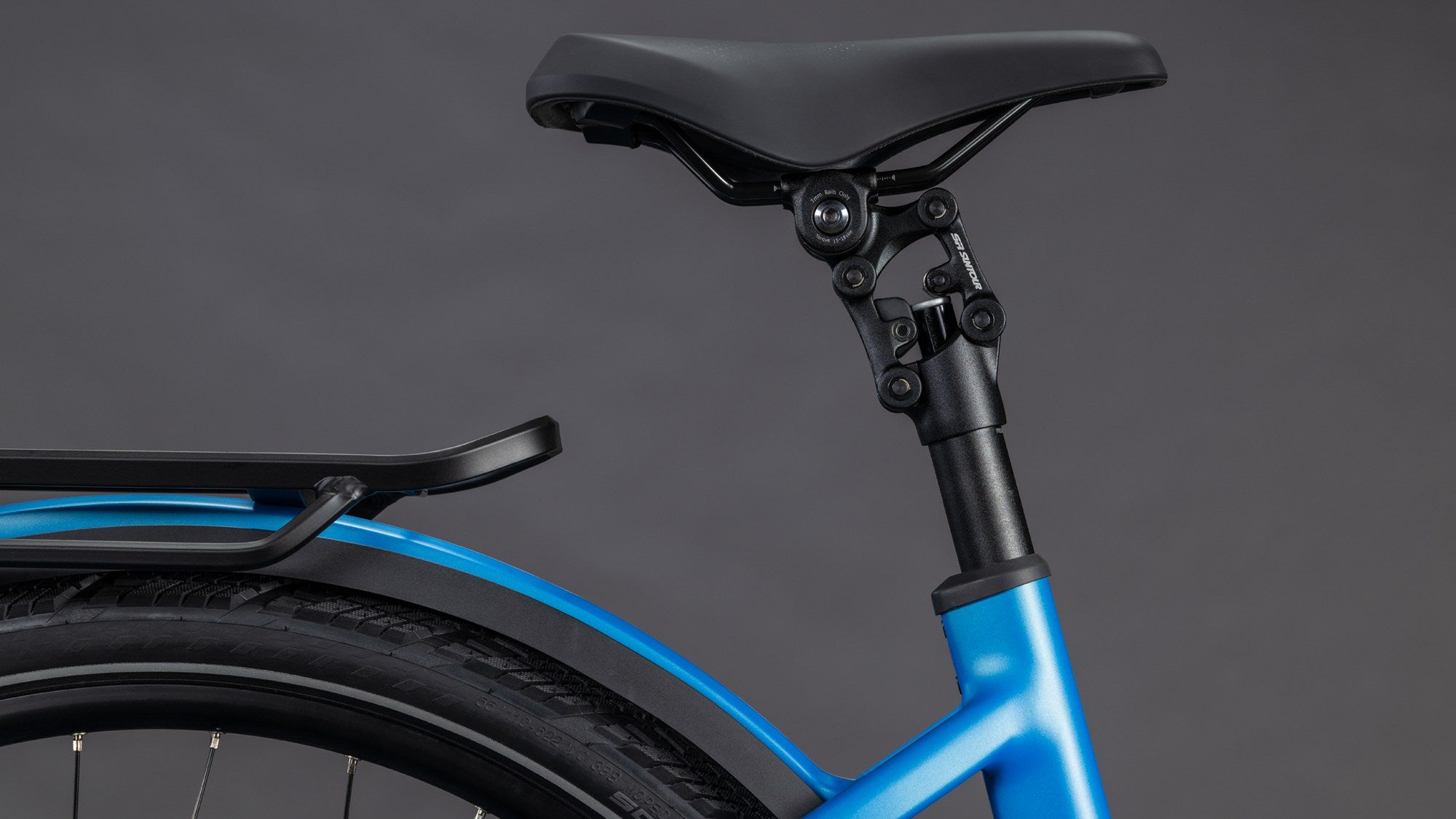

Seatpost
SR Suntour NVX, 31.6mm
Seatpost clamp
Cube Seatpost clamp
Pedals
Acid PP Trekking
Front light

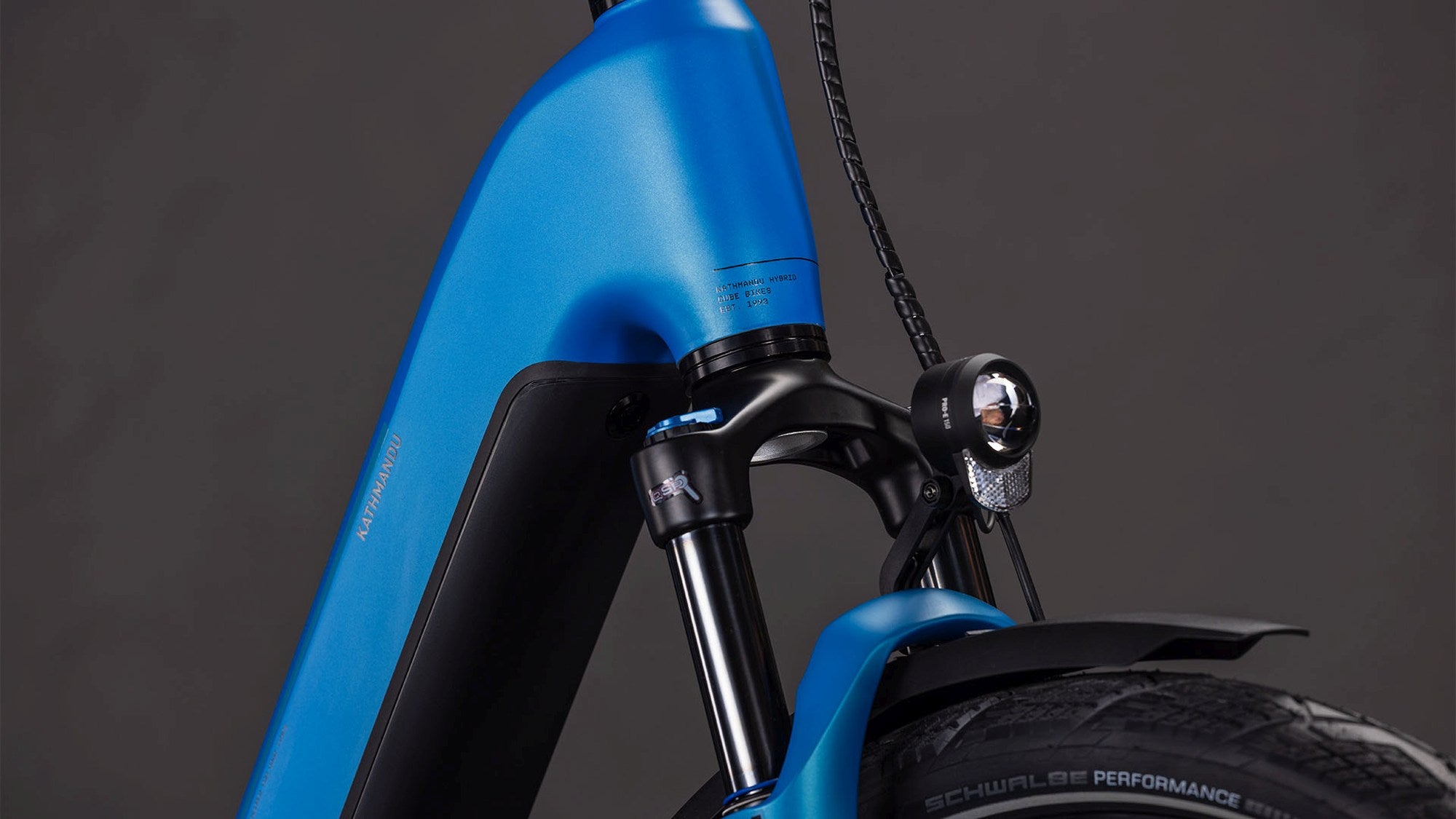

Acid Front Light PRO-E 150 X-Connect, 12V, DC
Rear light
Acid Mudguard Rear Light PRO-E, 12V, DC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65 Integrated Carrier 3.0
Bell
Reich Cycle Bells Ringsound

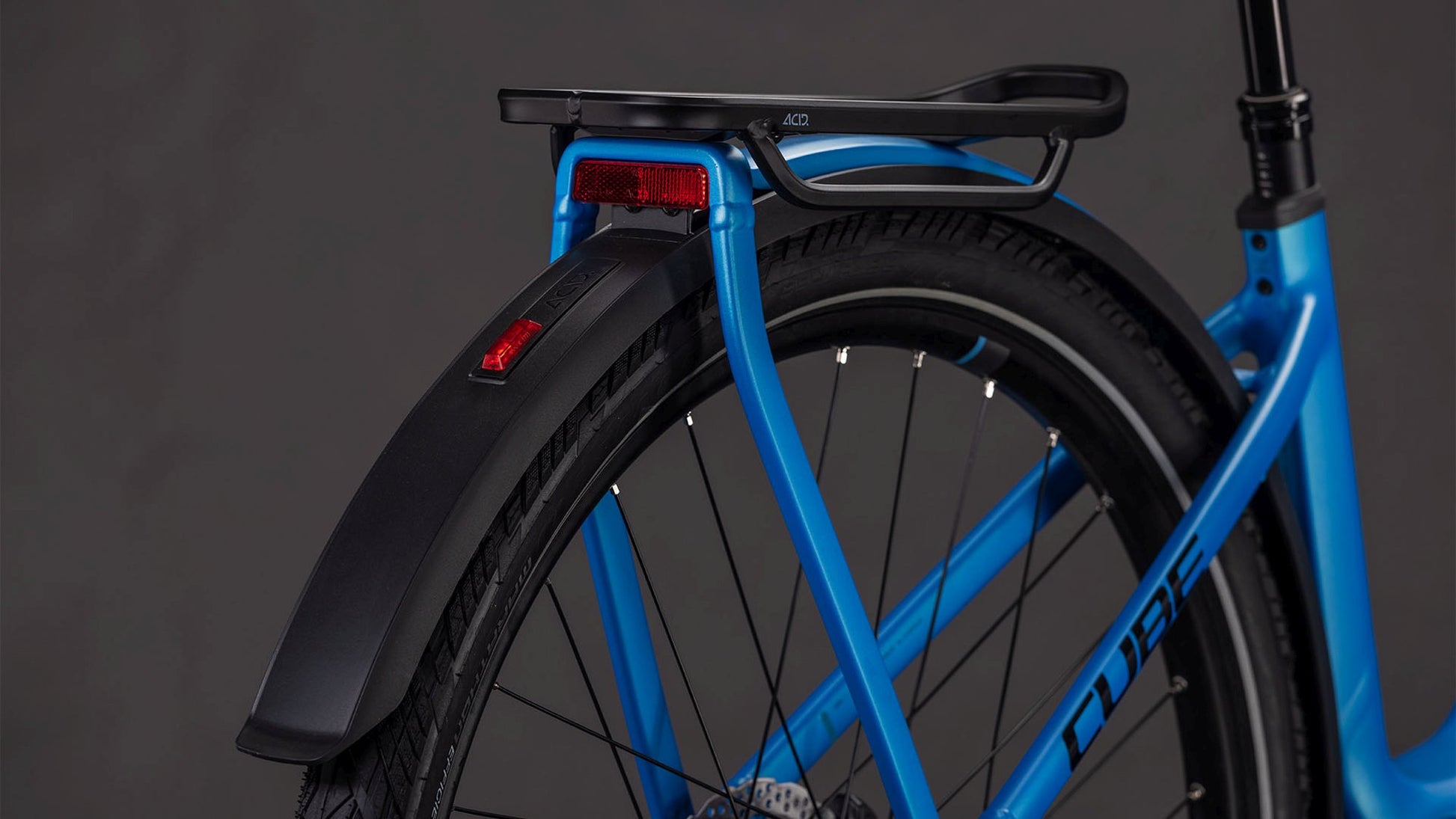

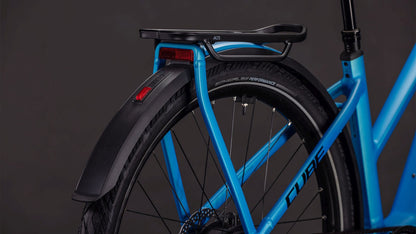

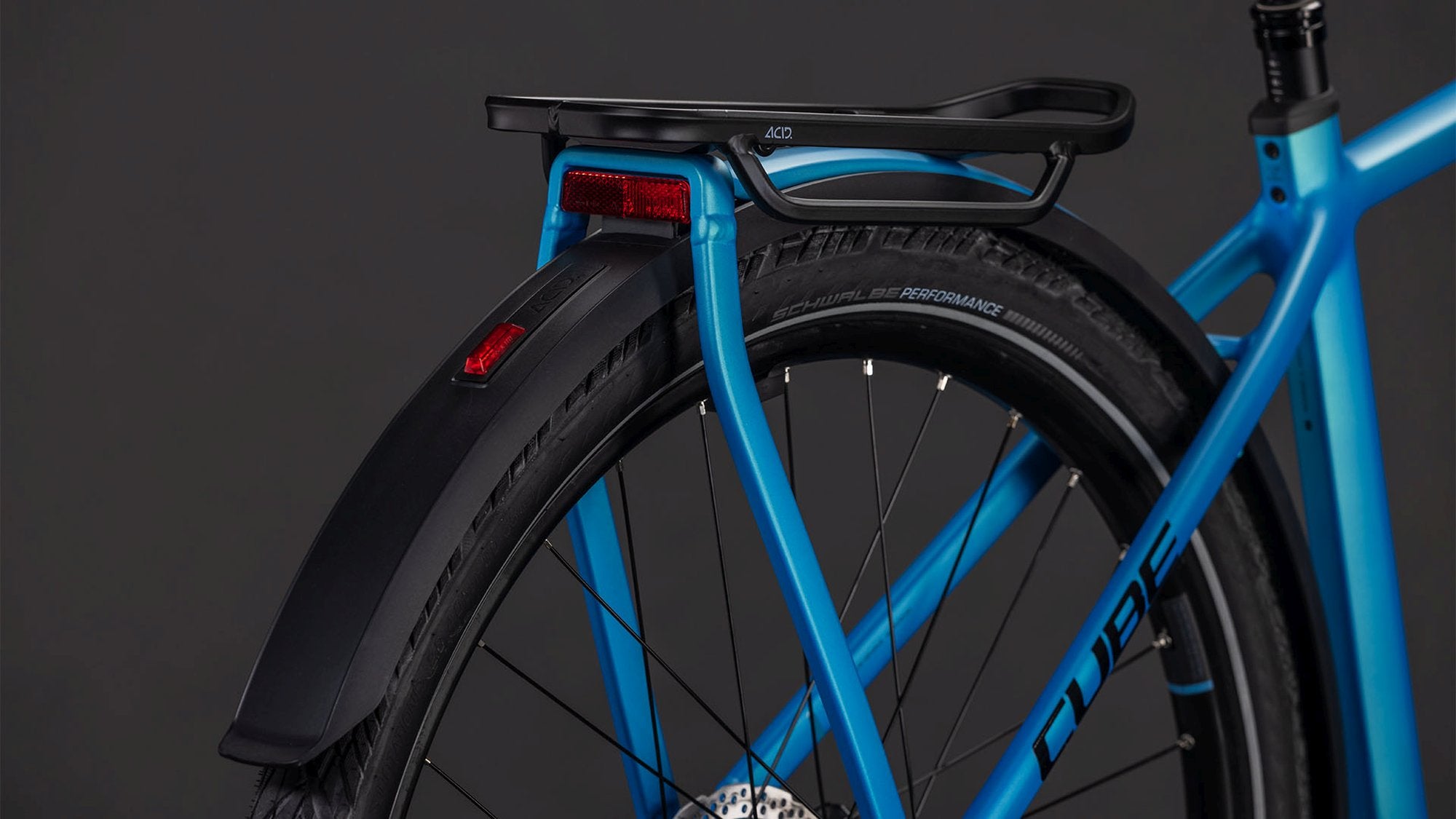

Carrier

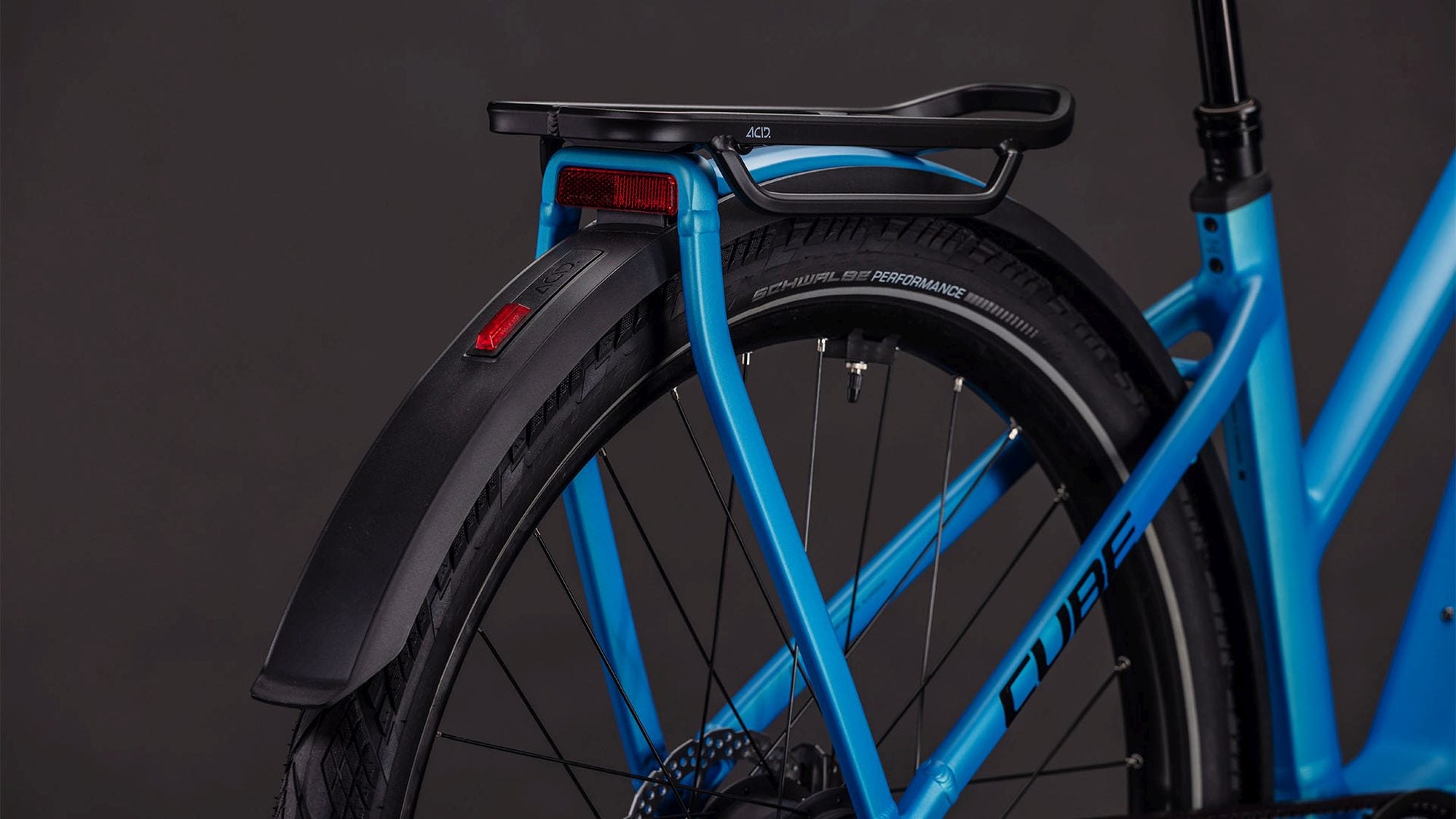

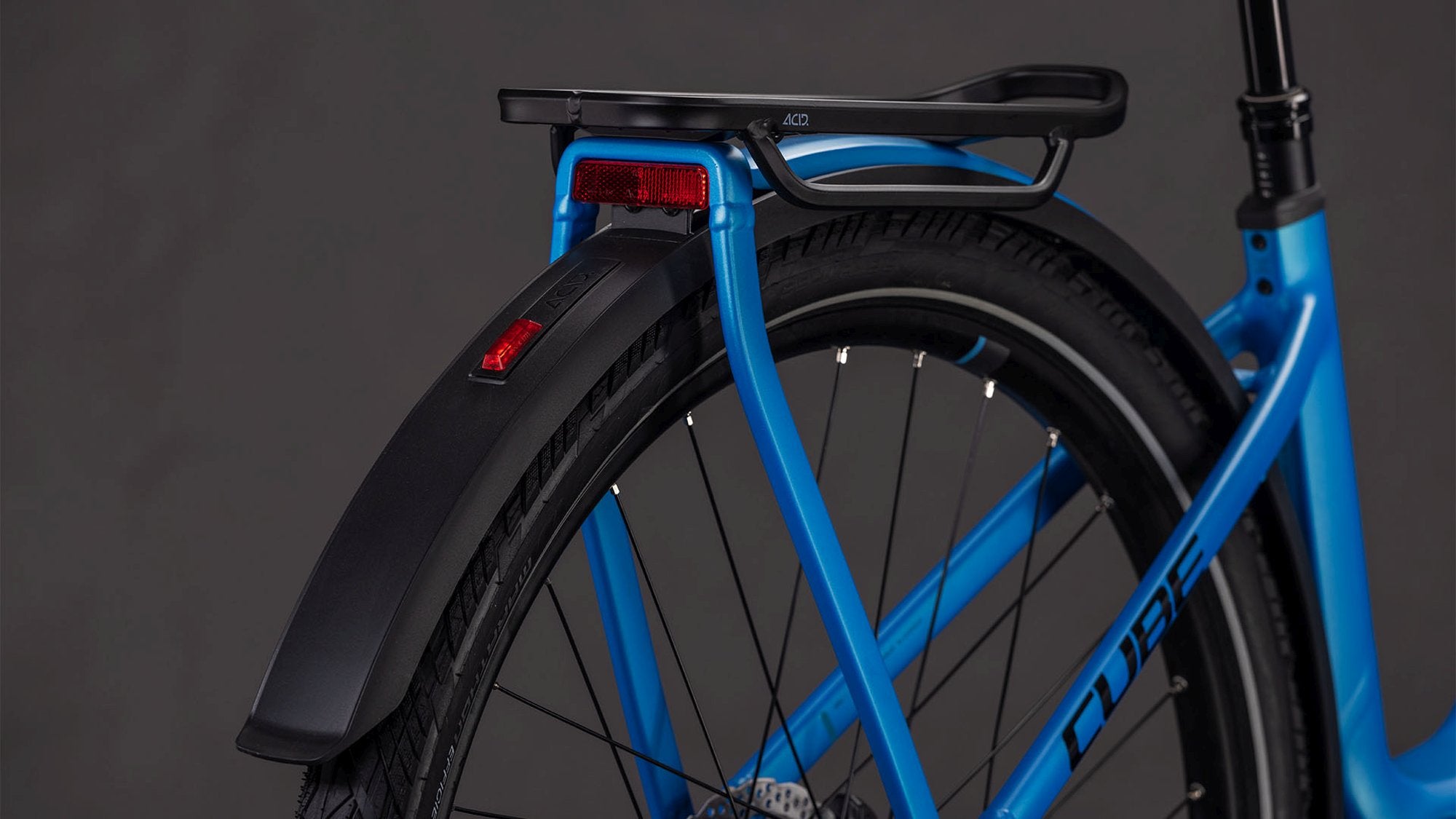

Acid Integrated Carrier 3.0, CUBE Adapter Compatible
