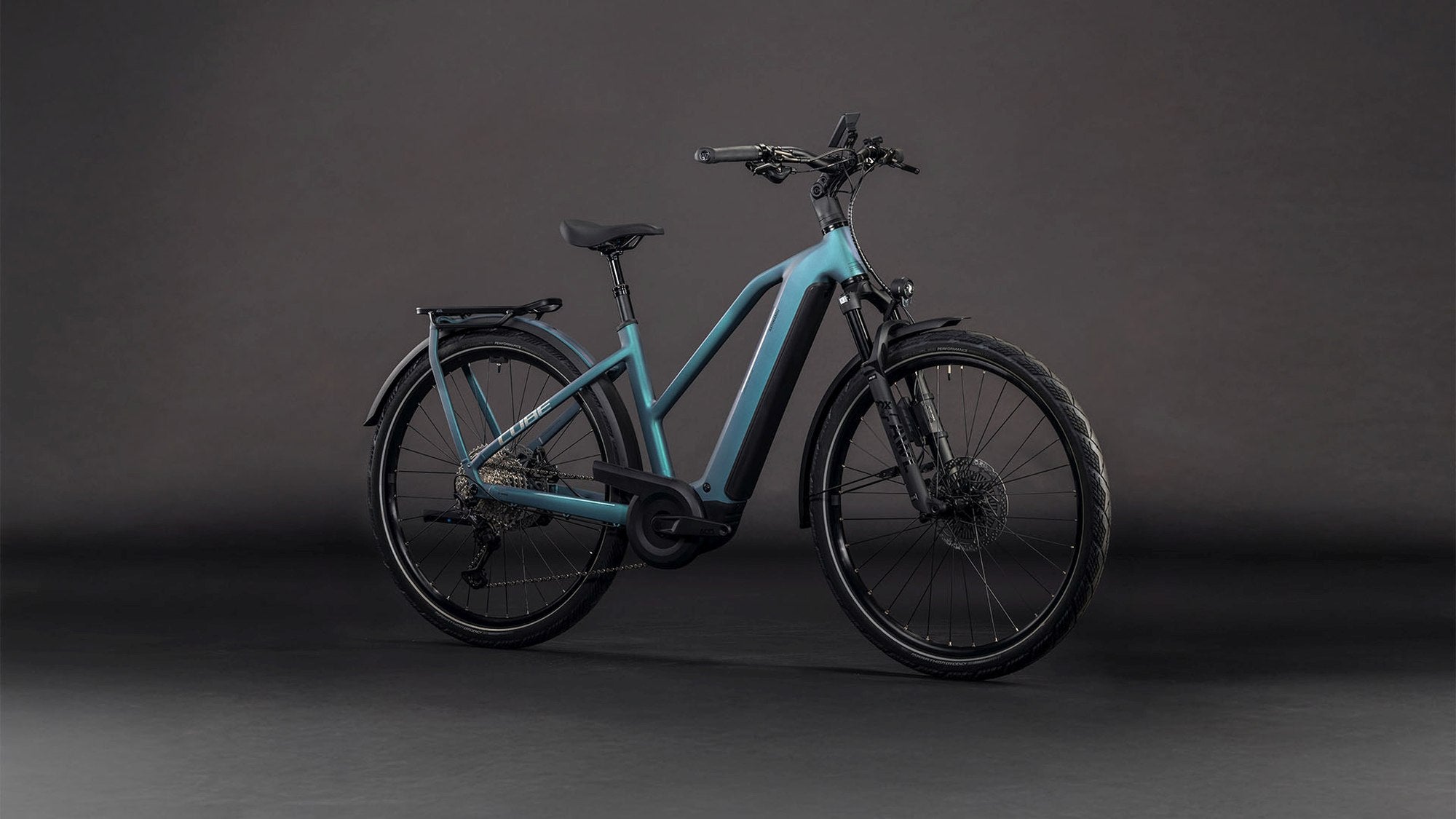

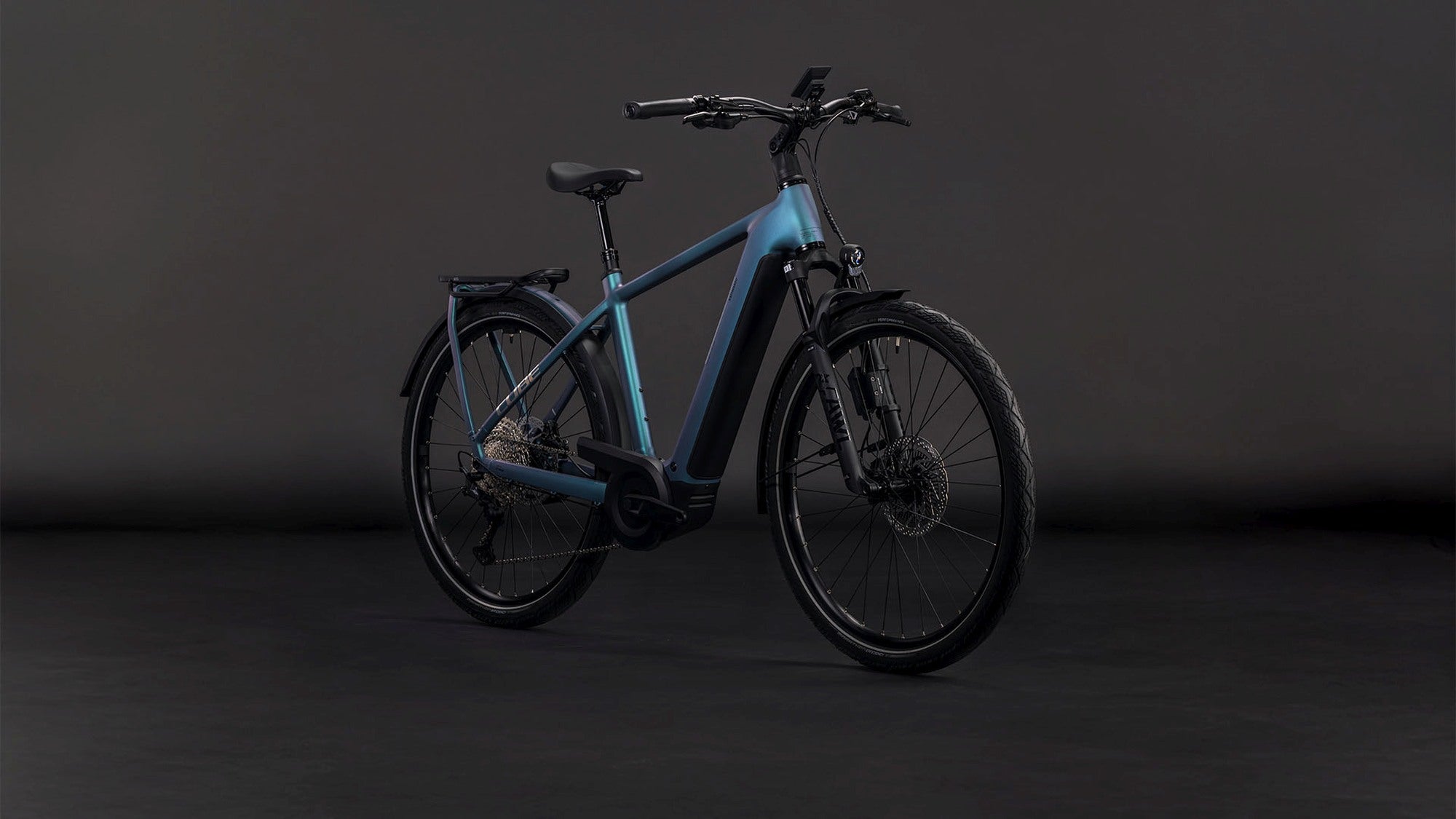

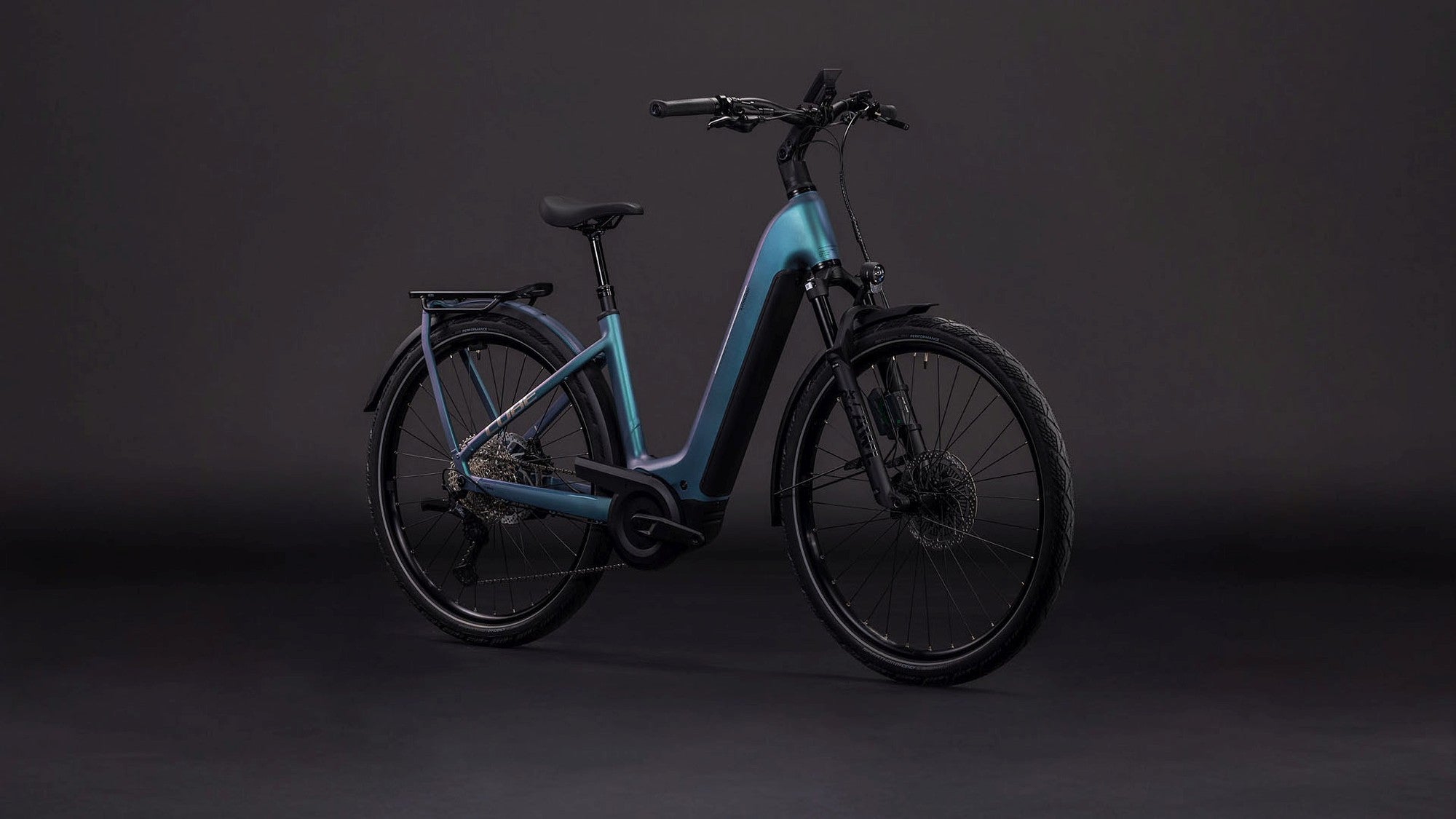

CUBE KATHMANDU HYBRID EXC 800 SMARAGDGREY/PRISM

CUBE KATHMANDU HYBRID EXC 800 SMARAGDGREY/PRISM

  • 112510
  • 112510_D_00
  • 112510_D_01
  • 112510_D_02
  • 112510_D_03
  • 112510_D_04
  • 112510_P_00
  • 112511
  • 112511_D_00
  • 112511_D_01
  • 112511_D_02
  • 112511_D_03
  • 112511_D_04
  • 112511_P_00
  • 112512
  • 112512_D_00
  • 112512_D_01
  • 112512_D_02
  • 112512_D_03
  • 112512_D_04
  • 112512_P_00
1 21
Choose your size or use our size guide.
£3,699.00
£3,699.00
Sale Sold out
Tax included.
  • Free delivery from £50
  • Bikes delivered ready to ride
  • Ordered accessories mounted for free
View full details
Description Specifications

Description

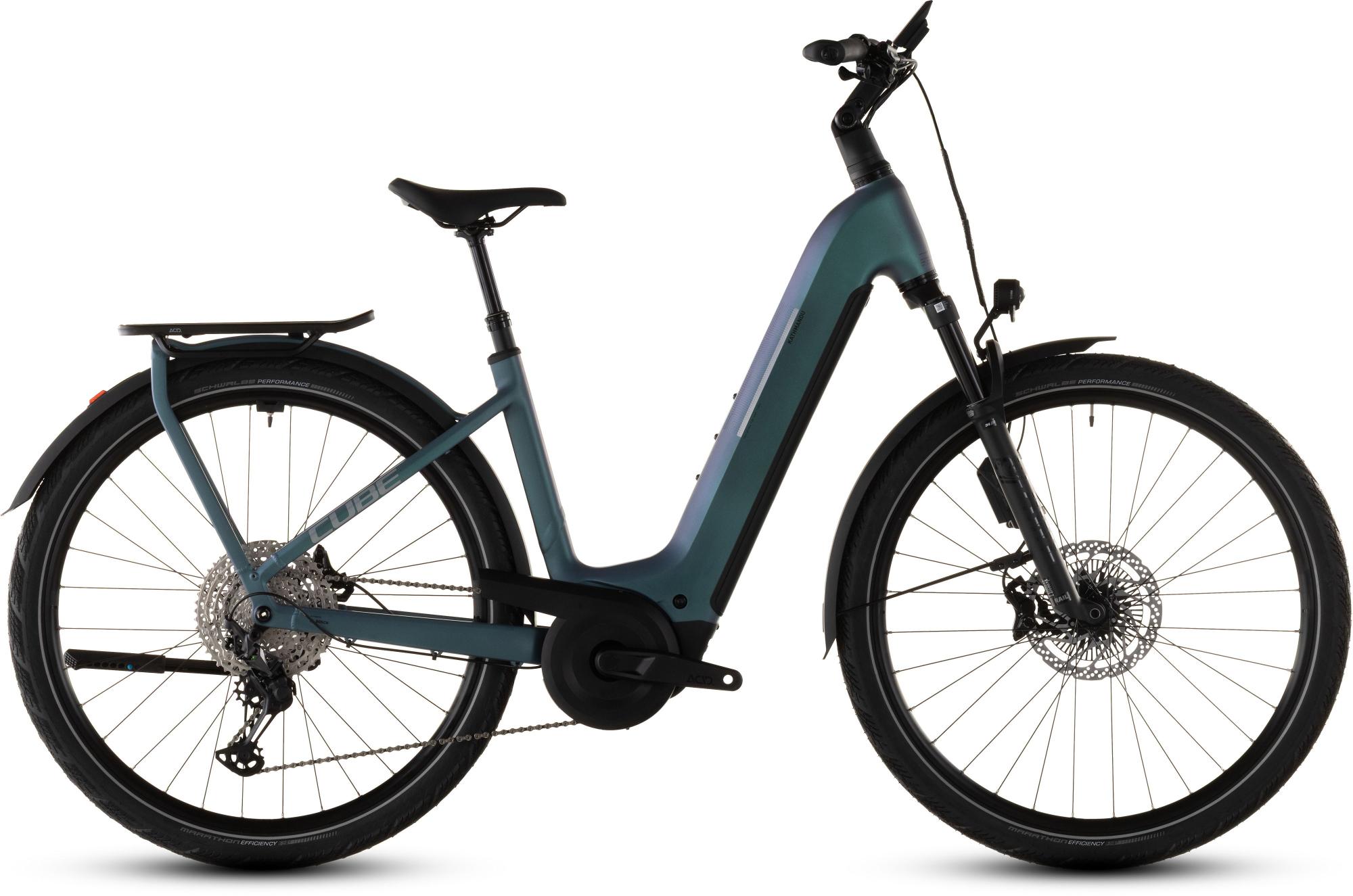

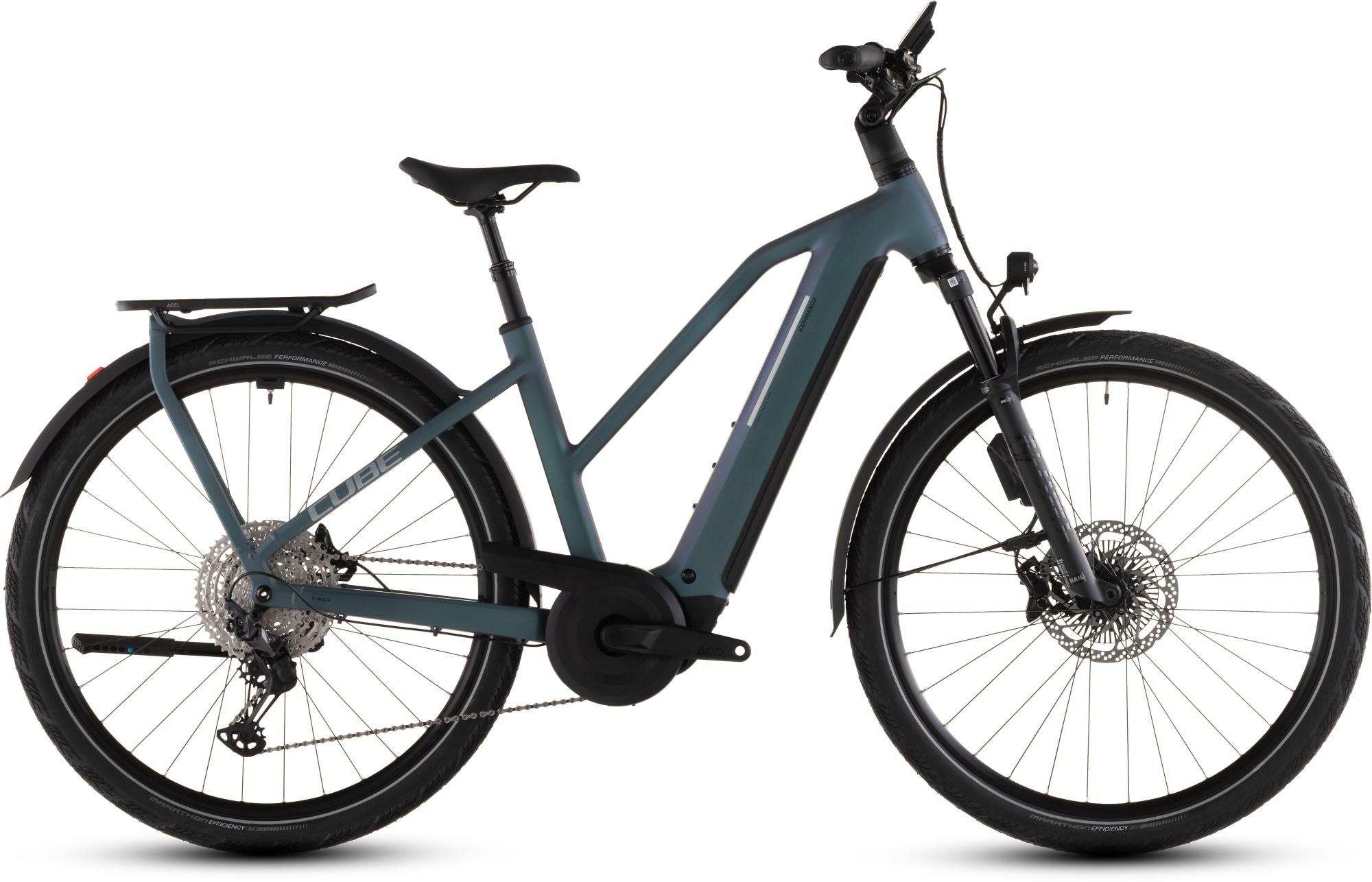

The CUBE Kathmandu Hybrid EXC is built to go places. We started with Bosch's CX motor and an 800Wh PowerTube battery, to give you up to 100Nm of pedal assistance on your way to work or to adventure. Then we chose Shimano's legendary XT 1x12 gears, for their huge range and dependable performance. Added 4-piston Shimano hydraulic disc brakes with ABS, so you know you can always slow and stop safely. And finished with a smooth, comfortable Fox 34 AWL Float Sport suspension fork. But that's not quite all, because of course there's also an adjustable stem, dropper seatpost and our strong, elegant and versatile Integrated Carrier 3.0, plus a full complement of accessories.

Frame description

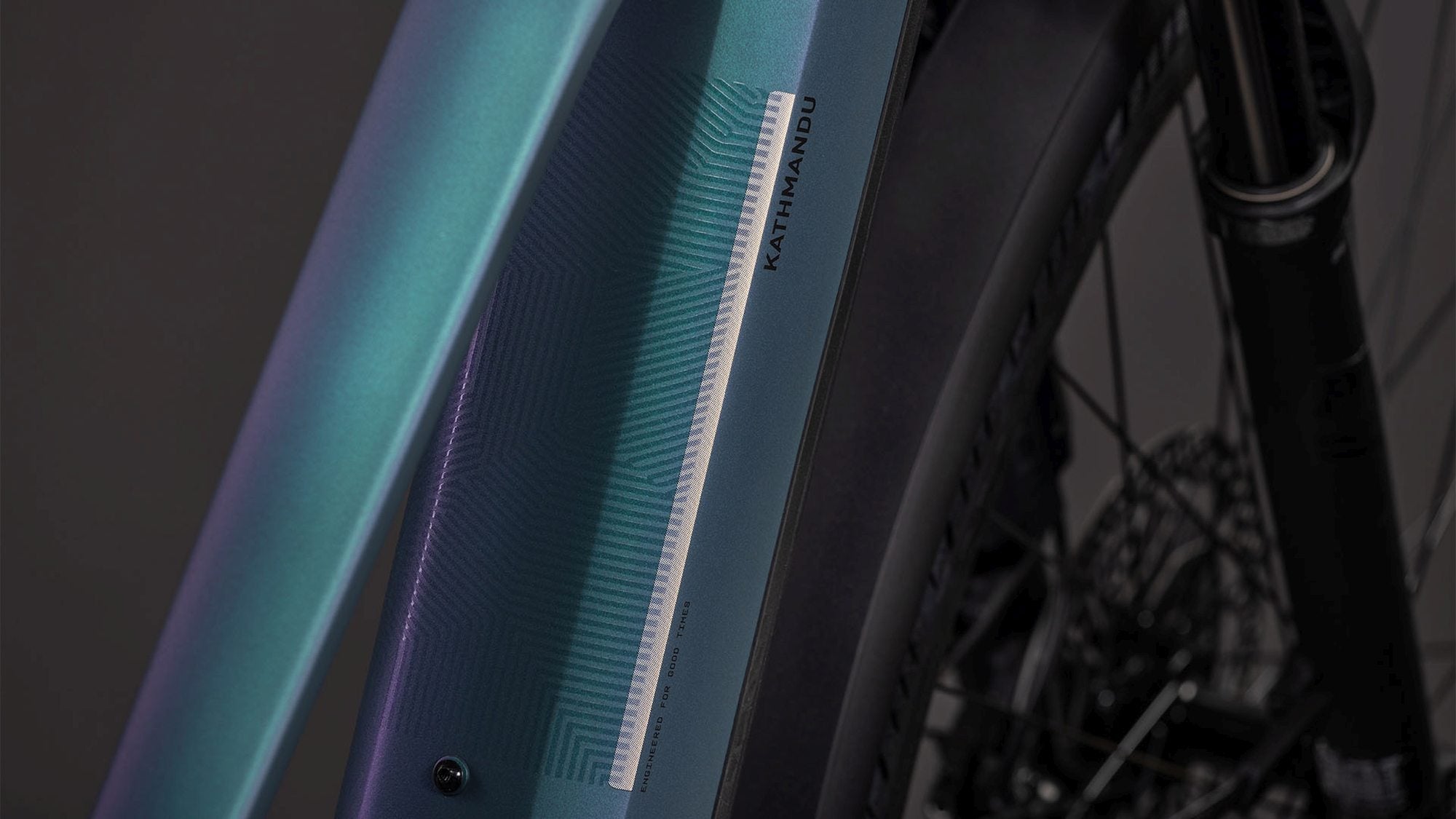

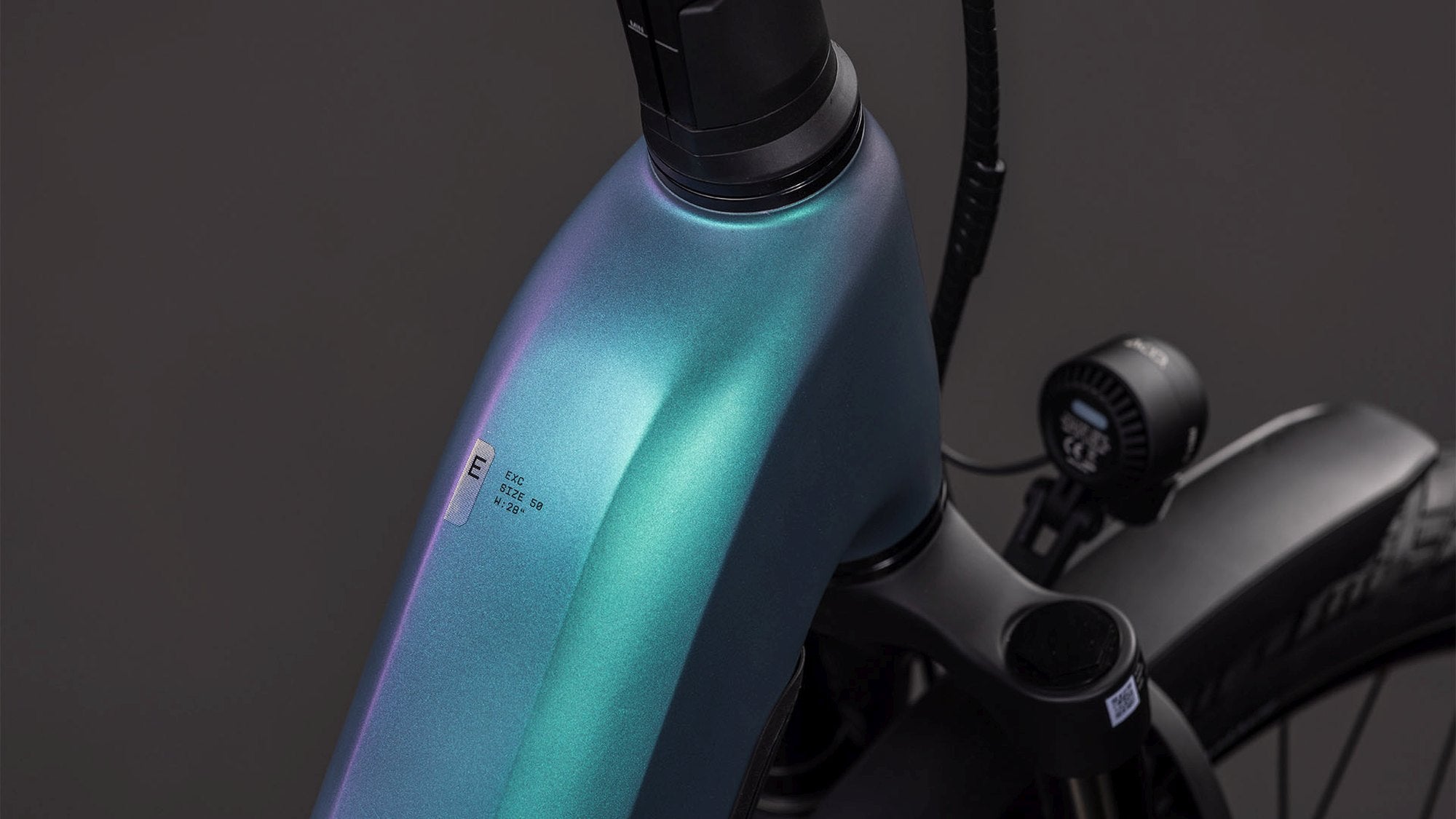

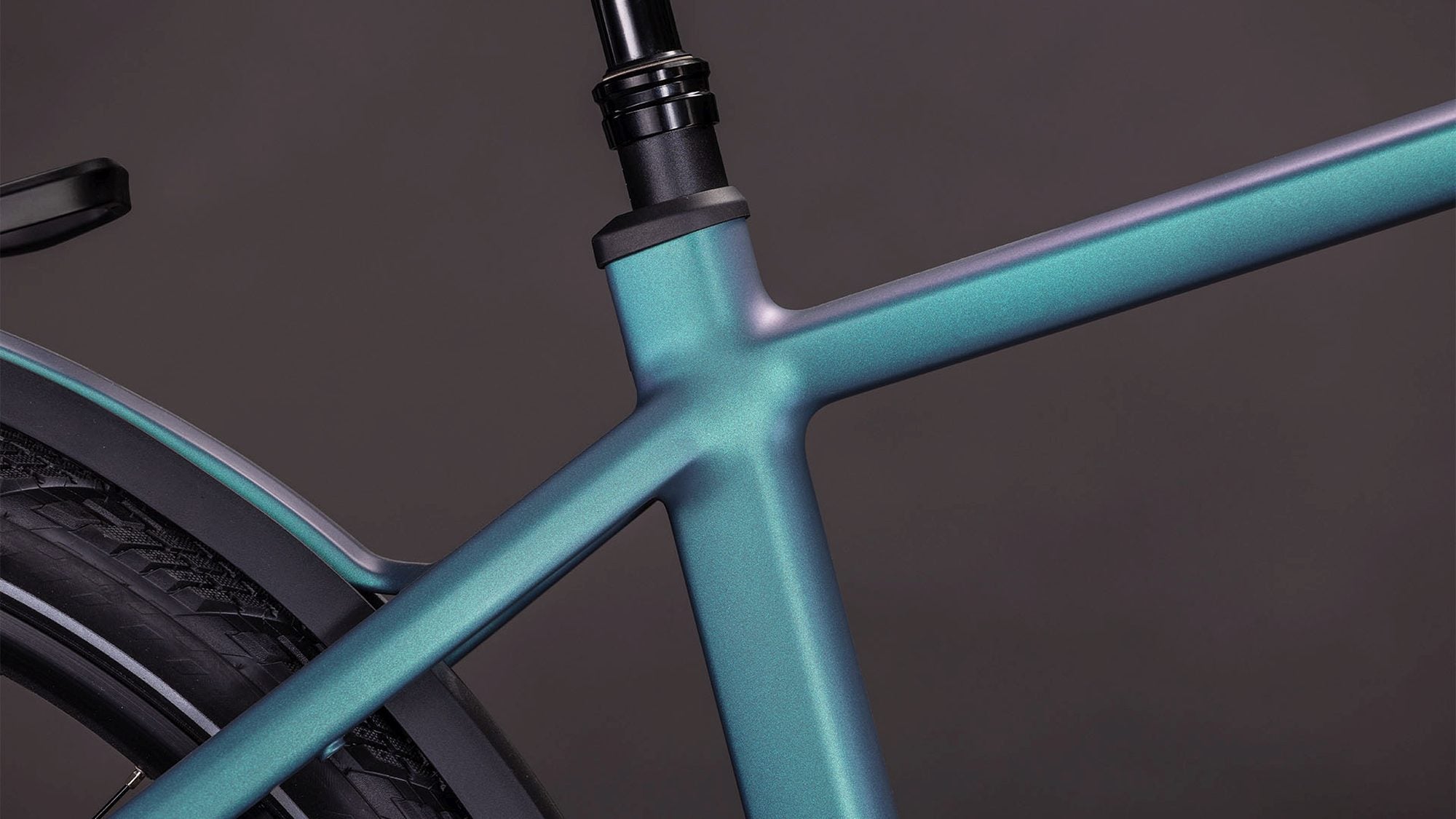

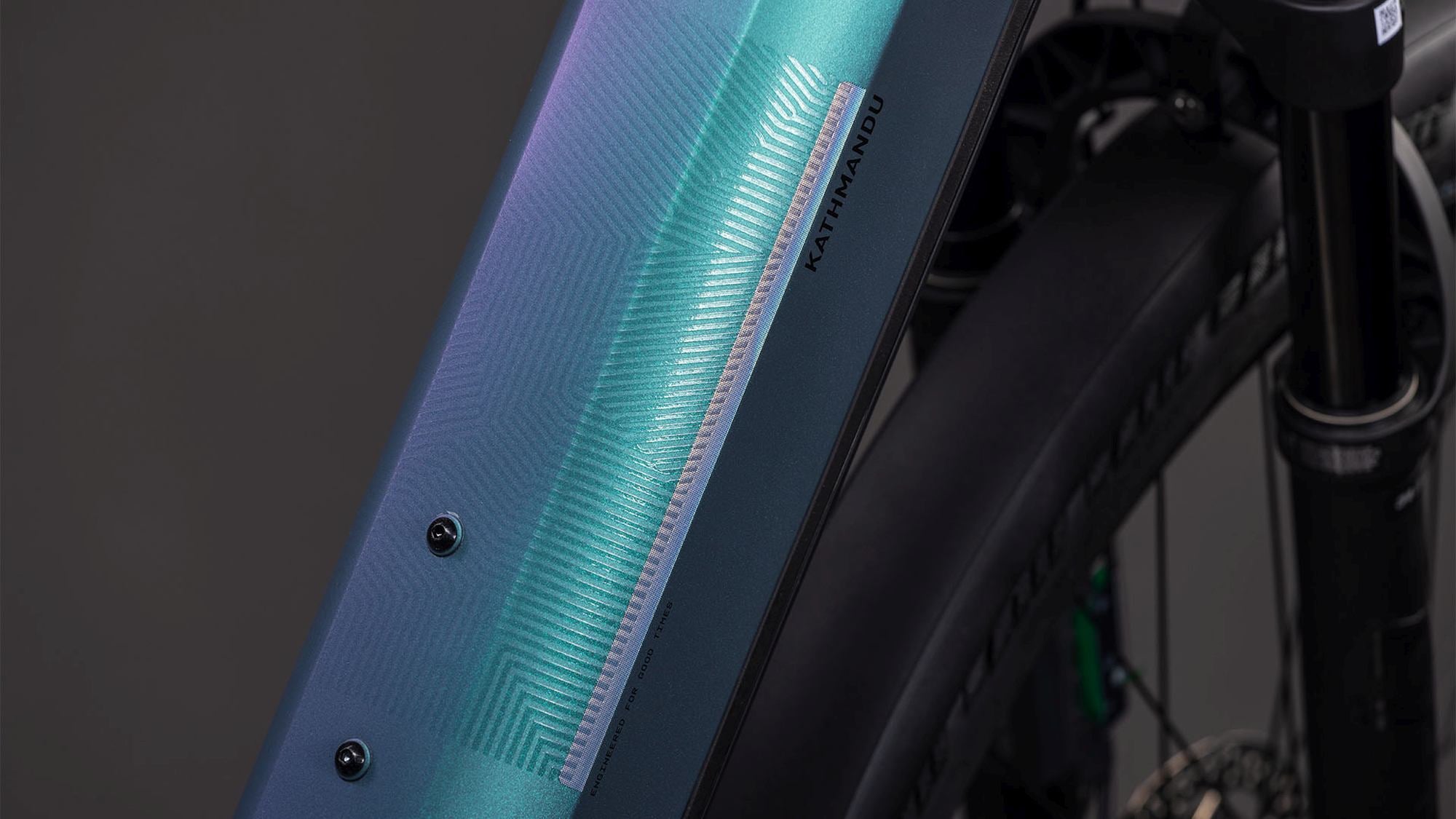

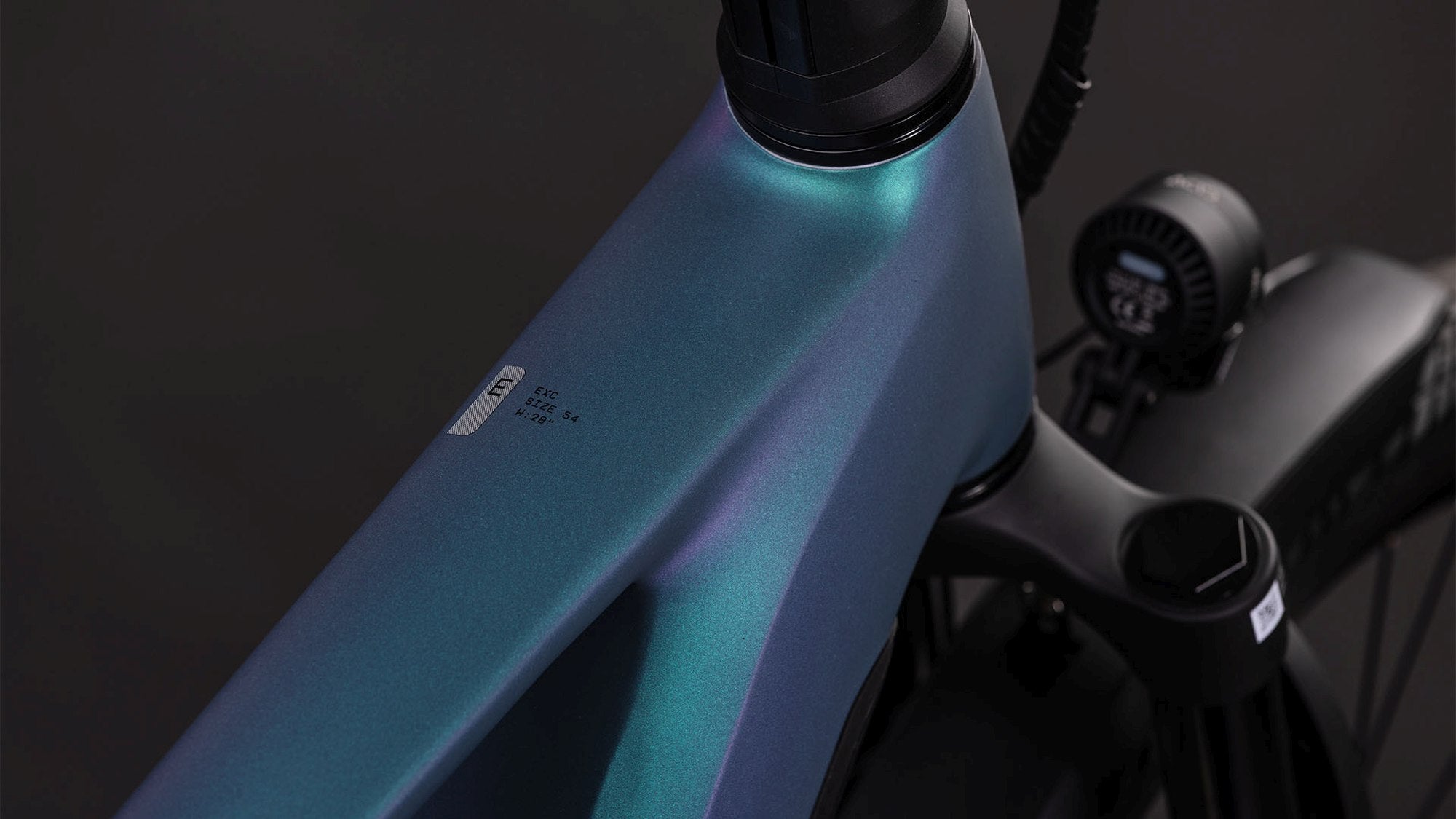

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
Read more

Product specifications

Frame

  • Model year

    2026

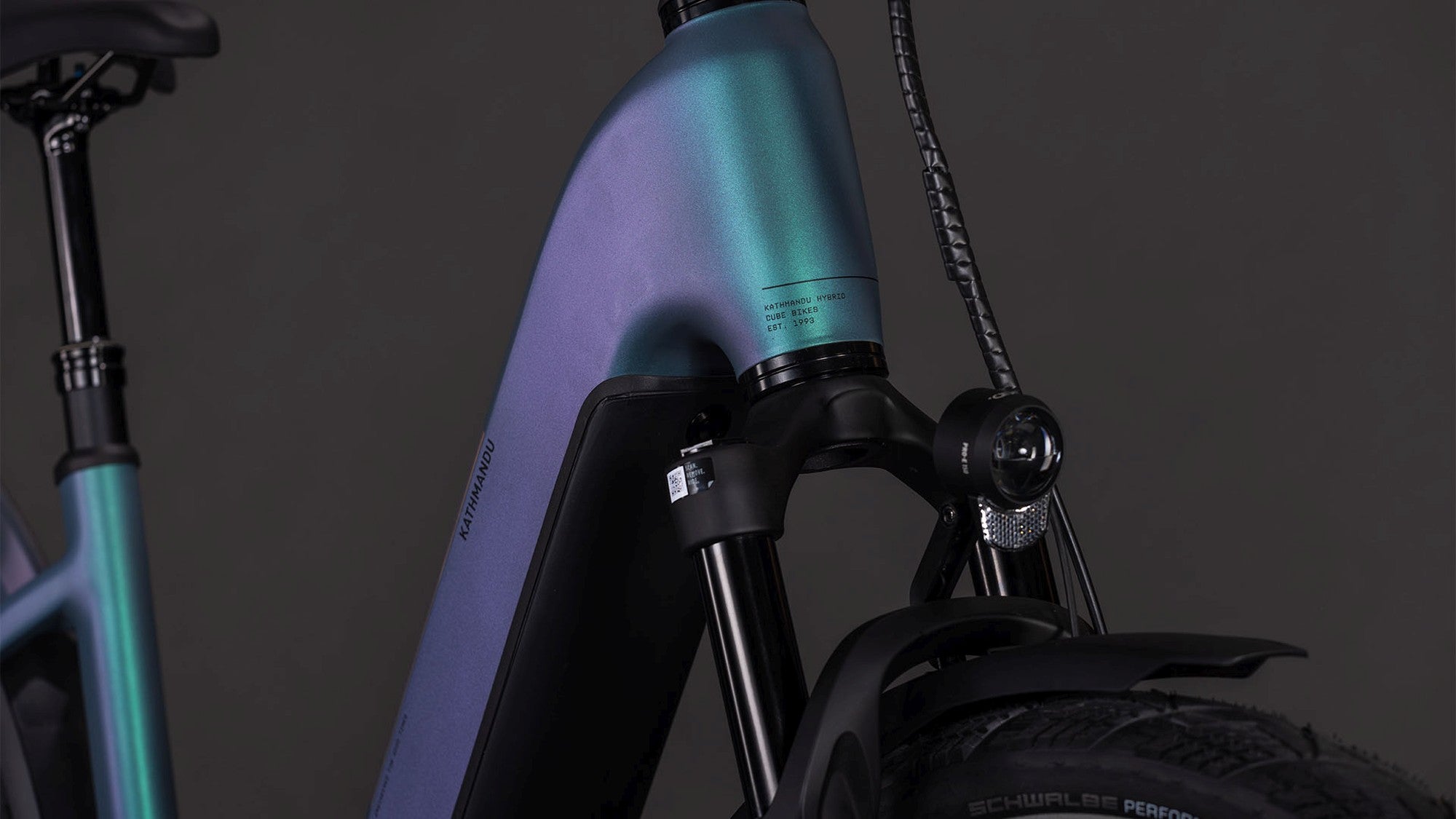

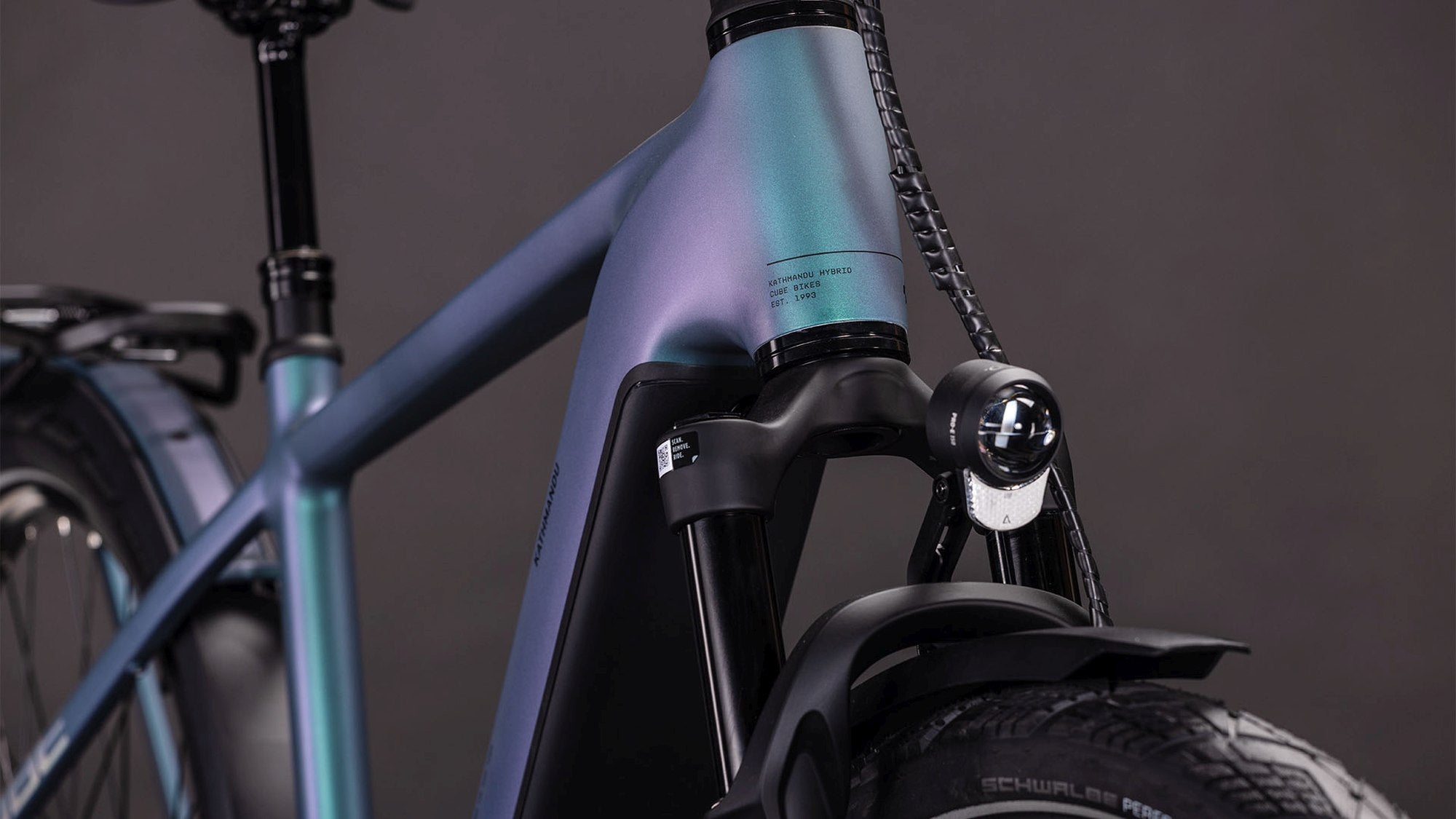

  • Fork

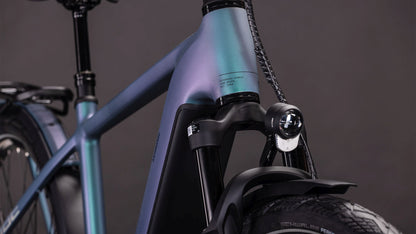

    Fox 34 Float Sport AWL , Tapered, 15x110mm, E-Bike Optimized, 100mm

    • E-bike System

  • Engine

    Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)

  • Battery

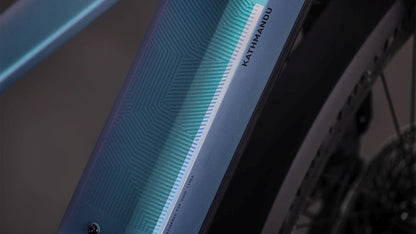

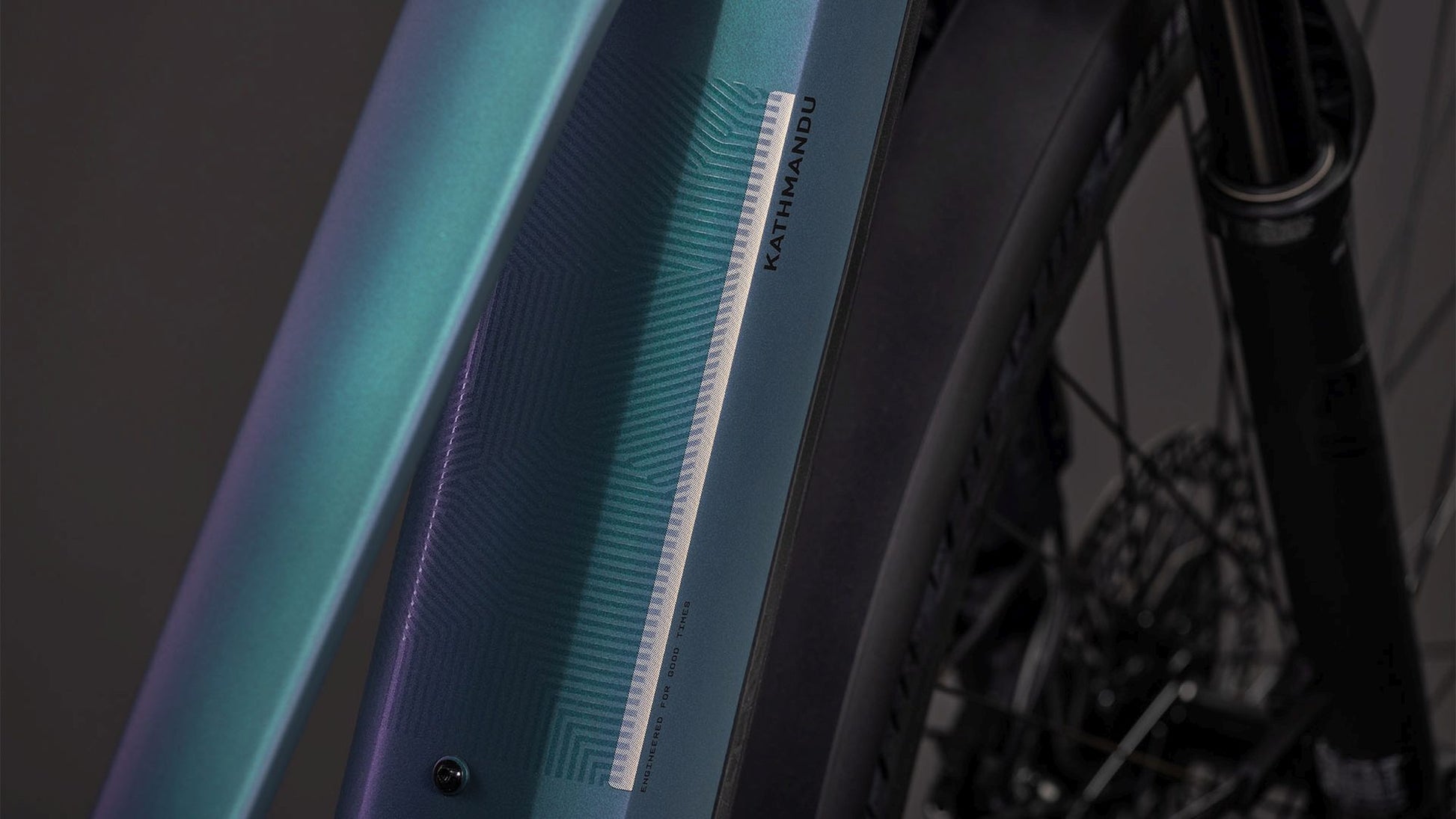

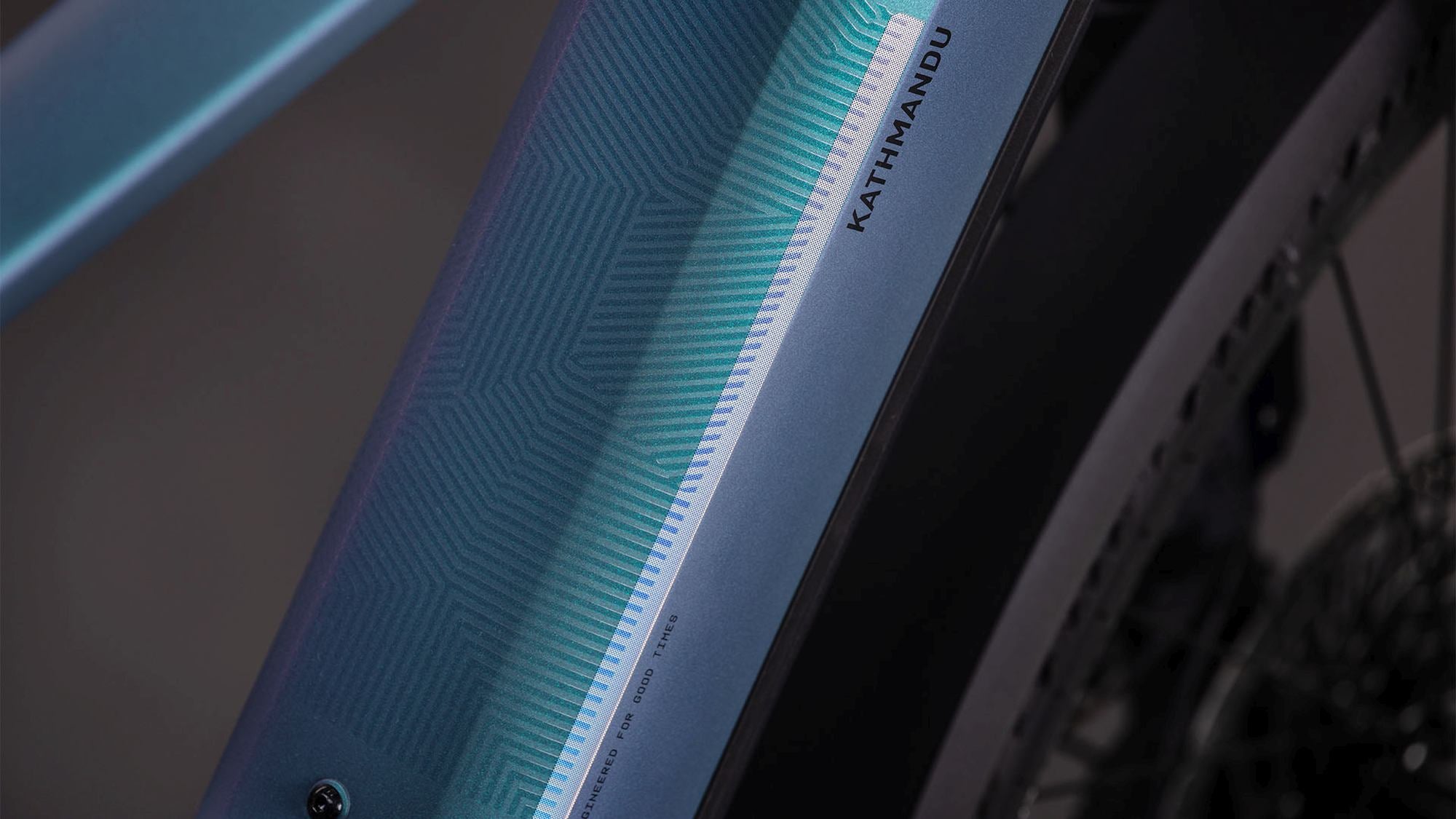

    Bosch PowerTube 800

  • display

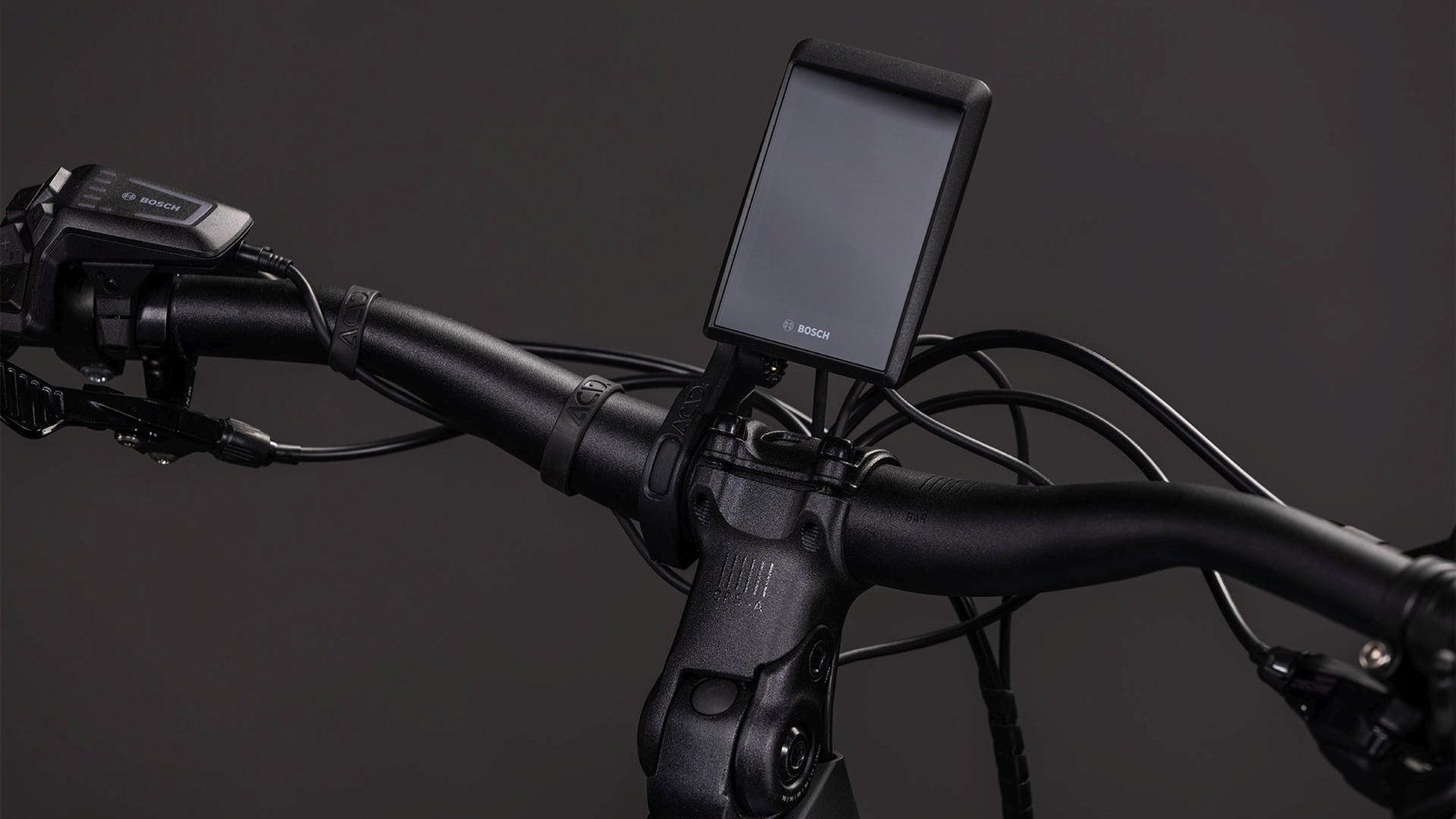

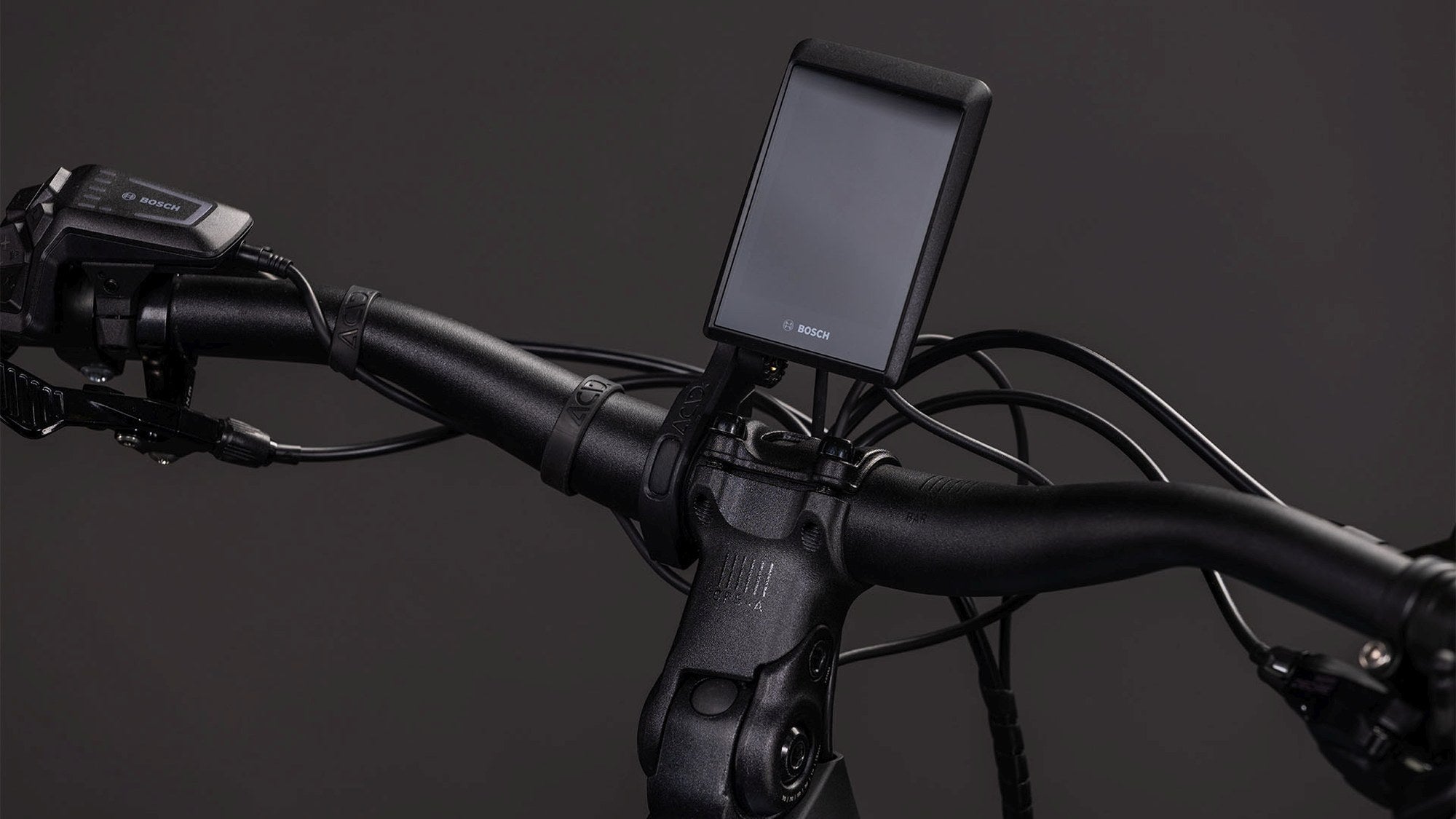

    Bosch Kiox 500

    • Drivetrain and brakes

  • Front brake

    Shimano BR-MT420 ABS, Hydr. Disc Brake (203/203) (203)

  • Rear brake

    Shimano BR-MT420 ABS, Hydr. Disc Brake (203/203) (203)

  • Rear derailleur

    Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

  • Shifters

    Shimano Deore SL-M6100-R, Rapidfire Plus

  • Crankset

    Acid MTB Hybrid Pro, 40T

  • Cassette

    Shimano Deore CS-M6100, 10-51T

  • Chain

    KMC e12

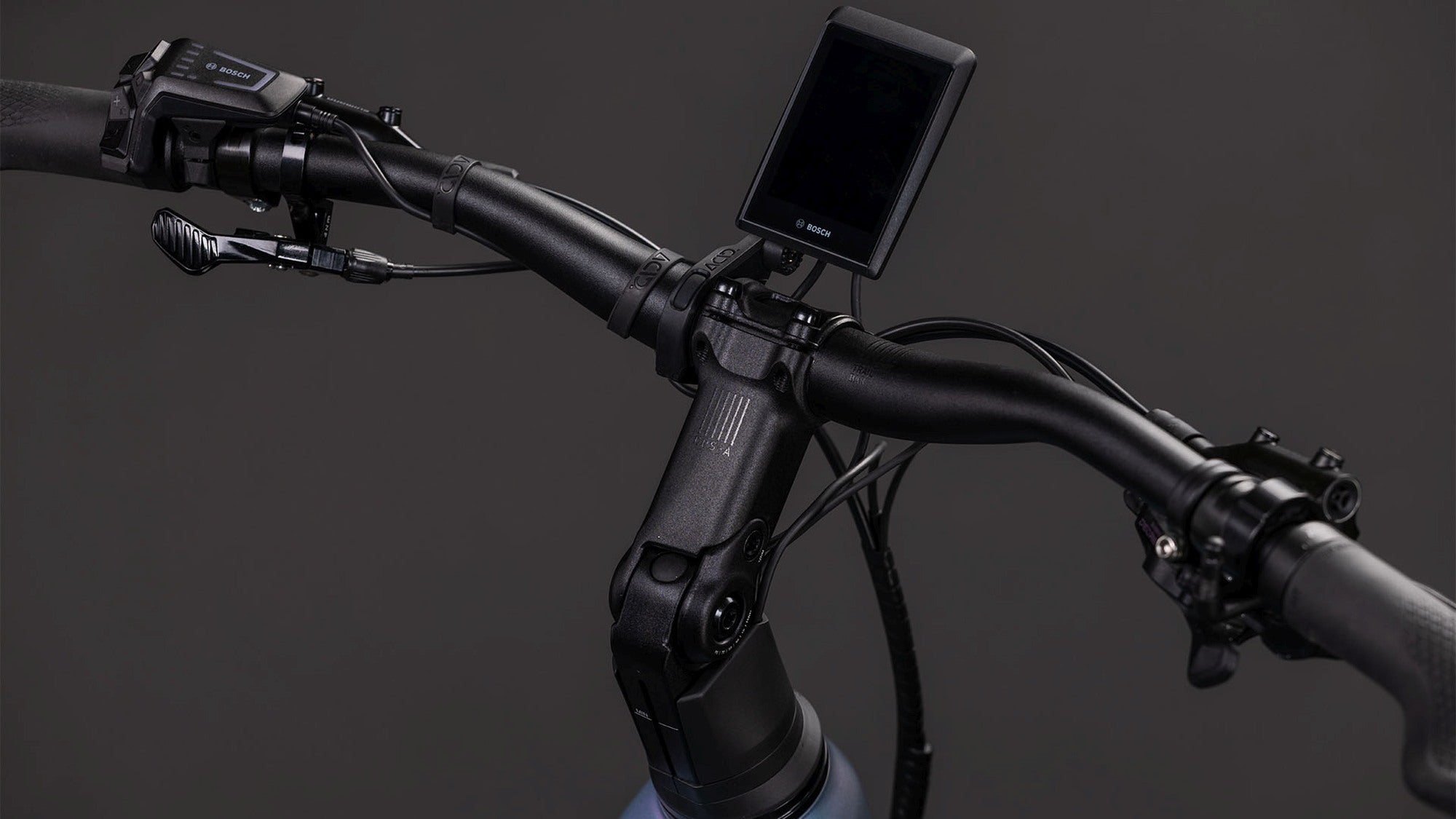

    • Cockpit

  • Headset

    Acros AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

  • Handlebar

    Cube Comfort Trail Bar HD, 700mm

  • Stem

    Cube Comfort Stem Pro, 31.8mm, Adjustable

  • Bar tape or grips

    Acid Travel Comfort

    • Wheels

  • Wheels

    Acid SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

  • Front tyre

    Schwalbe Marathon Efficiency, PerfL, 55-622

  • Rear Tyre

    Schwalbe Marathon Efficiency, PerfL, 55-622

    • Other parts

  • Saddle

    Acid Sequence 180

  • Seatpost

    Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

  • Seatpost clamp

    Cube Seatpost clamp

  • Pedals

    Acid PP Trekking

  • Front light

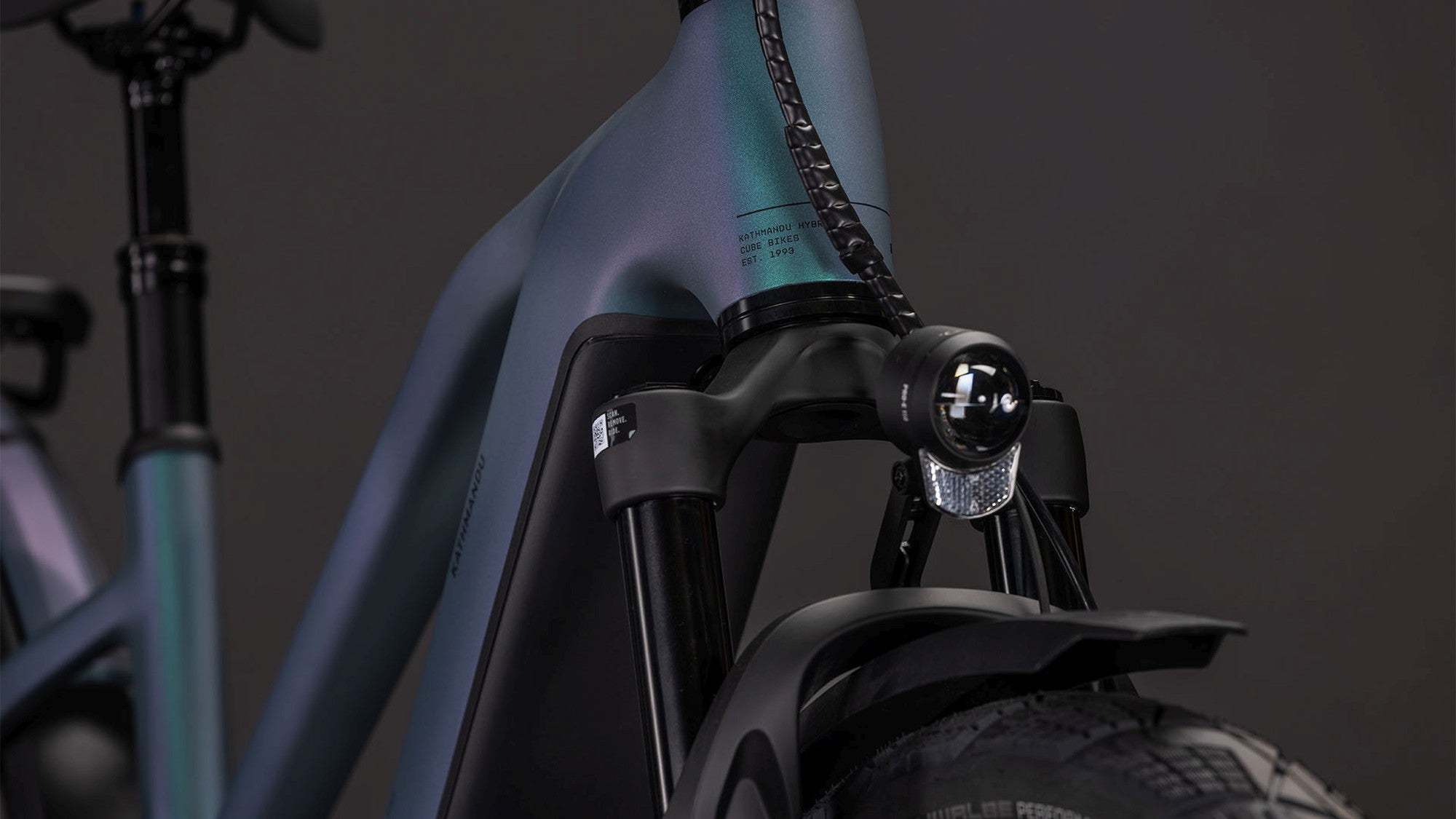

    Acid Front Light PRO-E 150 X-Connect, 12V, DC

  • Rear light

    Acid Mudguard Rear Light PRO-E, 12V, DC

  • Kickstand

    Acid FM Pure Kickstand

  • Mudguards

    Acid 65 Integrated Carrier 3.0

  • Bell

    Reich Cycle Bells Ringsound

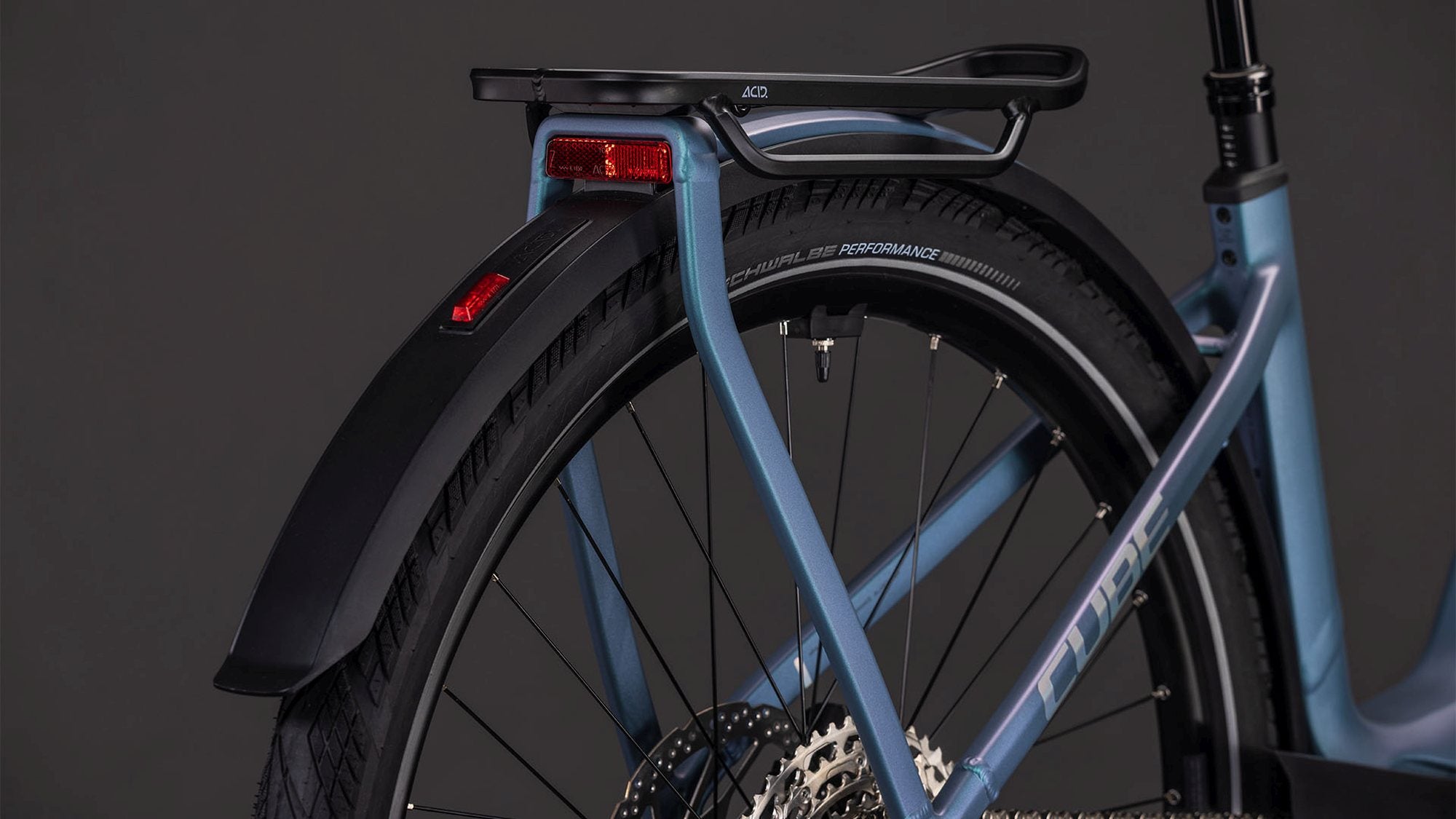

  • Carrier

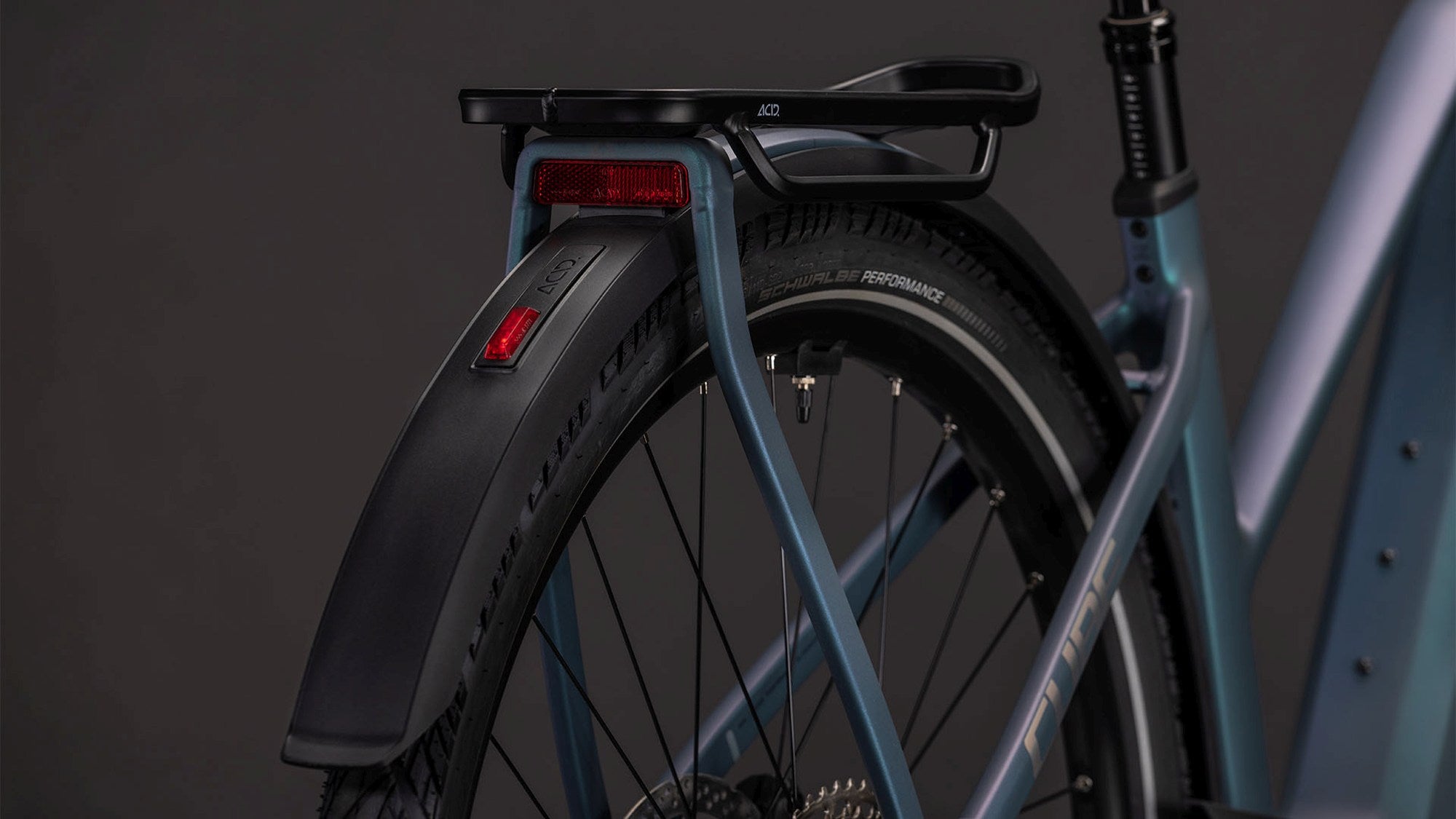

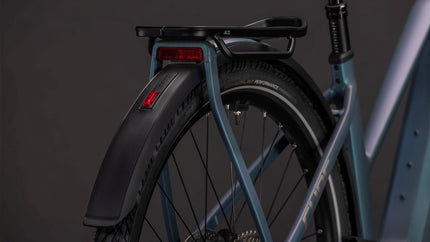

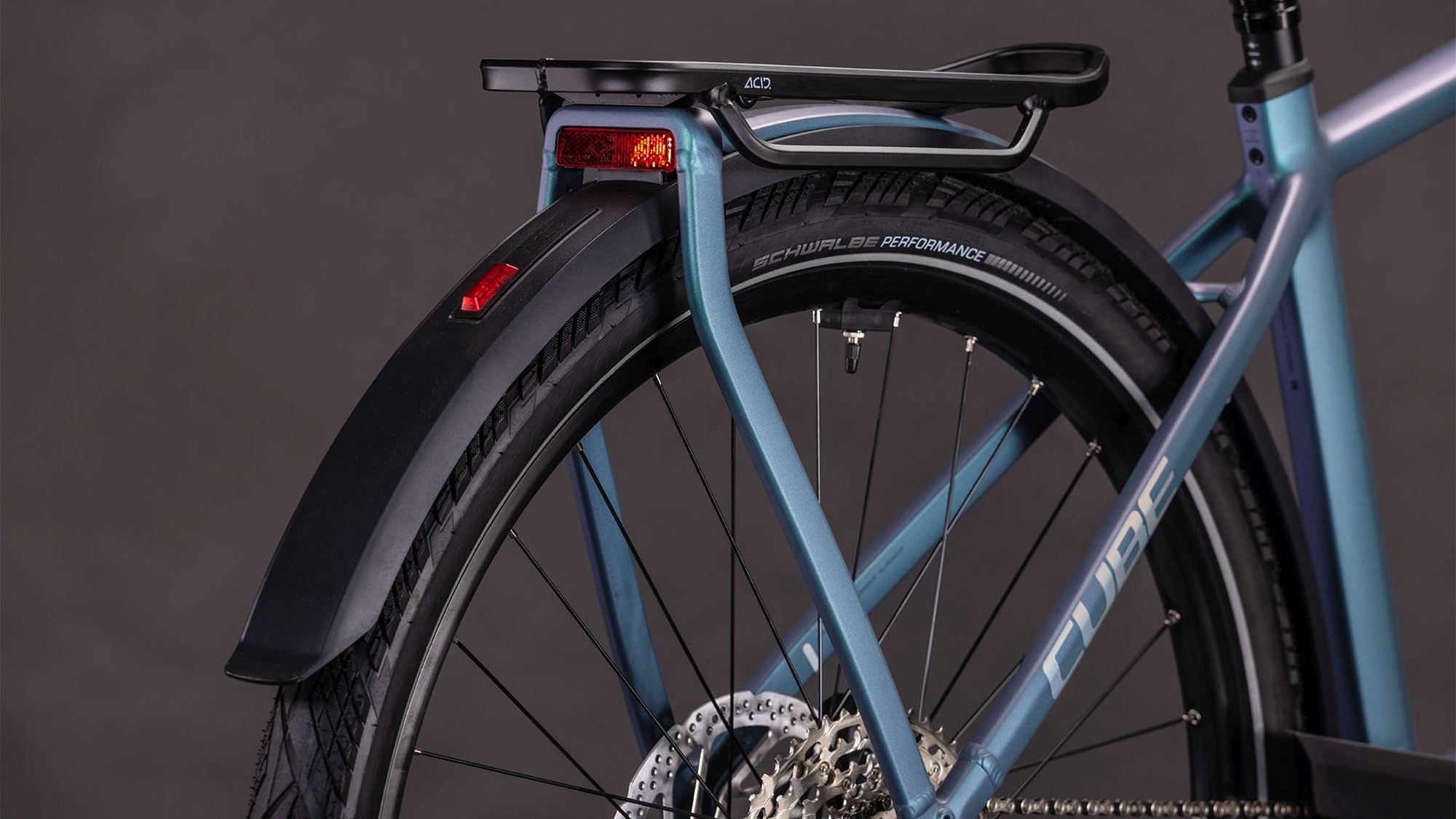

    Acid Integrated Carrier 3.0, CUBE Adapter Compatible
