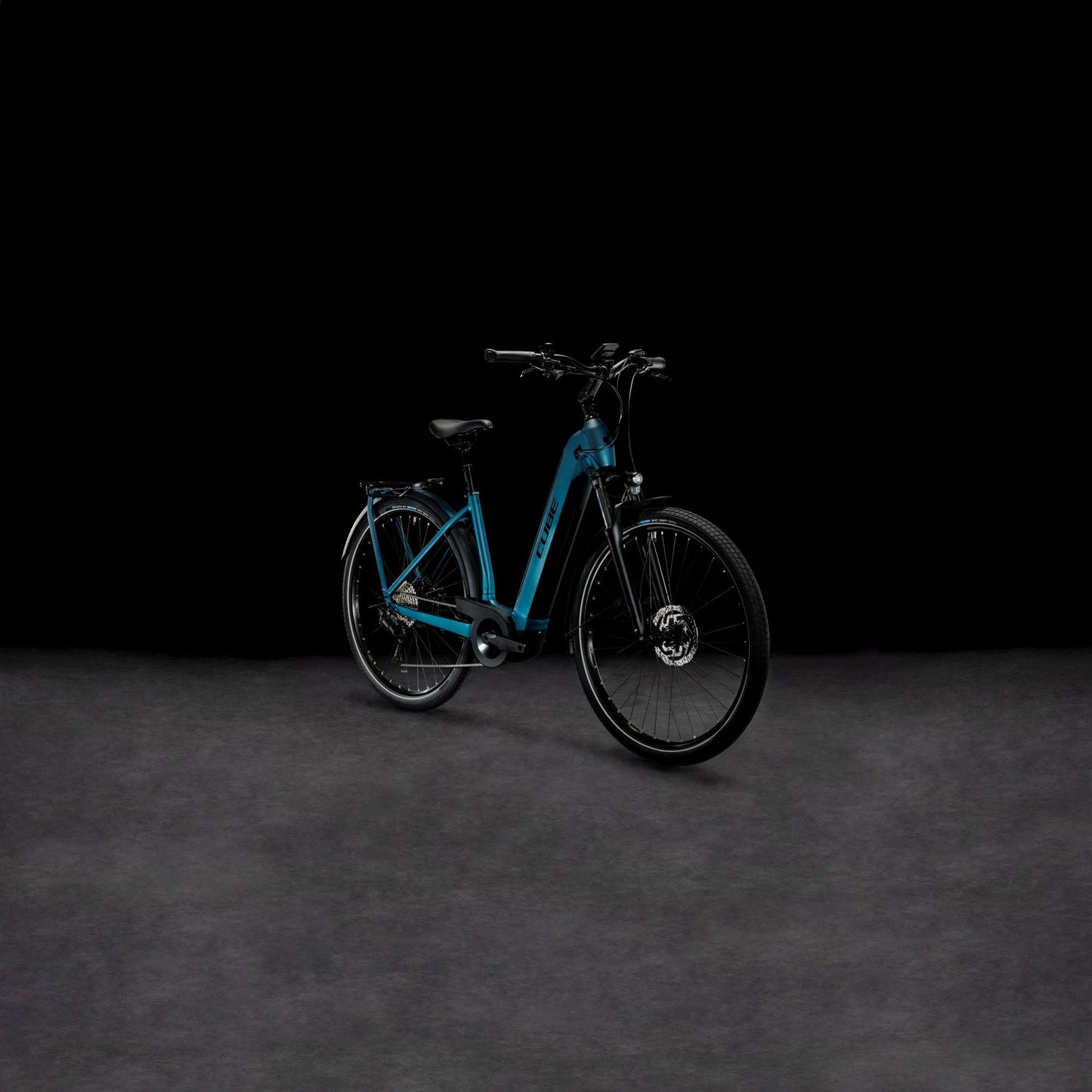

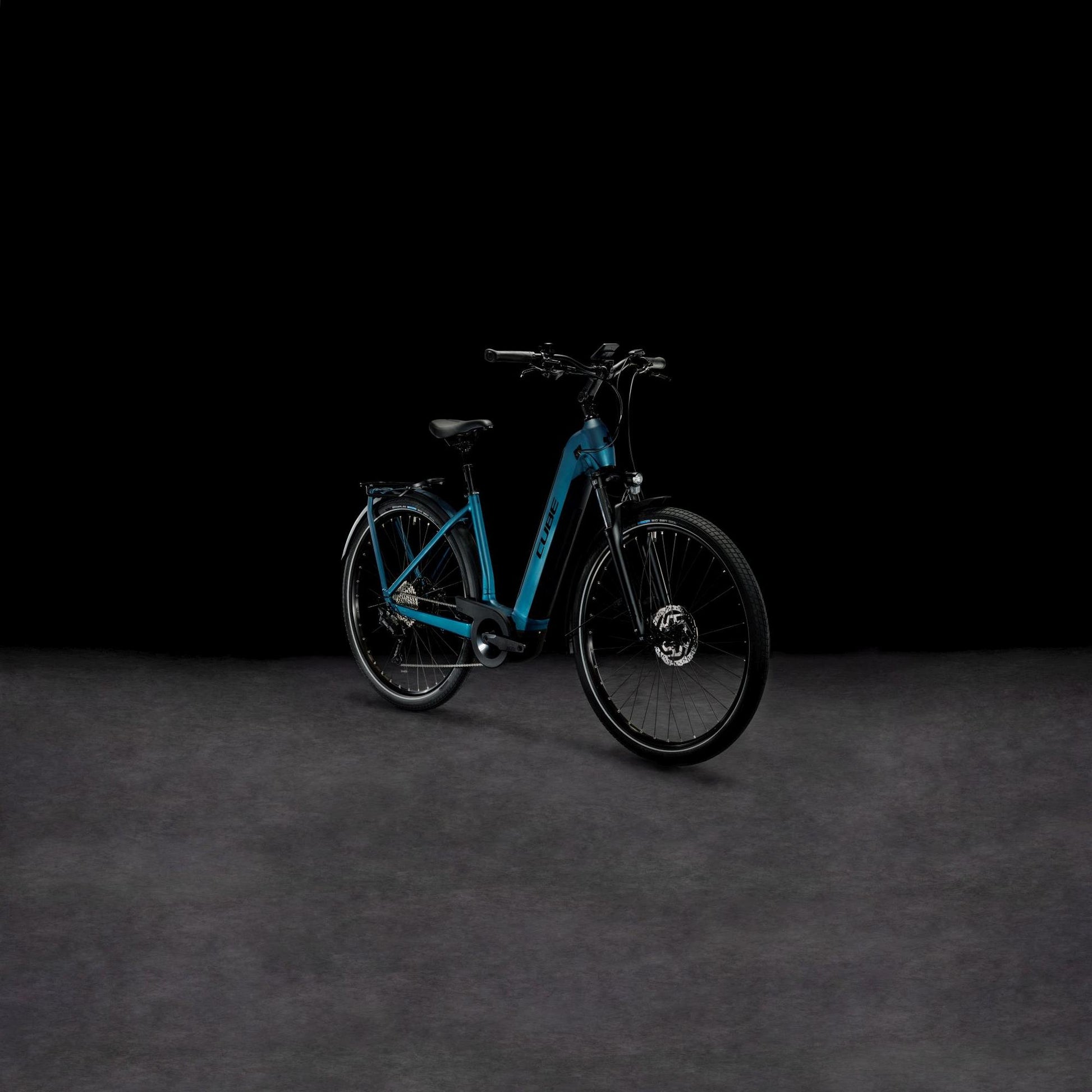

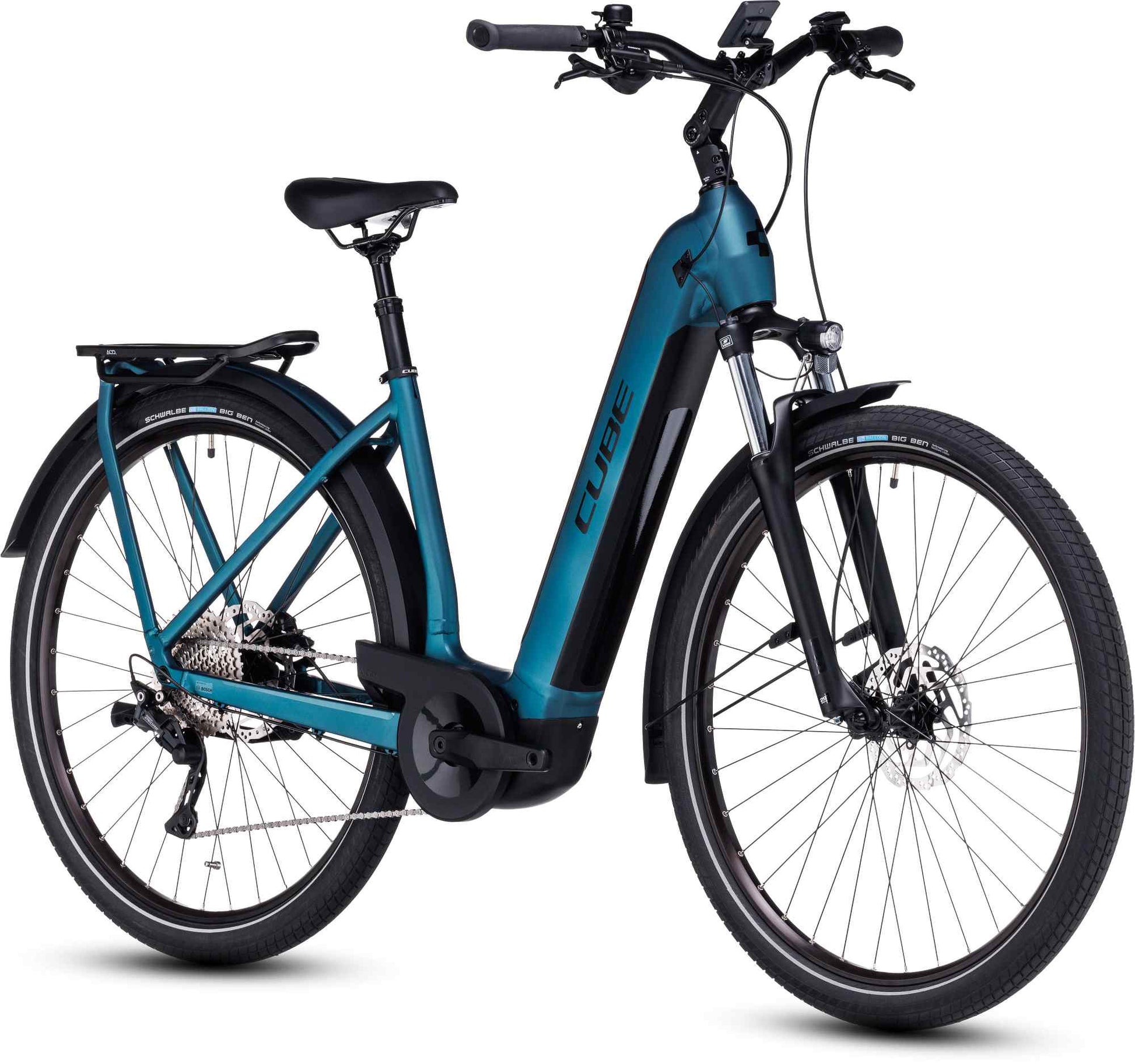

CUBE KATHMANDU HYBRID ONE 750 BLUE/BLACK

CUBE KATHMANDU HYBRID ONE 750 BLUE/BLACK

Skip to product information
1 of 22
Choose your size or use our size guide.
Regular price £2,719.00
Sale price £2,719.00 Regular price 3,399.00
Sale Sold out
Tax included.
Retail stock:
i
Click the store link for contact information
CUBE Store gloucester
In stock
  • Bikes mounted & delivered for free
  • 20 years of experience
  • Physical store for advice, service & maintenance
View full details

Plus Points

  • Light yet strong frame made of Superlite aluminum
  • Full integration of motor and battery
  • Extra large 750 Wh battery
  • Fast yet comfortable Efficient Comfort geometry
  • Stiff integrated luggage carrier
  • Reliable hydraulic disc brakes
  • Fast yet comfortable tires
  • Suspension seat post

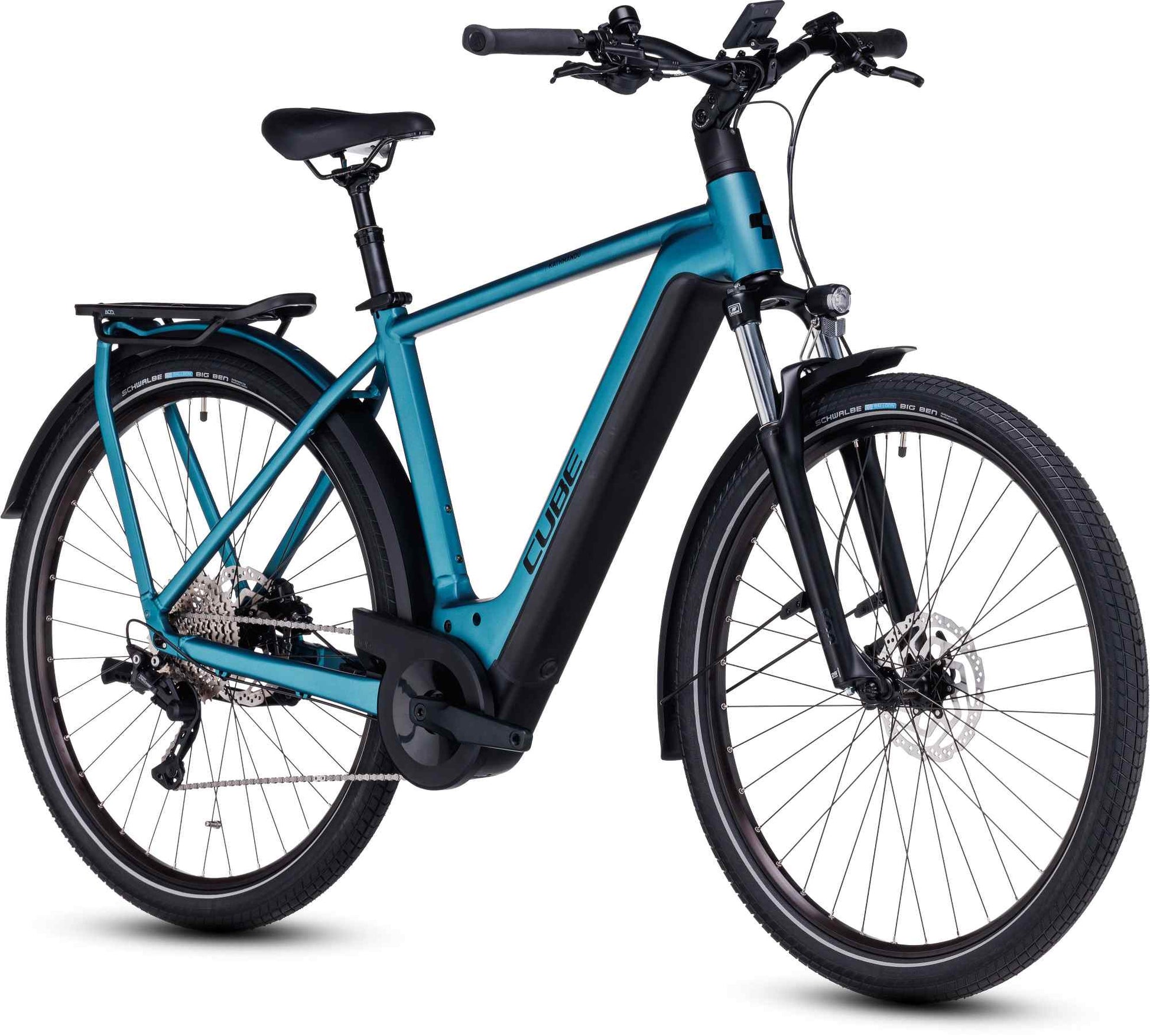

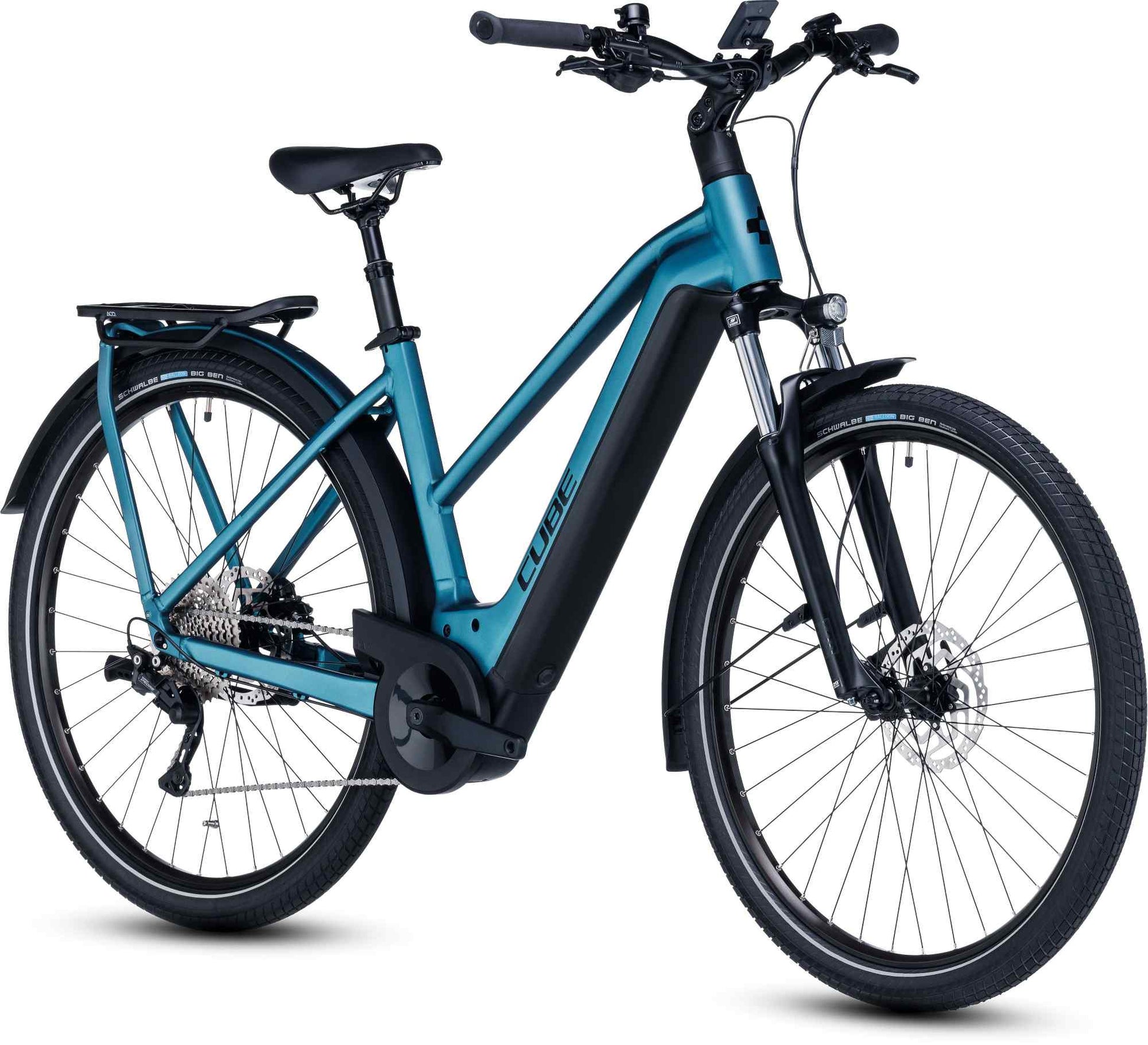

  • Available with classic diamond frame, mixed frame, or low step-through

Advisory points

  • No air-suspended front fork
  • No thru-axle in front fork

Description

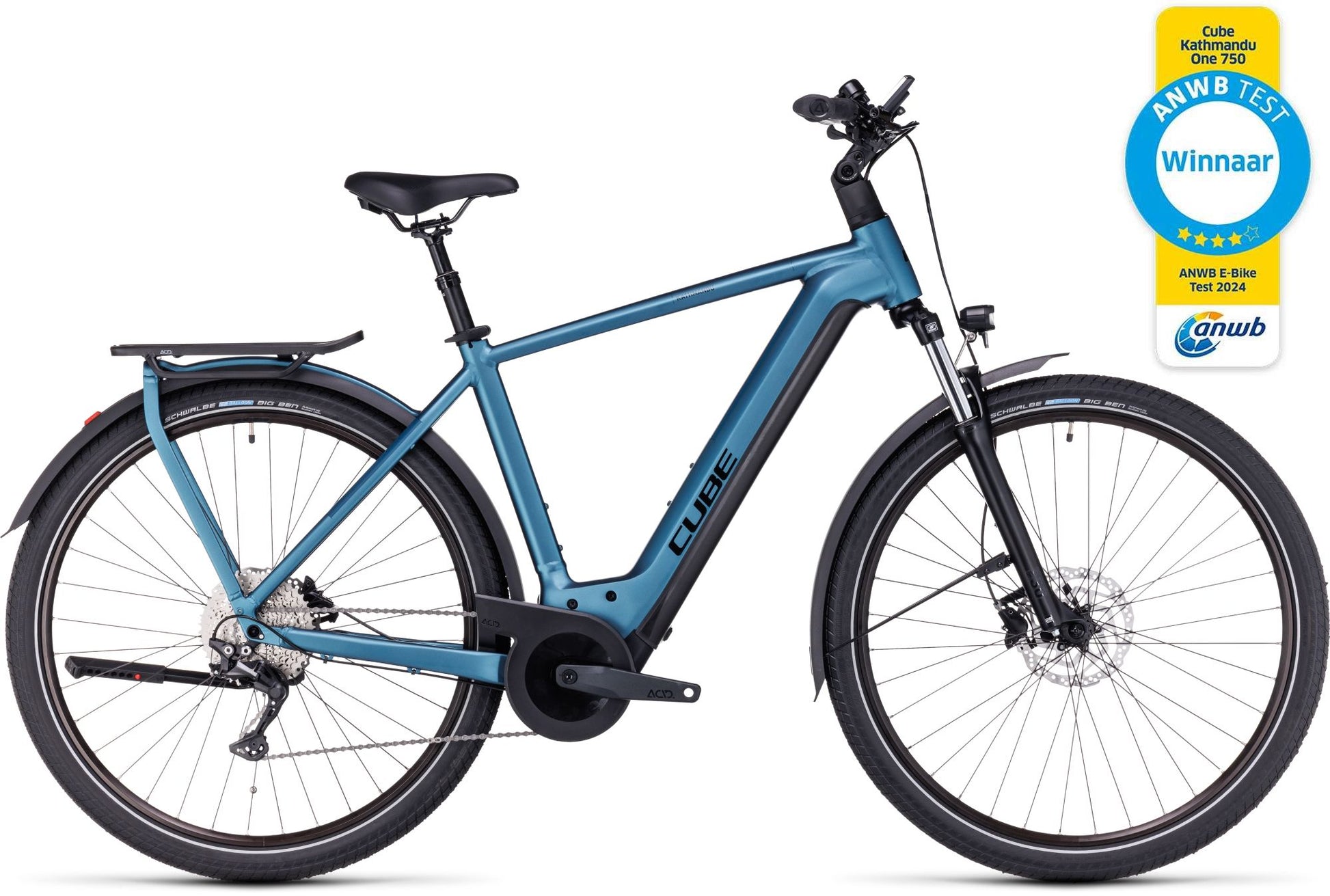

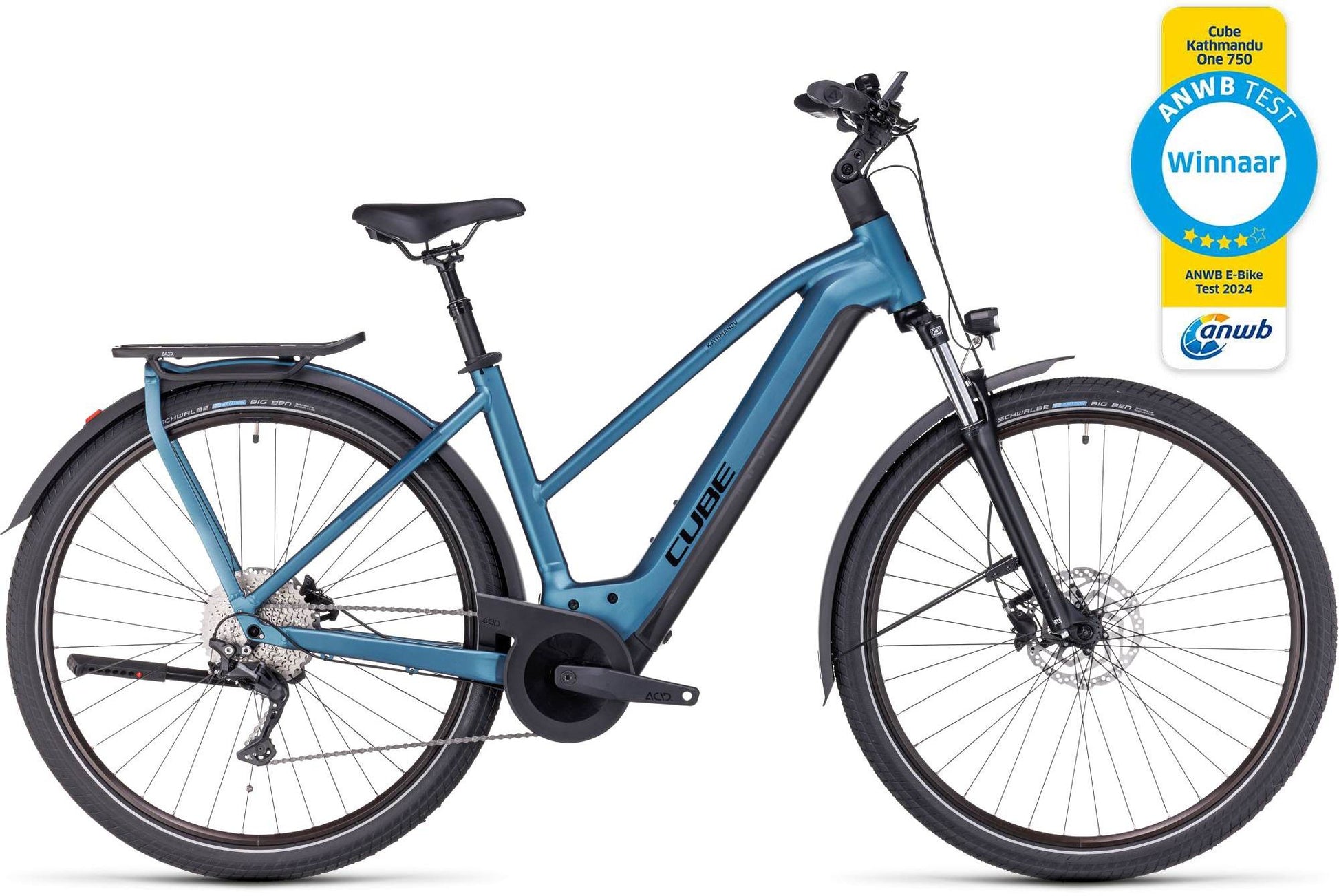

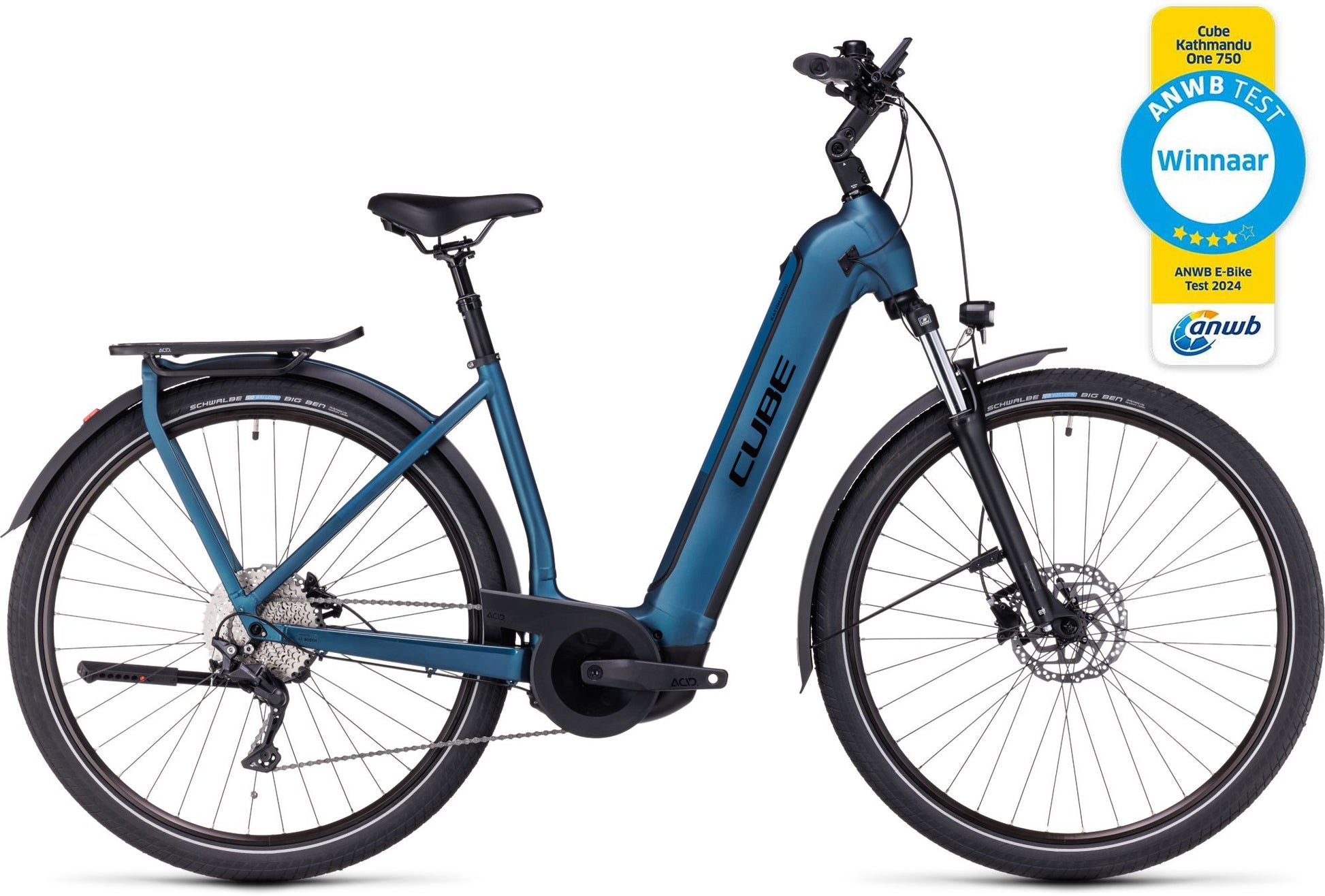

Test winner Dutch ANWB E-bike test 2024!


The Kathmandu Hybrid ONE is the bike to take you wherever your imagination leads you. With Bosch's smooth, powerful fourth-generation CX drive unit, a high-capacity battery and Shimano's easy-to-use, legendarily reliable 1x10 gears, you'll be able to make light work of any journey. Across town or across countries, the Suntour suspension fork, suspension seatpost and adjustable stem will keep you comfortable. Powerful Shimano hydraulic disc brakes give you the stopping power you need in all weathers. And a full complement of accessories, from lights and mudguards to the latest generation of our Integrated Carrier, means you're ready for anything.

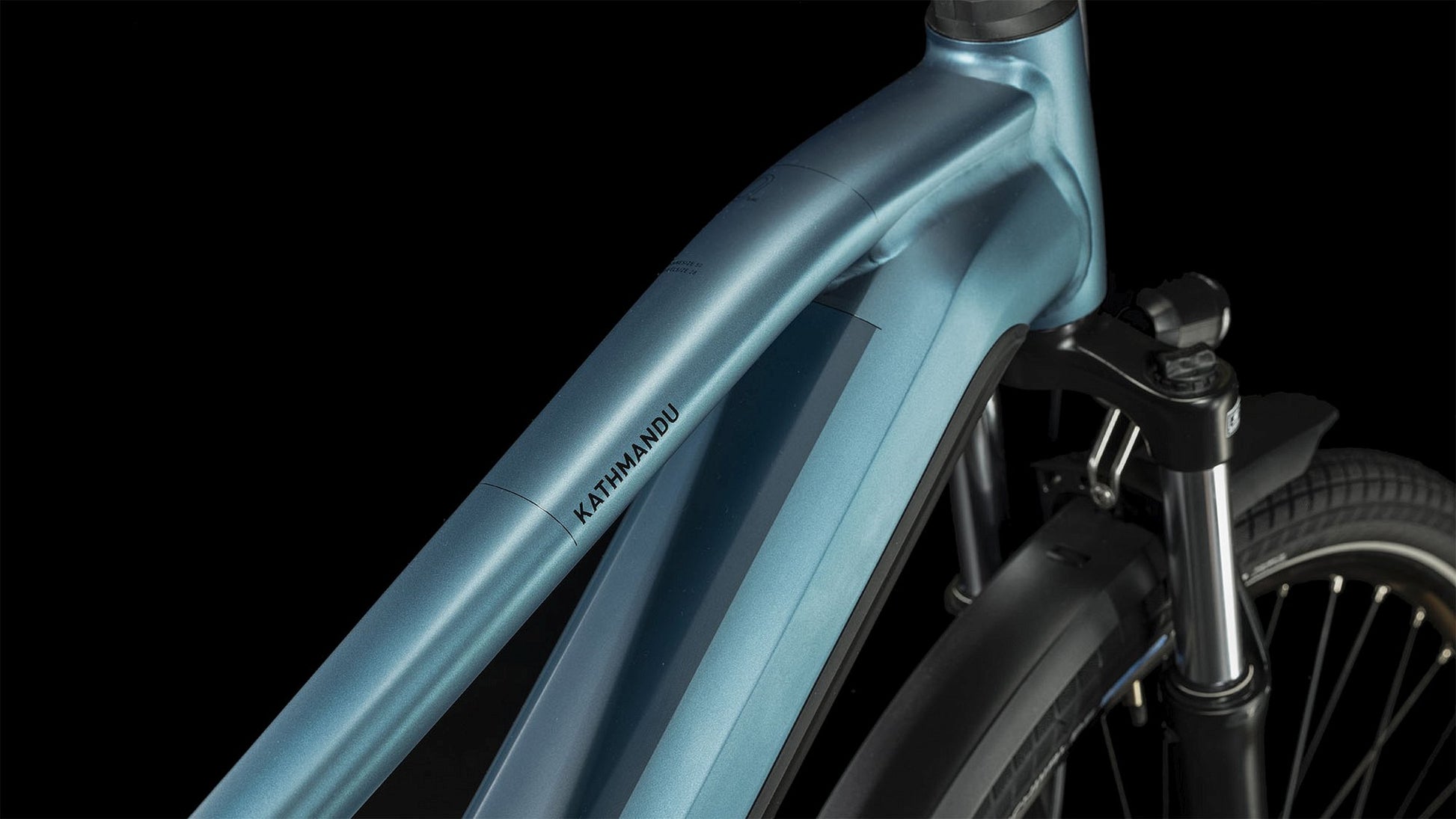

Frame description

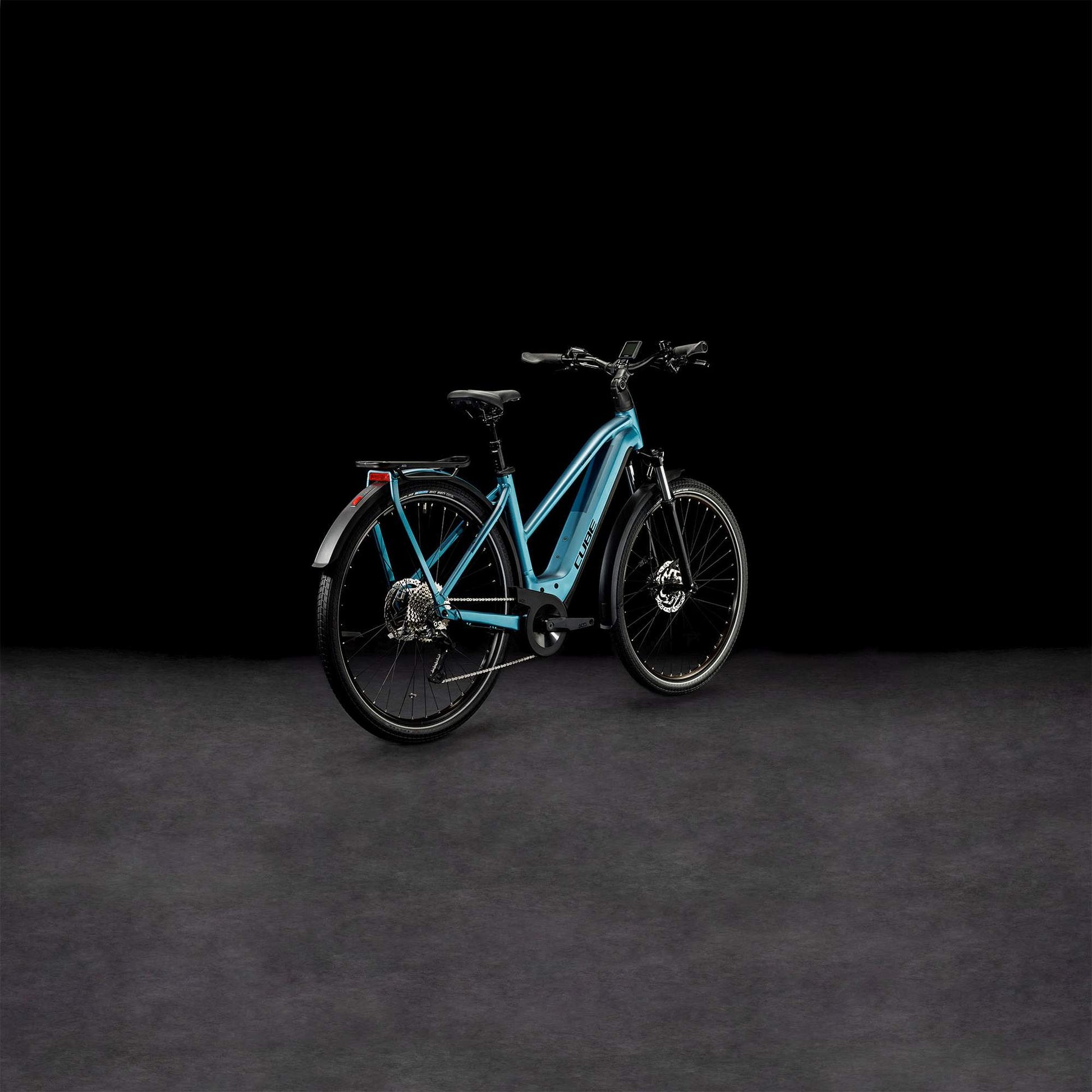

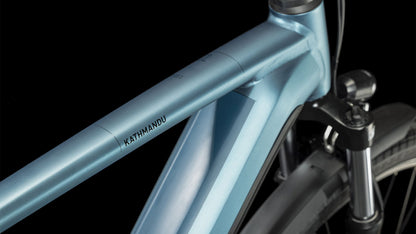

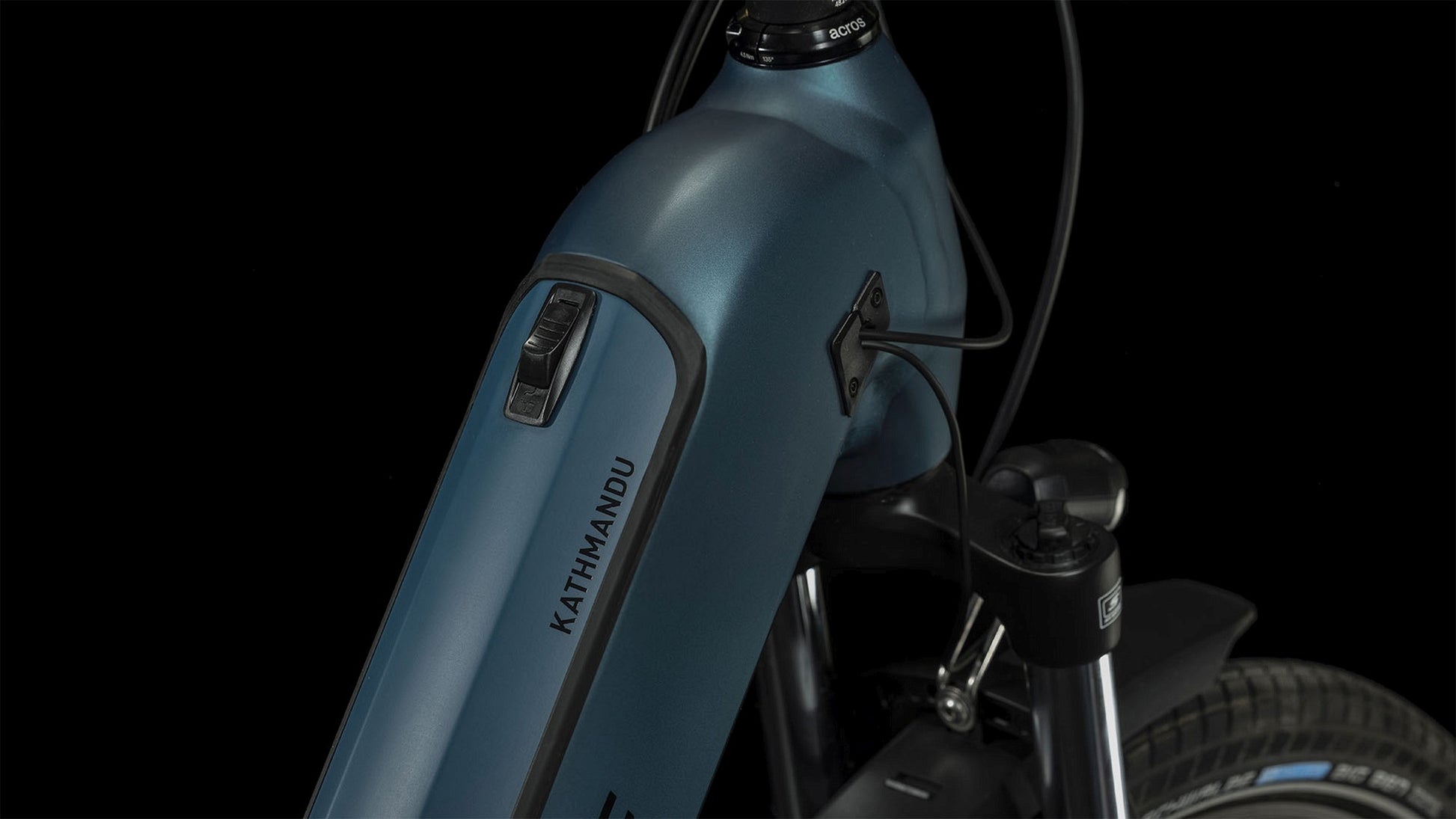

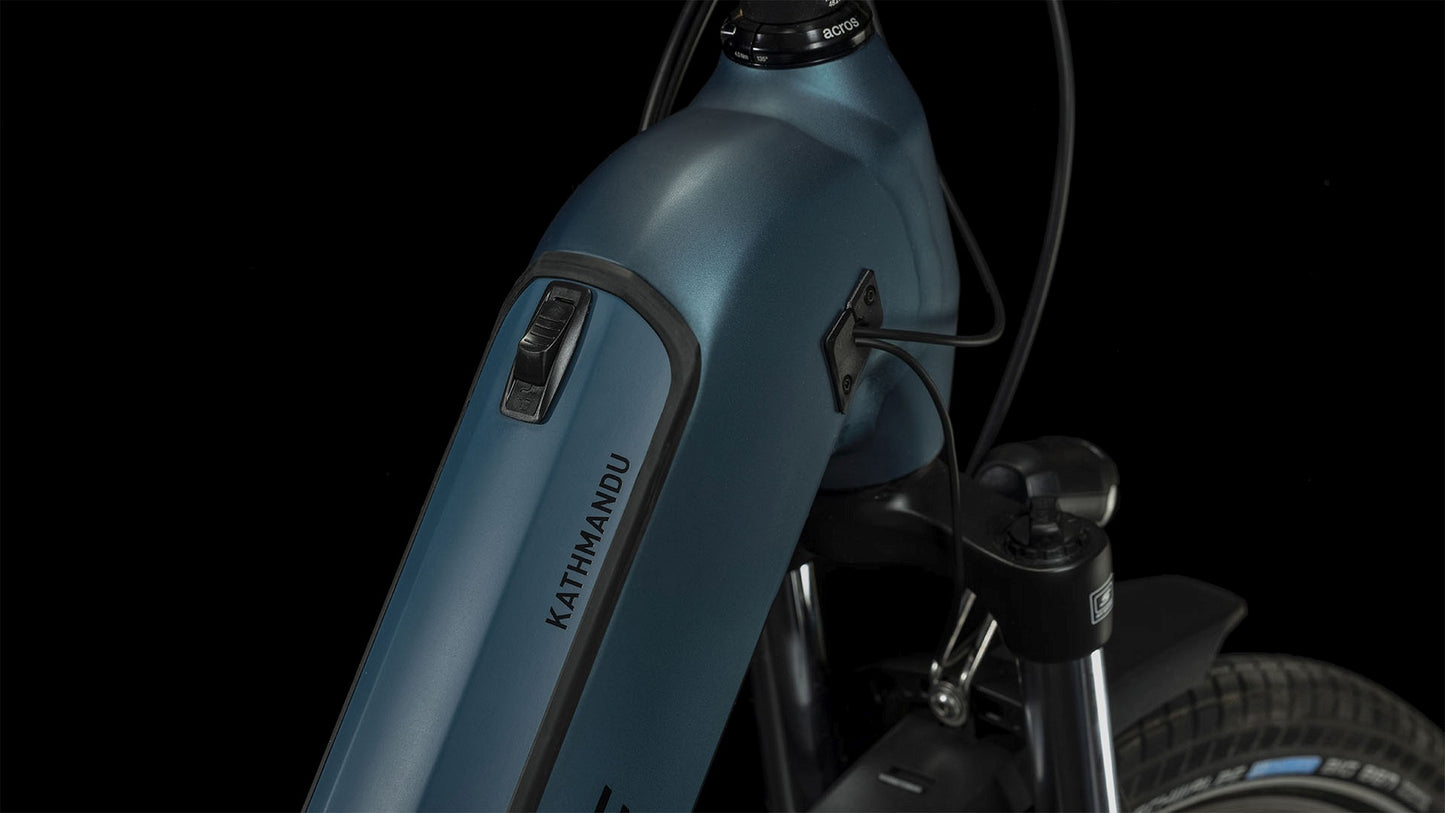

Designed for comfort, versatility and durability, the Kathmandu's frame – whether you choose the Men's version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of ​​a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.

Read more

Calculate your size!

Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:

  1. Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
  2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
  3. Measure the length from the top of the book to the ground, the distance you measure is your inseam.

Frame

  • Model code

    631183

  • Model year

    2024

  • Colour

    blue/black

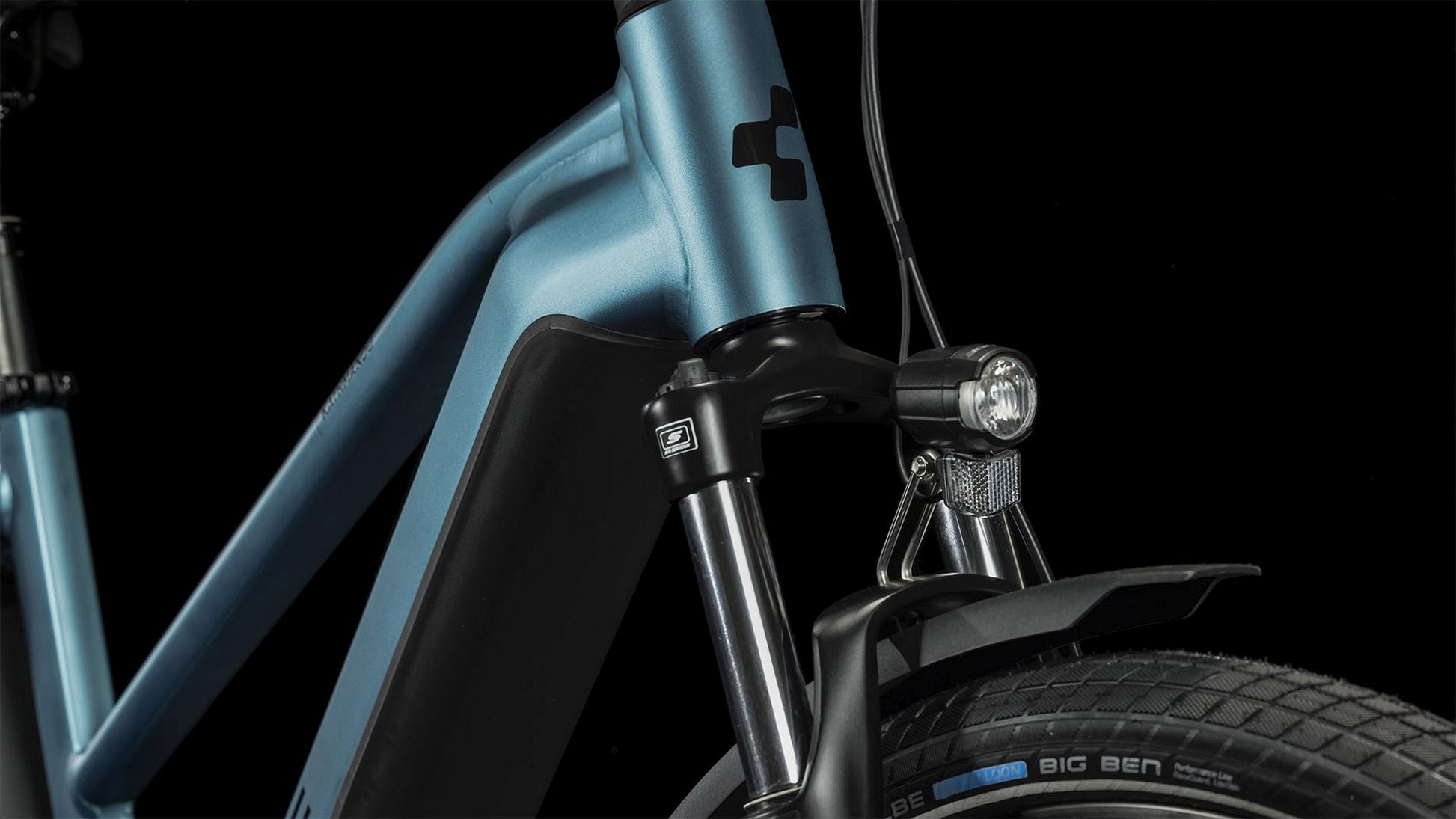

  • Fork

    SR Suntour NVX30 Coil, 100mm

  • E-bike System

  • Engine

    Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System

  • Battery

    Bosch PowerTube 750

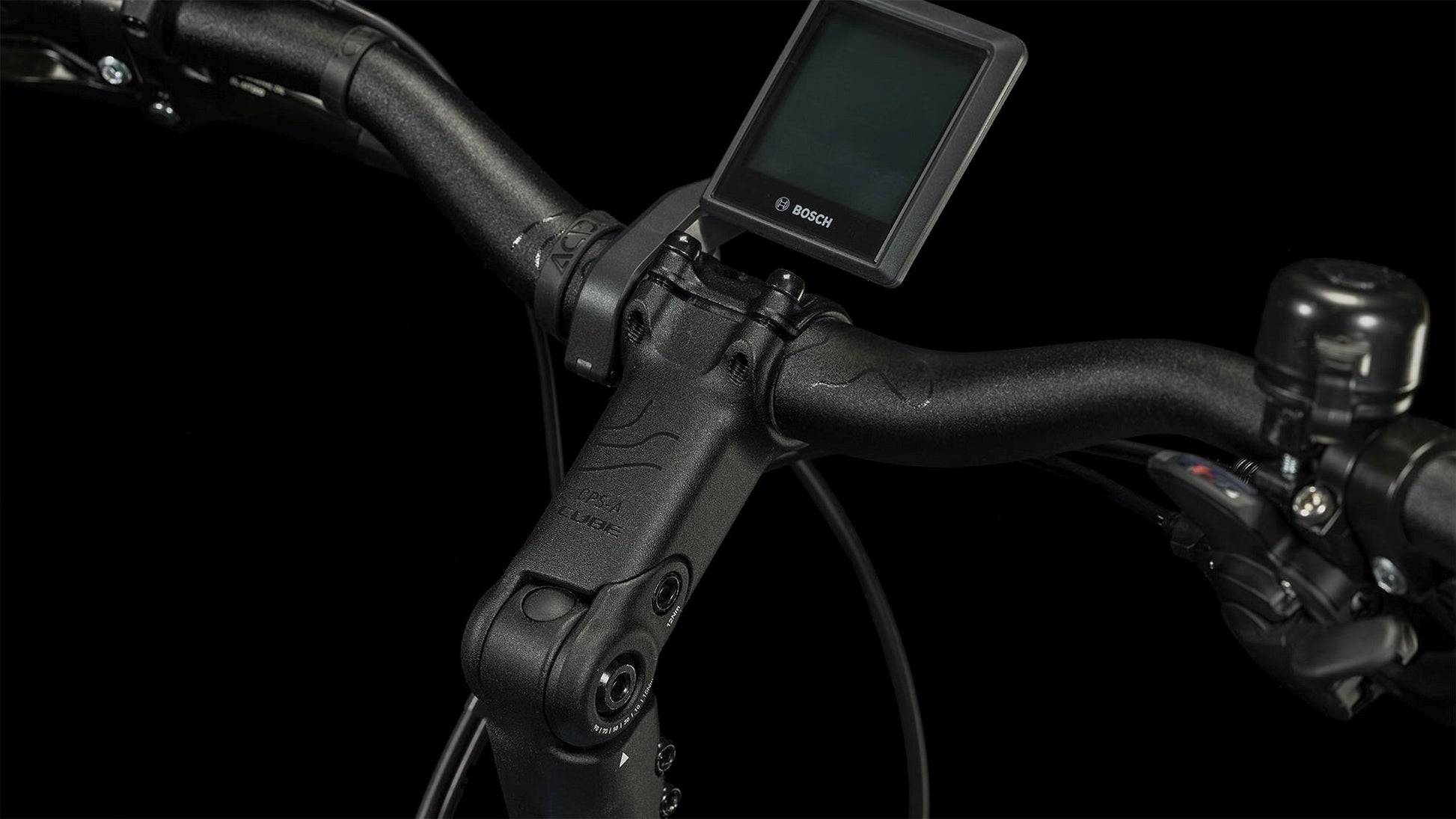

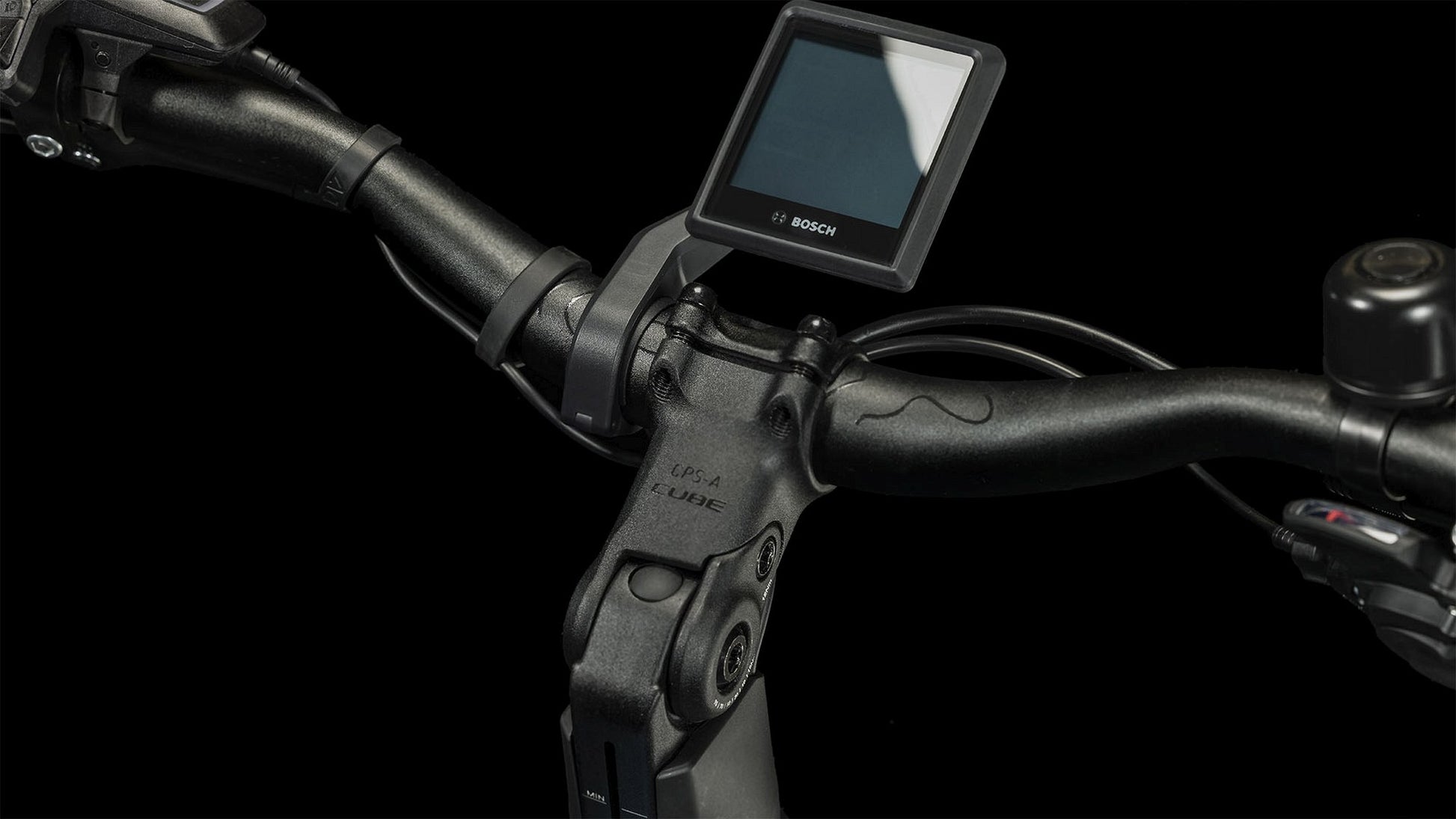

  • display

    Bosch Intuvia 100

  • Drivetrain and brakes

  • Front brake

    Shimano BR-MT200, Hydr. Disc Brake (180/180)

  • Rear brake

    Shimano BR-MT200, Hydr. Disc Brake (180/180)

  • Rear derailleur

    Shimano Deore RD-M4120-SGS, 10-Speed

  • Shifters

    Shimano Deore SL-M4100-R, Rapidfire-Plus

  • Crankset

    Acid Integrated Carrier 3.0, CUBE Adapter Compatible

  • Cassette

    Shimano Deore CS-M4100, 11-42T

  • Chain

    KMC X10

  • Cockpit

  • Headset

    Acros M/Z: AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

  • Handlebar

    Cube Comfort Trail Bar, 700mm

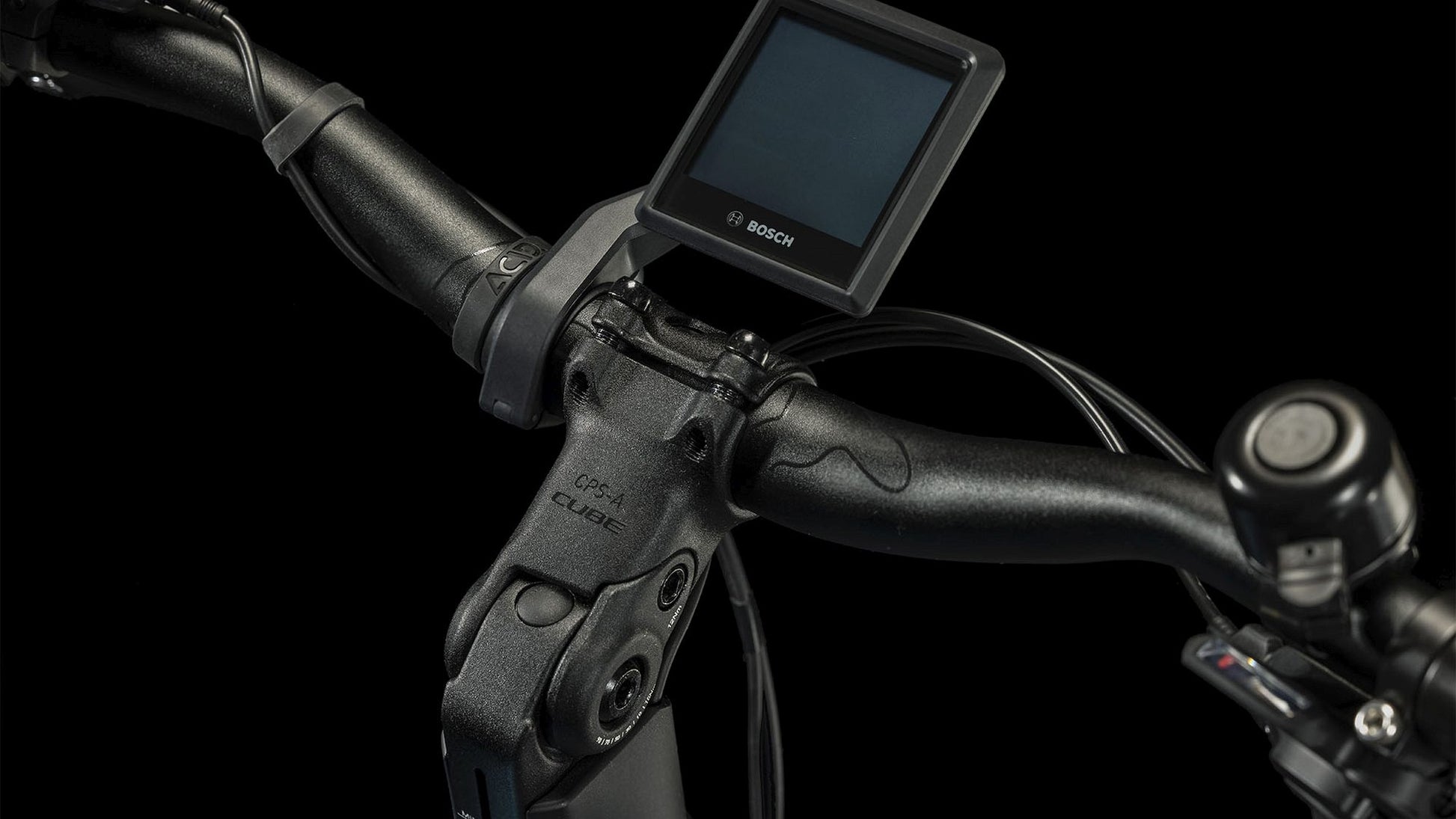

  • Stem

    Cube Comfort Stem Pro, 31.8mm, Adjustable

  • Bar tape or grips

    Acid Travel Comfort

  • Wheels

  • Rims

    Rodi Blackrock 23, 36H, Disc, Tubeless Ready

  • Front hub

    Shimano HB-TX505, QR, Centerlock

  • Rear Hub

    Shimano FH-MT400-B, 12mm, Boost, Centerlock

  • Front tyre

    Schwalbe Big Ben, Performance, K-Guard, 55-622

  • Rear Tyre

    Schwalbe Big Ben, Performance, K-Guard, 55-622

  • Other parts

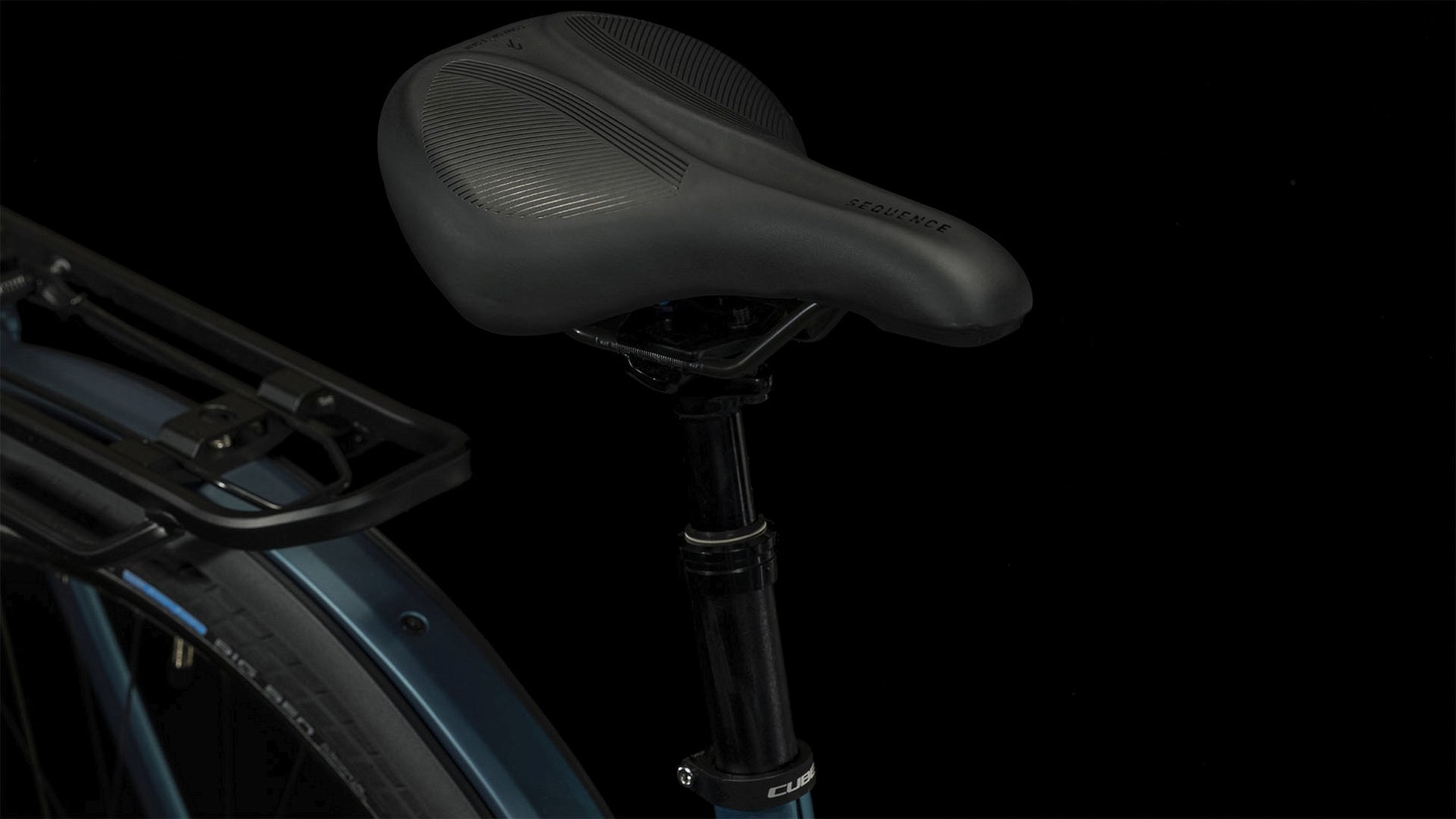

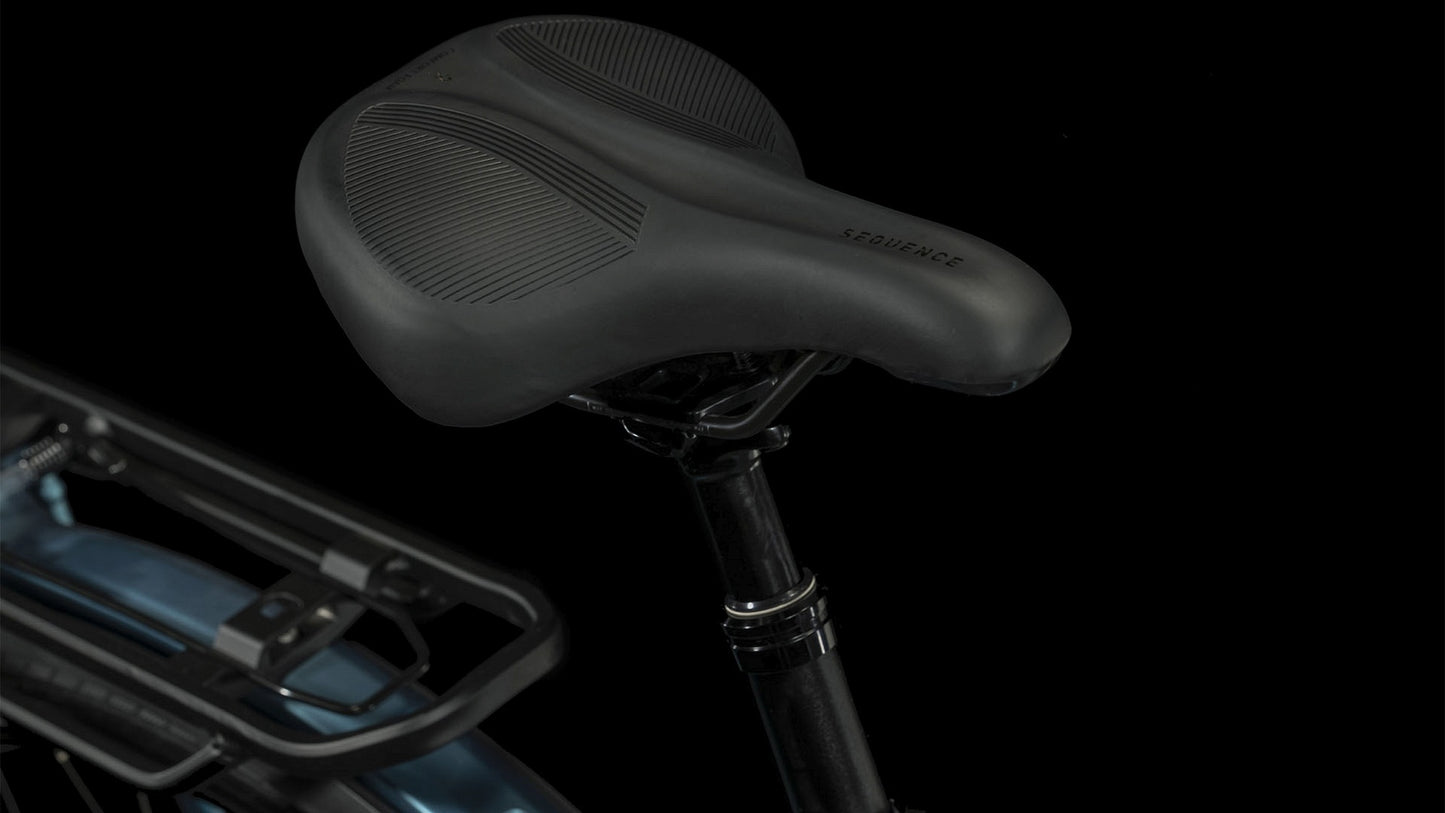

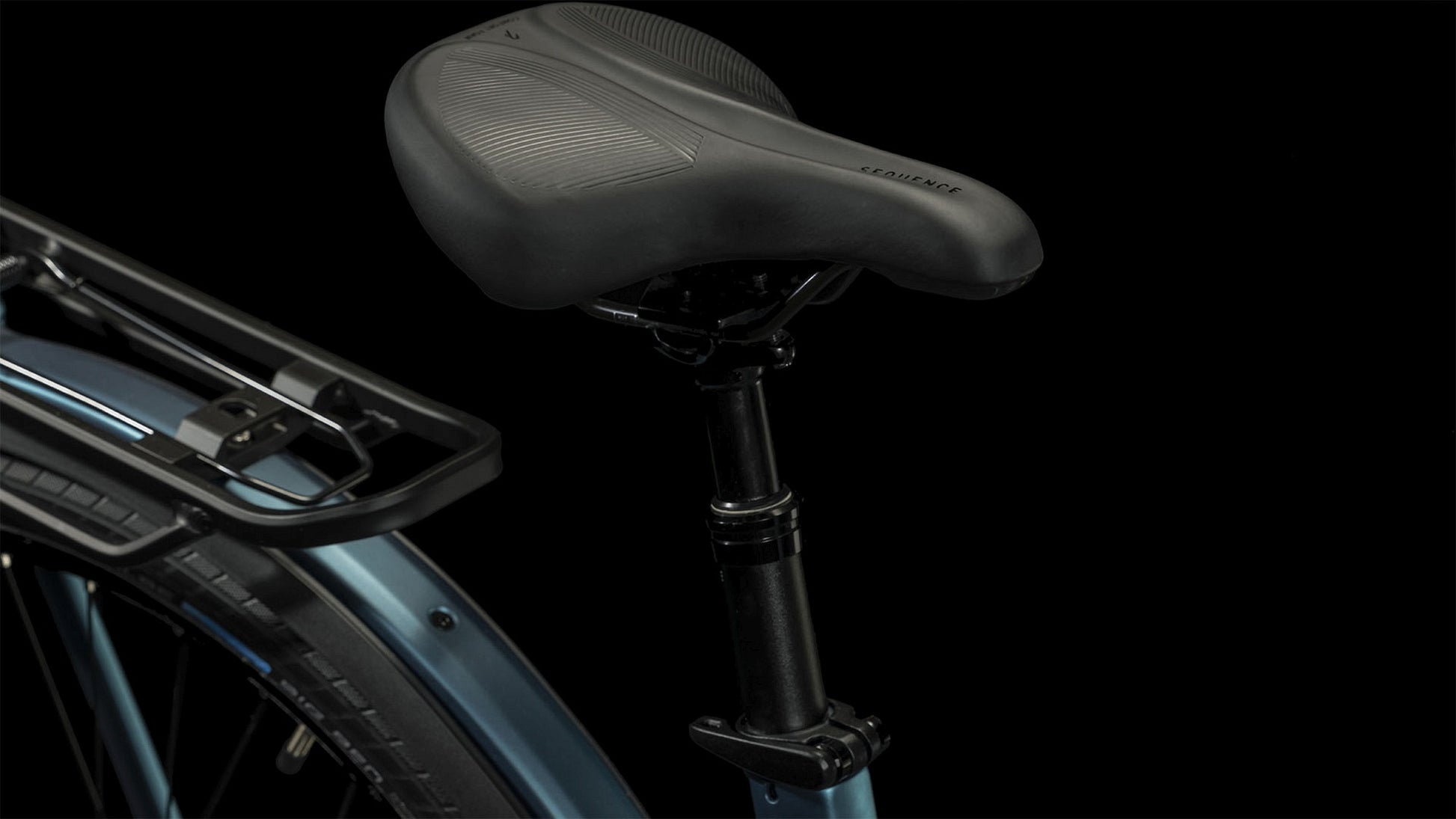

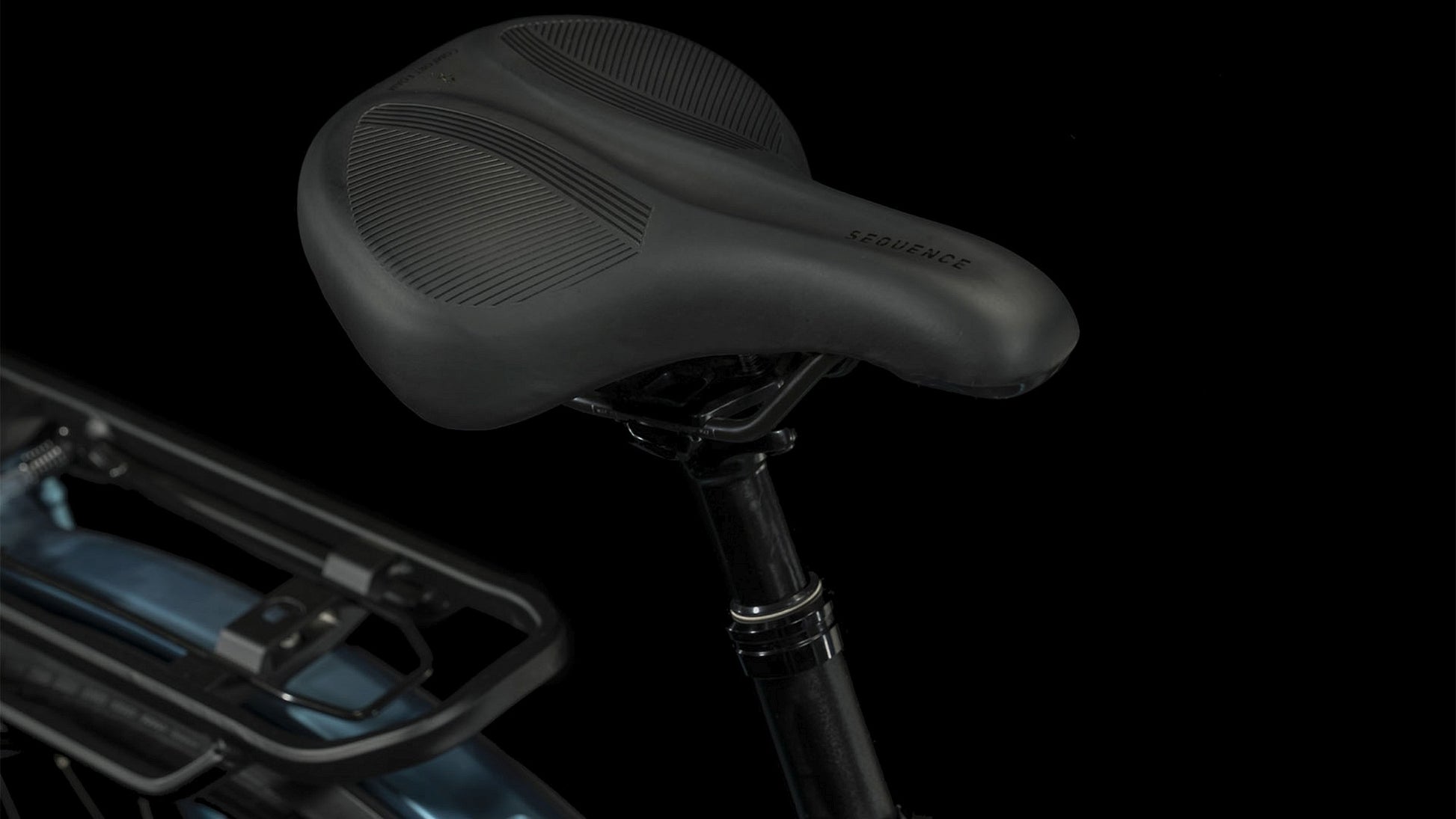

  • Saddle

    Sequence Comfort

  • Seatpost

    Cube Suspension Seatpost HD, 30.9mm

  • Seatpost clamp

    Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: Screwlock Semi Integrated, 36mm)

  • Pedals

    Acid PP Trekking

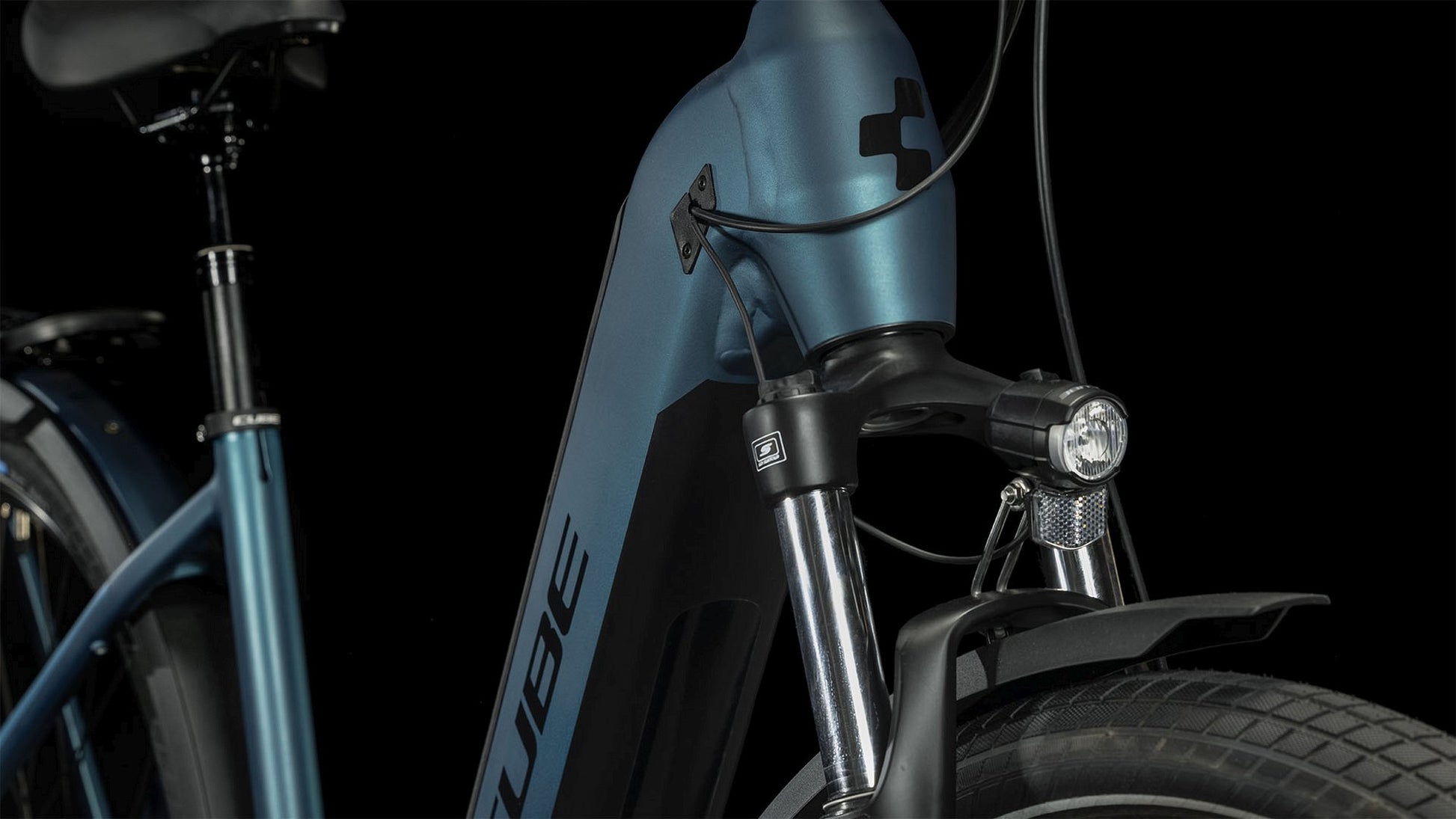

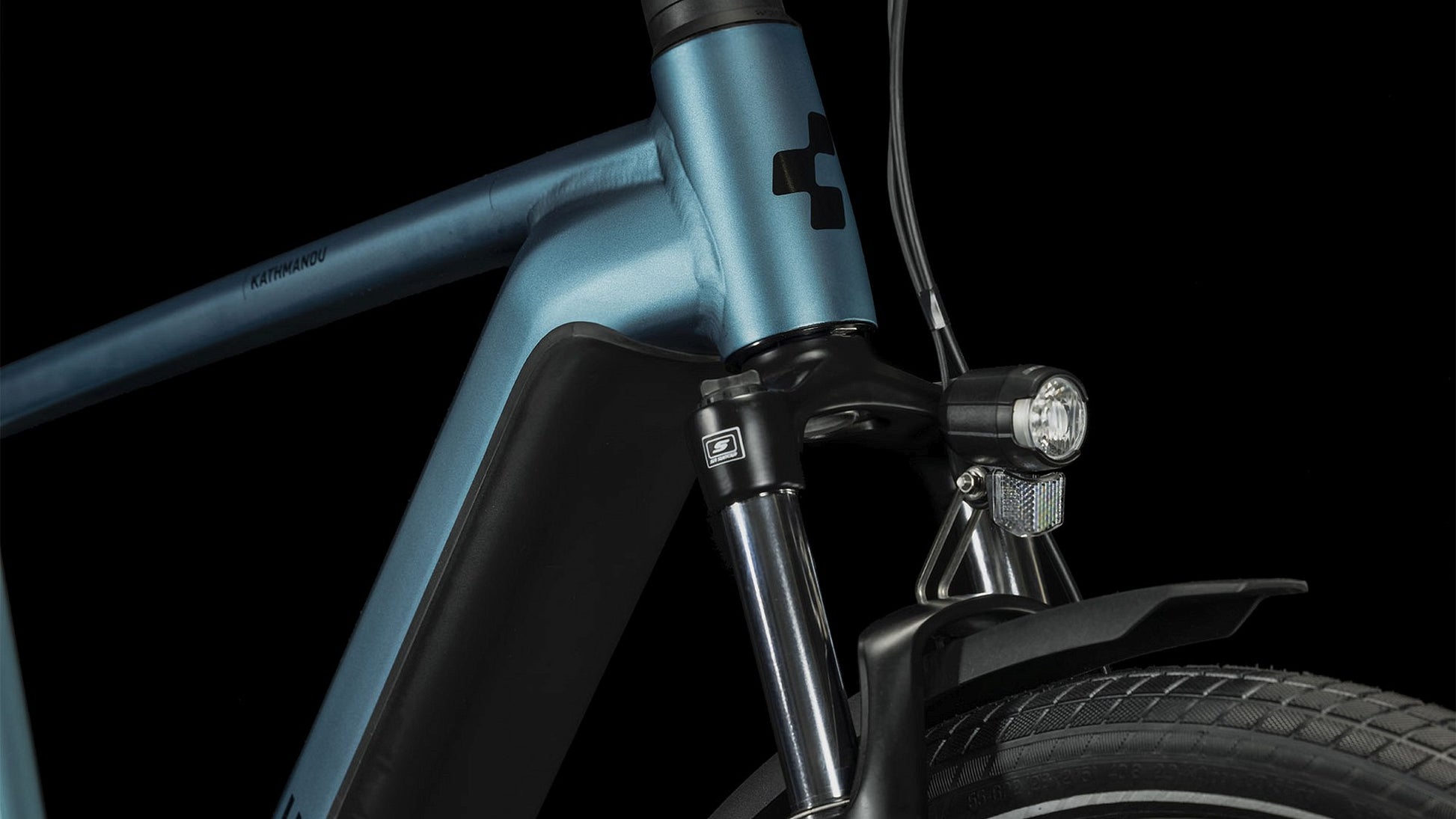

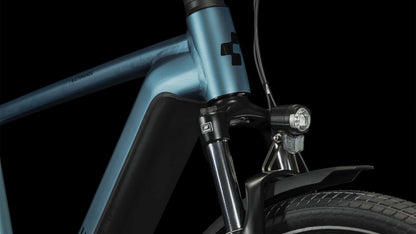

  • Front light

    Cube Shiny 50 Lux, 12V, DC

  • Rear light

    Acid Mudguard Rear Light PRO-E, 12V, DC

  • Kickstand

    Acid FM Pure Kickstand

  • Mudguards

    Acid 65 Integrated Carrier 3.0

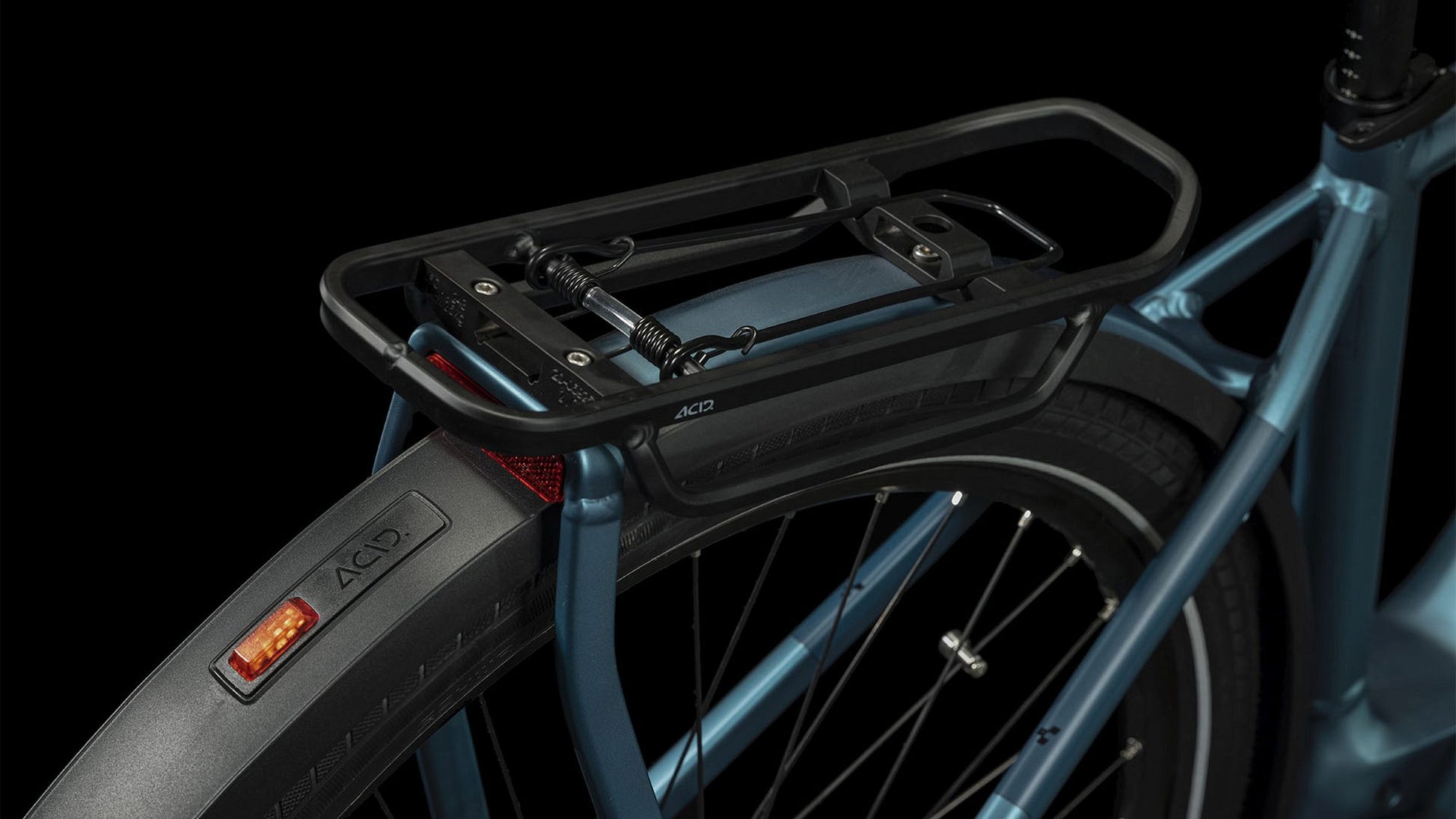

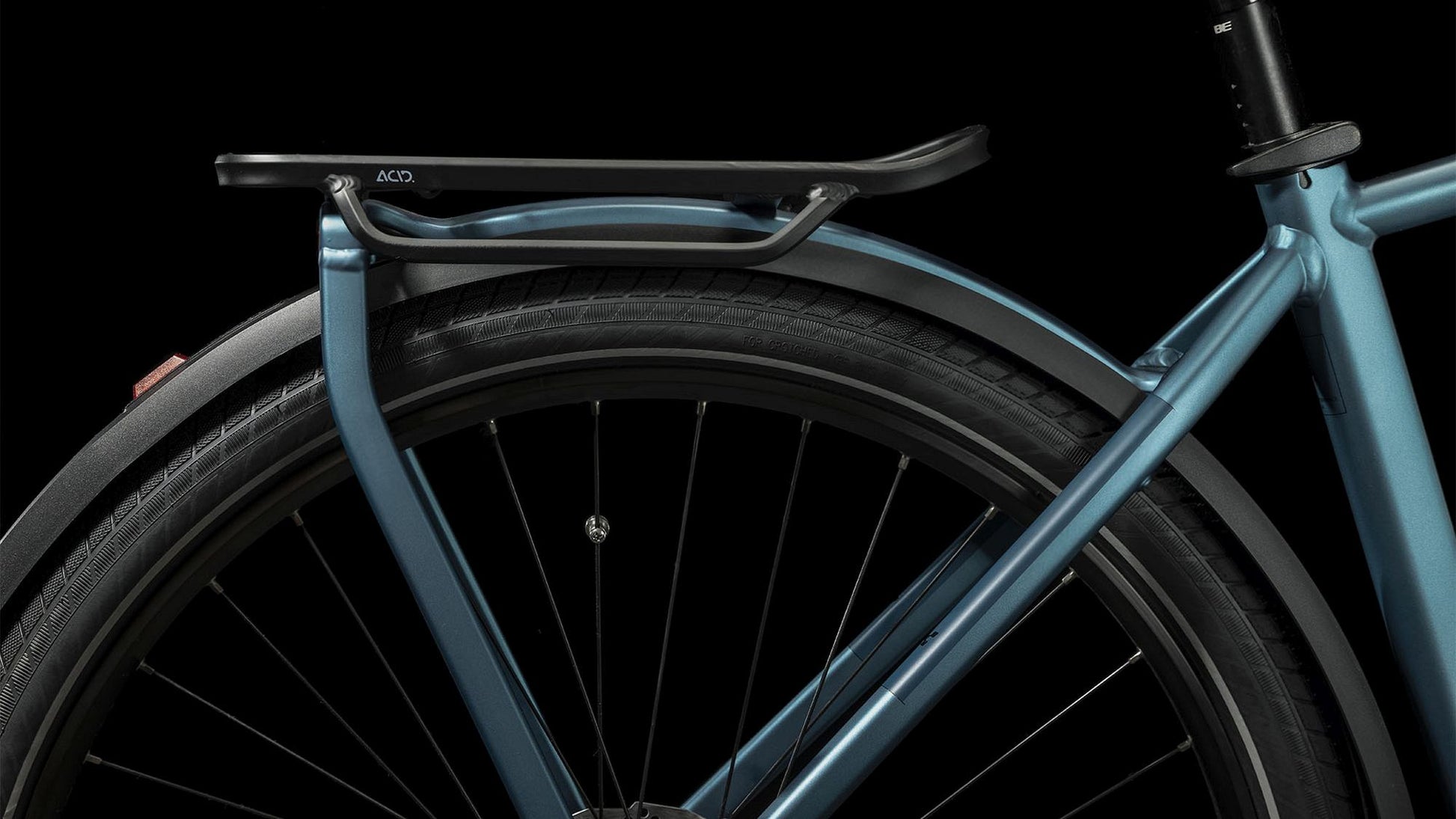

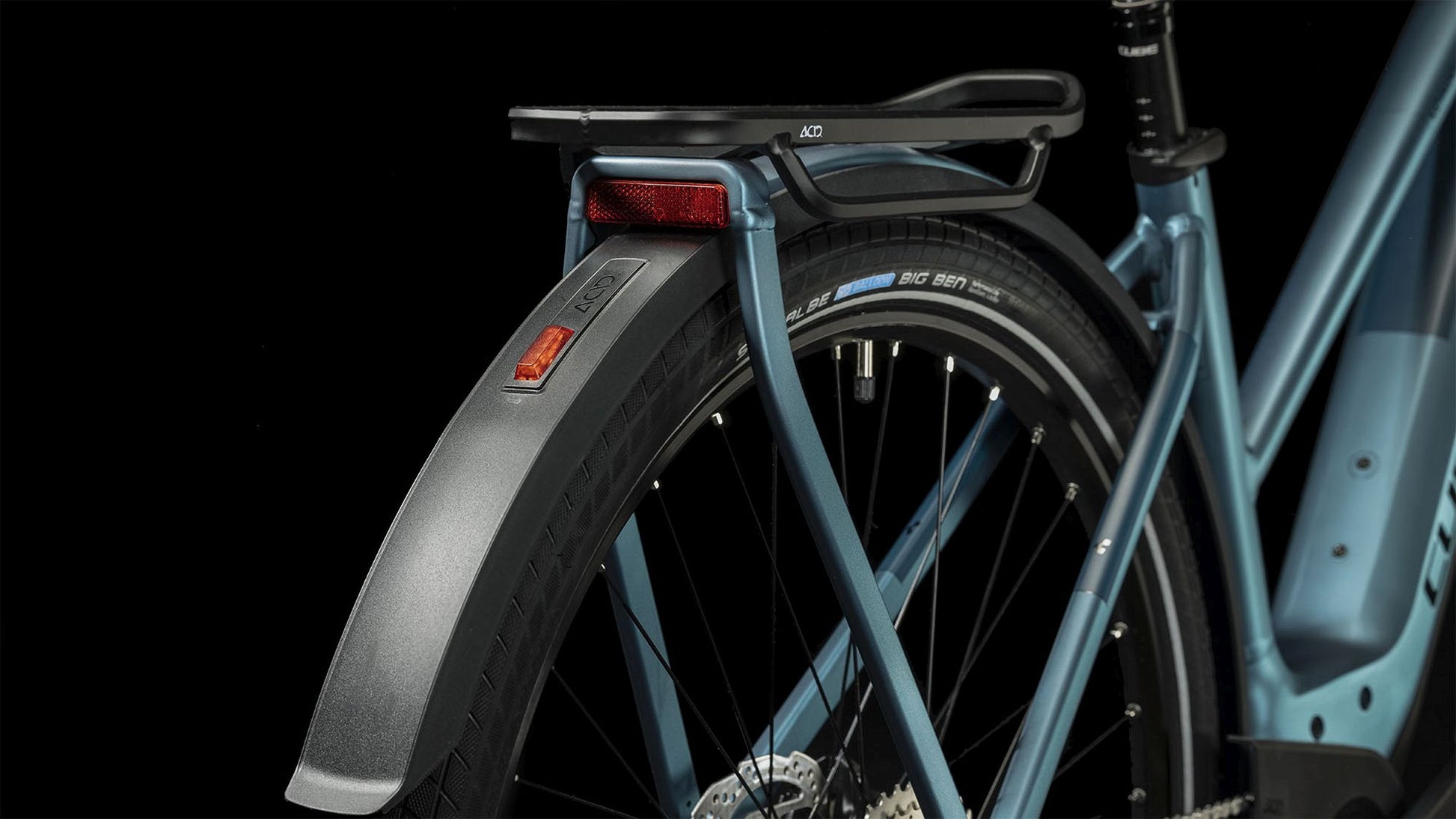

  • Carrier

    Acid Integrated Carrier 3.0, CUBE Adapter Compatible
