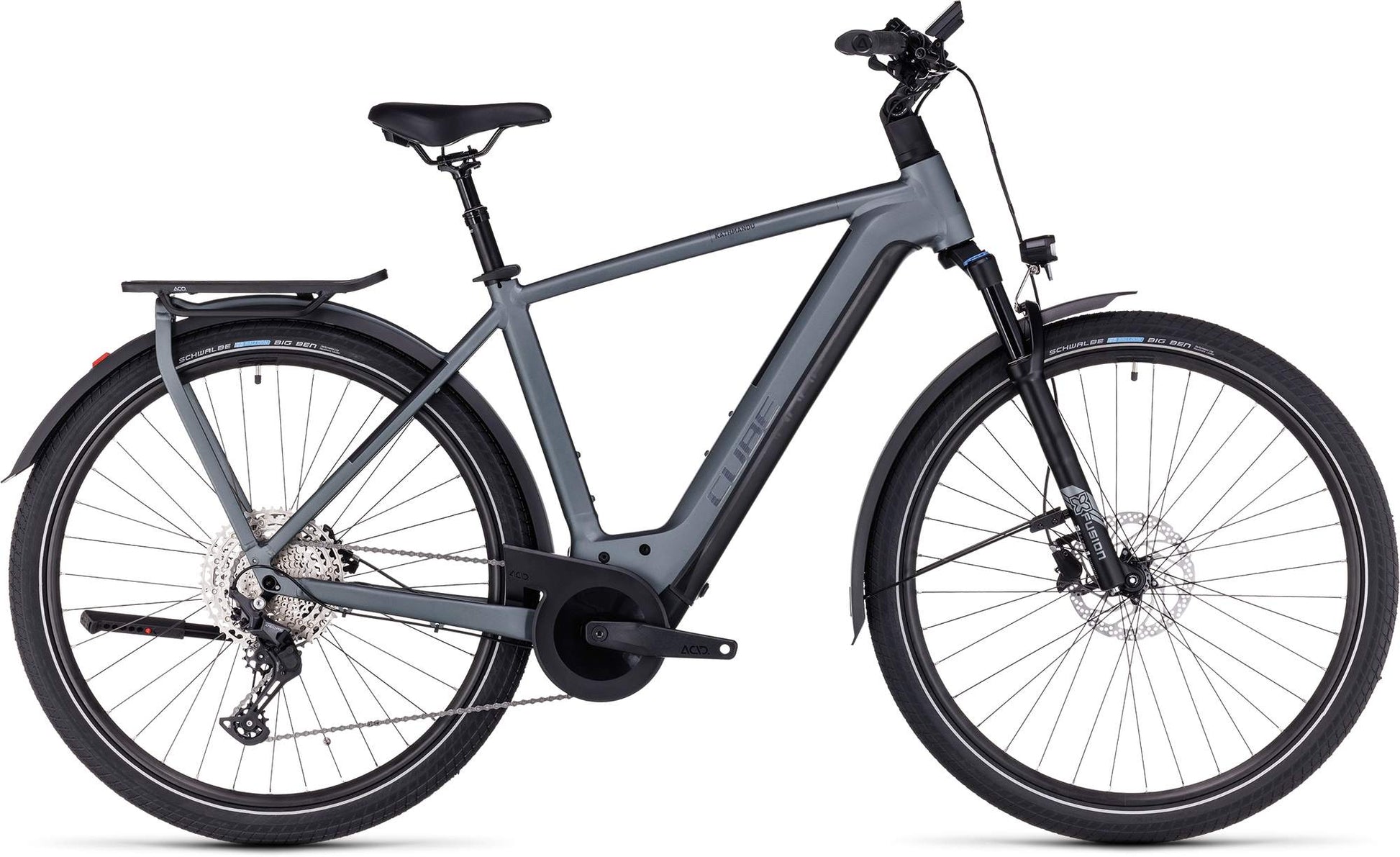

CUBE KATHMANDU HYBRID PRO 750 FLASHGREY/BLACK
CUBE KATHMANDU HYBRID PRO 750 FLASHGREY/BLACK
Plus Points
- Light yet strong frame made of Superlite aluminum

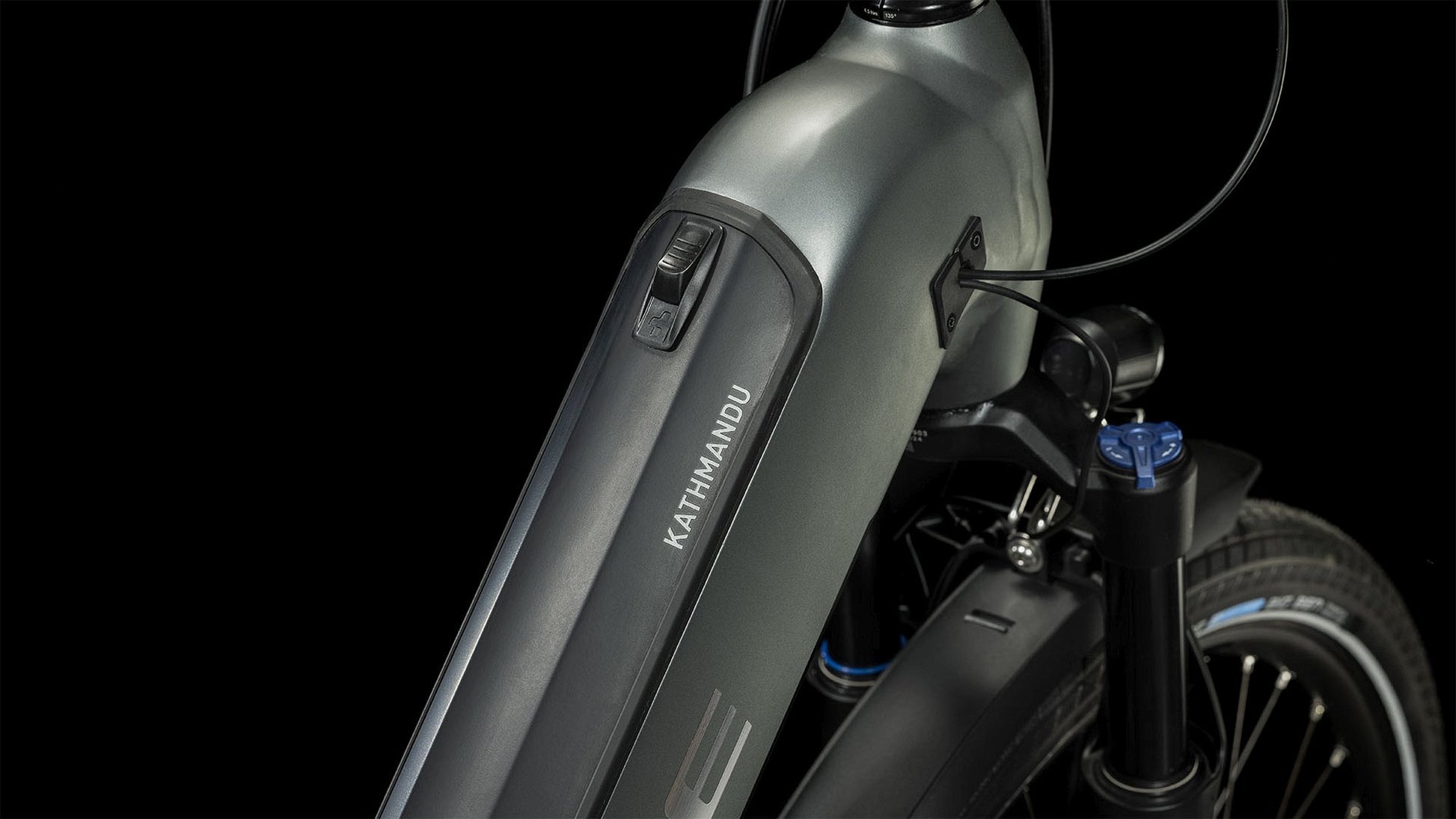

- Complete integration of motor and battery
- Extra large 750 Wh battery
- Fast yet comfortable Efficient Comfort geometry
- Integrated luggage carrier
- Through axles front and rear
- Reliable hydraulic disc brakes
- Fast yet comfortable tires
- Suspension seat post
- Front fork with 10 cm air suspension

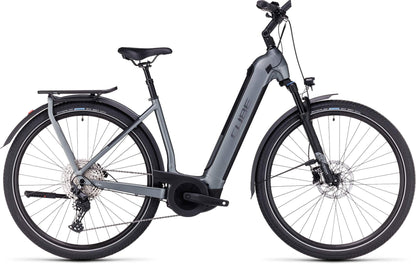

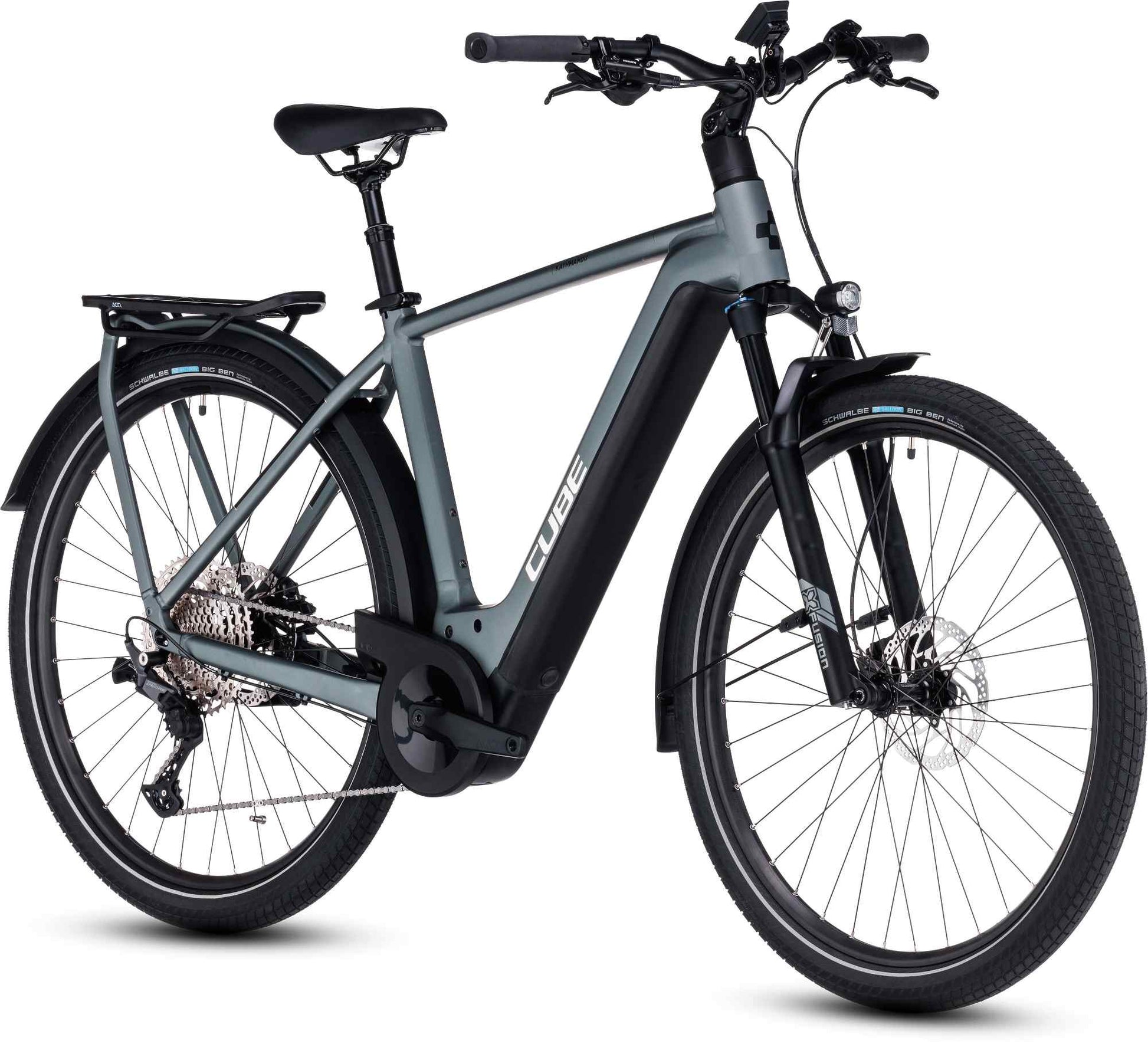

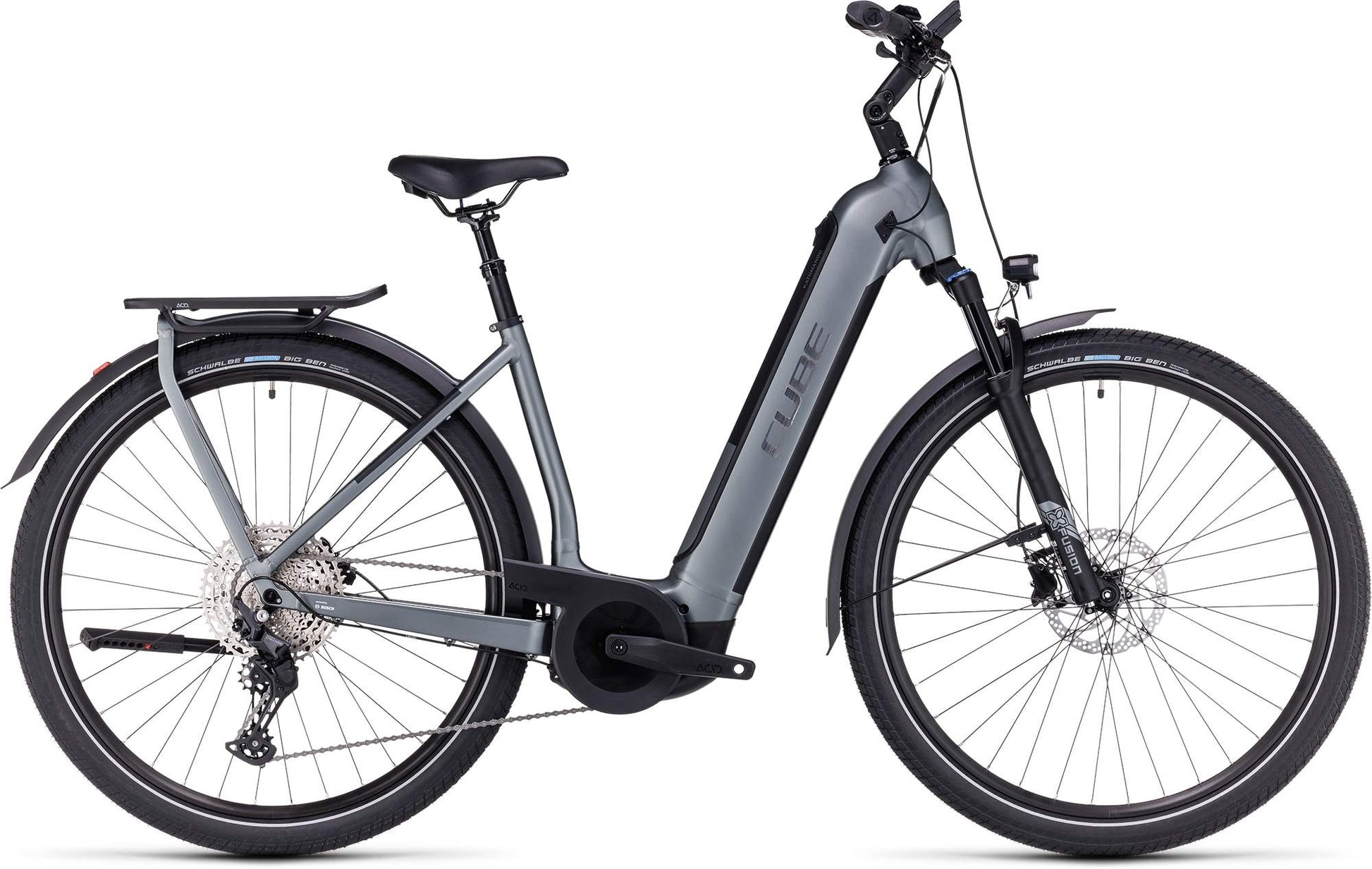

- Available with classic diamond frame, mixed frame, or low step-through
Advisory points
- Less light than the SLX
- and EXC versions
- No 12-speed drivetrain
Description

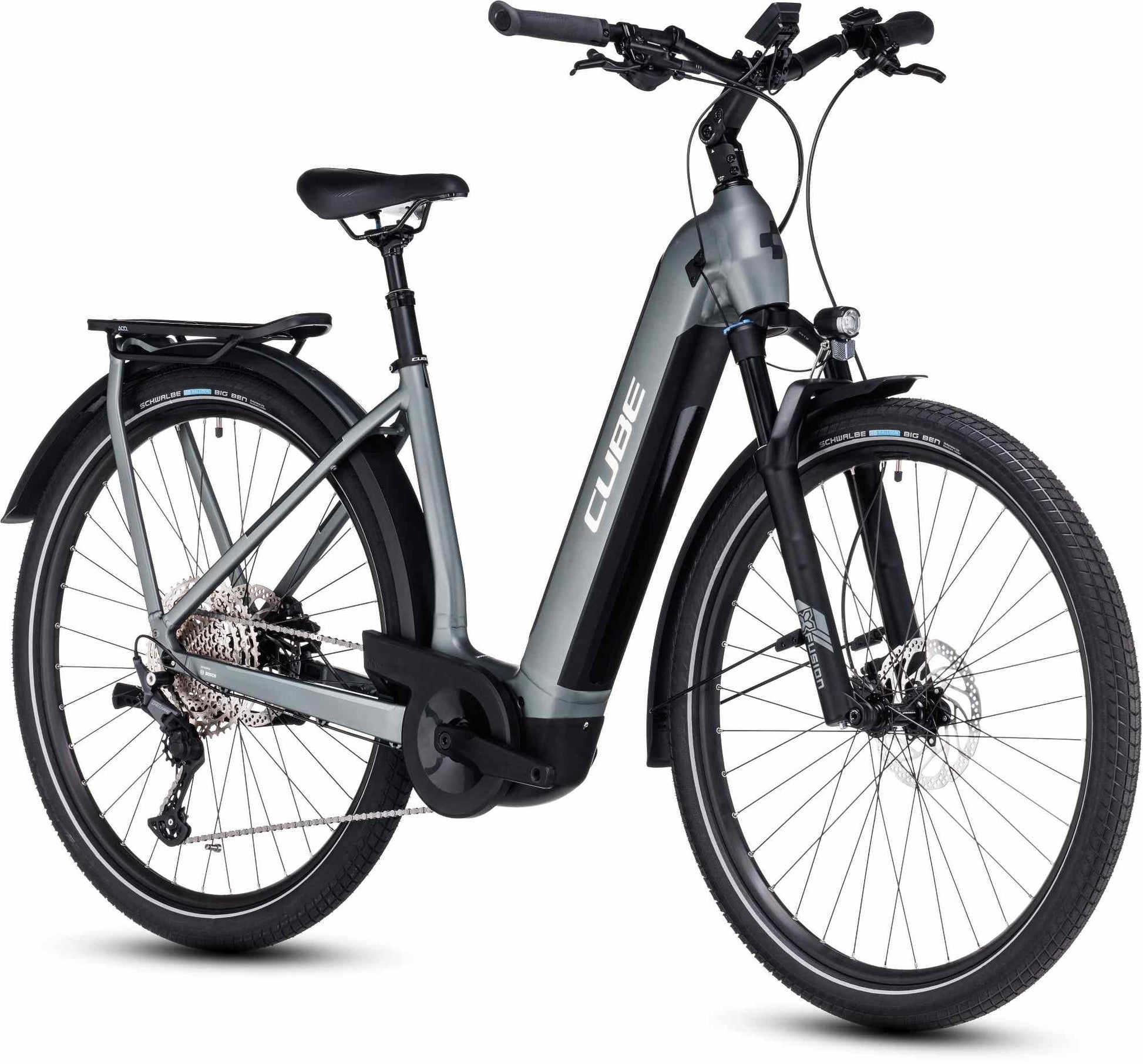

CUBE KATHMANDU HYBRID PRO 750 FLASHGREY EE S
The Kathmandu Hybrid Pro is all about the freedom of two-wheeled exploration... with a handy Bosch power boost. Comfortable, versatile and adaptable, its fourth-generation Bosch CX drive system and high-capacity battery is just the beginning. We chose an X-Fusion air suspension fork with lockout for its ease of adjustment, then added a suspension seatpost and an adjustable stem – so you'll be more comfortable, even on longer rides and rougher roads. Shimano's Deore 1x11 gears provide a huge range and easy, fingertip shifting. And the full complement of included accessories and Integrated Carrier 3.0 mean you're set up to take any journey in your stride.
Frame description

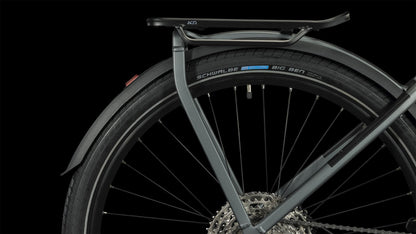

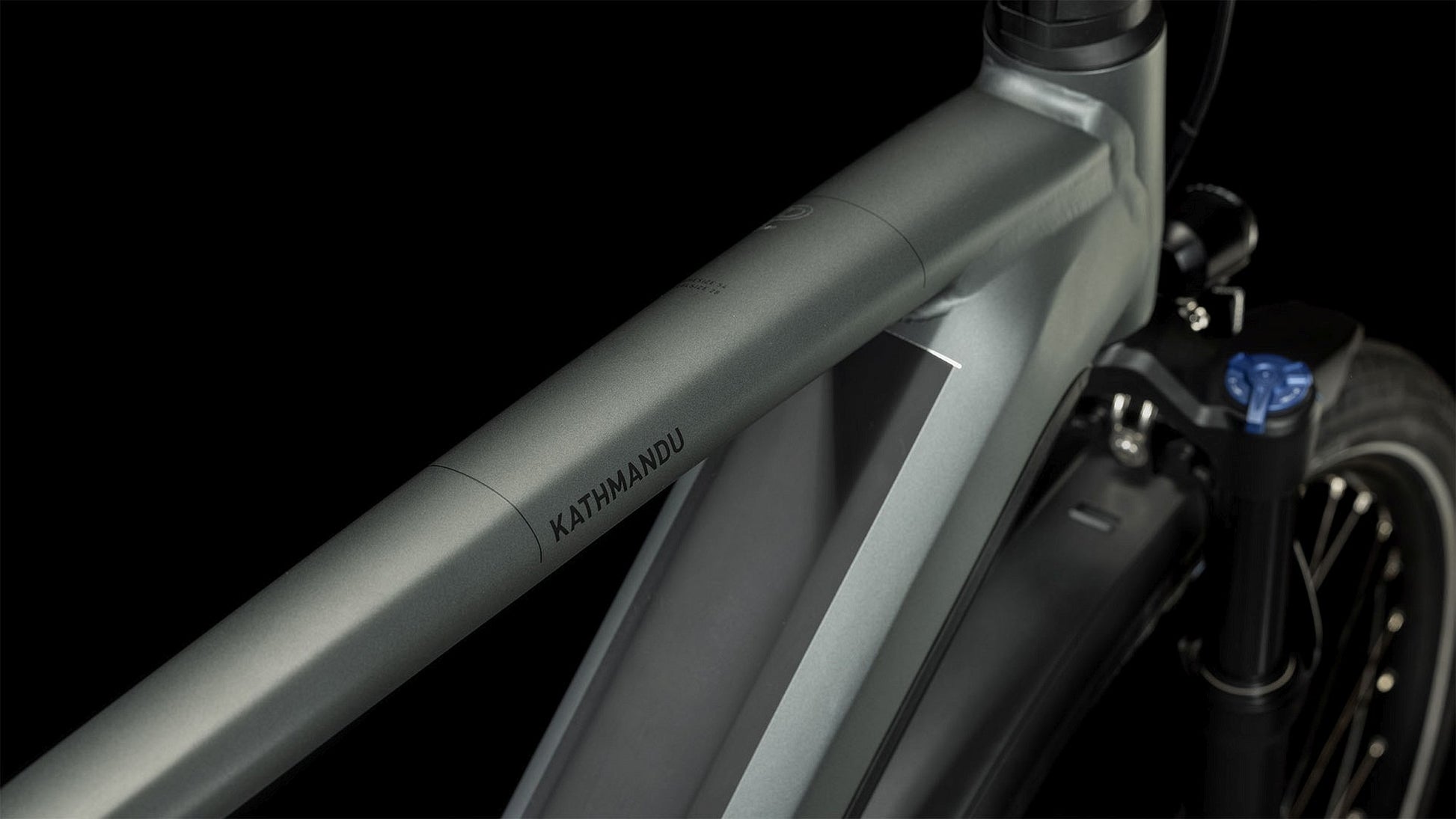

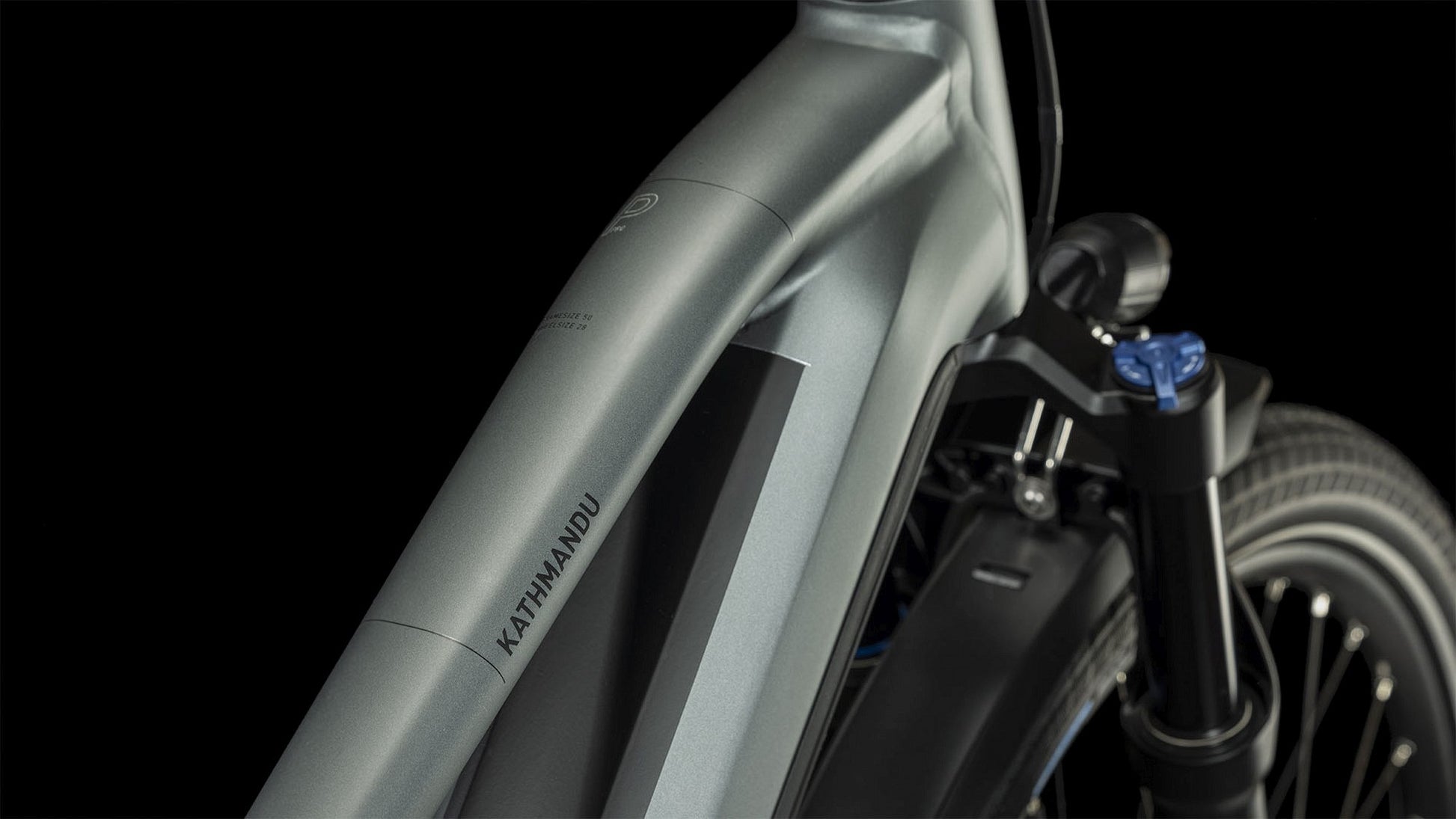

Designed for comfort, versatility and durability, the Kathmandu's frame – whether you choose the Men's version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
631203
Model year
2024
Colour
flashgrey/black

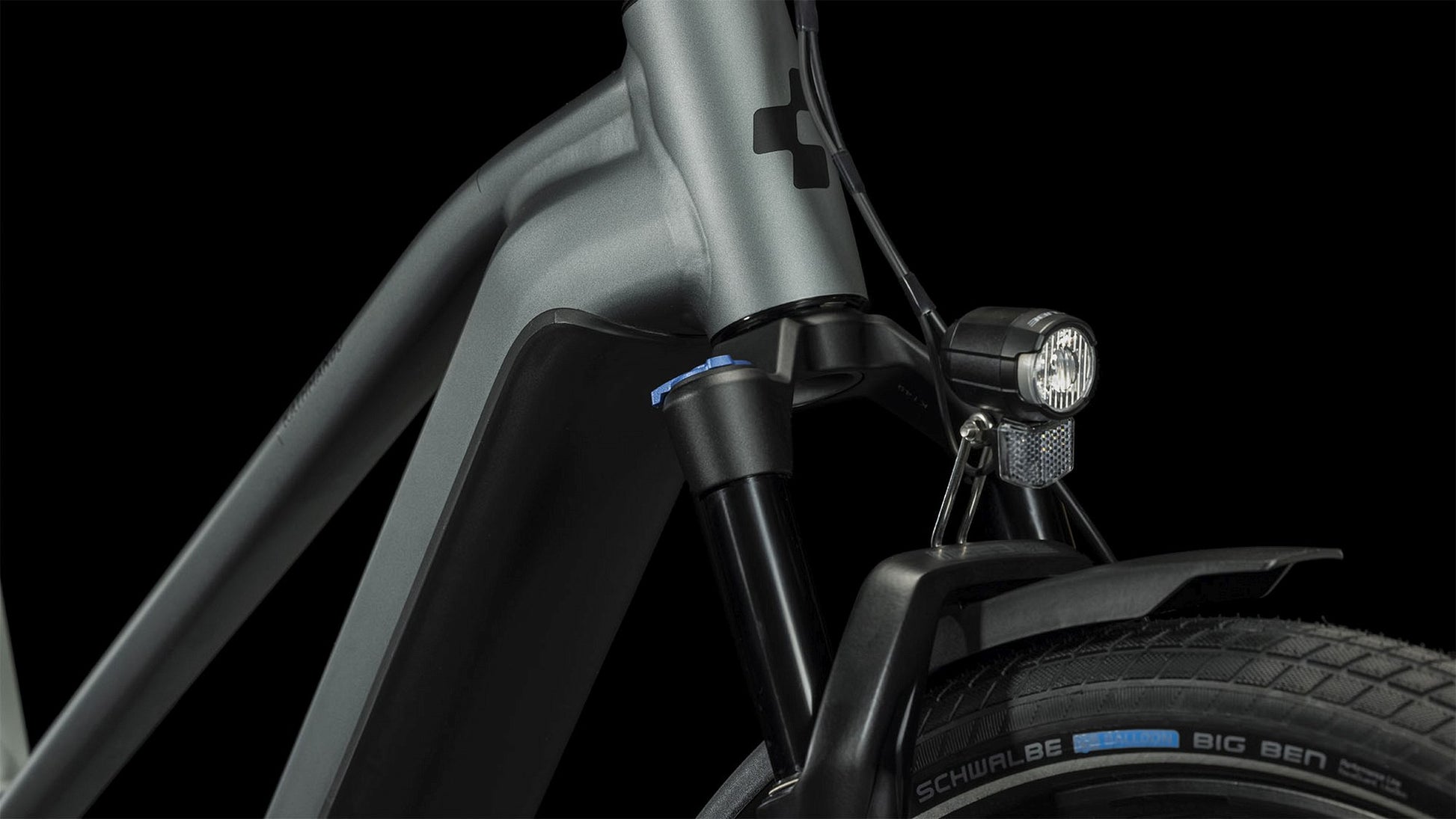

Fork
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
E-bike System
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System

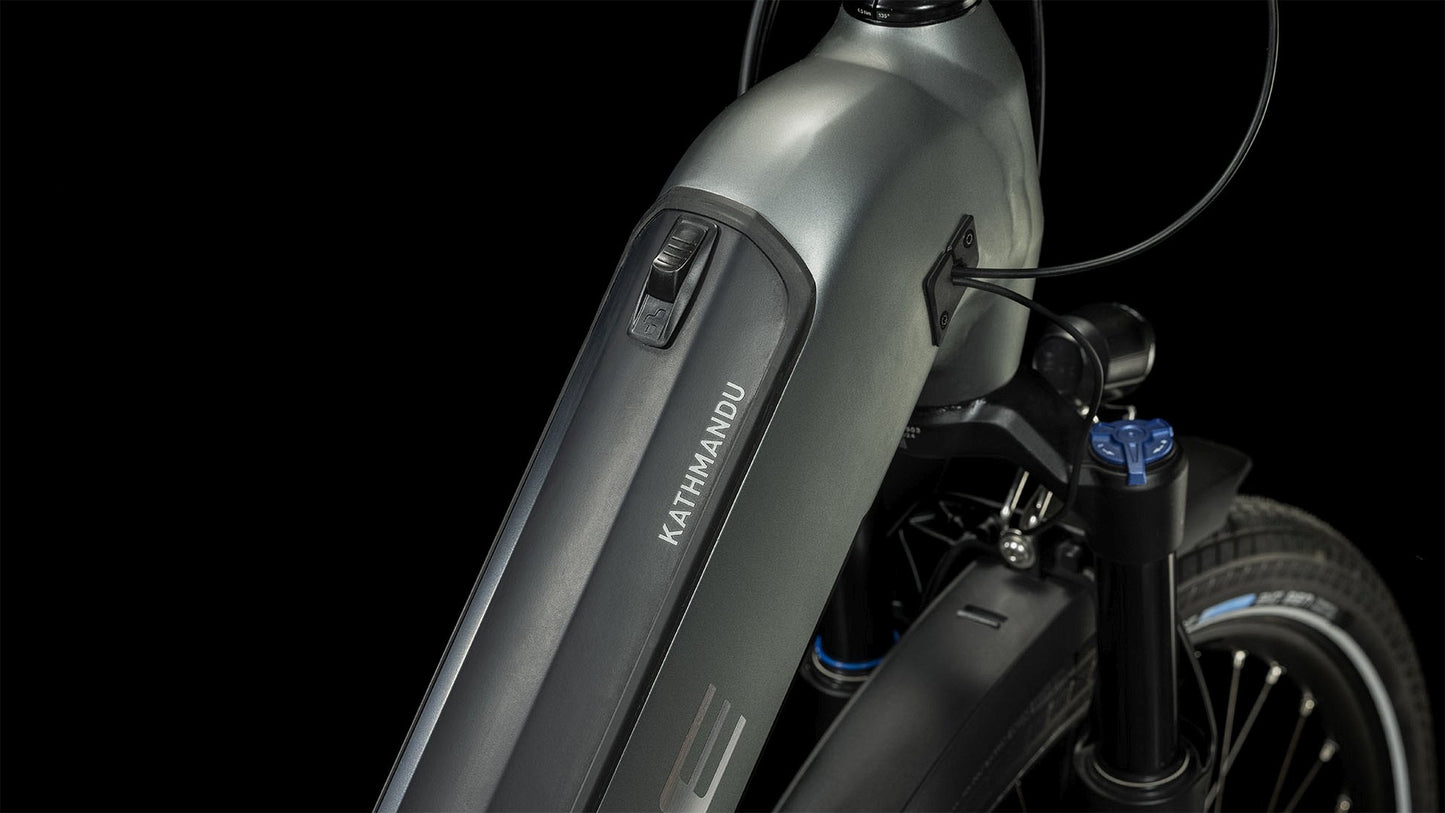

Battery
Bosch PowerTube 750

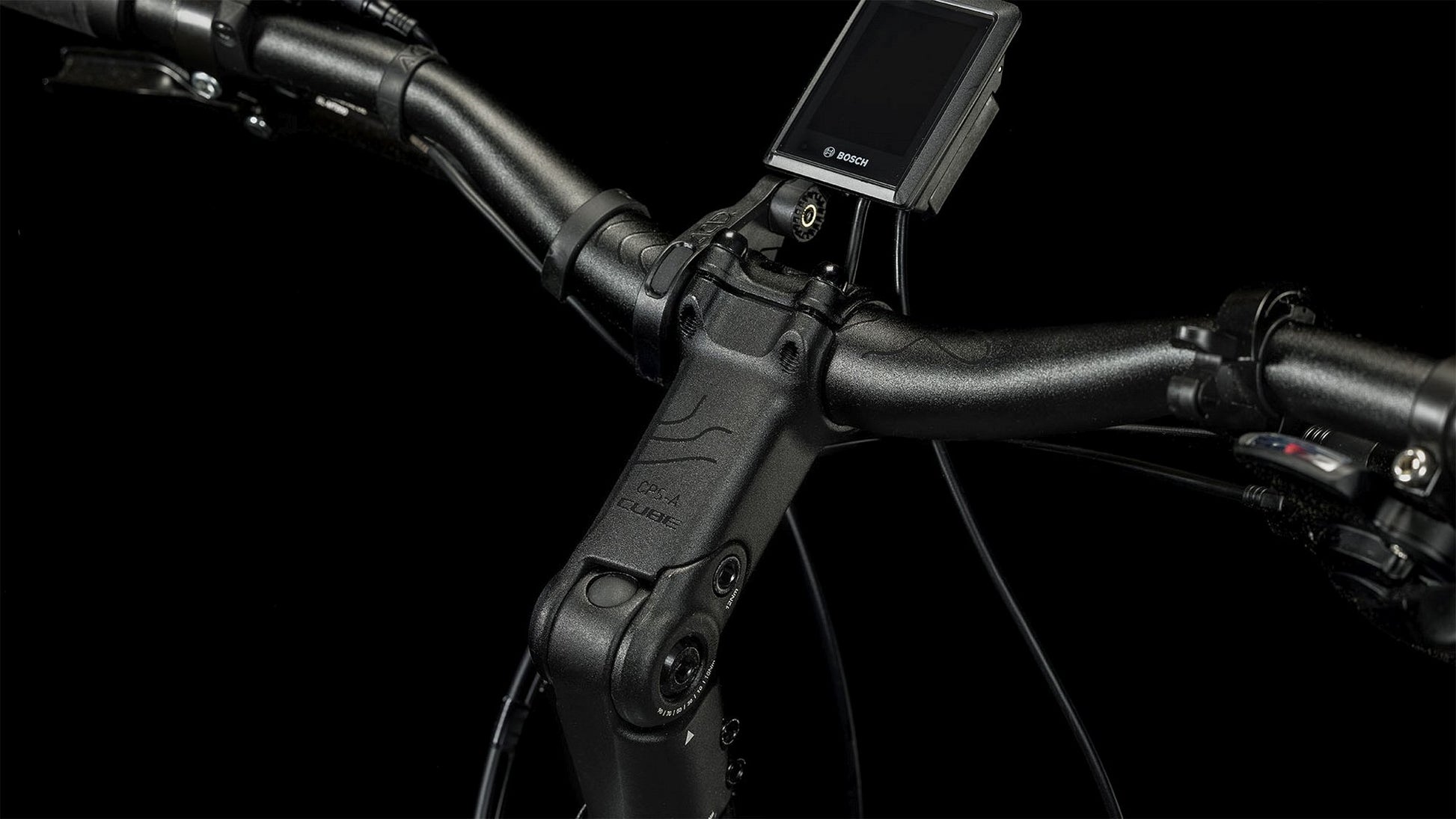

display
Bosch Kiox 300
Drivetrain and brakes
Front brake
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear brake
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shifters
Shimano Deore SL-M5100, Rapidfire-Plus

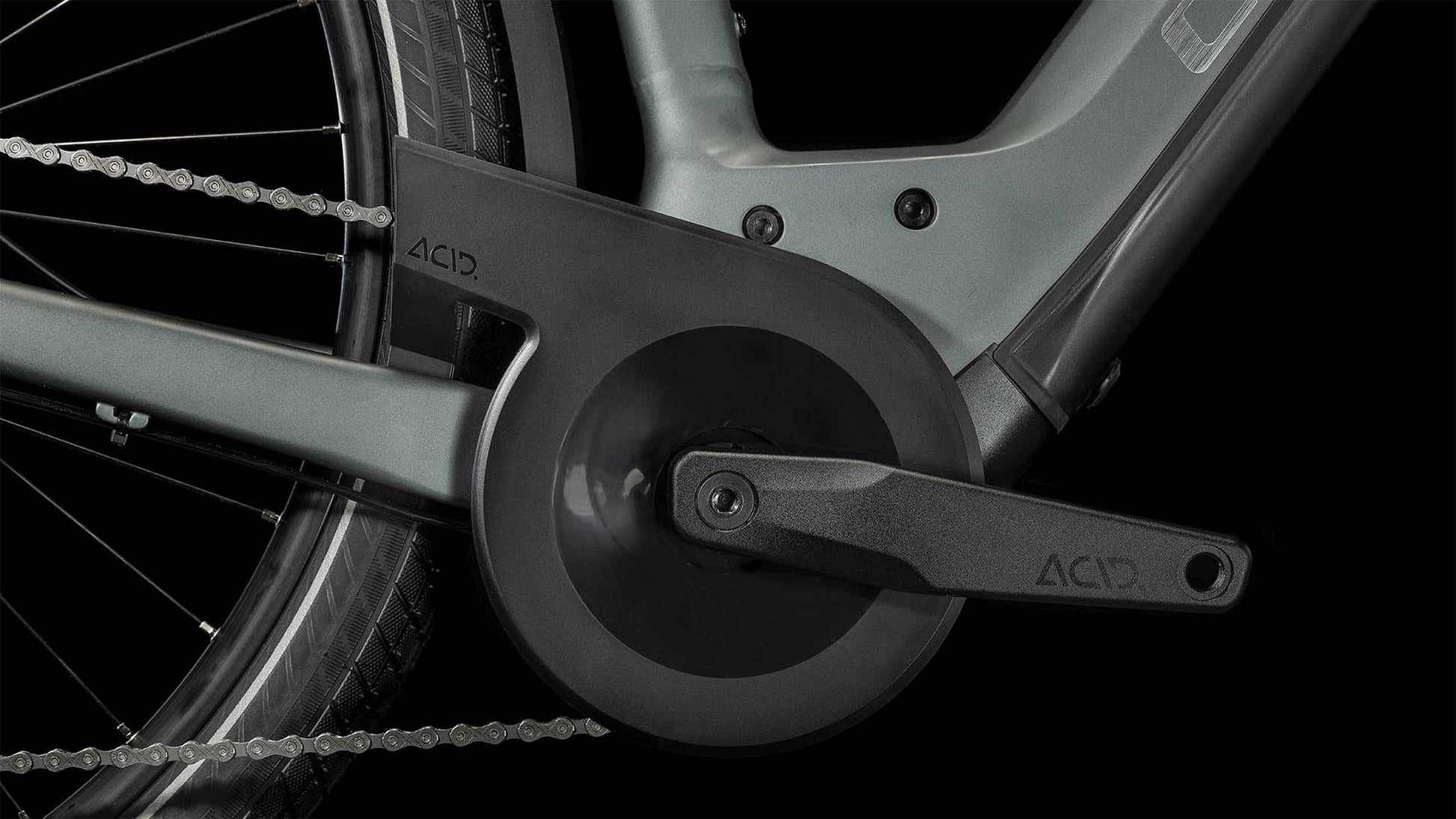

Crankset
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
Cassette
Shimano Deore CS-M5100, 11-51T
Chain
KMC X11
Cockpit
Headset
Acros M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

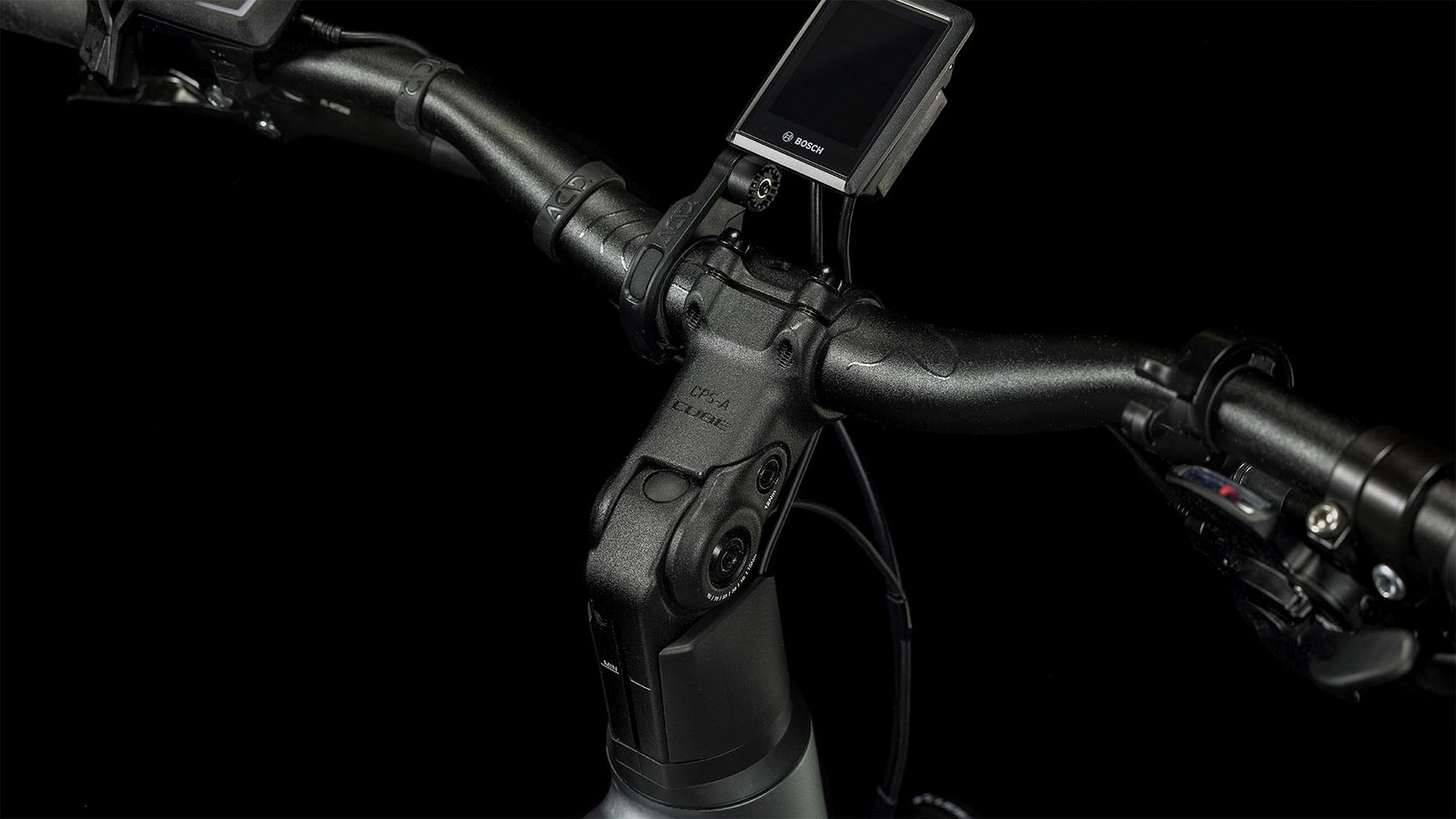

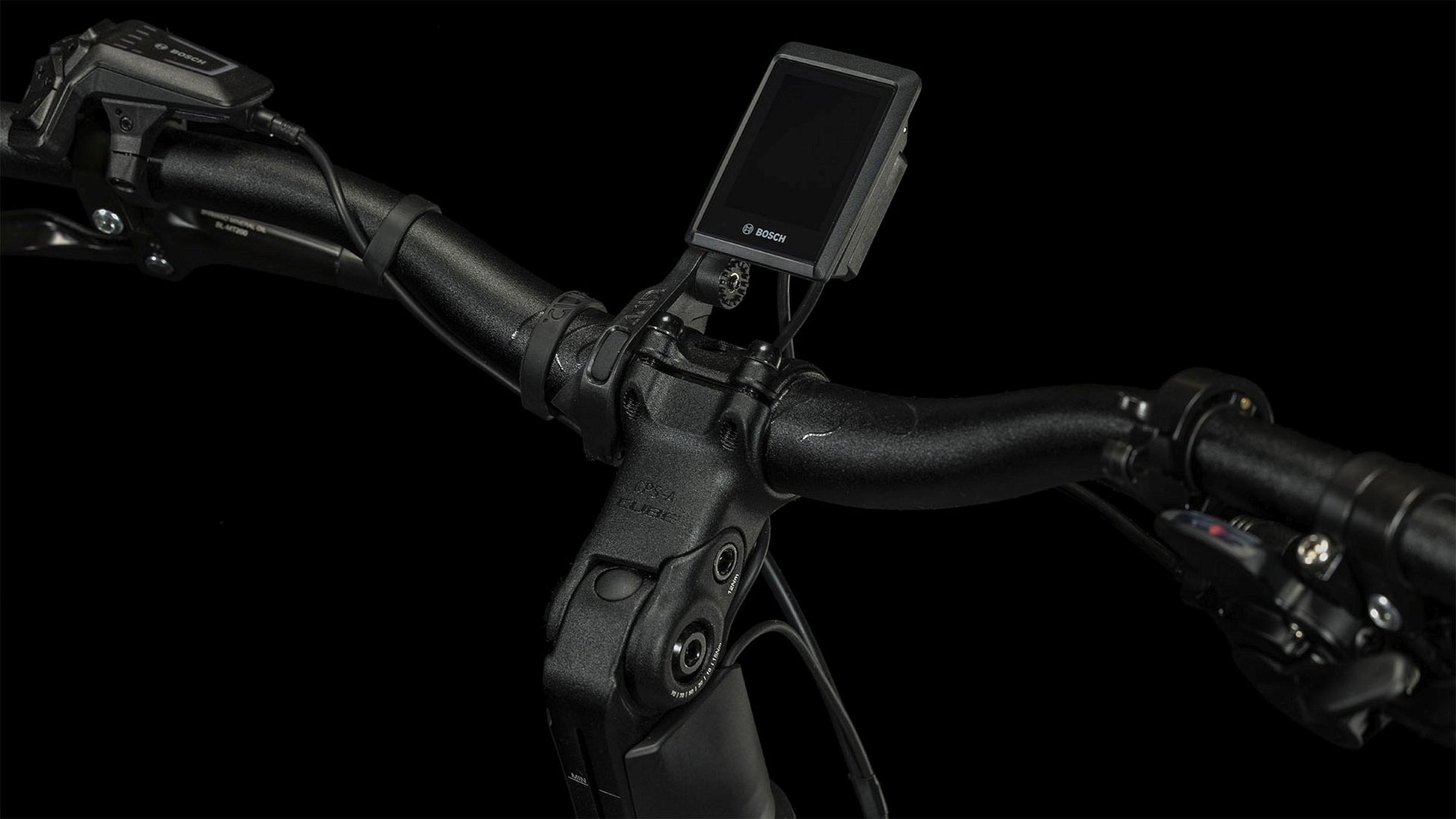

Handlebar
Cube Comfort Trail Bar, 700mm
Stem
Cube Comfort Stem Pro, 31.8mm, Adjustable
Bar tape or grips
Acid Travel Comfort
Wheels
Rims
Cube EX23, 36H, Disc, Tubeless Ready
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front tyre
Schwalbe Big Ben, Performance, K-Guard, 55-622
Rear Tyre
Schwalbe Big Ben, Performance, K-Guard, 55-622
Other parts

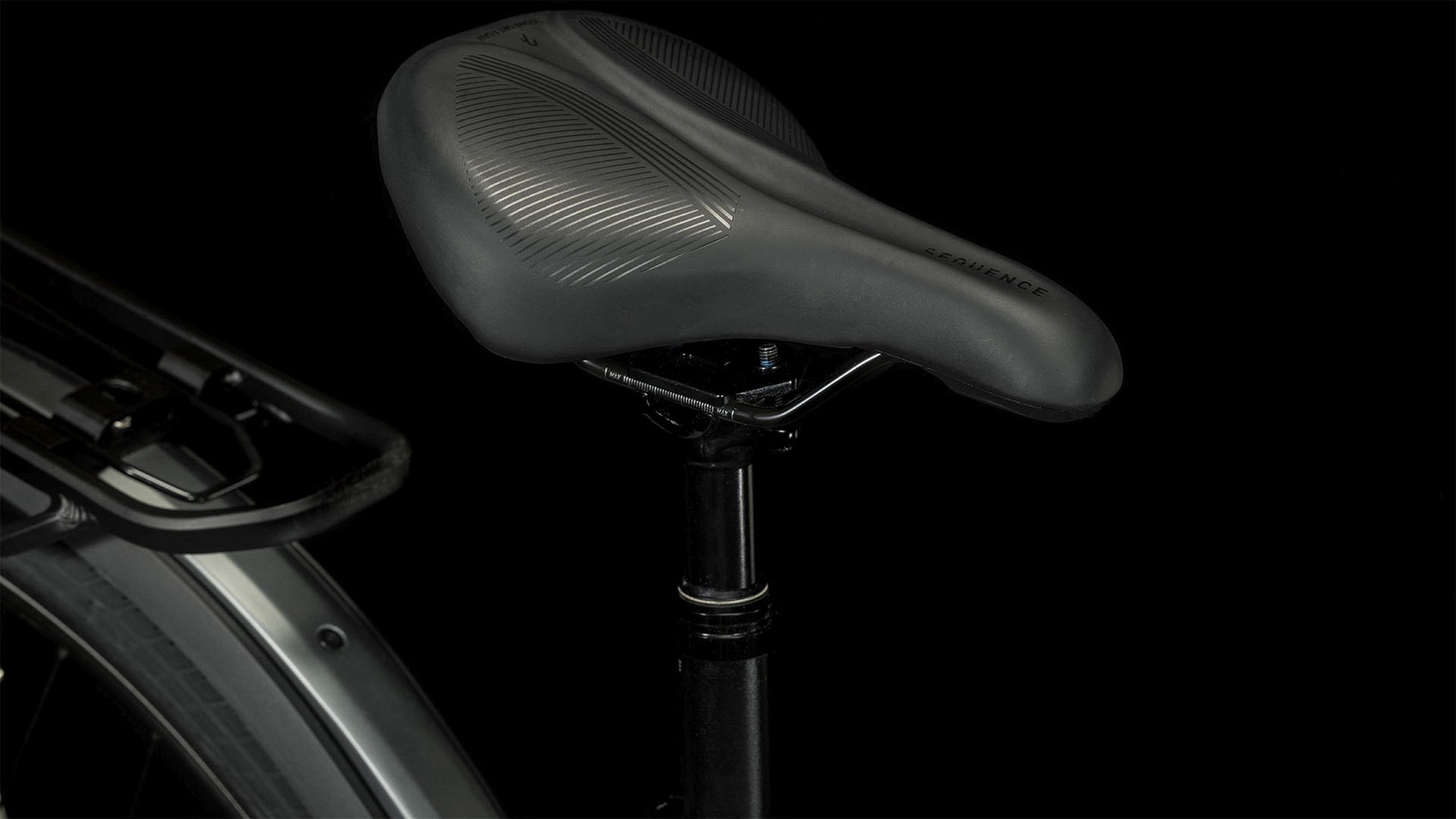

Saddle
Sequence Comfort

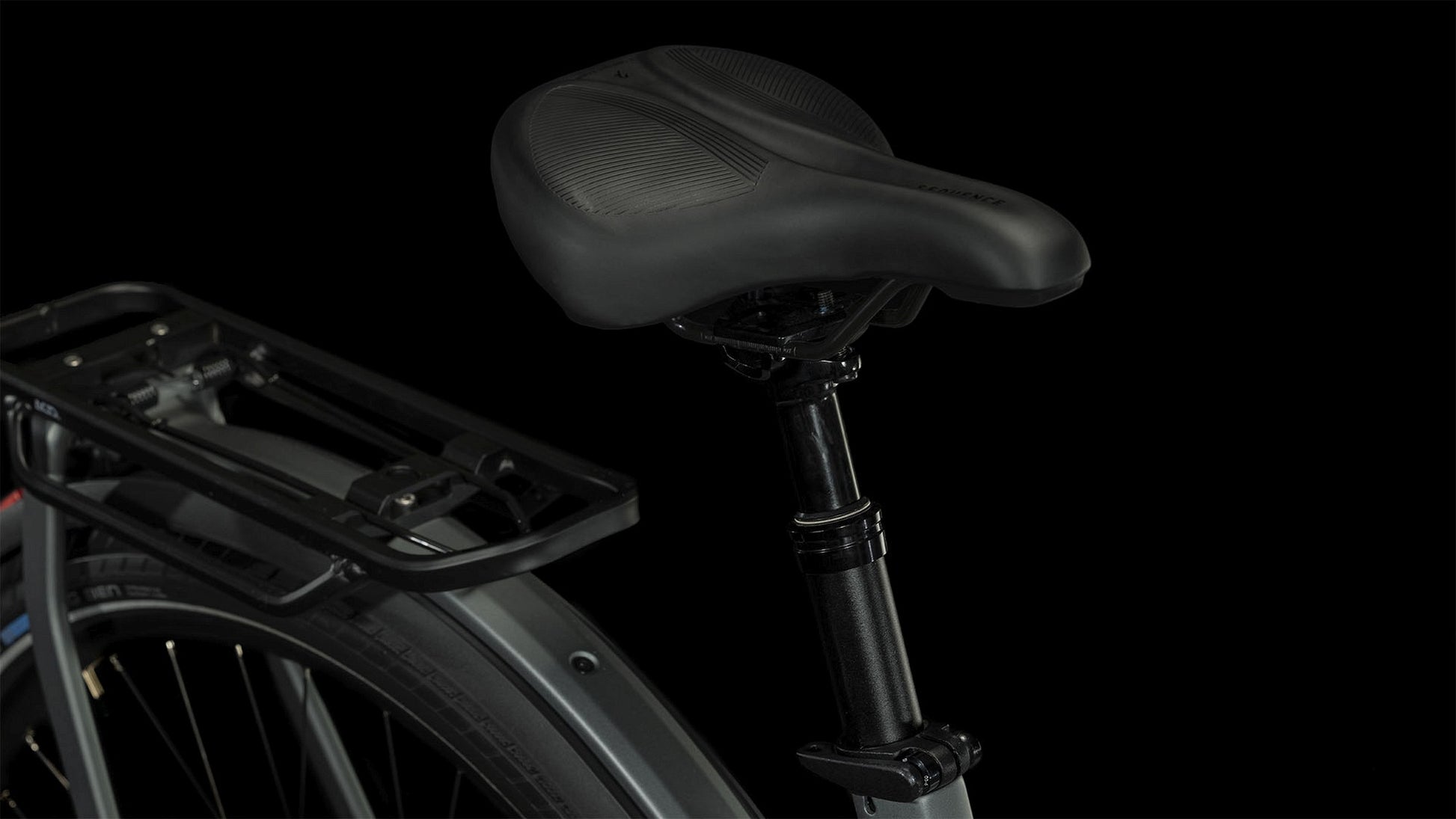

Seatpost
Cube Suspension Seatpost HD, 30.9mm
Seatpost clamp
Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: Screwlock Semi Integrated, 36mm)
Pedals
Acid PP Trekking

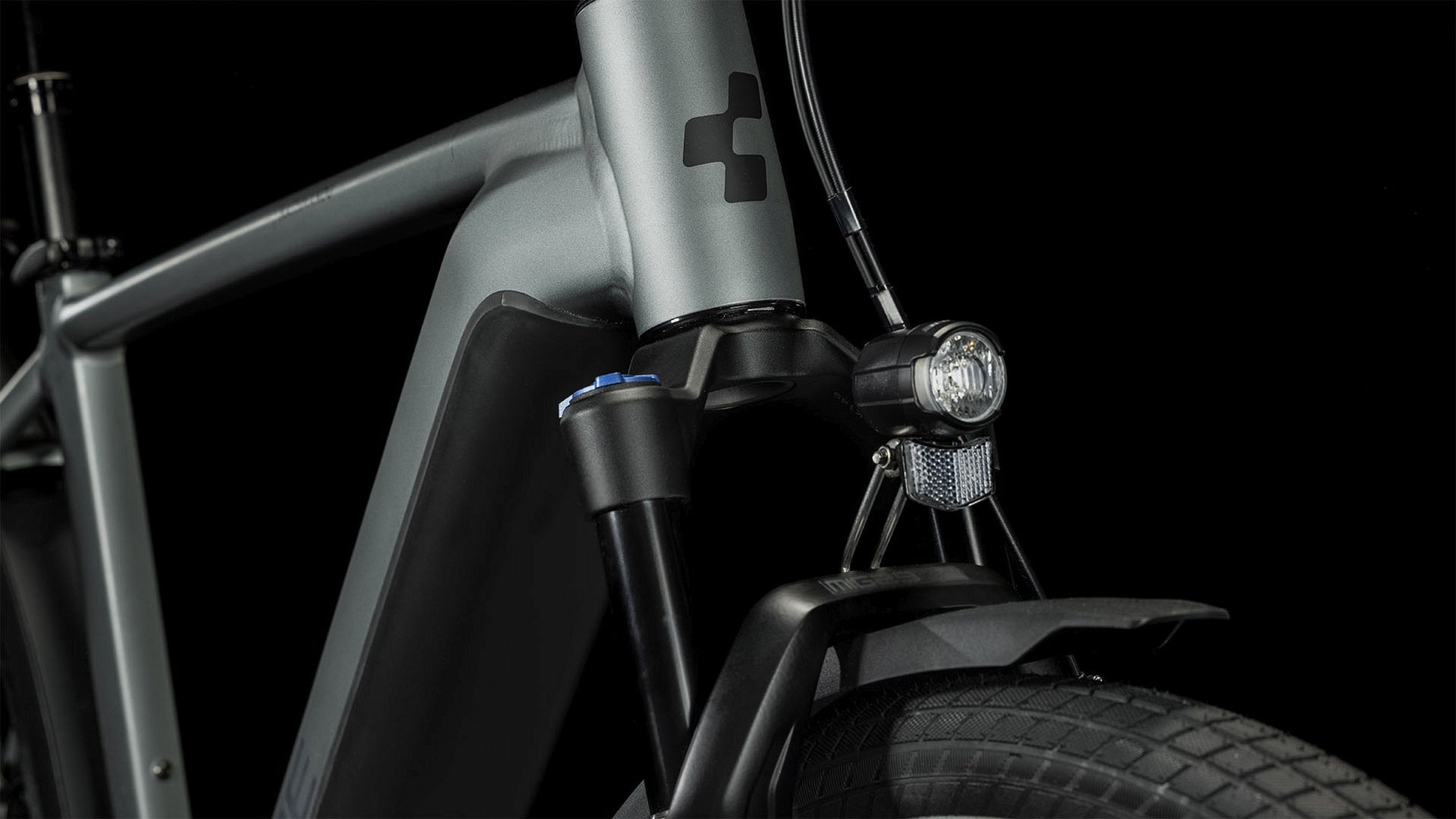

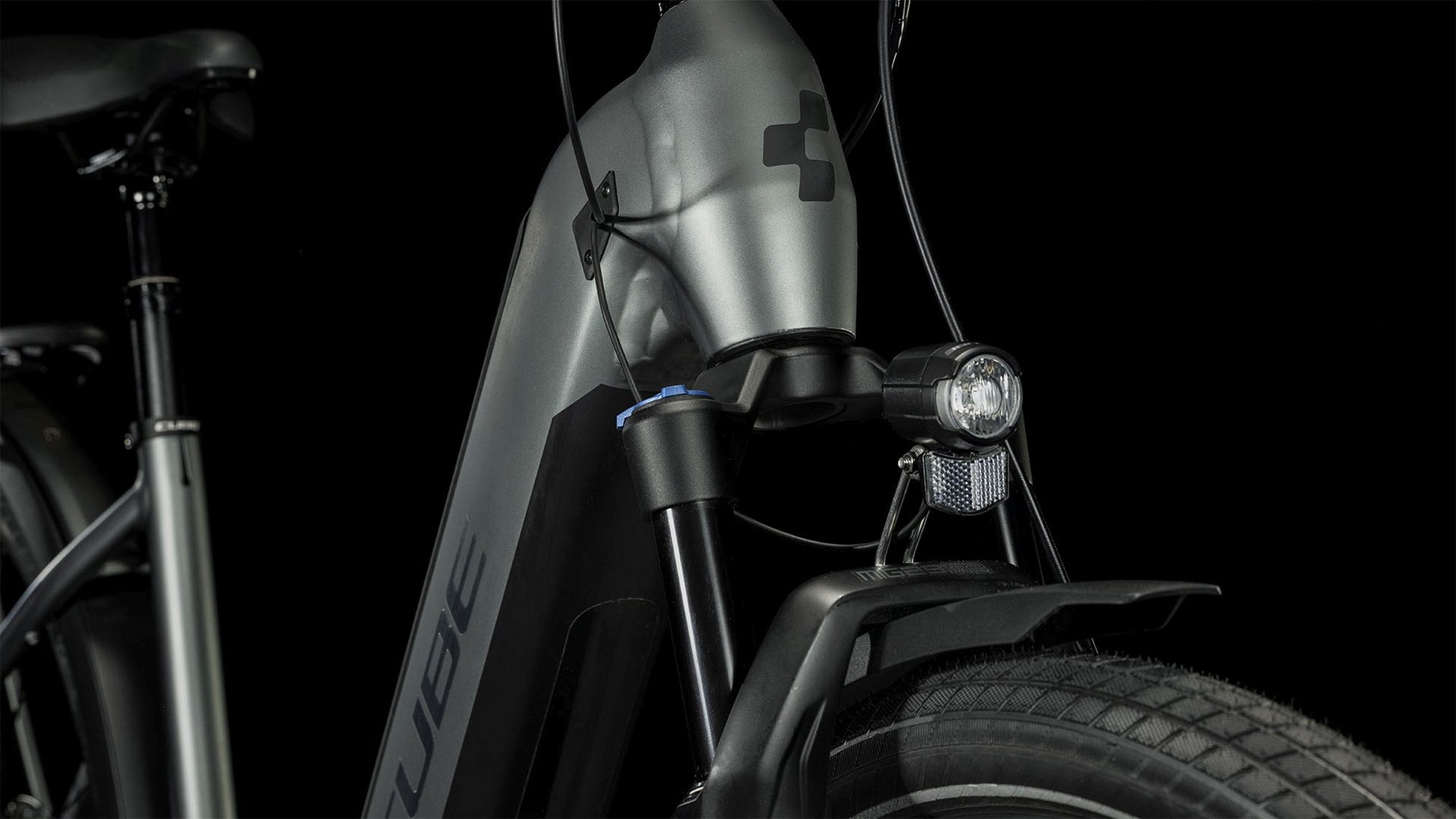

Front light
Cube Shiny 50 Lux, 12V, DC

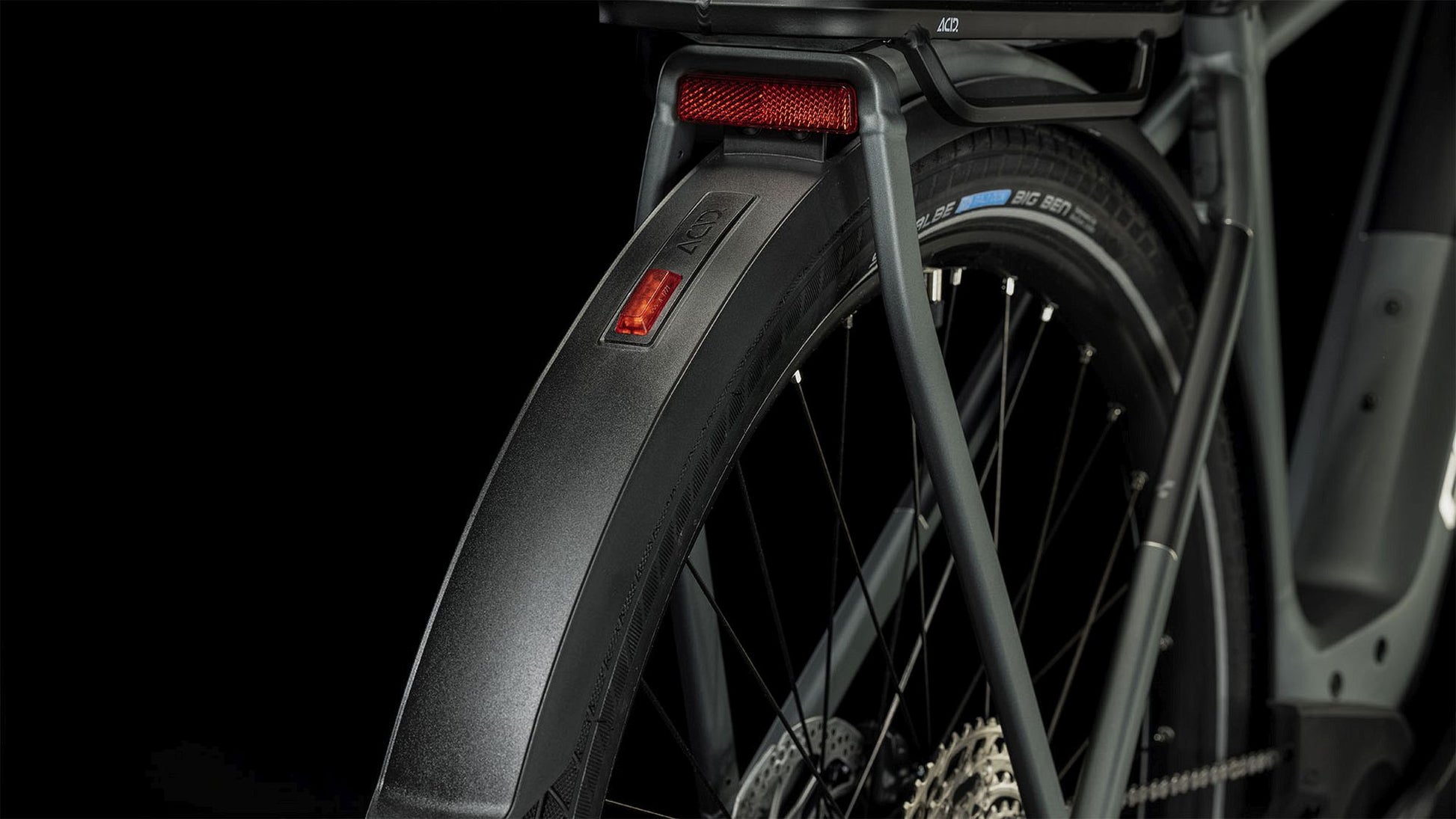

Rear light
Acid Mudguard Rear Light PRO-E, 12V, DC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65 Integrated Carrier 3.0
Bell
Cube

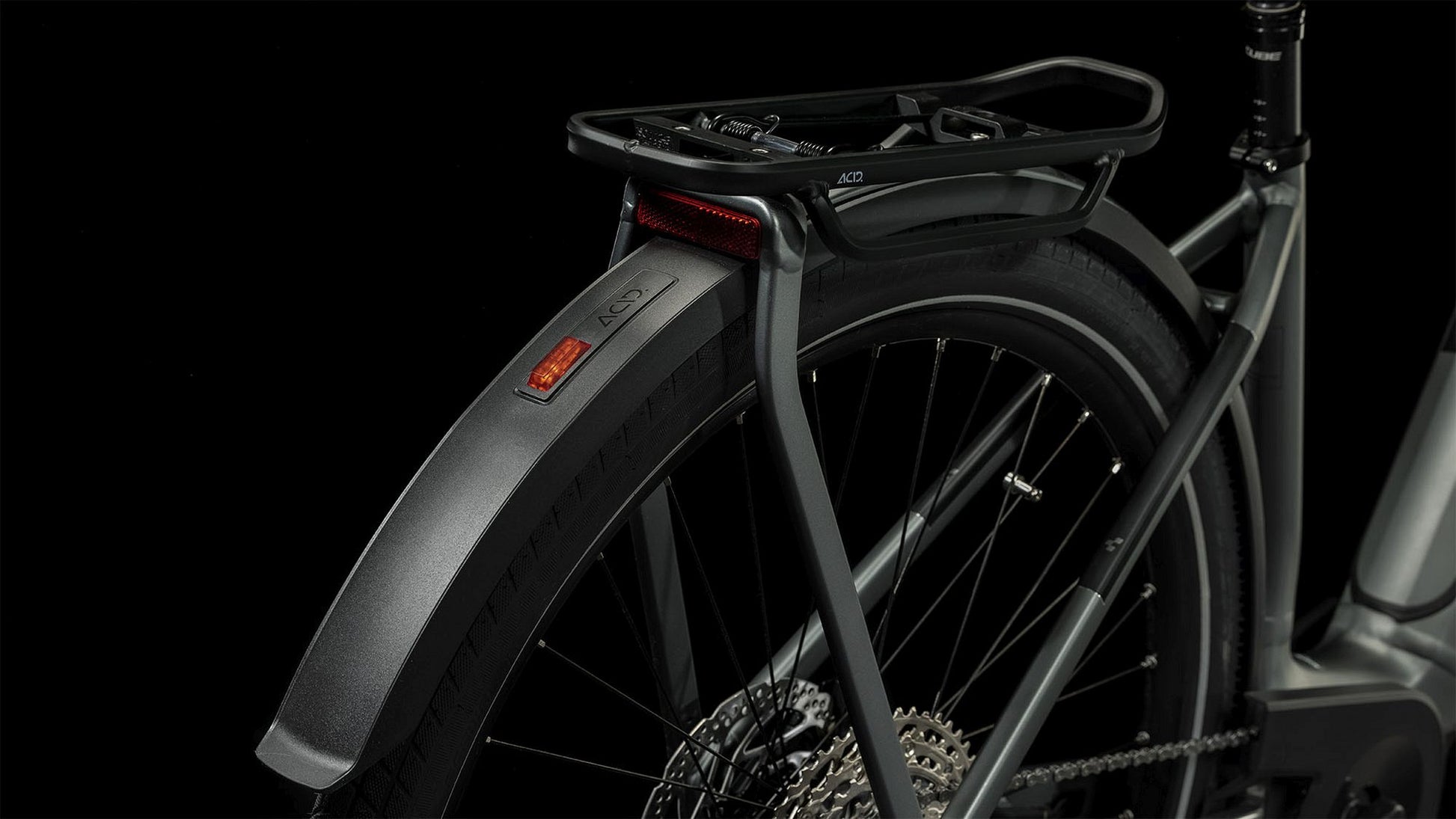

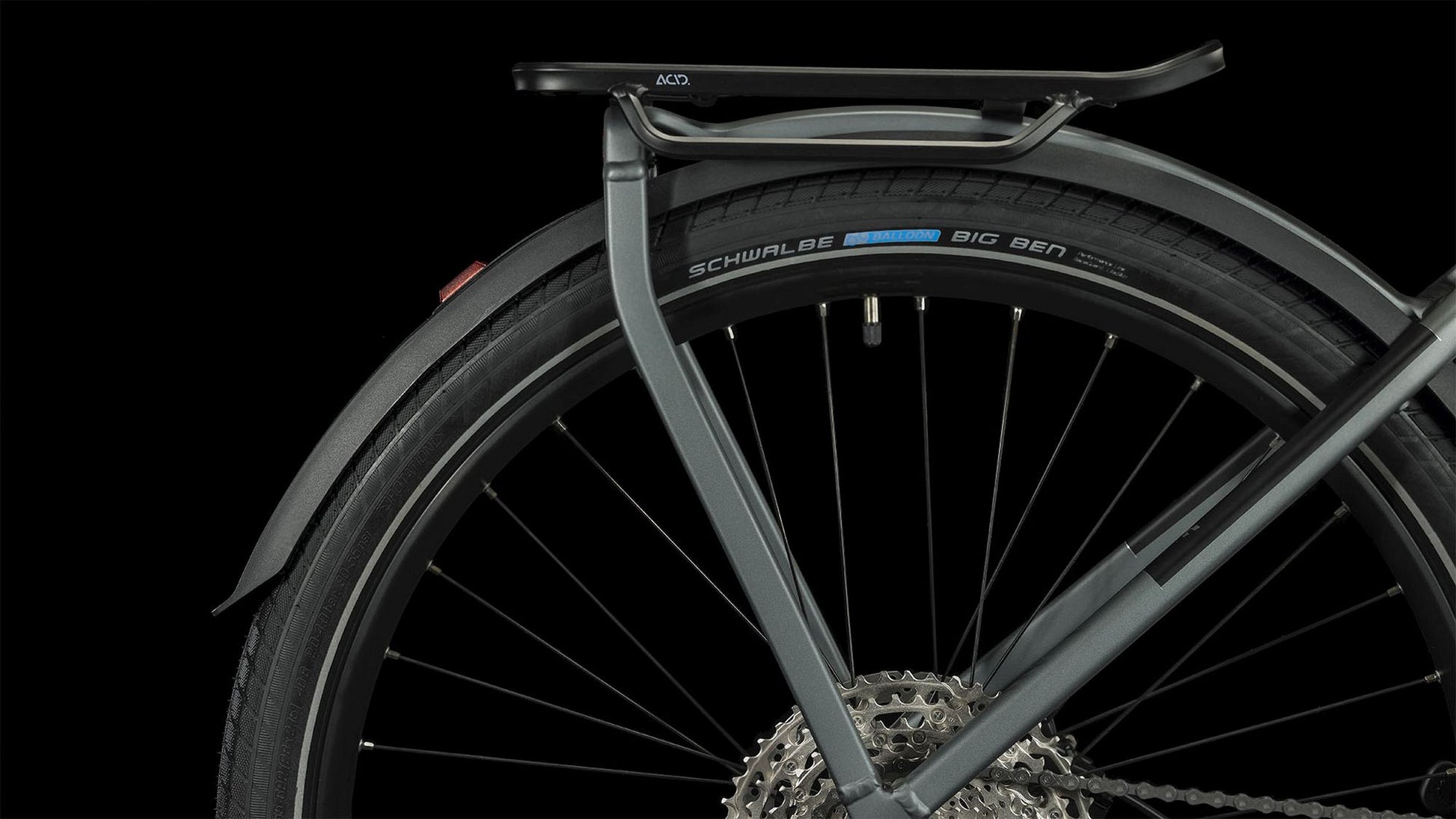

Carrier
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
