What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.

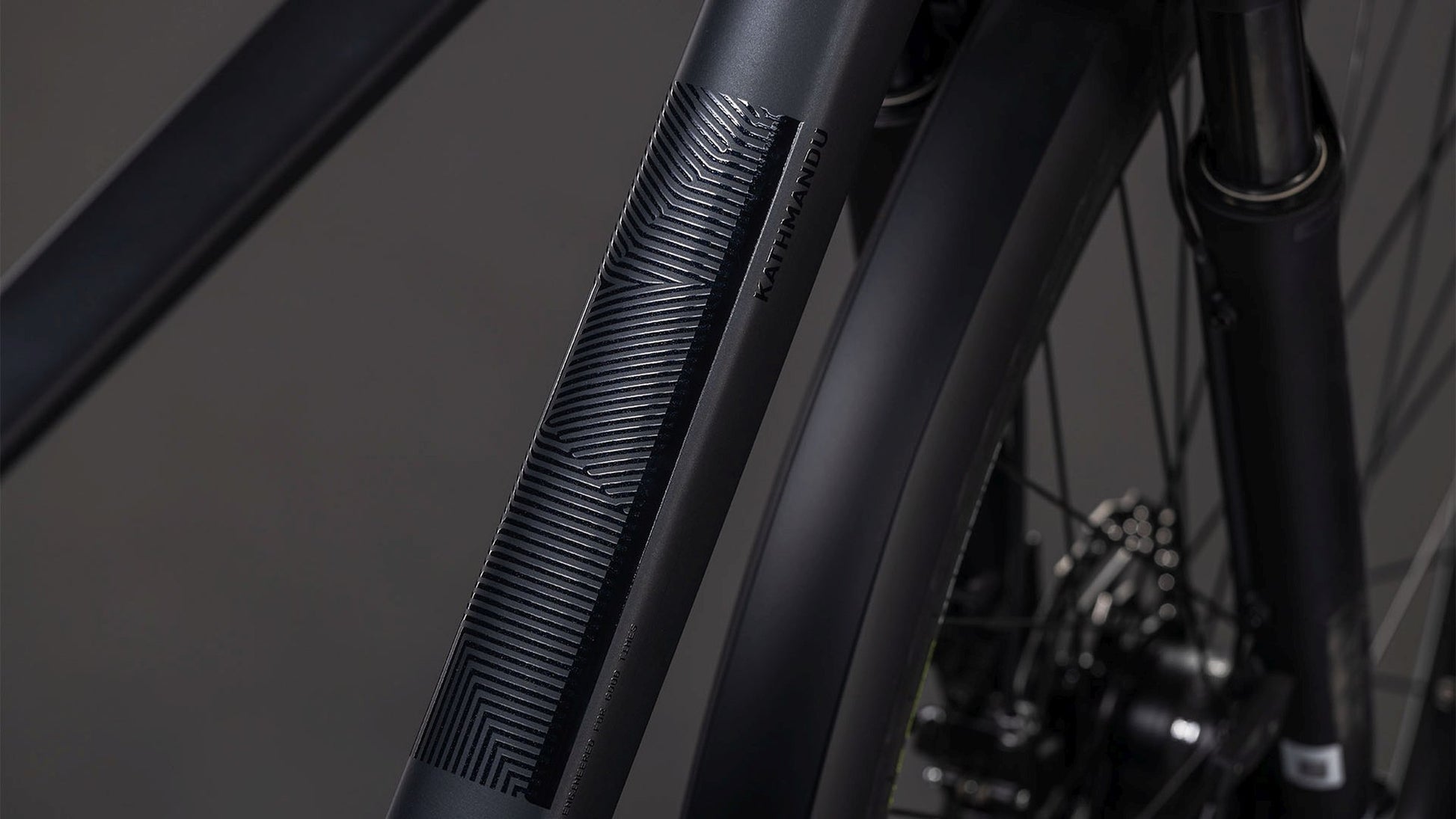

Frame made of high-quality Superlite aluminum with smooth weld seams
\n

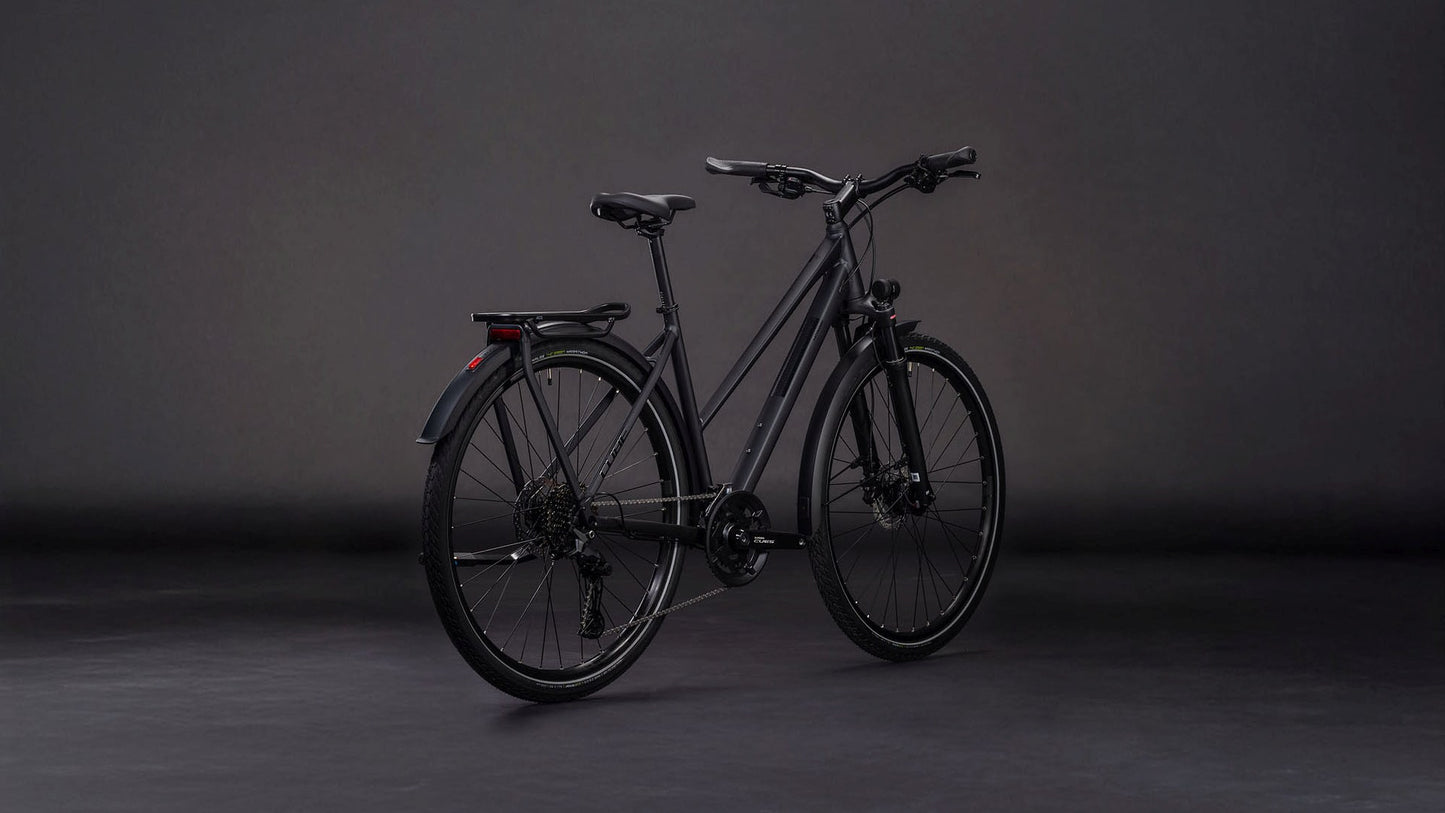

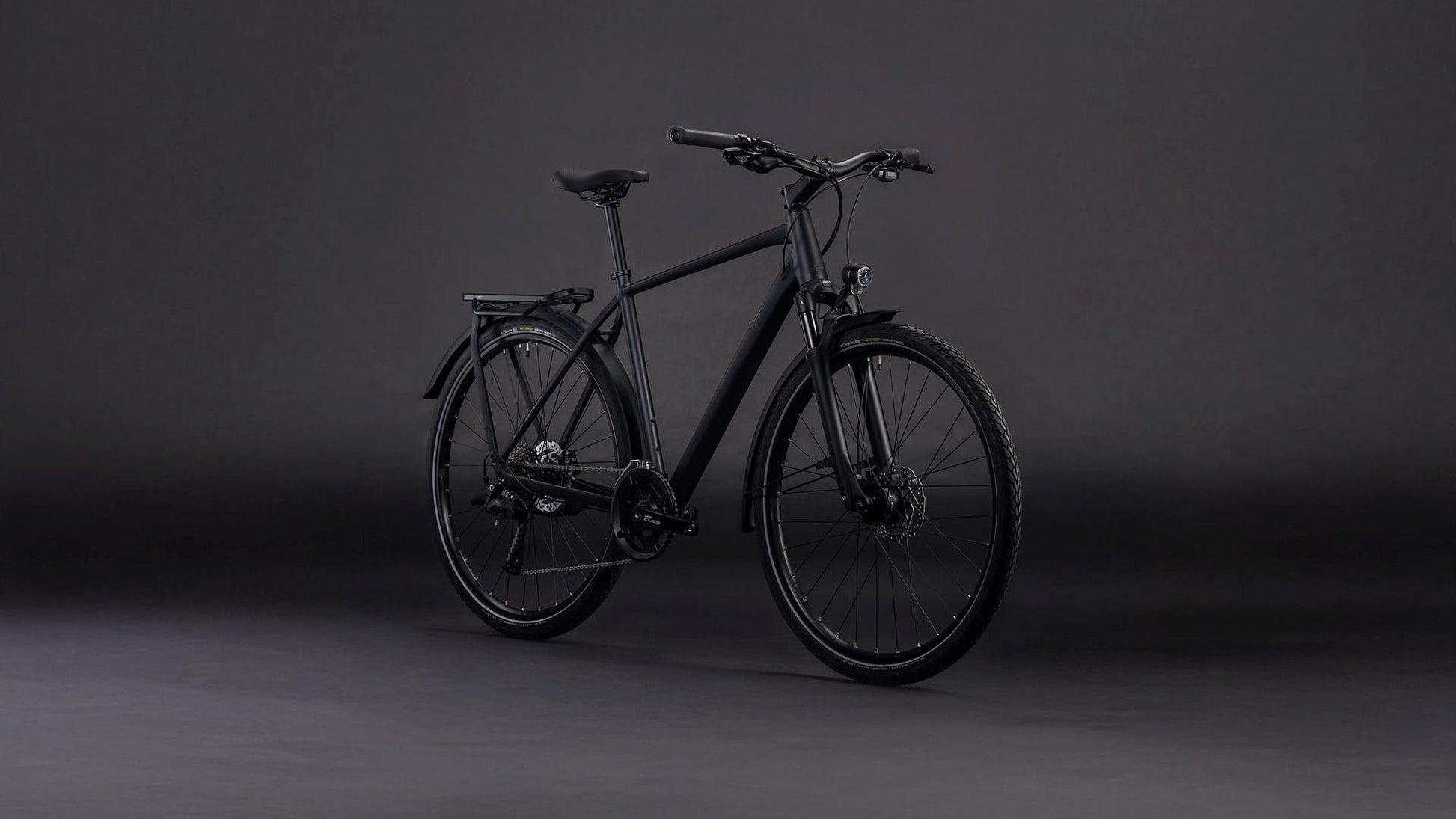

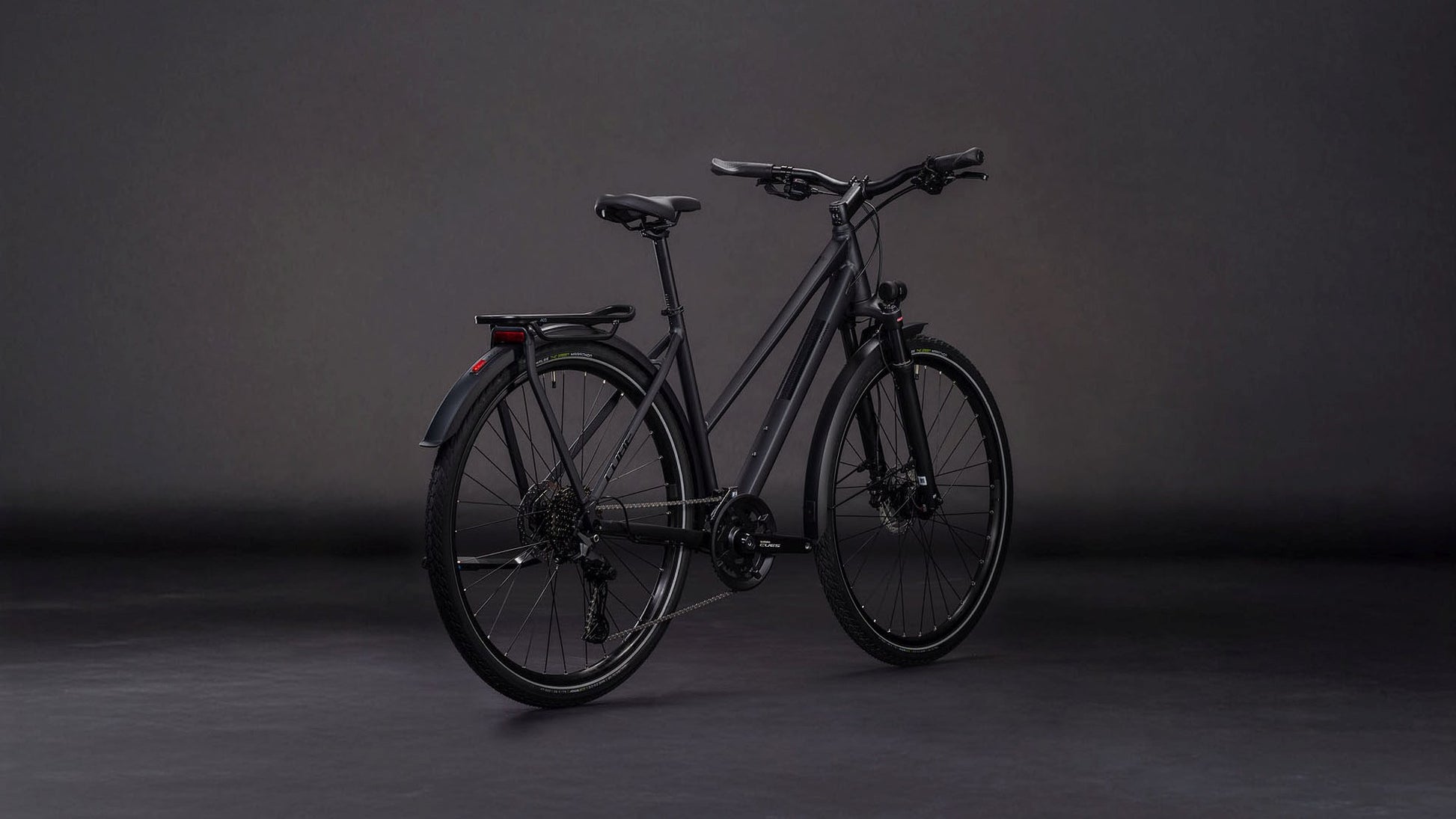

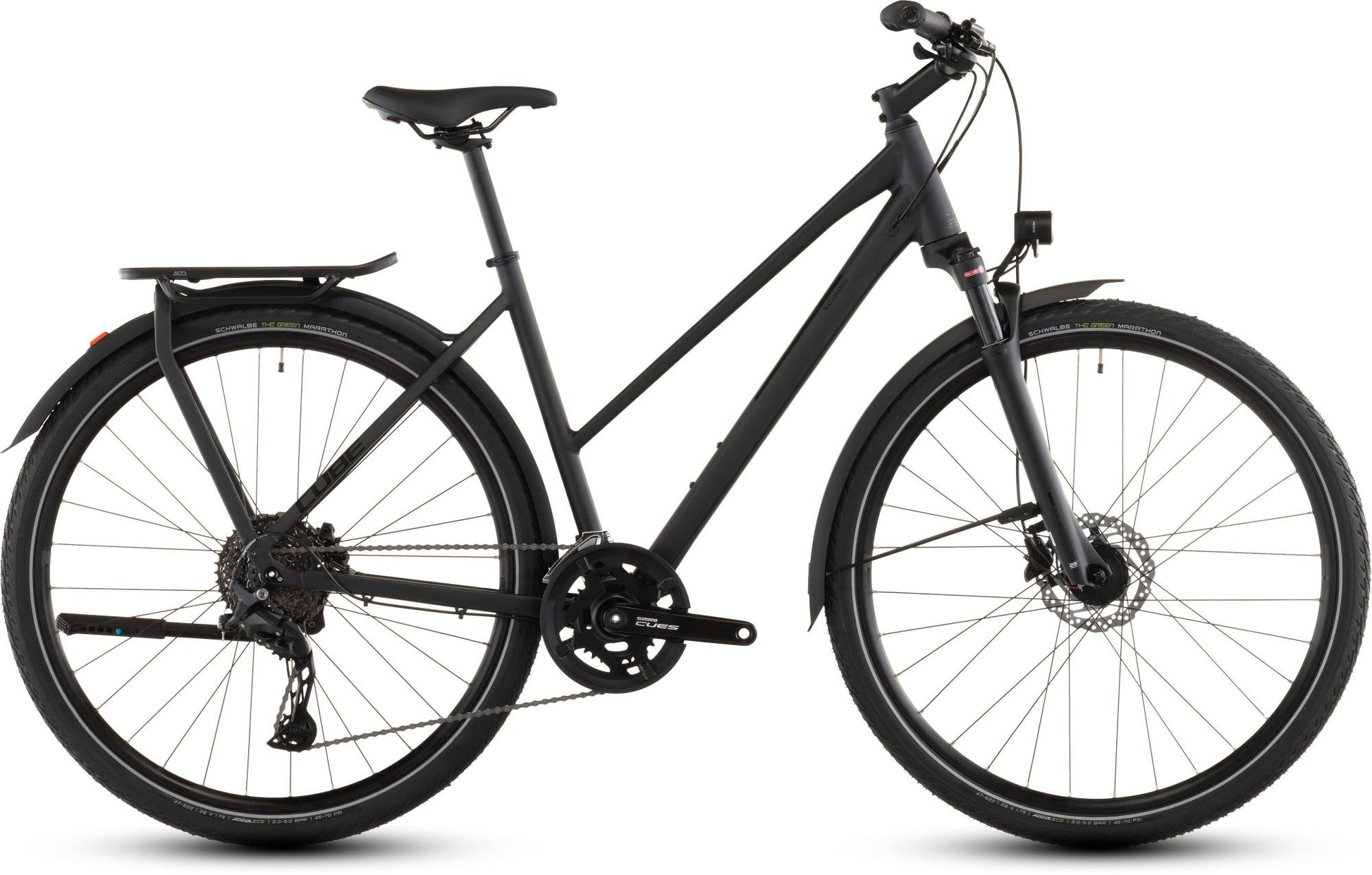

Choice of men's or trapeze frame
\n
Stable and comfortable Trekking Comfort geometry
\n

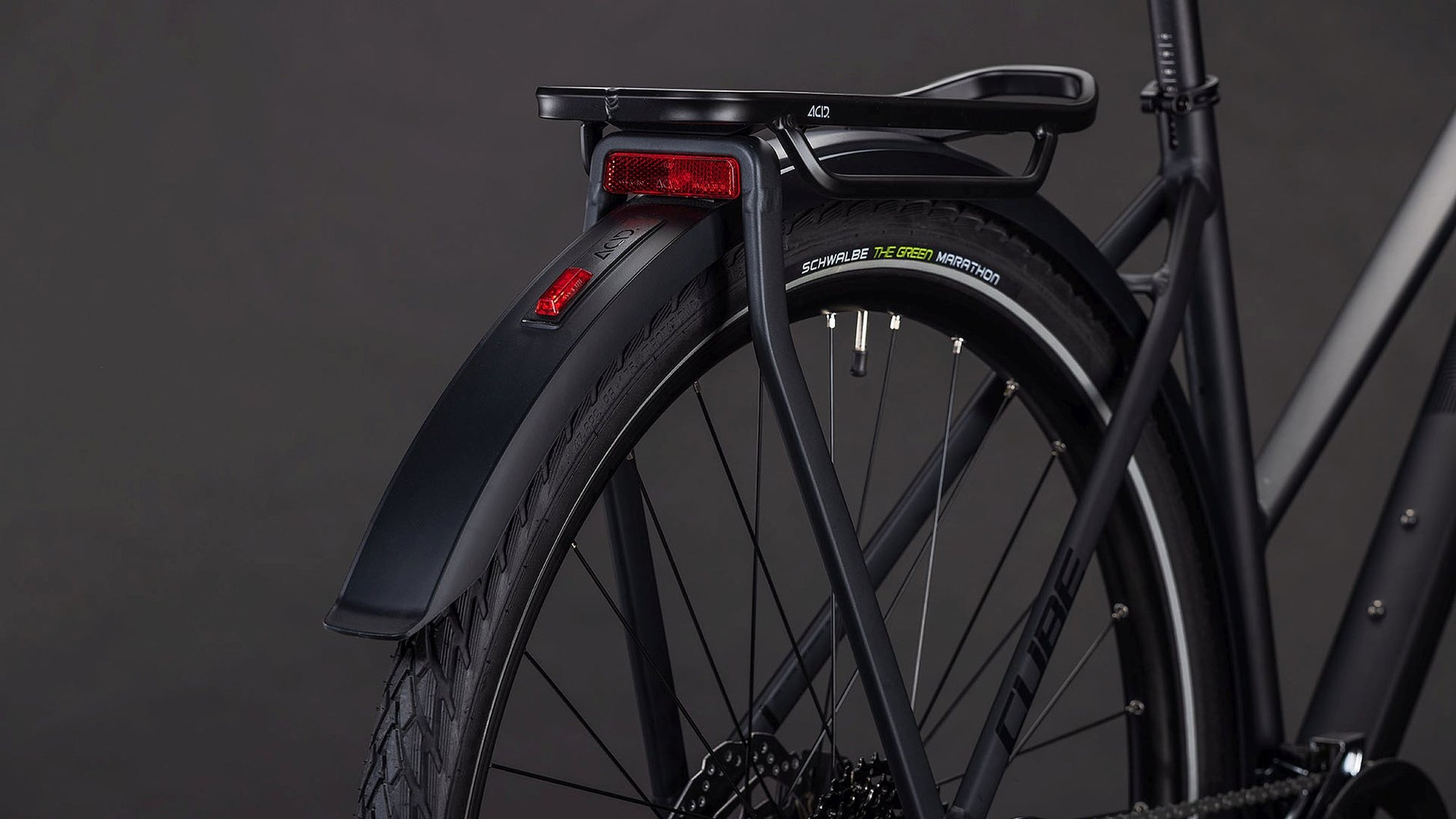

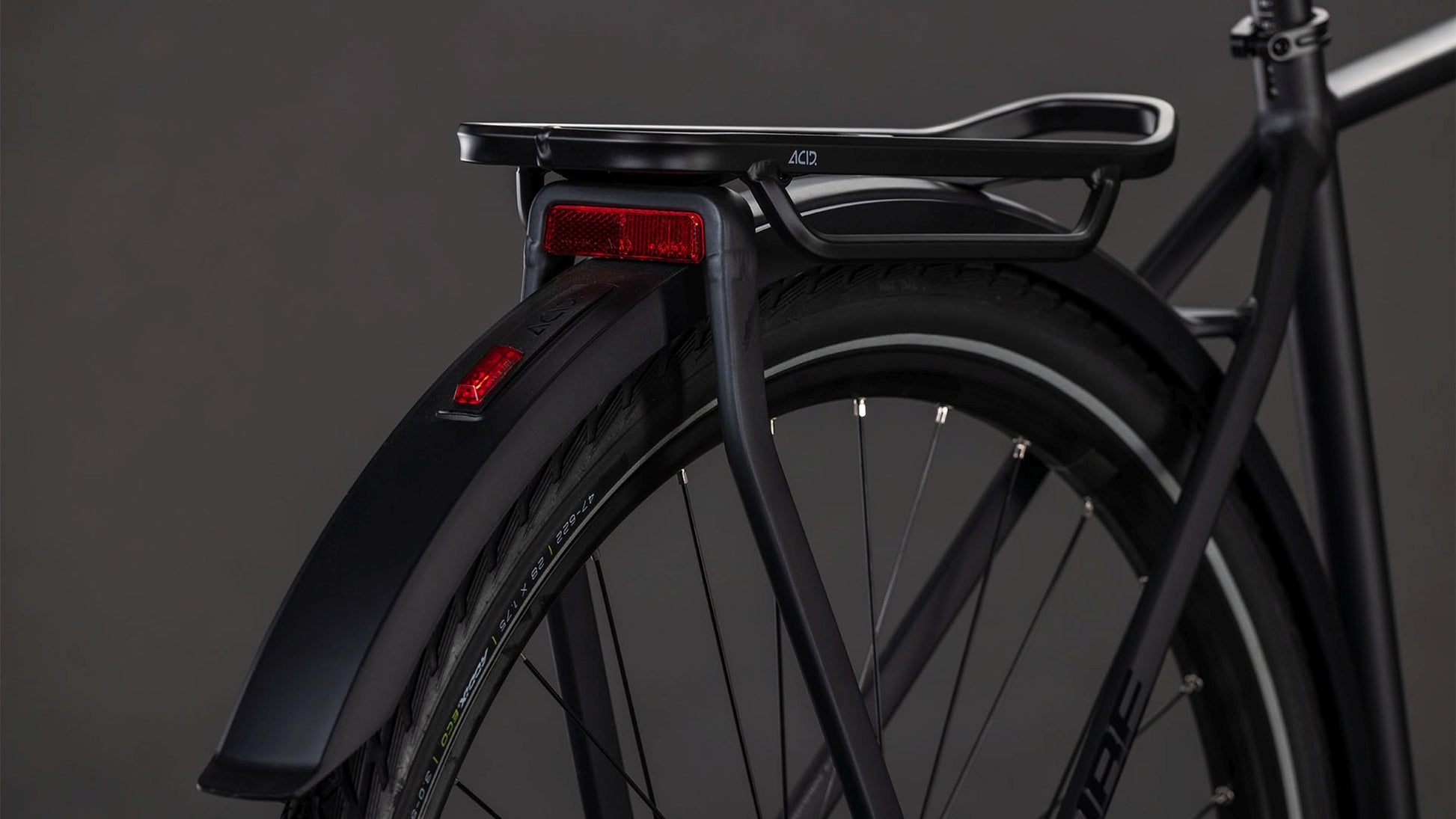

Sturdy integrated luggage carrier
\n

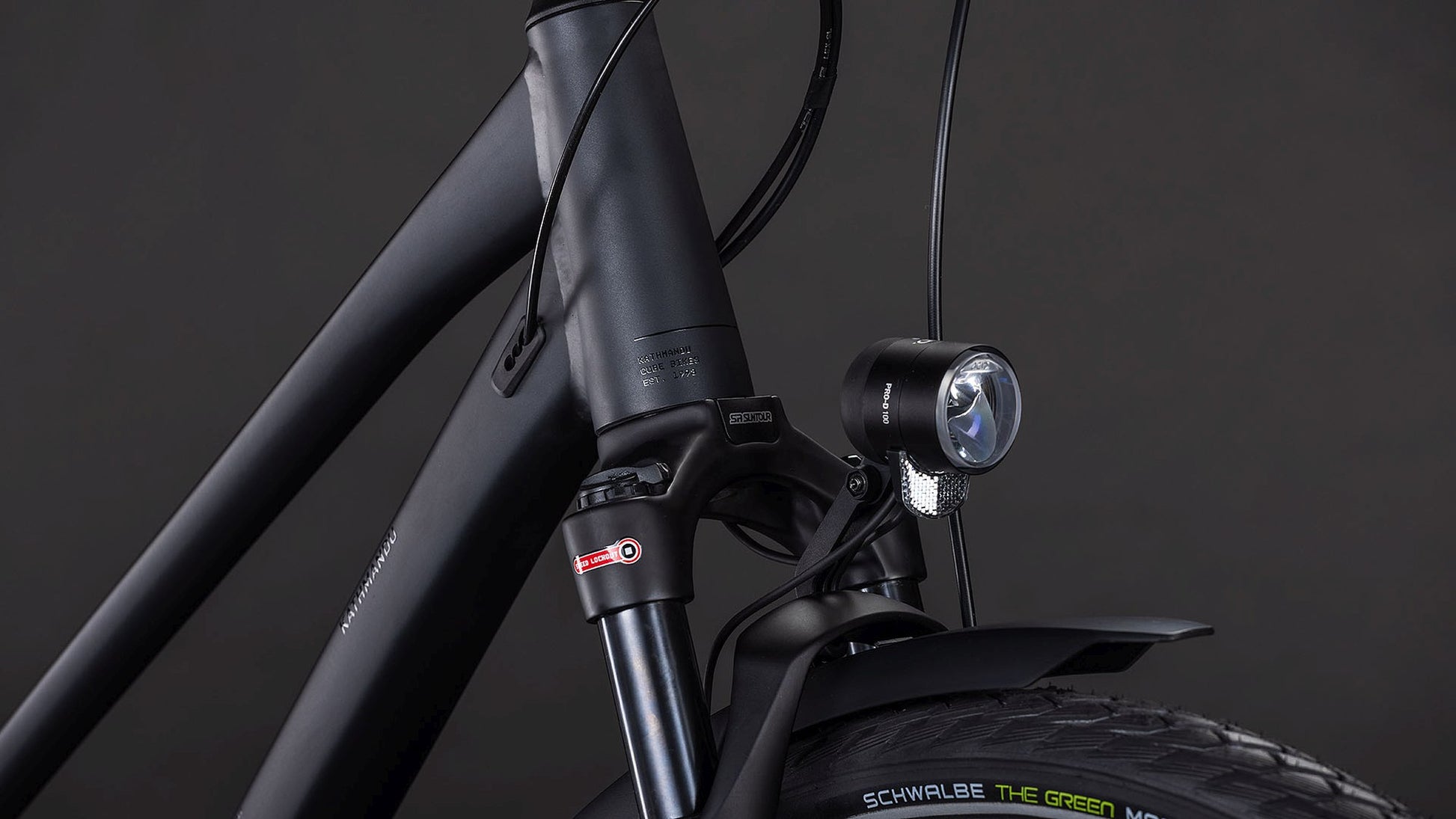

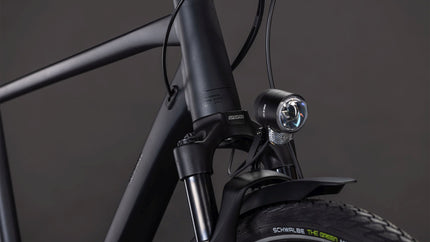

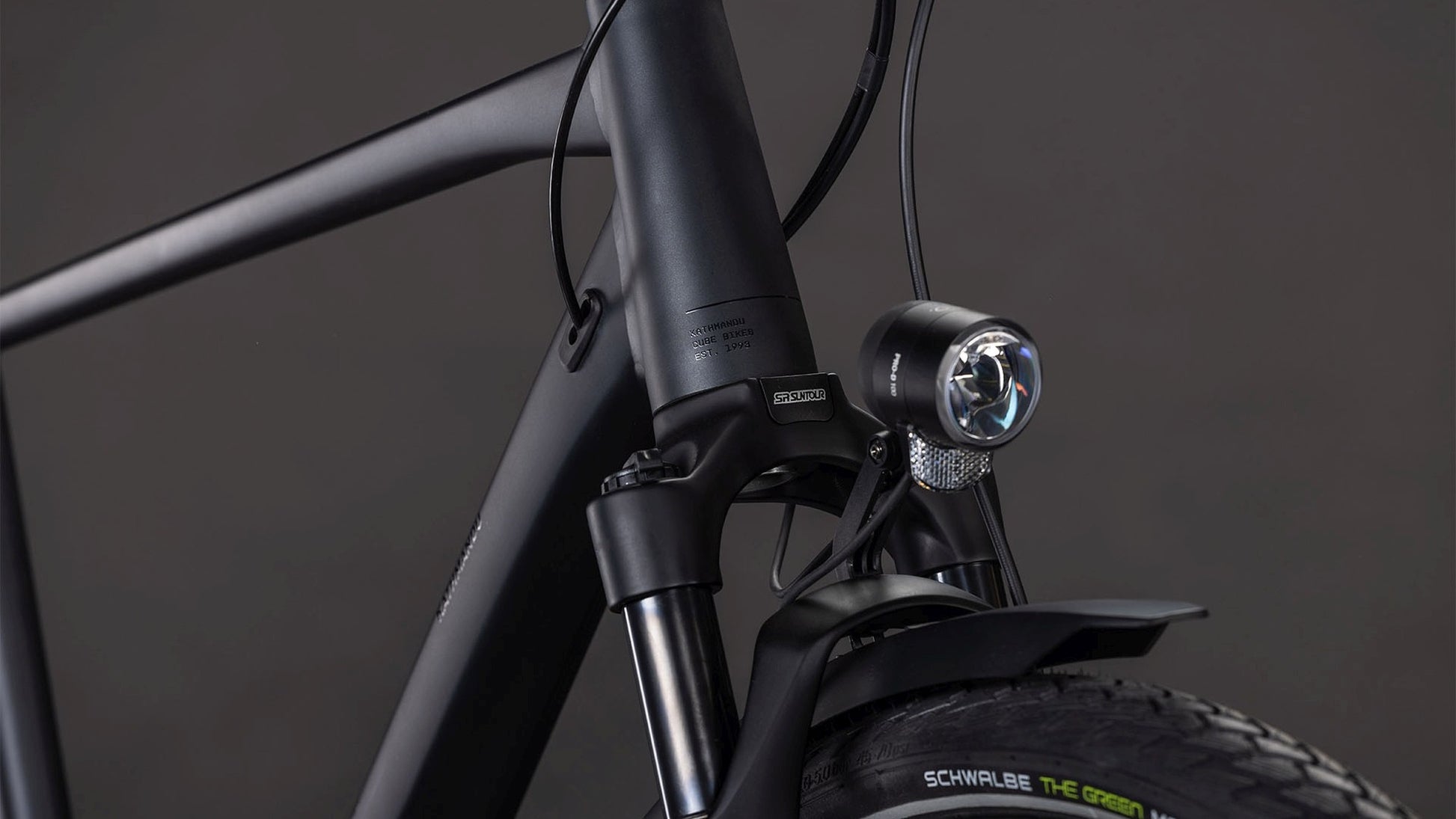

Air-sprung Suntour front fork with 65 mm travel and lock-out
Less light than the Kathmandu EXC
No 2x11-speed
Product description

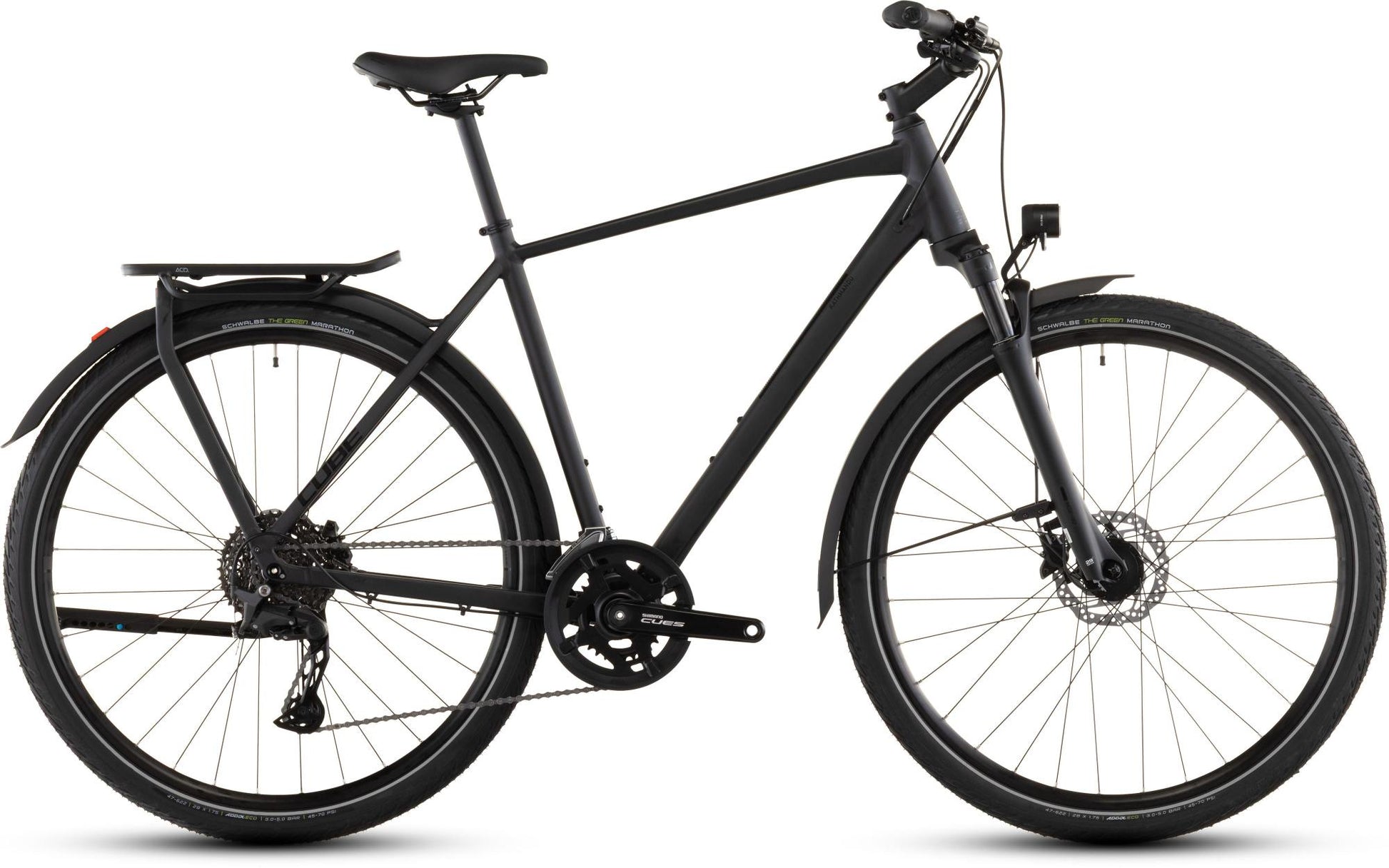

CUBE's design team ensured the Kathmandu Pro has everything you need and nothing that you don't. From the elegant simplicity of the Integrated Carrier 3.0 to the full-length mudguards, front and rear lights and CUBE FM kickstand, it's the practical everyday companion that's rugged enough to take on longer trips, too. A Suntour air suspension fork makes even the roughest roads smoother, for a more comfortable ride. Schwalbe Green Marathon tyres use recycled rubber, to reduce their environmental impact. Shimano's Cues 2x10 gears give you the range you need to make light work of any route. And Shimano hydraulic disc brakes ensure you can always stop safely, no matter what you're carrying or what the weather is throwing your way. Urban jungle or distant horizon, the Kathmandu Pro has your back.

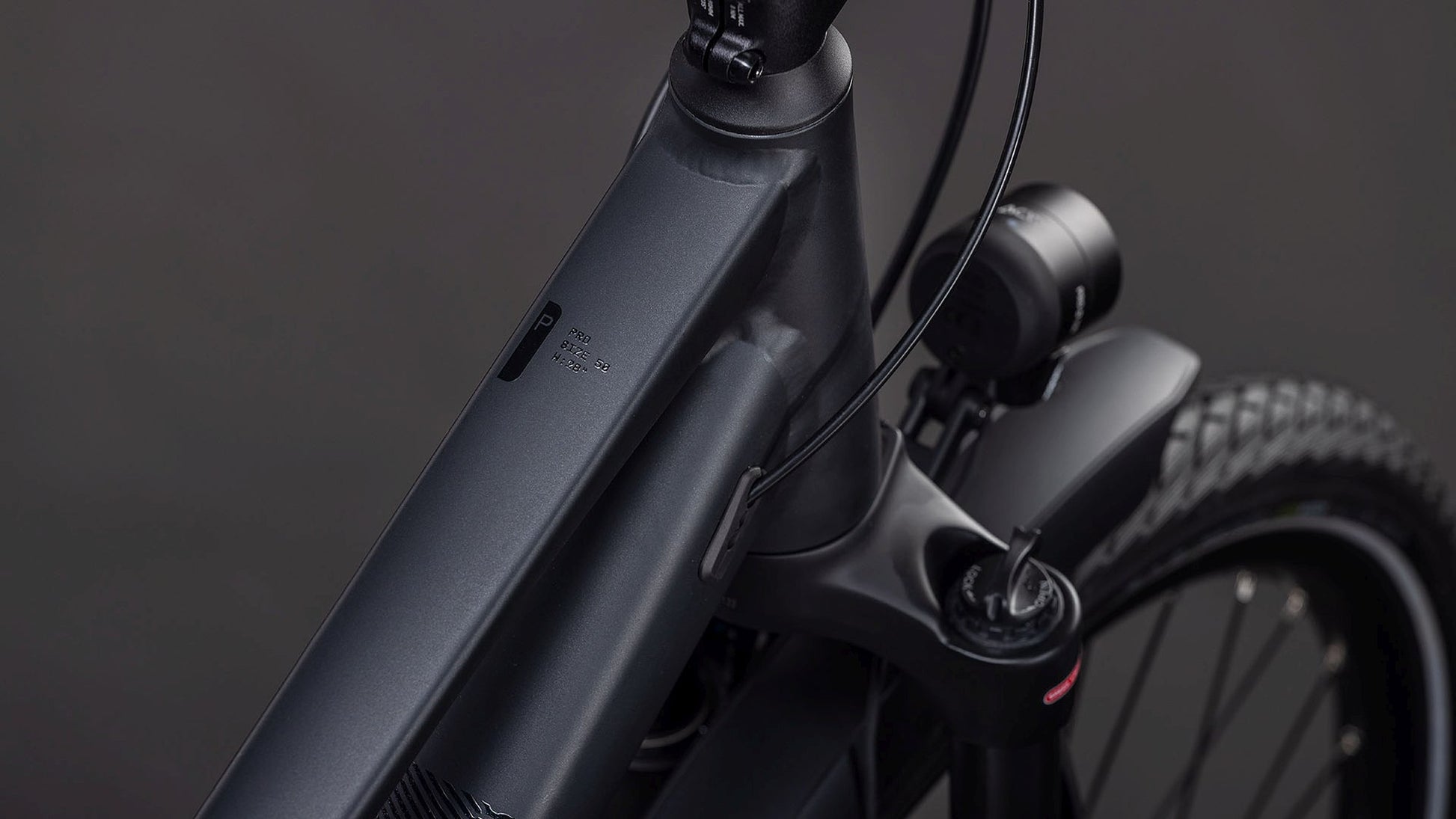

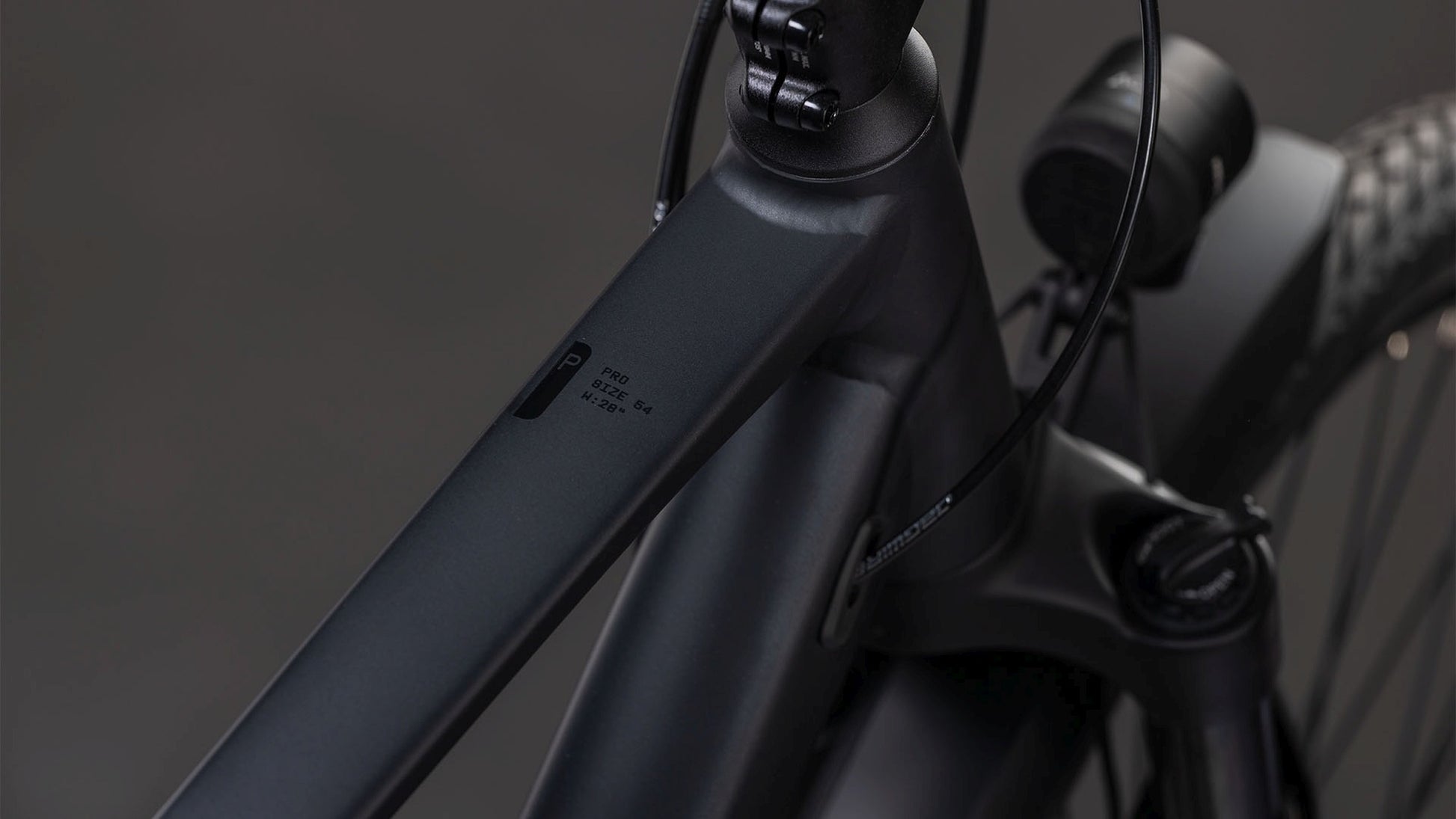

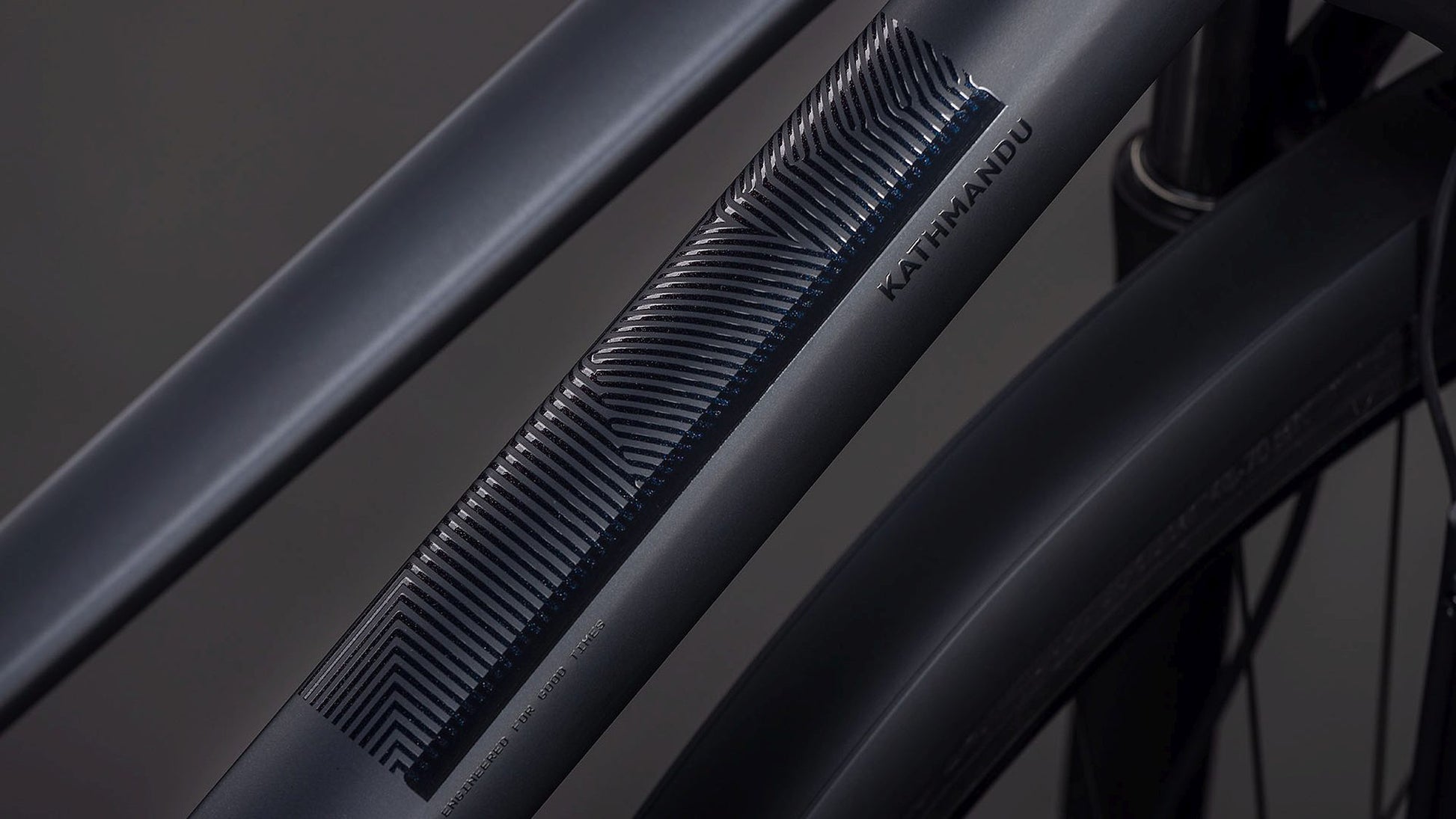

Frame description Attention to detail is a CUBE obsession. That's why, with the Kathmandu's Integrated Carrier 3.0, we designed it to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to complement the frame's clean looks, we reckon we've thought of everything. Just don't forget your toothbrush.
Read more
Matching accessories
New
ACID Carrier Ic 3.0 Rilink Black
£29.95
new
New
ACID KICKSTAND FM PURE
£24.95
New
ACID KICKSTAND FM PRO BLACK
£29.95
New
ACID KICKSTAND FM BLACK
£29.95
New
ACID Bottle Cage Universal Black/Black
£19.95
New
ACID MUDGUARD SET 57 28“ BB MOUNT 2.0 BLACK
£34.95
New
ACID PEDALS COMBO A9-CB BLACK
£49.95
new
New
ACID CARRIER IC 3.0 RILINK HPP BLACK
£34.95
Often bought together
New
ACID Panniers Travlr Pro 20/2 Black
£109.95
new
New
ACID HANDLEBAR BAG PRO 5 FILINK
£49.95
Specifications
General
Model code
162600601
Model year
2026
Colour
COAL/BLACK
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.
There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour NCX32 D LO Air, 63mm
Drivetrain and brakes
Number of gears
20
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Cues RD-U6020-SGS, 10-Speed
Front derailleur
Shimano Cues FD-U6010, Top Swing, 31.8mm
Shifters
?
Make and type of gear levers.
Shimano Cues SL-U6000, Rapidfire-Plus
Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.

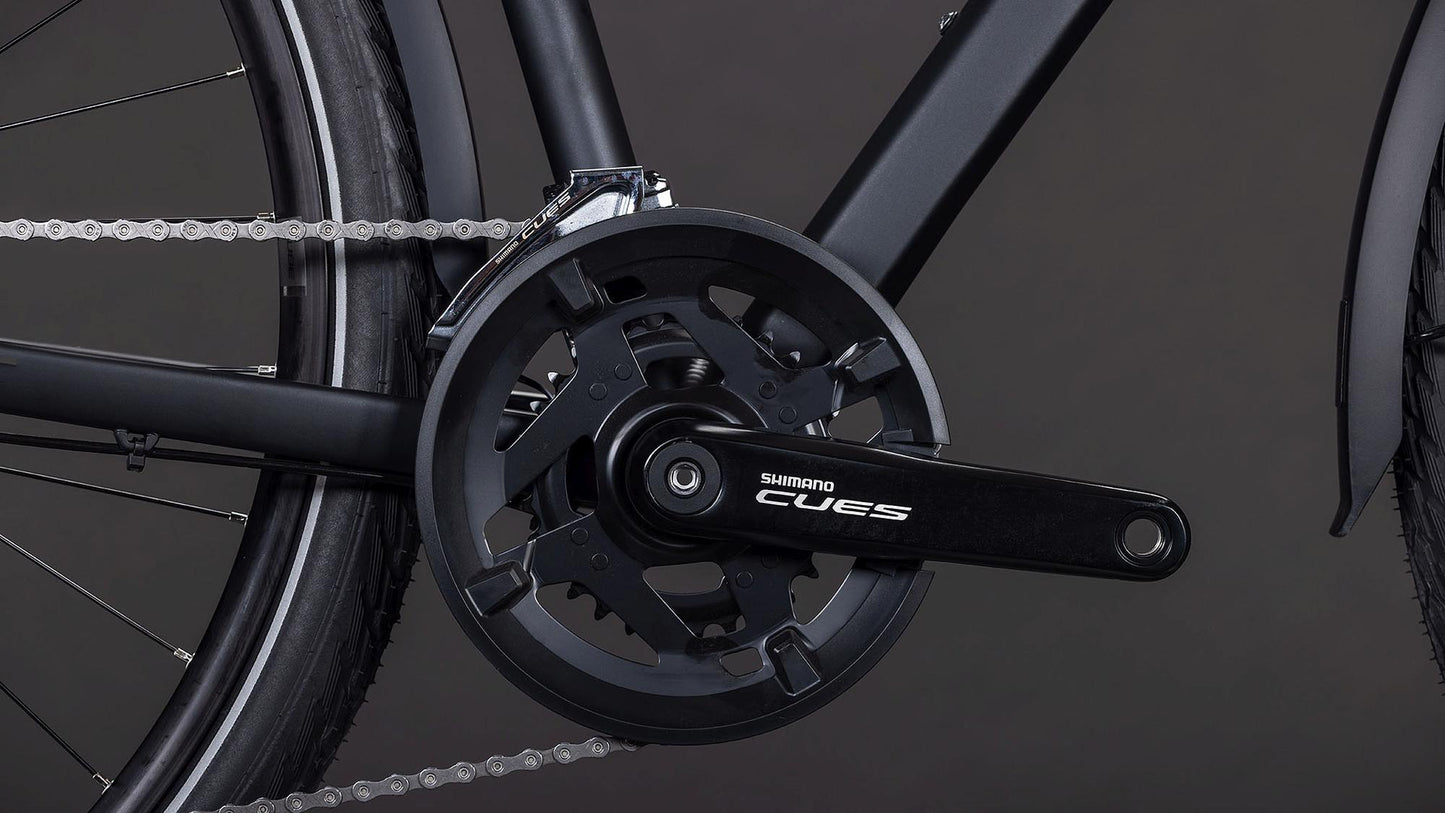

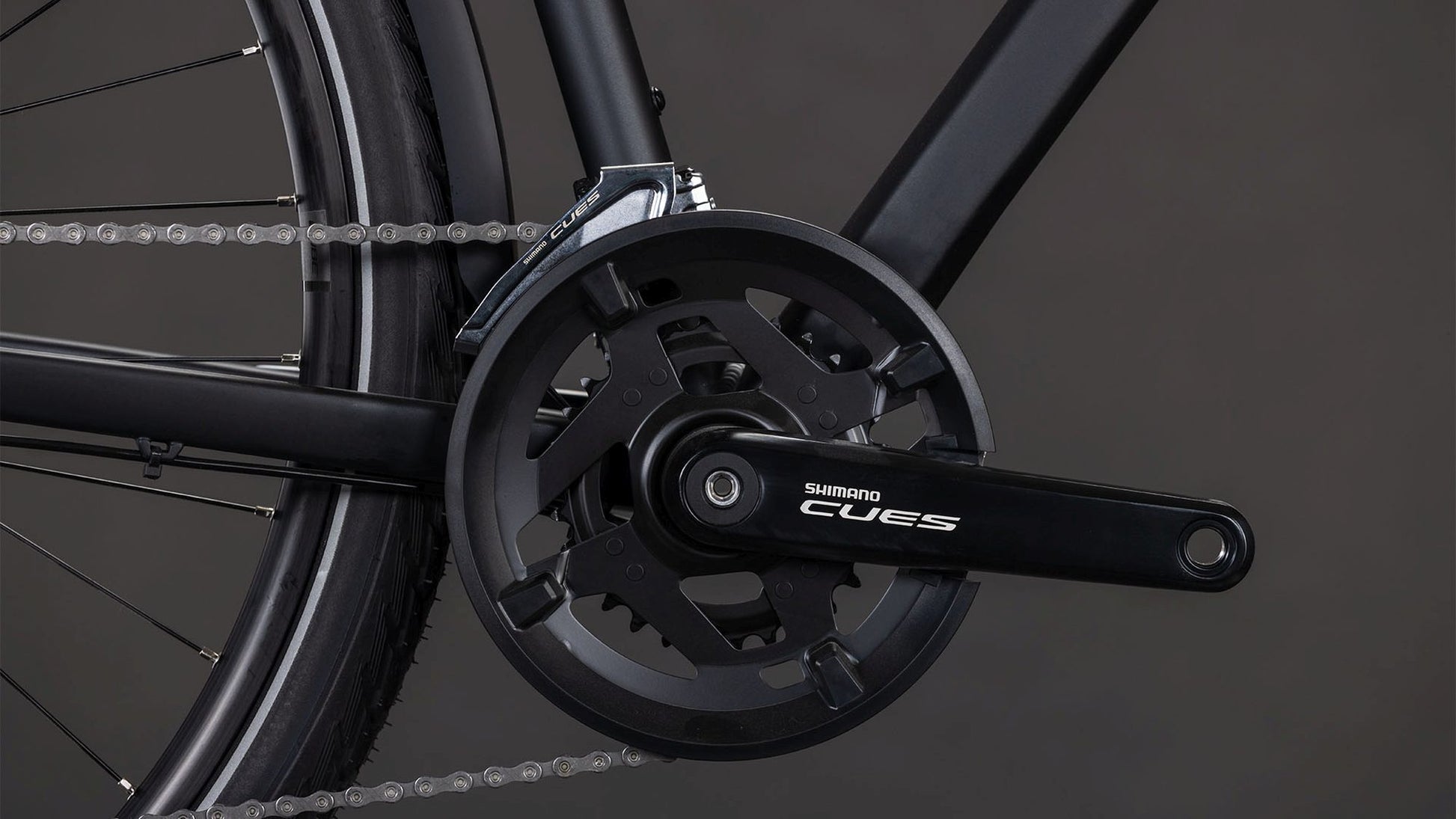

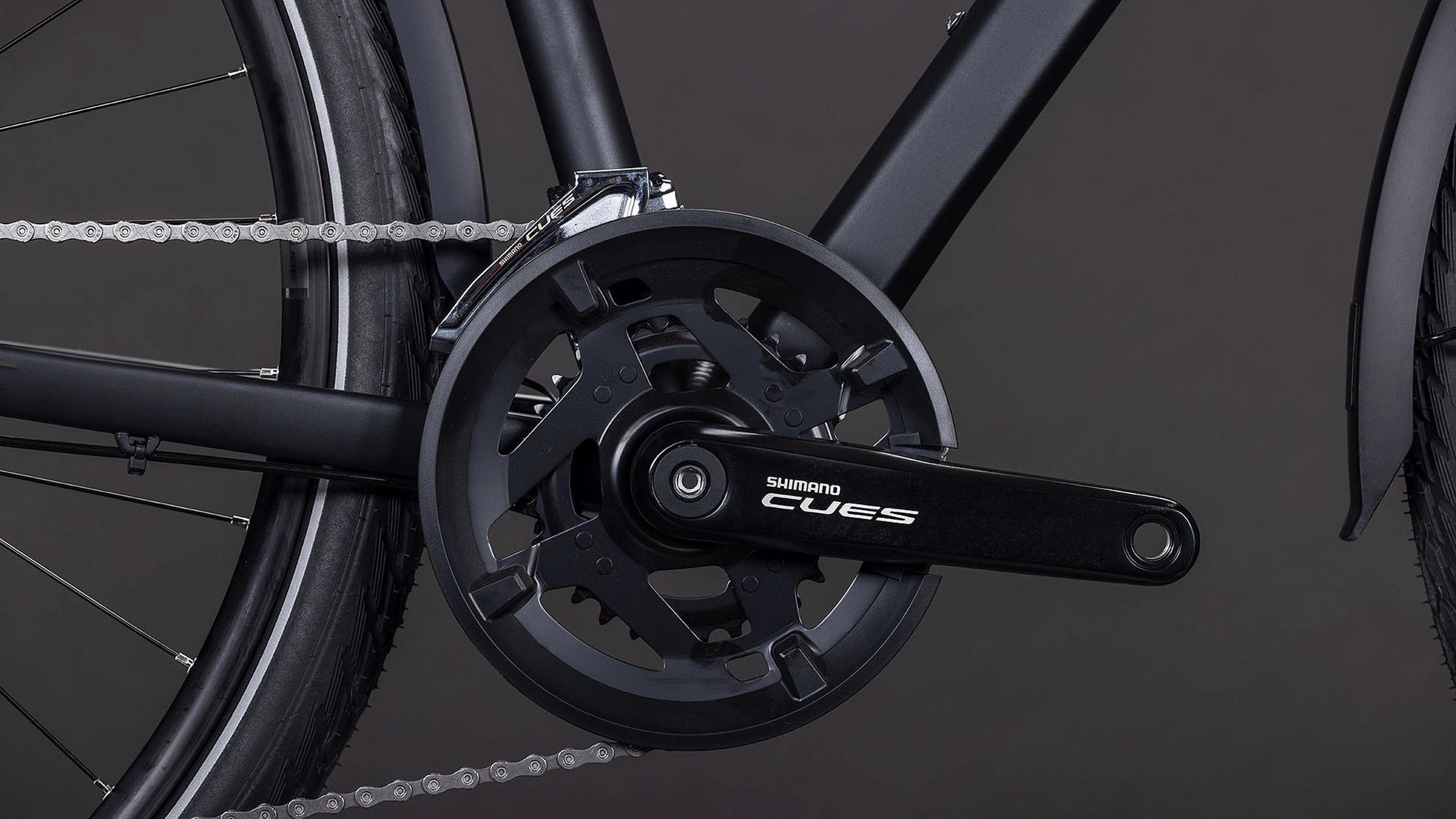

Shimano Cues FC-U4010, 46x30T, Chainguard
Cassette
?
The set of gears on the back of the bicycle
Shimano Cues CS-LG400, 11-39T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC xGlide
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
