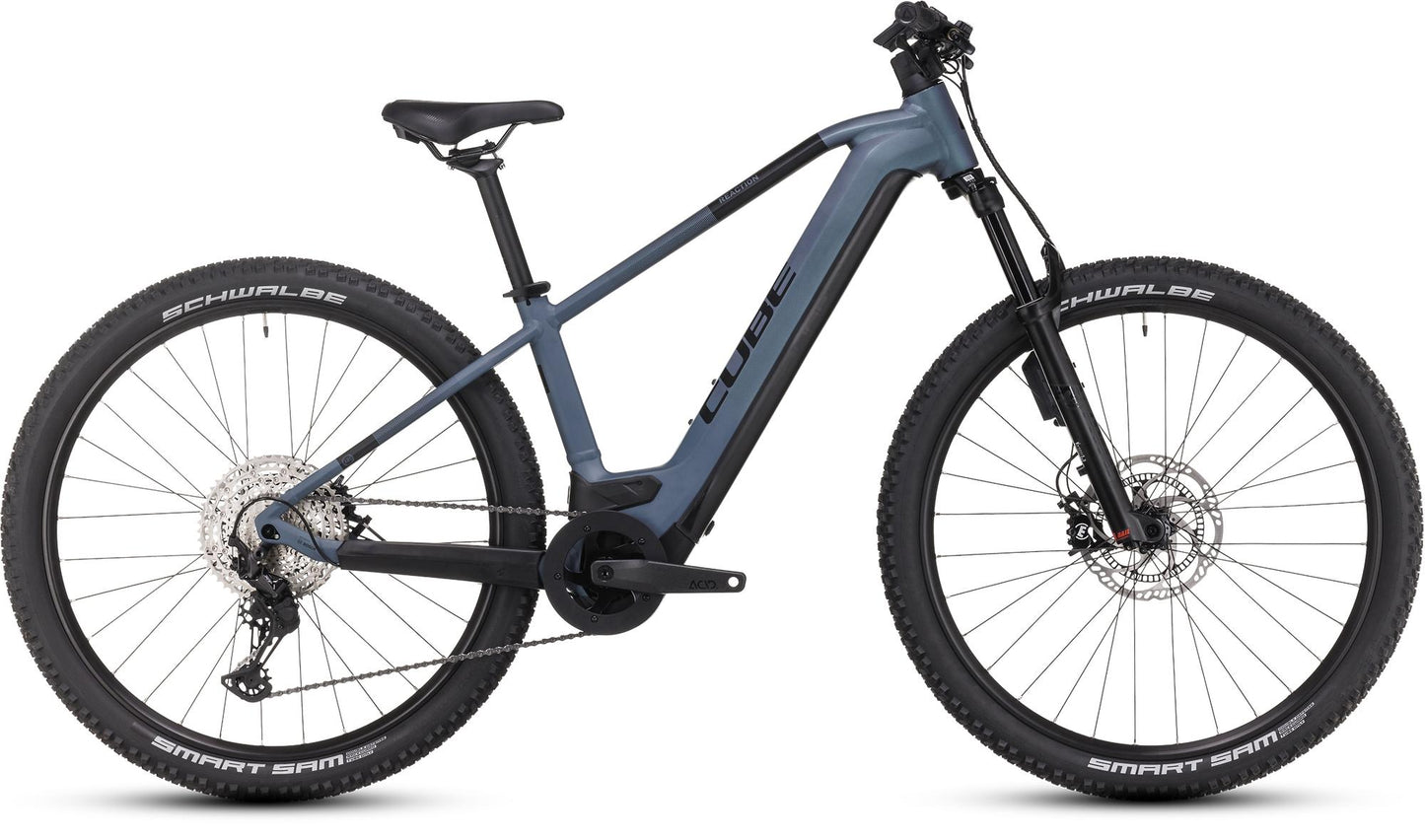

CUBE REACTION HYBRID ABS 750 SMARAGDGREY/BLUE
CUBE REACTION HYBRID ABS 750 SMARAGDGREY/BLUE
Plus Points
- Light yet strong frame made of Superlite aluminum
- Bosch ABS braking system
- Full integration of motor and battery
- With a large 750 Wh battery
- Bosch Performance CX Smart System
- Vibrant yet stable and comfortable Agile Ride geometry
- Size Split: 27.5 inch wheels in the small sizes and 29er wheels in the large sizes
- Front fork with 120 mm air suspension and rigid thru-axle (low step: 100 mm)
- Comfortable and grippy 2.6 inch tires
- Includes mounting points for fenders, rear stand, and luggage rack
- Available as a classic diamond frame or with a low step
Advisory points
- ABS is indeed more expensive
Description

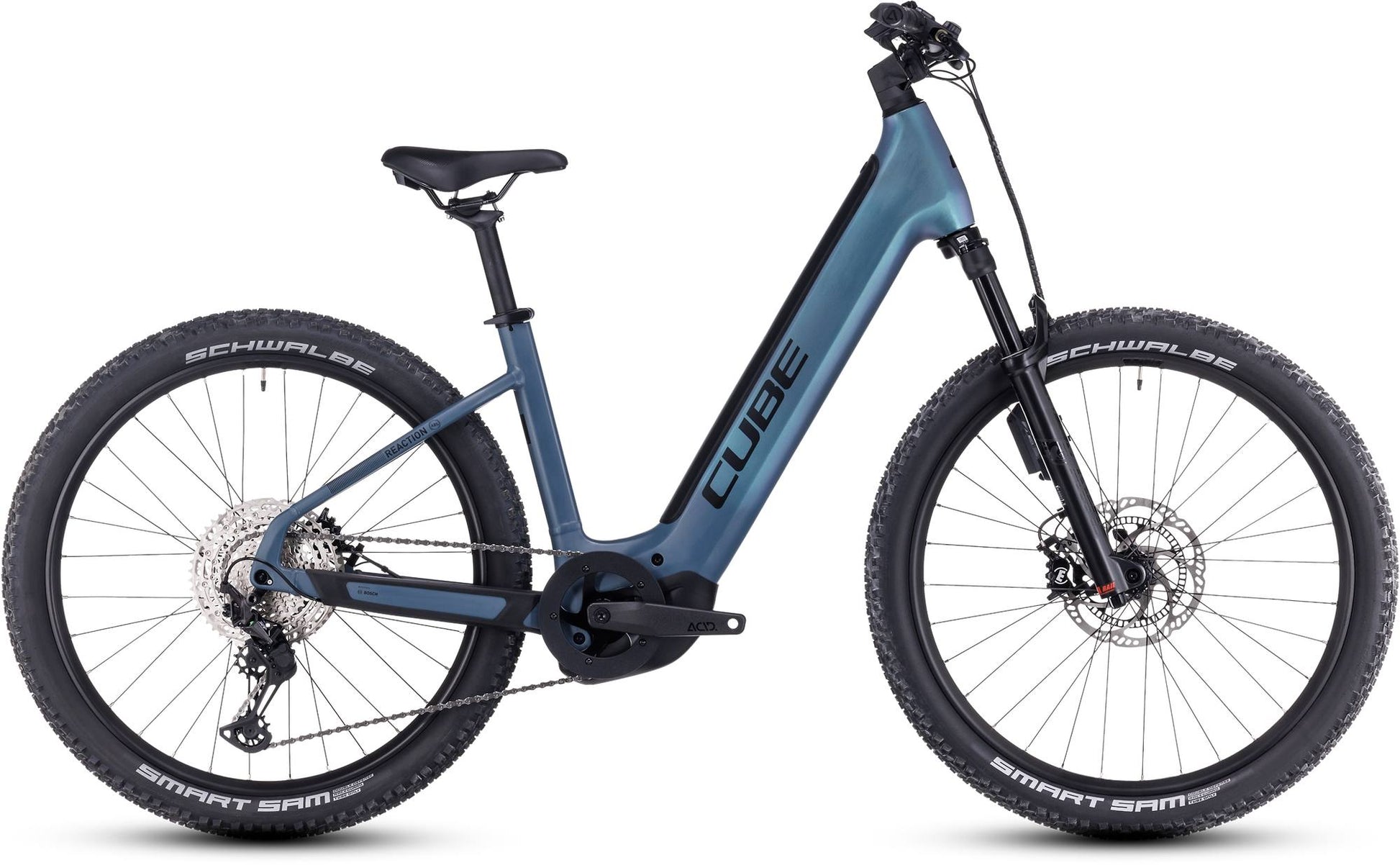

CUBE REACTION HYBRID ABS 750 GREY/BLUE EE XL

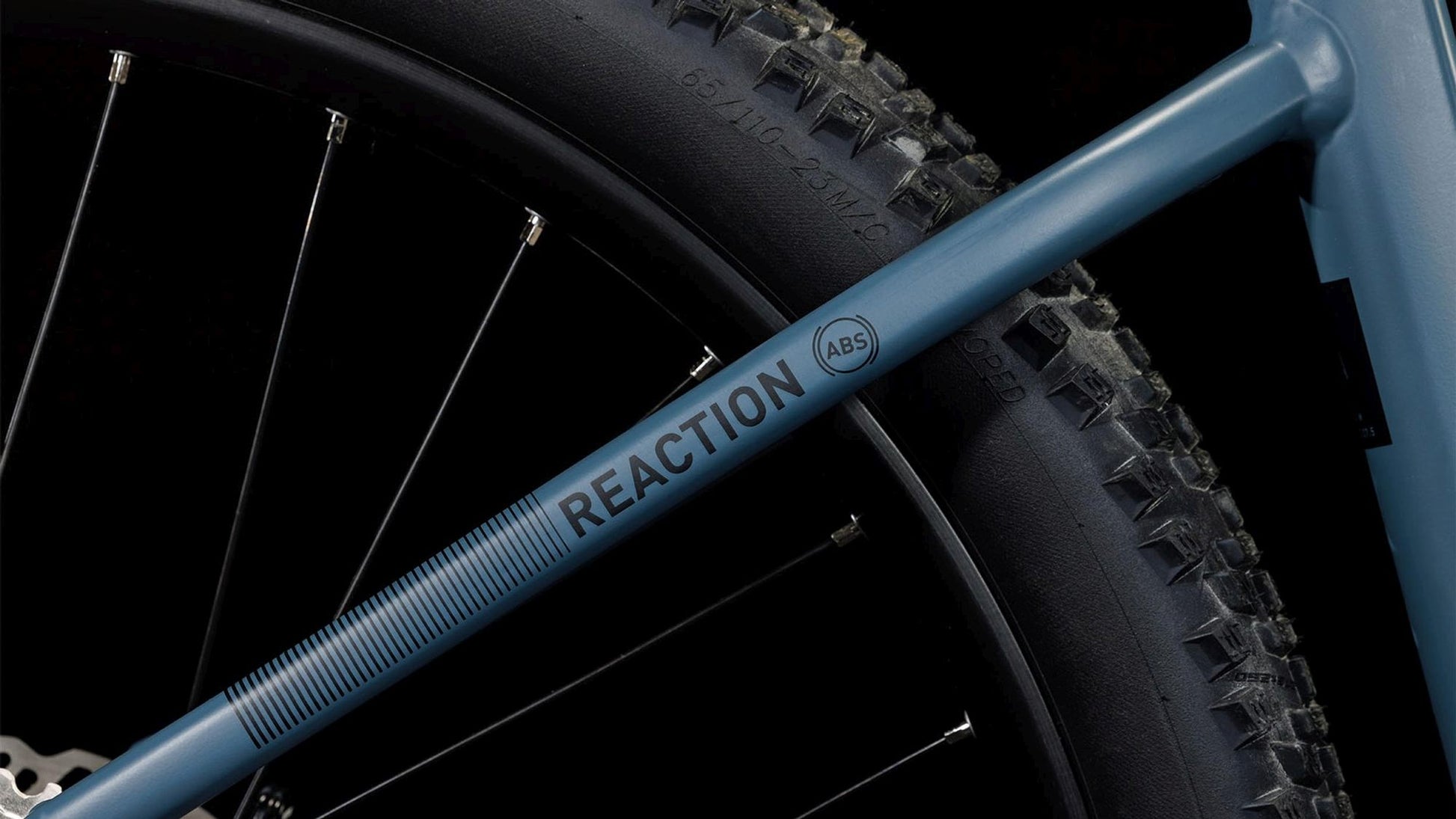

With the Reaction Hybrid ABS 750 you don't just get Bosch power... you also get Bosch control. Win, win. The second-generation Bosch ABS system works with Magura's powerful CT eSTOP hydraulic disc brakes to prevent front wheel lockup, no matter how hard you're braking – and that means better safety and control. Bosch's fourth-generation CX motor and the huge range of Shimano's XT 1x12 gears make light work of any route. And, with a smooth Fox 34 AWL suspension fork up front, you've everything you need to take your exploring to the next level.

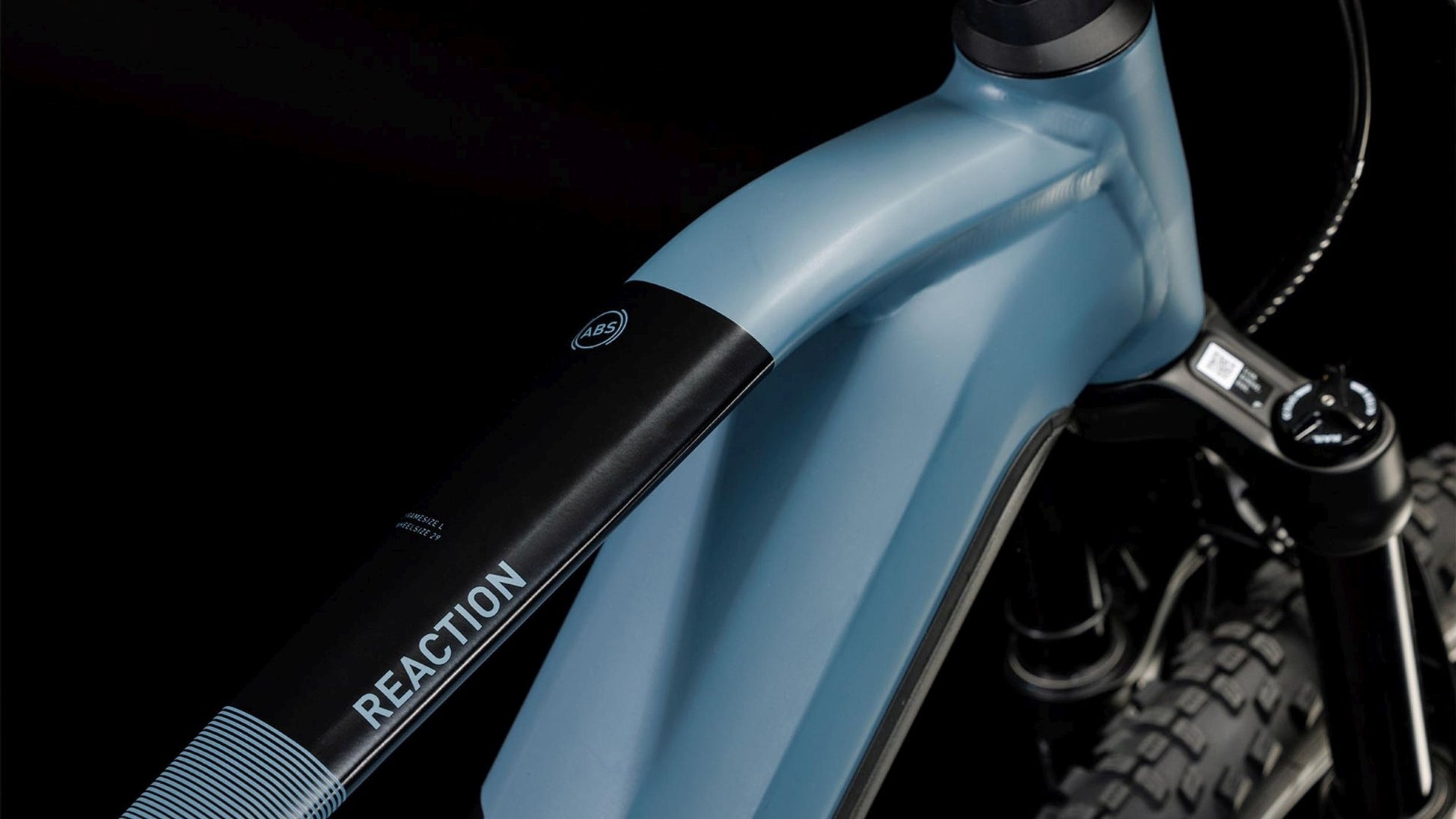

Frame description

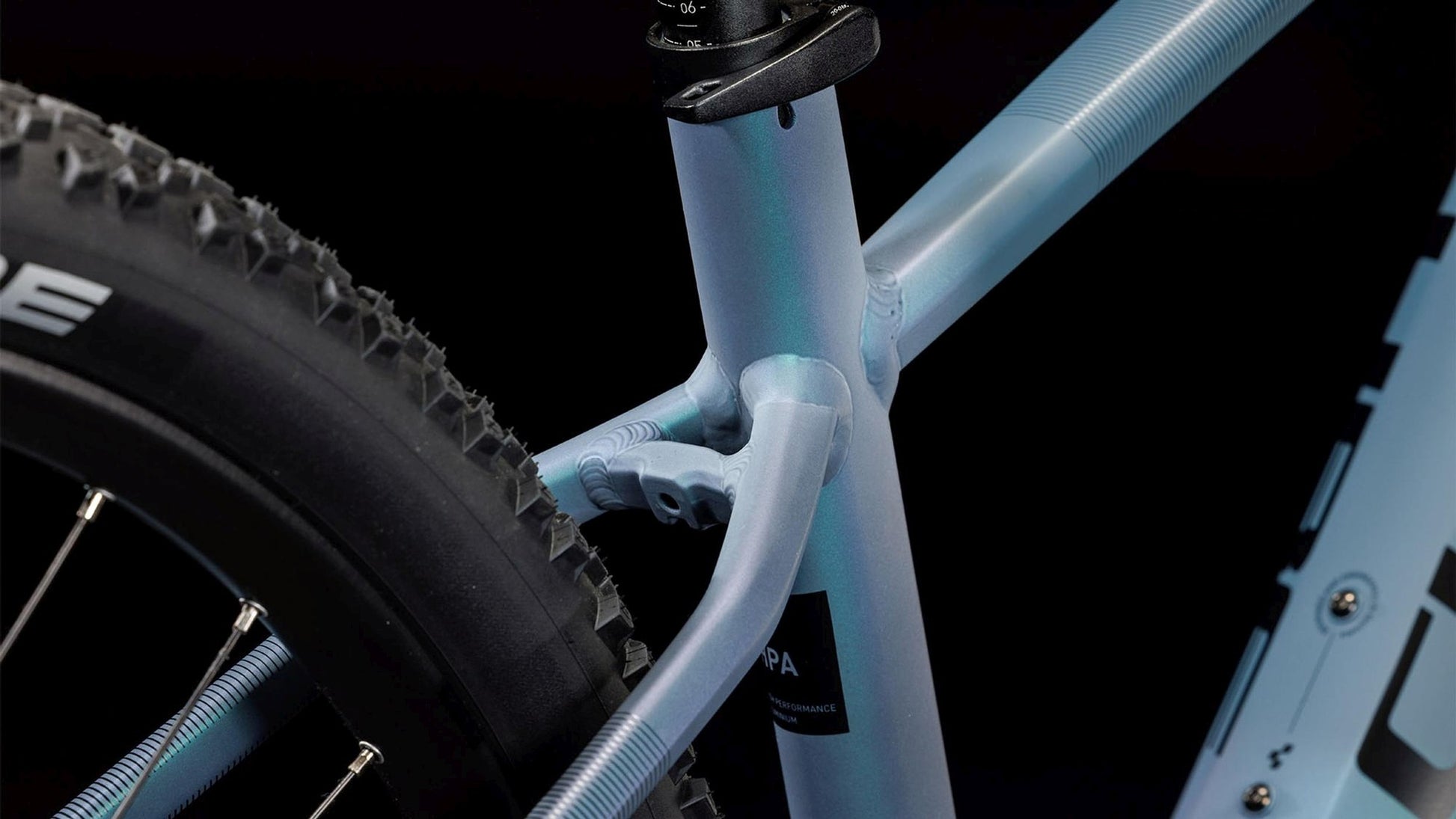

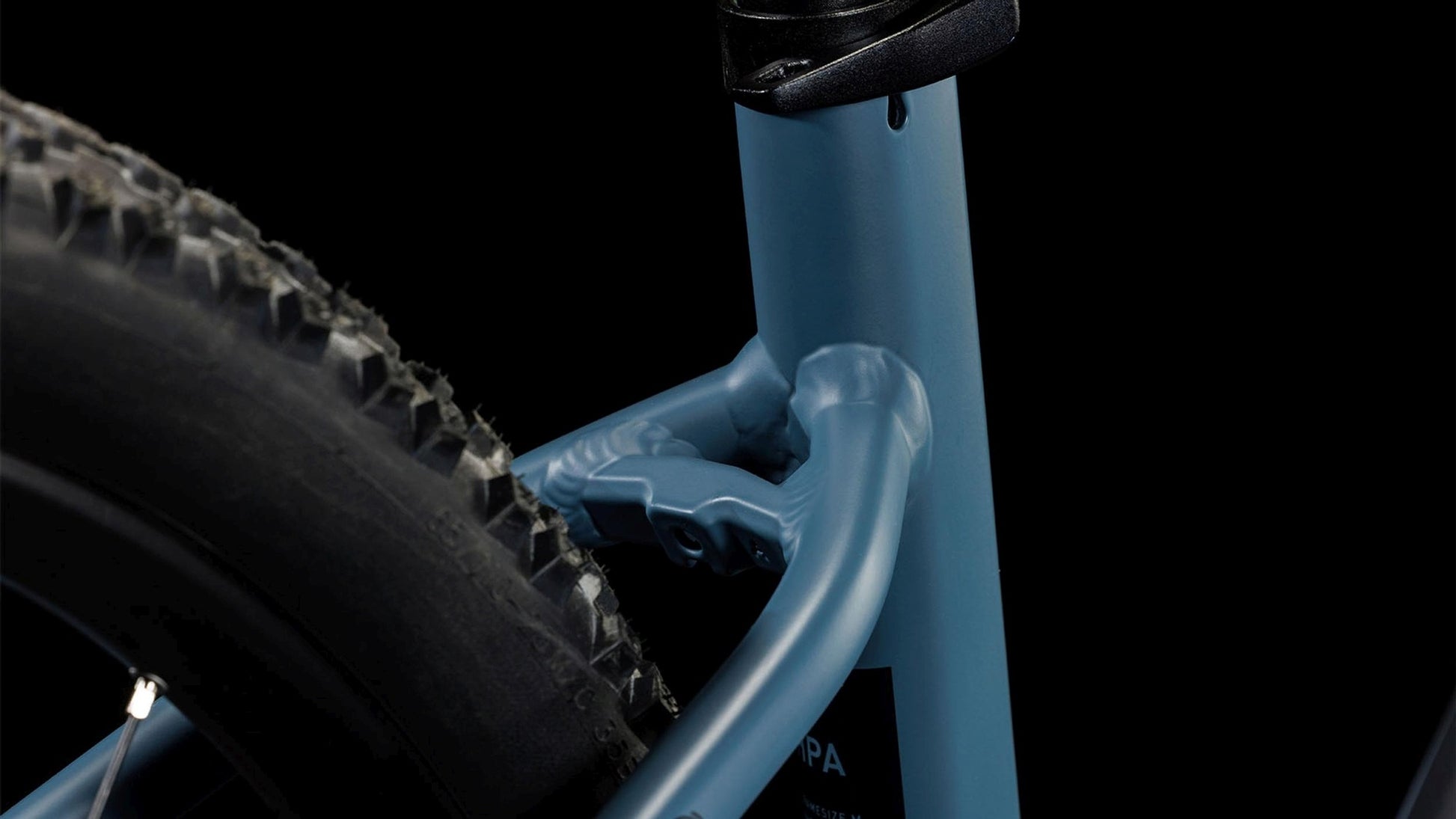

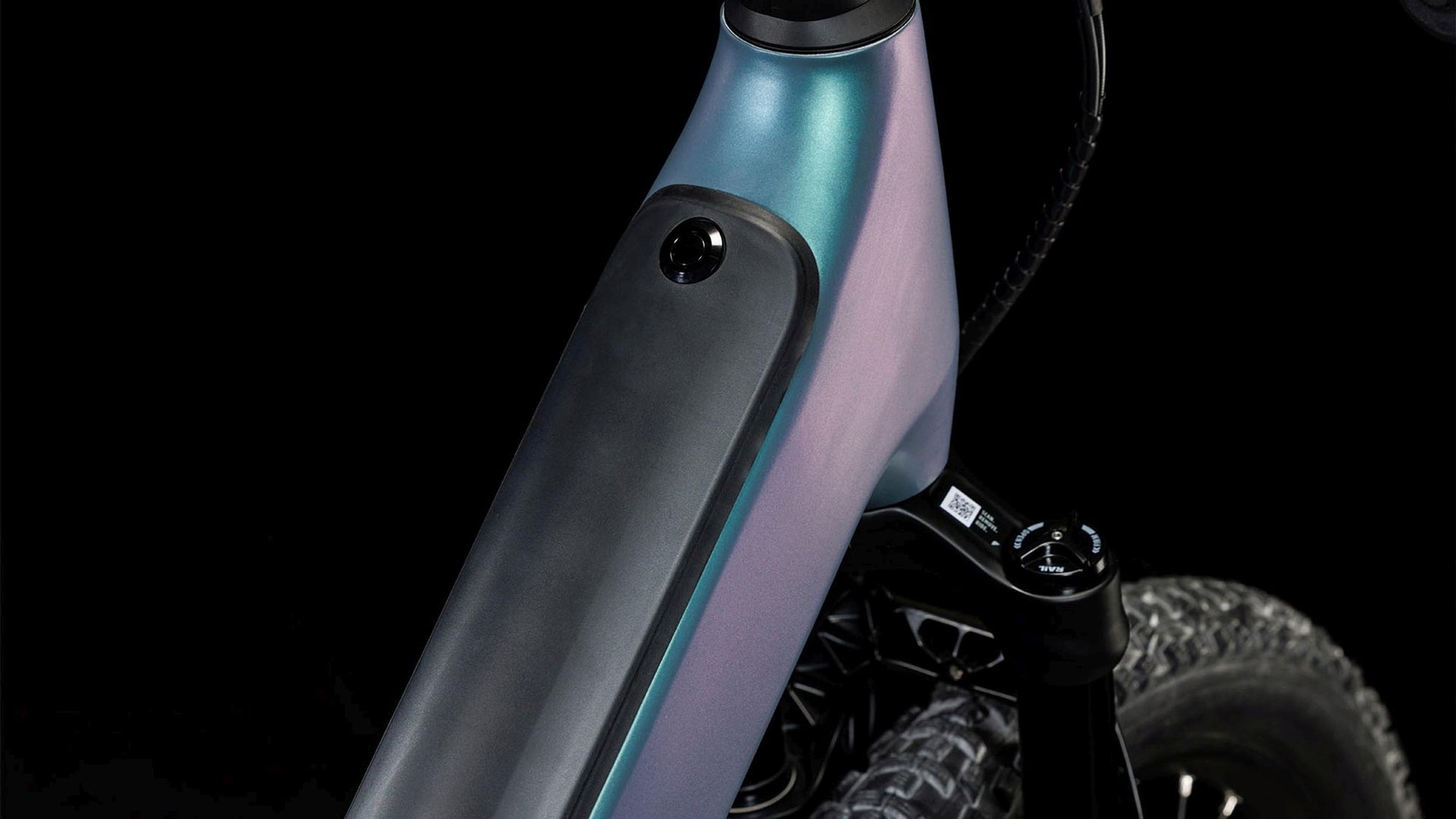

It's all in the detail. So neat is the Reaction Hybrid's frame design, you'll barely notice the high-capacity Bosch battery – now up to 750Wh, even for smaller frame sizes – and powerful fourth-generation, Smart System-equipped Bosch CX motor. But you'll definitely notice the power. Agile Ride Geometry delivers confidence-inspiring handling, as you'd expect. There's an Easy Entry frame option, and a new S frame with 27.5in wheels, so everyone can find their ideal Reaction Hybrid. And, with internally routed cables including a stealth dropper post upgrade option, we've reduced the need for maintenance so that you can just enjoy the ride.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
689813
Model year
2024
Colour
smaragdgrey/blue
Fork

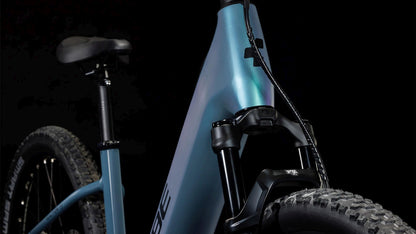

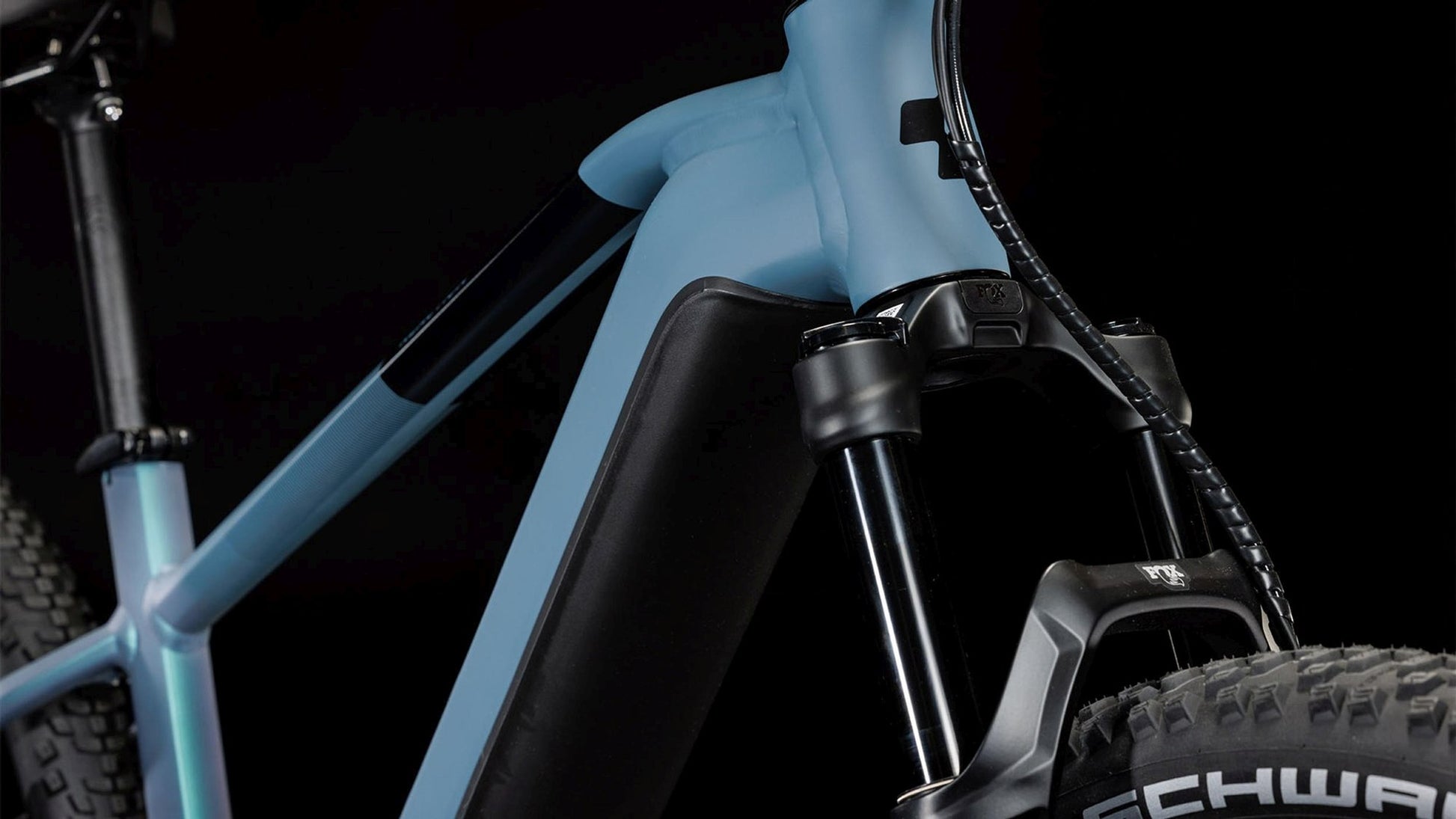

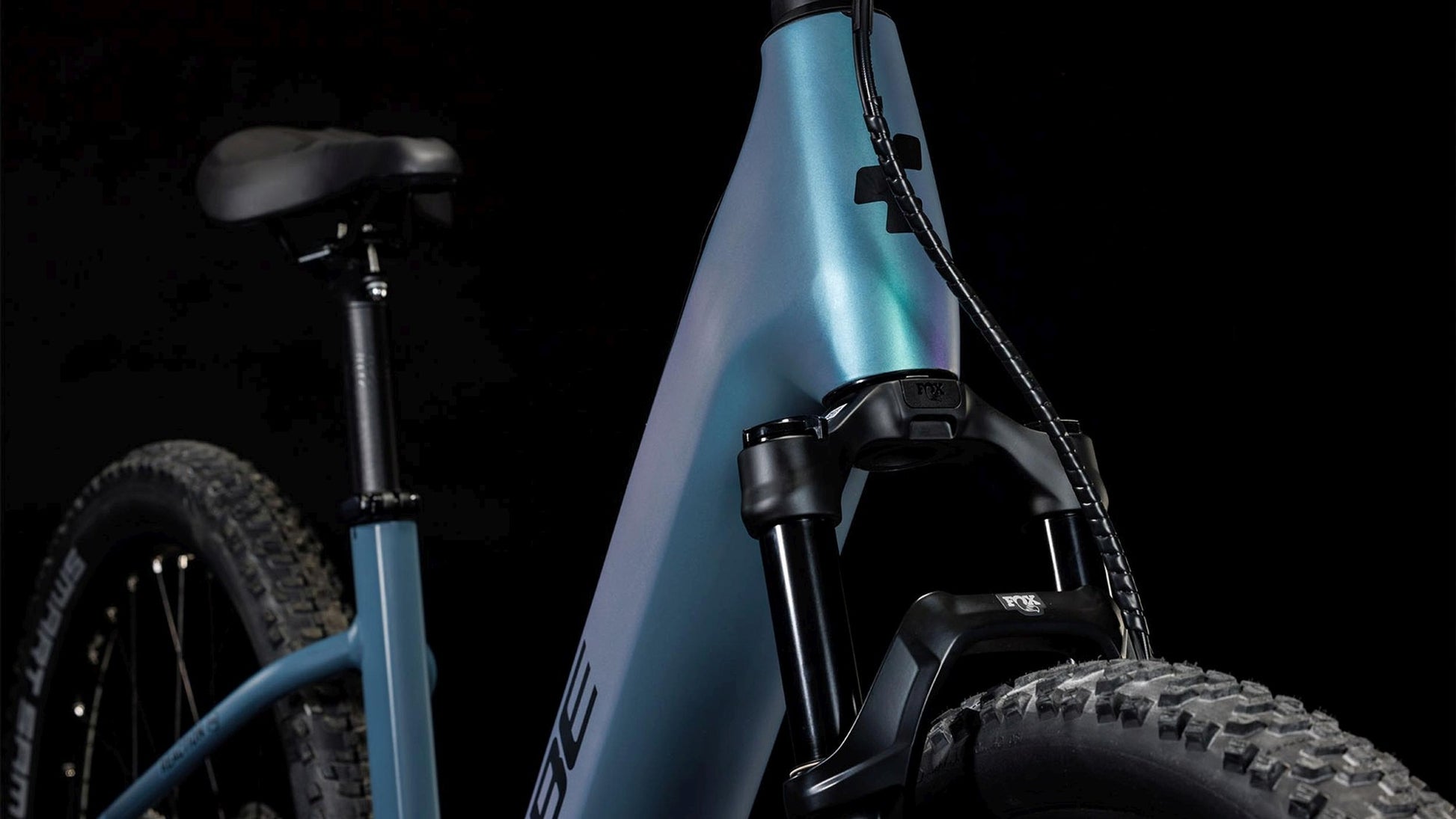

Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
E-bike System
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
display

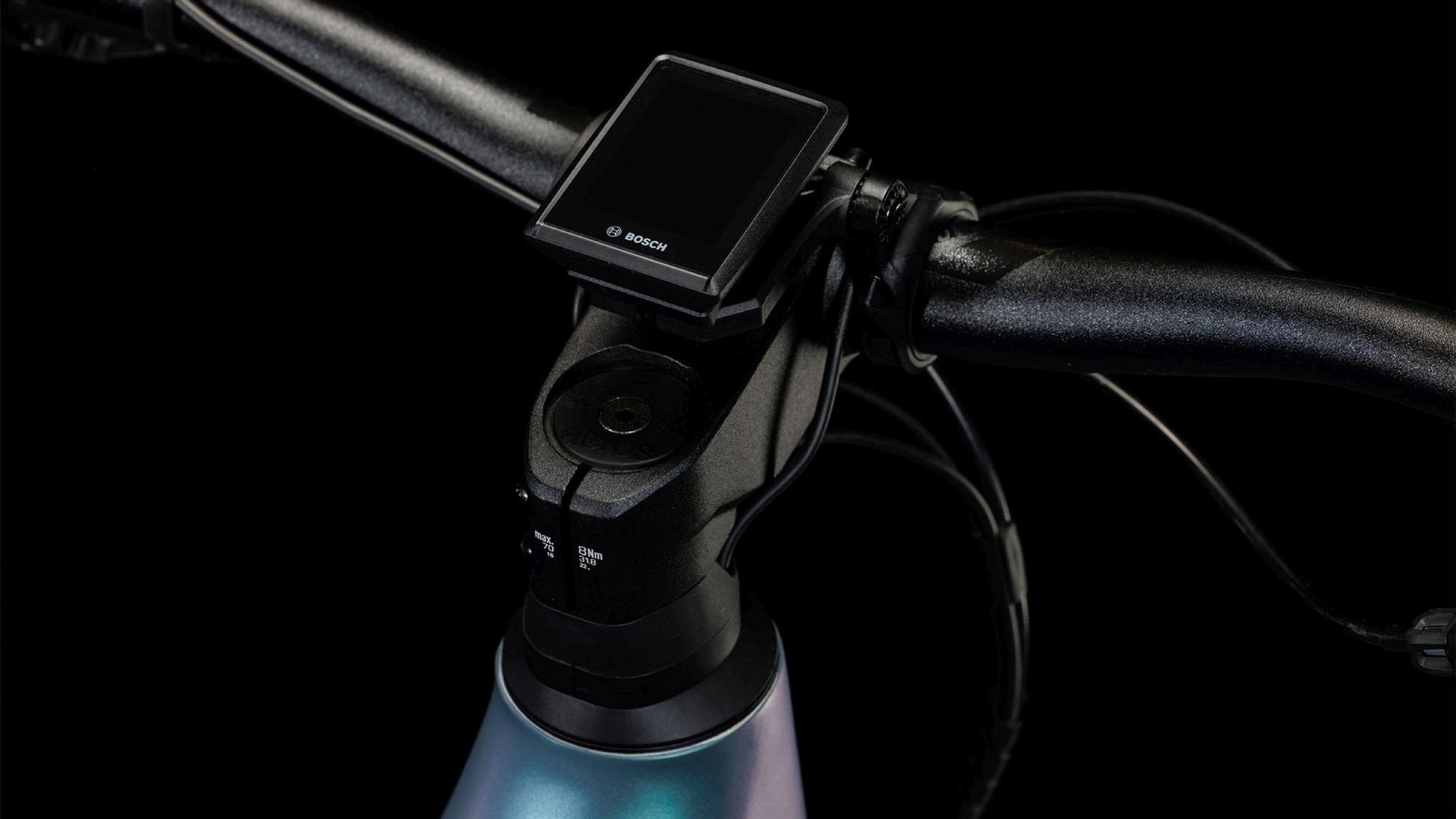

Bosch Kiox 300
Drivetrain and brakes
Front brake

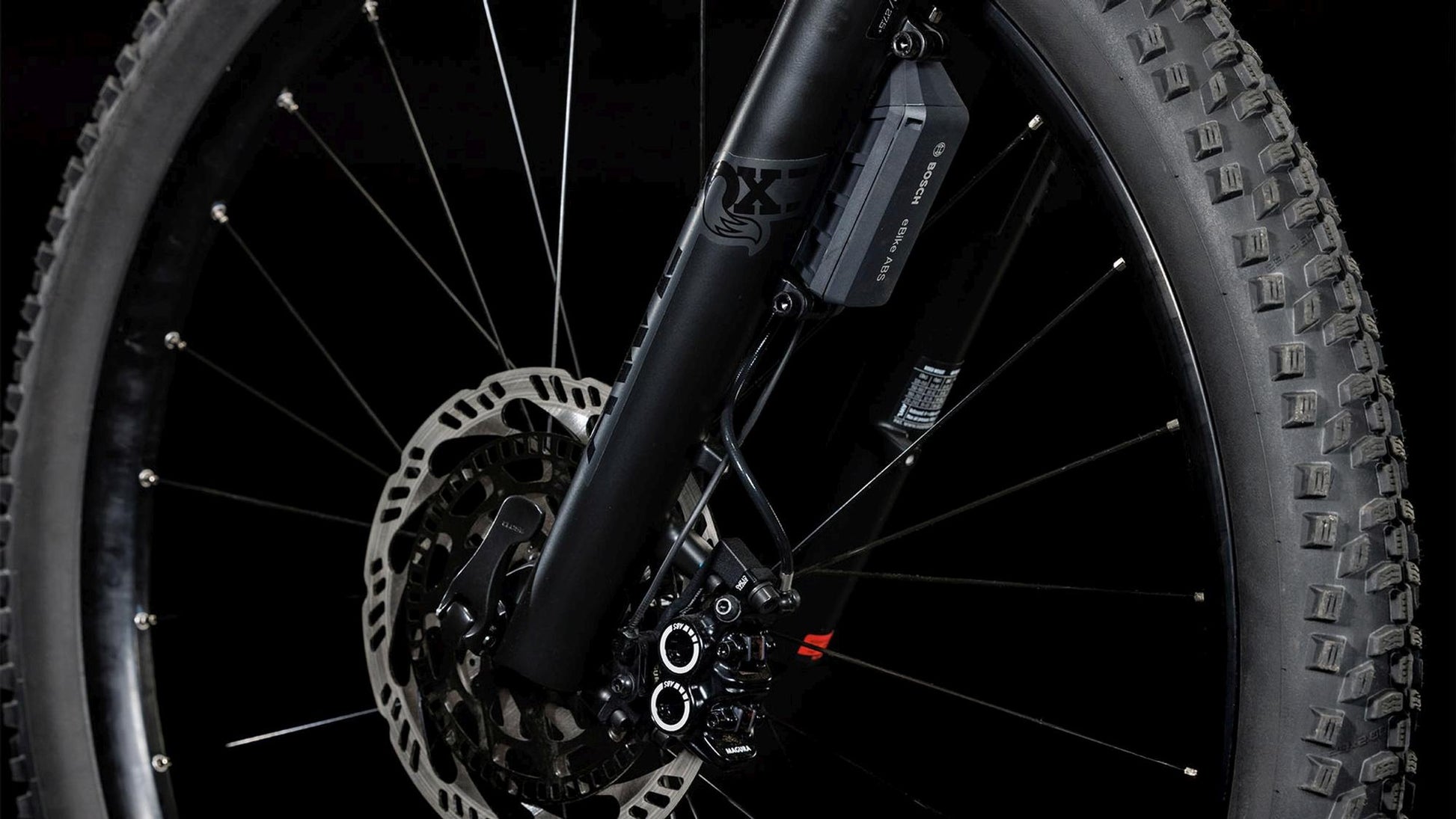

Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203)
Rear brake
Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203)
Rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Crankset
Acid E-Crank, 175mm, 38T
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
Shimano CN-M6100
Cockpit
Headset
Acros AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Handlebar
Cube Rise Trail Bar Pro, 740mm
Stem
Cube Performance Stem E-MTB, 31.8mm
Bar tape or grips
Acid React Pro
Wheels
Rims
Cube EX30, 32H, Disc, Tubeless Ready
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Front tyre
Schwalbe Smart Sam, Performance, Double Defense, 2.6, Next Gen
Rear Tyre
Schwalbe Smart Sam, Performance, Double Defense, 2.6, Next Gen
Other parts
Saddle
Sequence
Seatpost
Cube Performance Post, 30.9mm
Seatpost clamp
Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm
Pedals
Acid PP MTB
