CUBE STEREO HYBRID 140 HPC PRO 750 VIVID/SUN
CUBE STEREO HYBRID 140 HPC PRO 750 VIVID/SUN
Plus Points
- Front frame made of lightweight but strong C:62 carbon
- Aluminum rear frame with 140 mm of travel
- Full integration of motor, battery, and cables
- Large 750 Wh battery
- CUBE Agile Trail geometry: lively and stable
- Powerful hydraulic disc brakes with extra large brake discs
- Practical 11-speed transmission with 11-51 tooth cassette
- Extra comfortable and grippy 2.6 inch tires
- Seat post adjustable from the handlebars
- Size Split sizing: 27.5 inch wheels in small frame sizes, 29 inch wheels in large sizes
Advisory points
- A hardtail is lighter
- Heavier wheels than the Stereo Hybrid 140 HPC Race
Description
CUBE STEREO HYBRID 140 HPC PRO 750 VIV/SUN L
The hills are calling, and that means you need a bike that's up to the job. The Stereo Hybrid 140 HPC Pro 750's fourth-generation Bosch CX motor and 750Wh battery won't let you down. Paired with the reliable shifting and wide range of Shimano's Deore 1x11 gears, it'll make light work of any climb. And for the way back down you've 150mm of travel from the RockShox Recon Silver air fork up front, paired with 140mm from the RockShox Deluxe Select shock at the rear. Grippy Schwalbe 2.6in tyres hook you up to the trail, while powerful Magura MT Thirty hydraulic disc brakes with four-piston calipers and 203mm rotors ensure you're always in full control. It's up for it. Are you?
Frame description

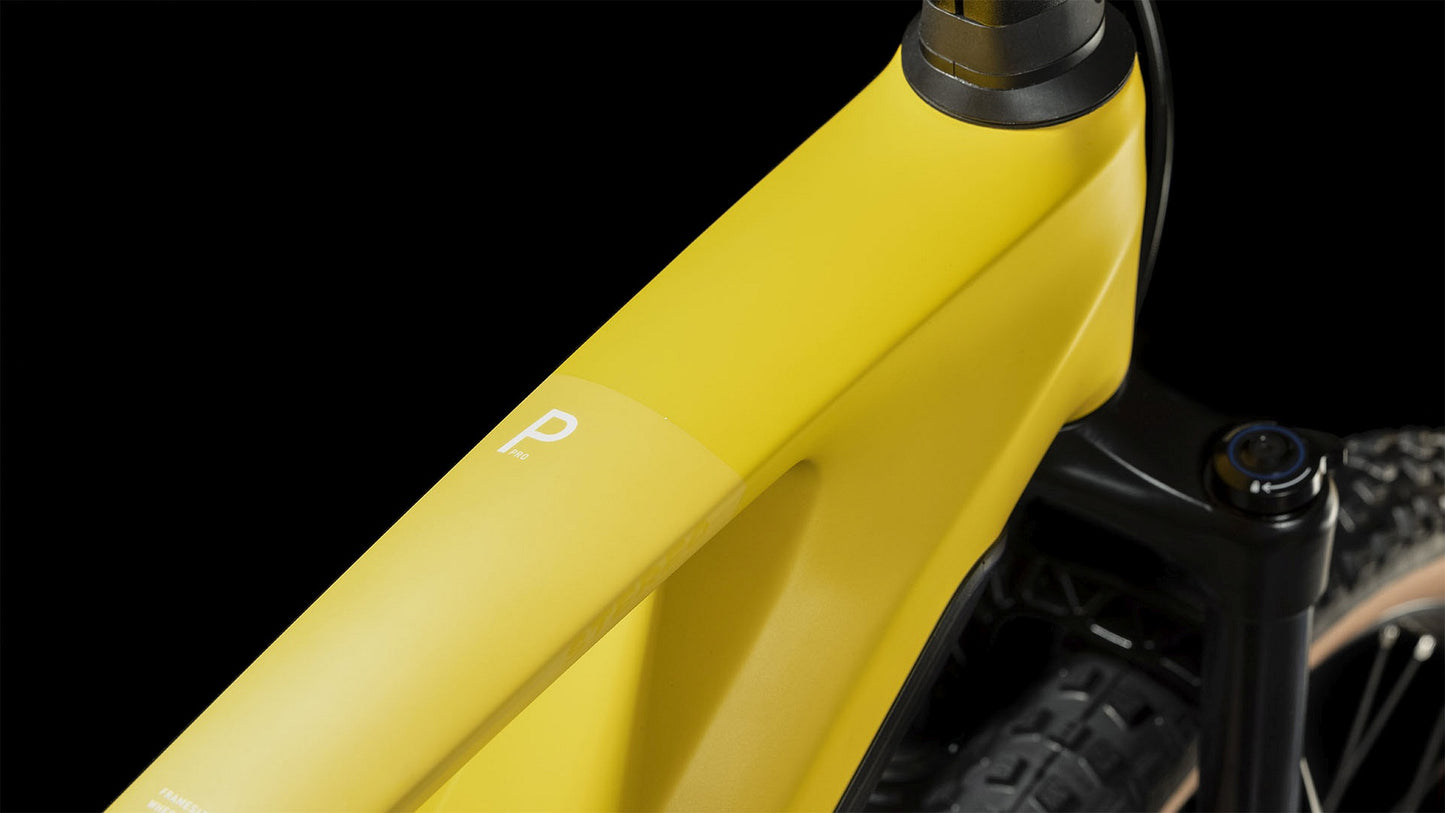

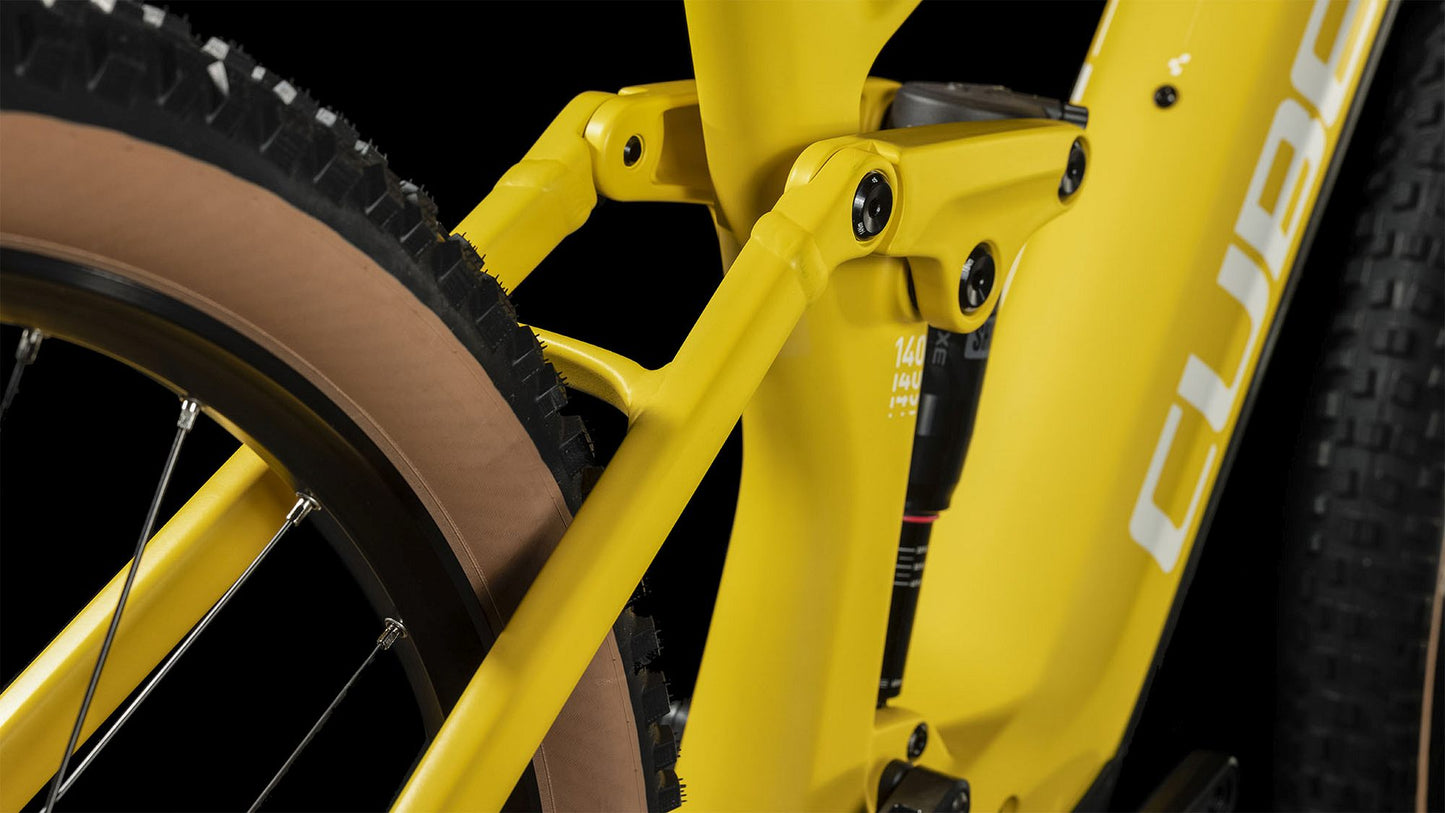

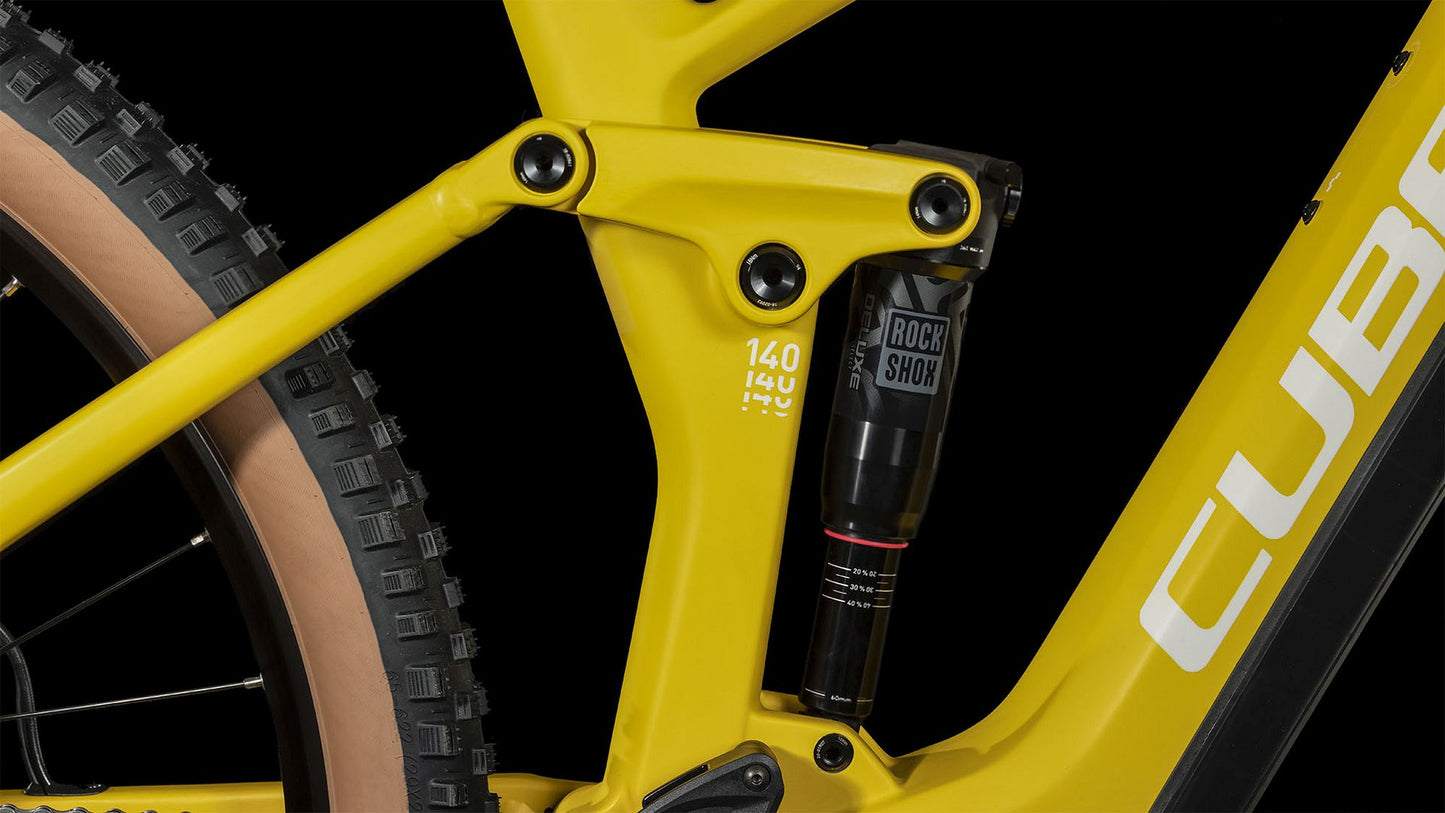

Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
636023
Model year
2024
Colour
vivid/sun
Fork

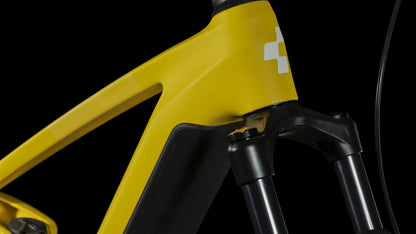

Rockshox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 150mm, Lockout
E-bike System
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Drivetrain and brakes
Front brake
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear brake
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shifters
Shimano Deore SL-M5100, Rapidfire-Plus
Crankset
Acid E-Crank, 165mm (27.5: 36T // 29: 34T)
Cassette
Shimano Deore CS-M5100, 11-51T
Chain
KMC X11
Cockpit
Headset
Acros AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Handlebar
Newmen Evolution SL 318.25, 760mm
Stem
Cube Performance Stem E-MTB, 31.8mm
Bar tape or grips
Acid React Pro
Wheels
Rims
Rodi Tryp 30, 32H, Disc, Tubeless Ready
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front tyre
Schwalbe Nobby Nic, PerfL, 2.6
Rear Tyre
Schwalbe Nobby Nic, PerfL, 2.6
Other parts
Saddle
Venec
Seatpost

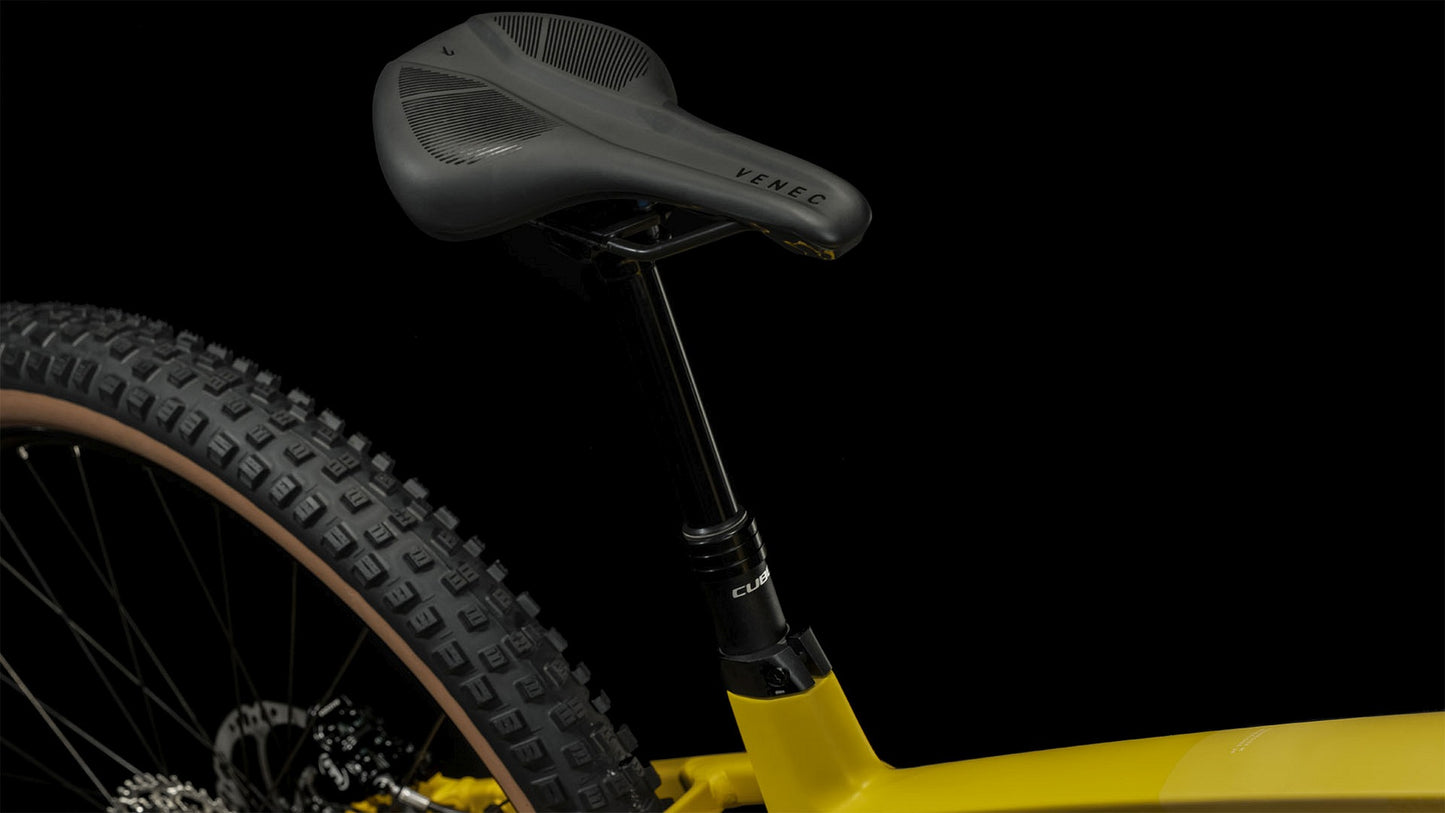

Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp
Cube Screwlock Semi Integrated, 34.9mm
Pedals
NONE
