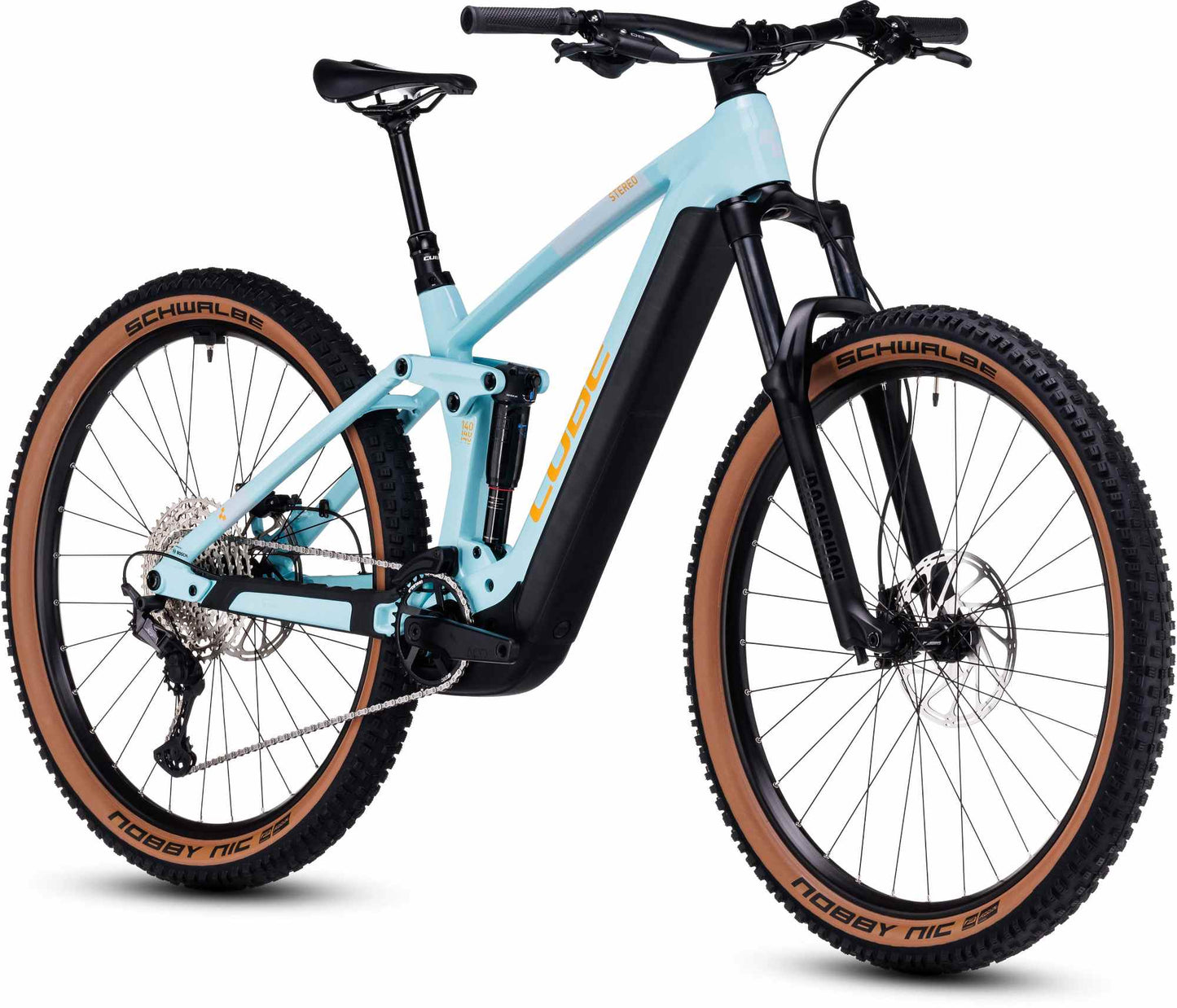

CUBE STEREO HYBRID 140 HPC RACE 750 DAZZLE/ORANGE
CUBE STEREO HYBRID 140 HPC RACE 750 DAZZLE/ORANGE
Plus Points
- Front frame made of light but strong C:62 carbon
- Aluminum rear frame with 140 mm of travel
- Full integration of motor, battery, and cables
- Large range thanks to 750 Wh battery
- CUBE Agile Trail geometry: lively and stable
- Powerful hydraulic disc brakes with extra large brake discs
- Practical 12-speed transmission with 10-51 tooth cassette
- Extra voluminous and grip-friendly 2.6 inch tires
- Adjustable seat post from the handlebars
- Size Split sizing: 27.5 inch wheels in small frame sizes, 29 inch wheels in large sizes
Advisory points
- A hardtail is lighter
- Stereo Hybrid 140 HPC SLX has even more robust tires
Description
CUBE STEREO HYBRID 140 HPC RACE 750 DAZZLE L
Big days out demand a reliable frame and components. That's why, for our Stereo Hybrid 140 HPC Race 750, our starting point was a RockShox 35 Silver Air fork and matching Deluxe Select+ shock plugged into a carbon main frame. Combined with tenaciously grippy Schwalbe 2.6in tyres, new Sram DB8 four-piston hydraulic brake calipers with mineral oil, and a remote dropper post, they're what you need to tackle anything the trail throws your way with complete confidence. Add fourth-generation Bosch CX power with Shimano's super-reliable XT 1x12 gears, and you've got the complete package to make light of any mountain trail.
Frame description
Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
636123
Model year
2024
Colour
dazzle/orange
Fork
Rockshox 35 Silver TK Air, Tapered, 15x110mm, eMTB Approved, 150mm, Lockout
E-bike System
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
display
Bosch Kiox 300
Drivetrain and brakes
Front brake
Sram DB8, Hydr. Disc Brake (203/203)
Rear brake
Sram DB8, Hydr. Disc Brake (203/203)
Rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano Deore SL-M6100, Rapidfire-Plus
Crankset
Acid E-Crank, 165mm (27.5: 36T // 29: 34T)
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
Shimano CN-M6100
Cockpit
Headset
Acros AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Handlebar
Newmen Evolution SL 318.25, 760mm
Stem
Cube Performance Stem E-MTB, 31.8mm
Bar tape or grips
Acid React Pro
Wheels
Rims
Cube EX30, 32H, Disc, Tubeless Ready
Front hub
Cube Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub
Cube Engineered By Newmen, 12mm, Boost, Centerlock
Front tyre
Schwalbe Nobby Nic, PerfL, 2.6
Rear Tyre
Schwalbe Nobby Nic, PerfL, 2.6
Other parts
Saddle
Venec
Seatpost
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp
Cube Screwlock Semi Integrated, 34.9mm
Pedals
NONE
