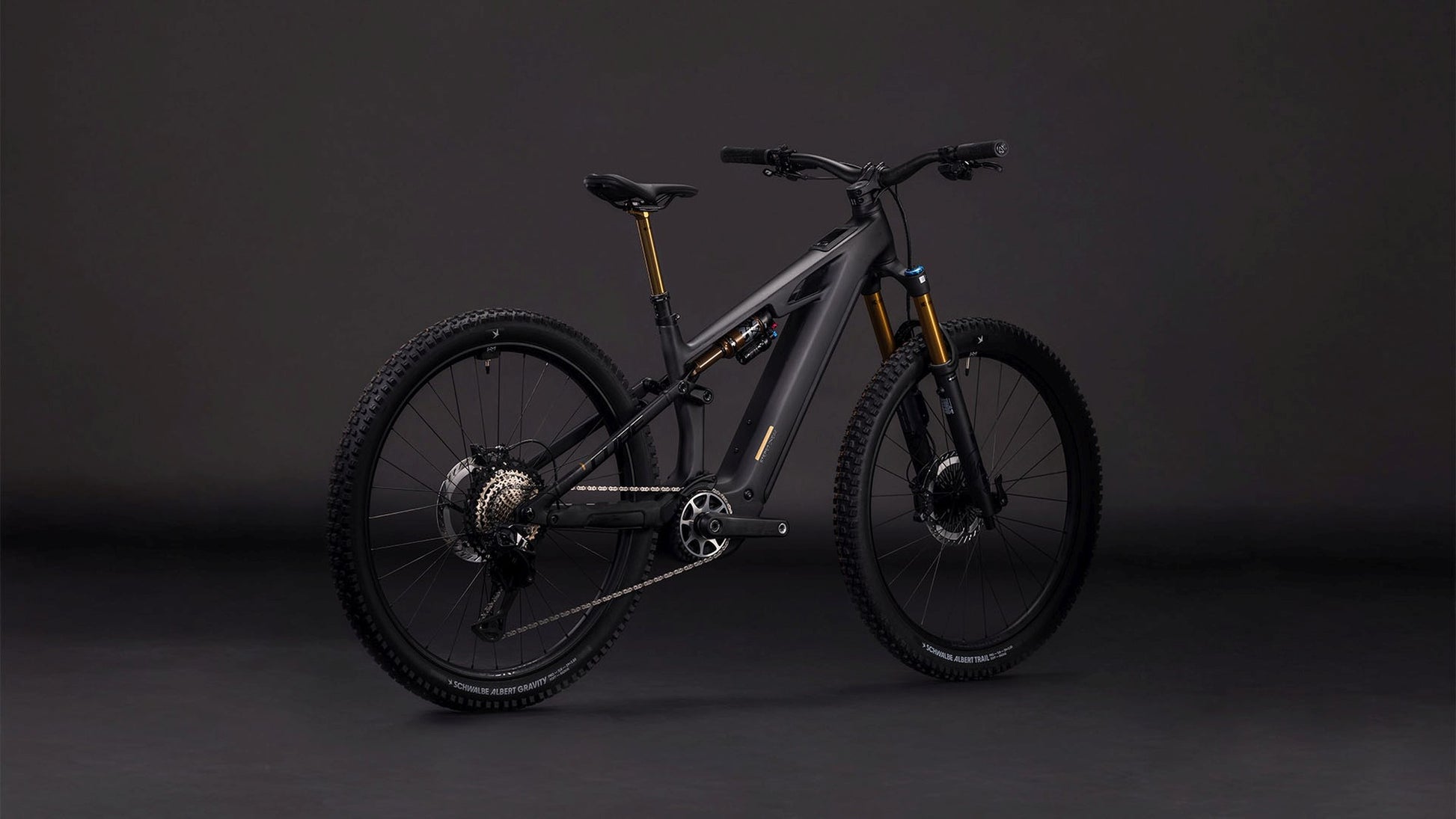

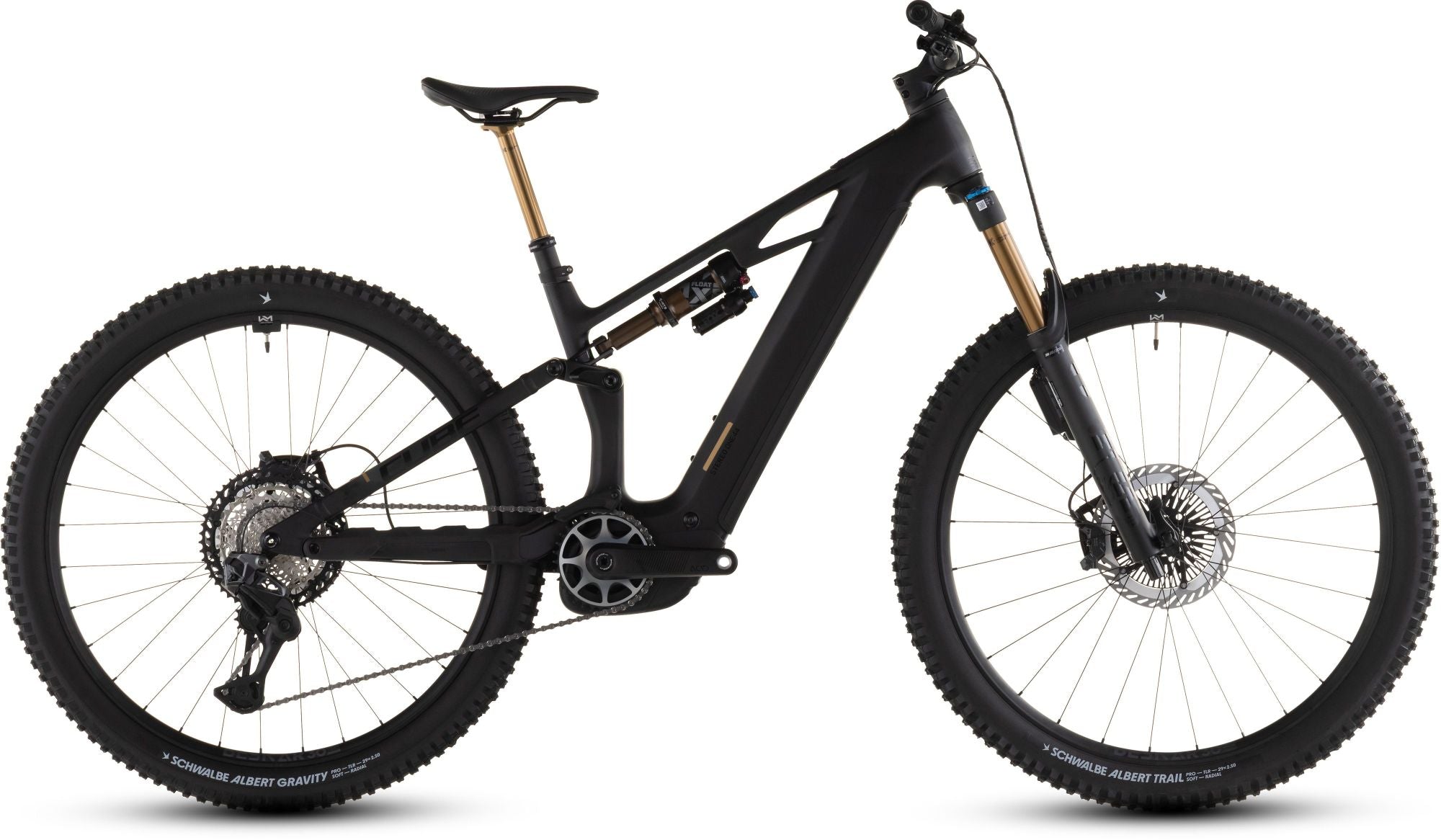

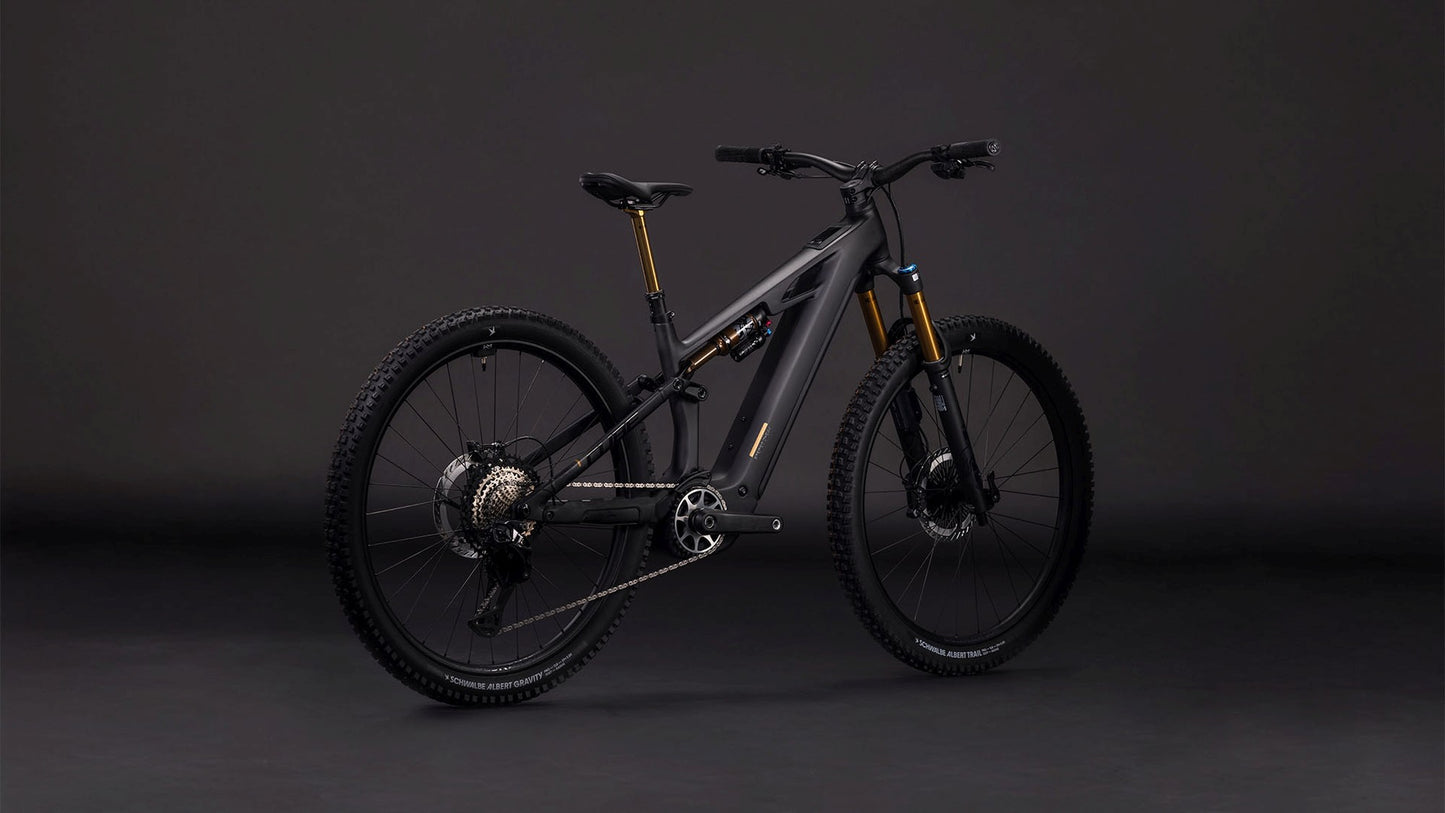

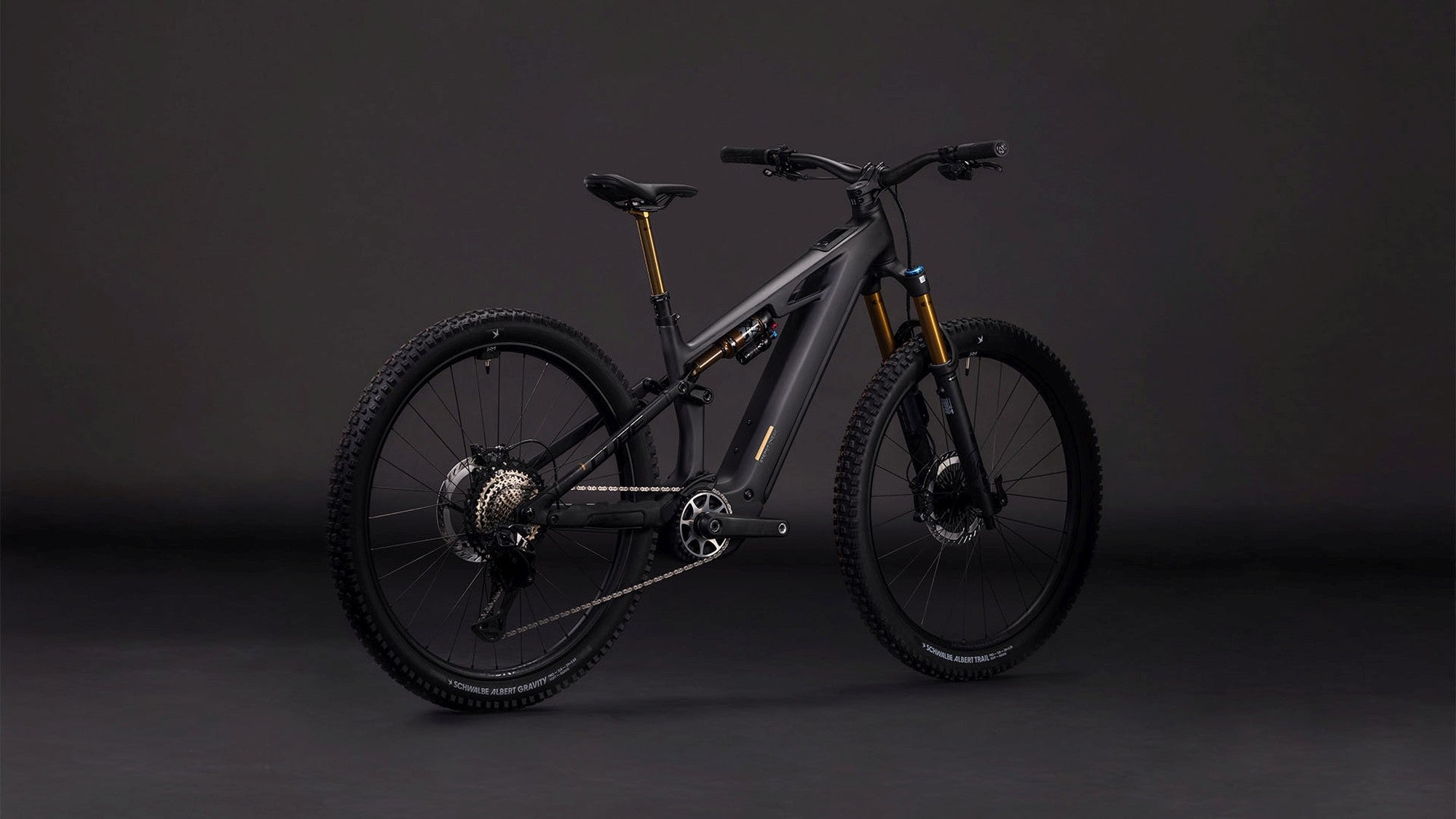

CUBE STEREO HYBRID ONE44 HPC AT 800 CARBON/GOLD
CUBE STEREO HYBRID ONE44 HPC AT 800 CARBON/GOLD

Plus Points
- Light but strong front frame made of C:62 carbon, aluminum rear triangle
- Lively and capable Agile Trail geometry
- Adjustable angle head tube
- Bosch CX motor (max. 100 Nm)

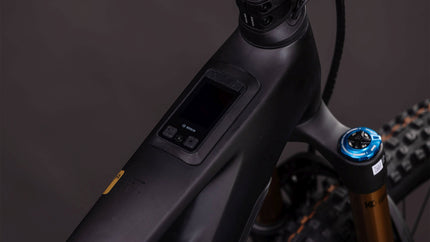

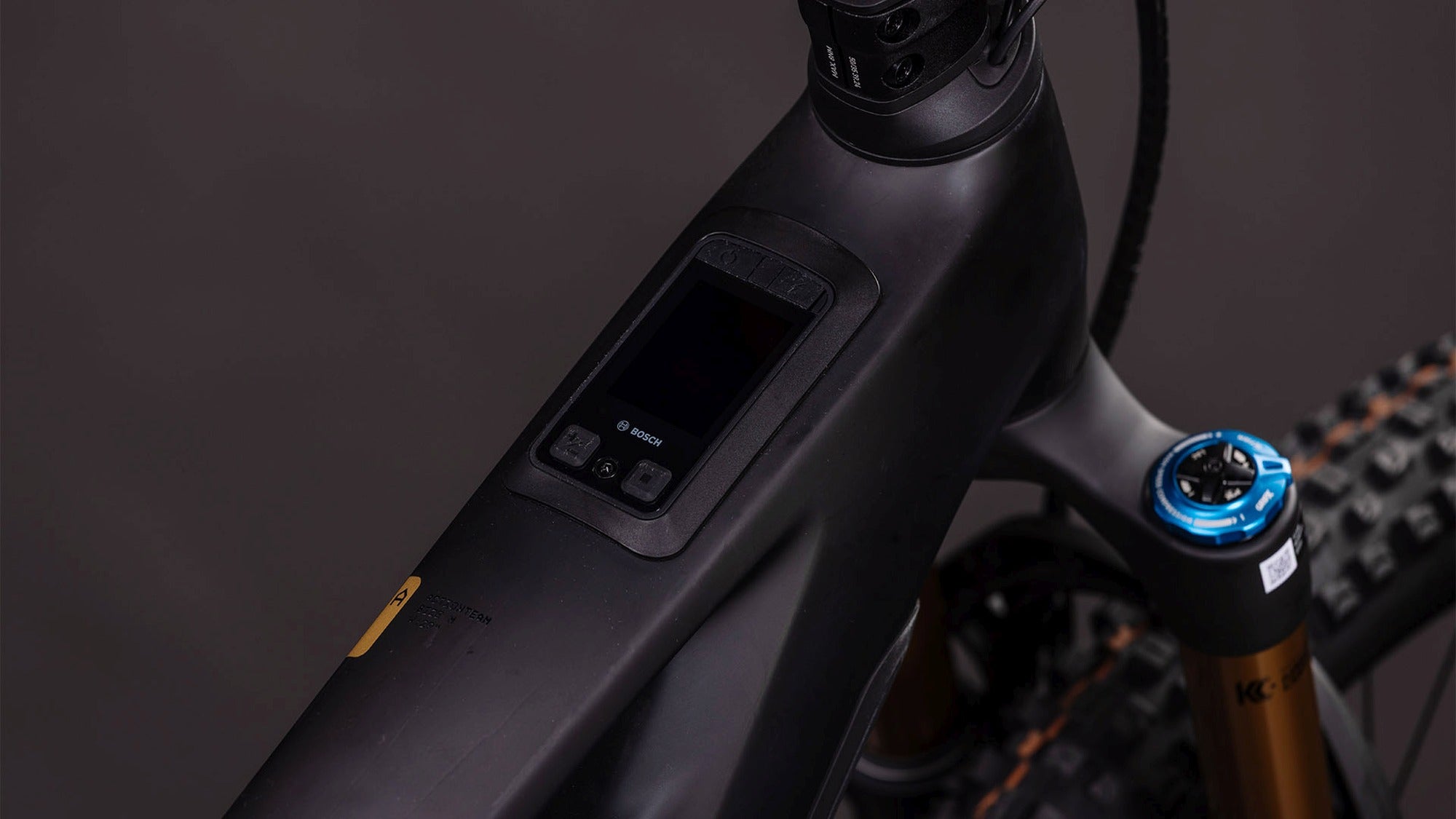

- Integrated Bosch Kiox 400C display with Mini-Remote
- Large 800 Wh battery
- X-Connect plug in the head tube
- Fox 36 Factory fork with 150 mm travel and GripX damper

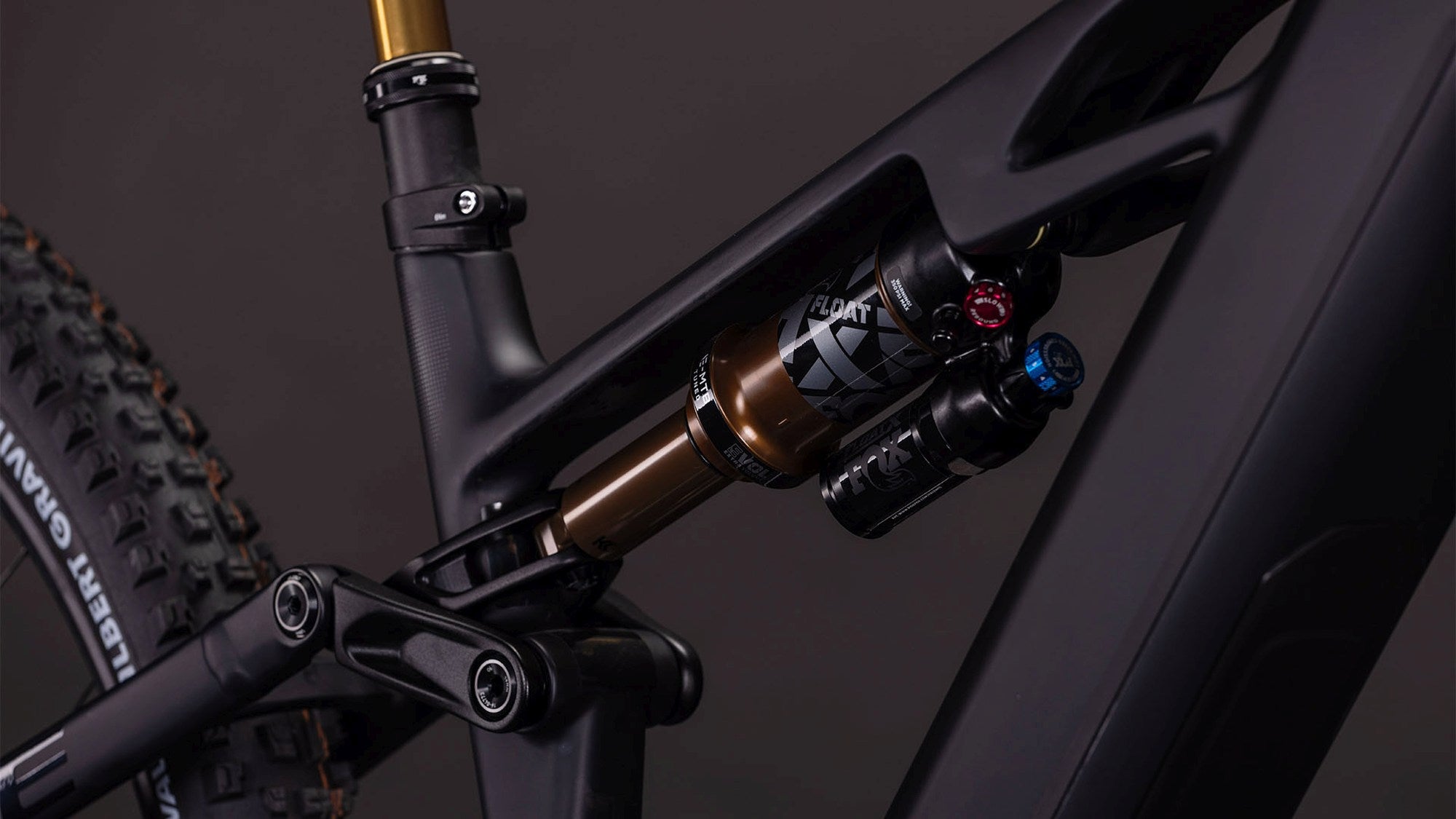

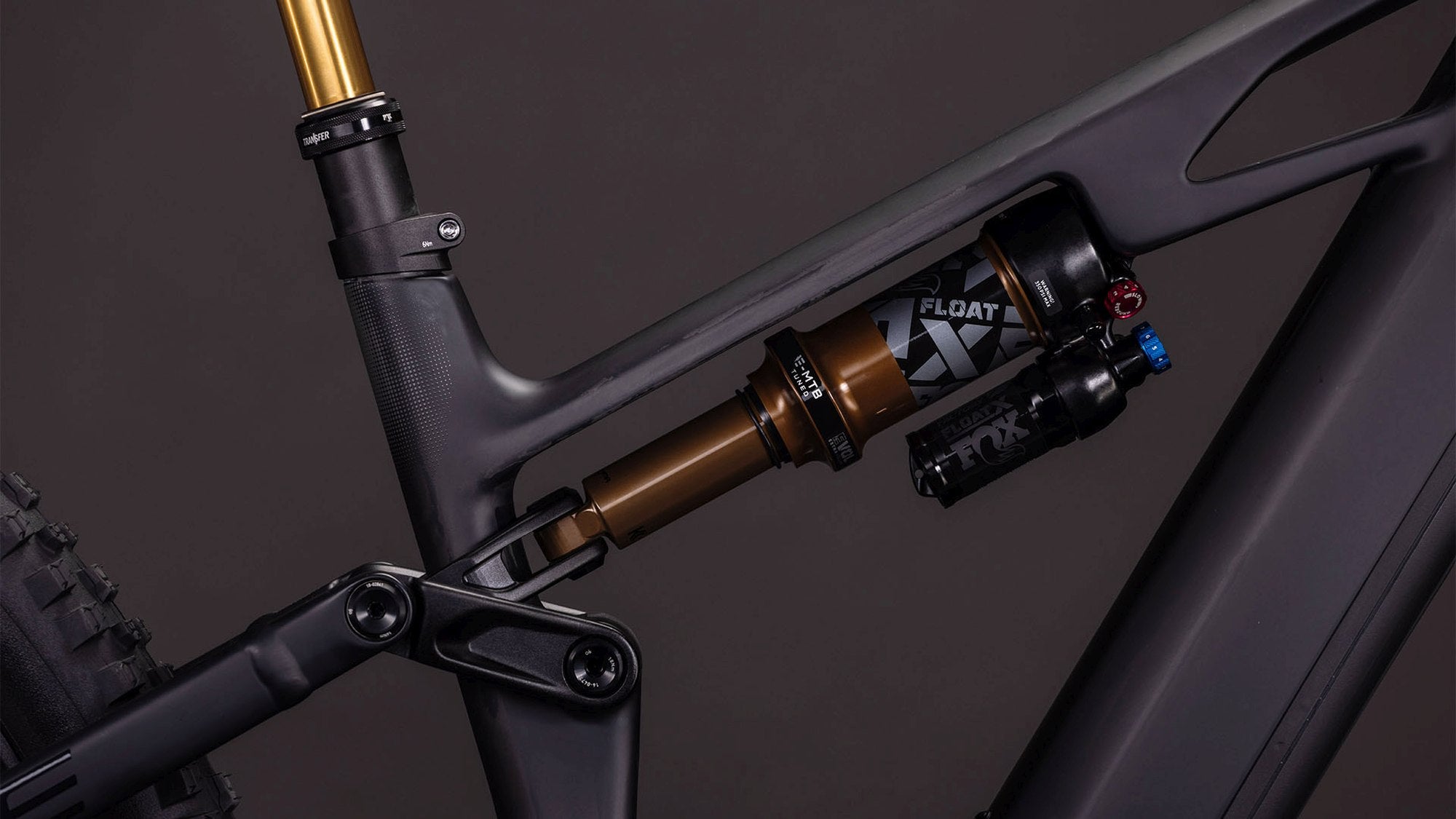

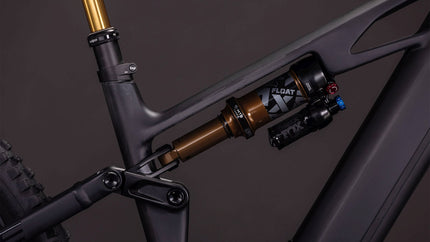

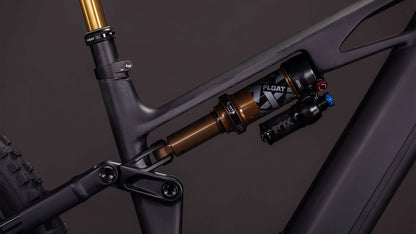

- Fox Float X Factory rear shock with air suspension and 140 mm travel
- Electronic 12-speed Shimano XT Di2 drivetrain
- Powerful XT four-piston brakes with ABS
- Hydraulic dropper seatpost
- Light but strong Newmen Beskar 30 wheels
- Highly grippy, 2.6-inch wide Schwalbe Magic Mary and Big Betty tires
- Size Split: 27.5-inch wheels on small sizes and 29er wheels on large sizes
Advisory points
- The Stereo Hybrid ONE44 SLT is lighter
- There are no FE versions ('fully equipped') of the Stereo Hybrid ONE44 HPC
Description
Frame description
A great bike is all about the detail, and the Stereo Hybrid ONE44 HPC's frame is chock-full of clever details. You'll notice the Internal Cable Routing because it so neatly complements the High Performance Carbon main triangle's clean lines, while the angle-adjustable headset means you can tailor the handling to your specific requirements. A Direct Mount chain guard keeps the gears on the straight and narrow, and the neatly integrated Bosch top tube controller plus Purion 400 display show you what's going on with the powerful Bosch CX drive and 800Wh PowerTube battery at a glance. With a 150mm fork and 140mm of rear-wheel travel, it's ready to take on the toughest of trails. The UDH dropout means it's future-proof, too. And, with Size Split, there's a wide range of sizes to suit most riders.
Product specifications
Frame
Model year
2026

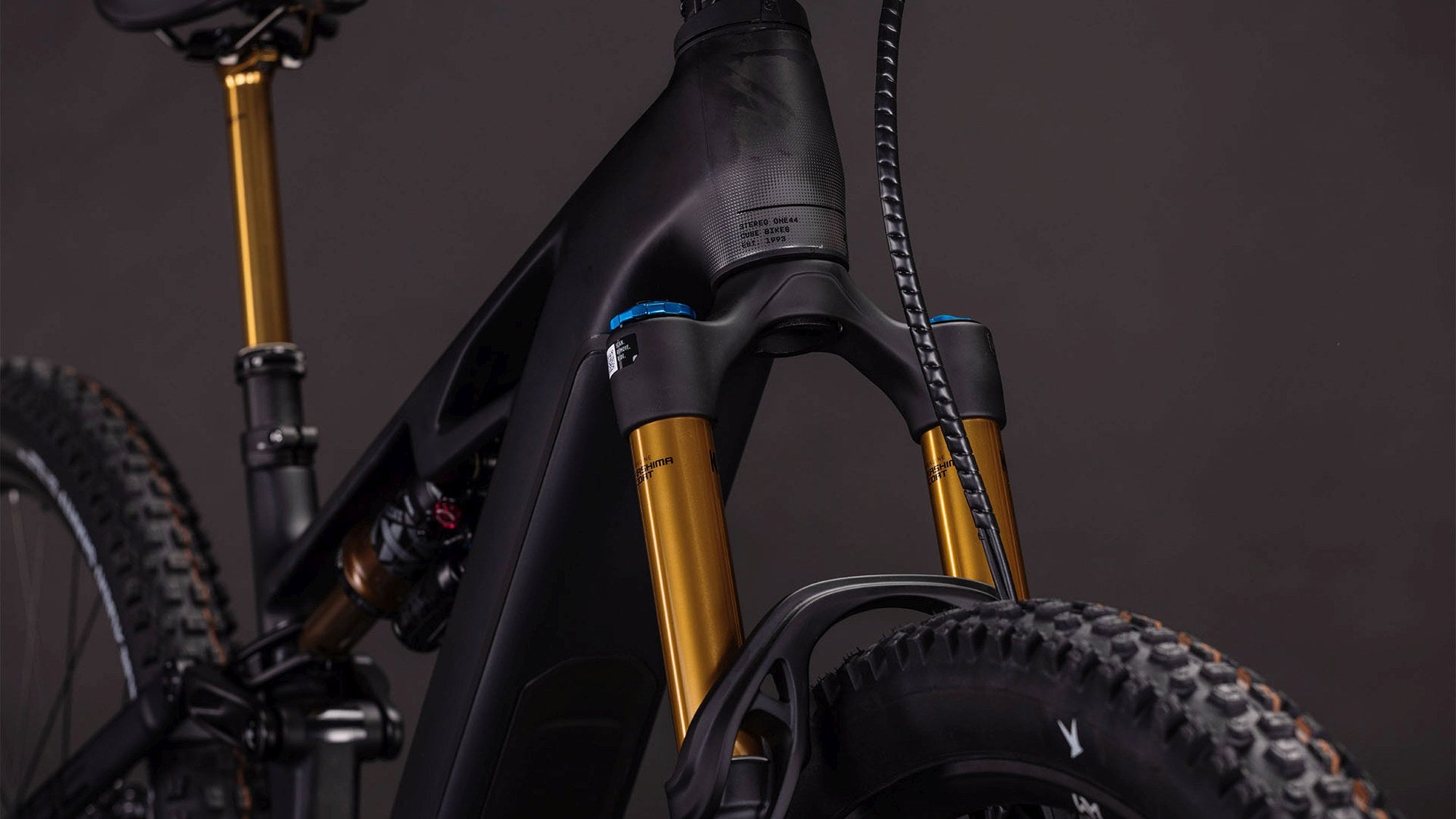

Fork
Fox 36 Float Factory GRIPX, Tapered, 15x110mm, E-Bike Optimized, 150mm (S: 140mm)
E-bike System
Engine
Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Battery
Bosch PowerTube 800
display
Bosch Kiox 400C
Drivetrain and brakes
Front brake
Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203)
Rear brake
Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203)
Rear derailleur
Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
Shifters
Shimano XT Di2 SW-M8250-IR, Direct Attach

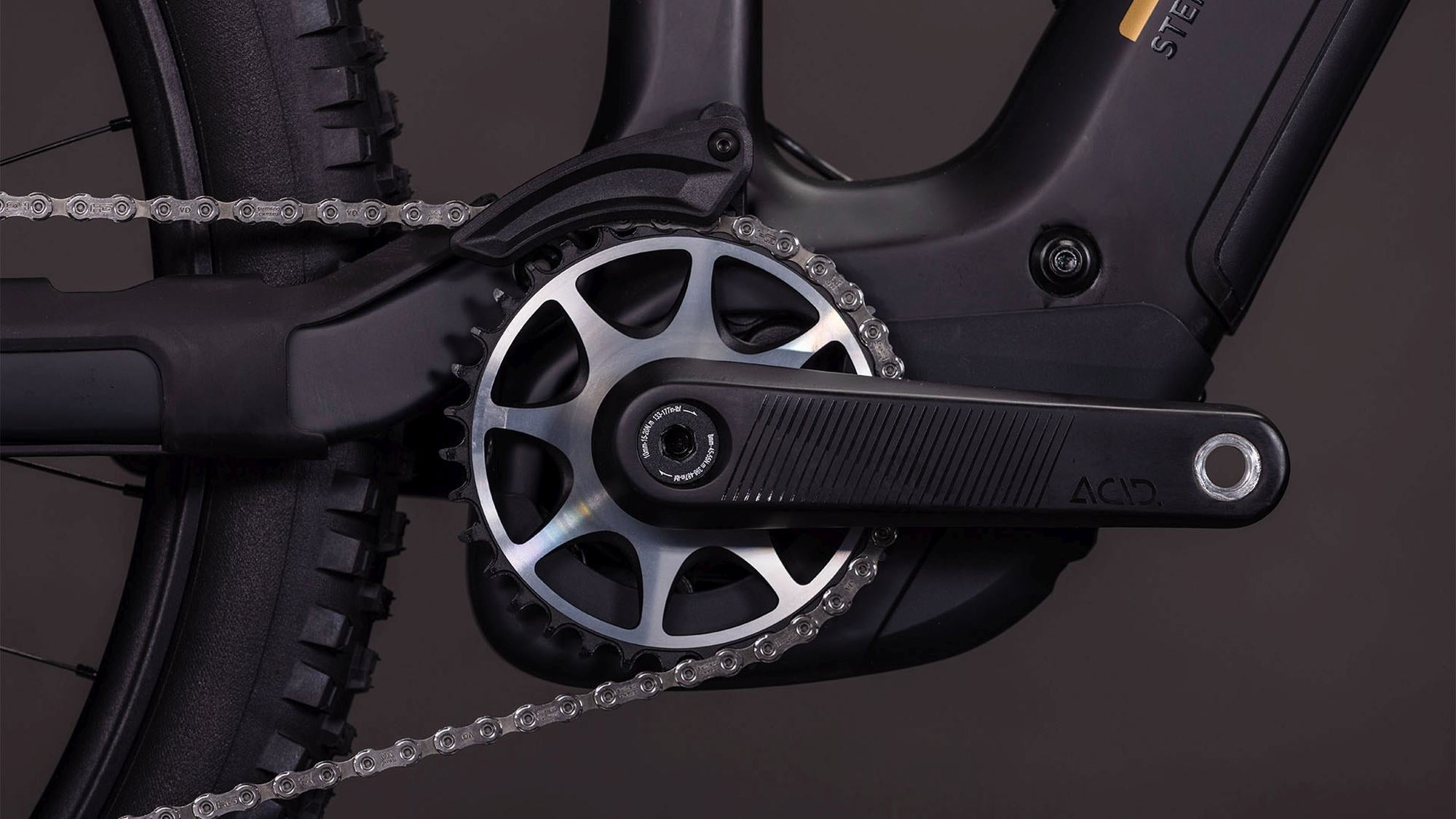

Crankset

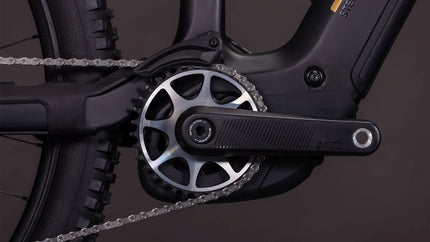

Acid MTB Hybrid Carbon, 27.5: 36T // 29: 34T
Cassette
Shimano XT CS-M8100, 10-51T
Chain
Shimano CN-M8100
Cockpit
Headset
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Handlebar
RaceFace ERA 35
Stem
Cube Performance Stem E-MTB 35, FPI-Link
Bar tape or grips
Acid Disrupt
Wheels
Wheels
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre
Schwalbe Albert Trail Pro, Addix Soft, Kevlar, 2.5
Rear Tyre
Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Other parts
Saddle
Acid Venec EMTB Trail 140
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated
Seatpost clamp
Cube Semi-Integrated
Pedals
Acid PP MTB
