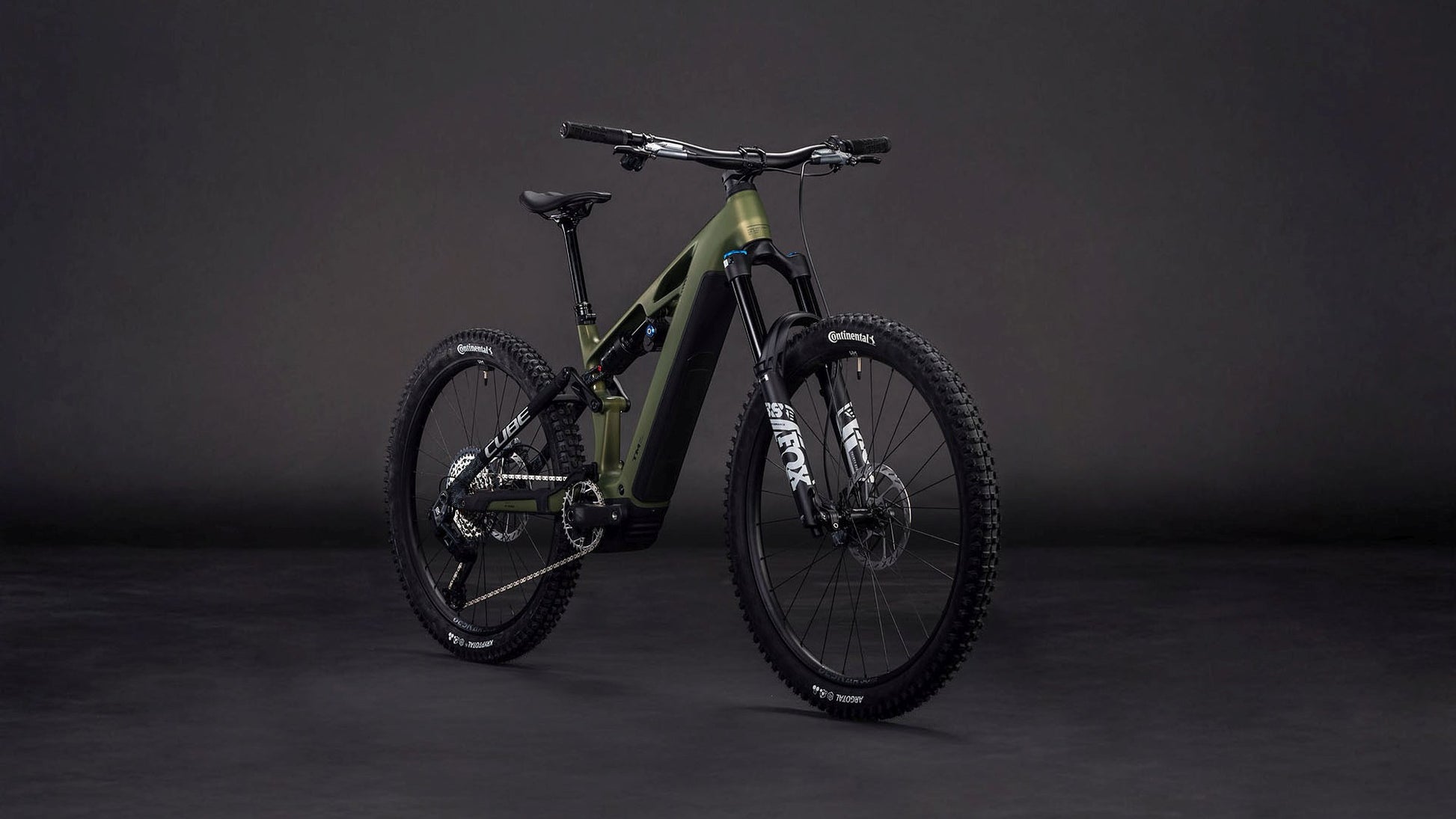

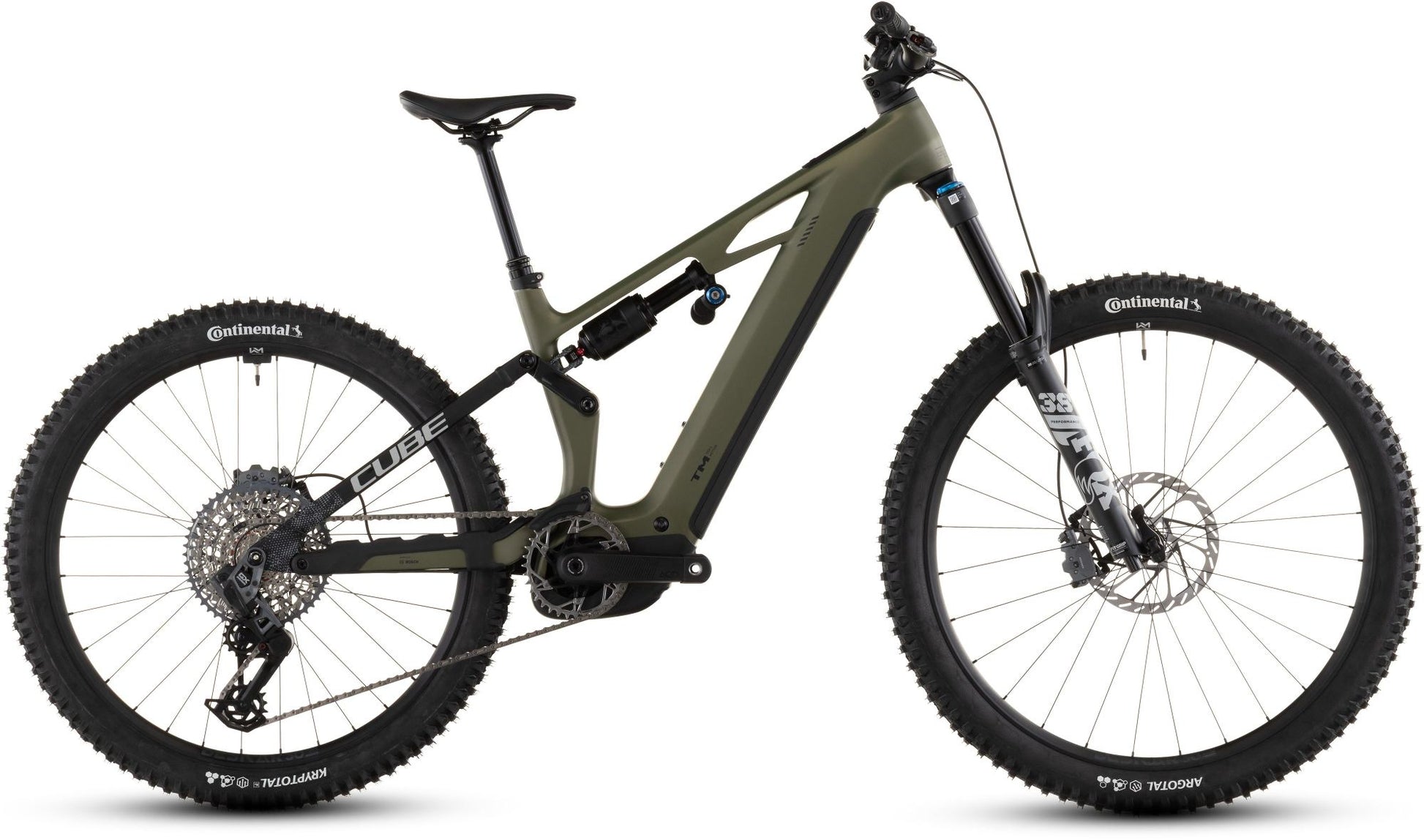

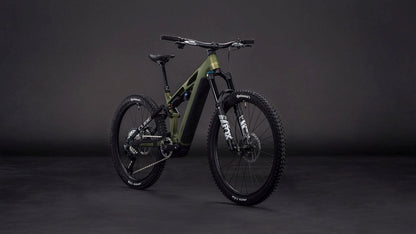

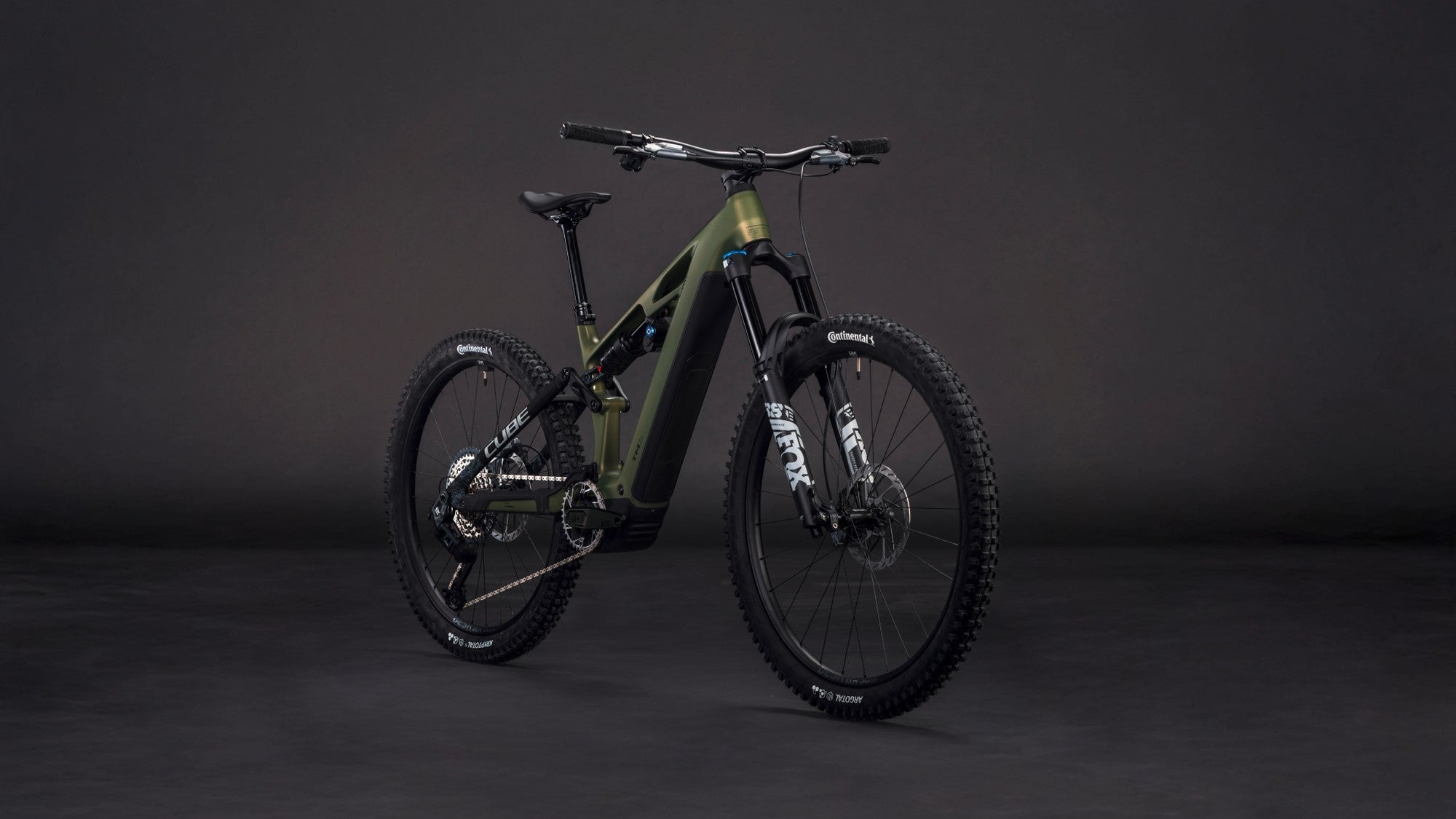

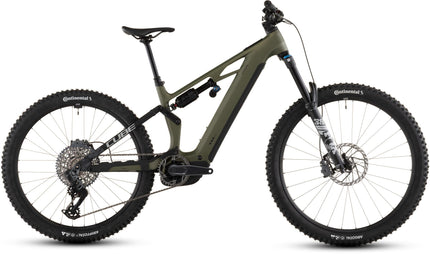

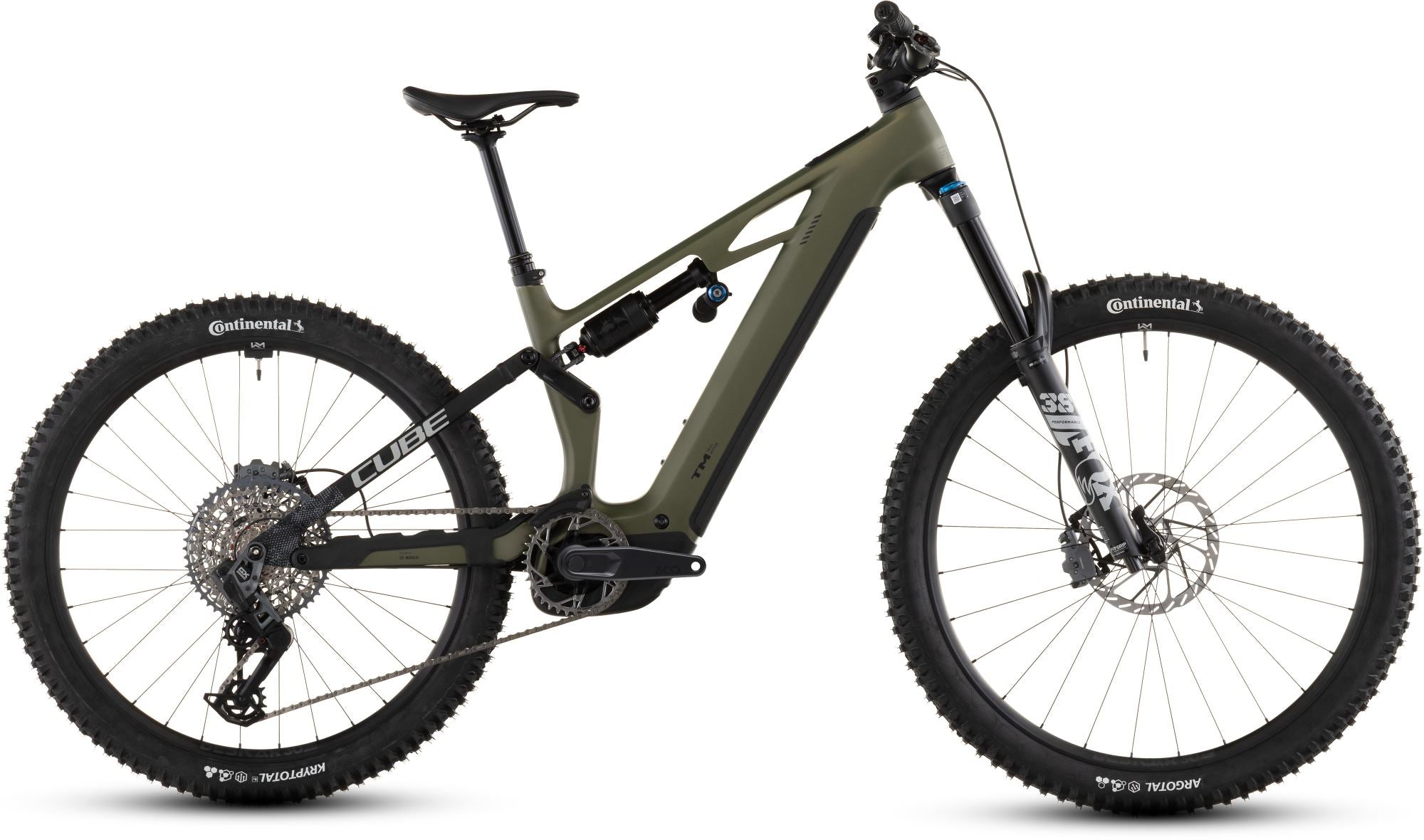

CUBE STEREO HYBRID ONE77 HPC TM 800 REEDGREEN/MATRIX
CUBE STEREO HYBRID ONE77 HPC TM 800 REEDGREEN/MATRIX

Description
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Product specifications
Frame
Model year
2026
Fork

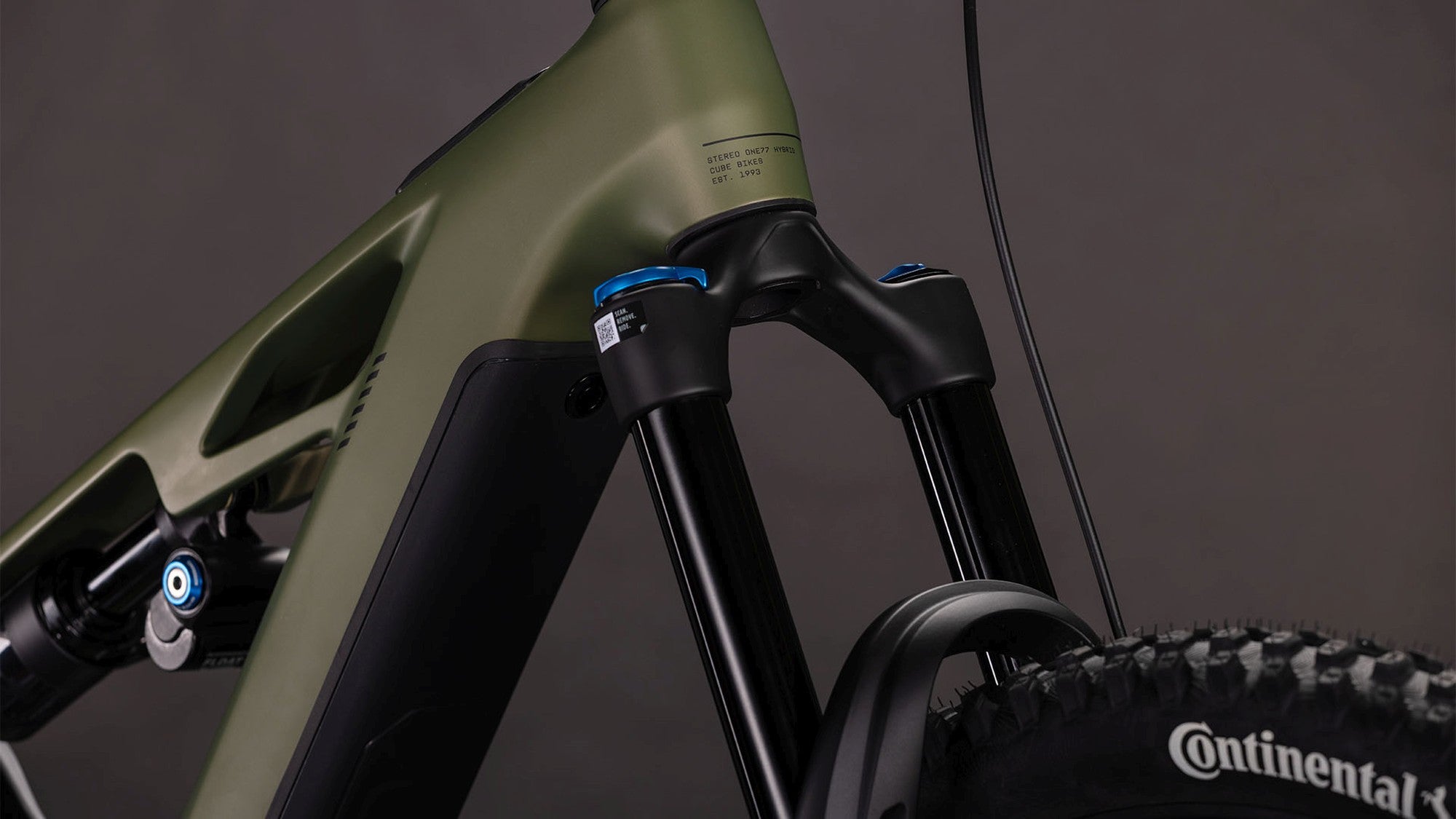

Fox 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm
E-bike System
Engine
Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Battery
Bosch PowerTube 800
display

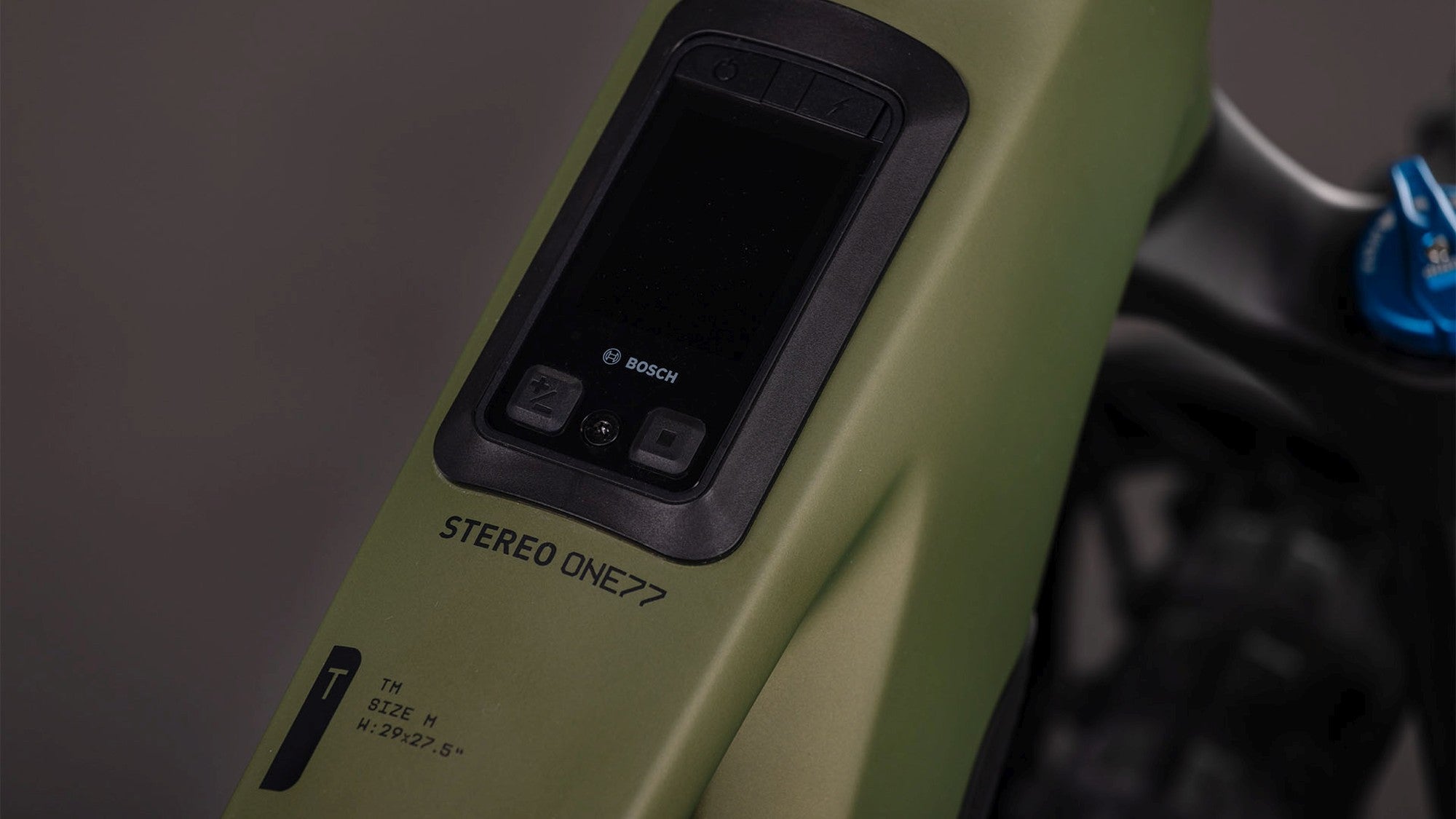

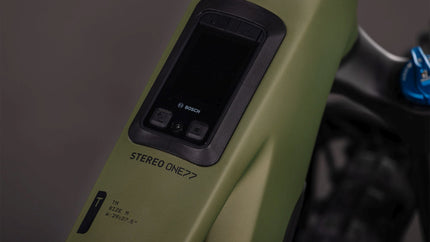

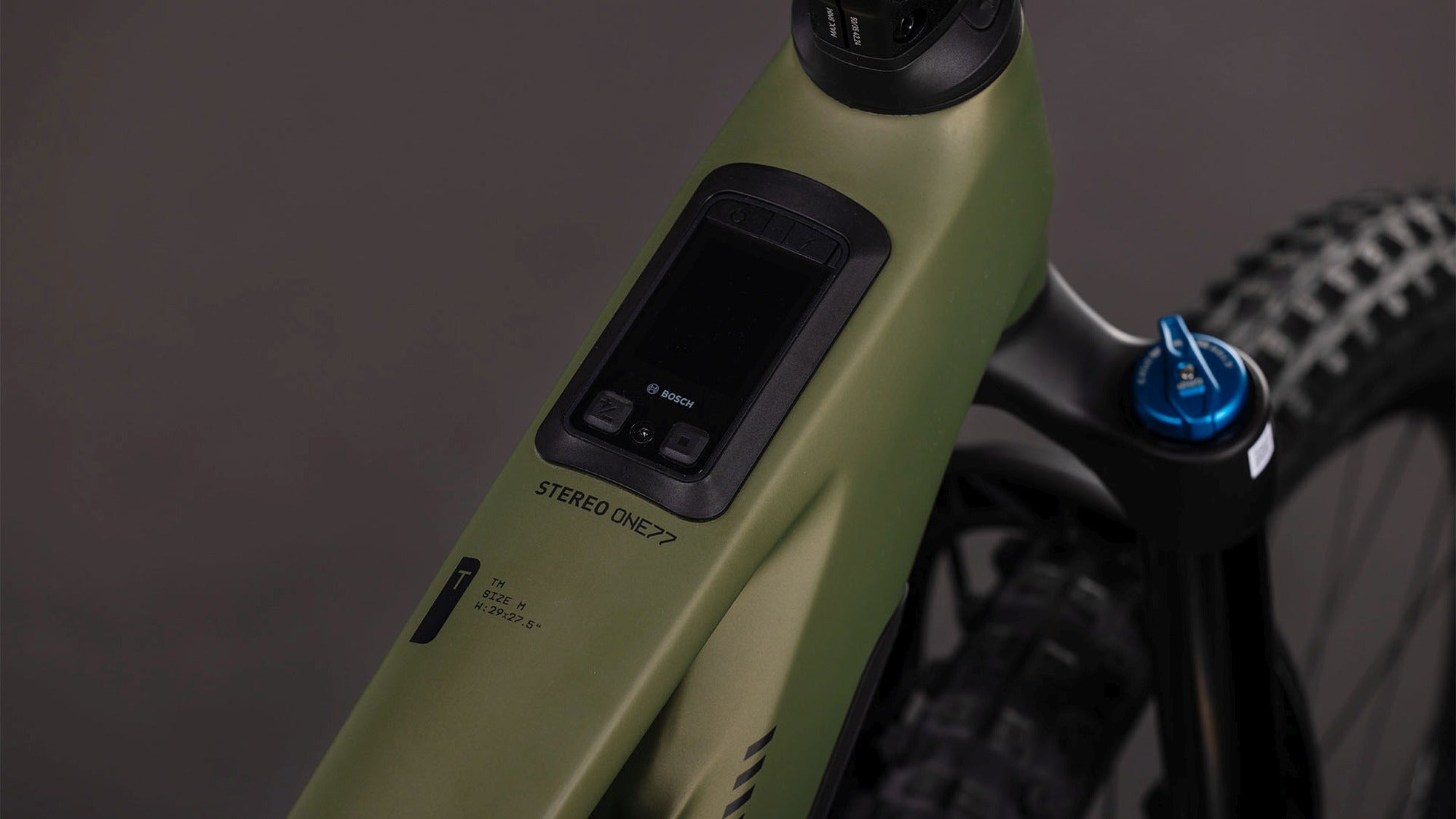

Bosch Kiox 400C
Drivetrain and brakes
Front brake
Sram Maven Bronze, Hydr. Disc Brake (200/200)
Rear brake
Sram Maven Bronze, Hydr. Disc Brake (200/200)

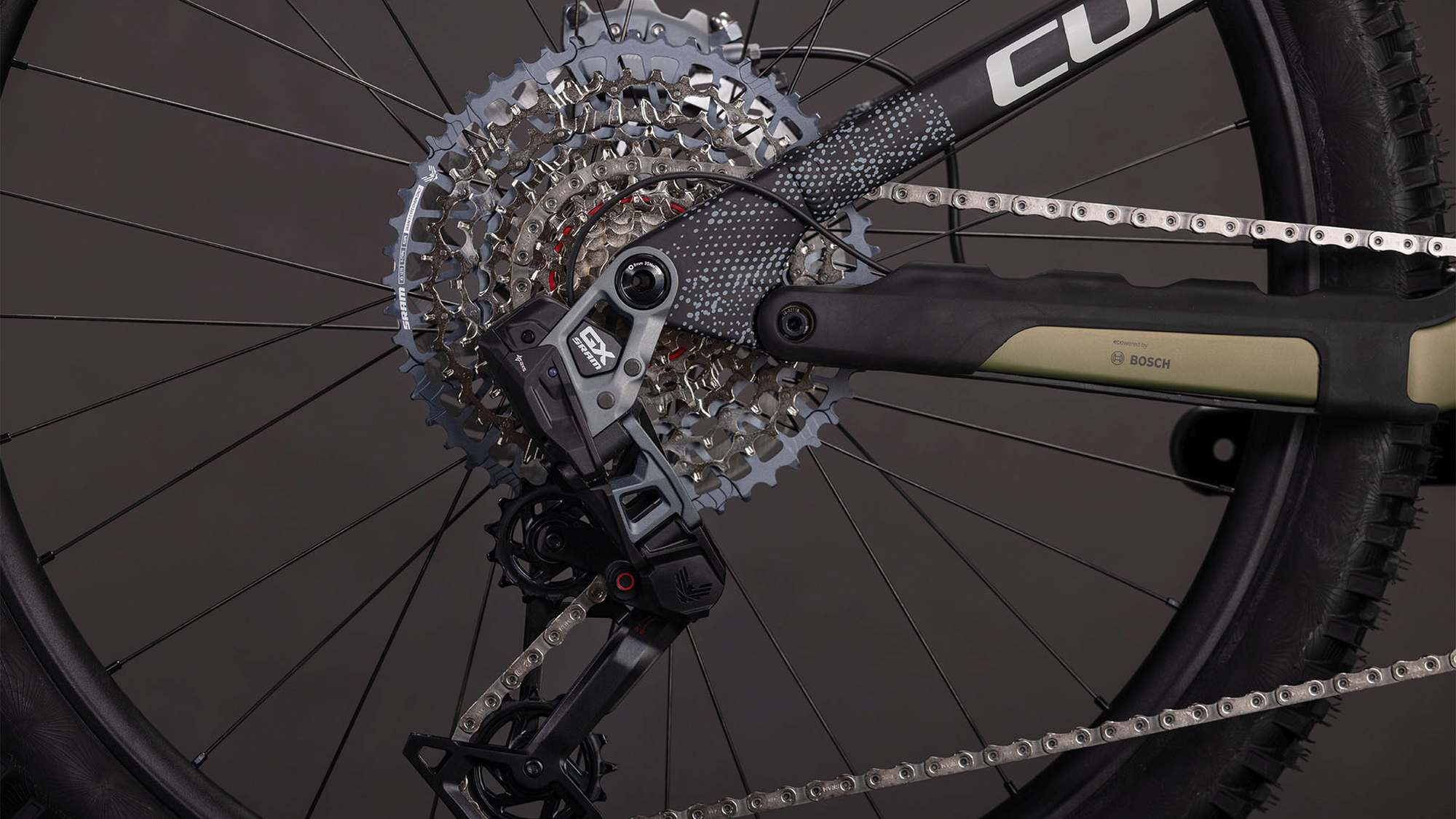

Rear derailleur
Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
Shifters
Sram AXS™ Pod Controller

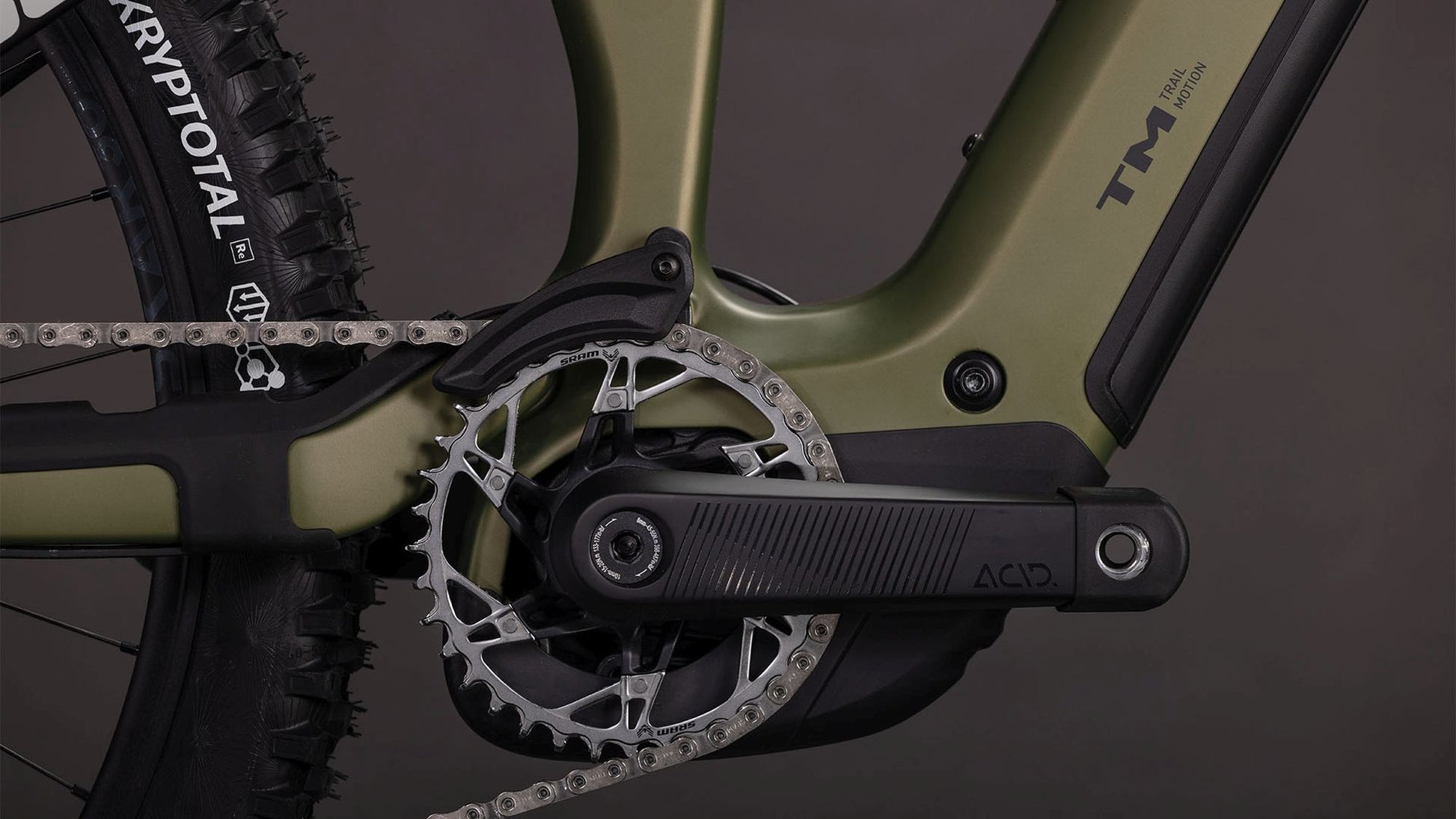

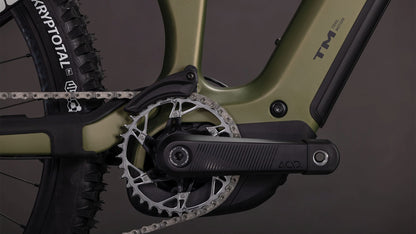

Crankset
Acid MTB Hybrid Carbon, 36T
Cassette
Sram XS-1275, 10-52T
Chain
Sram GX Eagle™ Transmission
Cockpit
Headset
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Handlebar
Cube Rise Trail Bar 35
Stem
Cube Performance Stem E-MTB 35, FPI-Link
Bar tape or grips
Acid Disrupt, Soft Compound
Wheels
Wheels
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre
Continental Argotal, Enduro Soft, Tubeless Ready, 2.4
Rear Tyre
Continental Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Other parts
Saddle
Acid Venec EMTB Trail 140
Seatpost
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp
Cube Semi-Integrated
Pedals
Acid PP MTB
