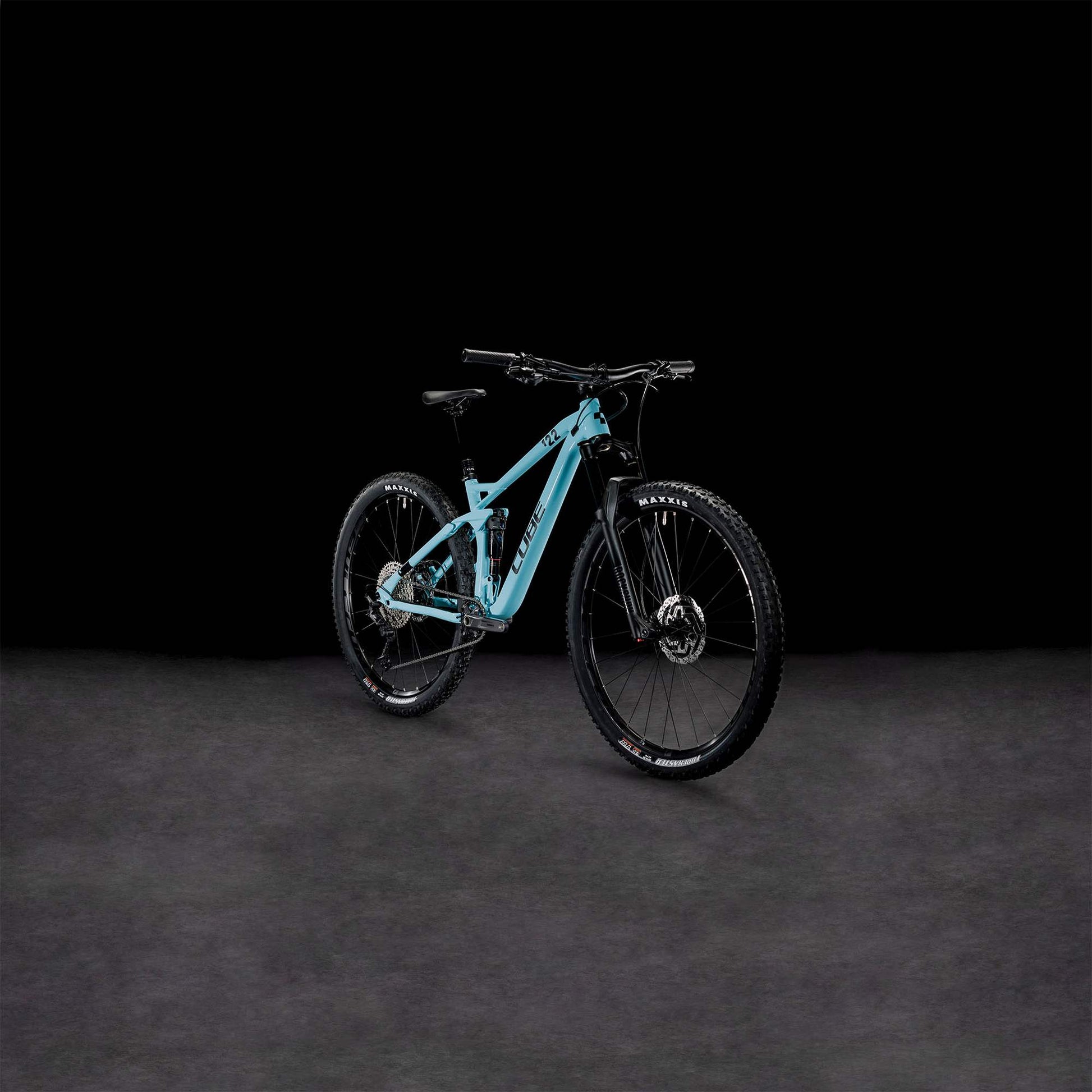

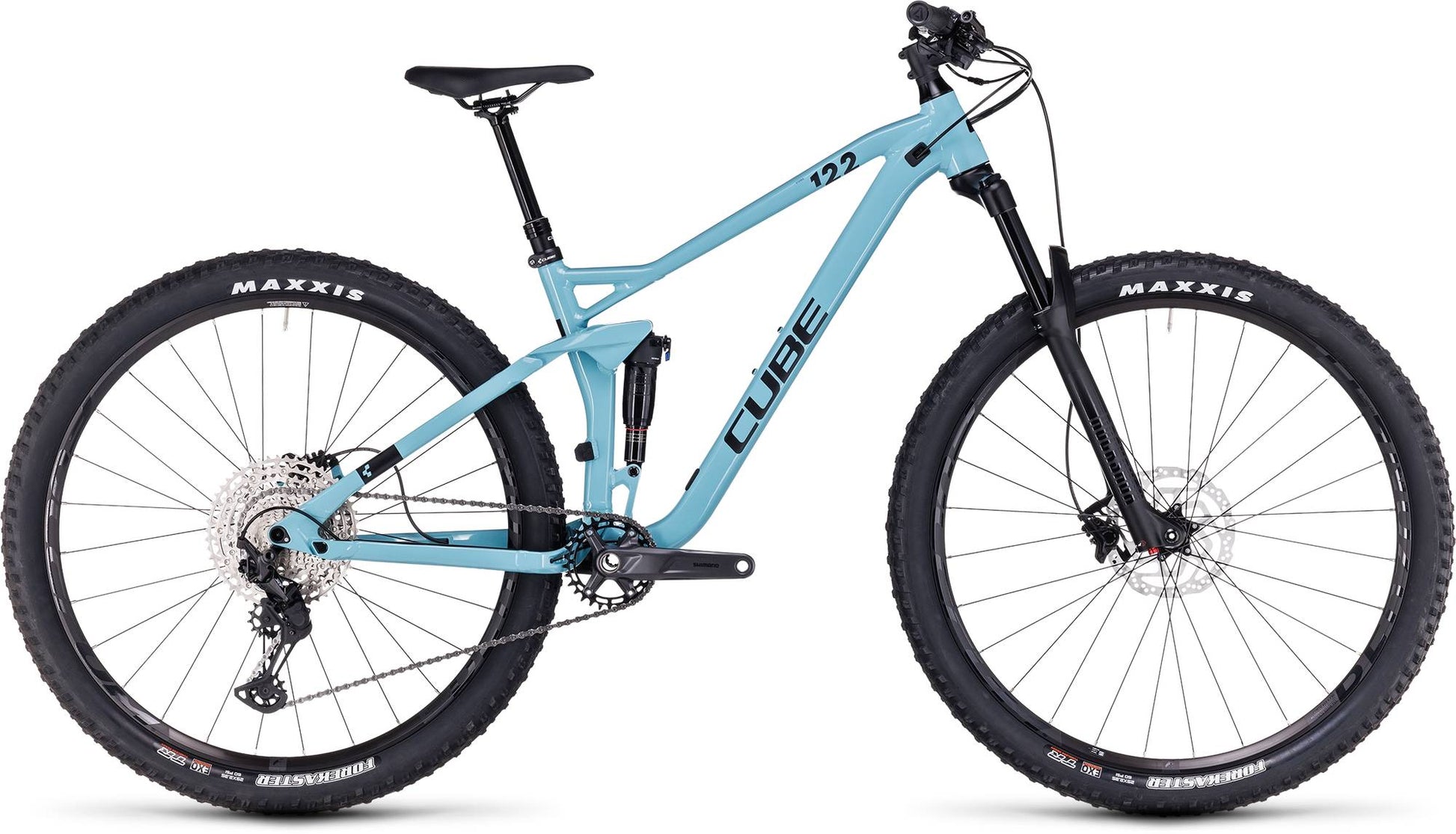

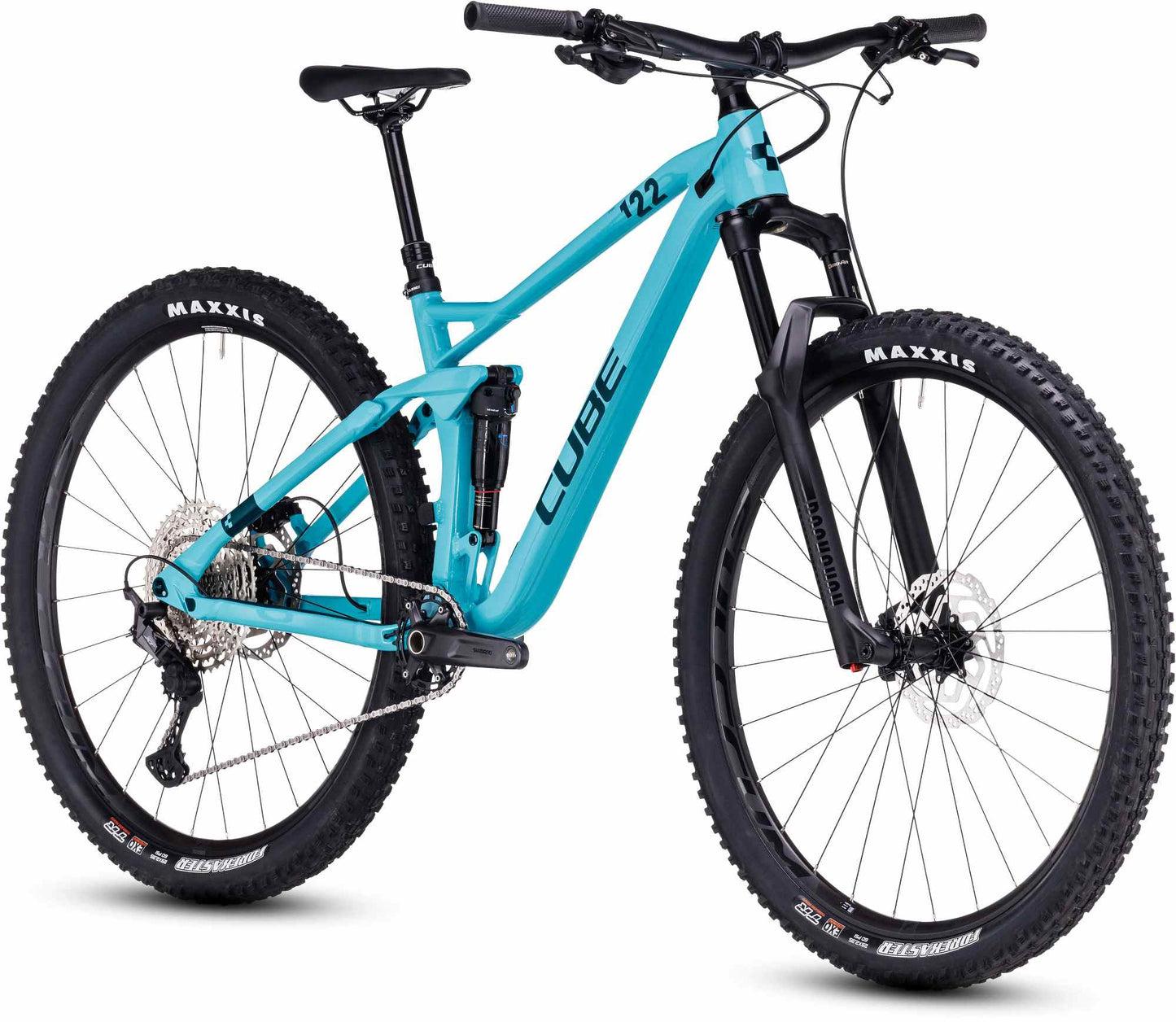

CUBE STEREO ONE22 RACE MAYABLUE/BLACK
CUBE STEREO ONE22 RACE MAYABLUE/BLACK
Plus Points
- Strong yet very light frame made of triple-butted Superlite aluminum
- 120 mm rear travel, 130 mm at the front
- Internal cable routing
- CUBE Agile Trail geometry: both stable and lively
- CUBE ETC 4-Link suspension system: optimal balance between comfort, efficiency, and traction
- Practical and user-friendly 1x12 drivetrain
- Size XS has smaller, 27.5 inch wheels
- Handlebar-adjustable dropper seat post
Advisory points
- Heavier than a hardtail MTB
- Less light than the carbon Stereo ONE22 models
Description
CUBE STEREO ONE22 RACE MAYABLUE/BLACK XL

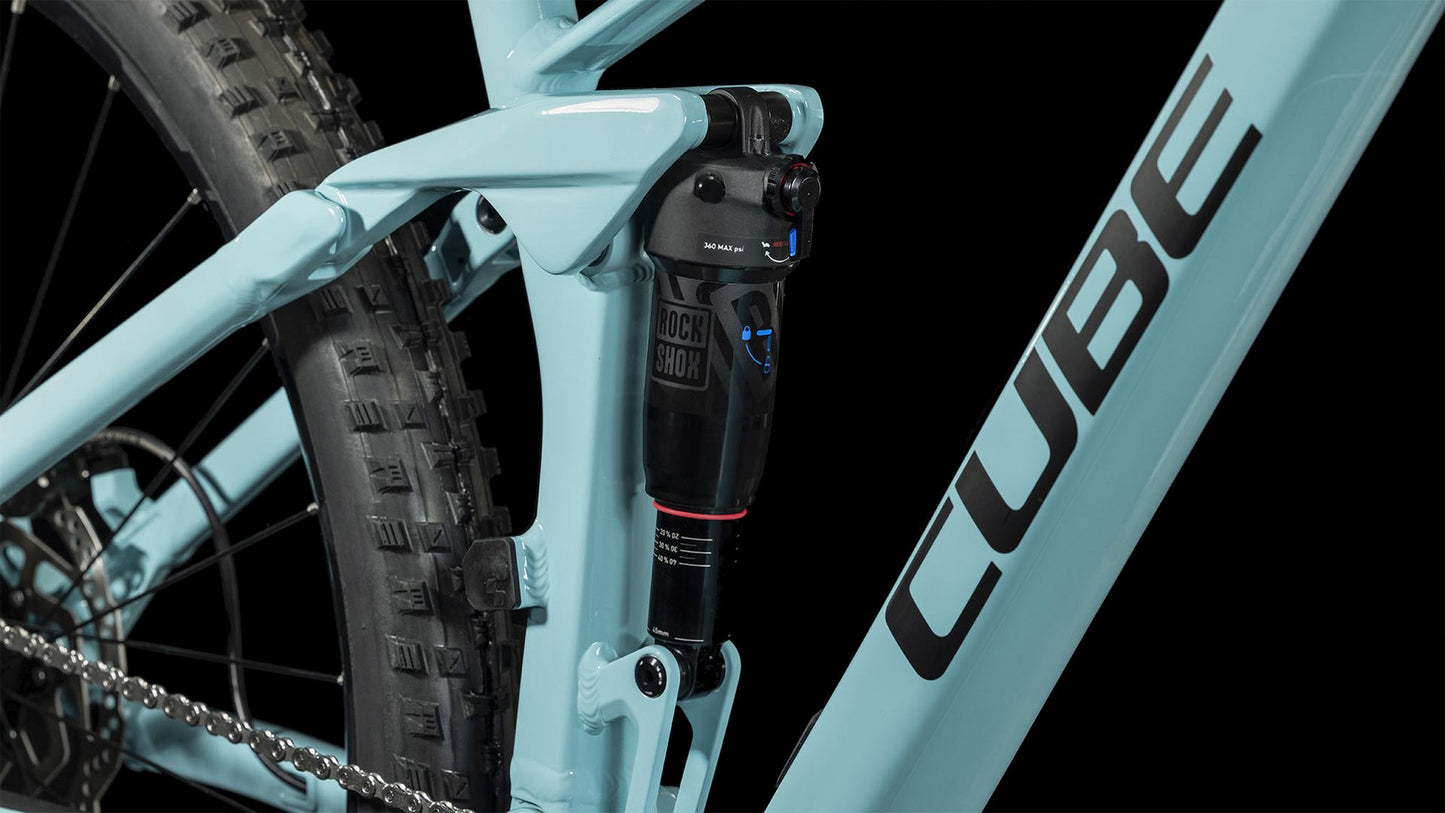

Class-leading trail performance and comfort is the whole point of the Stereo ONE22 Race. To that end, we chose Shimano's legendary XT 1x12 transmission for its reliability and extraordinary range. Then we added smooth, powerful Shimano hydraulic disc brakes – so you're always in complete control, whether you're climbing or descending. The RockShox Recon Gold air fork and Deluxe Select+ rear shock deliver superbly comfortable bump-taming performance. And it's all topped off with a Fulcrum wheelset shod with Maxxis tyres, and a CUBE dropper post for better control on the downhills. The only remaining question is, where would you like to explore next?
Frame description
Like all our frames, the Stereo ONE22 is all about providing the best performance at the lowest possible weight. Hydroformed tubing is triple butted to save as much weight as possible without sacrificing strength. The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency. And it's all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times. There's even a SizeSplit XS option with 27.5in wheels for riders who are shorter in stature, but don't want to compromise on performance.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
653201
Model year
2024
Colour
mayablue/black

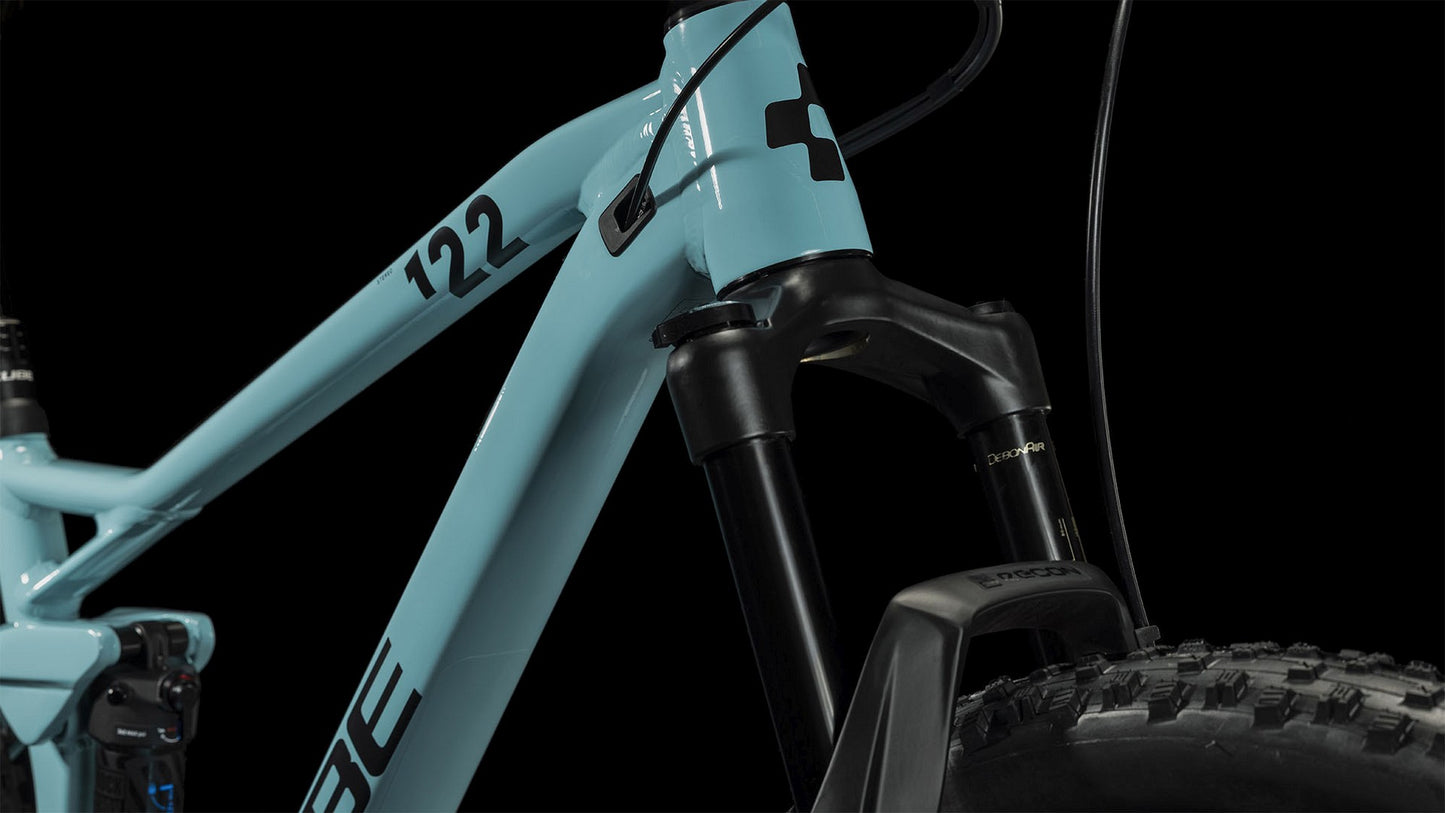

Fork
Rockshox Recon Gold RL Air, Tapered, 15x110mm, 130mm
Drivetrain and brakes
Front brake
Shimano BR-MT500, Hydr. Disc Brake (180/180)
Rear brake
Shimano BR-MT500, Hydr. Disc Brake (180/180)
Rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano Deore SL-M6100, Rapidfire-Plus

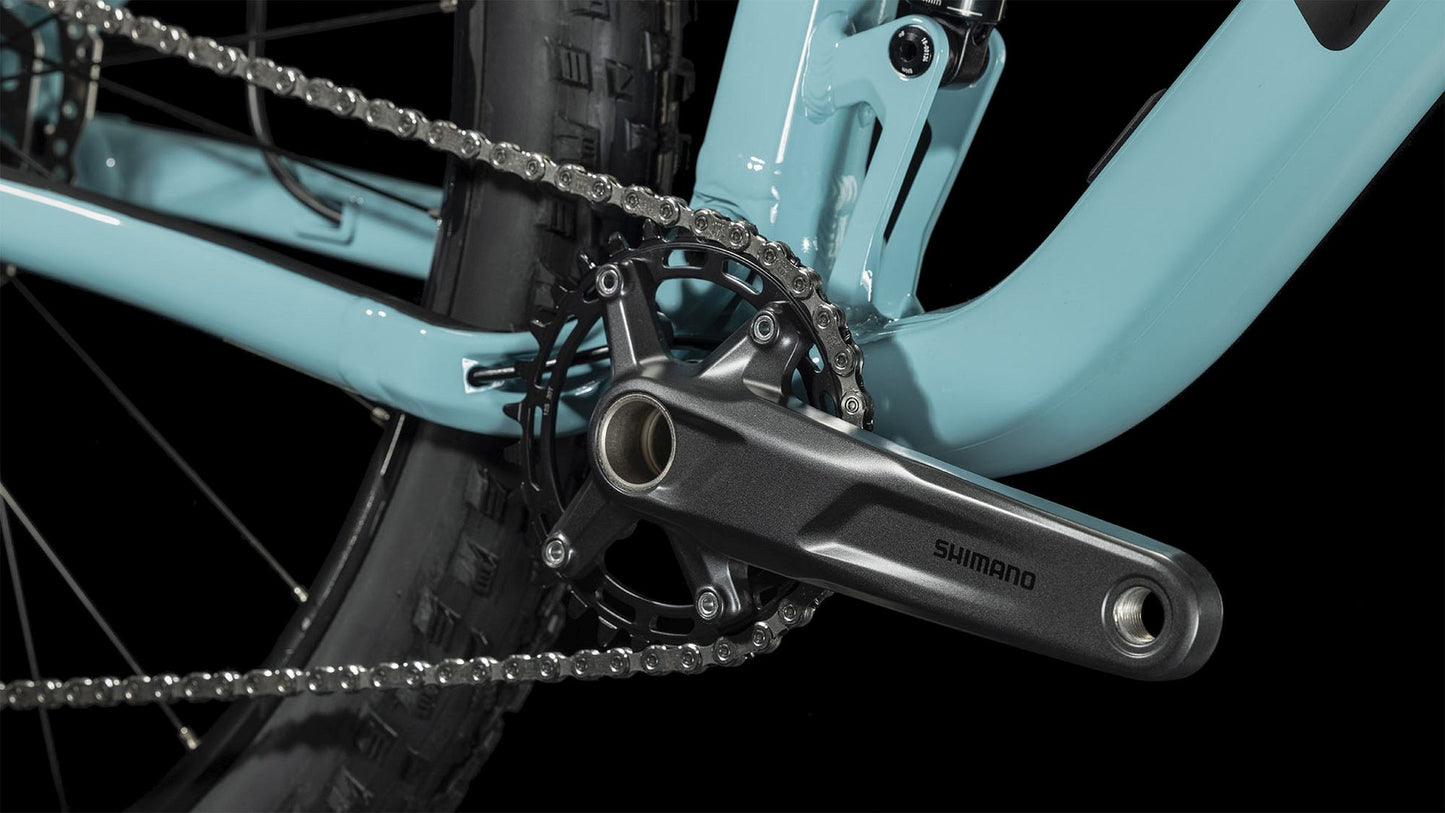

Crankset
Shimano FC-MT511, Boost, 30T
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
Shimano CN-M6100
Cockpit
Headset
Cube Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Handlebar
Newmen Evolution SL 318.25, 760mm
Stem
Newmen Evolution 318.4, 31.8mm
Bar tape or grips
Acid React Pro
Wheels
Wheels
Fulcrum Red 77, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front tyre
Maxxis Forekaster, EXO, Tubeless Ready, 2.35
Rear Tyre
Maxxis Forekaster, EXO, Tubeless Ready, 2.35
Other parts

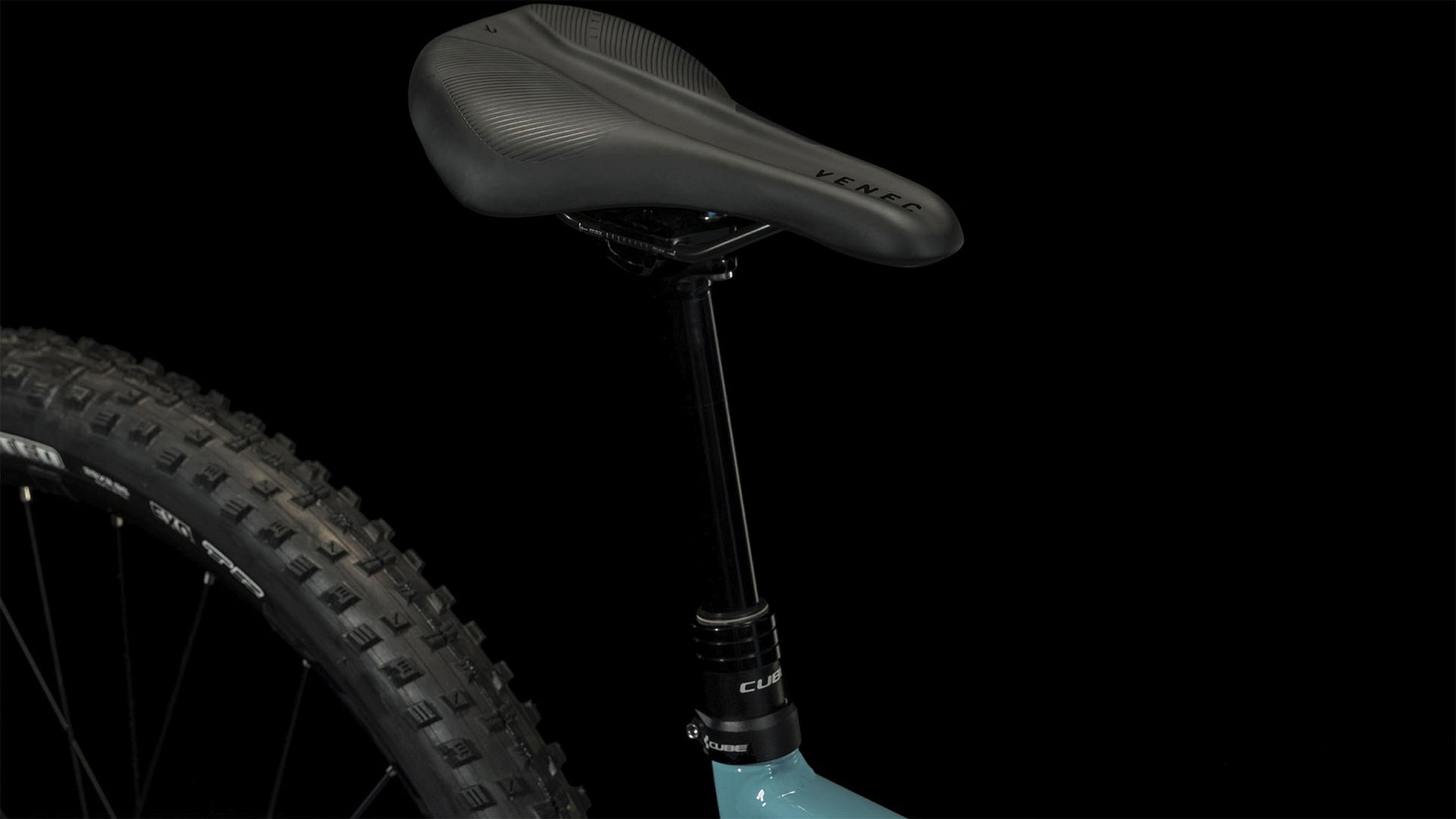

Saddle
Venec Lite
Seatpost
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp
Cube Screwlock, 34.9mm
Pedals
NONE
