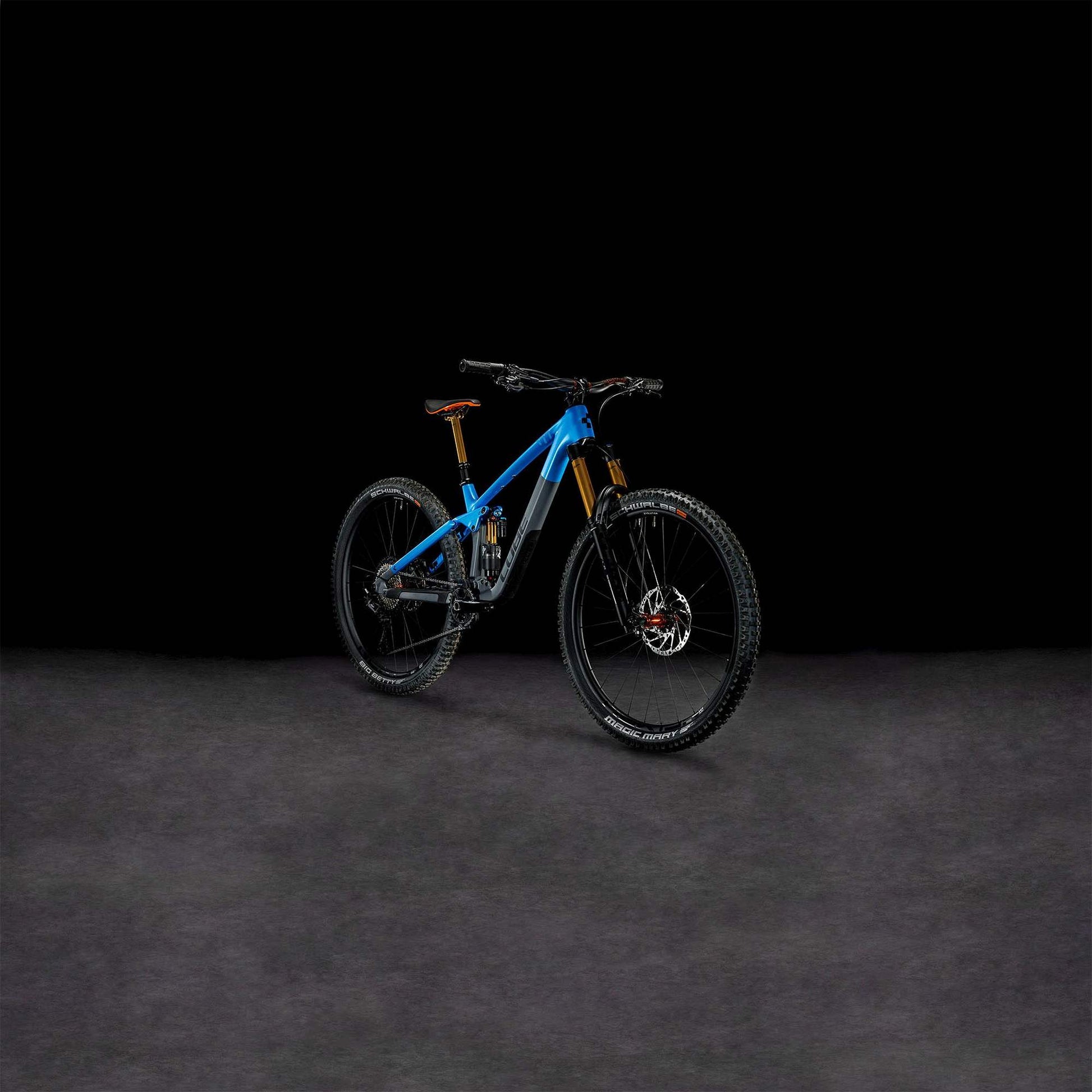

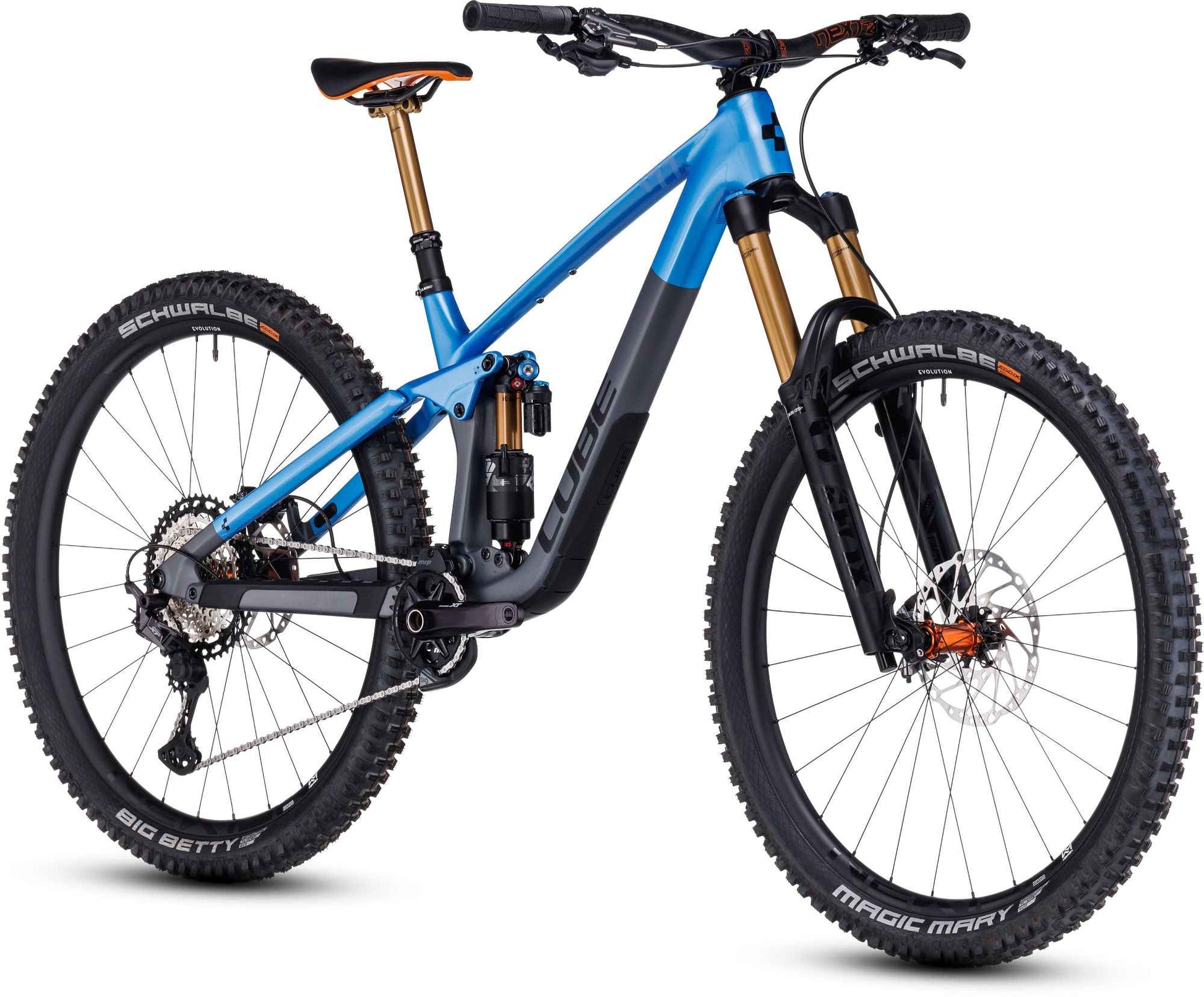

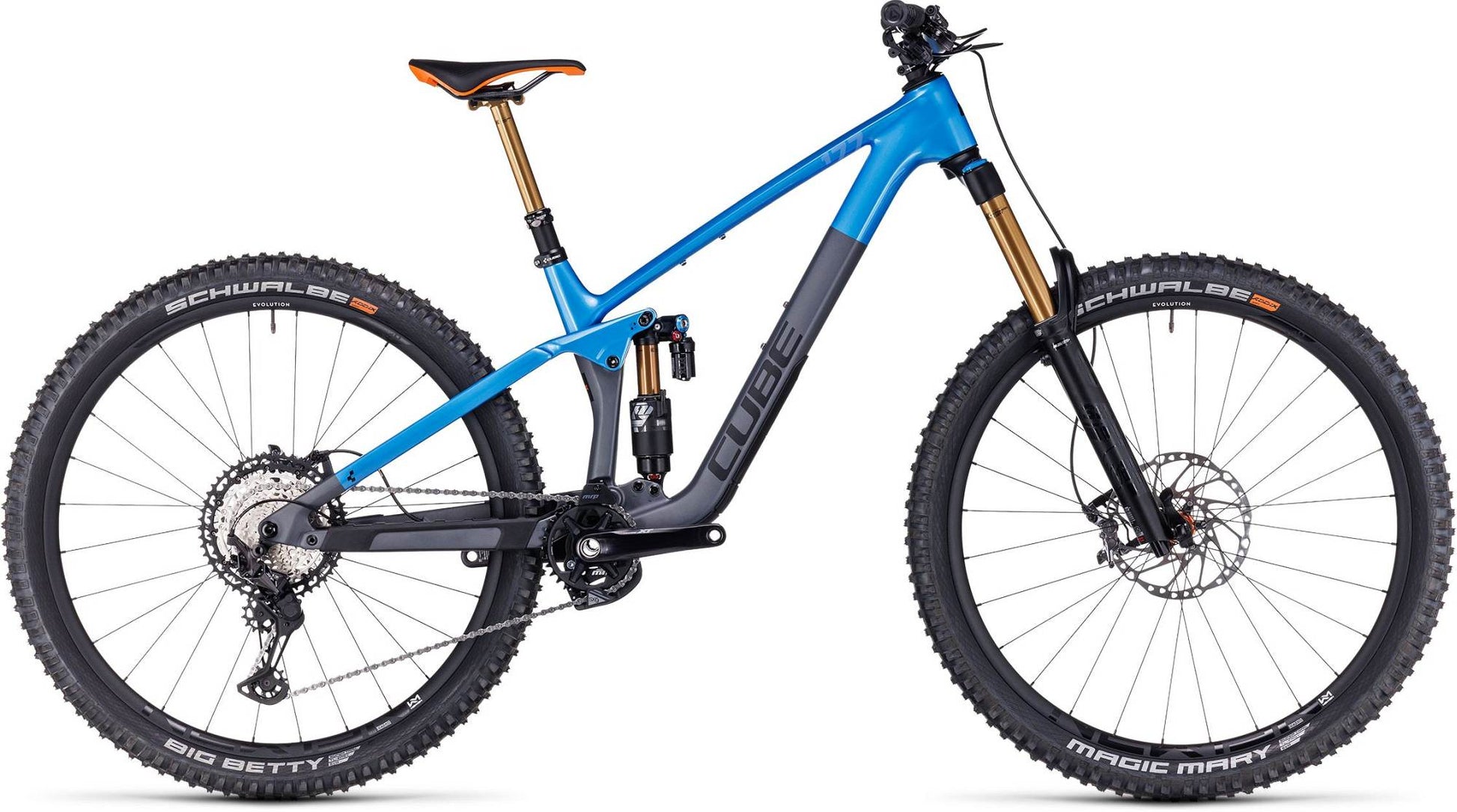

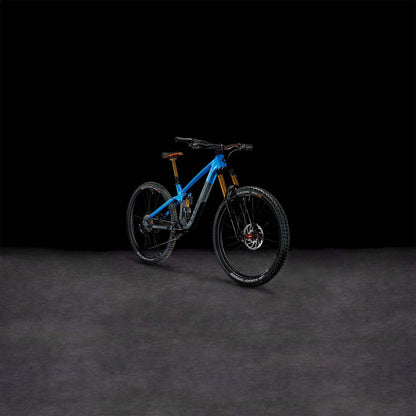

CUBE STEREO ONE77 C:68X SLX 29 ACTIONTEAM
CUBE STEREO ONE77 C:68X SLX 29 ACTIONTEAM
Plus Points
- Frame made of superlight C:68X carbon
- Progressive 4-Link suspension system with 170 mm travel

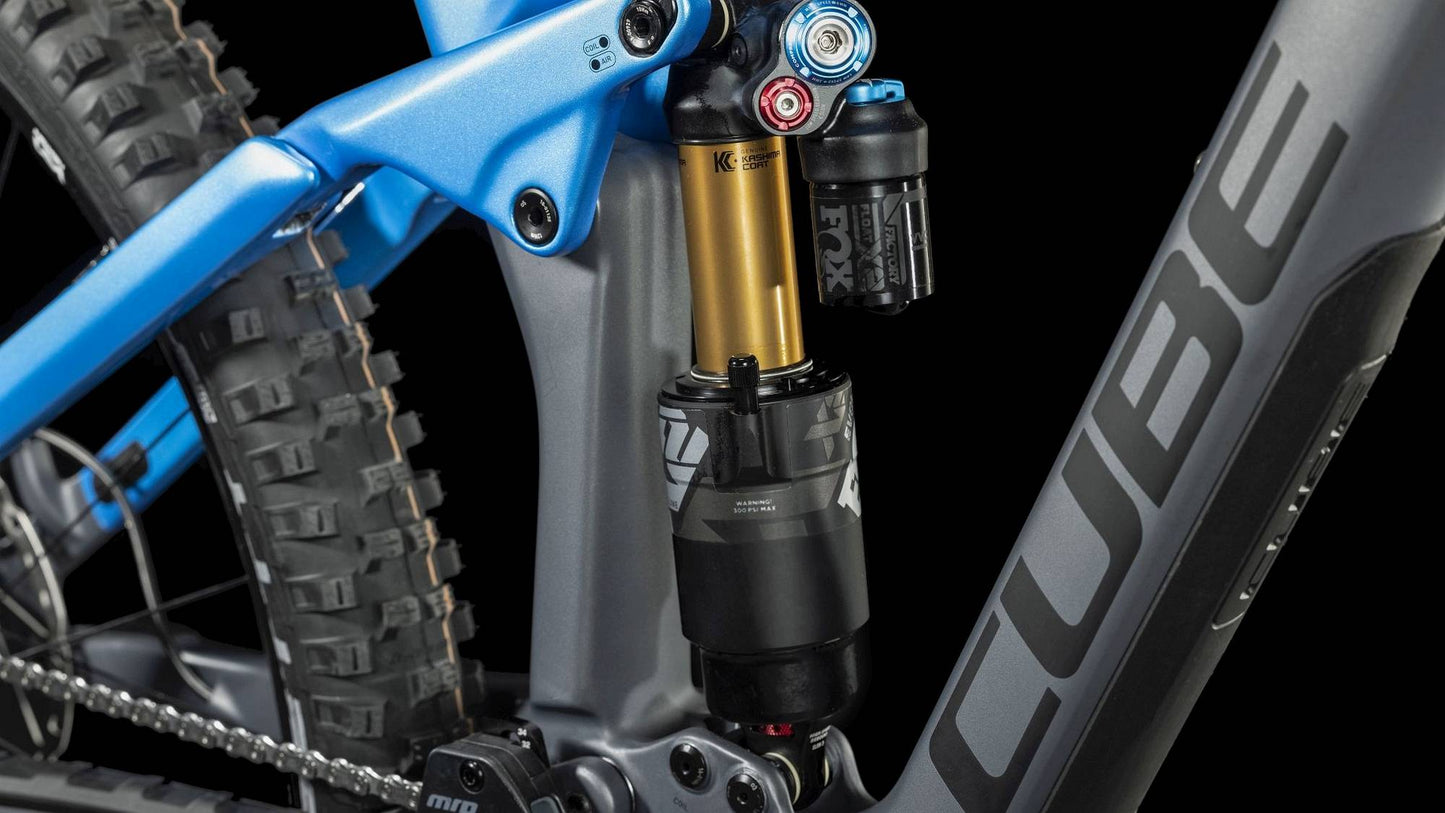

- 170 mm Fox 38 Factory fork in the front, a Float X2 in the back.
- Can also be equipped with a coil spring
- Adjustable head tube angle
- Shimano XT disc brakes with four pistons and extra large brake discs
- Shimano XT 12-speed with 10-51 cassette
- Extra sturdy and grip-friendly 2.4 inch Schwalbe tires
- Seatpost adjustable from the handlebars
Advisory points
- Less versatile than the Stereo ONE55 models
- A bit heavier than the Stereo ONE77 C:68X SLT
Description
CUBE STEREO ONE77 C:68X SLX 29 ACTIONTEAM XXL
Tricky mountain singletrack demands a bike that's up to the task. Luckily, the Stereo ONE77 C:68X SLX pulls no punches. Its newly developed premium C:68X carbon frame is just the start. We chose a Fox 38 Factory Grip 2 fork and Float X2 Factory shock for their ability to shrug off obstacles both large and small. Then we fitted Shimano's ultra-reliable XT 1x12 gears, for their smooth shifting and huge range. Shimano XT hydraulic disc brakes serve up prodigious stopping power, and Schwalbe Magic Mary and Big Betty 2.4in tyres on Newmen Evolution wheels complete the package.
Frame description
It's tough to improve on perfection, but that's what we've done with the new Stereo ONE77 C:68X frame. First up, it's light, at just 2.3kg. That's a difference you can feel on the climbs and descents. There's a flip chip and two mounting points for air and coil shocks, giving a range of options for progression and shock performance. An Angle Set means you can switch between 63.8 and 64.4 head angles and the bottom bracket is threaded for maximum versatility and durability. We deliberately didn't include a frame storage compartment, because we wanted to keep weight down and strength up. But there is a mounting point for a custom trail tool under the down tube. Simply put, you're all set. Bring it on...
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Calculate your size!
Fill in your height and inseam below and click 'Calculate my frame size' to see what size you need. Measure your inseam as follows:
- Stand barefoot with your heels against the wall. Place your feet about 15 centimeters apart.
- Grab a book and place it between your legs, with the short side of the book against the wall. Press the book upward against your crotch, mimicking the idea of a bicycle seat.
- Measure the length from the top of the book to the ground, the distance you measure is your inseam.
Product specifications
Frame
Model code
656400
Model year
2024
Colour
actionteam
Fork

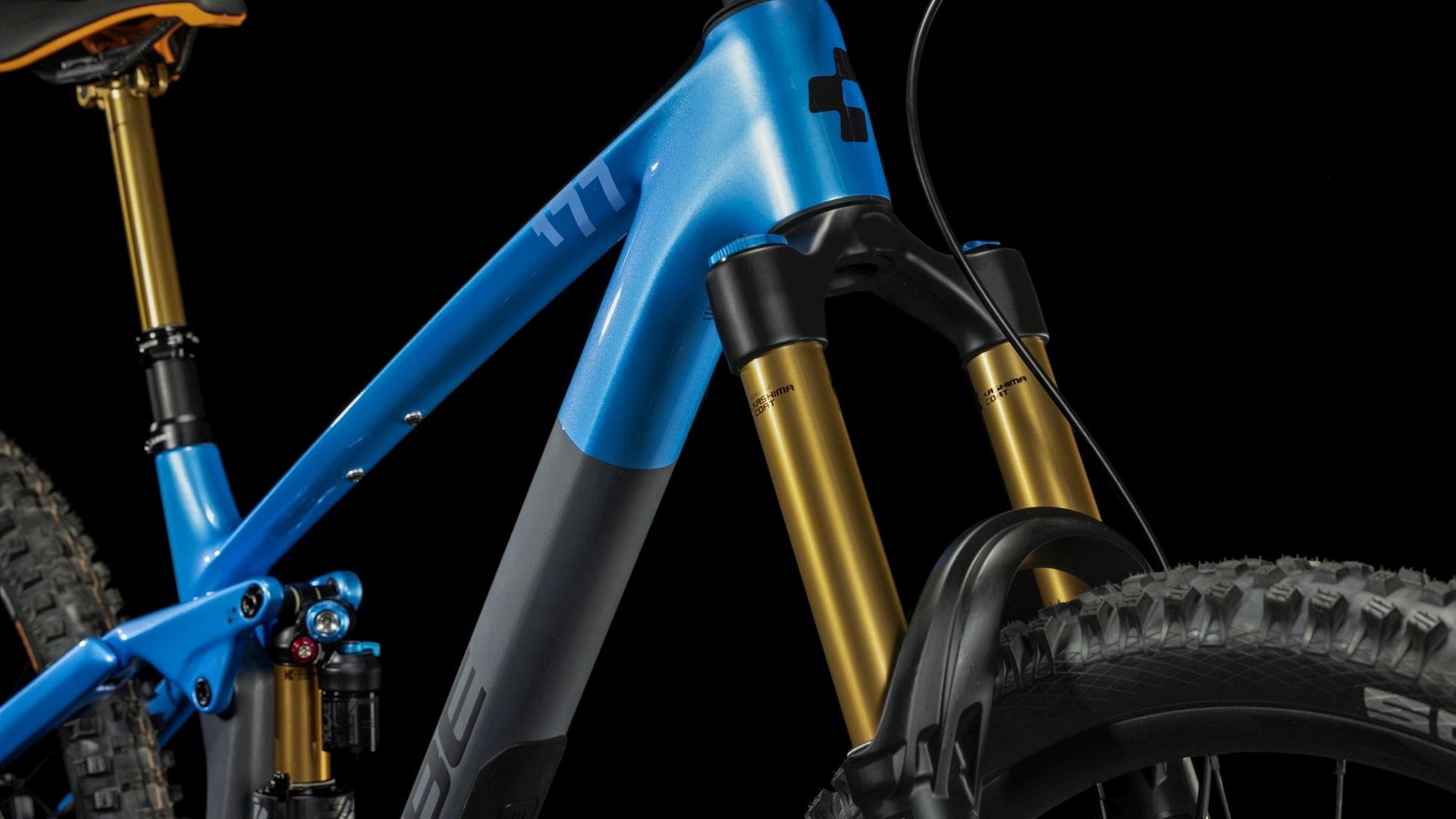

Fox 38 Float Factory FIT GRIP2, Tapered, 15x110mm, 170mm, Kashima Coated
Drivetrain and brakes
Front brake
Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
Rear brake
Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
Rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano XT SL-M8100-IR, Direct Attach
Crankset

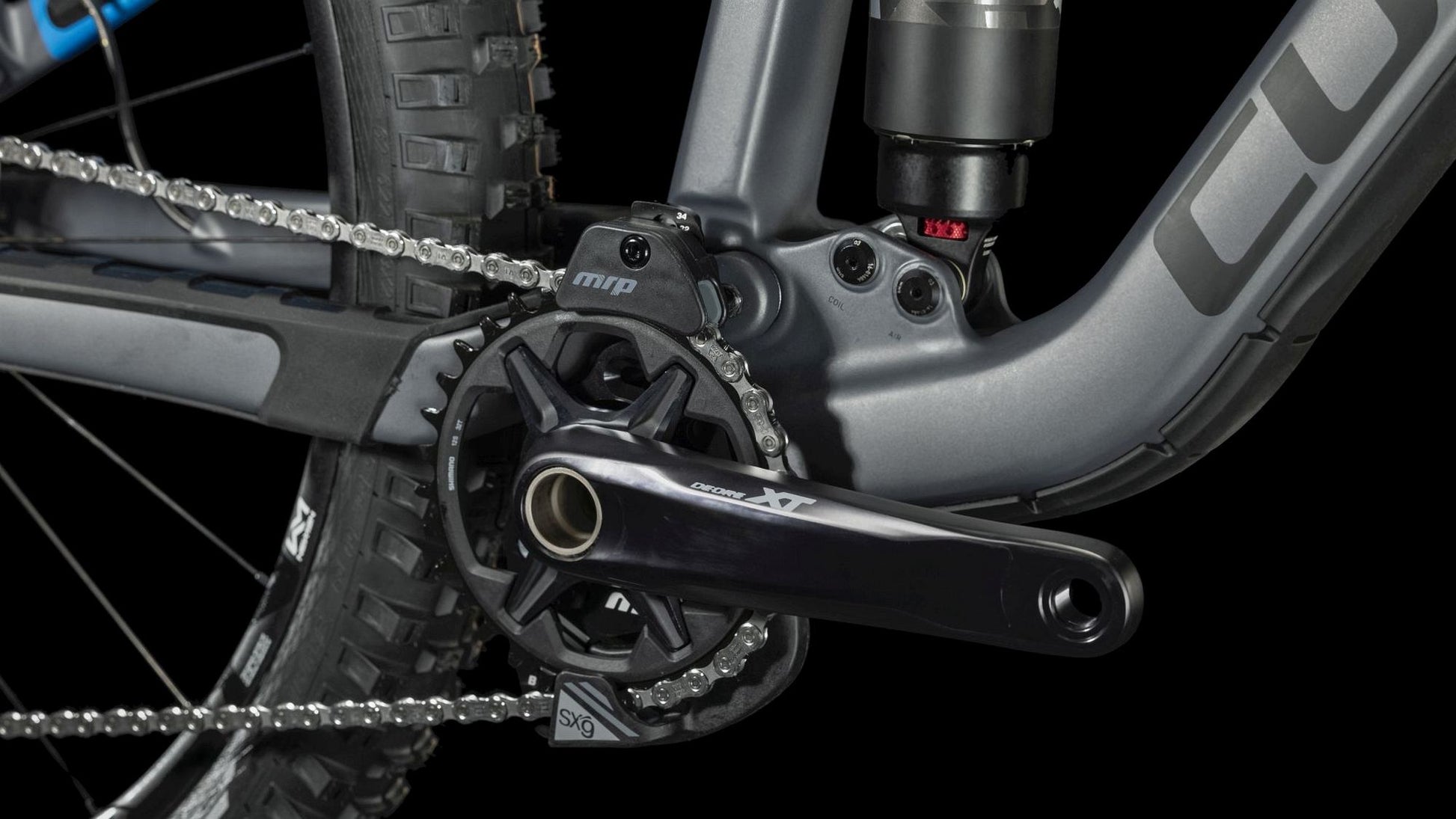

Shimano XT FC-M8100, 32T, Boost
Cassette
Shimano XT CS-M8100, 10-51T
Chain
Shimano CN-M6100
Cockpit

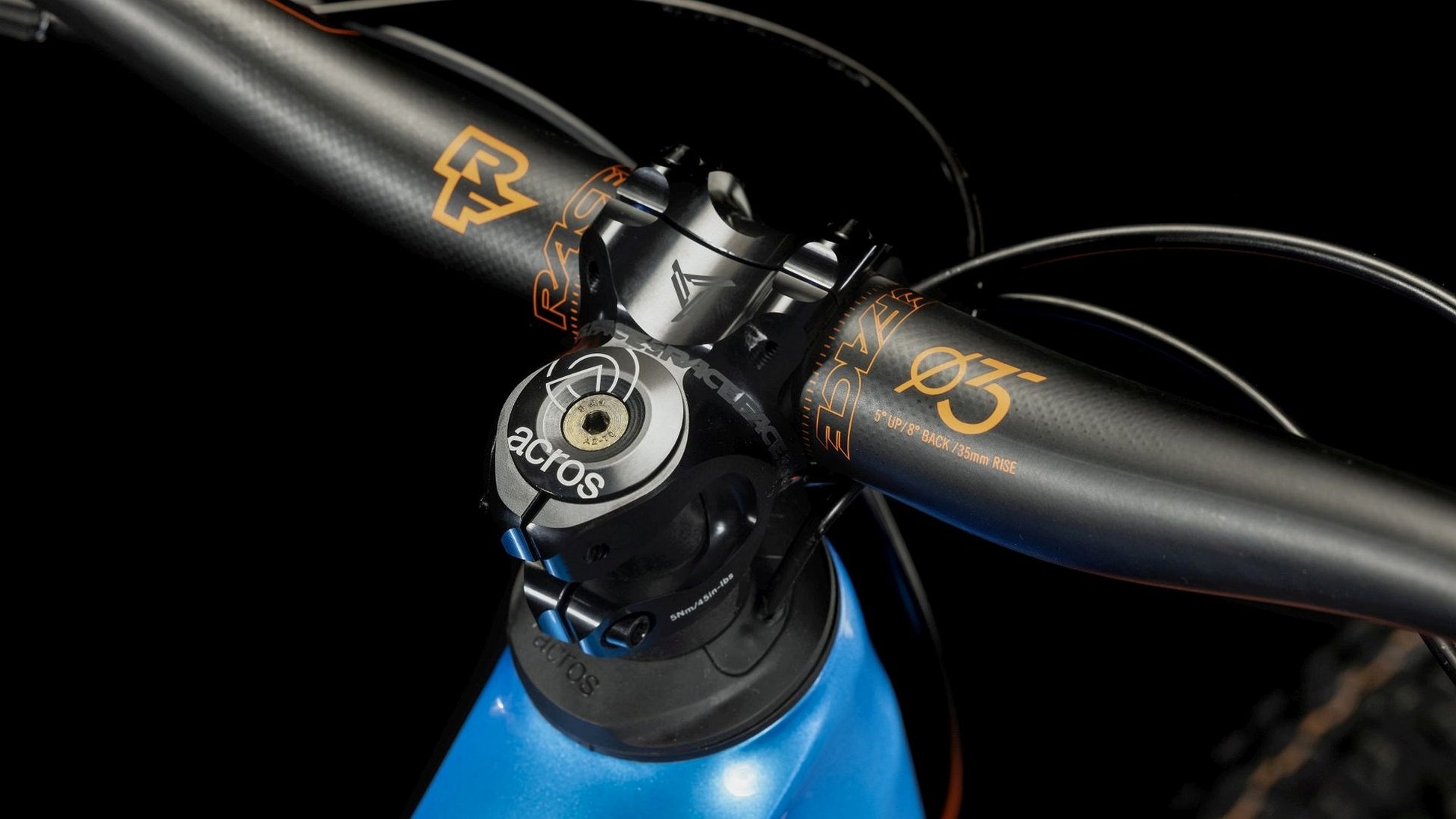

Headset
Cube Integrated, Top 1 1/1", Bottom 1 1/2", Fiber Inserts for 0.4° Angle Adjustment
Handlebar
RaceFace Next R 35 Carbon, 800mm
Stem
RaceFace Turbine R 35
Bar tape or grips
Acid Disrupt, Soft Compound
Wheels
Wheels

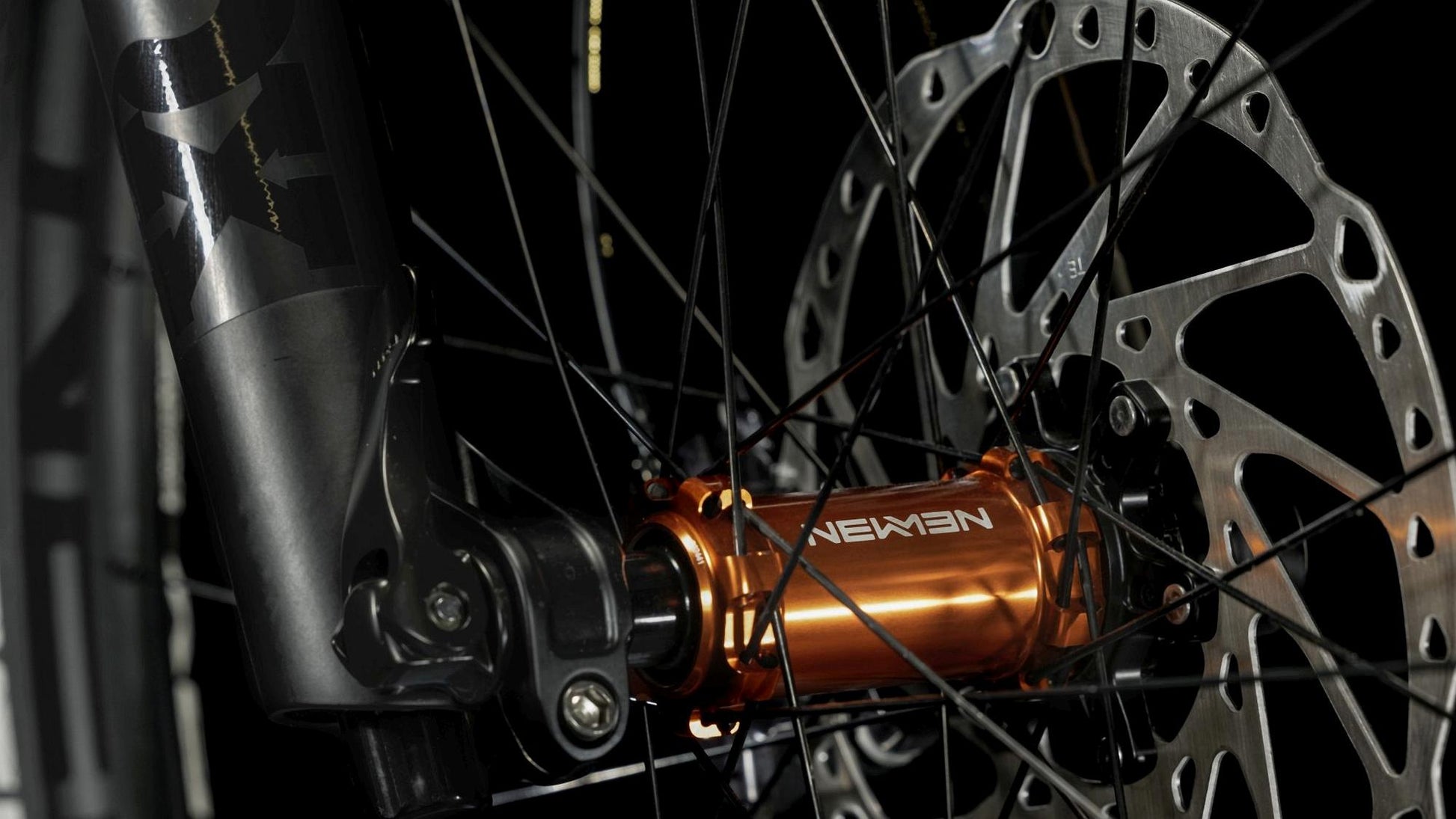

Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Rear Tyre
Schwalbe Big Betty, Super Trail, Addix Soft, Kevlar, 2.4
Other parts
Saddle

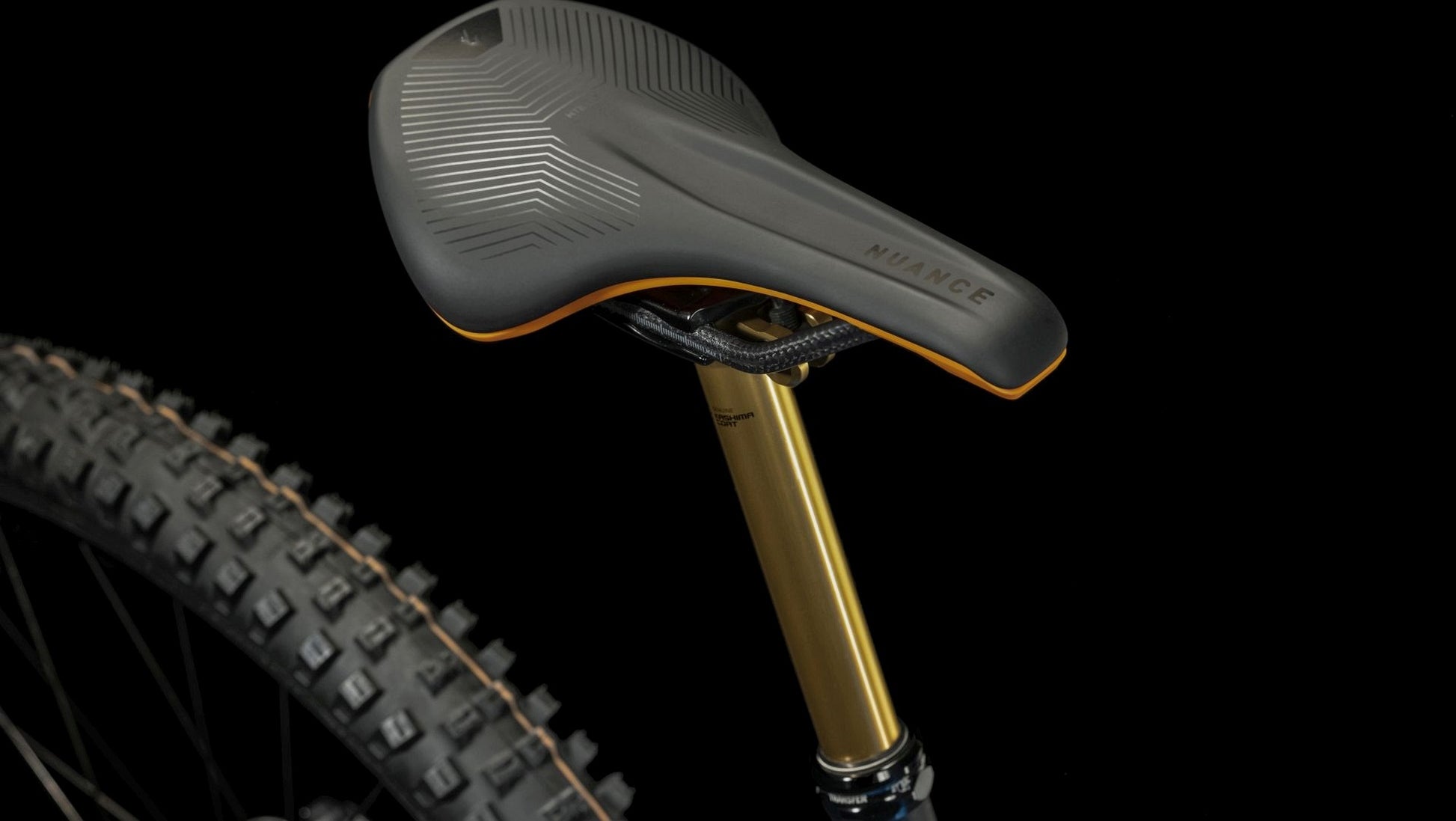

Nuance SLT Carbon
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated
Seatpost clamp
Cube Screwlock, 34.9mm
Pedals
NONE
