What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Size
?
What does frame type mean for CUBE bikes? For sporty bikes, such as road bikes and mountain bikes, the frame type is always unisex, even if there are k. Here, it's all about performance, sizing, and adjustability. CUBE offers models for everyone, with unisex geometry.
Lightweight Superlite aluminium frame with a suspension fork
Available with a classic diamond frame, trapeze frame or step-through frame
Reliable hydraulic disc brakes
Fast, comfortable 47 mm trekking tyres
Fully equipped with a chainguard, mudguards, a rack, dynamo-powered lights and rear kickstand
Only eight gears
No lightweight air suspension
Product description

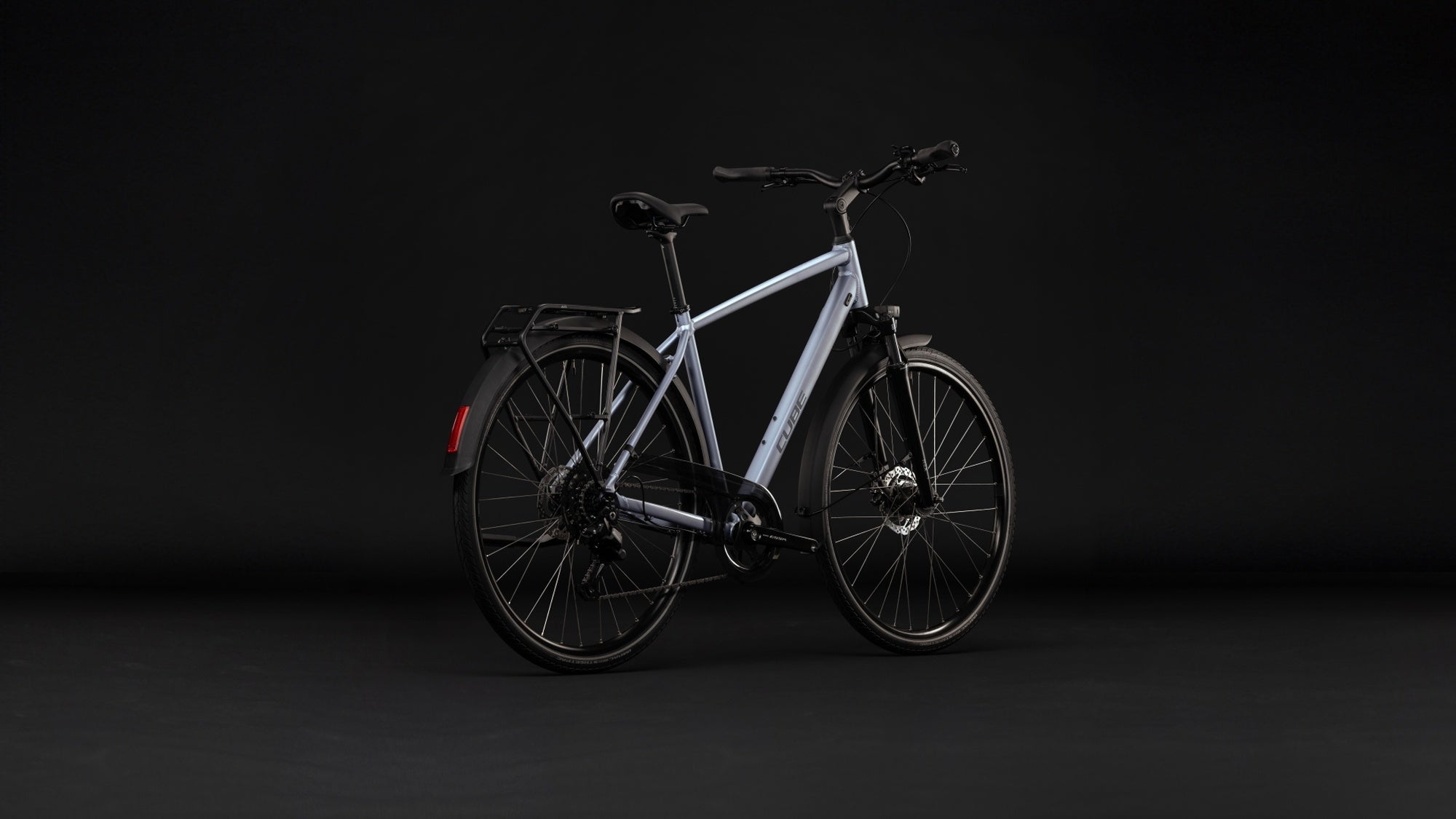

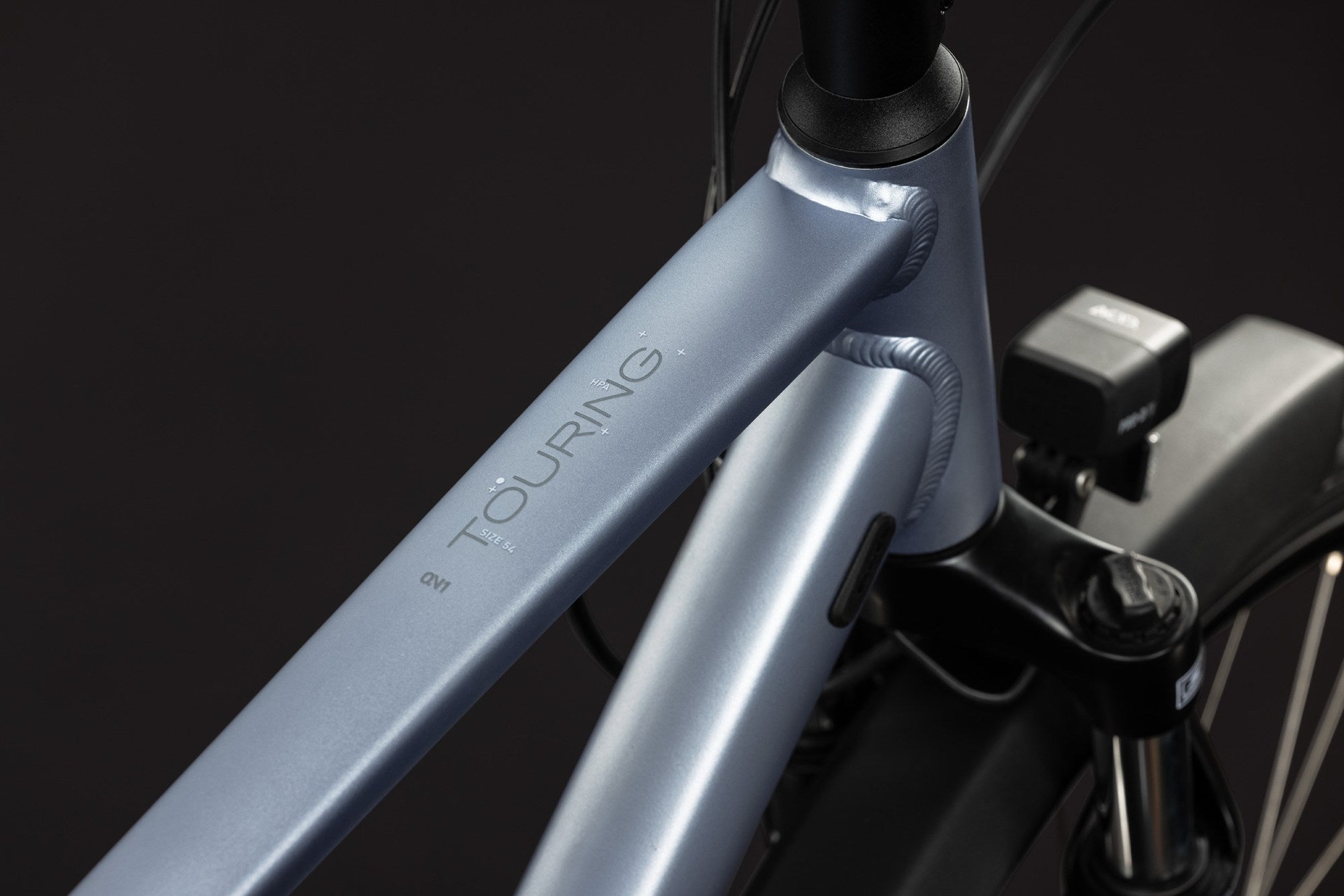

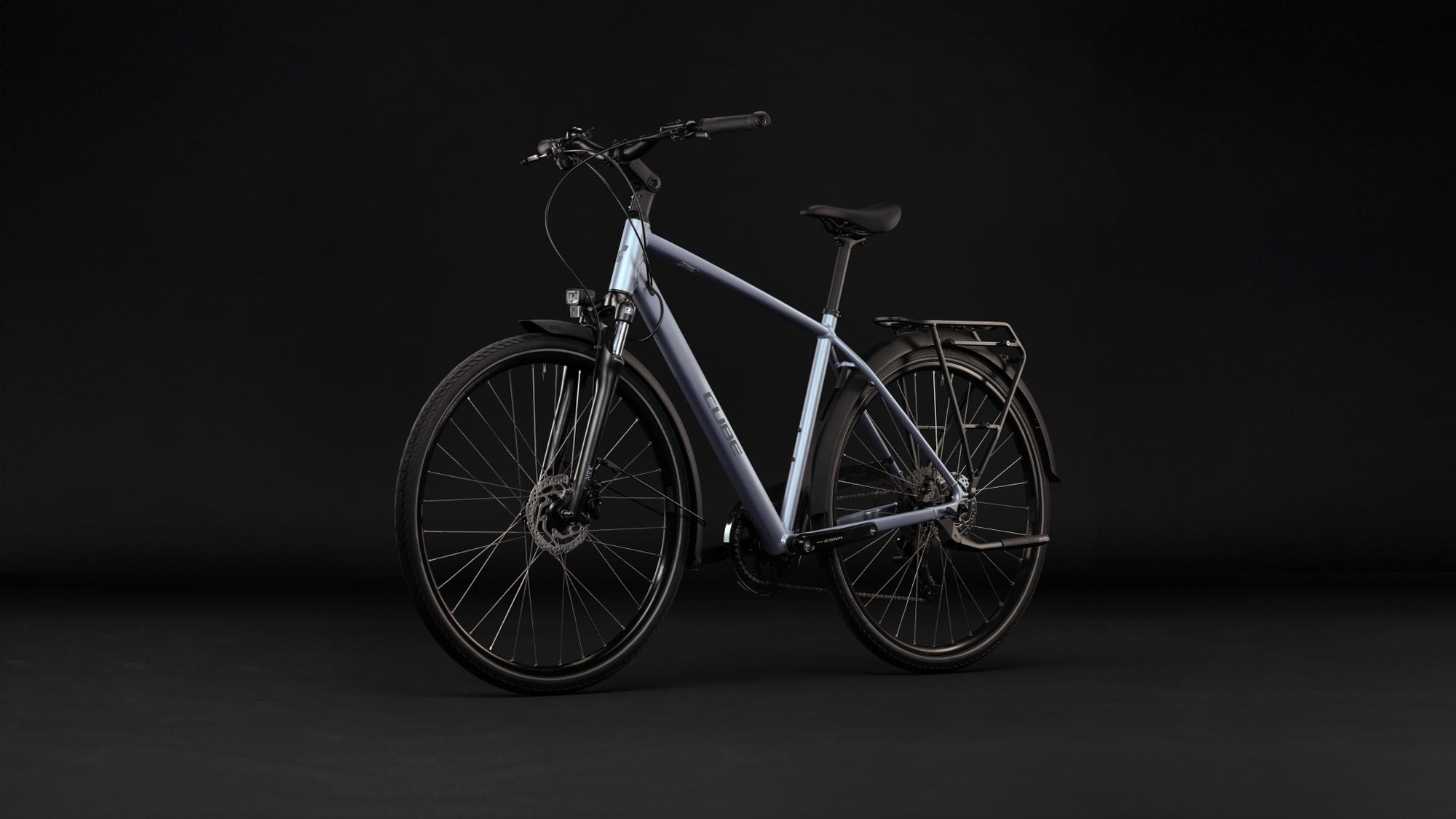

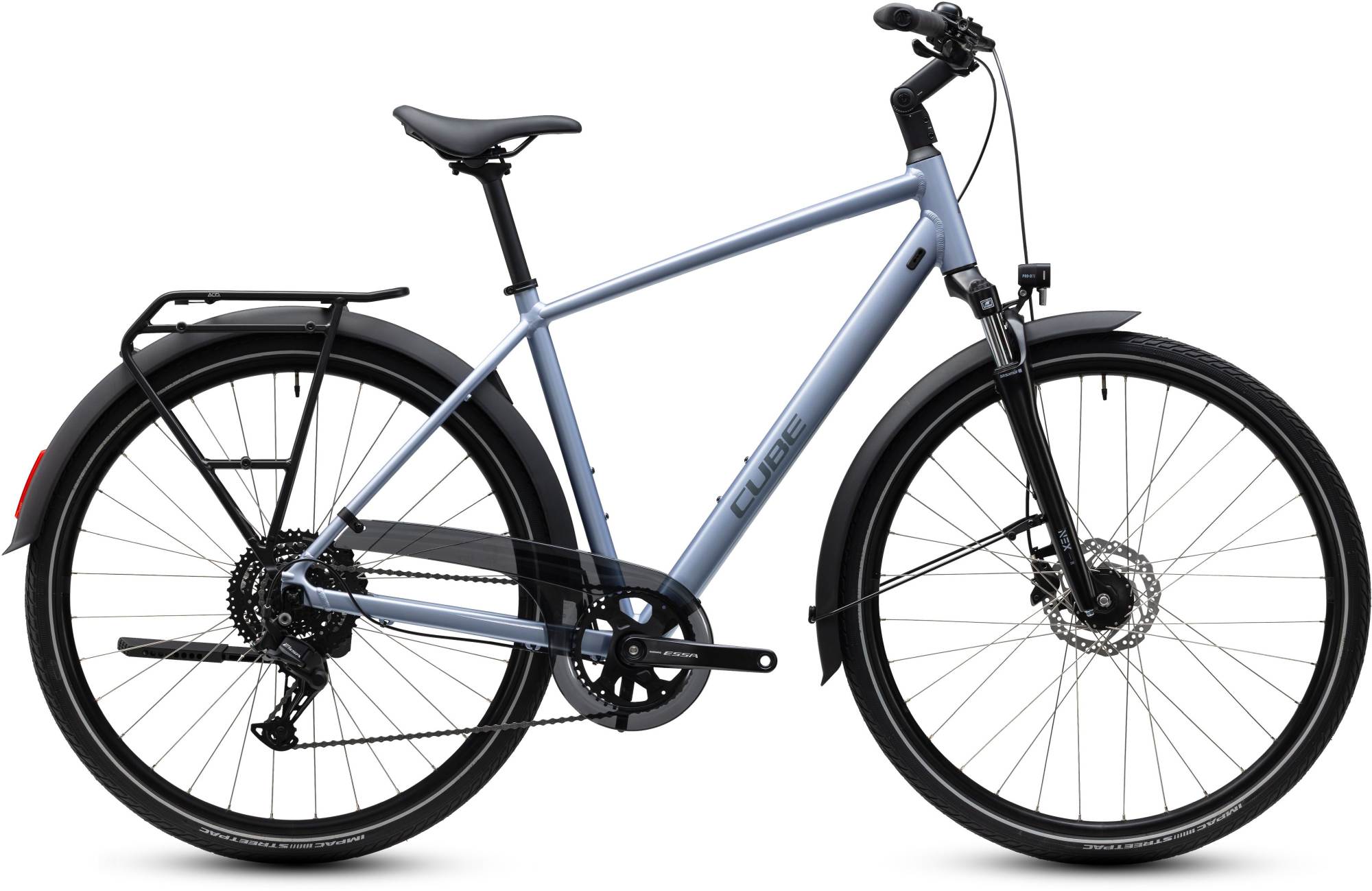

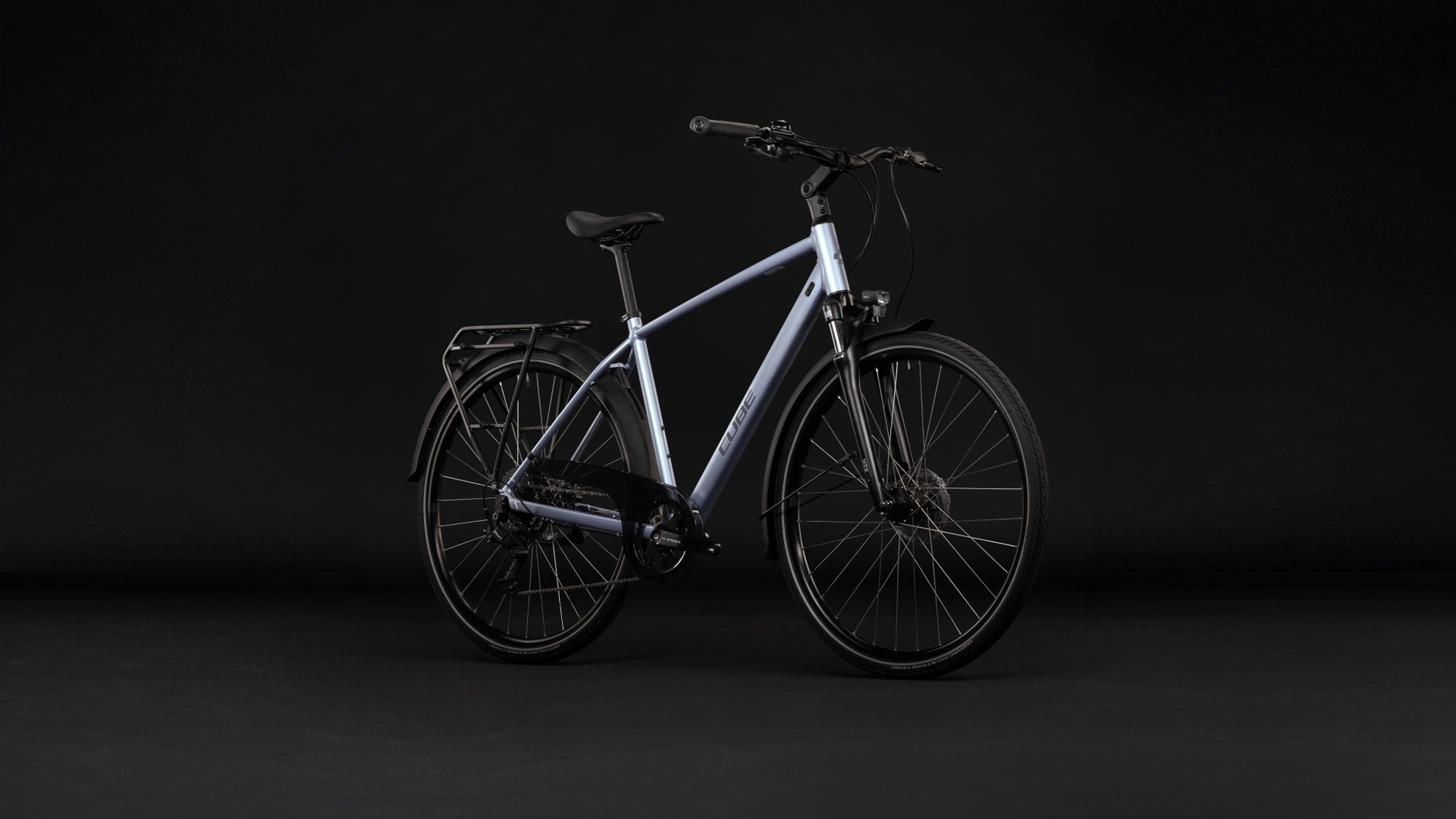

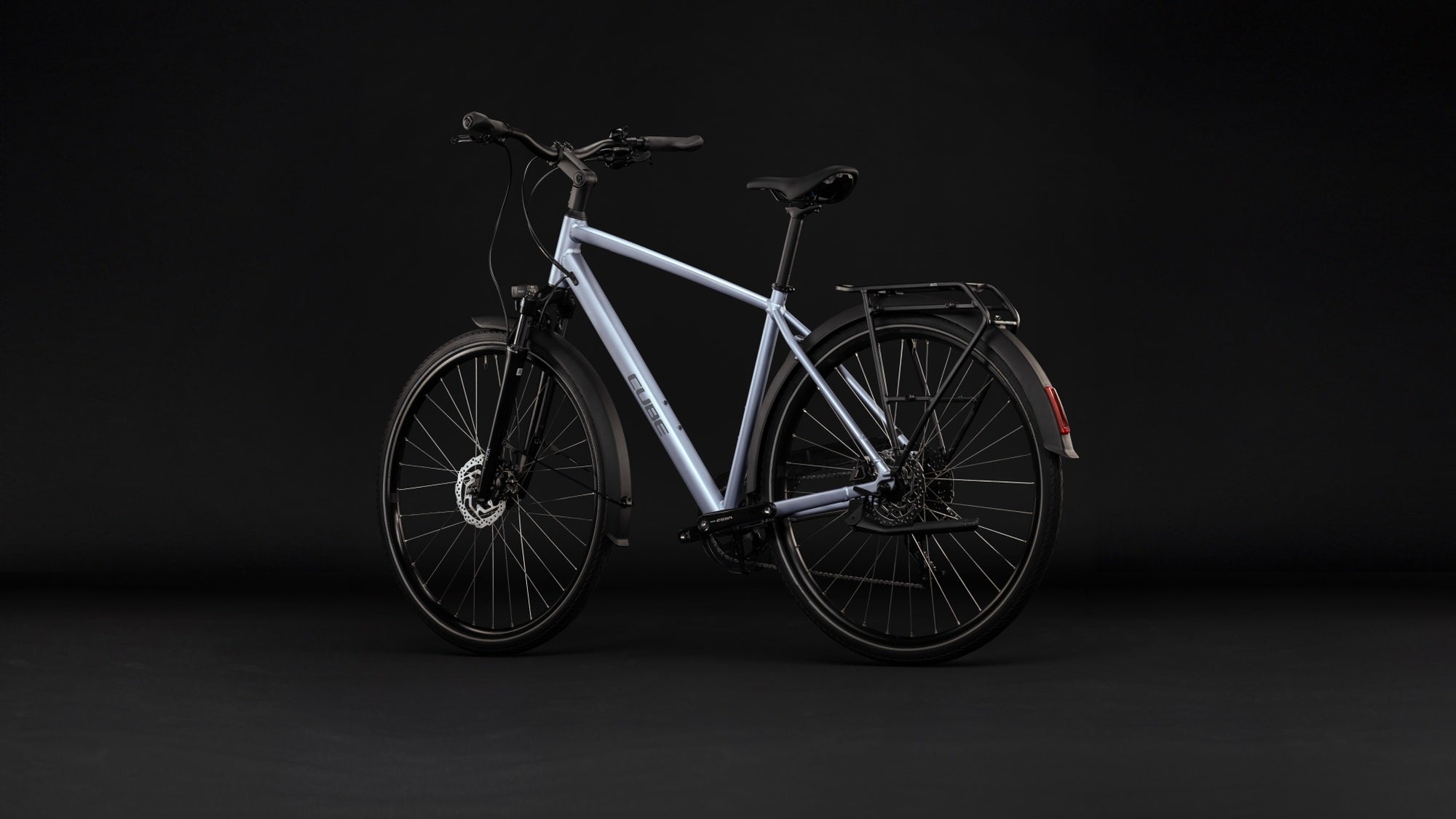

The Touring ONE starts with a lightweight aluminium step-through frame. Variable-wall-thickness tubes strike the ideal balance between strength, weight and riding dynamics. Proven geometry combines efficiency with comfort. Practical details are covered too: the rear dropouts accommodate the semi-integrated rack and rear kickstand. Excellent, because that is the best place for a kickstand when you are riding with panniers.
The equipment is comprehensive too. A suspension fork and wide tyres provide comfort. You can rely on the smooth gears and dependable disc brakes of the Shimano Essa 1x8 groupset 24/7. Dynamo-powered lights, a chainguard and mudguards complete this versatile bike. Whether commuting or heading out for a tour, you will happily take a detour to enjoy the ride for longer.
Read more
Matching accessories
CUBE BOTTLE CAGE HPP MATT BLACK/GLOSSY BLACK
£16.95
ACID BOTTLE CAGE UNIVERSAL BLACK/BLACK
£19.95
Often bought together
Cube Bottle Flow 500 Pattern
£4.95
CUBE Bottle 0,5L Icon Transparent
£4.95
ACID Panniers Travlr Pro 20/2 Black
£109.95
Spare parts
CUBE MECH HANGER 10148 (#148 BLACK) SHORT
£14.95
CUBE TOUCH UP PEN SET SILVER BLUE MATT 2290
£19.95
Specifications
General
Model code
1164110
Model year
2027
Colour
Silverblue/Reflex
Sizes
Classic: 46cm, 50cm, 54cm, 58cm, 62cm
Weight (kg)
?
Gewicht van fiets in maat M zonder pedalen. Grote en kleine maten kunnen lichter of zwaarder zijn: kleine frames hebben vaak minder materiaal → lichter.

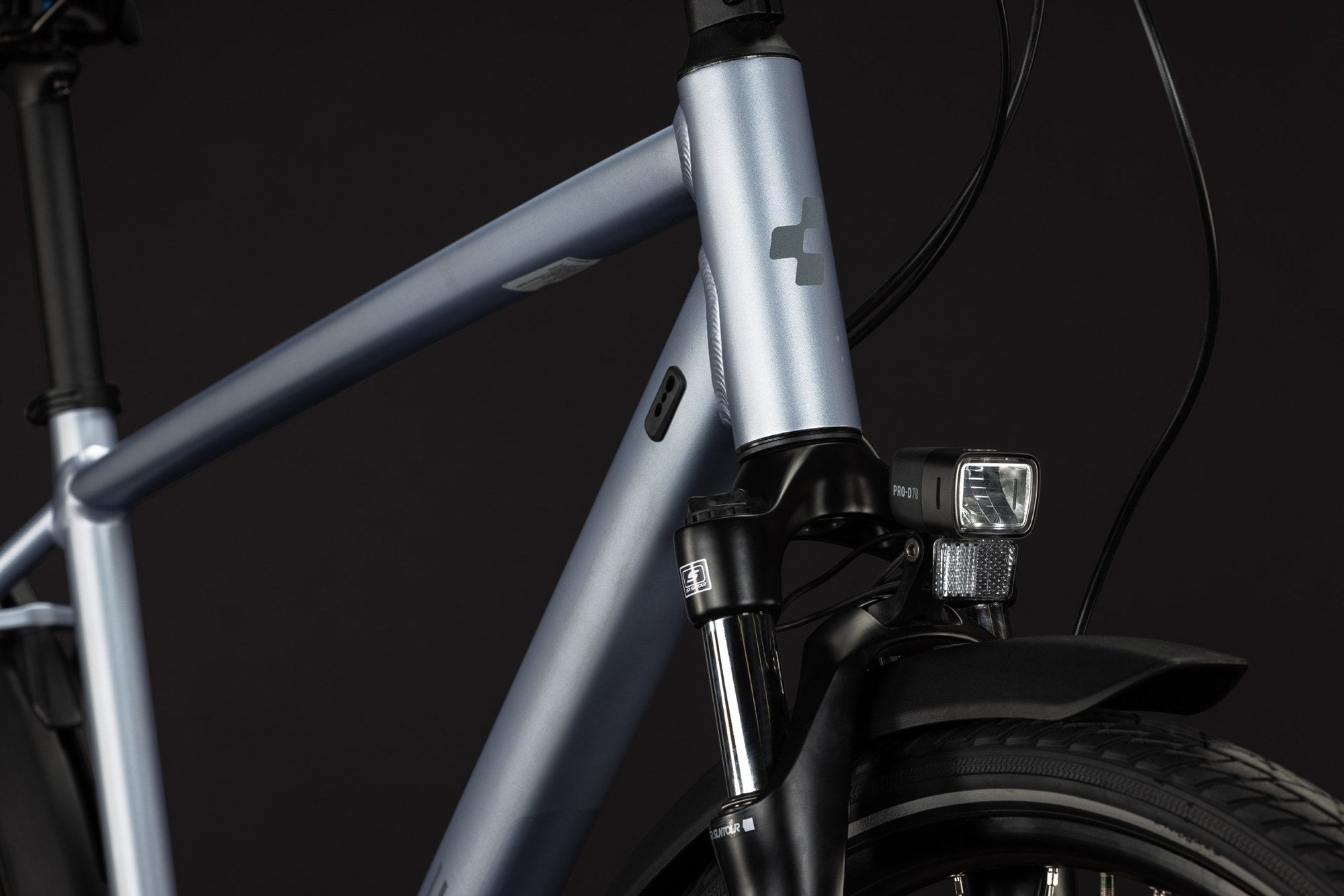

There are both suspension and rigid forks. For extra comfort while cycling, a suspension fork is the best choice. The fork material also varies. It can be made of aluminum, a combination of aluminum and carbon, or completely carbon.
SR Suntour NEX, 63mm
Drivetrain and brakes
Number of gears
8
Rear derailleur
?
Brand and type of derailleur. The number of speeds indicates the number of sprockets.
Shimano Essa RD-U2000-GS, 8-Speed
Shifters
?
Make and type of gear levers.
Shimano SL-M315, Rapidfire-Plus

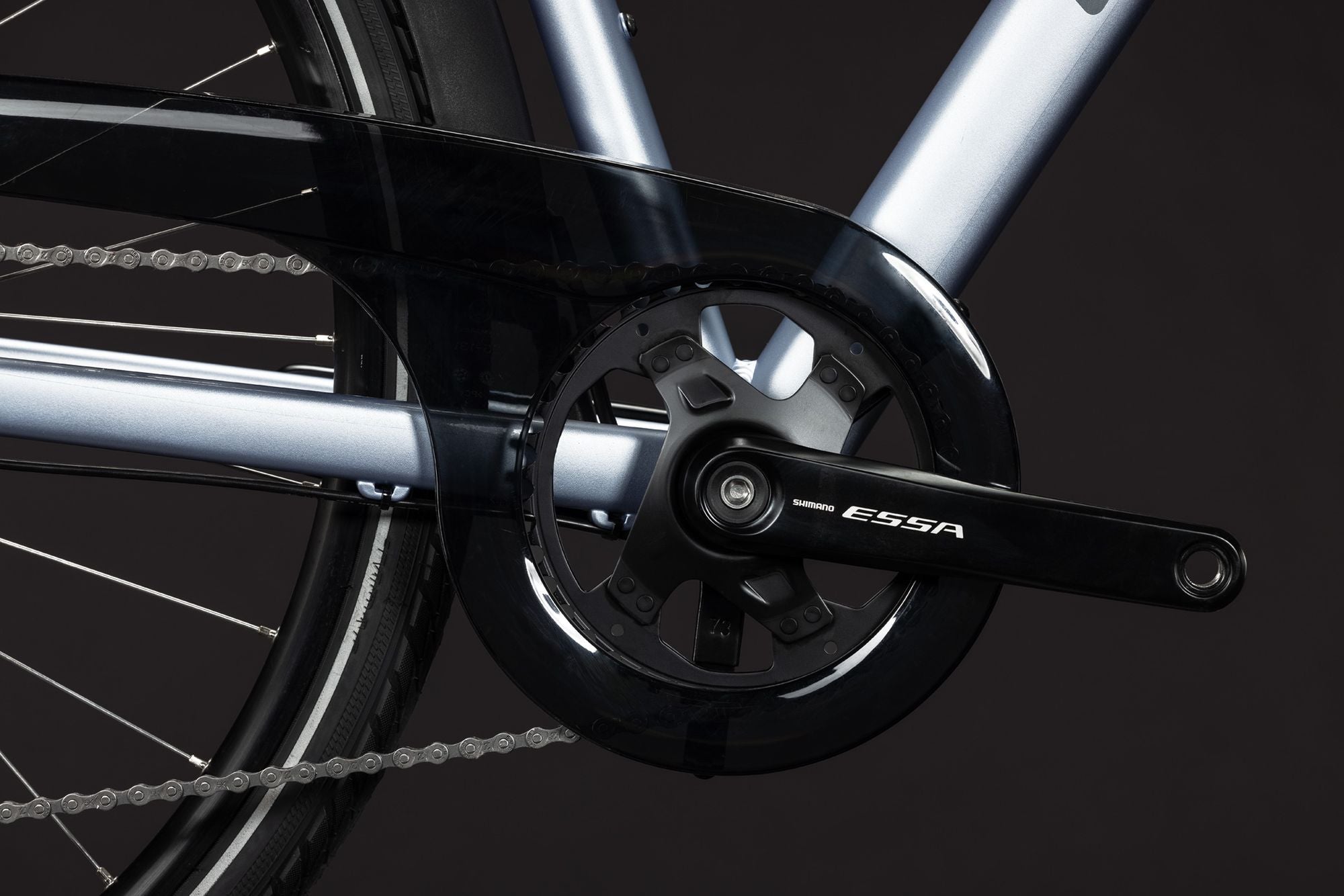

Crankset
?
A crankset is the part of a bicycle that drives the pedals with the chain. It consists of cranks, chainrings and a bottom bracket.
Shimano Essa FC-U2001, 40T
Cassette
?
The set of gears on the back of the bicycle
Shimano Essa CS-HG300, 11-45T
Chain
?
The bike can be driven in two ways; with a bike chain or with a belt drive. In the case of a belt it is always of the brand Gates.
KMC Z8.3
Brake system front
?
Brand, type of brake system and diameter of the brake disc.
The bearing mechanism in the bicycle frame in which the front fork rotates, allowing you to steer smoothly.
Cube FPH863, Semi-Integrated

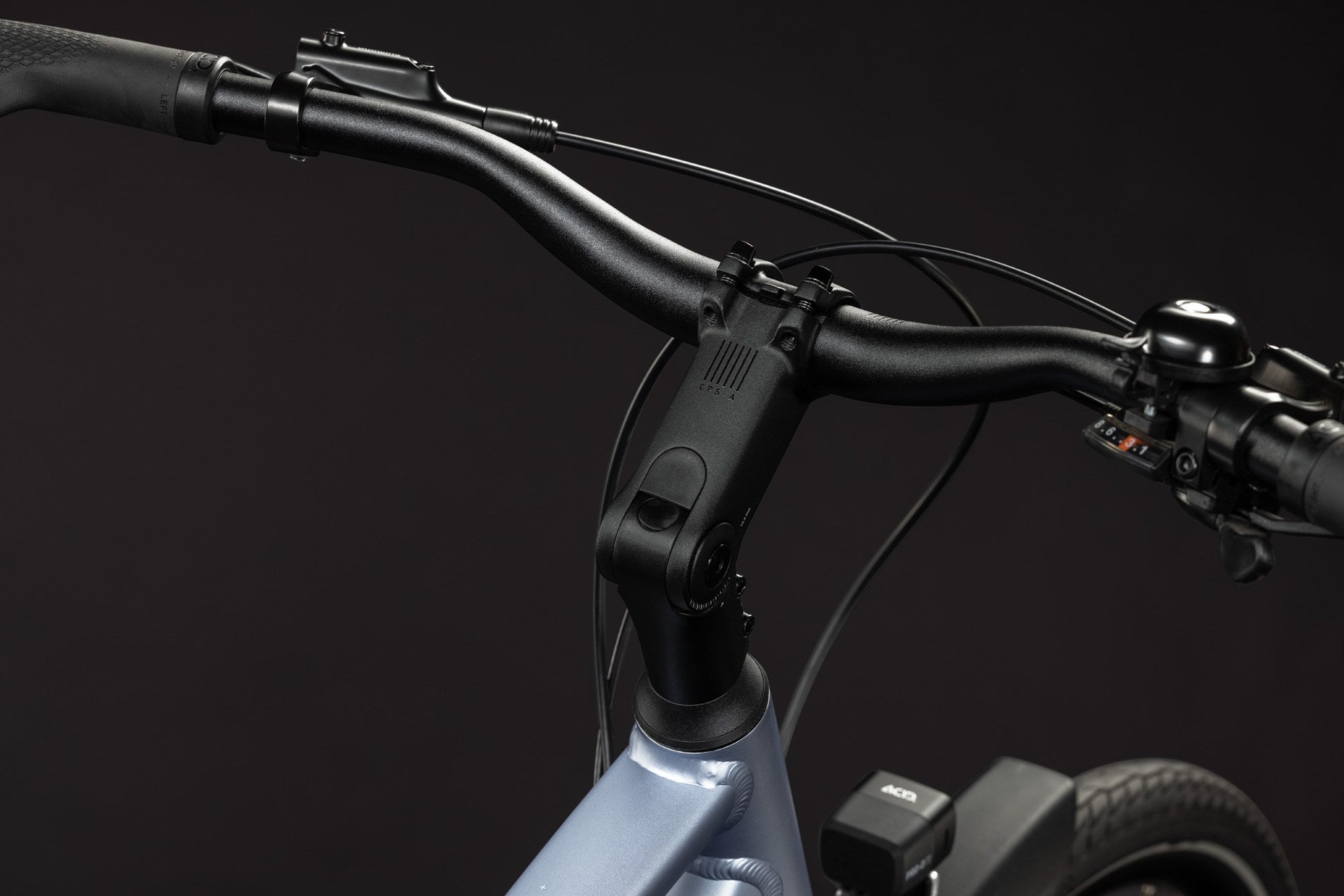

Handlebar
Cube Comfort Trail Bar, 680mm
Stem
Acid Adjustable Stem, 31.8mm
Wheels
Rims
Acid EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear hub
Shimano FH-QC300-HM, QR, Centerlock
Front tyre
?
Front tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube Trekking, 47-622
Rear tyre
?
Rear tire type, material and size where the first number is the width and the second number is the circumference in millimeters.
Cube Trekking, 47-622
Other parts
Seat
Acid Sequence 160 Pro Bubble Foam
Seatpost
?
There are both sprung and fixed seatposts. For extra comfort while cycling, a sprung seatpost is the best choice.
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Screwlock, 31.8mm
Pedals
?
The bike usually comes with pedals. If not, it is indicated here.
Acid PP Trekking
Front lighting
Acid Pro-D 70
Rear lighting
Acid Pro-D SIC 2.0
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid SIC 2.0 50
Bell
Nuvo Bell

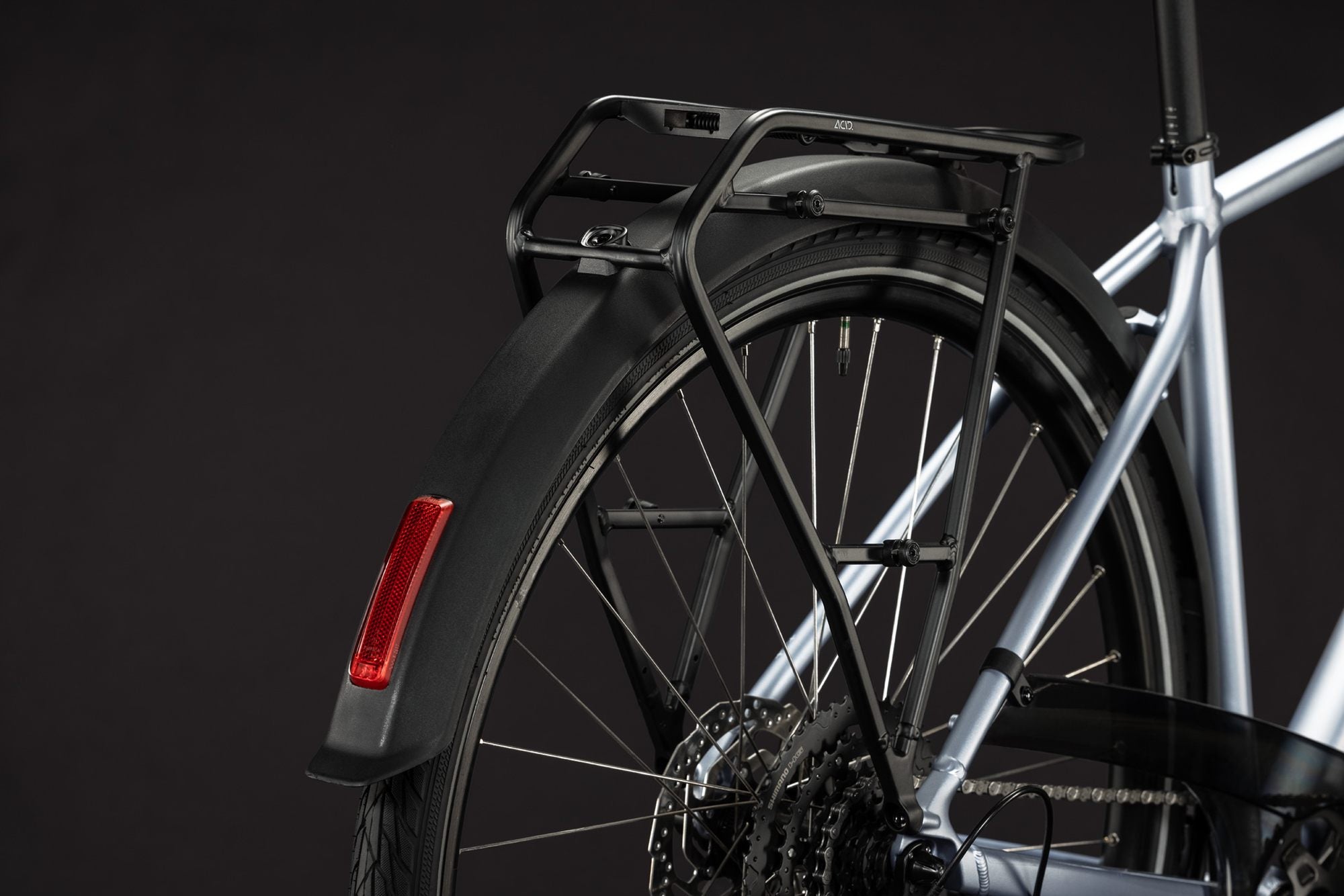

Carrier
Acid SIC 2.1, RLink
Touch up pen
?
Een lakstift is een snelle manier om kleine krasjes en steenslag op je fiets te herstellen. Een lakstift wordt niet standaard meegeleverd bij de fiets. Bestel hem apart via het artikelnummer hier rechts aangegeven. Het kan voorkomen dat er (nog) geen lakstift beschikbaar is.
Geen lakstift beschikbaar / No touch-up paint kit available
Slot
?
Een ART-2 keurmerk op een fietsslot garandeert een goede diefstalbeveiliging en wordt door de meeste verzekeraars geëist voor de allriskverzekering van fietsen (en e-bikes). Het keurmerk, afgegeven door de Stichting ART, betekent dat het slot uitgebreide testen heeft doorstaan, zoals knip- en aanvalstesten.
Niet inbegrepen – apart verkrijgbaar / Not included – available separately
